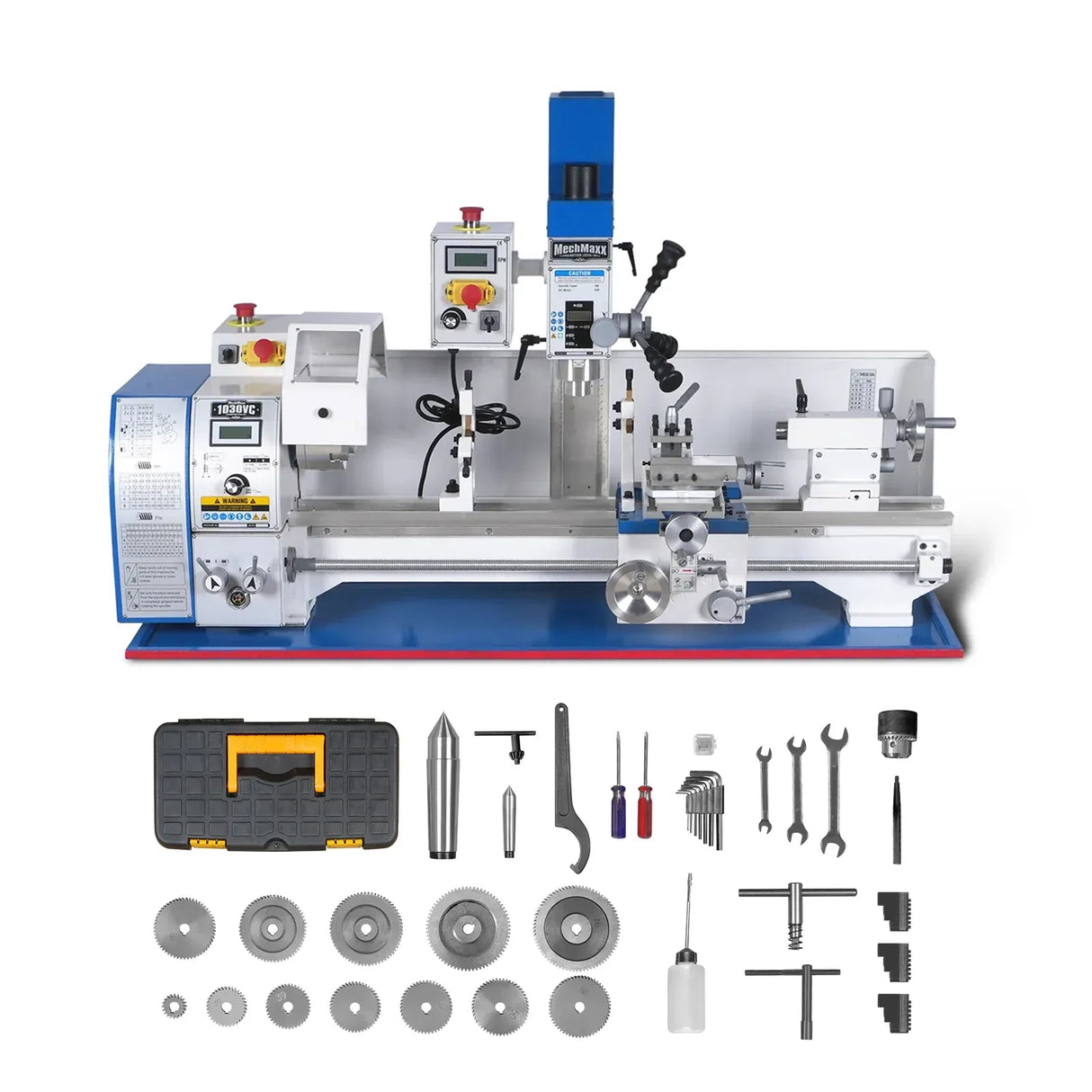

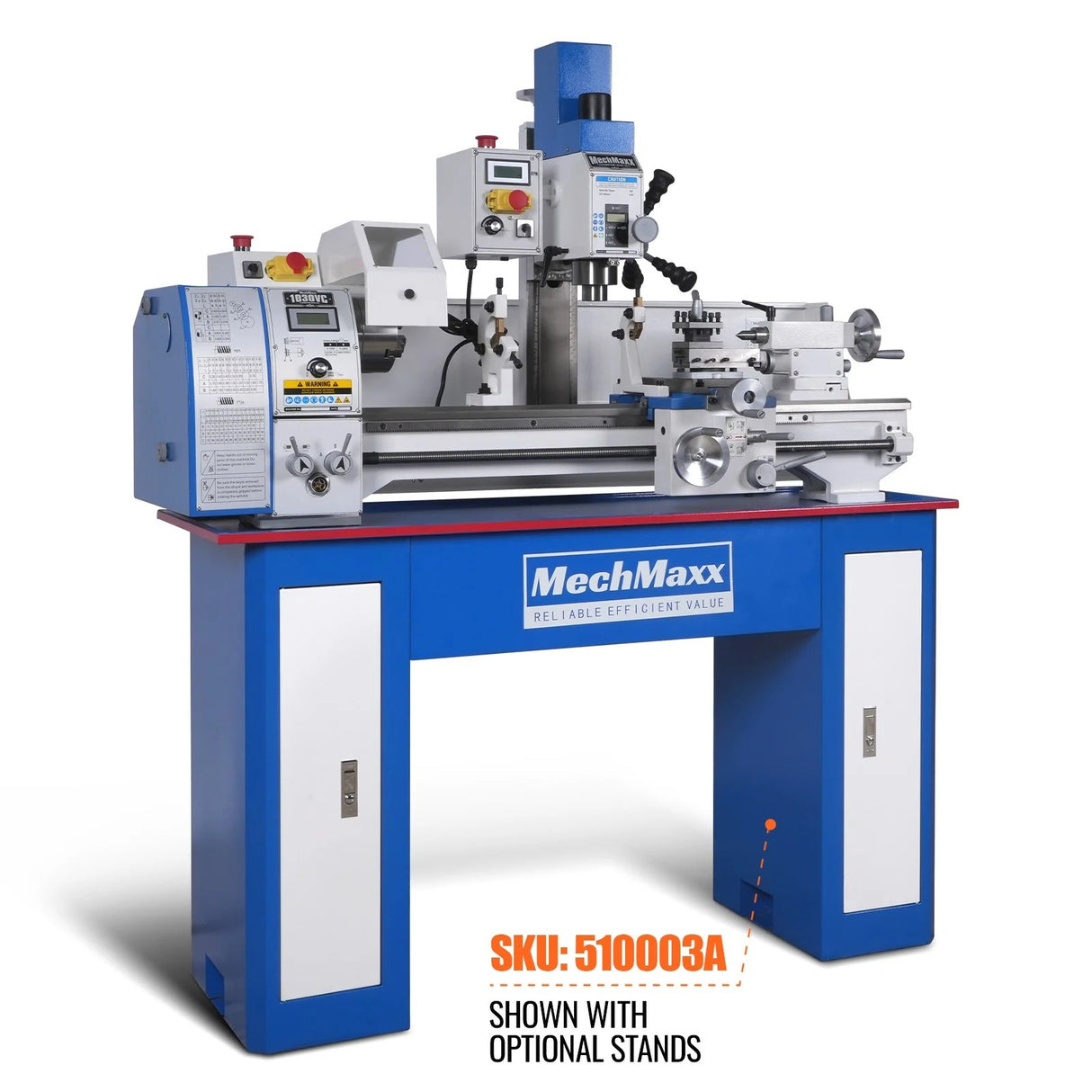

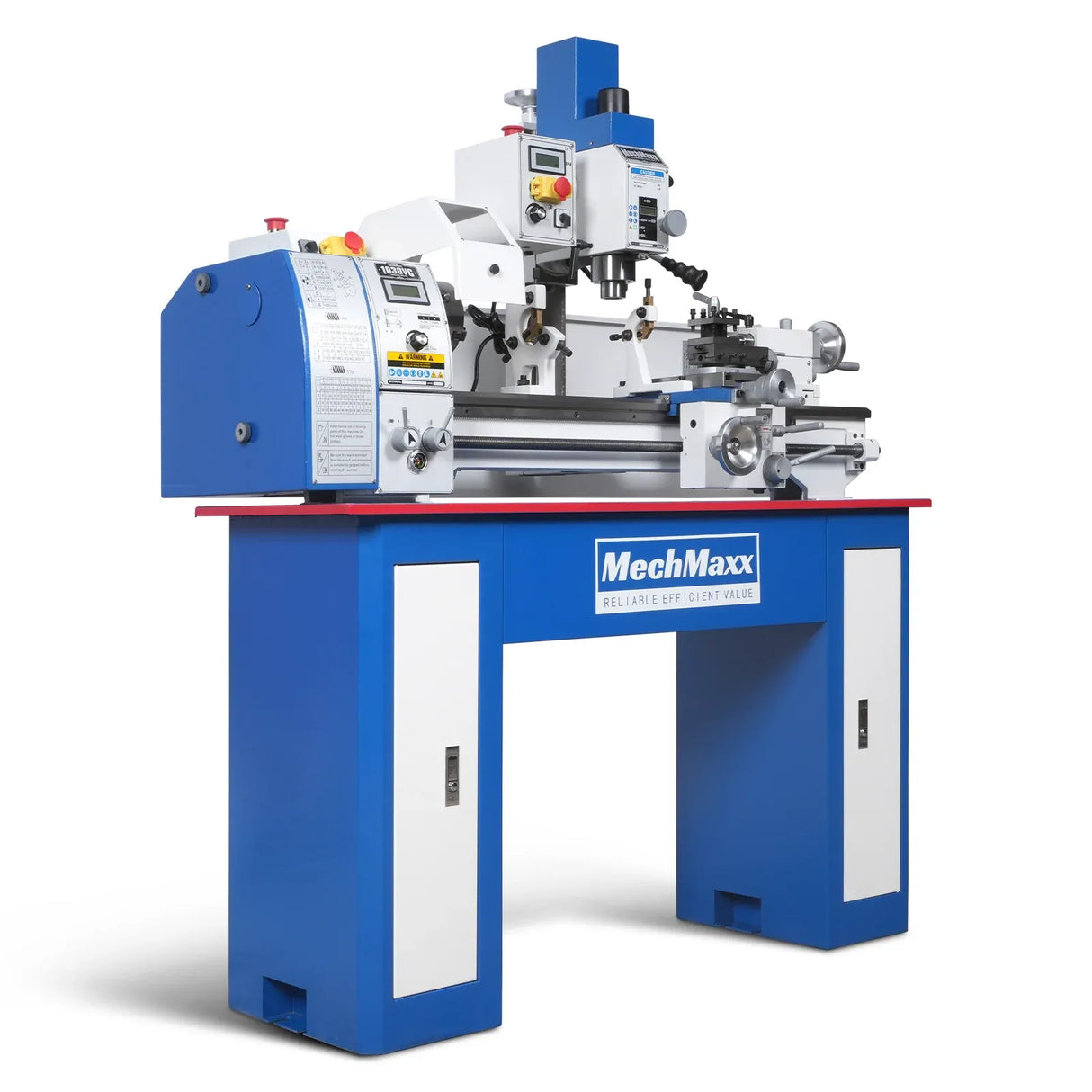

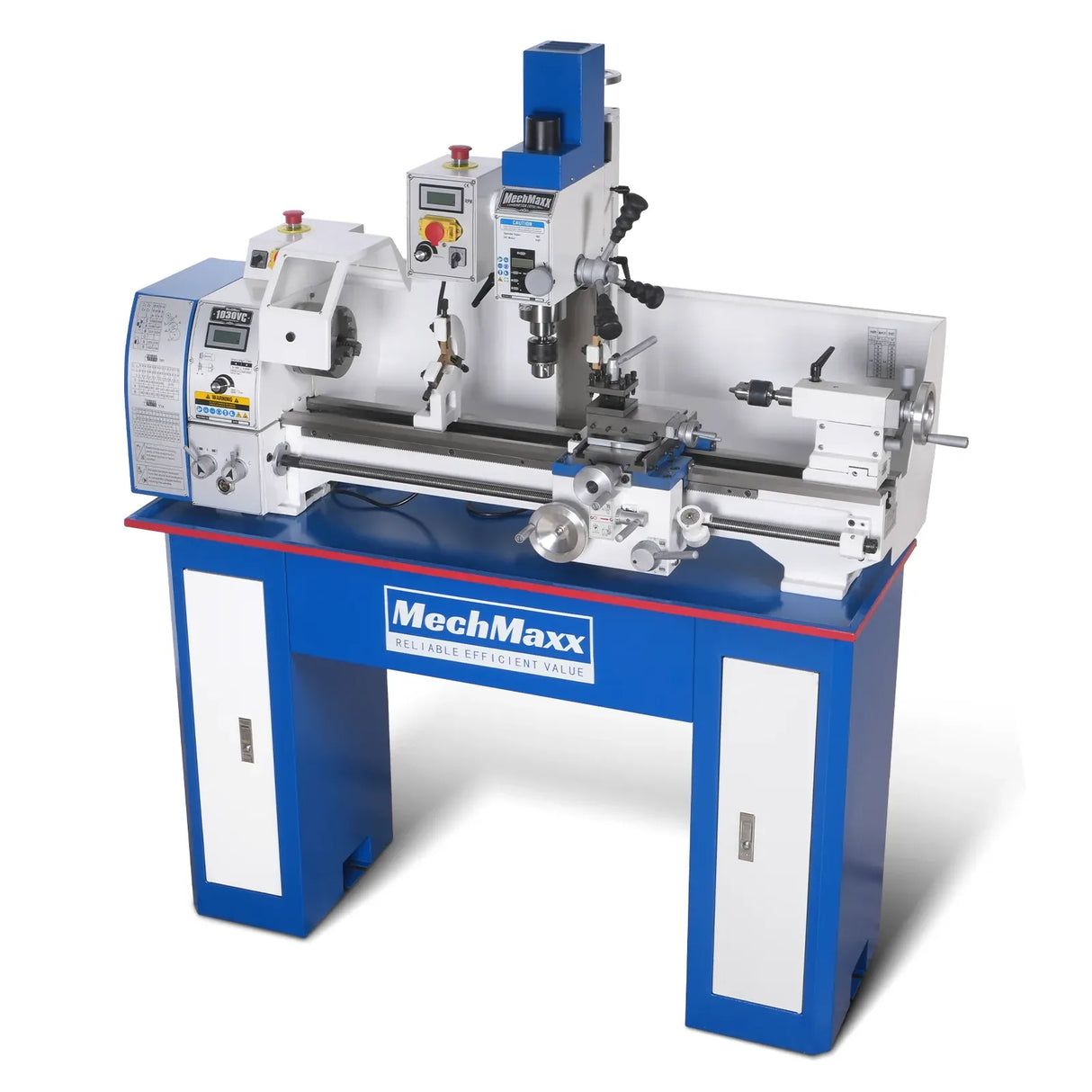

MechMaxx 10x30 Combination Lathe Milling Drilling Machine, Model 1030VC
MechMaxx 10x30 Combination Lathe Milling Drilling Machine, Model 1030VC is backordered and will ship as soon as it is back in stock.
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
MechMaxx 10x30 Combination Lathe Milling Drilling Machine, Model 10...
Key Features & Benefits
- Compact All-in-One Platform – Combines lathe, mill, and drill functionality in a single space-saving machine ideal for hobbyists, fabrication shops, and light industrial applications.

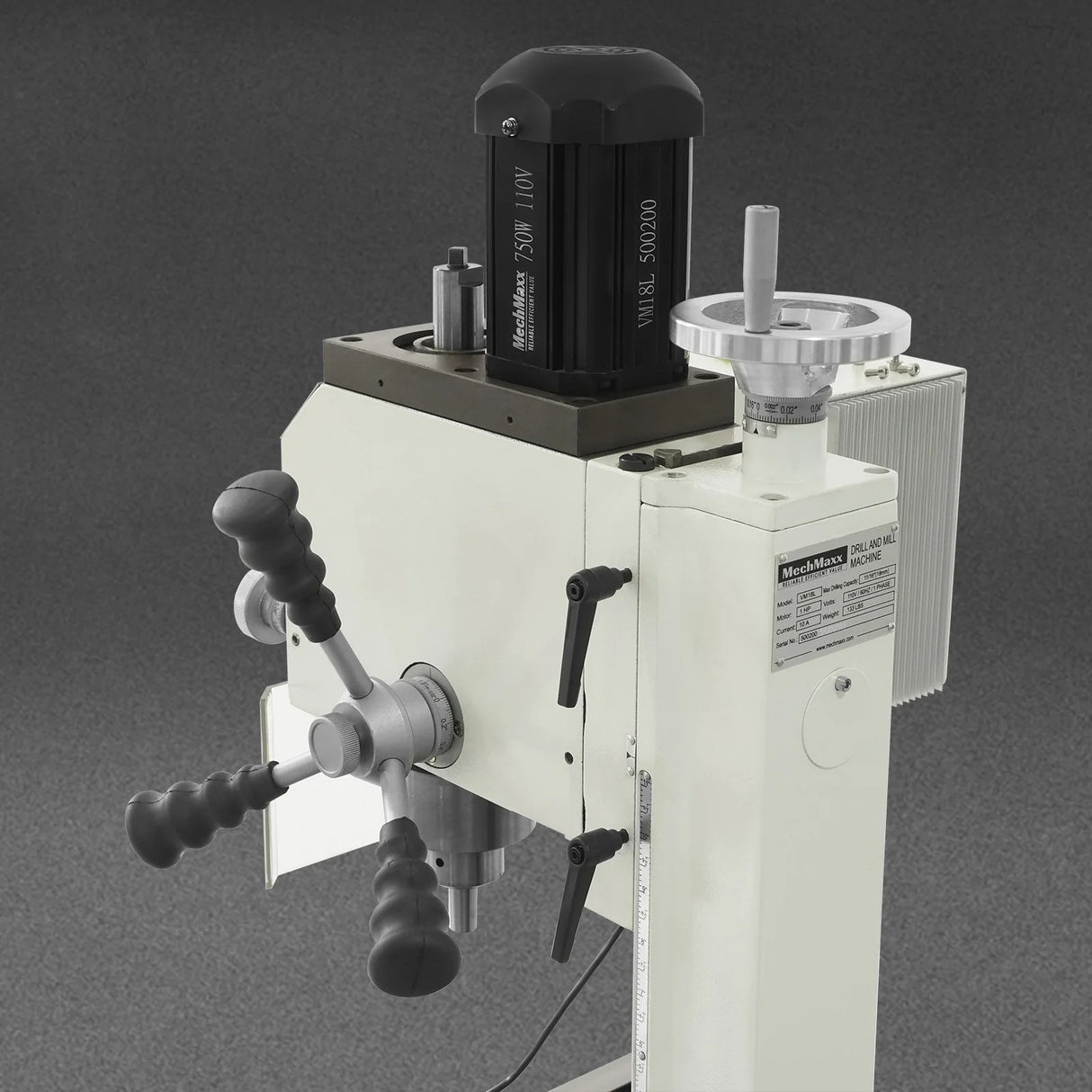

- Dual Brushless Motors – 1.5 HP lathe motor and 1 HP brushless milling motor deliver smooth, reliable performance across a wide range of operations.

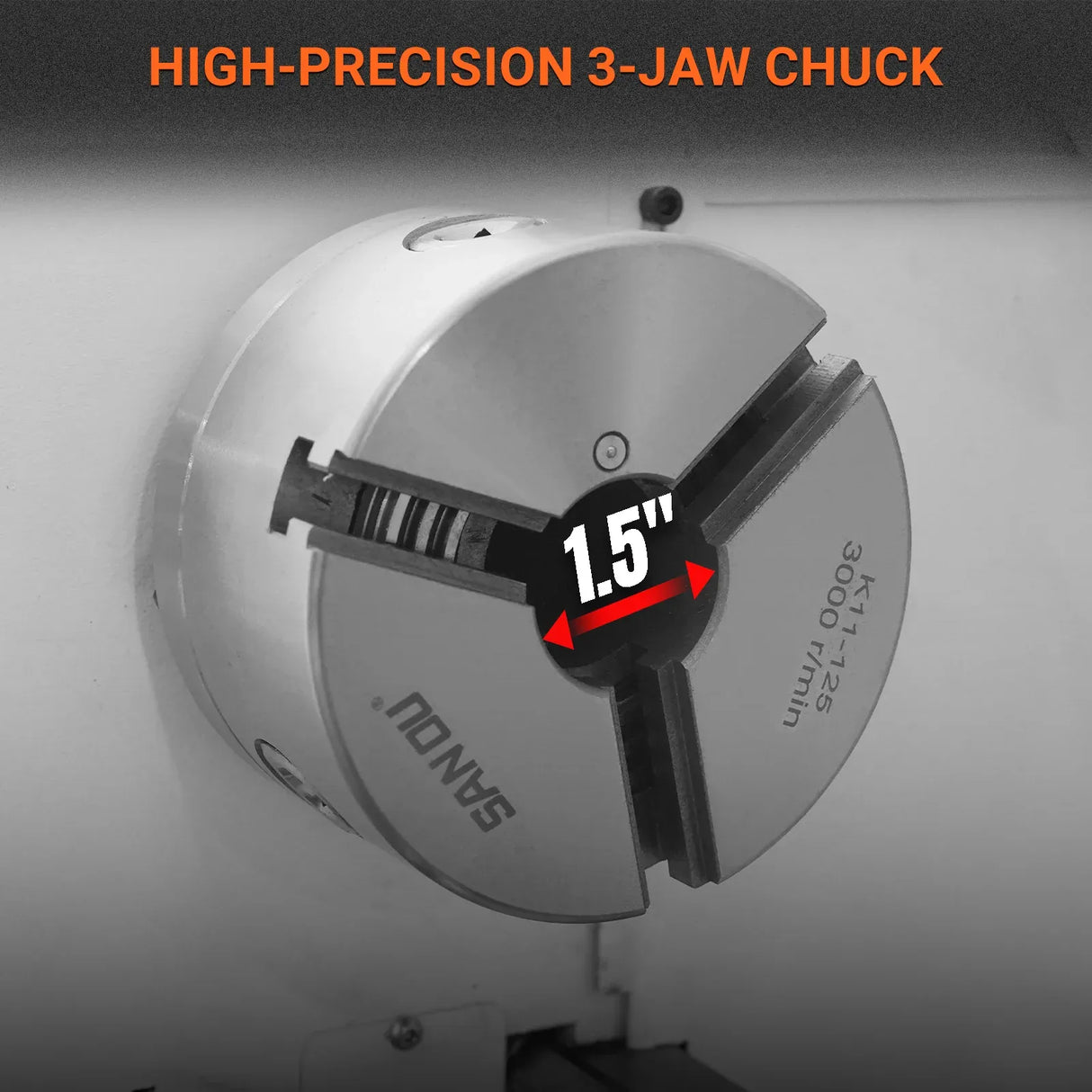

- Large 1-1/2" Spindle Bore – Allows larger diameter materials to pass through the headstock for increased machining versatility.

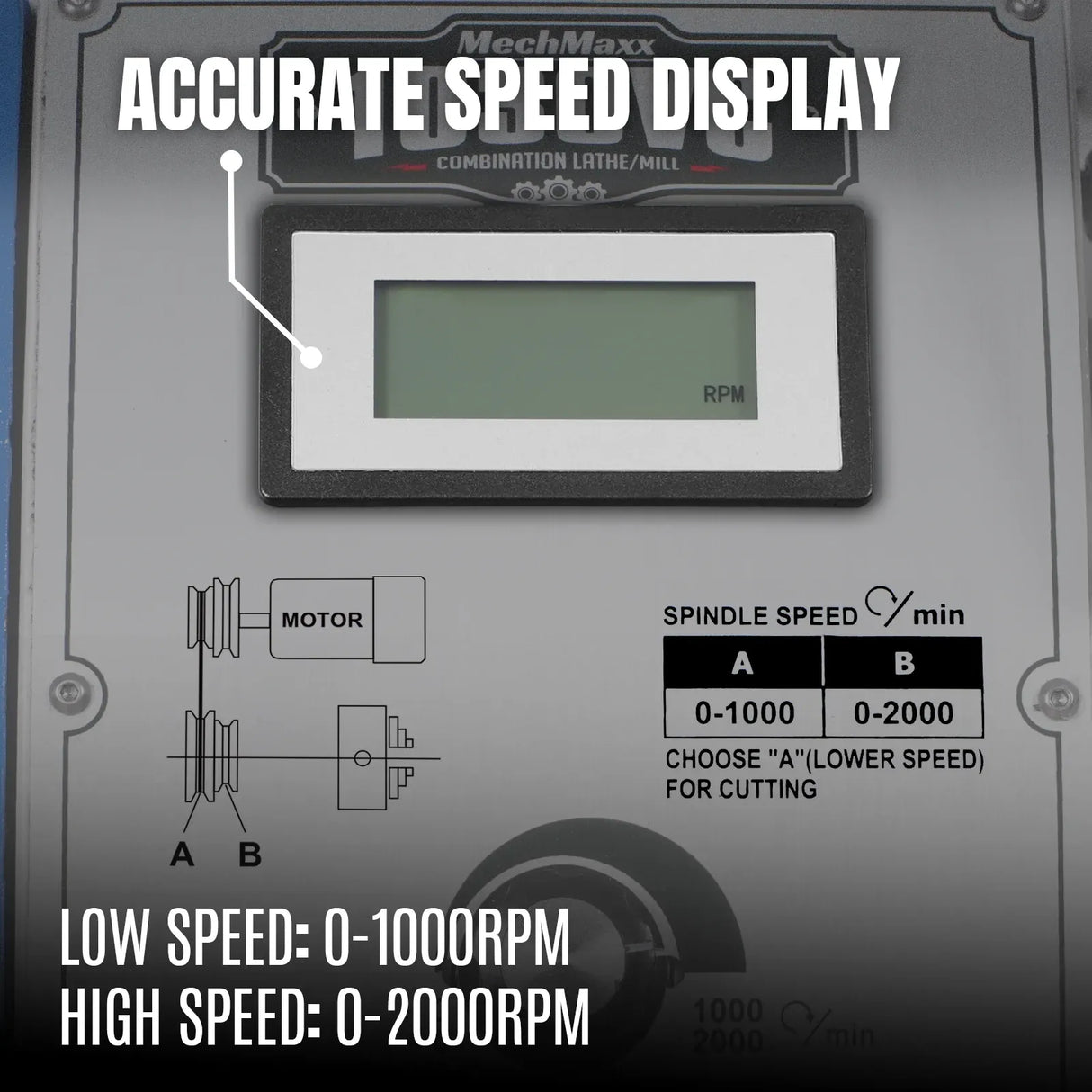

- Variable Speed Control – 0–2000 RPM on the lathe and 0–2500 RPM on the milling head provide precise speed adjustment for steel, aluminum, brass, plastics, and more.

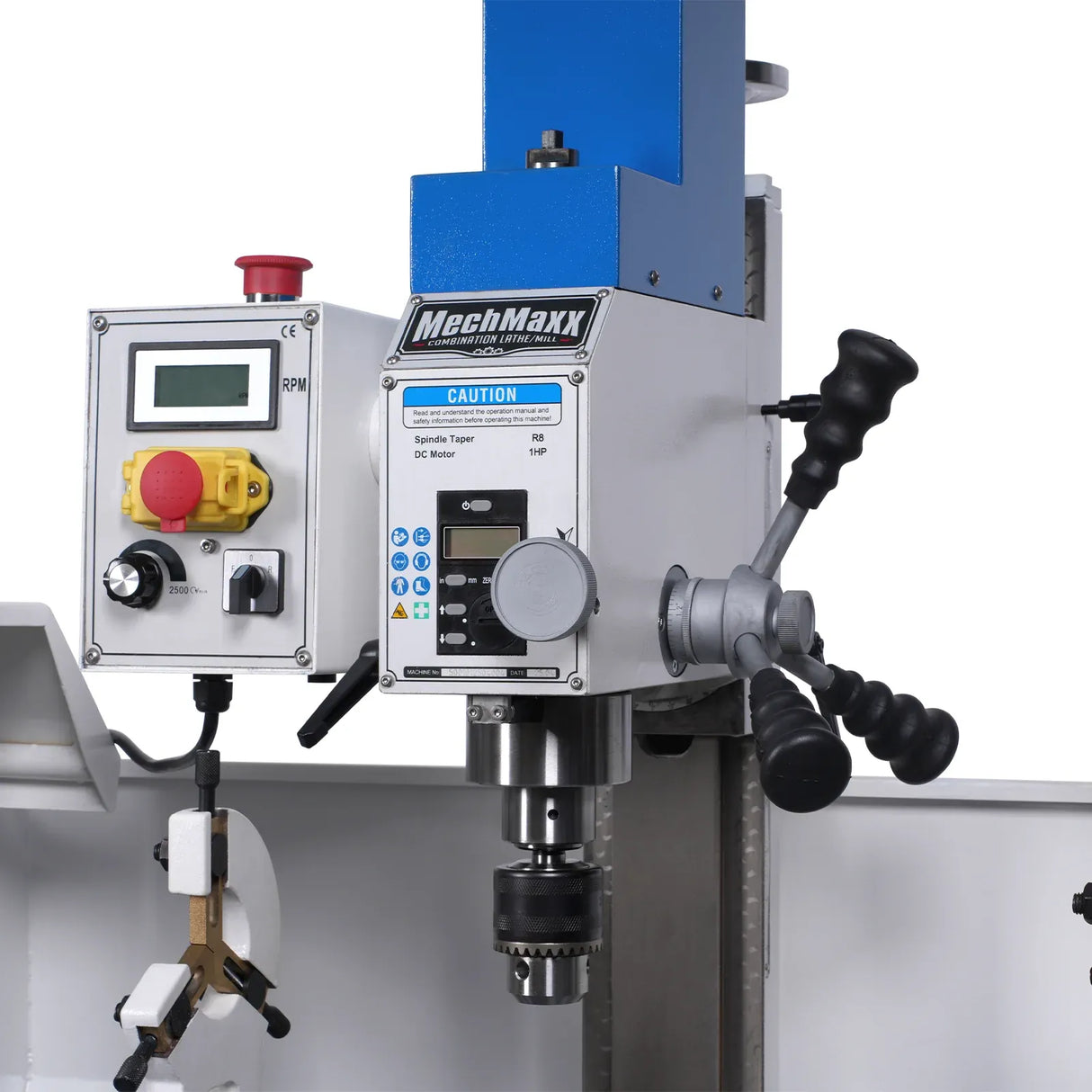

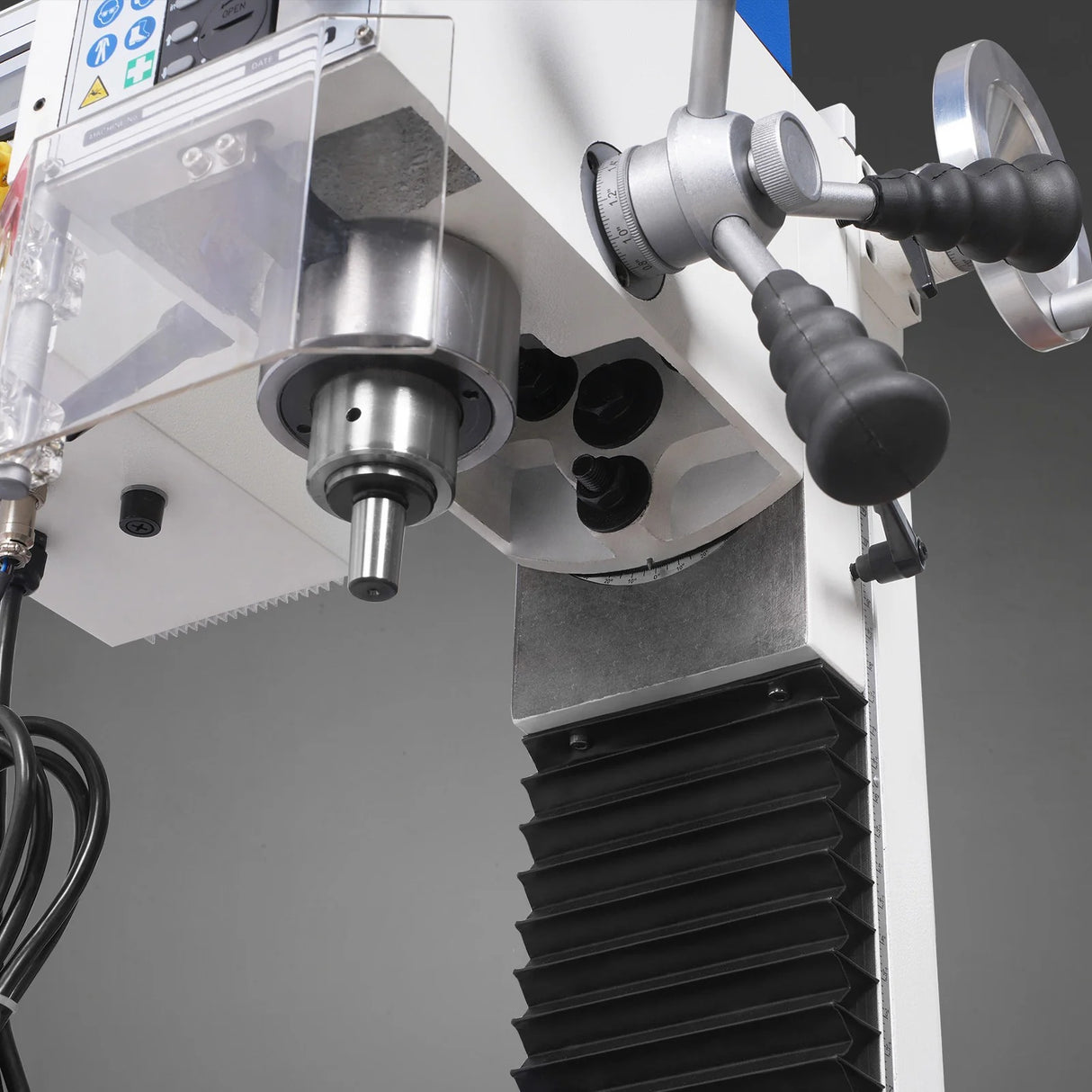

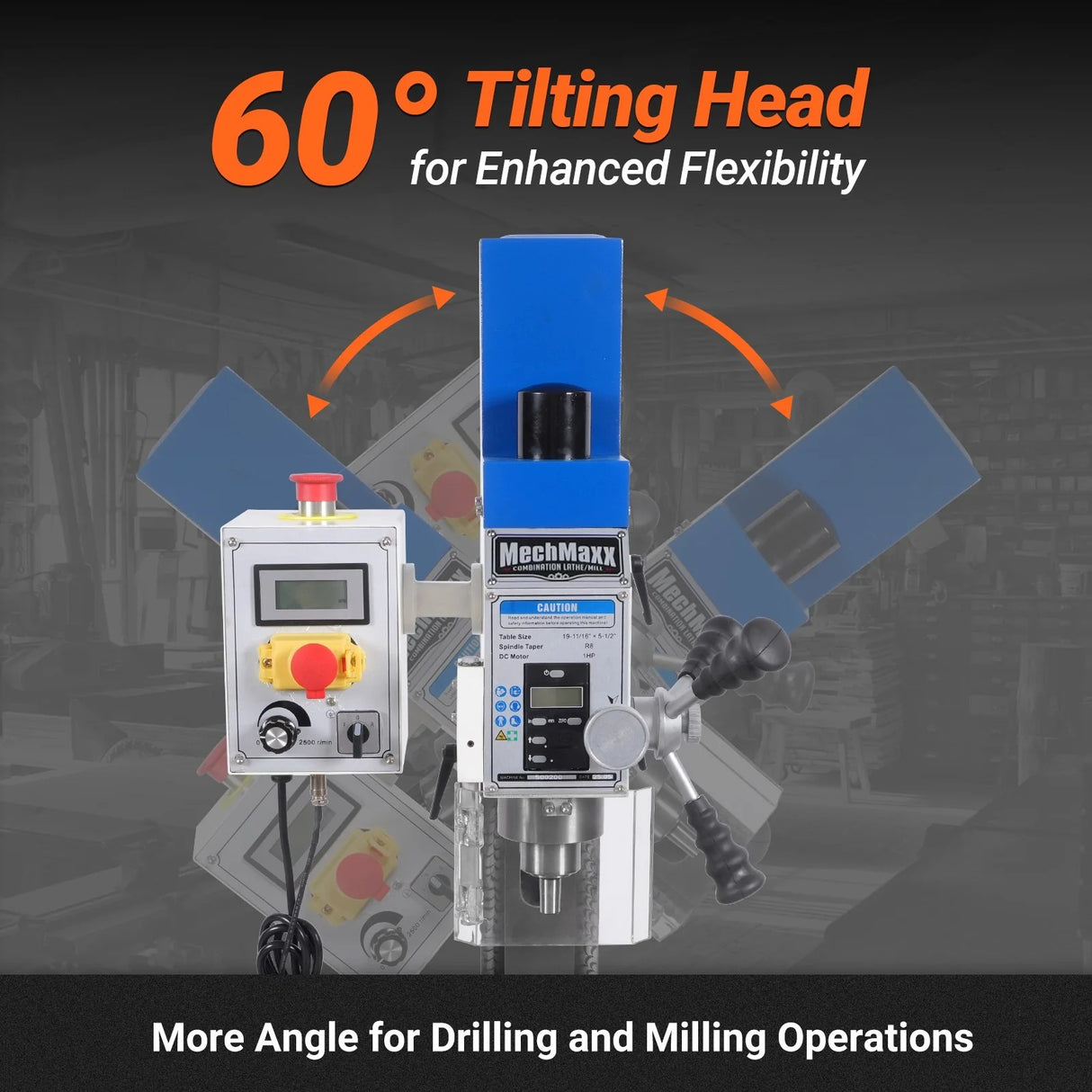

- R8 Spindle Taper & ±90° Tilting Mill Head – Excellent tooling compatibility and flexibility for angled drilling and milling operations.

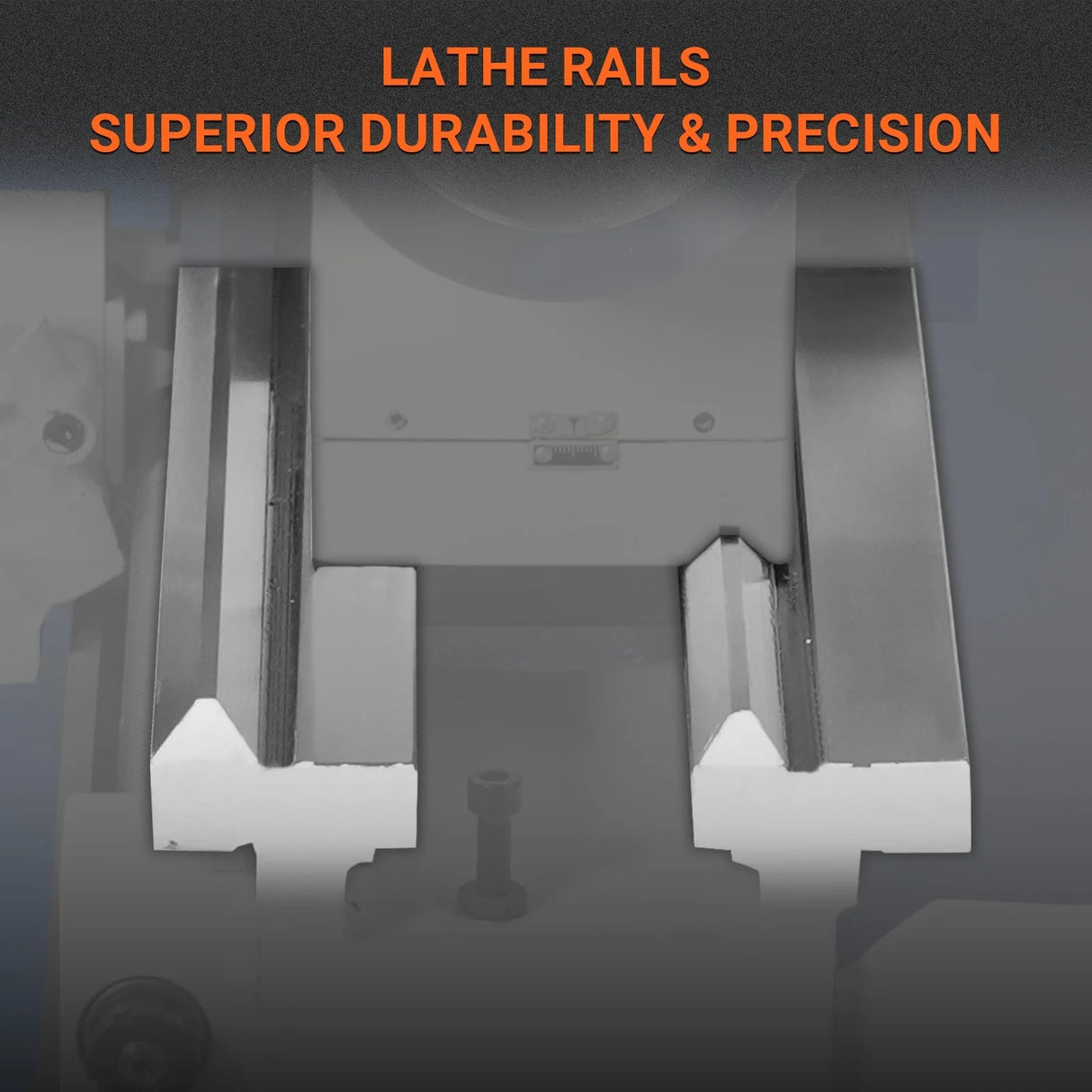

- Precision-Ground Bed & Dovetail Column – Improves rigidity, reduces vibration, and maintains machining accuracy during operation.

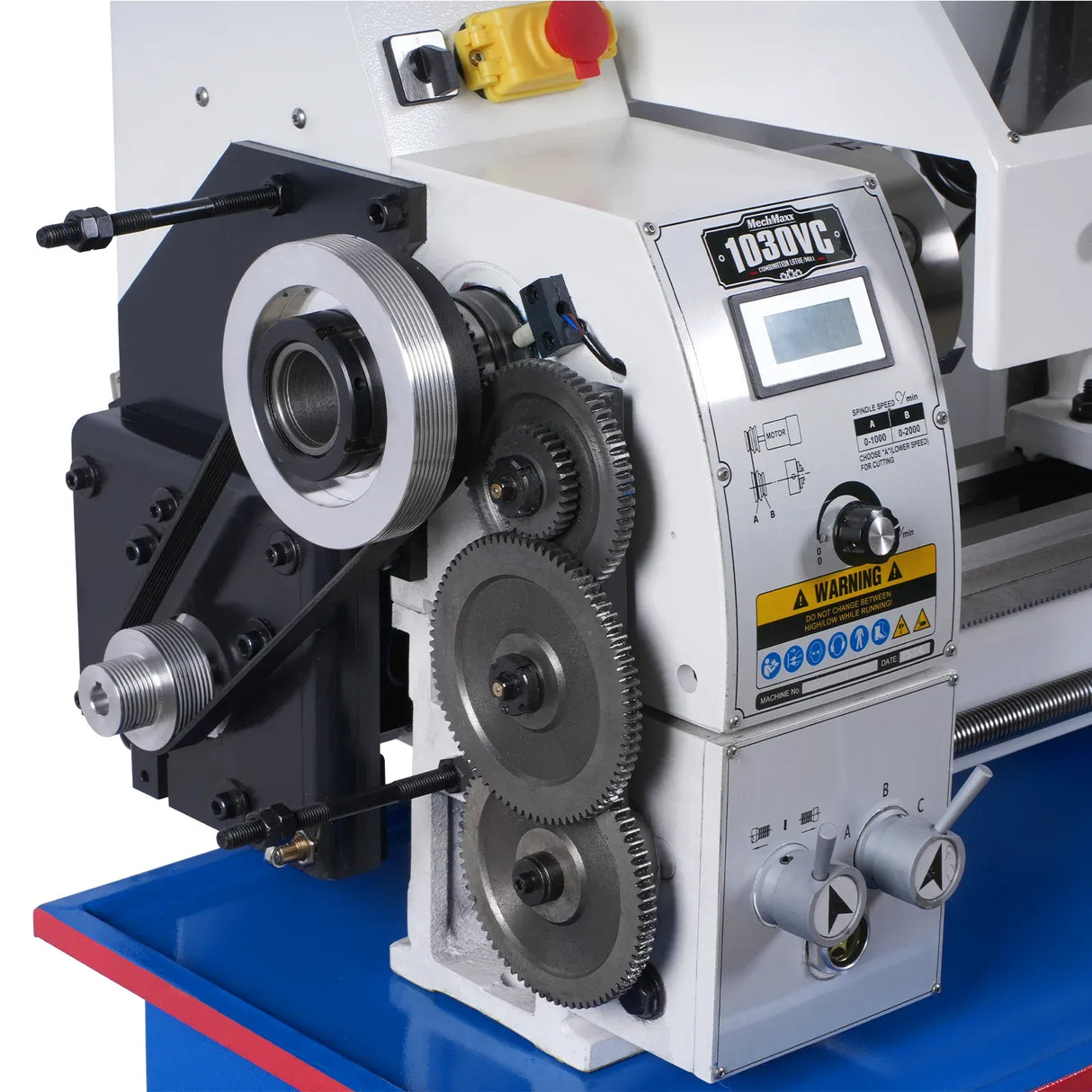

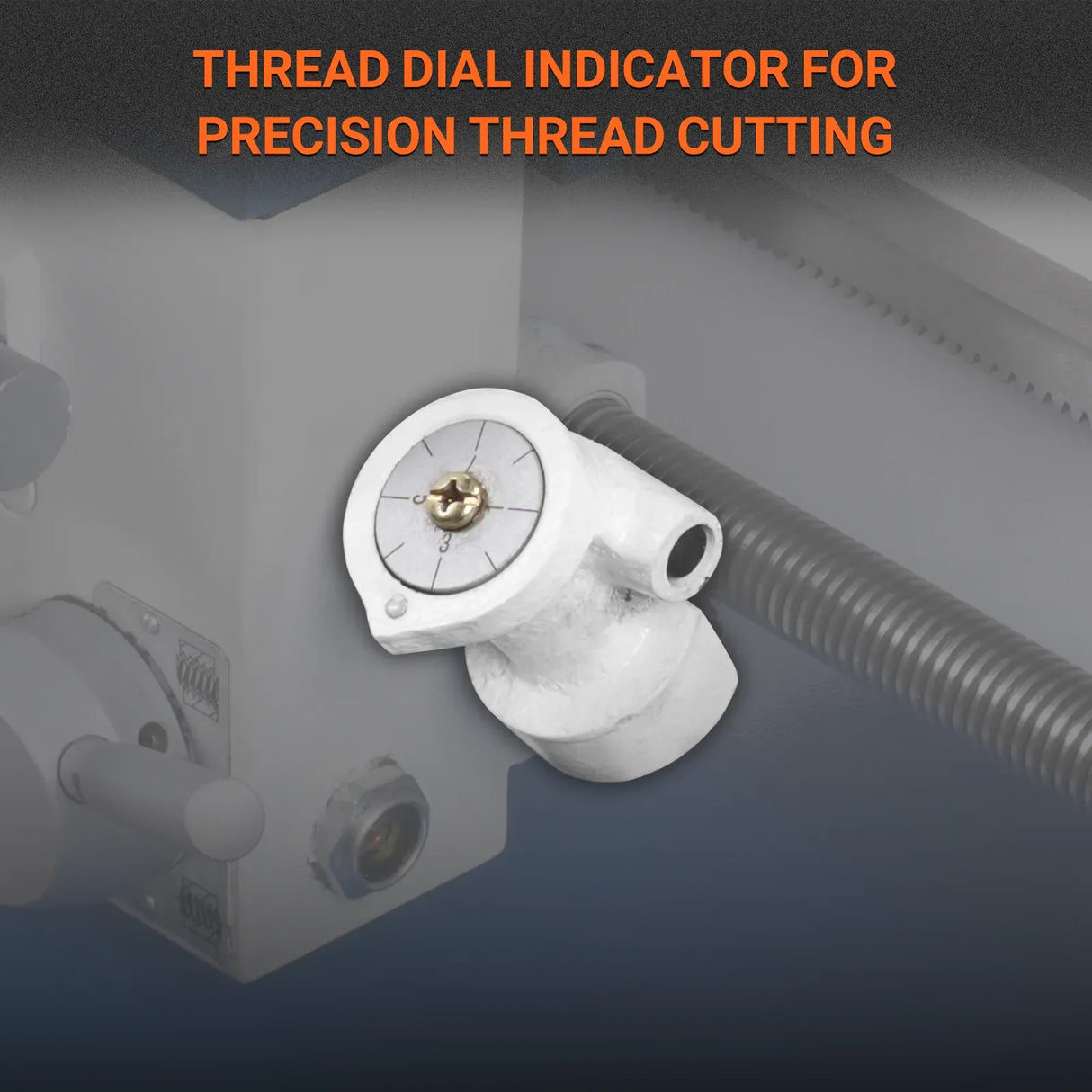

- Inch & Metric Threading – Supports 8–80 TPI inch threading and 0.35–3.0 mm metric threading for versatile thread-cutting capability.
- Compact Footprint – Delivers full turning, threading, milling, drilling, and facing capability without requiring a large workshop footprint.
Safety
- Always operate the machine according to the user manual and all safety labels provided.
- Wear proper eye and hearing protection during operation.
- Ensure the machine is securely installed on a stable surface before use.
- Disconnect power before performing maintenance or tooling changes.
Electrical Requirements
- Voltage: 110V Single-Phase
- Lathe Motor: 1.5 HP
- Mill Motor: 1 HP Brushless
| Specifications | Details |
|---|---|
| Lathe Motor Power | 1.5 HP, 110V, Single-Phase, 10A |
| Mill Motor Power | 1 HP (750W) |
| Swing Over Bed | 9-7/8" (250 mm) |
| Swing Over Cross Slide | 5-1/2" (140 mm) |
| Distance Between Centers | 29-1/2" (750 mm) |
| Spindle Bore | 1-1/2" (38 mm) |
| Spindle Mount | Intrinsic Back Plate |
| Spindle Taper | MT#5 |

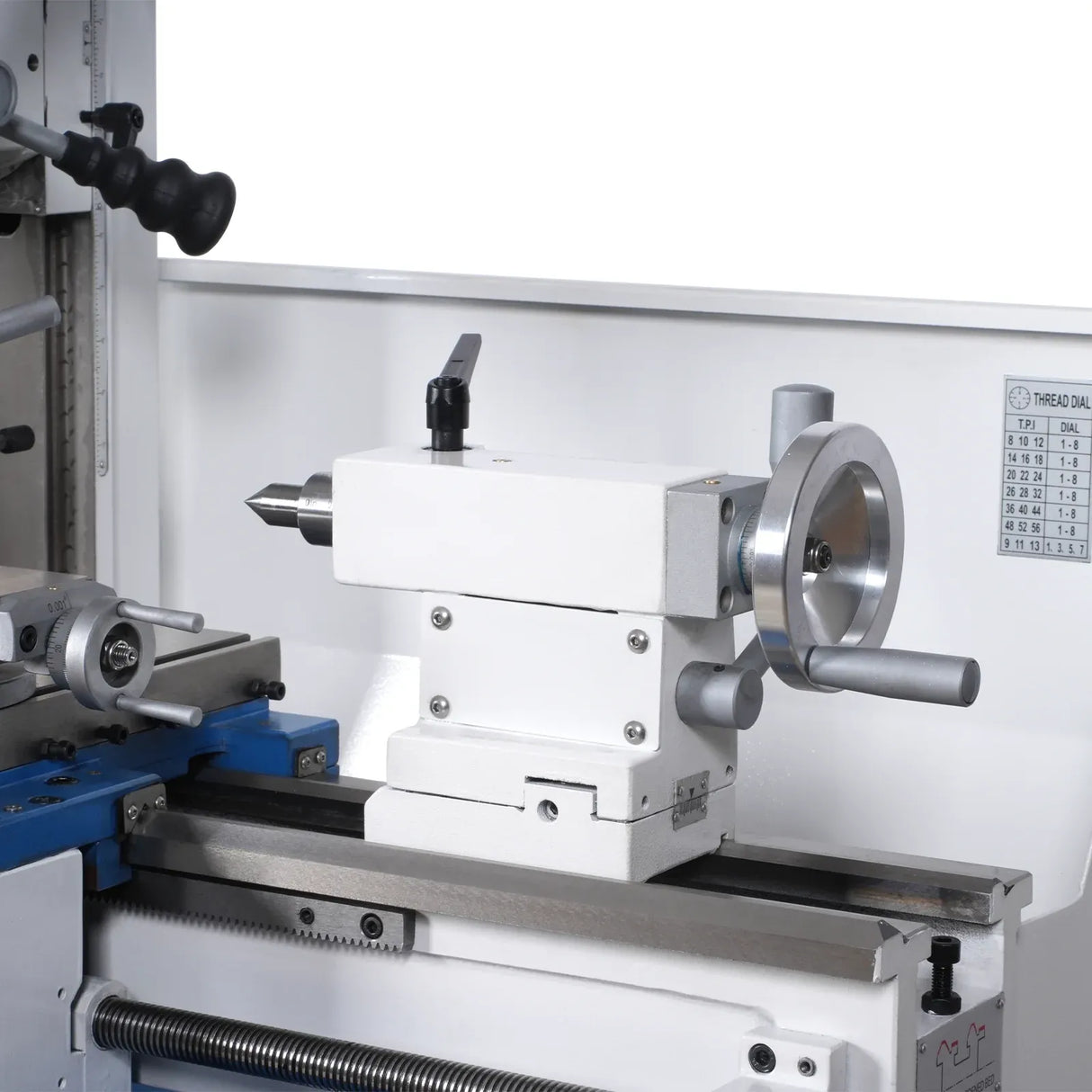

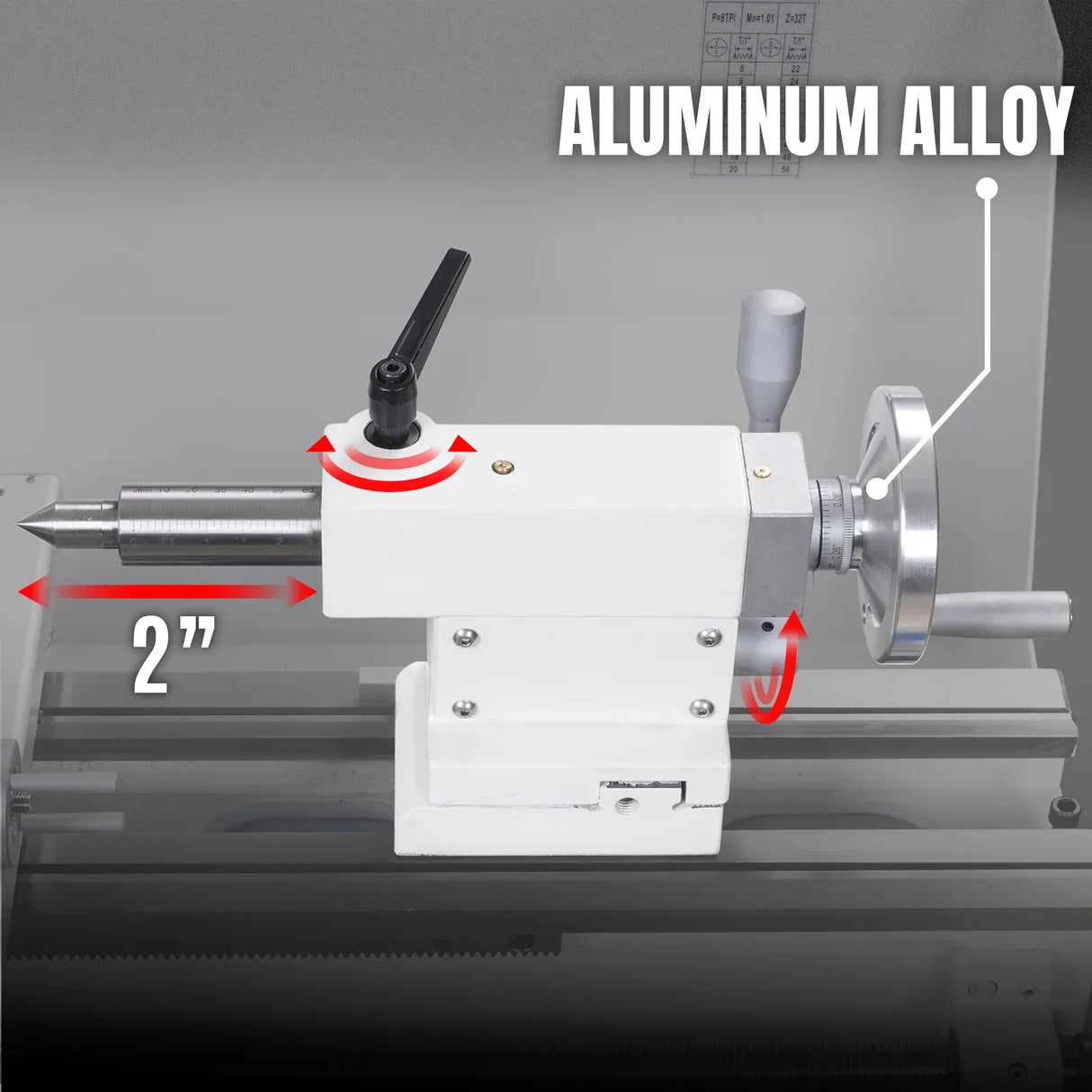

| Tailstock Taper | MT#2 |
| Lathe Spindle Speed Range | 0–2000 RPM |
| Mill Spindle Speed Range | 0–2500 RPM |
| Threading Capacity – Inch | 8–80 TPI |
| Threading Capacity – Metric | 0.35–3.0 mm |

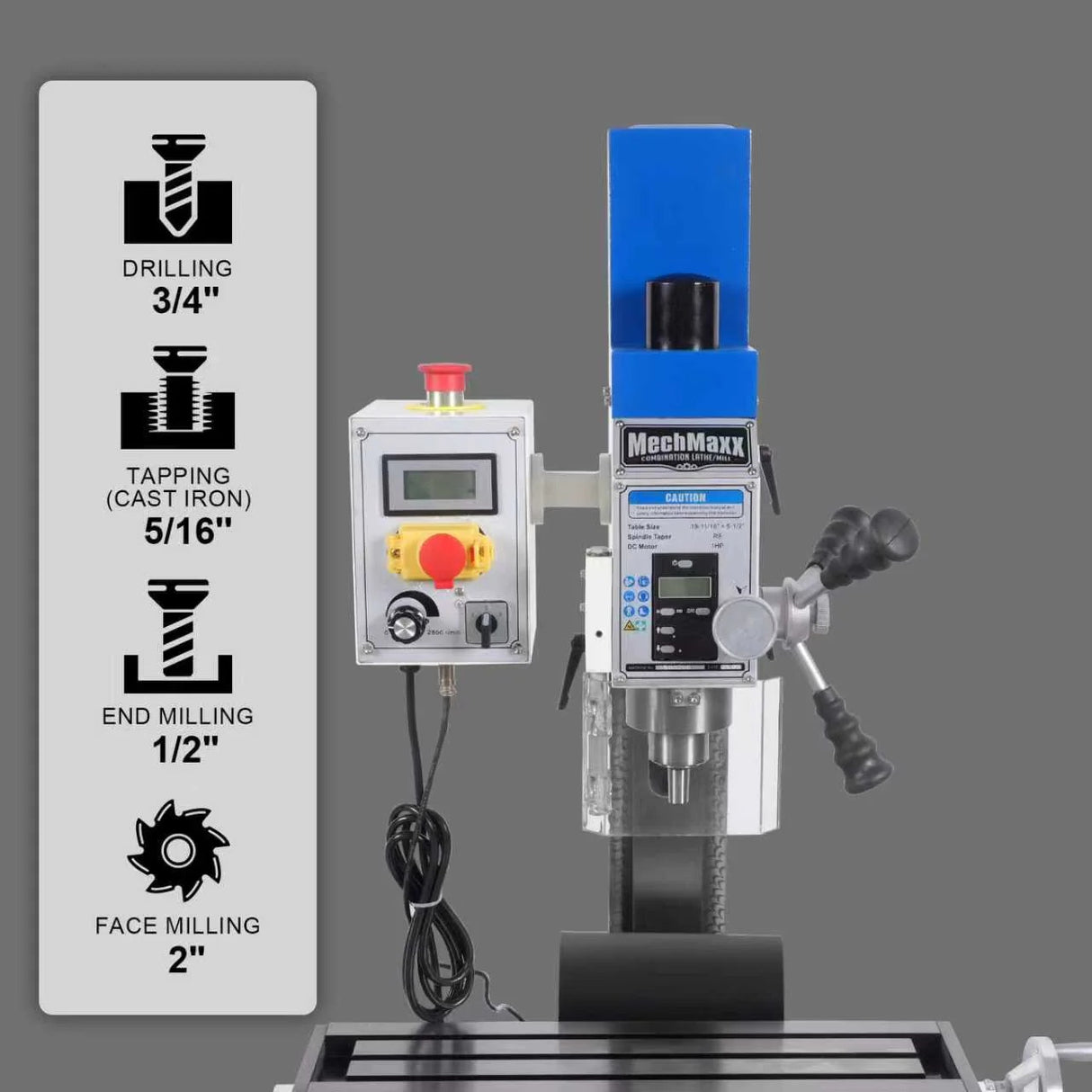

| Drilling Capacity | 5/8" (16 mm) |
| End Milling Capacity | 1/2" (12 mm) |
| Face Milling Capacity | 2" (50 mm) |

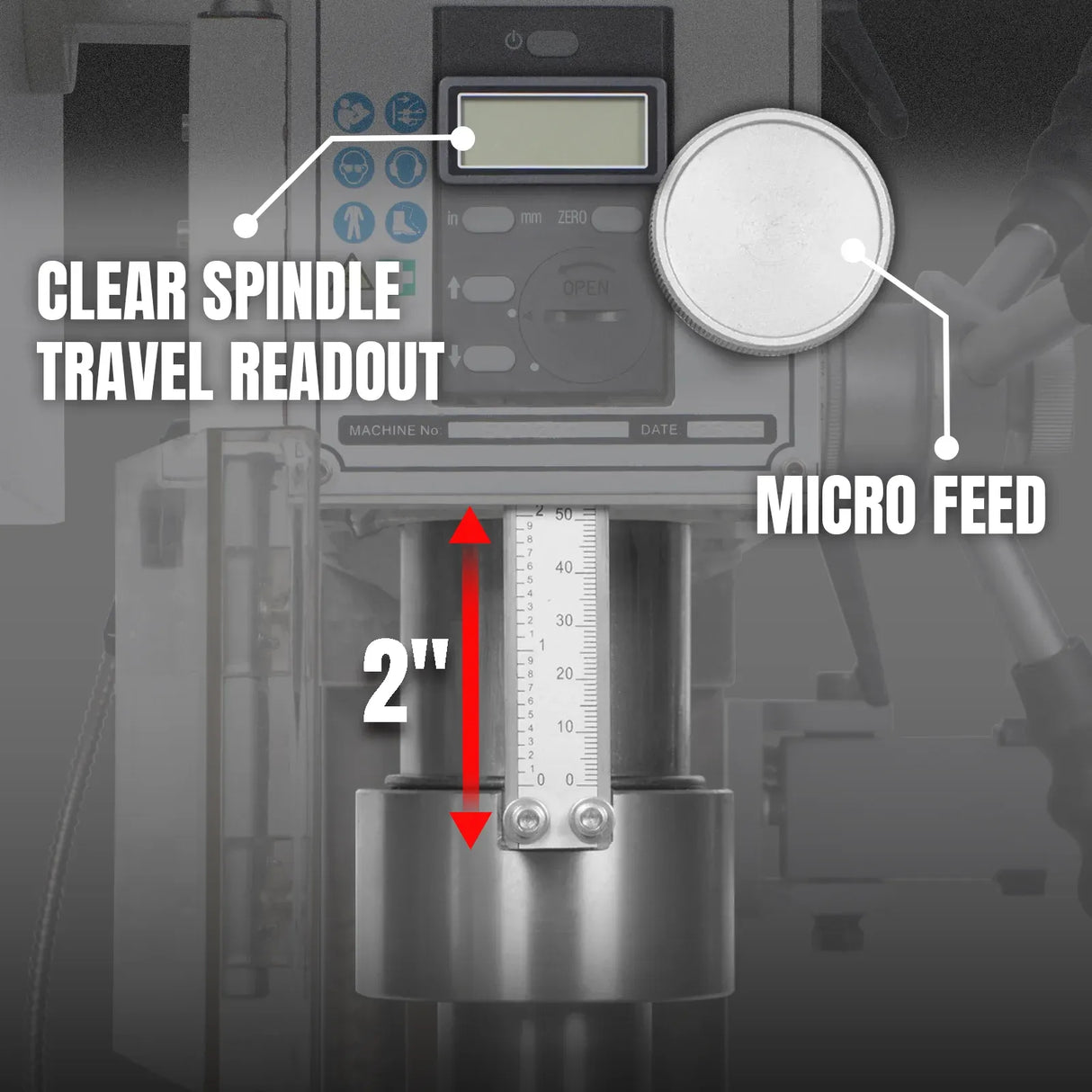

| Vertical Travel (Z-Axis) | 10-7/8" (275 mm) |
| Head Tilt Angle | ±90° |
| Column Type | Dovetail Slot |
| Drive Type | Belt Drive Brushless |
| Overall Dimensions | 52" × 26" × 38-1/4" |
| Net / Gross Weight | 440 / 517 lbs |
| Shipping Dimensions | 56" × 27" × 39" |
