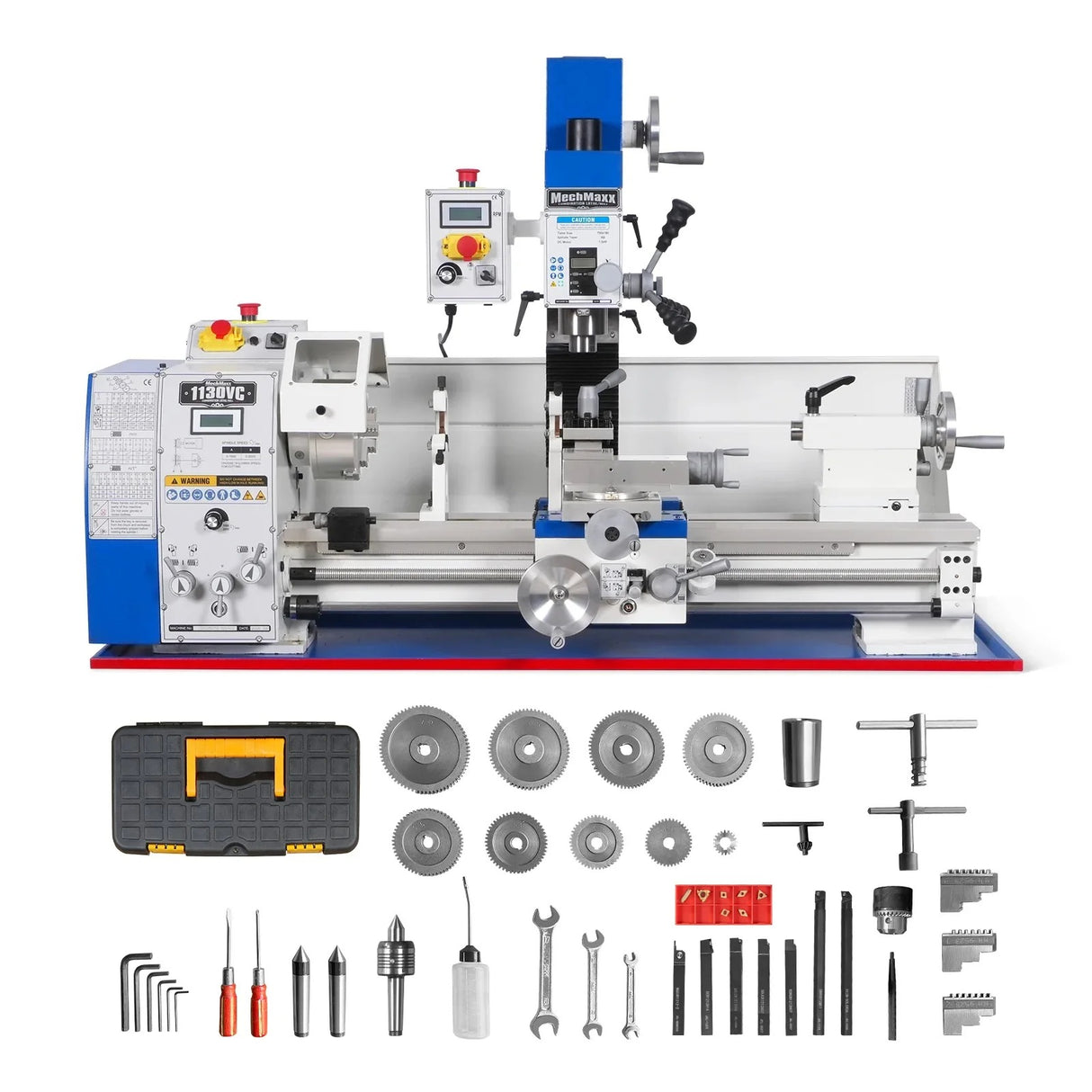

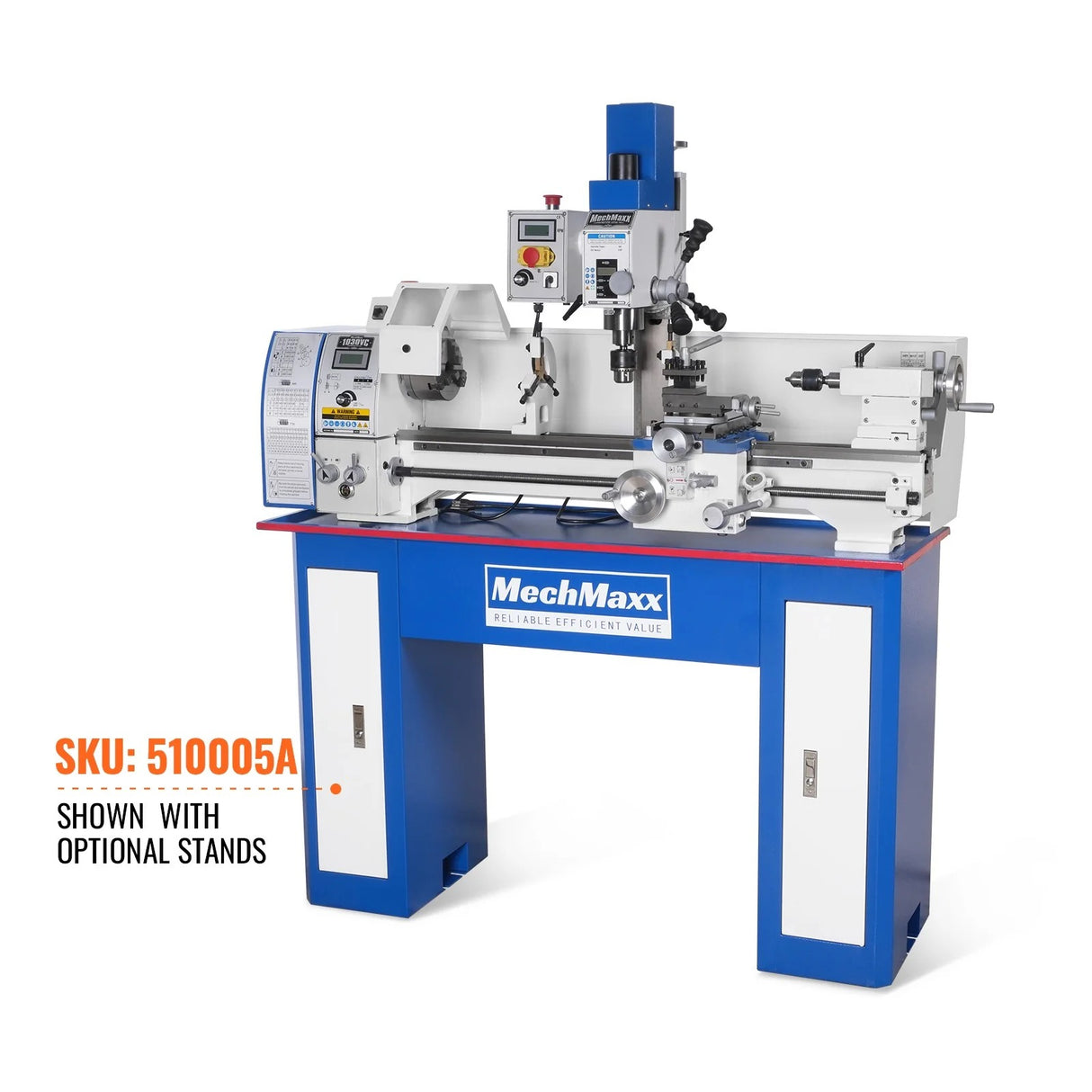

MechMaxx 11x30 Combination Lathe Milling Drilling Machine, Model 1130VC
MechMaxx 11x30 Combination Lathe Milling Drilling Machine, Model 1130VC is backordered and will ship as soon as it is back in stock.
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
MechMaxx 11x30 Combination Lathe Milling Drilling Machine, Model 11...
Key Features & Benefits
- Powerful 2 HP Lathe Motor – Runs on 110V single-phase power with a 20A requirement, delivering strong performance for turning, threading, and general machining applications.
- Large Turning Capacity – 11-2/5" swing over bed and 29-1/2" distance between centers allow machining of a wide variety of workpiece sizes.

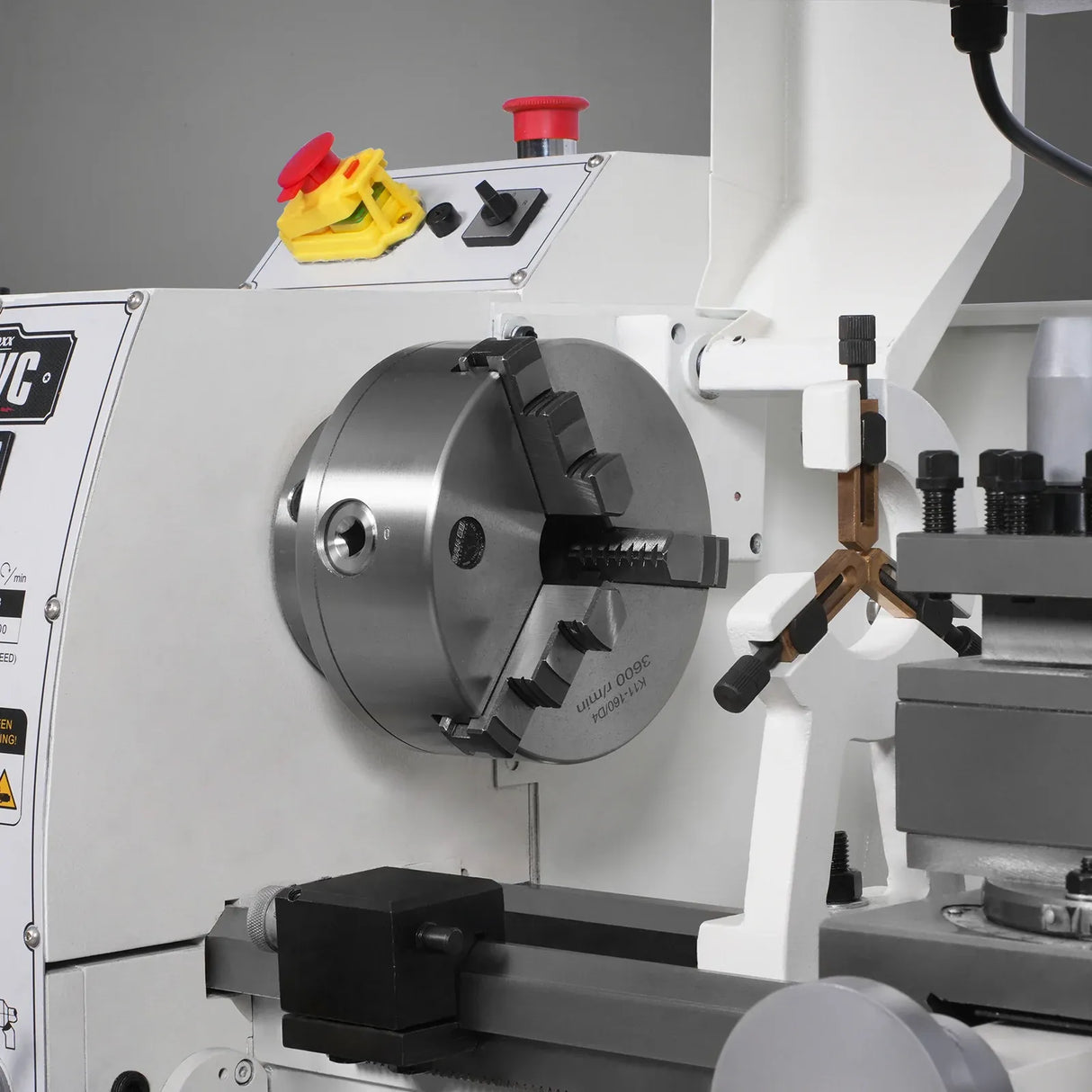

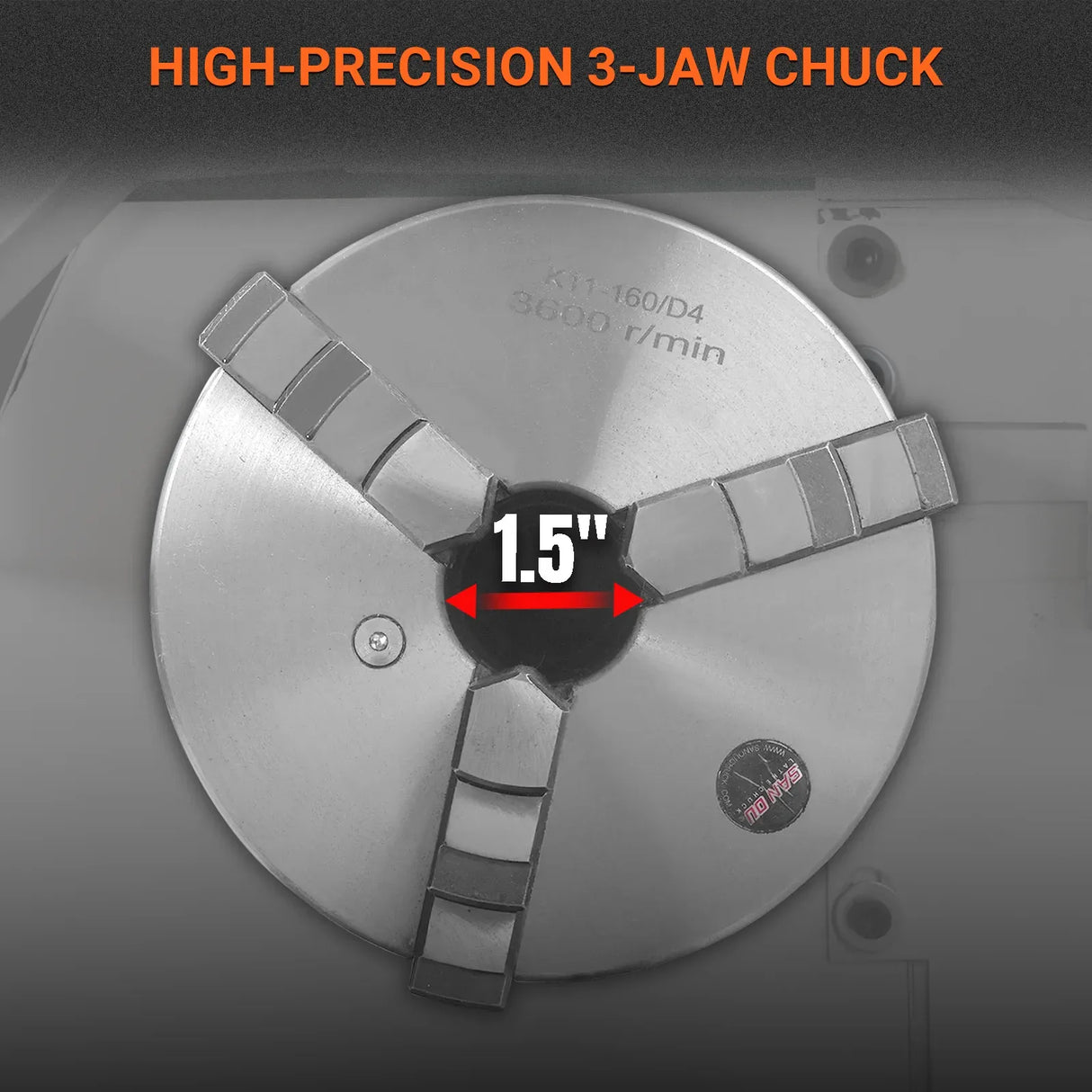

- 1-1/2" Spindle Bore with D1-4 Camlock Mount – Supports larger stock material and provides secure chuck mounting for improved rigidity and accuracy.

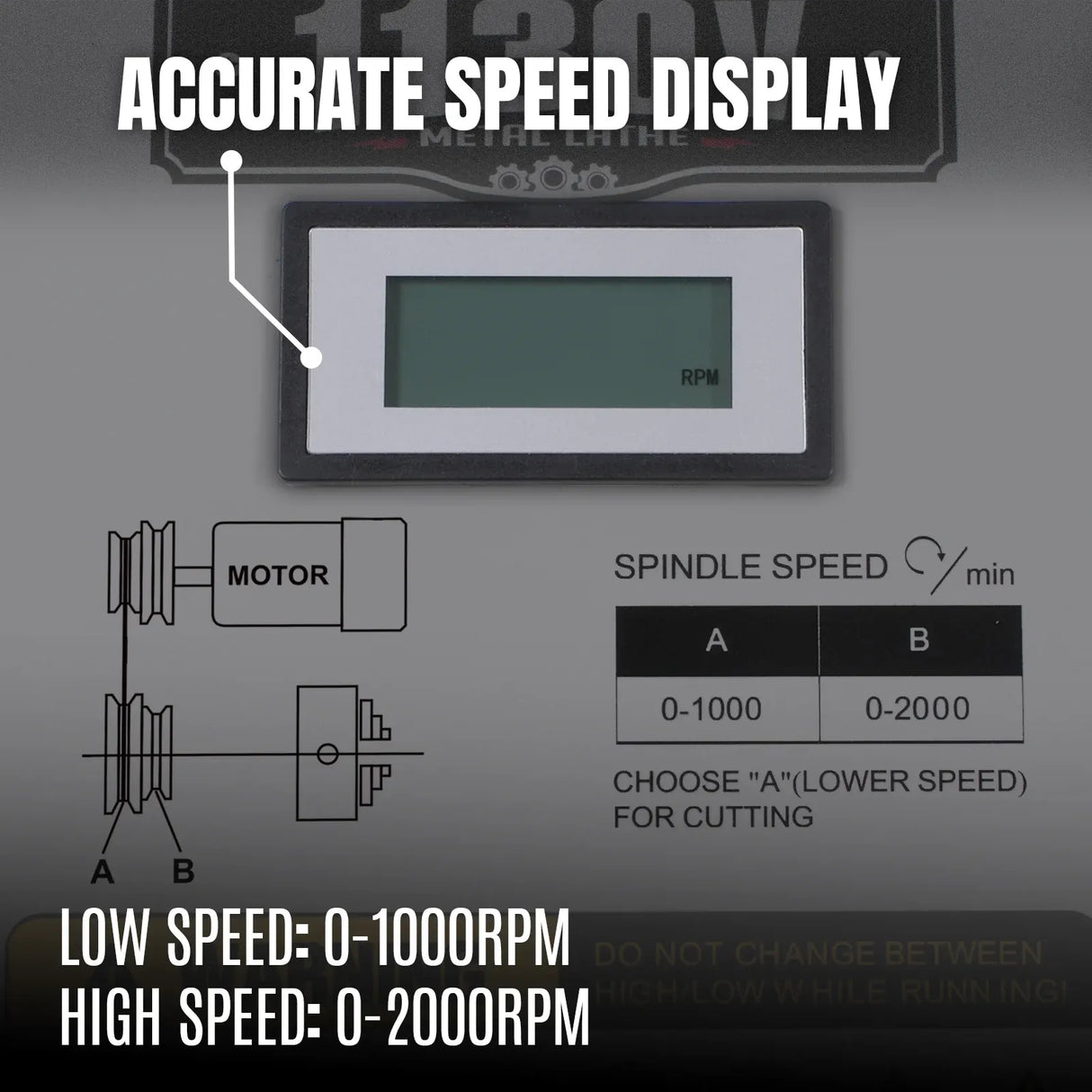

- Variable Speed Spindle Control – Adjustable 0–2000 RPM spindle speed gives excellent flexibility for precision turning across different materials.

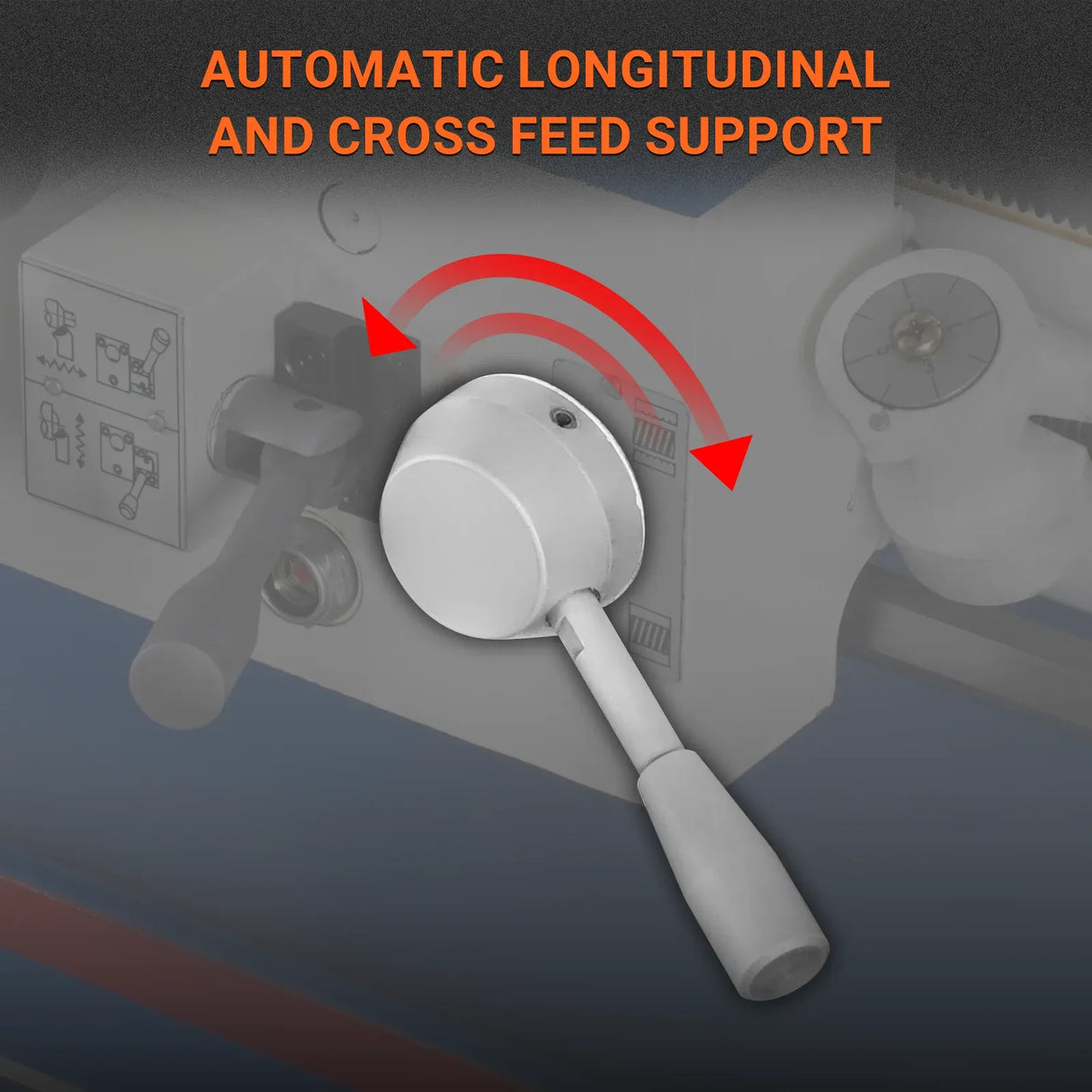

- Precision Feed & Threading Capability – Longitudinal and transverse feed rates provide smooth cutting performance while supporting both inch and metric threading.

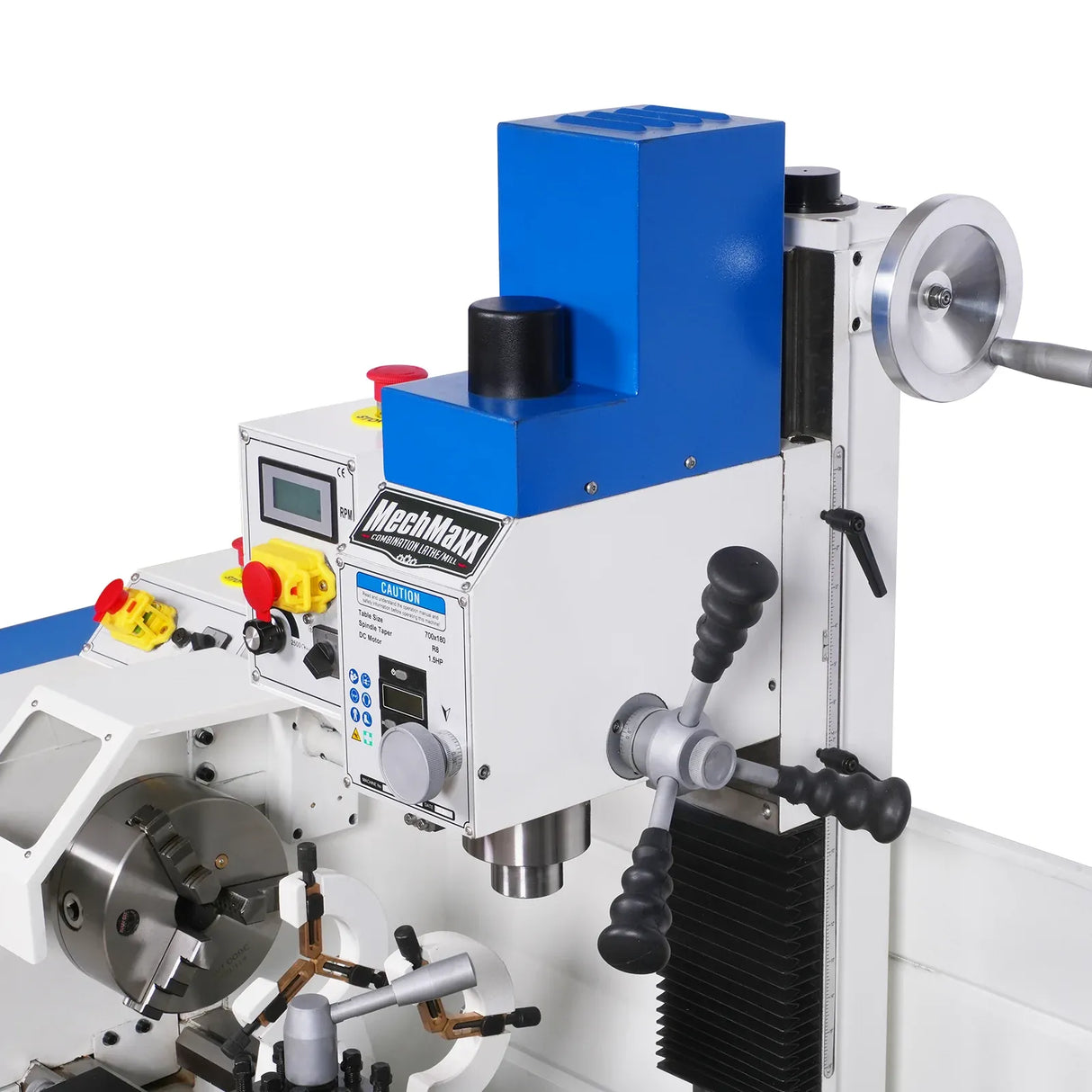

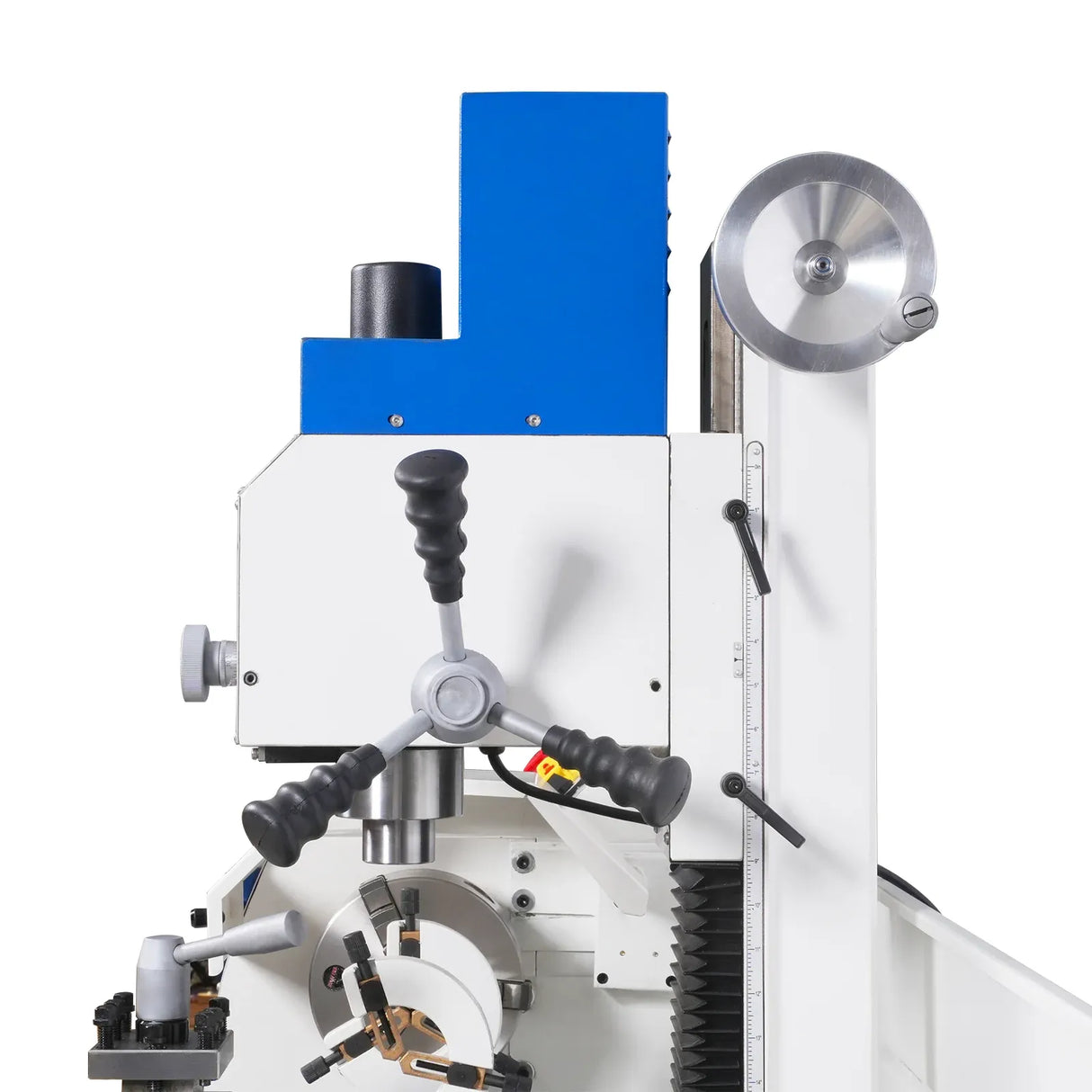

- Integrated Mill/Drill Head – Equipped with a powerful 1.5 HP brushless milling motor and variable 0–2500 RPM spindle speed for drilling, milling, and facing operations.
- R8 Milling Spindle – Industry-standard R8 taper ensures compatibility with a wide range of tooling and accessories.
- Tilting Mill Head – ±90° adjustable head allows angled drilling and milling for increased machining versatility.
- Generous Vertical Milling Travel – 14-1/2" vertical travel and 2" quill stroke provide excellent clearance for larger workpieces and tooling setups.
- Compact Combination Machine Design – Combines lathe, drill, and milling functionality into one space-saving machine ideal for garages, hobby shops, and fabrication environments.
Lathe Specifications
| Specifications | Details |
|---|---|
| Motor Power (Lathe) | 2 HP, 110V, Single-Phase, 20A |
| Swing Over Bed | 11-2/5" (290 mm) |
| Swing Over Cross Slide | 7-1/4" (185 mm) |
| Swing Over Saddle | 5-3/4" (147 mm) |
| Distance Between Centers | 29-1/2" (750 mm) |

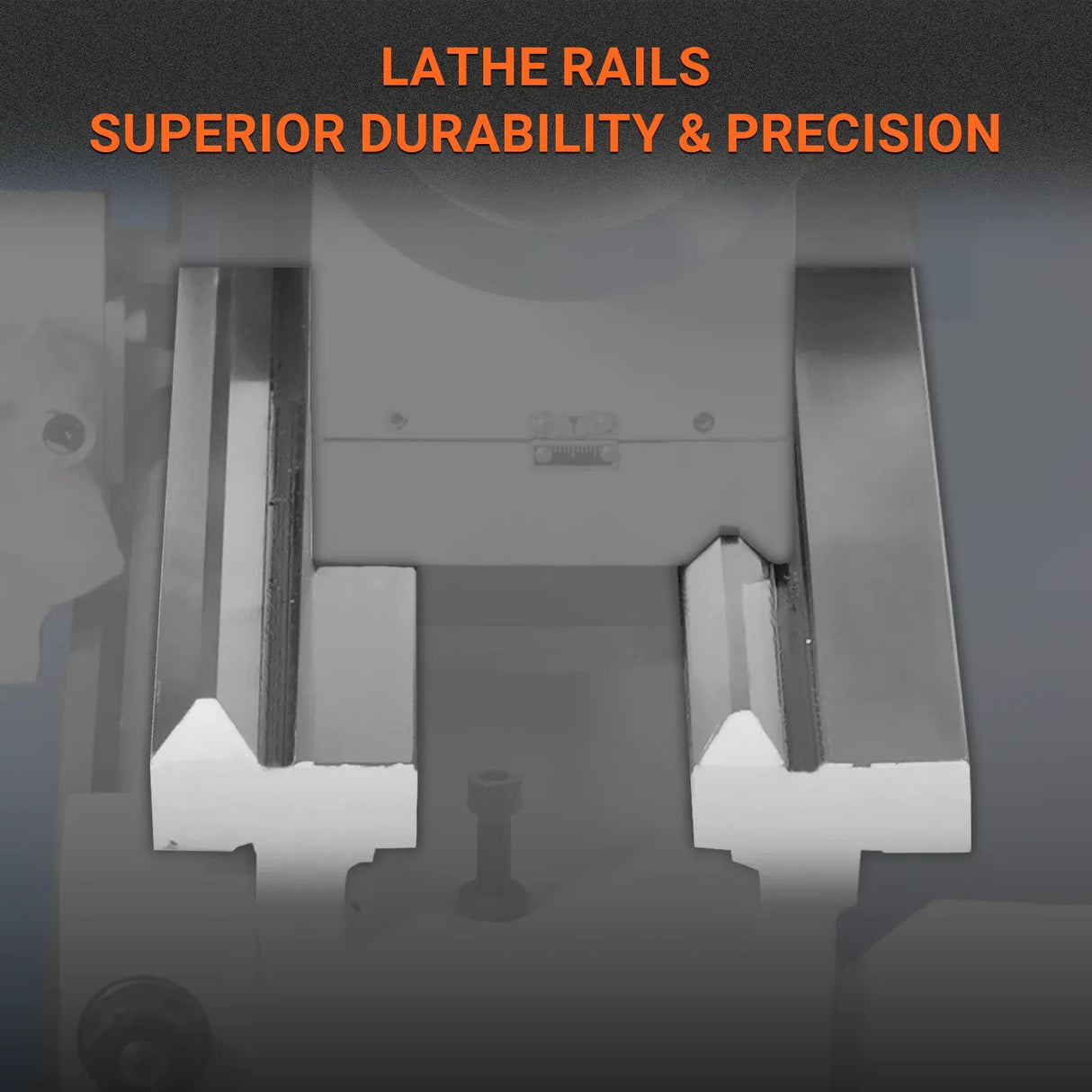

| Bed Width | 7" (180 mm) |
| Spindle Bore | 1-1/2" (38 mm) |
| Spindle Mount | D1-4 |
| Spindle Taper | MT#5 |
| Tailstock Taper | MT#3 |

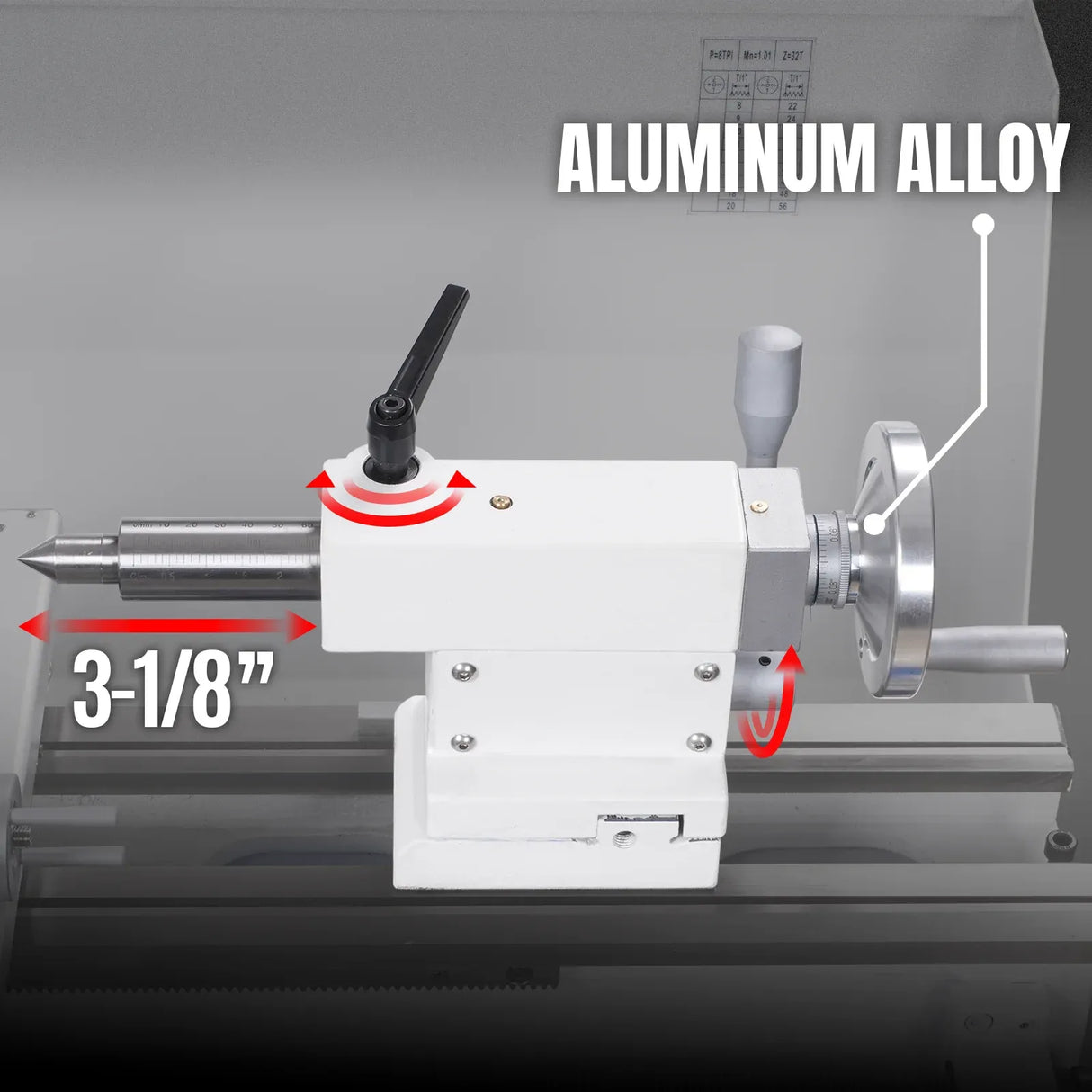

| Tailstock Quill Travel | 3-1/8" (85 mm) |
| Carriage Travel | 27-1/2" (700 mm) |

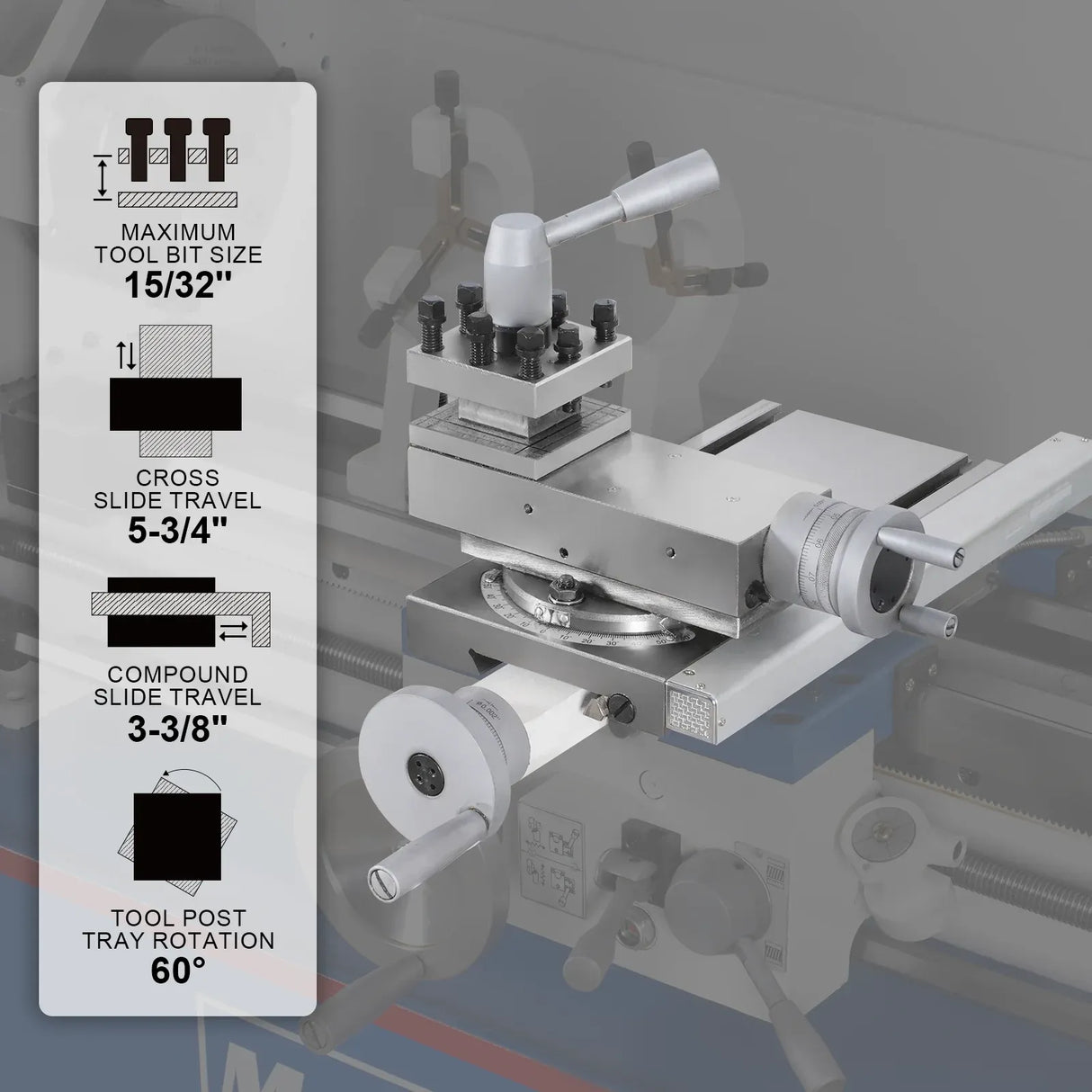

| Cross Slide Travel | 5-3/4" (147 mm) |
| Compound Slide Travel | 3-3/8" |
| Spindle Speed Range | 0–2000 RPM |
| Speed Control | Variable |
| Longitudinal Feed Rate | 0.017–0.25 mm/rev (0.0007–0.0098 in./rev.) |
| Transverse Feed Rate | 0.07–0.53 mm/rev (0.0027–0.02 in./rev.) |
| Leadscrew Size & Pitch | 20 mm (8 TPI) |
| Threading Capacity – Inch | 8–56 TPI |
| Threading Capacity – Metric | 0.4–3.5 mm |

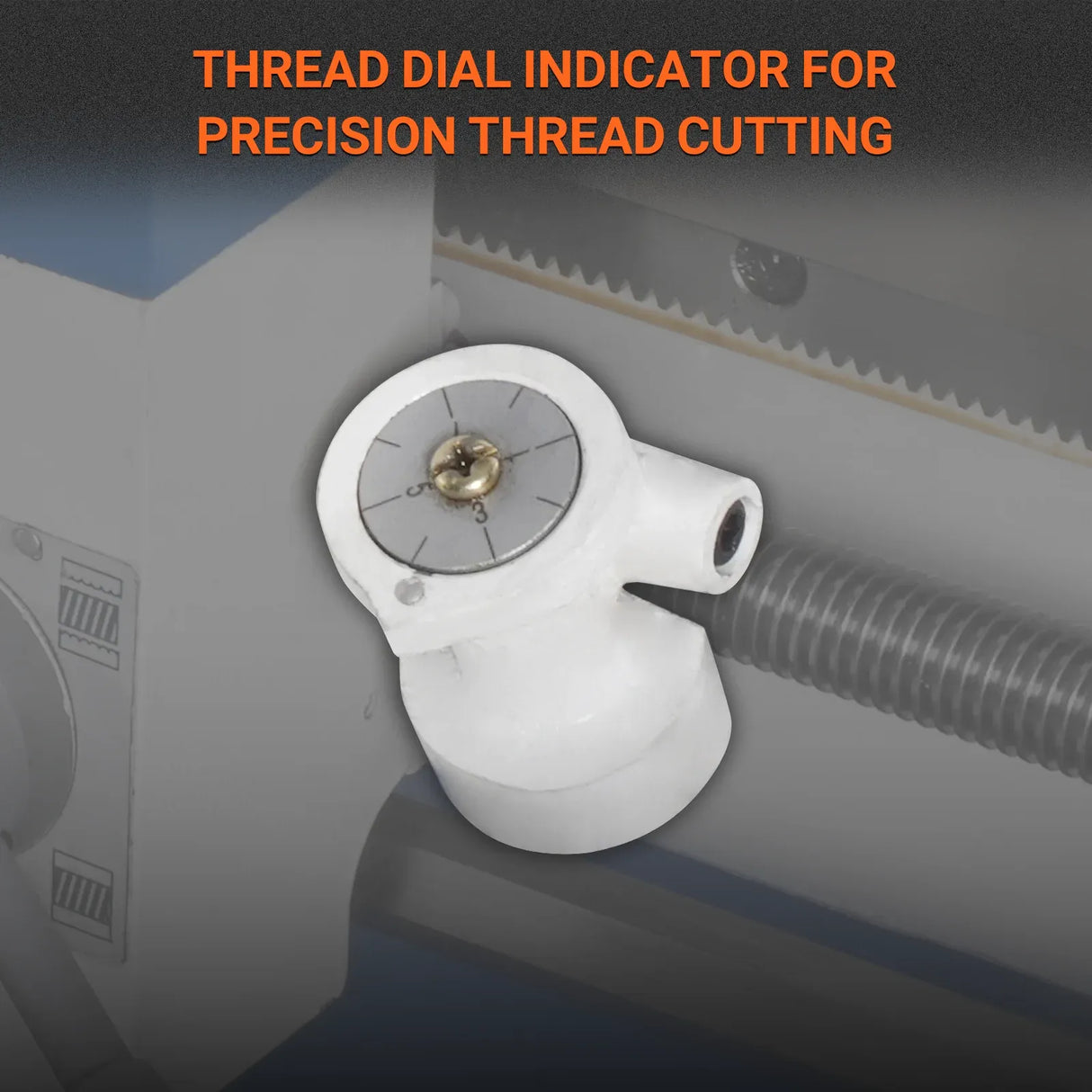

| Thread Dial Indicator | Yes |
| Tool Post Type | 4-Way |
| Maximum Tool Bit Size | 15/32" (12 mm) |
Mill / Drill Head Specifications
| Specifications | Details |
|---|---|
| Motor Power (Mill Head) | 1.5 HP (1100W) |
| Spindle Taper | R8 |
| Spindle Speed Range | 0–2500 RPM |

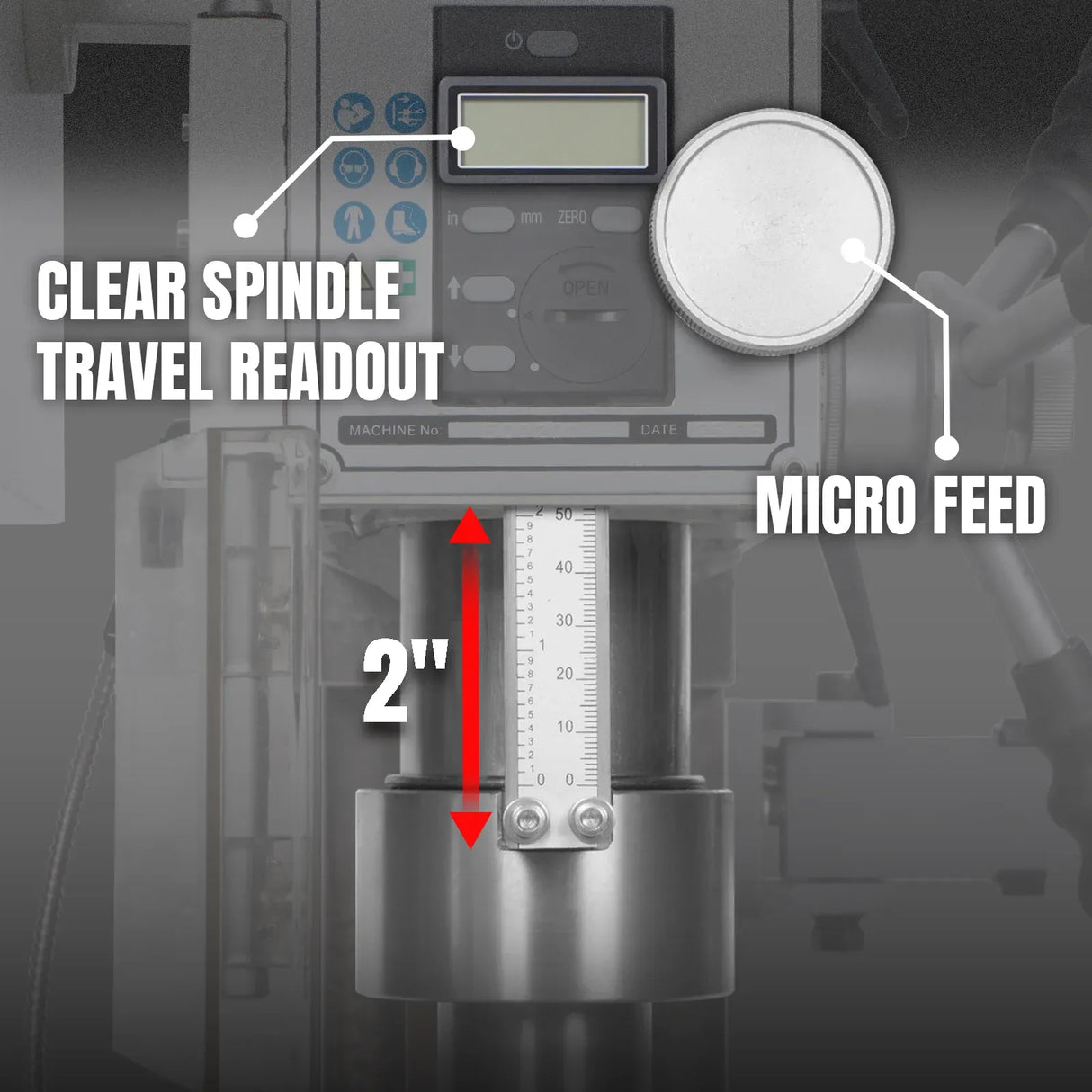

| Spindle Travel (Quill Stroke) | 2" (50 mm) |
| Quill Diameter | Ø60 mm |
| Drawbar Thread Size | 7/16"-20 |

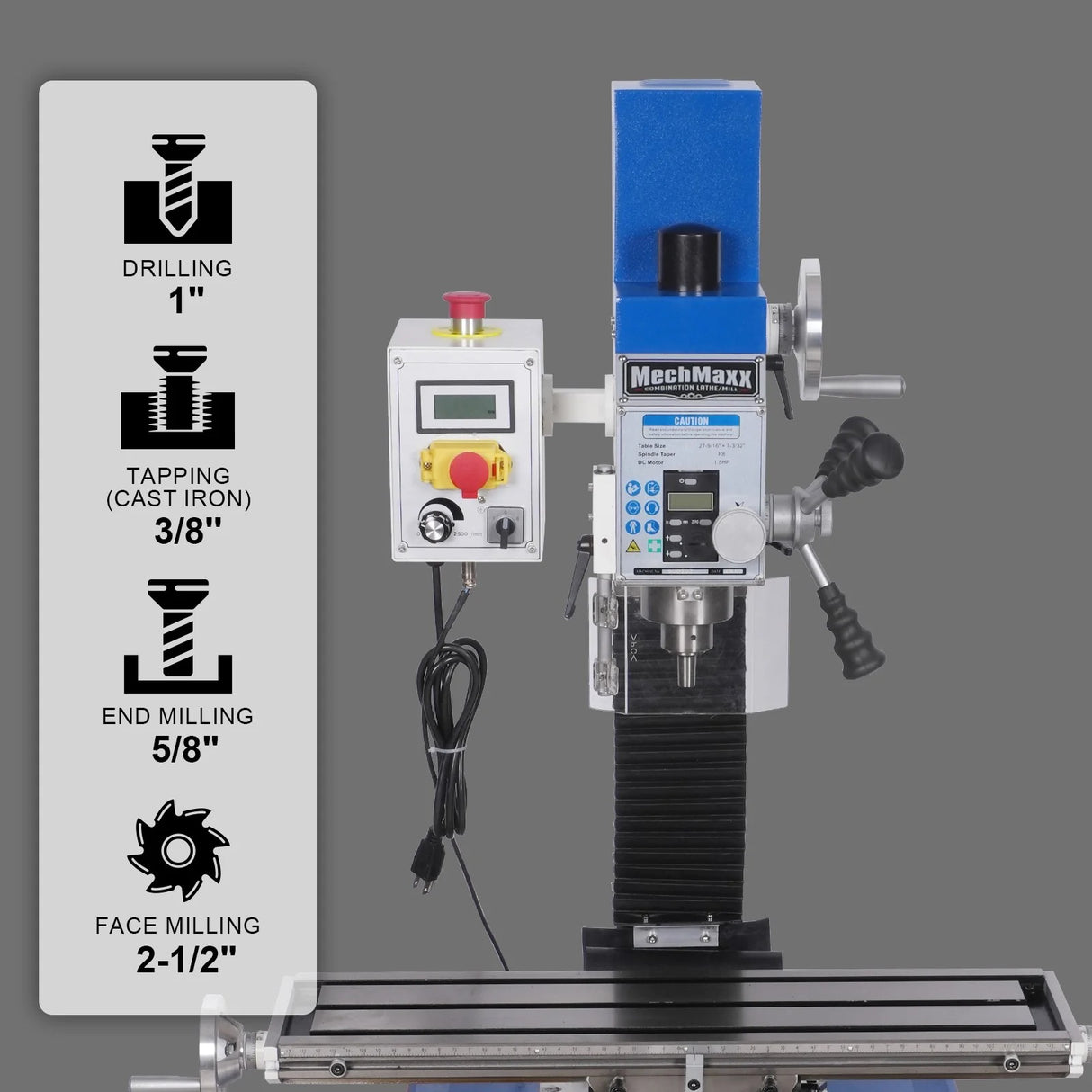

| Drilling Capacity | 1" (25 mm) |
| End Milling Capacity | 5/8" (16 mm) |
| Face Milling Capacity | 2-1/2" (63 mm) |
| Vertical Travel (Z-Axis) | 14-1/2" (370 mm) |
| Head Tilt Angle | ±90° |
| Distance: Spindle to Table | 14-1/2" (370 mm) |
| Distance: Spindle to Column | 7-1/2" (190 mm) |
| Column Type | Dovetail Slot |
| Drive Type | Belt Drive Brushless |
Machine Dimensions & Electrical
| Specifications | Details |
|---|---|
| Electrical Requirements | 110V, 1 Phase |
| Overall Dimensions | 55" × 29" × 42" (1400 × 720 × 1050 mm) |
| Net / Gross Weight | 638 / 726 lbs (290 / 330 kg) |
| Shipping Dimensions | 59" × 30" × 42" (1500 × 750 × 1050 mm) |
