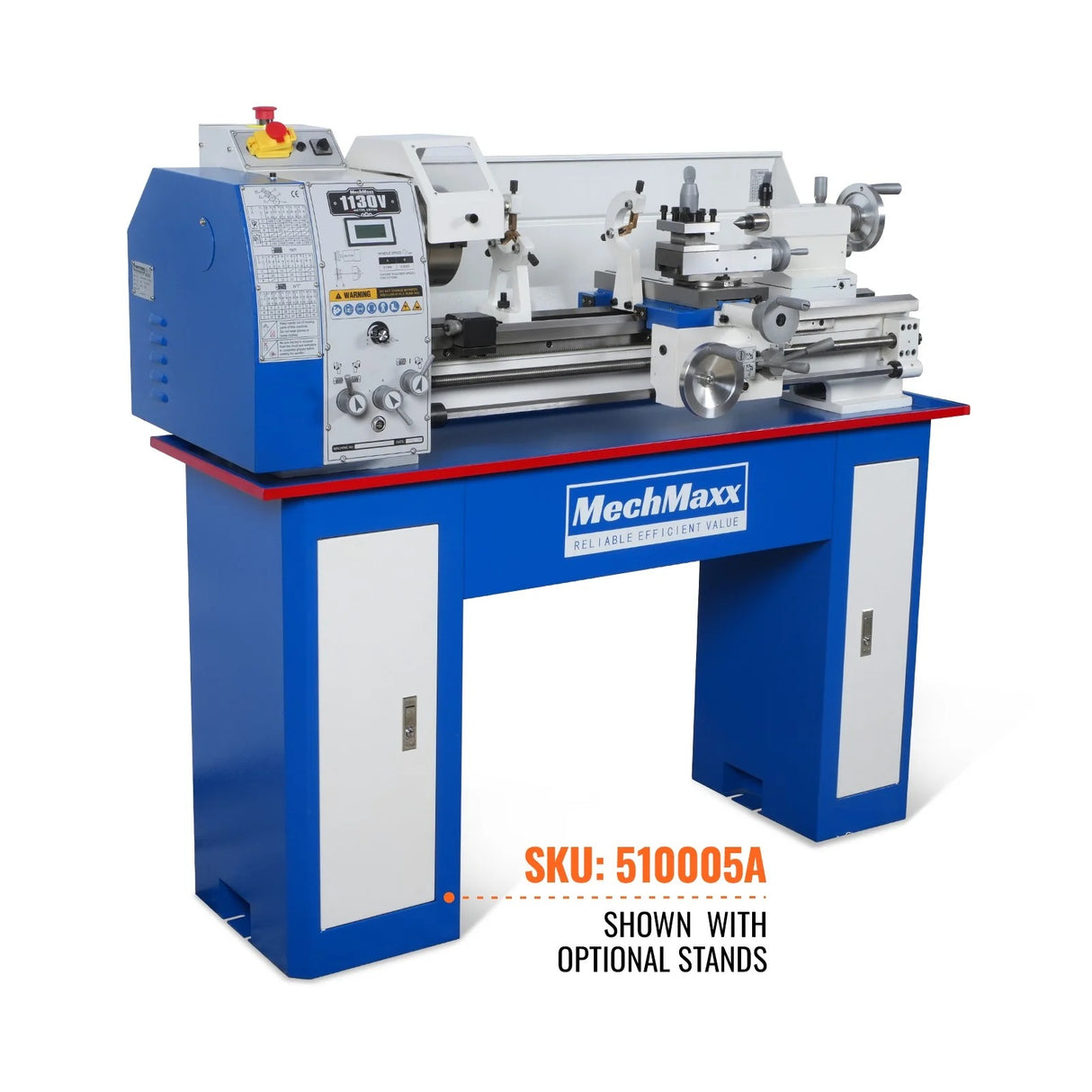

MechMaxx 11x30 Industrial Metal Lathe Machine with Variable Speed, Model 1130V
MechMaxx 11x30 Industrial Metal Lathe Machine with Variable Speed, Model 1130V is backordered and will ship as soon as it is back in stock.
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
MechMaxx 11x30 Industrial Metal Lathe Machine with Variable Speed, ...

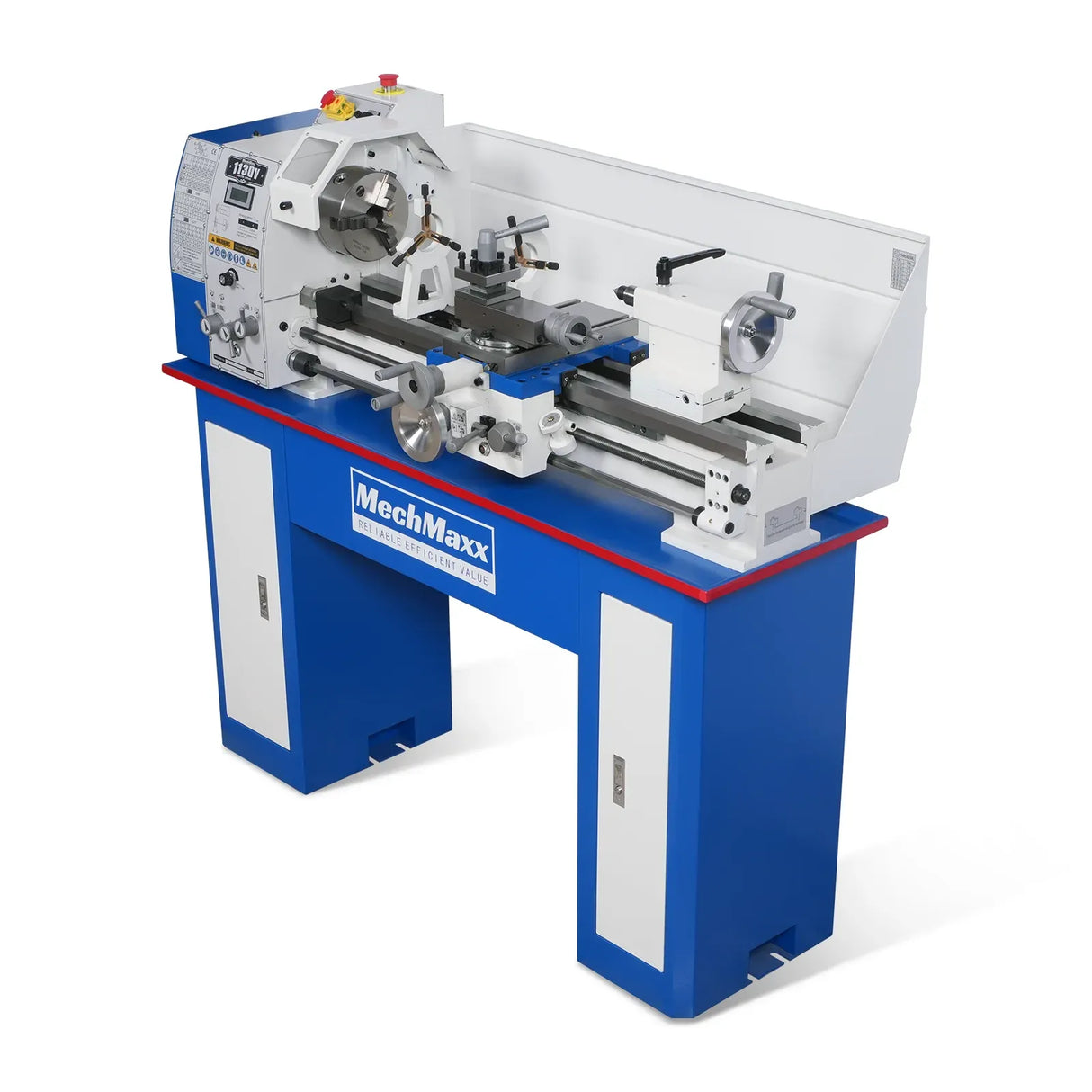

This precision metal lathe is powered by a 2 HP, 110V single-phase motor, delivering smooth and reliable performance for a wide range of turning operations. The variable spindle speed range of 0–2000 RPM allows precise adjustment for different materials and machining applications, making it ideal for both hobbyists and professional workshops.
Designed with a rigid one-piece spindle construction, this lathe provides improved stability, greater machining accuracy, and reduced vibration compared to traditional two-piece spindle designs. The large 1-1/2" (38mm) spindle bore and MT#5 spindle taper allow larger stock to pass through the spindle, increasing versatility for fabrication, repair work, and general machining tasks.

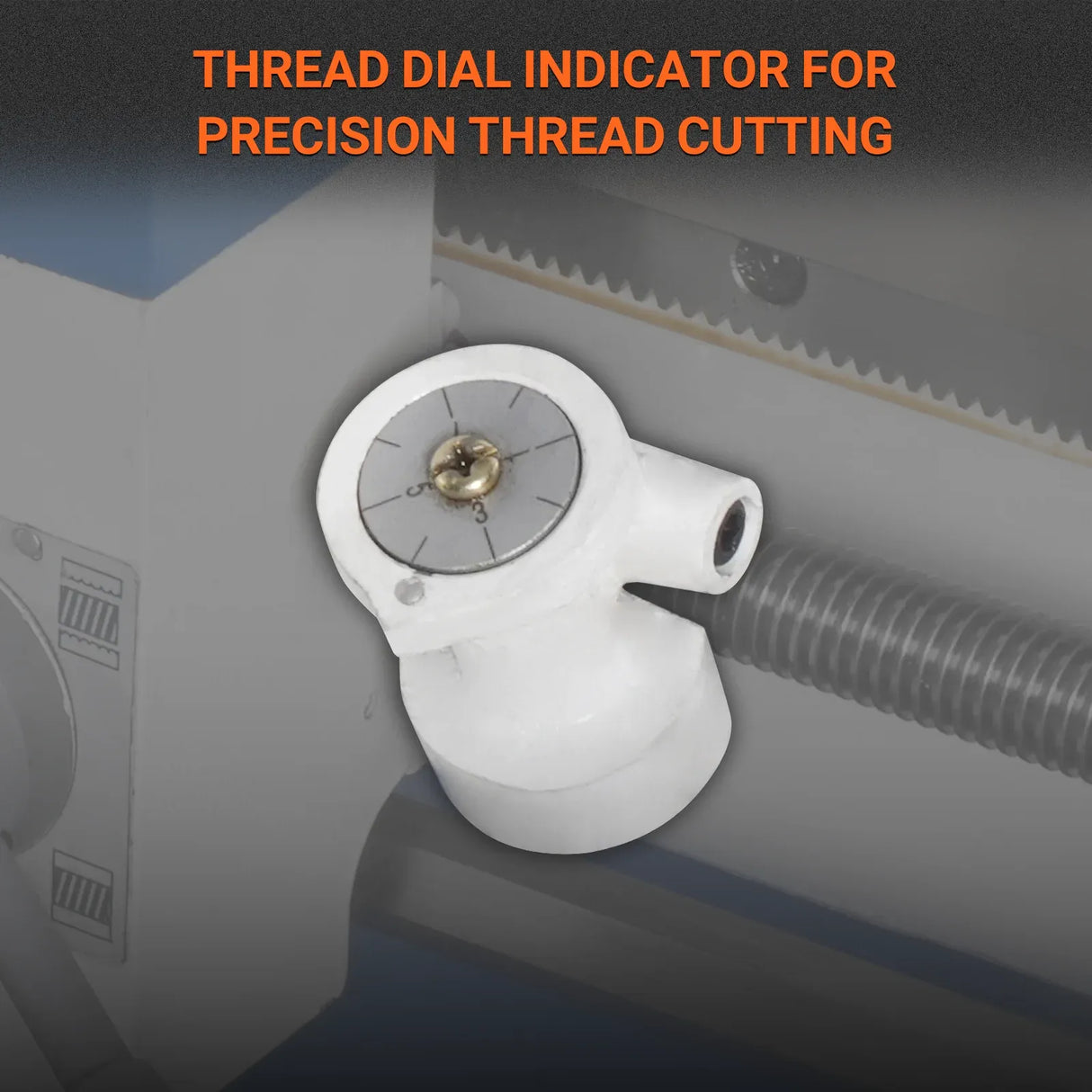

The machine supports both inch and metric threading capabilities, offering threading ranges from 8–56 TPI and 0.4–3.5mm metric pitches. A built-in thread dial indicator helps simplify threading setup and ensures accurate, repeatable thread cutting.

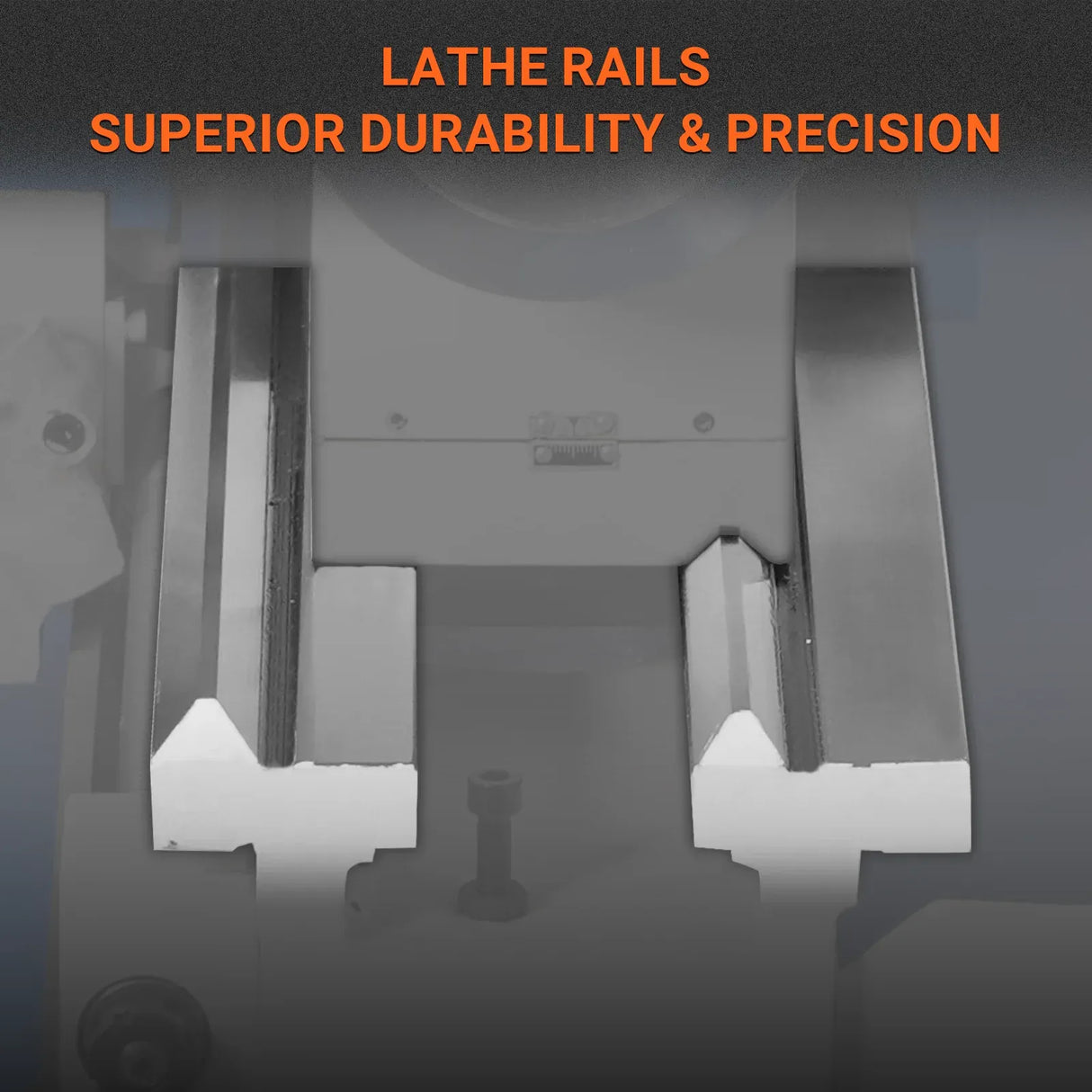

Built with a heavy-duty 7" wide bed and durable cast construction, the lathe delivers excellent rigidity and stability during operation for cleaner finishes and more precise cuts.
Safety
Always operate the machine in accordance with the user manual and all warning labels provided.
Electrical Requirements
Voltage: 110V
Phase: Single-Phase
Frequency: 60HZ
| Specifications | Details |
|---|---|
| Motor | 2 HP, 110V, Single-Phase, 20A, 60HZ |
| Swing Over Bed | 11-2/5" (290mm) |
| Swing Over Cross Slide | 7-1/4" (185mm) |
| Swing Over Saddle | 5-3/4" (147mm) |
| Distance Between Centers | 29-1/2" (750mm) |
| Bed Width | 7" (180mm) |
| Spindle Bore | 1-1/2" (38mm) |
| Spindle Mount | D1-4 |
| Spindle Type | One-piece Spindle |
| Spindle Taper | MT#5 |
| Tailstock Taper | MT#3 |

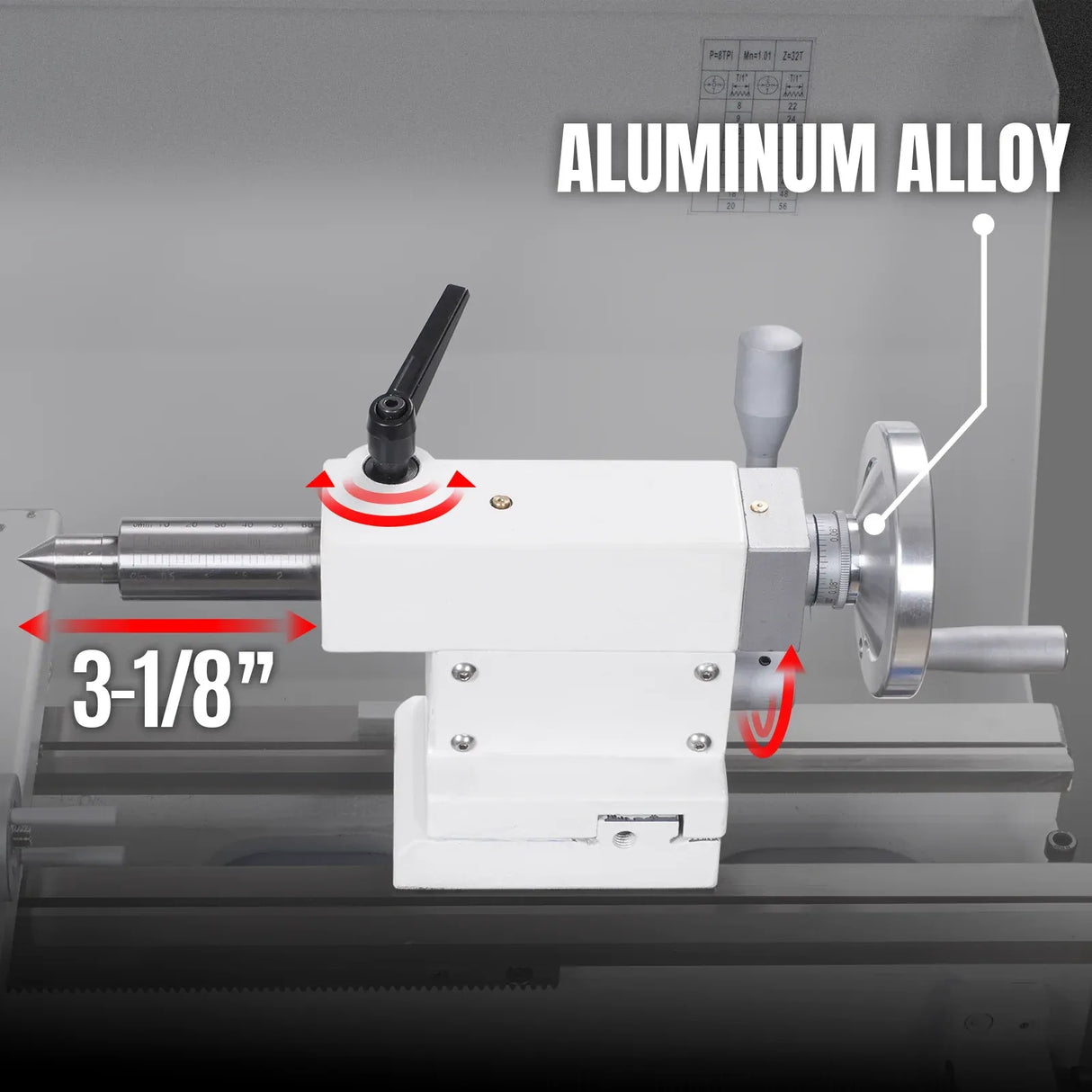

| Tailstock Quill Travel | 3-1/8" (85mm) |

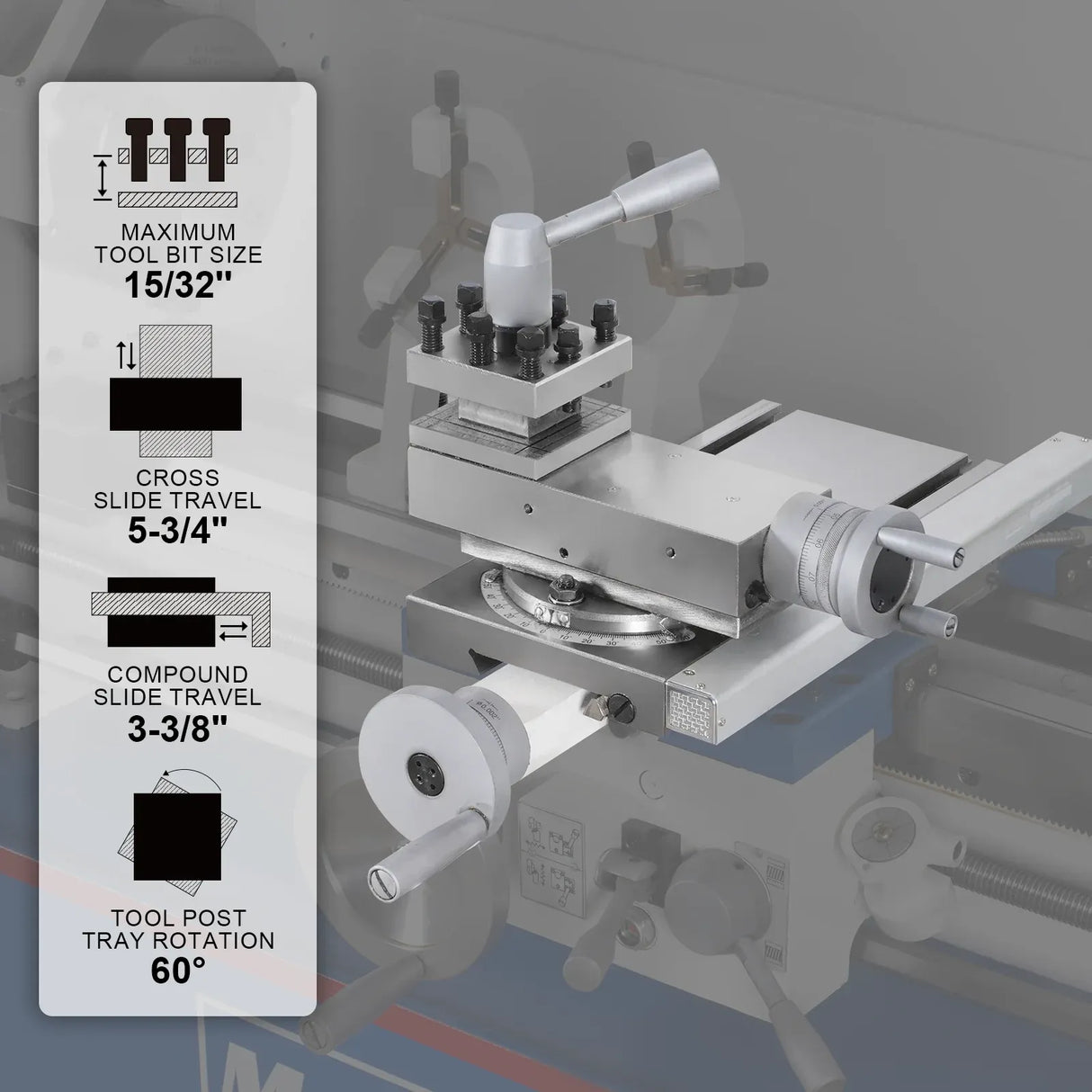

| Cross Slide Travel | 5-3/4" (147mm) |
| Compound Slide Travel | 3-3/8" (86mm) |
| Carriage Travel | 27-1/2" (700mm) |

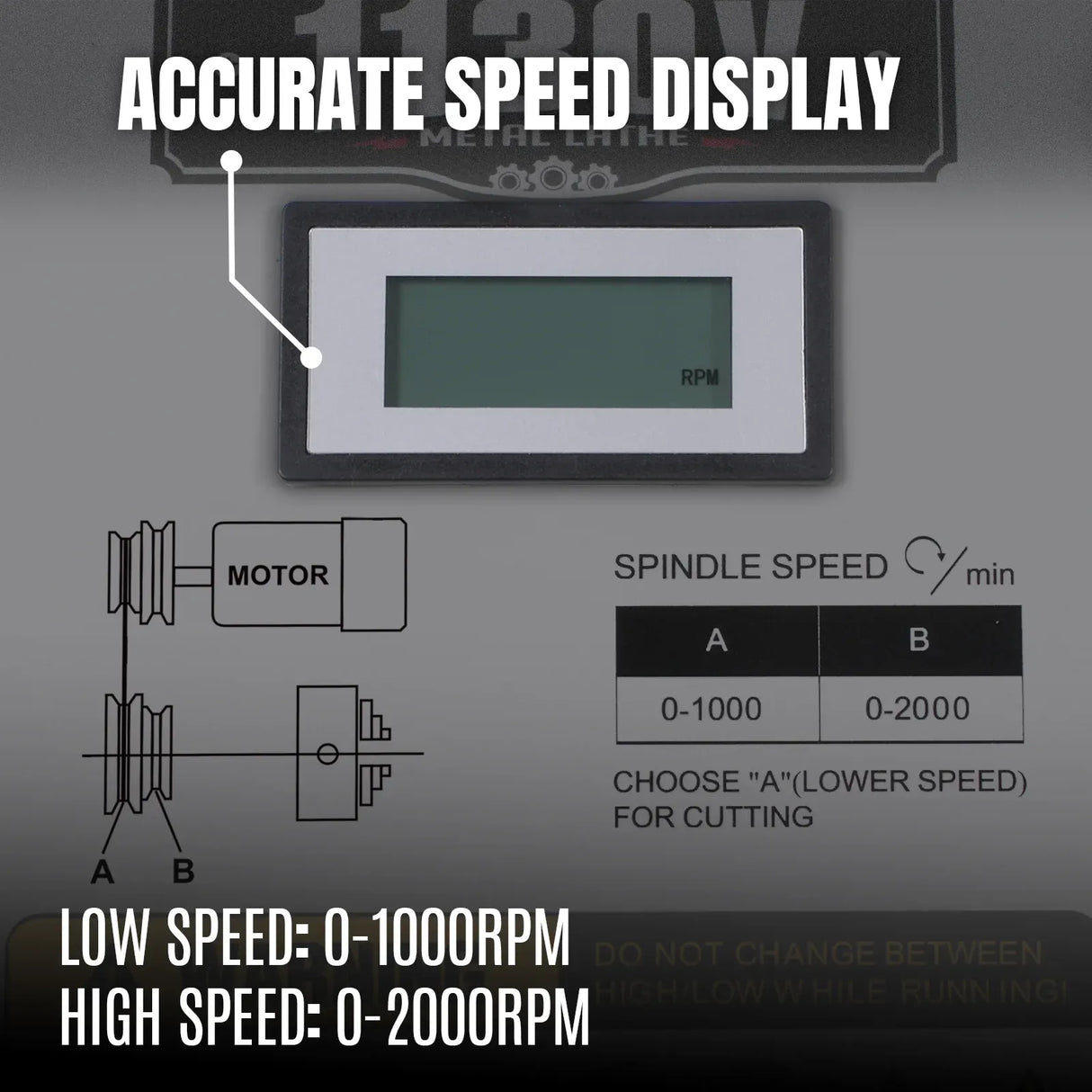

| Spindle Speeds | 0–2000 RPM |
| Number of Speed Ranges | Variable |

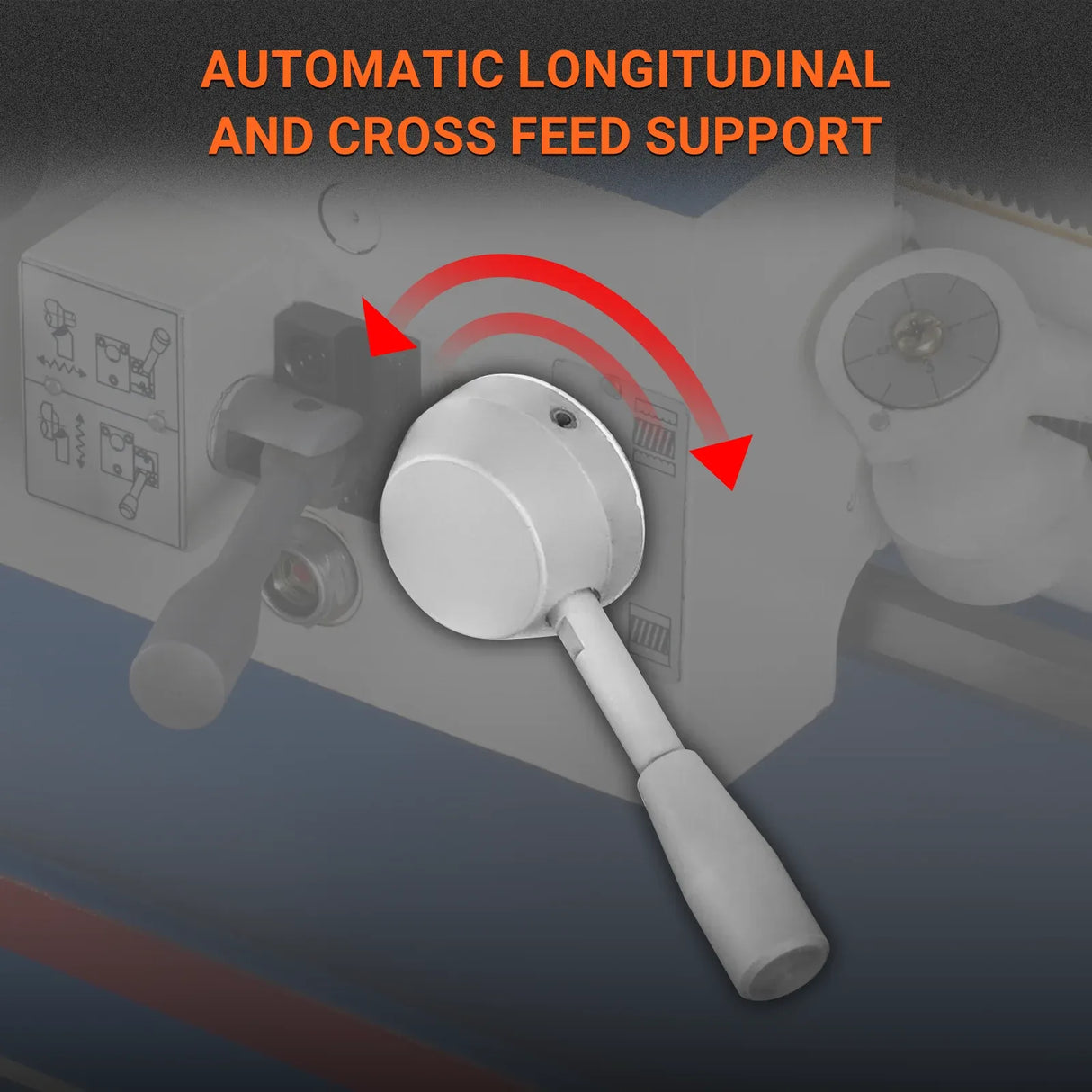

| Longitudinal Feeds | 0.017–0.25mm/R (0.0007–0.0098 in./rev.) |
| Transverse Feed Rate | 0.07–0.53mm/r (0.0027–0.02 in./rev.) |
| Leadscrew Size & Pitch | 20mm (8TPI) |
| Threading Capacity - Inch | 8–56 TPI (21 Kinds) |
| Threading Capacity - Metric | 0.4–3.5mm (12 Kinds) |
| Maximum Tool Bit Size | 15/32" (12mm) |
| Thread Dial Indicator | Yes |
| Overall Dimensions | 59" × 31" × 30" (1400 × 750 × 740mm) |
| Net / Gross Weight | 517 / 572 lbs (235 / 260kg) |
WARNING: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped), lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Certain specifications are based on engineering calculations and are not actual measurements. Specifications are provided for comparison purposes only and are subject to change without notice. Individual machine specifications may vary based on manufacturing tolerances, operating conditions, and other factors.
