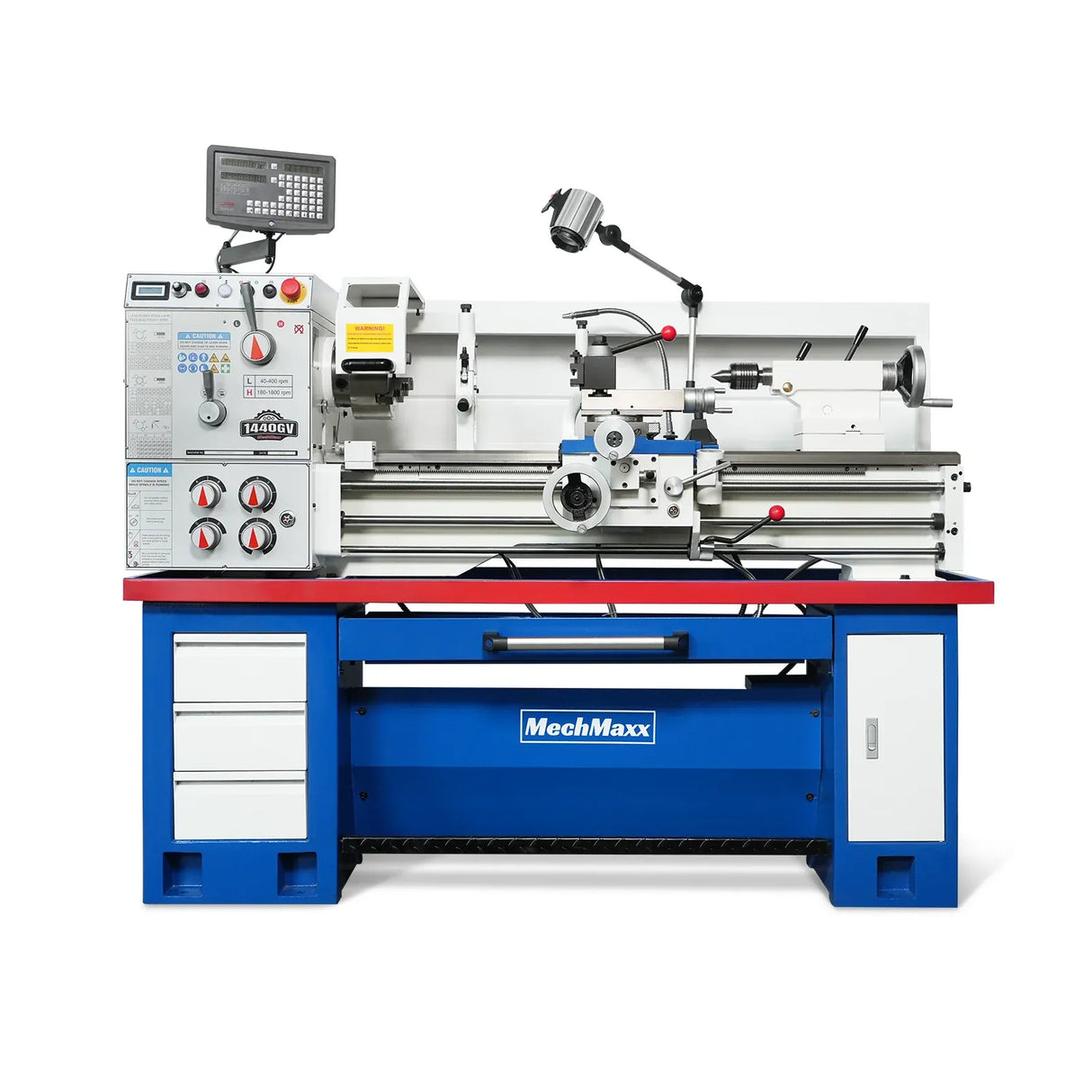

MechMaxx 14x40 Industrial Metal Lathe with Variable Speed and DRO, Model 1440GV
MechMaxx 14x40 Industrial Metal Lathe with Variable Speed and DRO, Model 1440GV is backordered and will ship as soon as it is back in stock.
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
MechMaxx 14x40 Industrial Metal Lathe with Variable Speed and DRO, ...

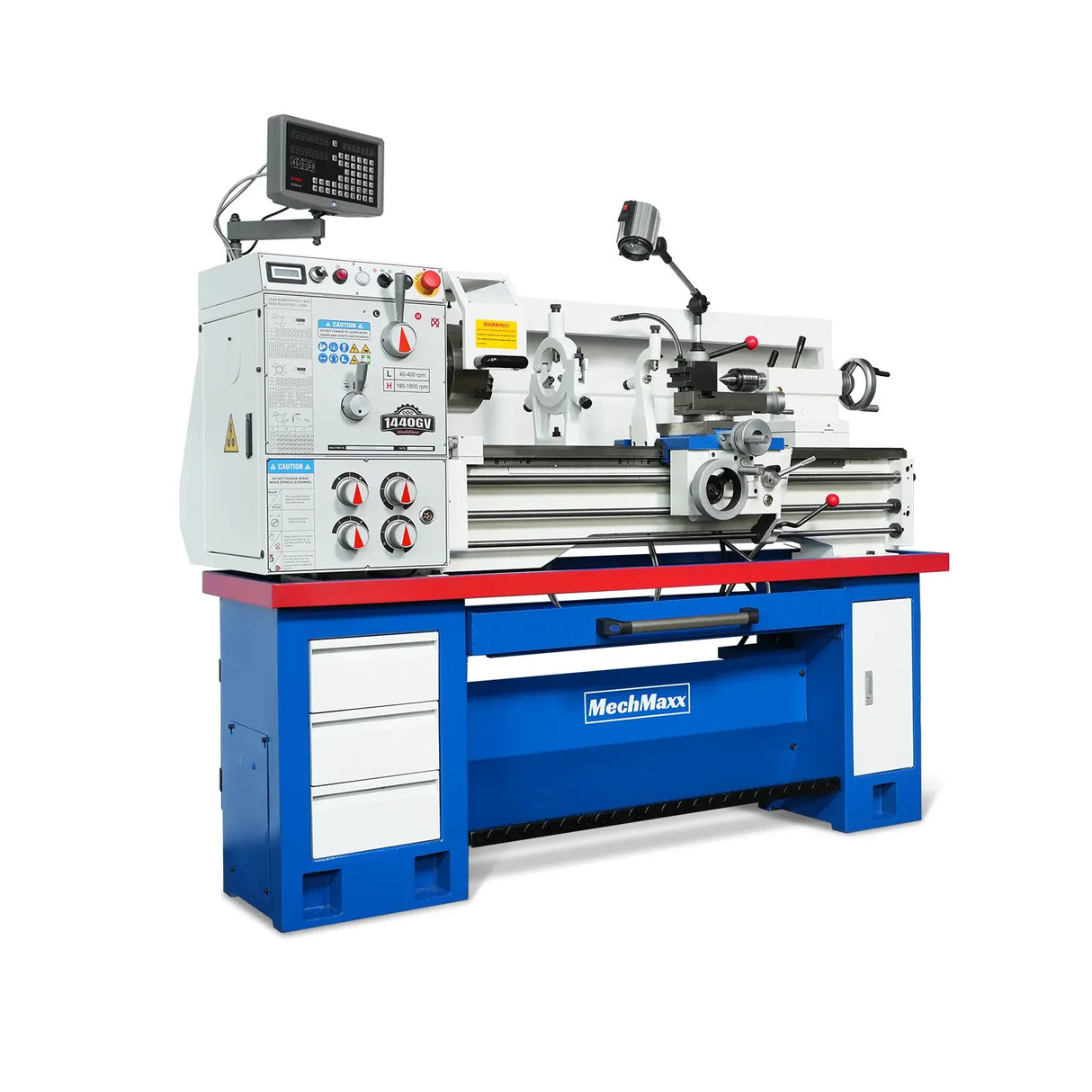

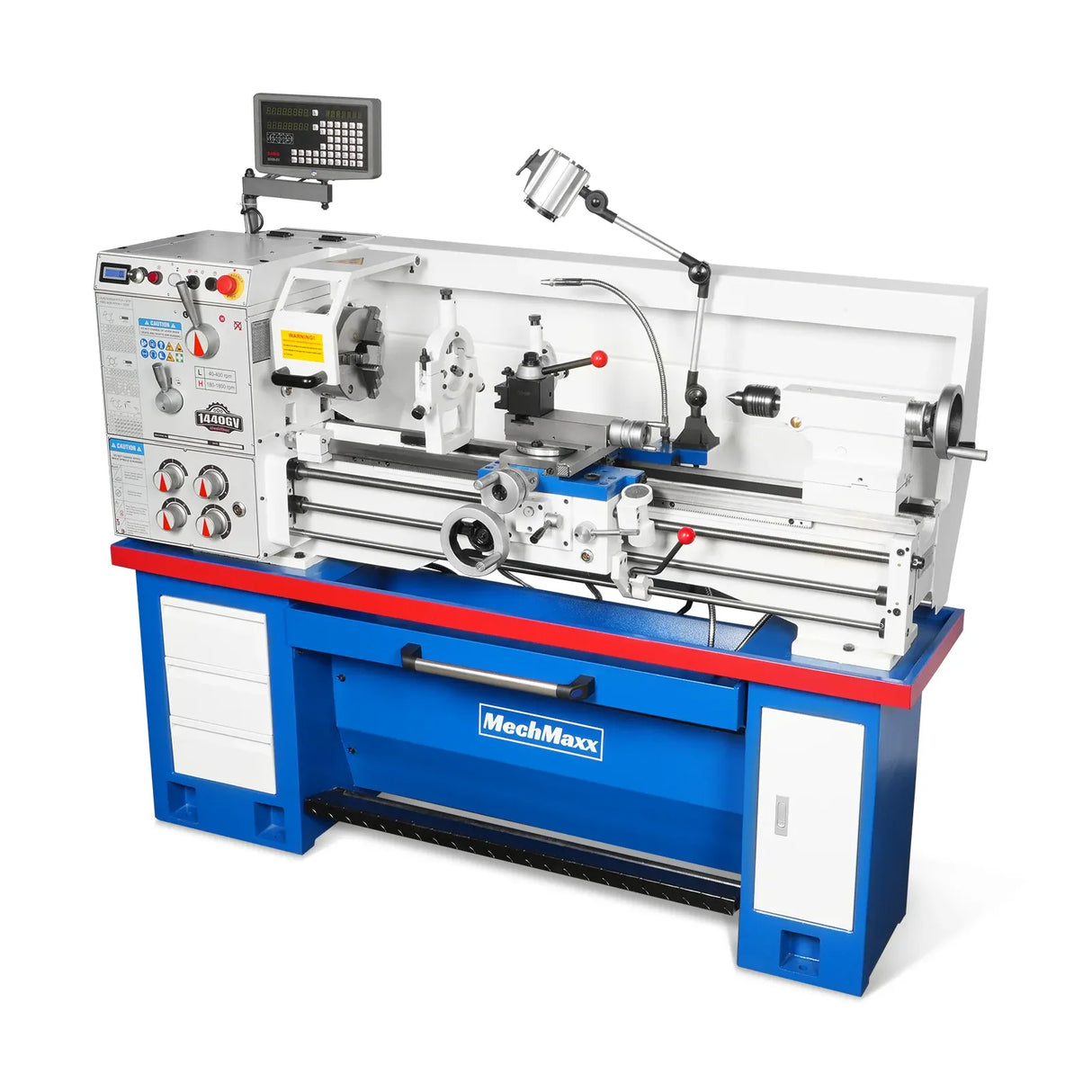

The 14" x 40" Variable Speed Metal Lathe with 2" Spindle Bore is a precision-built machine designed for gunsmithing, fabrication, and general machining applications that demand power, accuracy, and versatility. With a robust cast iron construction and advanced control features, this lathe delivers smooth, consistent performance across a wide range of materials.
Designed for both professional shops and serious workshop users, this lathe combines modern functionality with rugged durability. Its large spindle bore and optimized spindle design make it ideal for through-spindle work, while the variable speed system allows operators to dial in the perfect cutting conditions for any job.
Key Features & Benefits
- Large 2" Spindle Bore for handling larger stock
- Variable Speed Control (40–1800 RPM) via VFD
- 2-Axis DRO for precise, repeatable measurements
- Wedge-Type Quick Change Tool Post with 5 holders included
- Heavy-duty cast iron base reduces vibration and increases stability

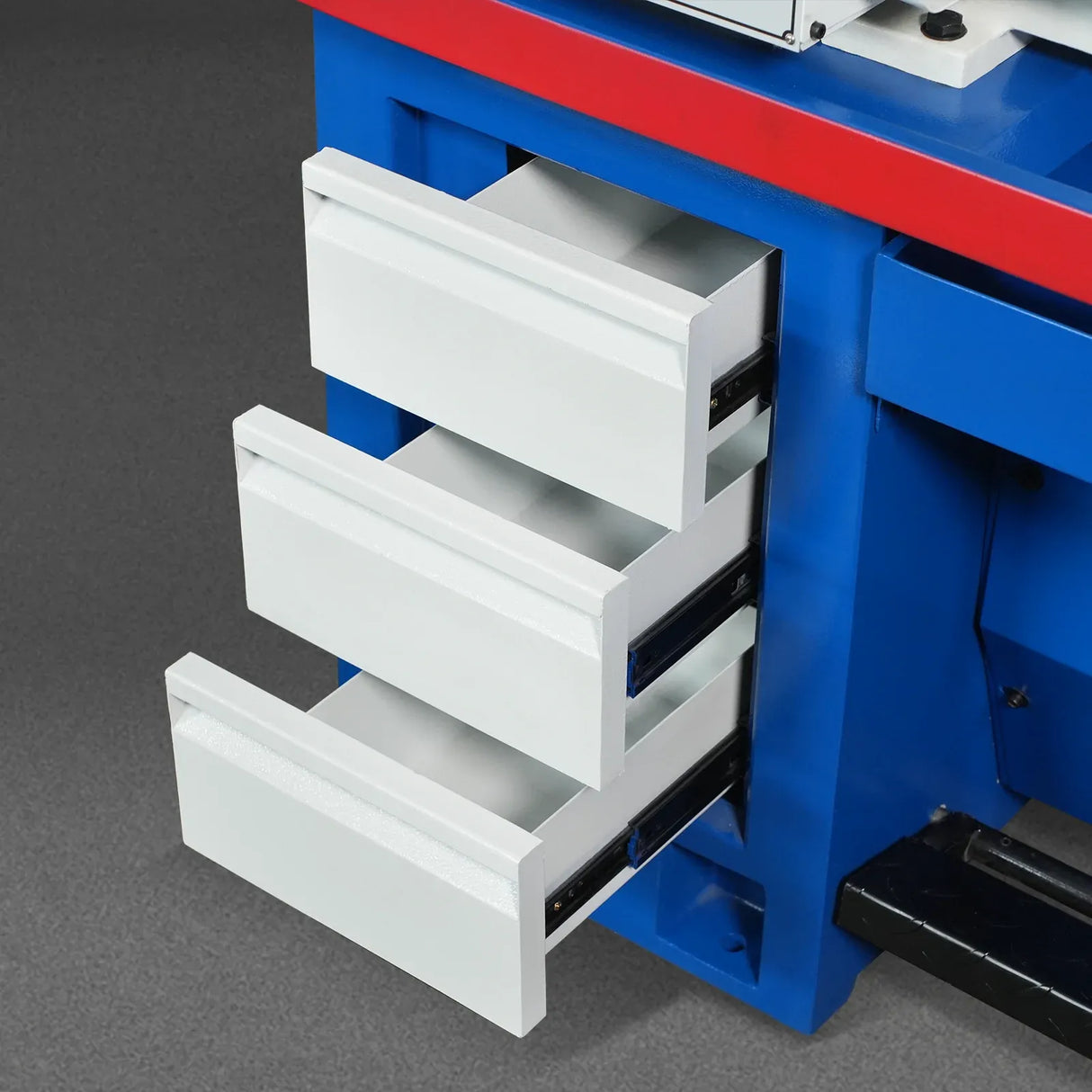

- Built-in storage drawers for tools and accessories

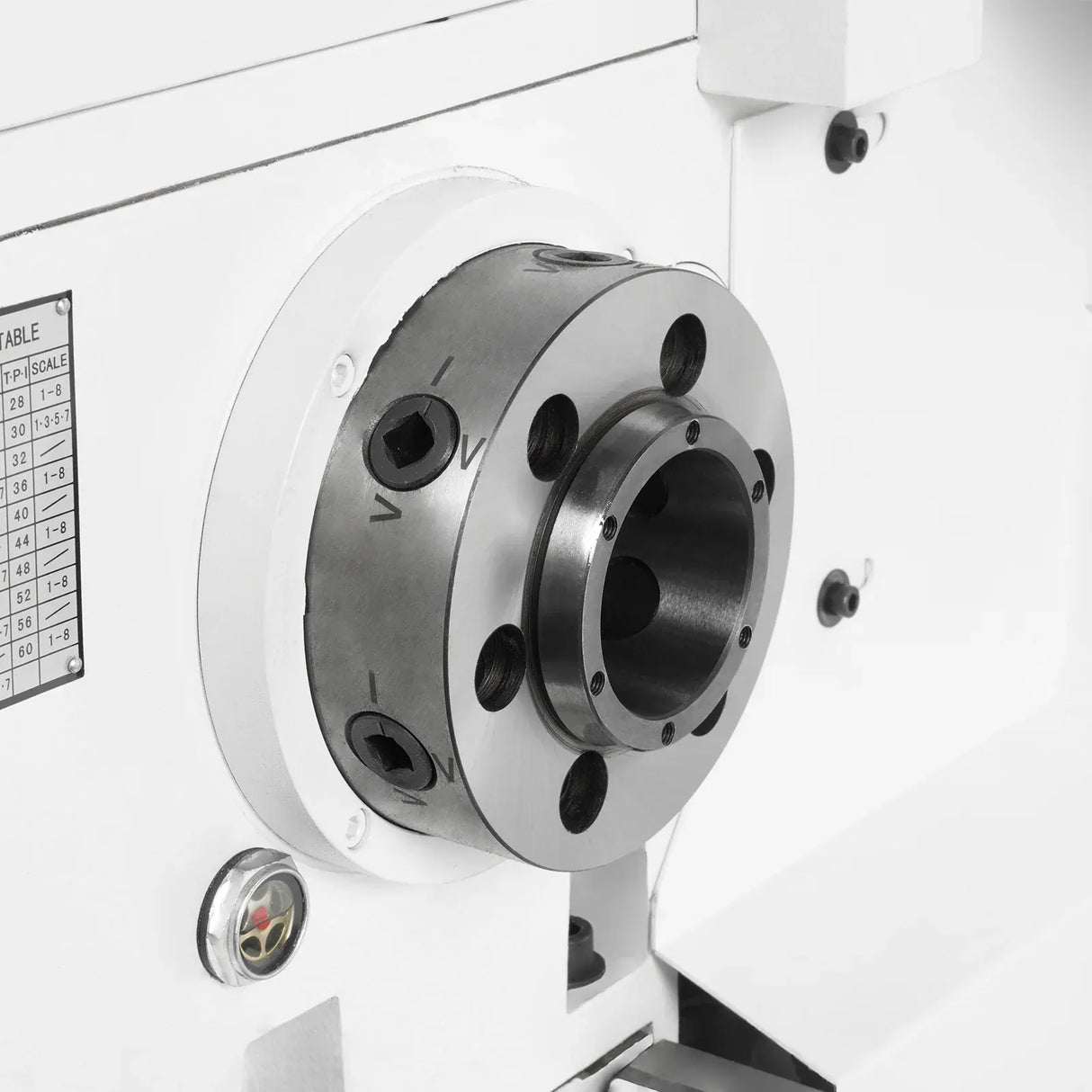

- Gunsmith-friendly spindle design for improved access
- Supports inch (4–56 TPI) and metric (0.4–7.0 mm) threading
- Fully equipped with essential accessories for immediate use
Built for Precision & Control

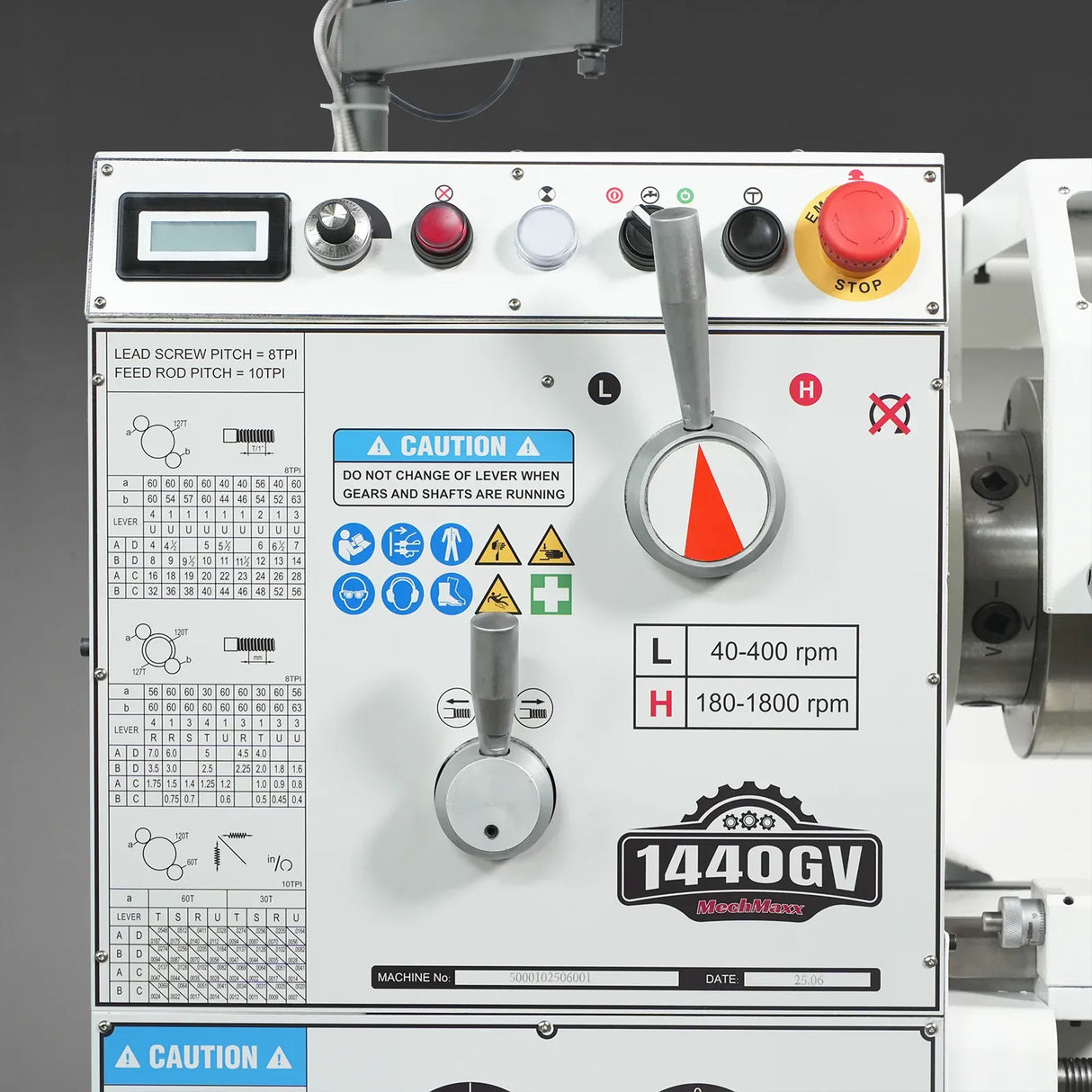

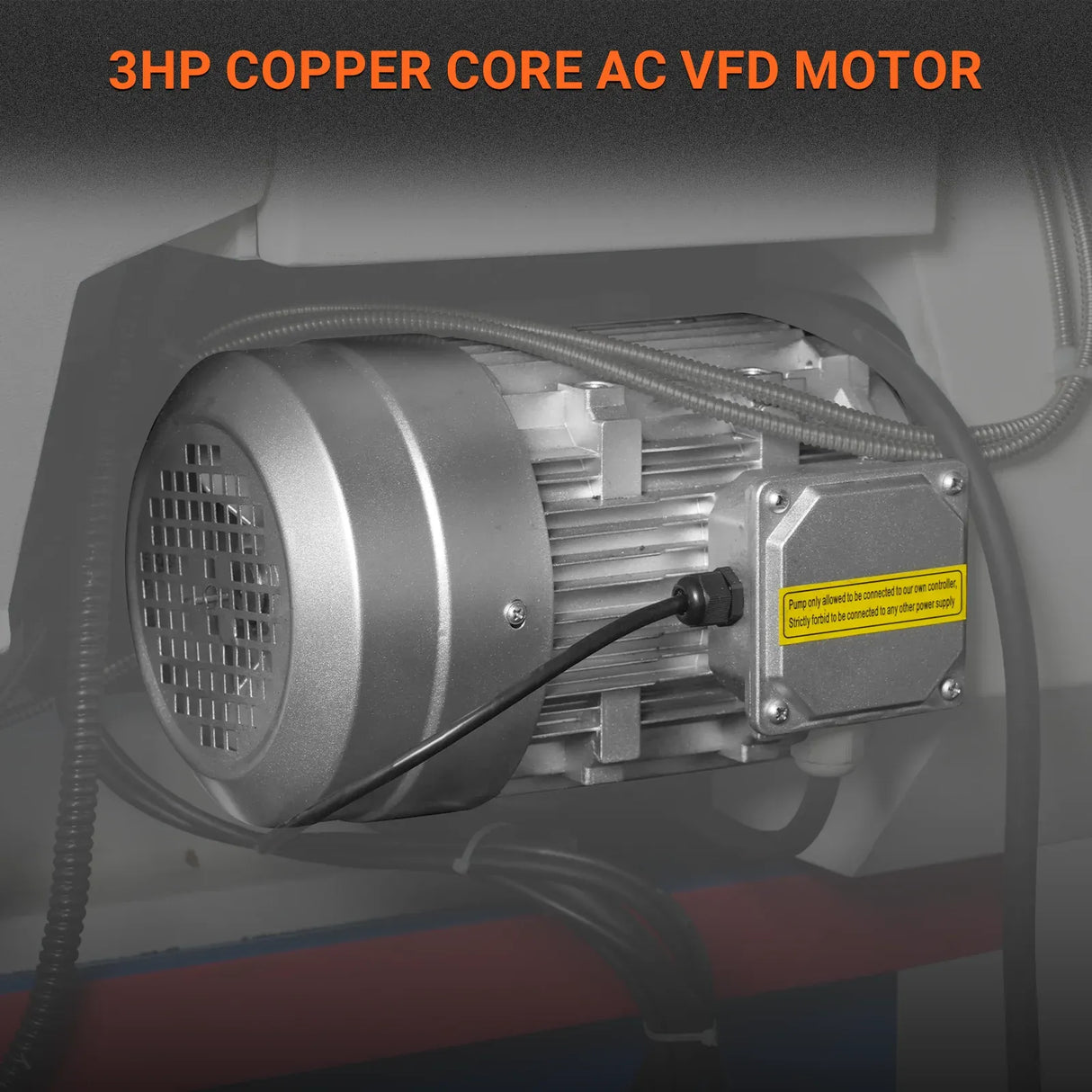

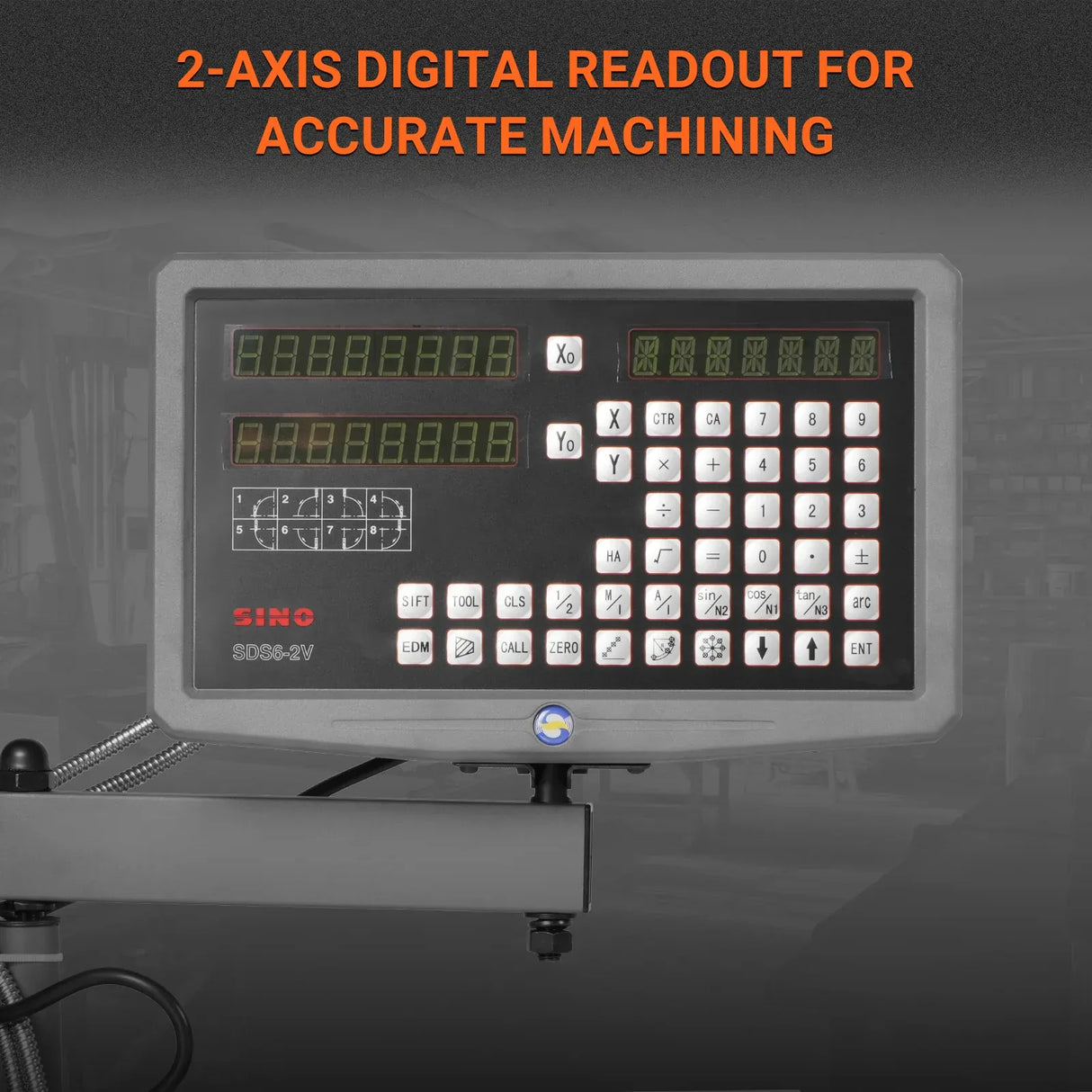

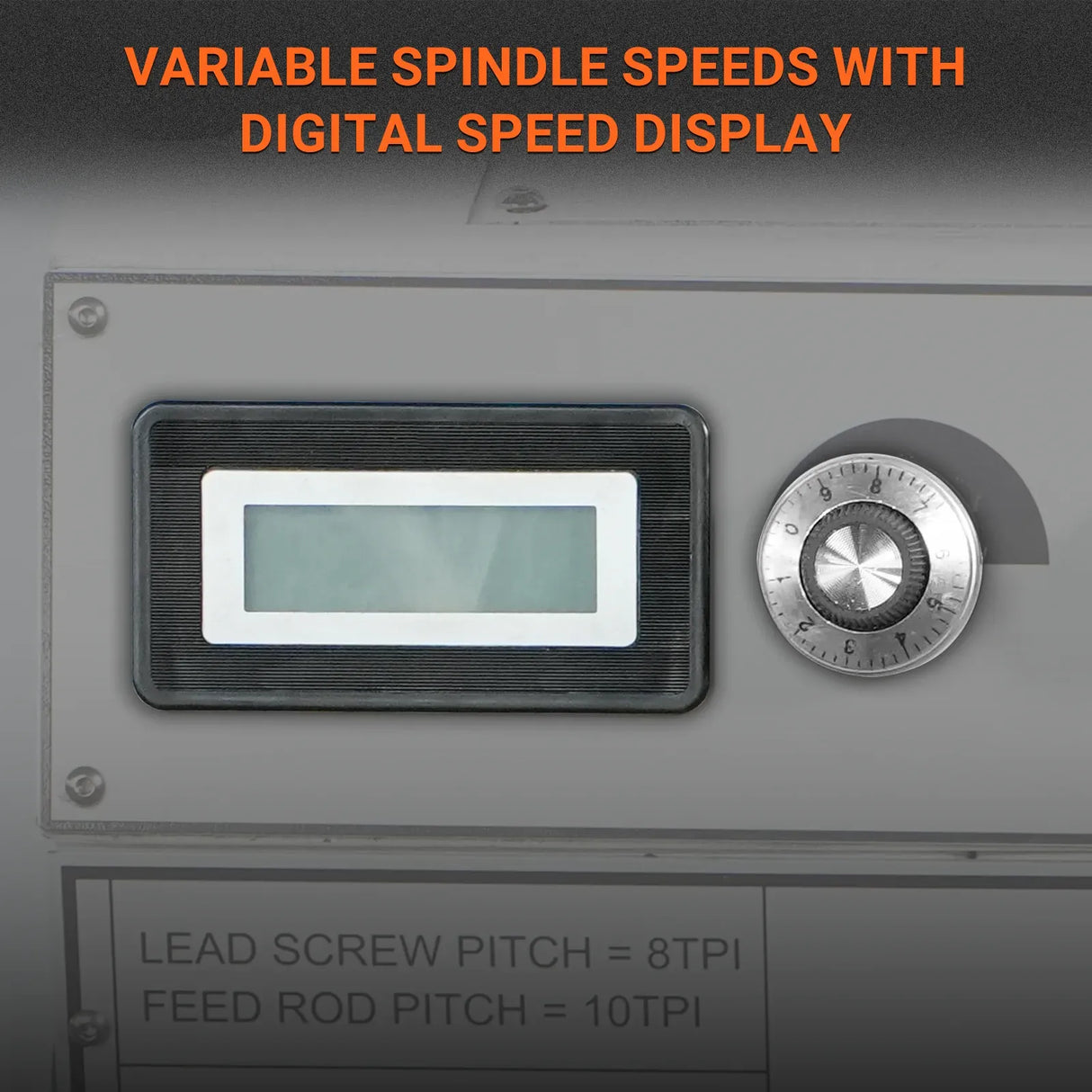

Equipped with a VFD-driven variable speed system ranging from 40 to 1800 RPM, this lathe provides smooth and precise speed adjustments for improved finishes and tool life. The integrated 2-axis digital readout (DRO) ensures accurate, repeatable positioning on both the cross slide and carriage.

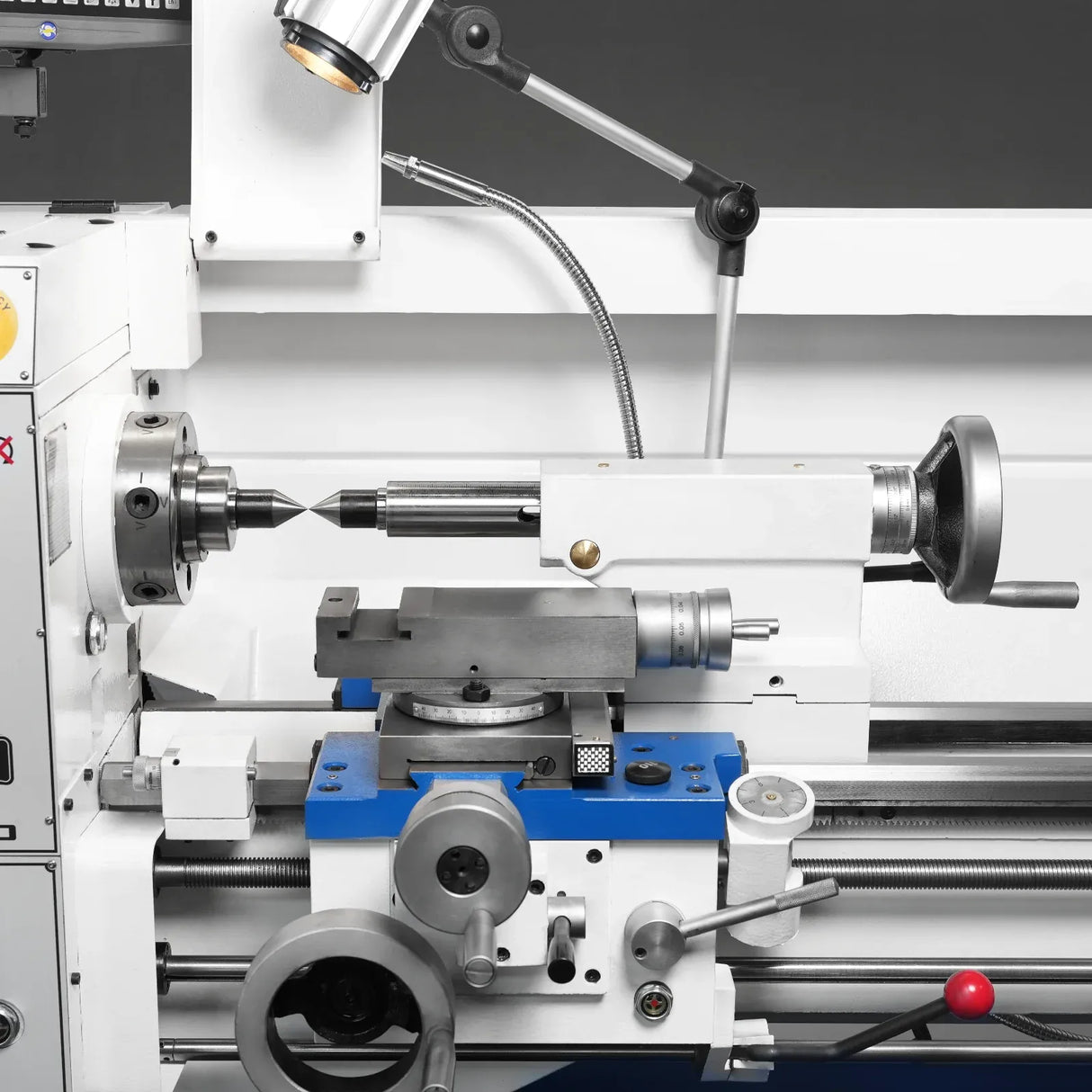

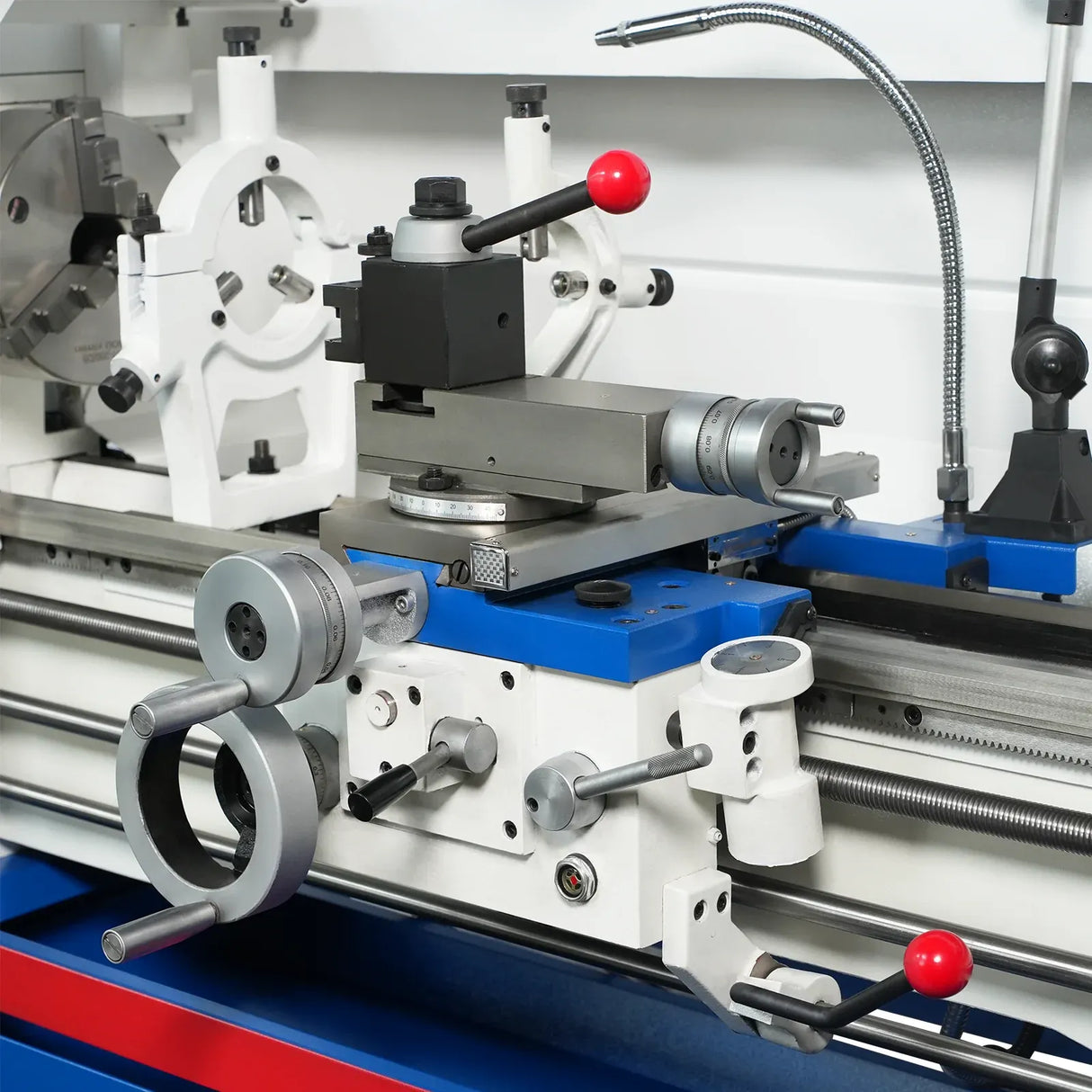

A wedge-type quick change tool post with multiple holders allows for fast tool changes while maintaining rigidity, resulting in better surface finishes and improved efficiency during operation.
Fully Equipped for Immediate Use

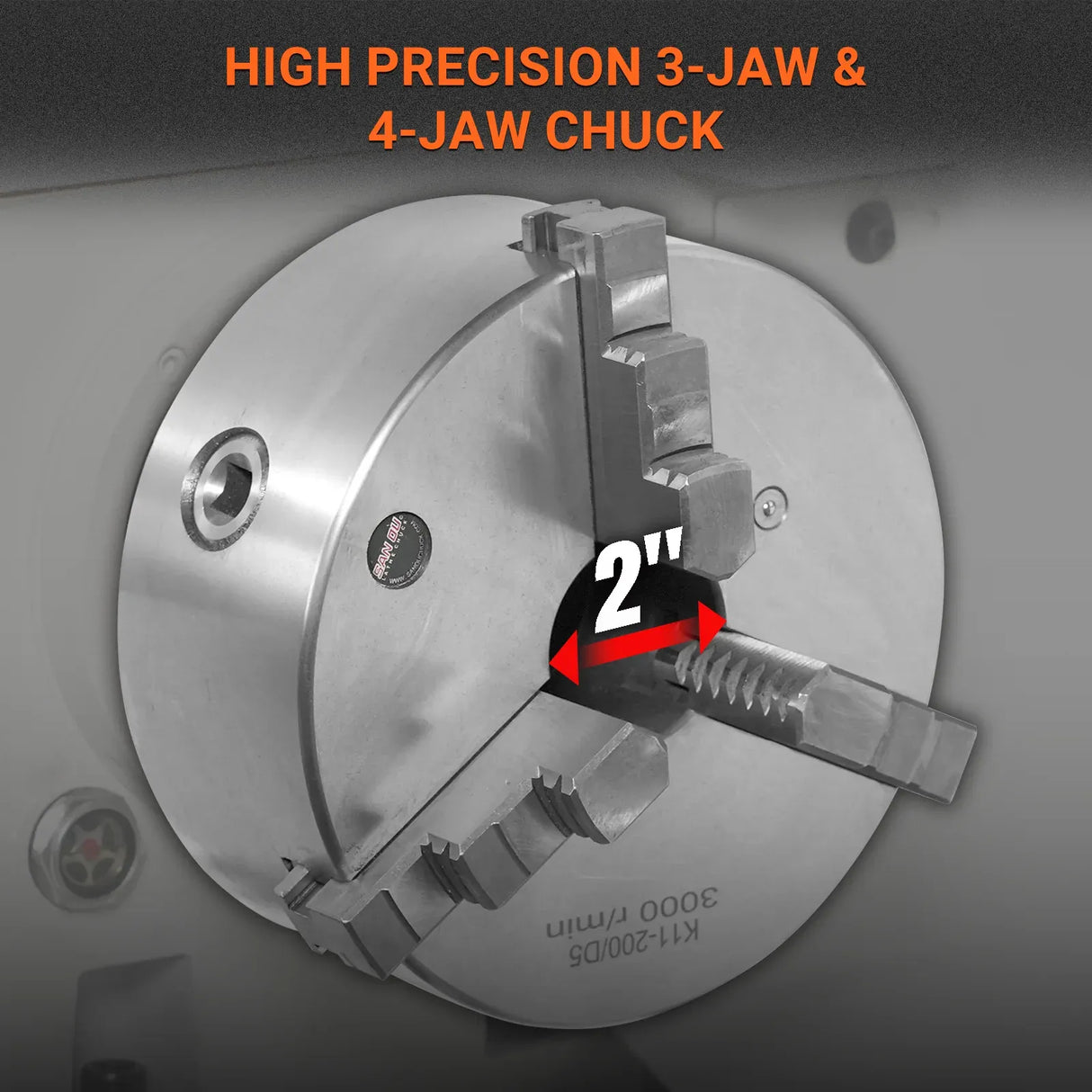

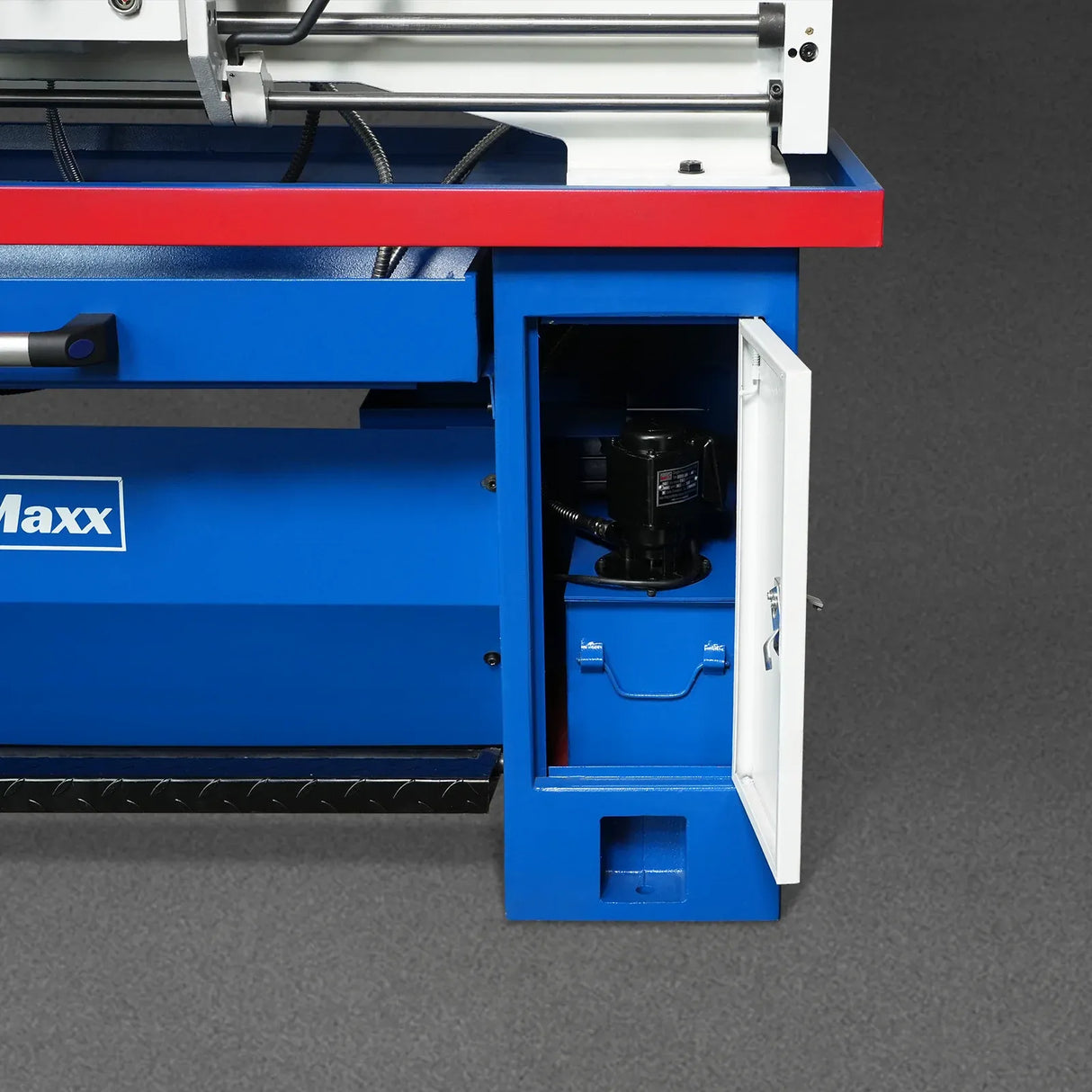

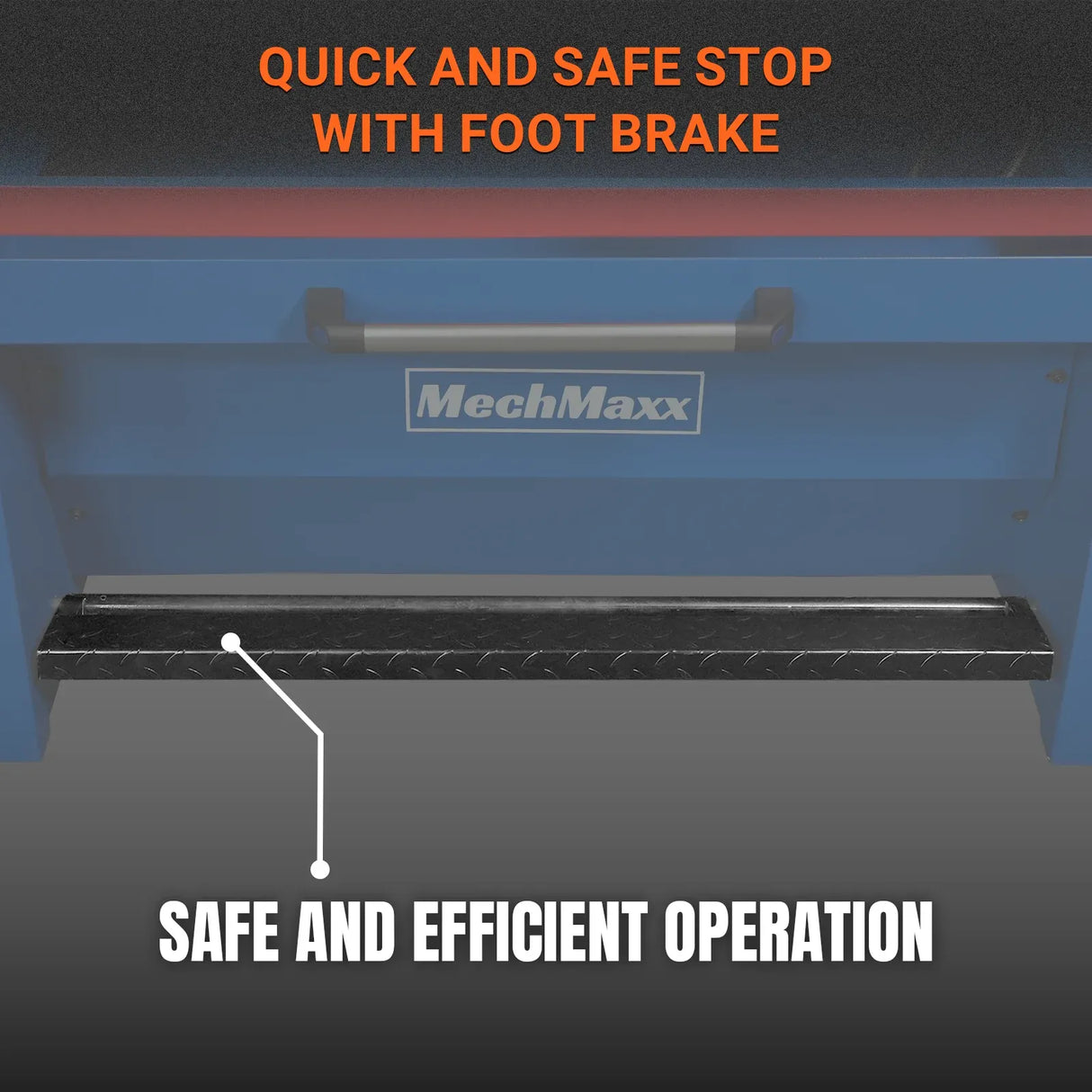

This lathe comes complete with an 8" 3-jaw chuck, 4-jaw chuck, faceplate, steady and follow rests, thread dial, foot brake, splash guard, coolant system, and LED work light—everything needed to begin working right away.
Designed for Versatile Machining
With its wide threading range, powerful motor, and durable construction, this lathe is capable of handling everything from fine precision work to heavier industrial tasks. It's an excellent choice for gunsmiths, machinists, and fabrication shops looking for reliability and flexibility.
| Specifications | Details |
|---|---|
| Swing Over Bed | 14" |
| Swing Over Cross Slide | 8-13/16" |
| Swing Over Gap | 19-3/4" |
| Distance Between Centers | 40" |
| Bed Width | 7.38" |
| Spindle Bore | 2" |
| Spindle Mount | D1-5 Camlock |
| Spindle Taper | MT6 |
| Tailstock Taper | MT4 |
| Tailstock Quill Diameter | 1.26" |

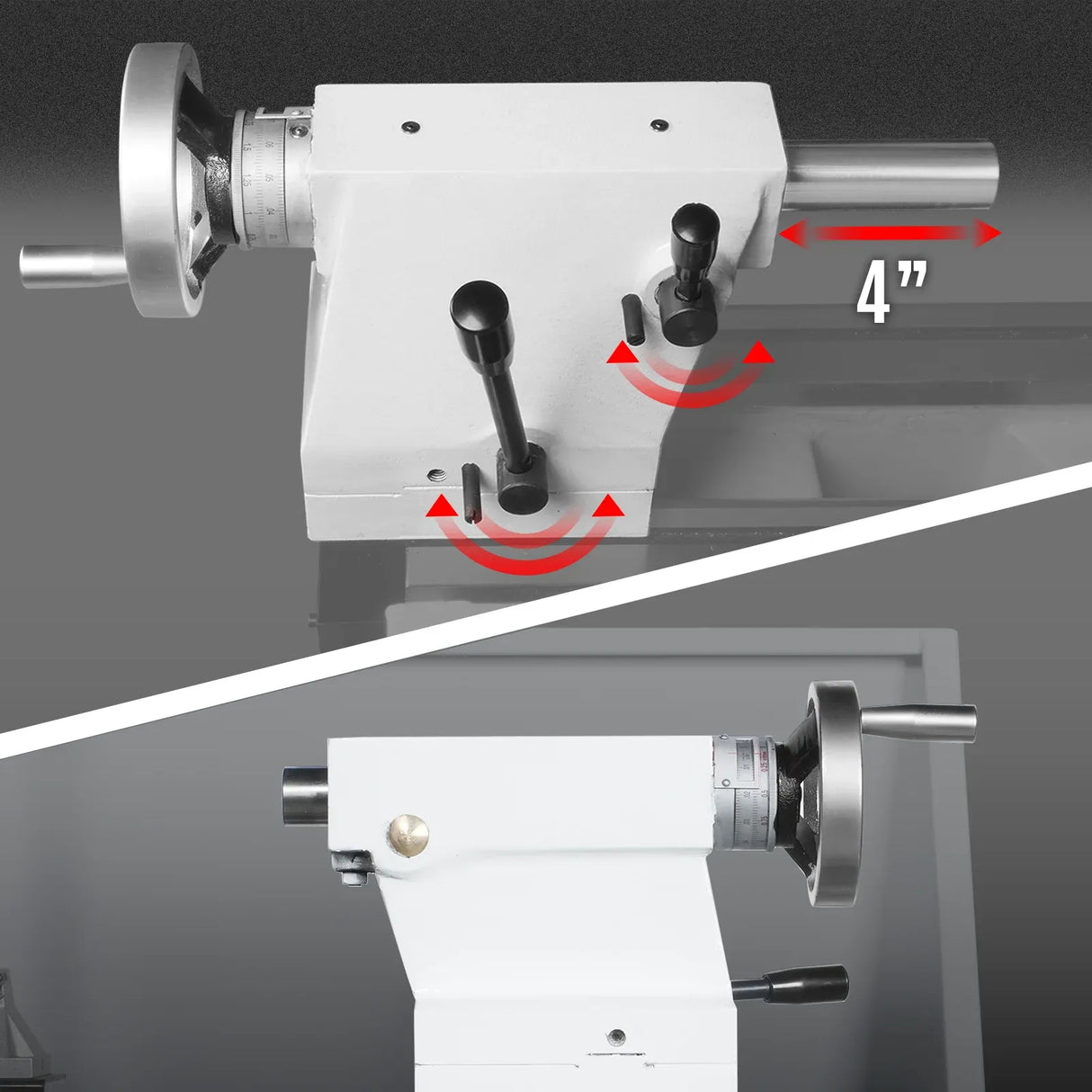

| Tailstock Quill Travel | 4" |

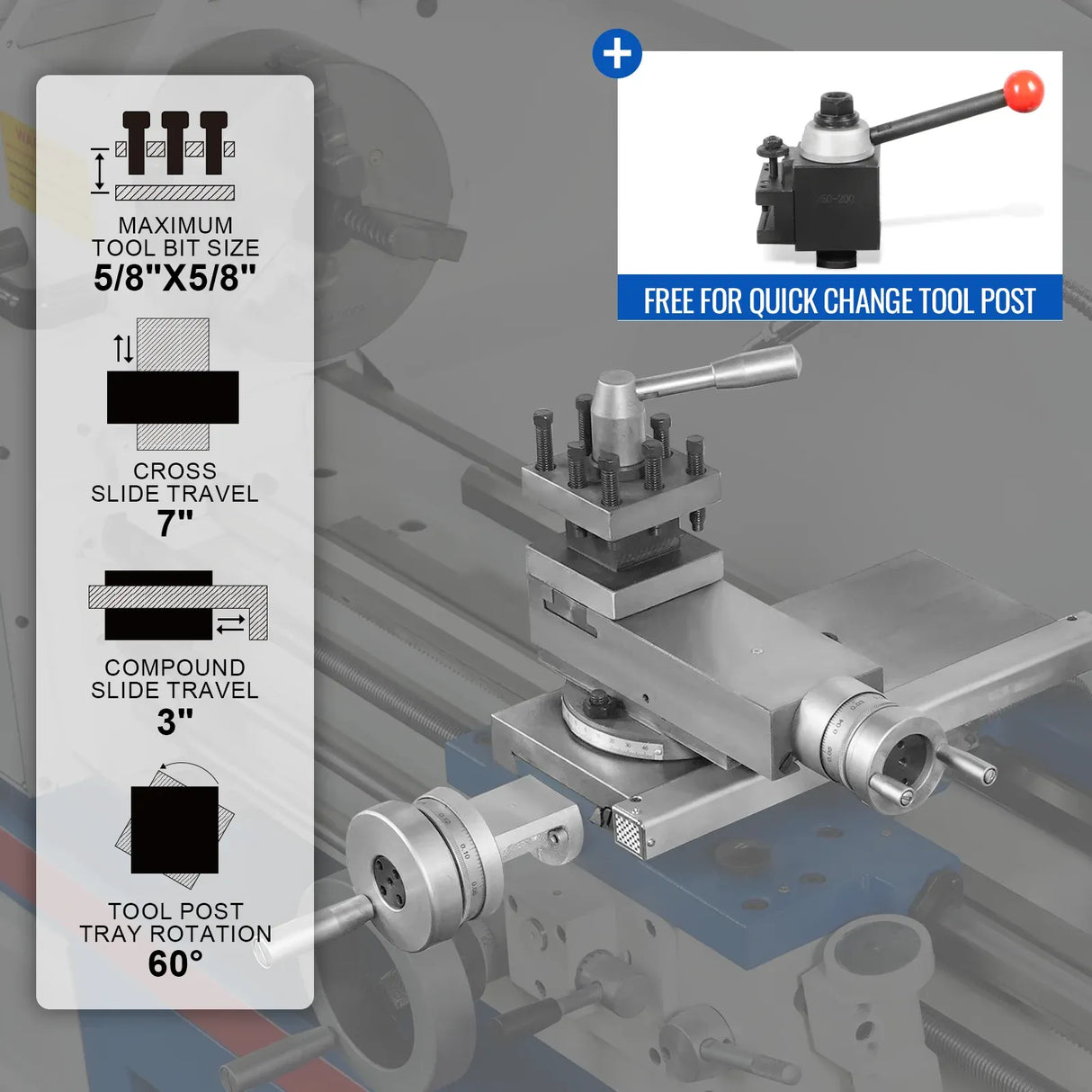

| Cross Slide Travel | 6-11/16" |
| Compound Rest Travel | 3" |
| Motor Power | 3 HP |
| Motor Type | AC Motor with VFD |

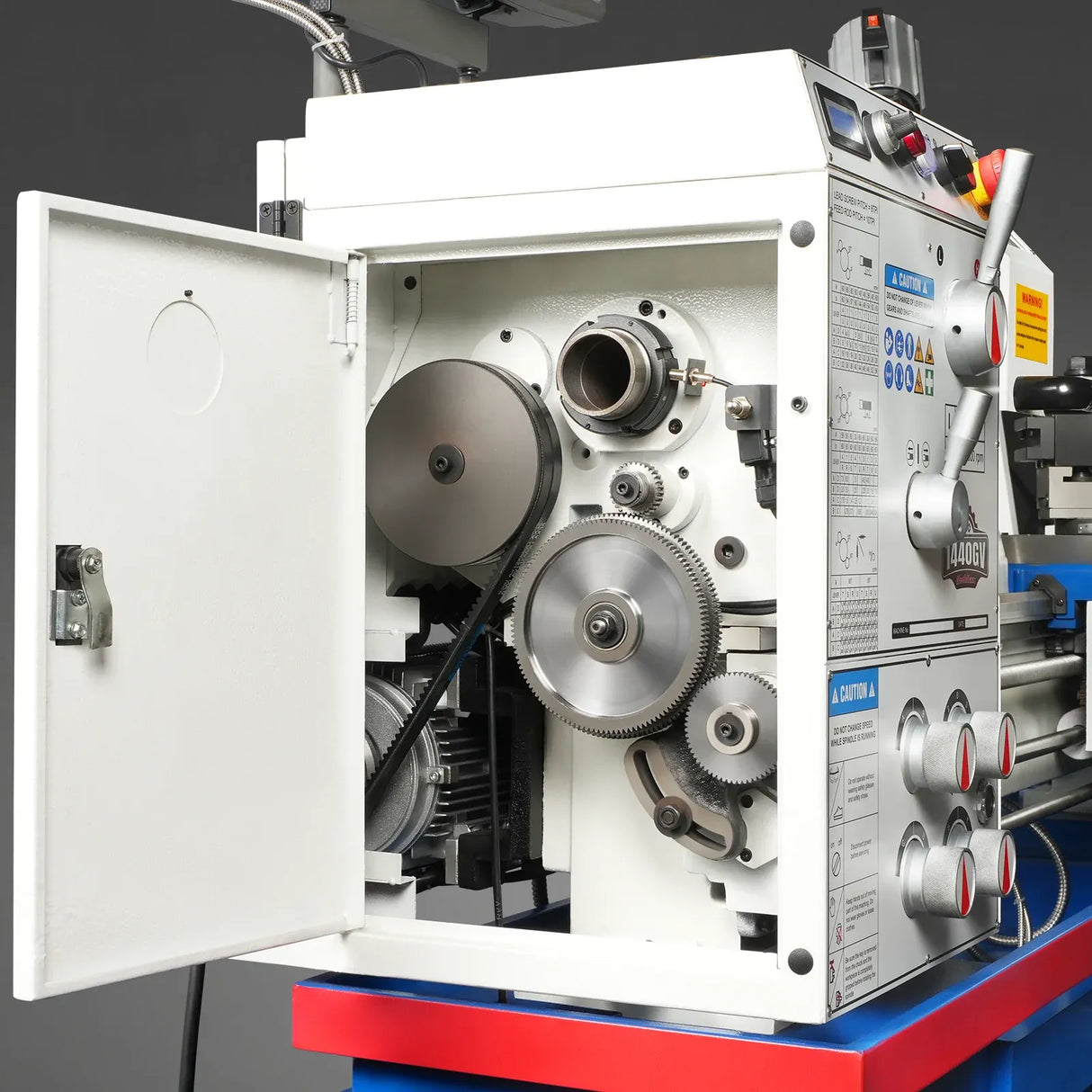

| Drive Type | Belt Drive |
| Voltage | 220V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Amperage | 20 A |
| Speed Range | 40–1800 RPM |

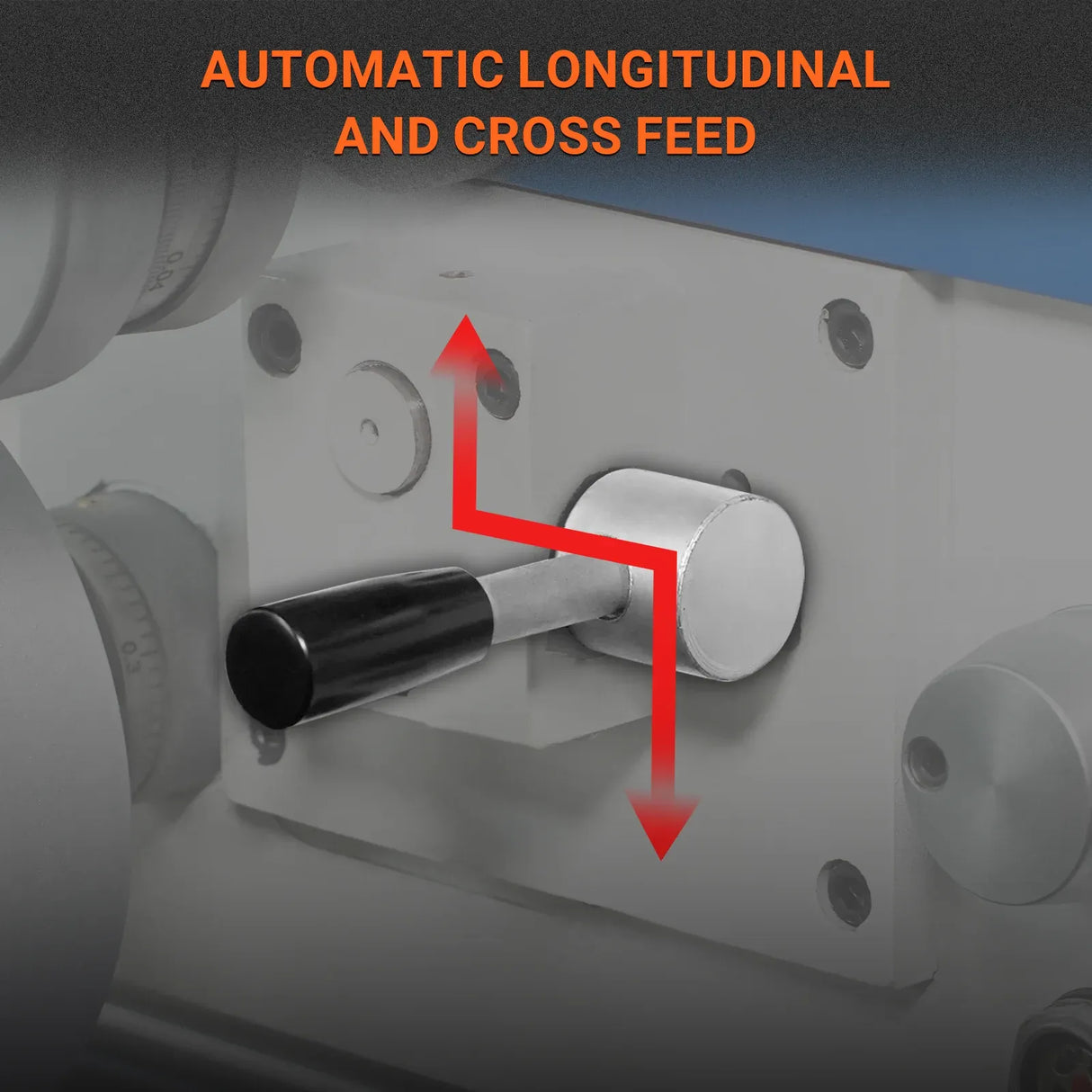

| Longitudinal Feed Rate | 0.002 – 0.046 in/rev |
| Cross Feed Rate | 0.0007 – 0.0187 in/rev |
| Inch Threads | 4 – 56 TPI |
| Metric Threads | 0.4 – 7.0 mm |
| Machine Footprint | 72" x 24" |
| Overall Dimensions | 76" x 30" x 60" |
| Net Weight | 1,800 lbs |
| Shipping Dimensions | 78" x 48" x 72" |
| Shipping Weight | 1,900 lbs |
| Liftgate Compatible | Yes |
