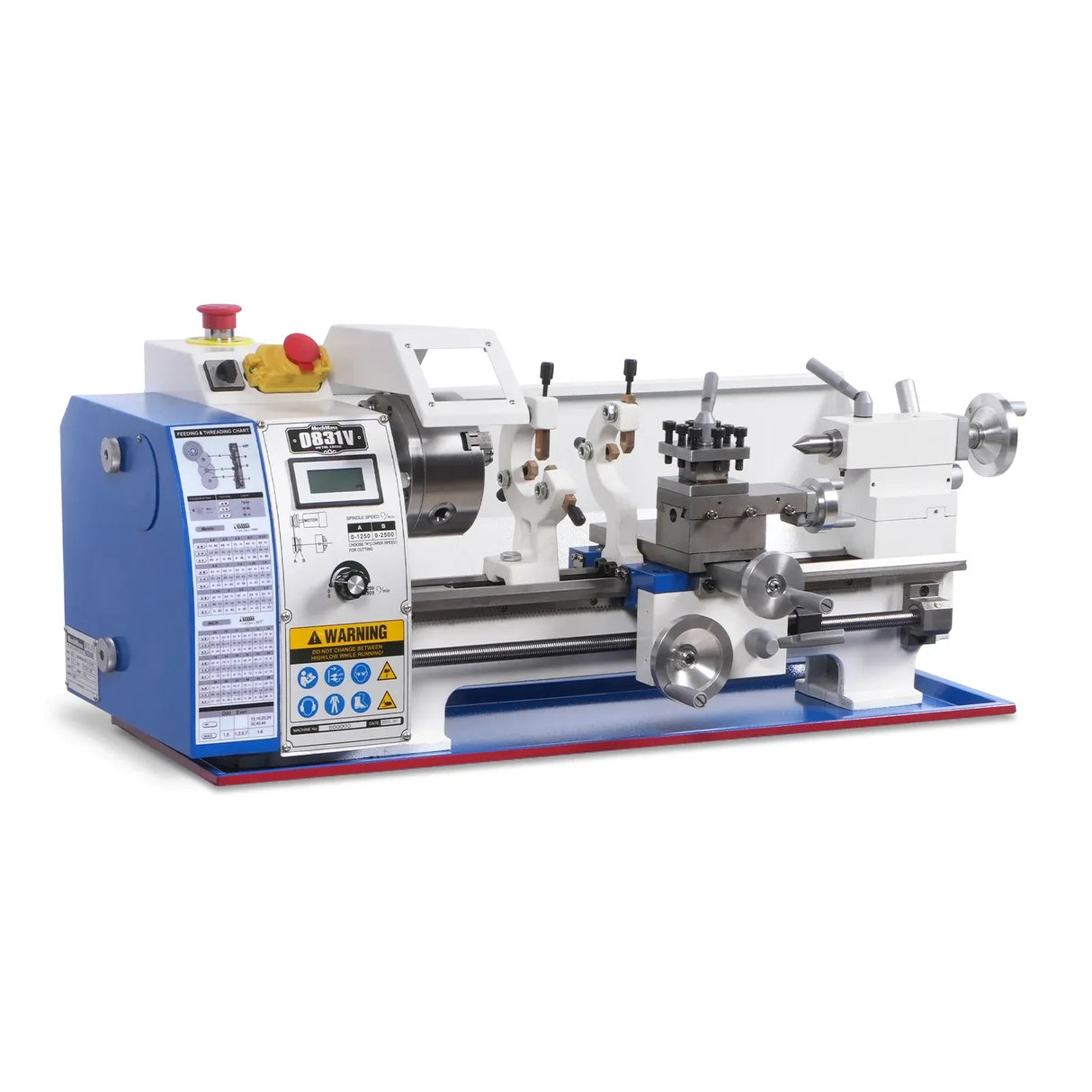

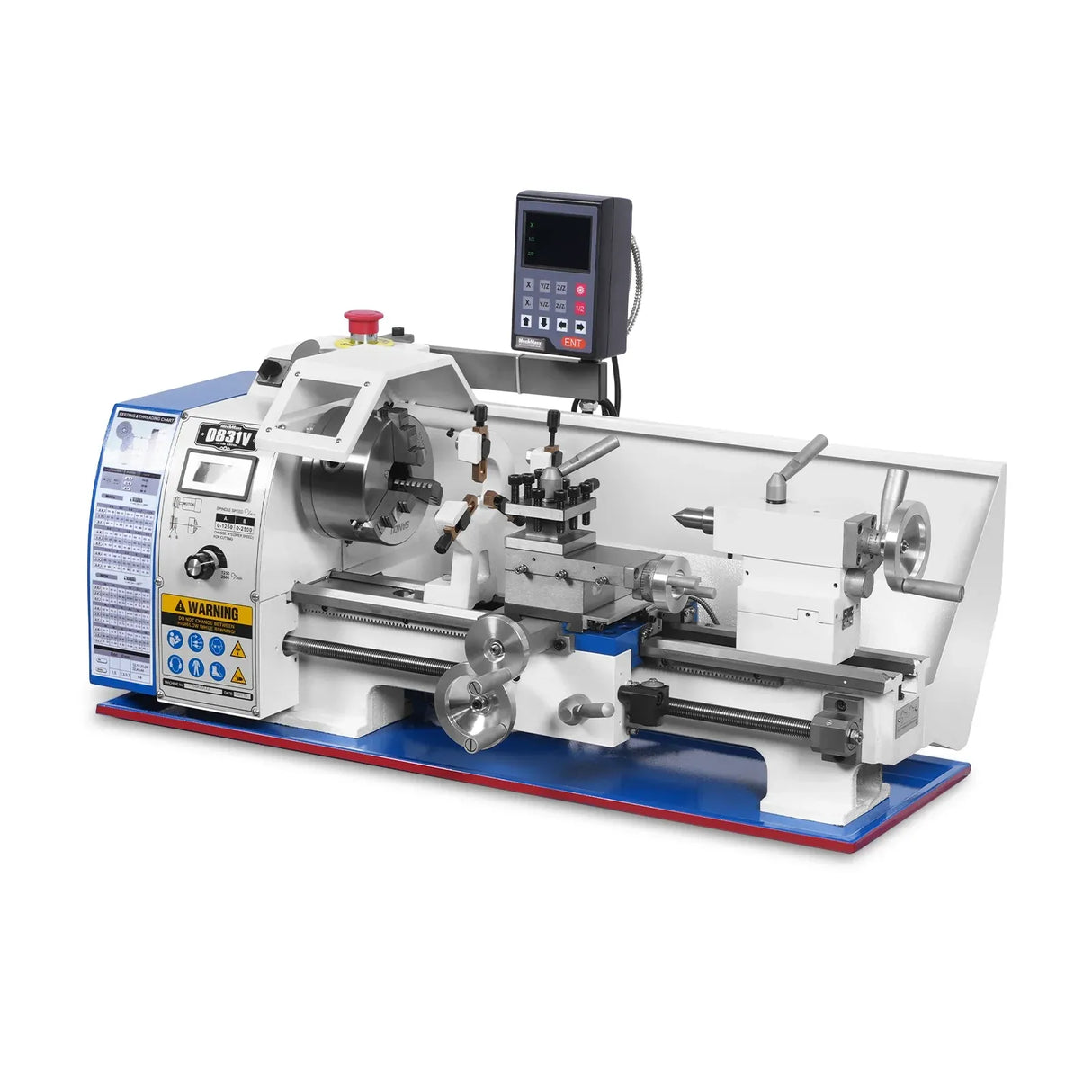

MechMaxx 8x16 Mini Metal Lathe Machine with DRO, Model 0831VD
MechMaxx 8x16 Mini Metal Lathe Machine with DRO, Model 0831VD is backordered and will ship as soon as it is back in stock.
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.

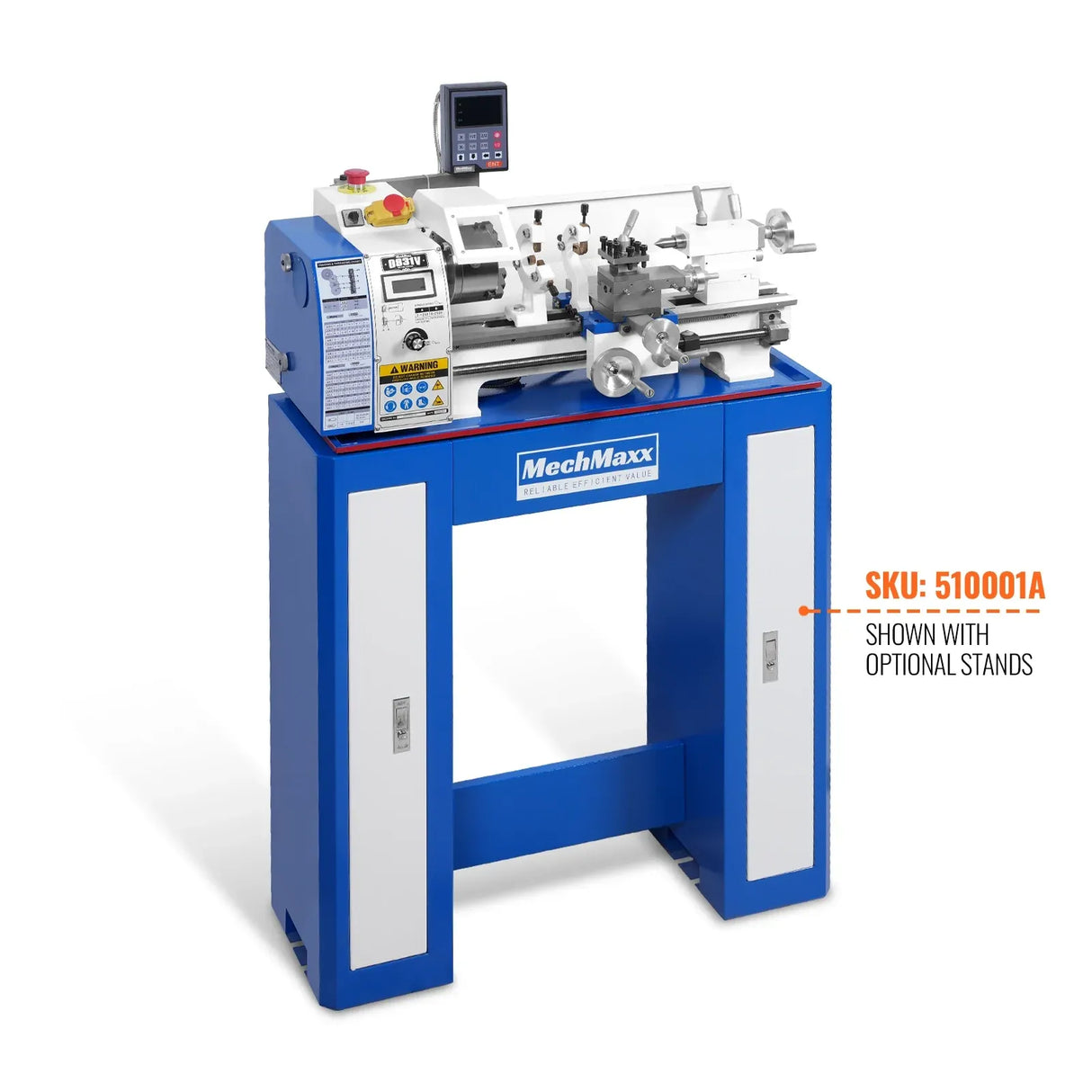

MechMaxx 8x16 Mini Metal Lathe Machine with DRO, Model 0831VD
Key Features & Benefits
- 1.5 HP, 110V single-phase motor delivers reliable, consistent power for light-duty to demanding cutting operations

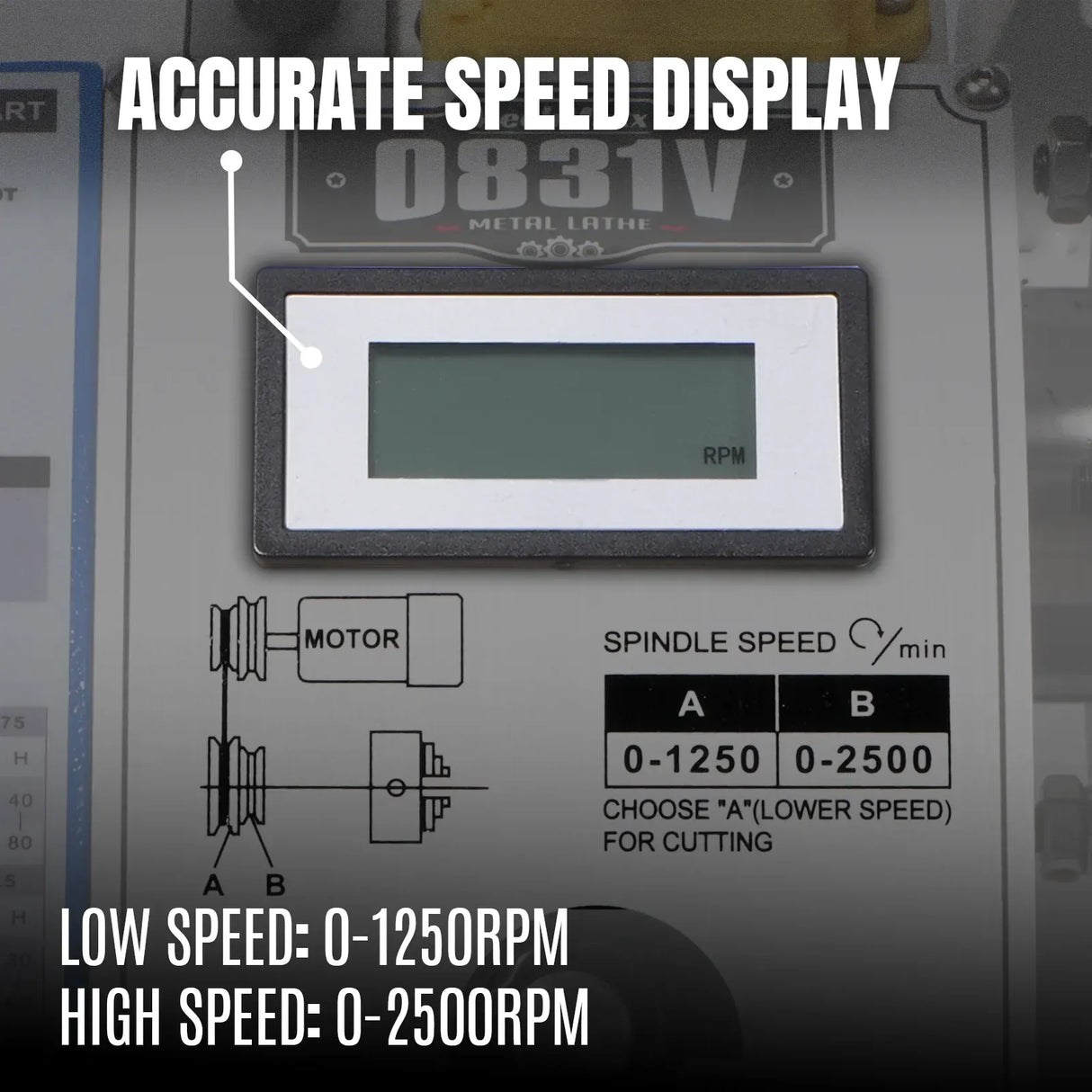

- Variable-speed spindle (0–2500 RPM) allows precise speed adjustments to match different materials and machining requirements

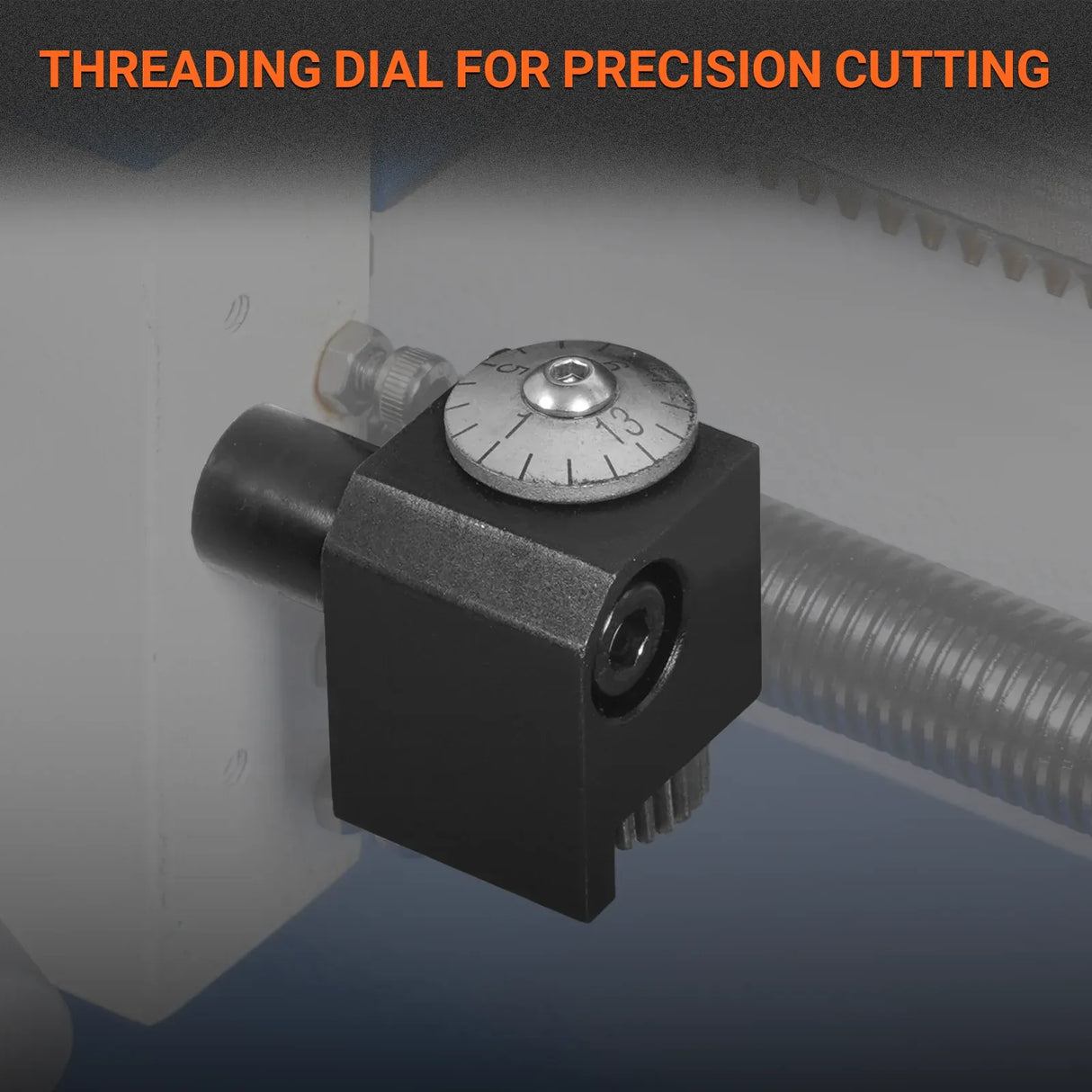

- Supports both metric and inch threading with a built-in thread dial indicator for accurate, repeatable thread cutting
- Heavy-duty one-piece spindle construction with MT#5 taper for enhanced durability and broad accessory compatibility
- 8-1/4" swing over bed and 15-3/4" distance between centers — ideal for small to medium-sized projects

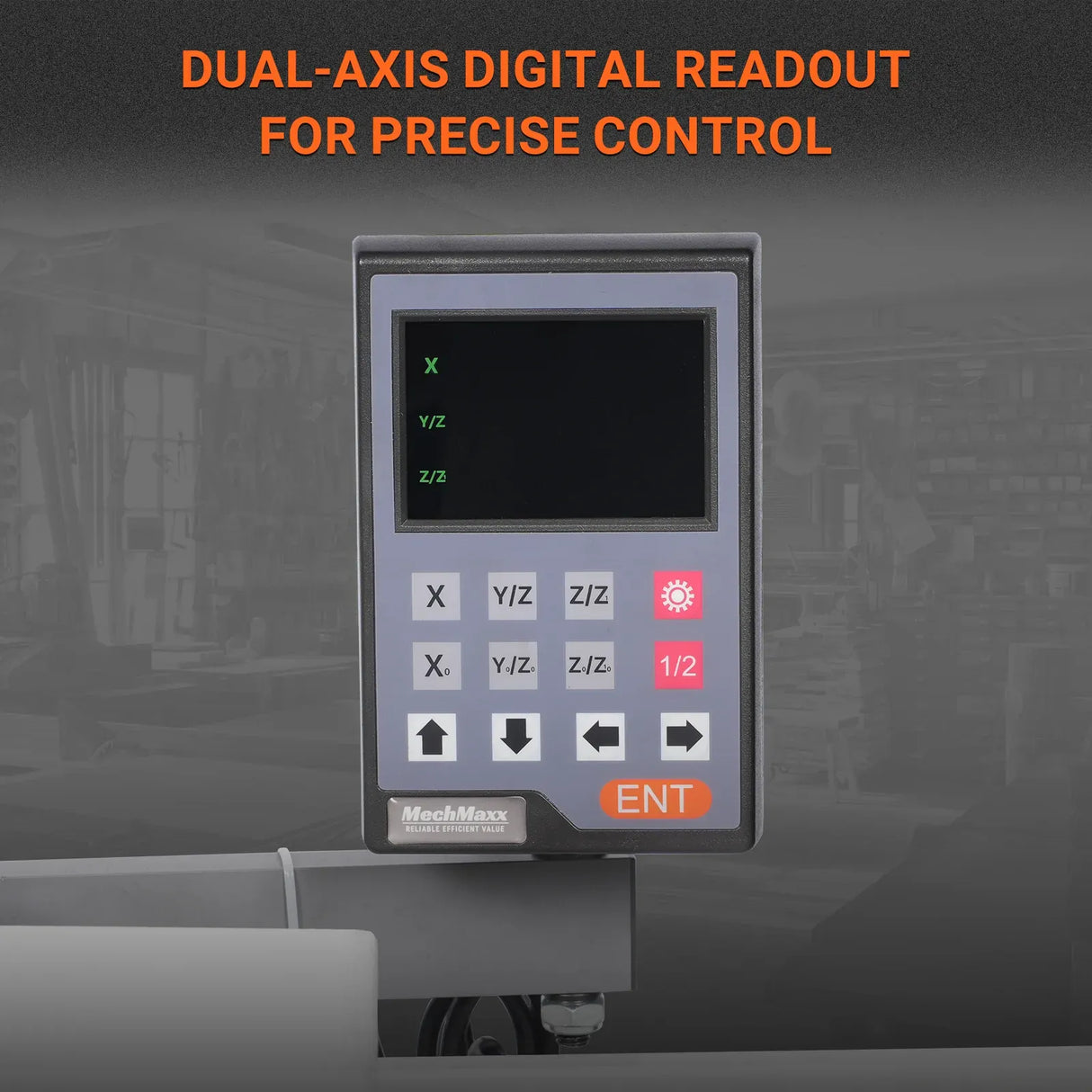

- Integrated Digital Readout (DRO) system provides real-time measurements for improved precision and faster setups
- Compact footprint fits home garages, repair shops, and light industrial workspaces
| Specifications | Details |
|---|---|
| Motor | 1.5 HP, 110V, Single-Phase, 10A, 60Hz |
| Swing Over Bed | 8-1/4" (210 mm) |
| Swing Over Cross Slide | 4-5/8" (117 mm) |
| Swing Over Saddle | 3-1/2" (90 mm) |
| Distance Between Centers | 15-3/4" (400 mm) |

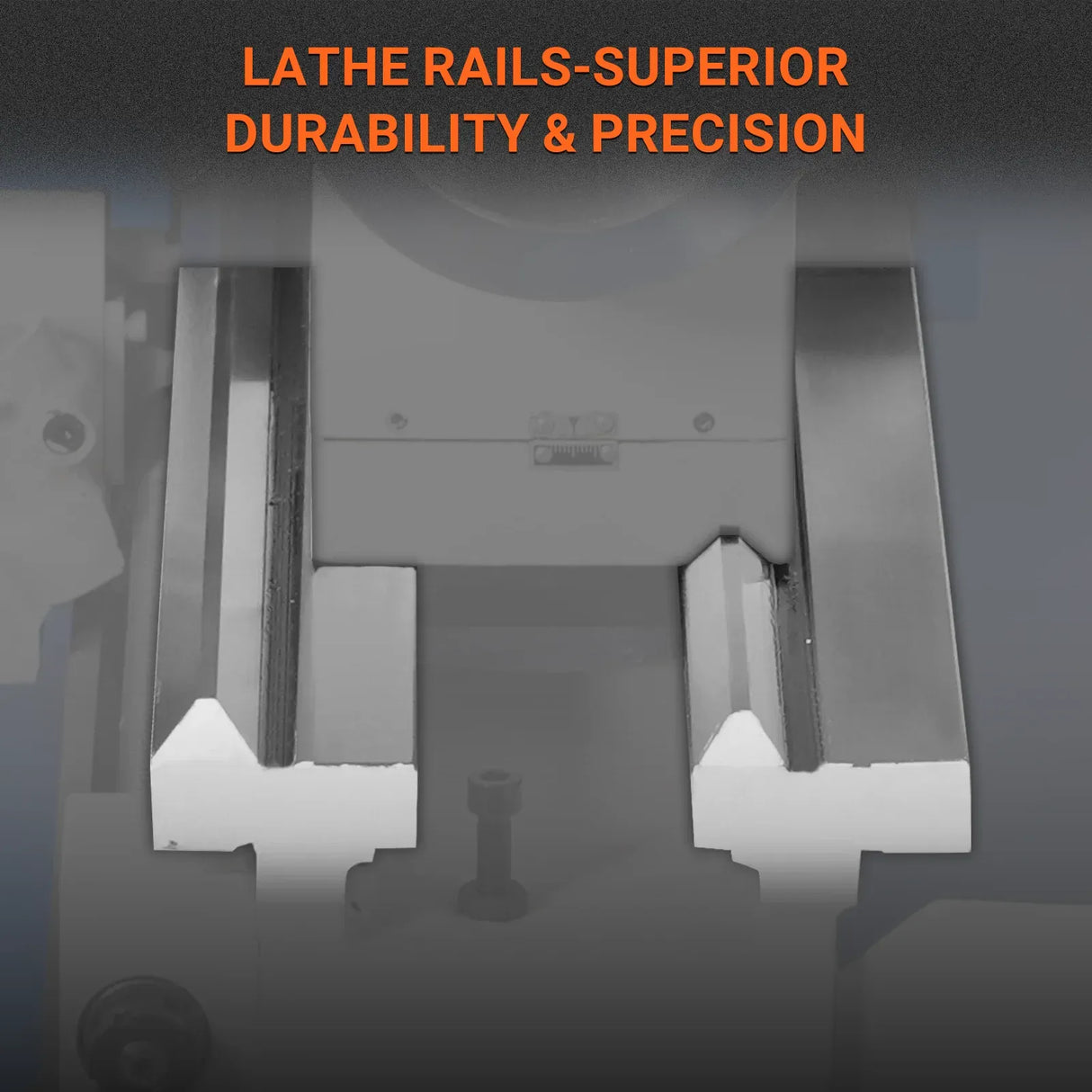

| Bed Width | 4" (100 mm) |
| Spindle Bore | 1-1/2" (38 mm) |
| Spindle Mount | Intrinsic Back Plate |
| Spindle Type | One-Piece Spindle |
| Spindle Taper | MT#5 |
| Tailstock Taper | MT#2 |

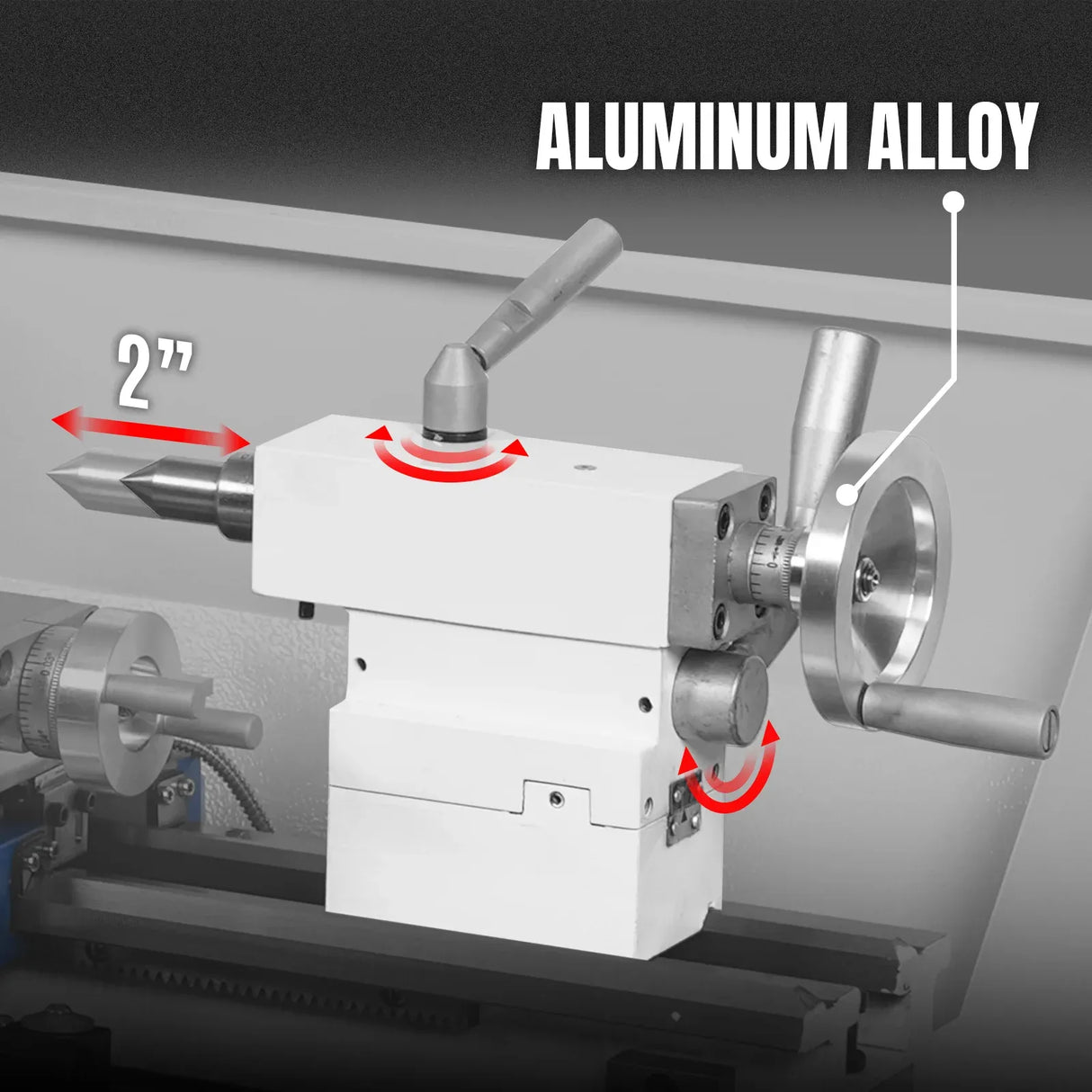

| Tailstock Quill Travel | 2" (50 mm) |
| Cross Slide Travel | 3-1/2" (90 mm) |
| Compound Slide Travel | 2-3/4" (70 mm) |
| Carriage Travel | 14-5/16" (350 mm) |
| Spindle Speeds | 0–2500 RPM |
| Number of Speed Ranges | Variable |
| Longitudinal Feeds | 0.0037 – 0.0068 in./rev. |
| Transverse Feed Rate | — |
| Leadscrew Size & Pitch | 16 mm (12 TPI) |
| Threading Capacity – Inch | 8–48 TPI (18 Kinds) |
| Threading Capacity – Metric | 0.4–3.5 mm (15 Kinds) |

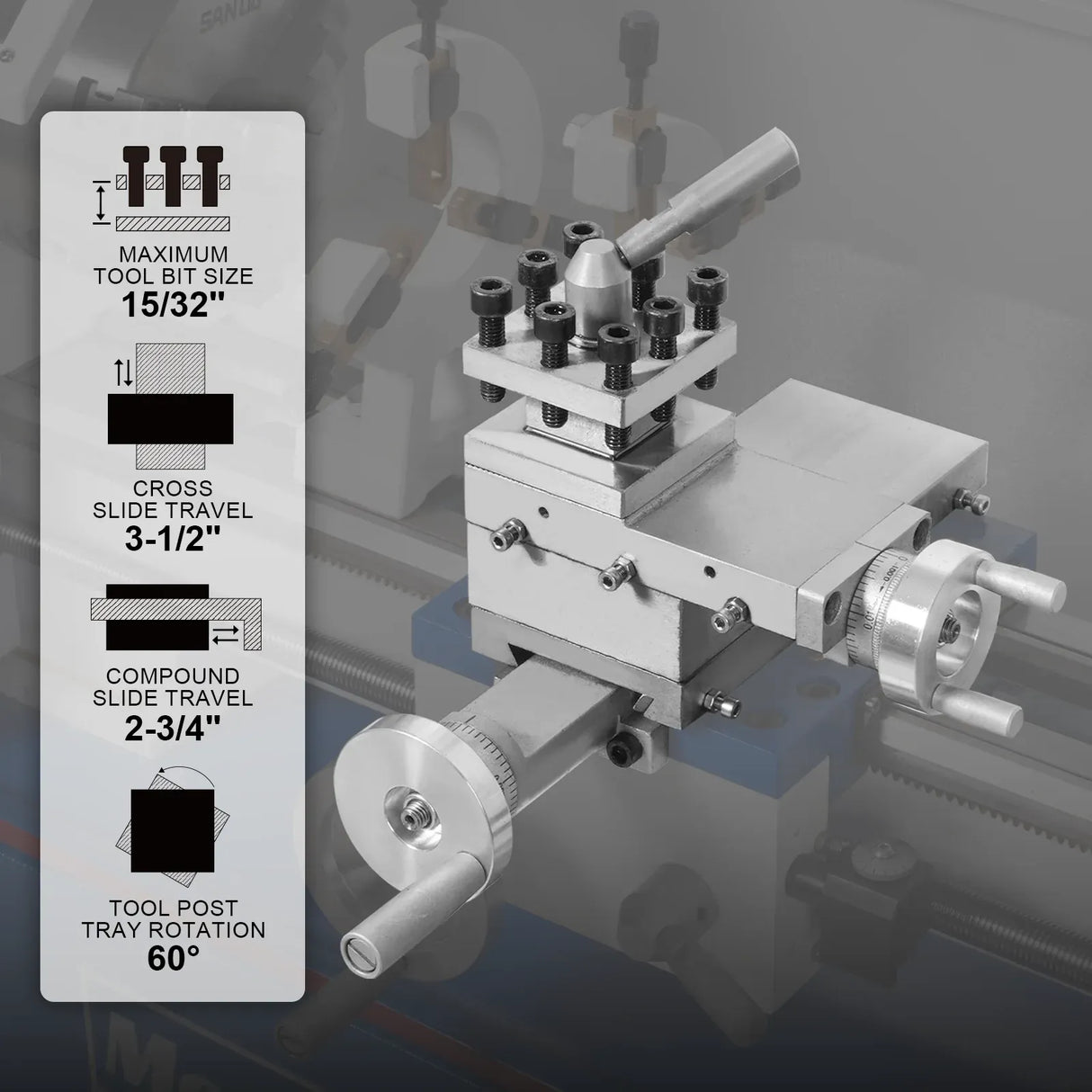

| Maximum Tool Bit Size | 15/32" (12 mm) |
| Thread Dial Indicator | Yes |
| Overall Dimensions | 36" W × 19" D × 20" H (914 × 480 × 490 mm) |
| Approximate Shipping Weight | 190 lbs (75 kg) |
