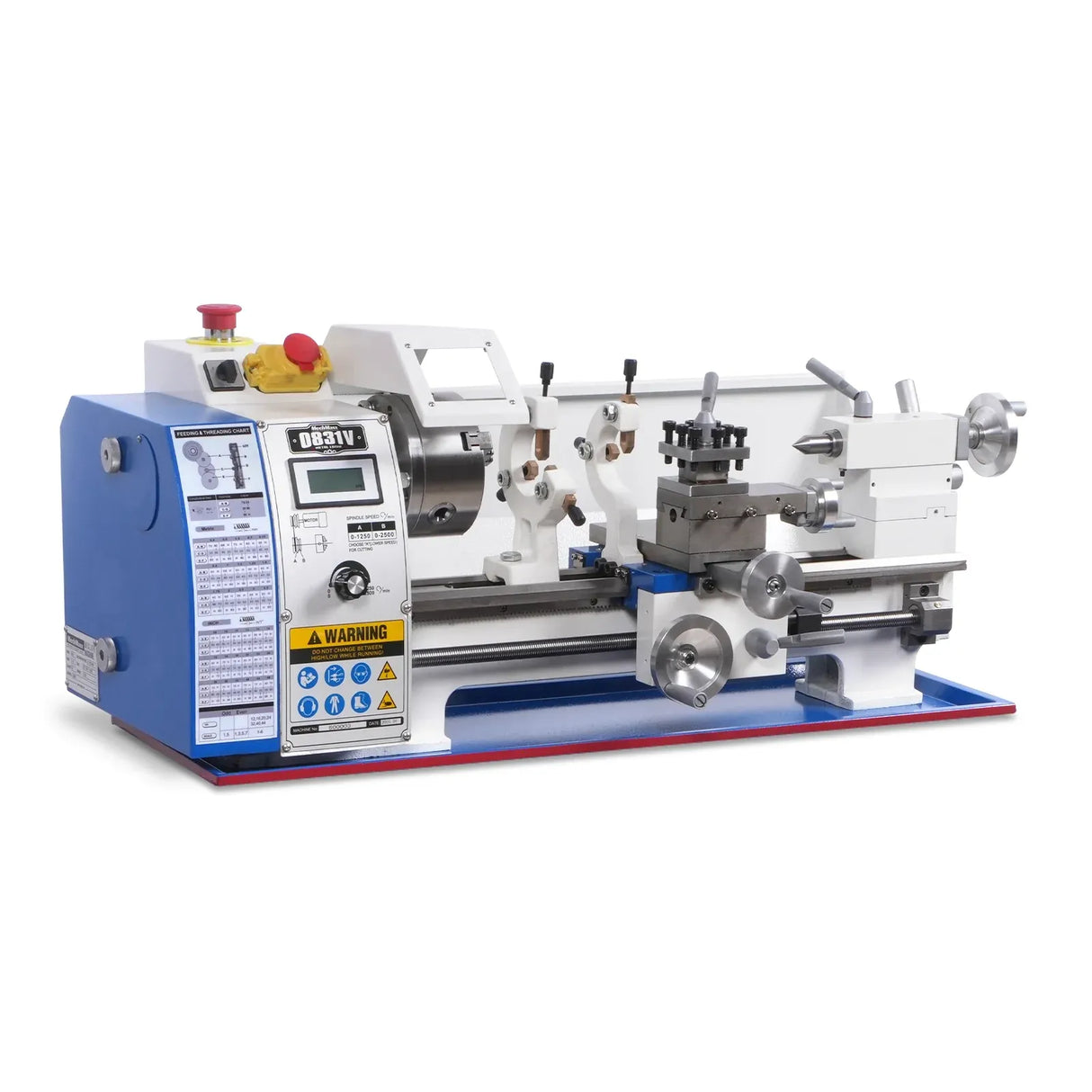

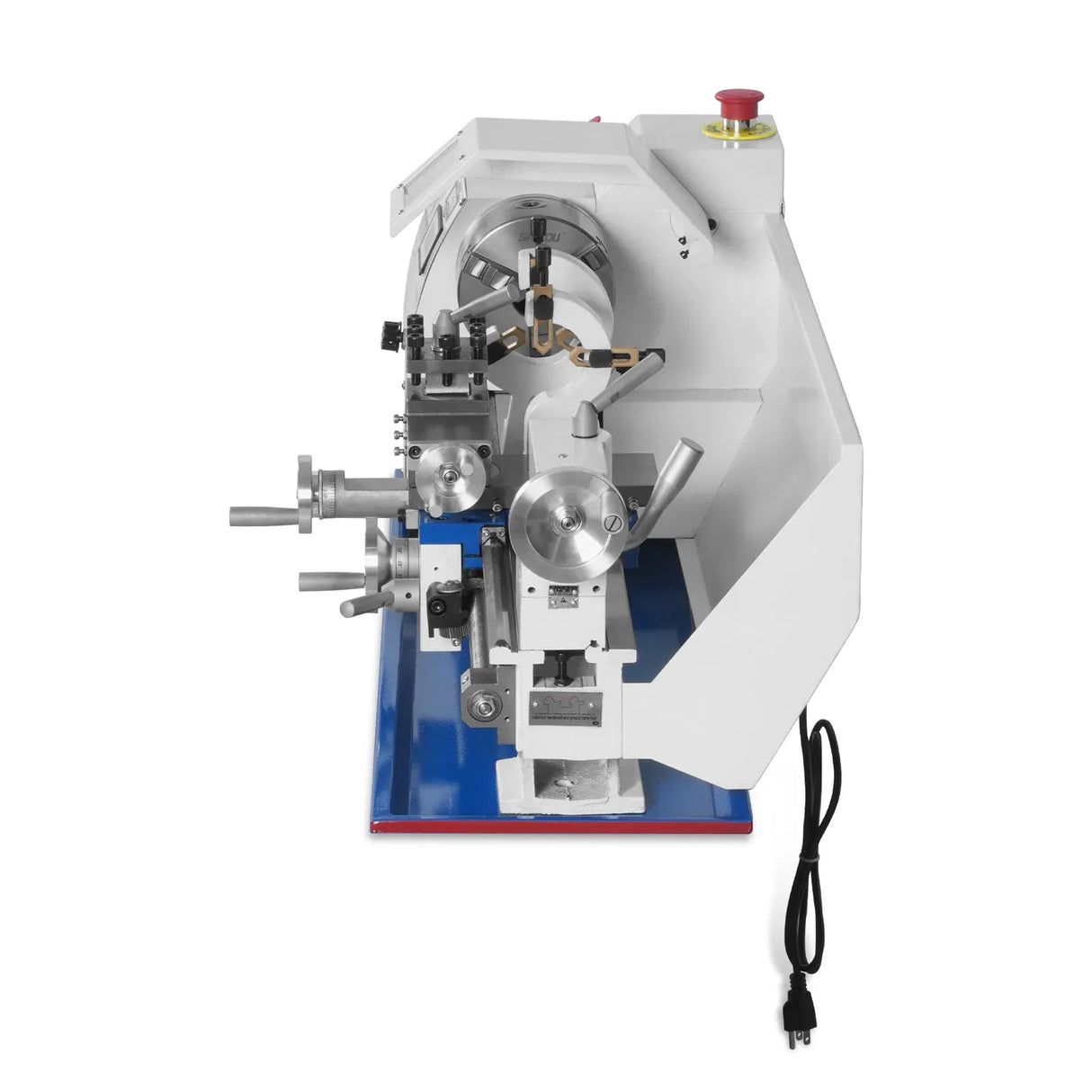

MechMaxx 8x16 Mini Metal Lathe Machine with Variable Speed, Model 0831V
MechMaxx 8x16 Mini Metal Lathe Machine with Variable Speed, Model 0831V is backordered and will ship as soon as it is back in stock.
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
MechMaxx 8x16 Mini Metal Lathe Machine with Variable Speed, Model 0...
Key Features & Benefits
- 1.5 HP, 110V single-phase motor delivers reliable, consistent power for hobby to demanding cutting operations

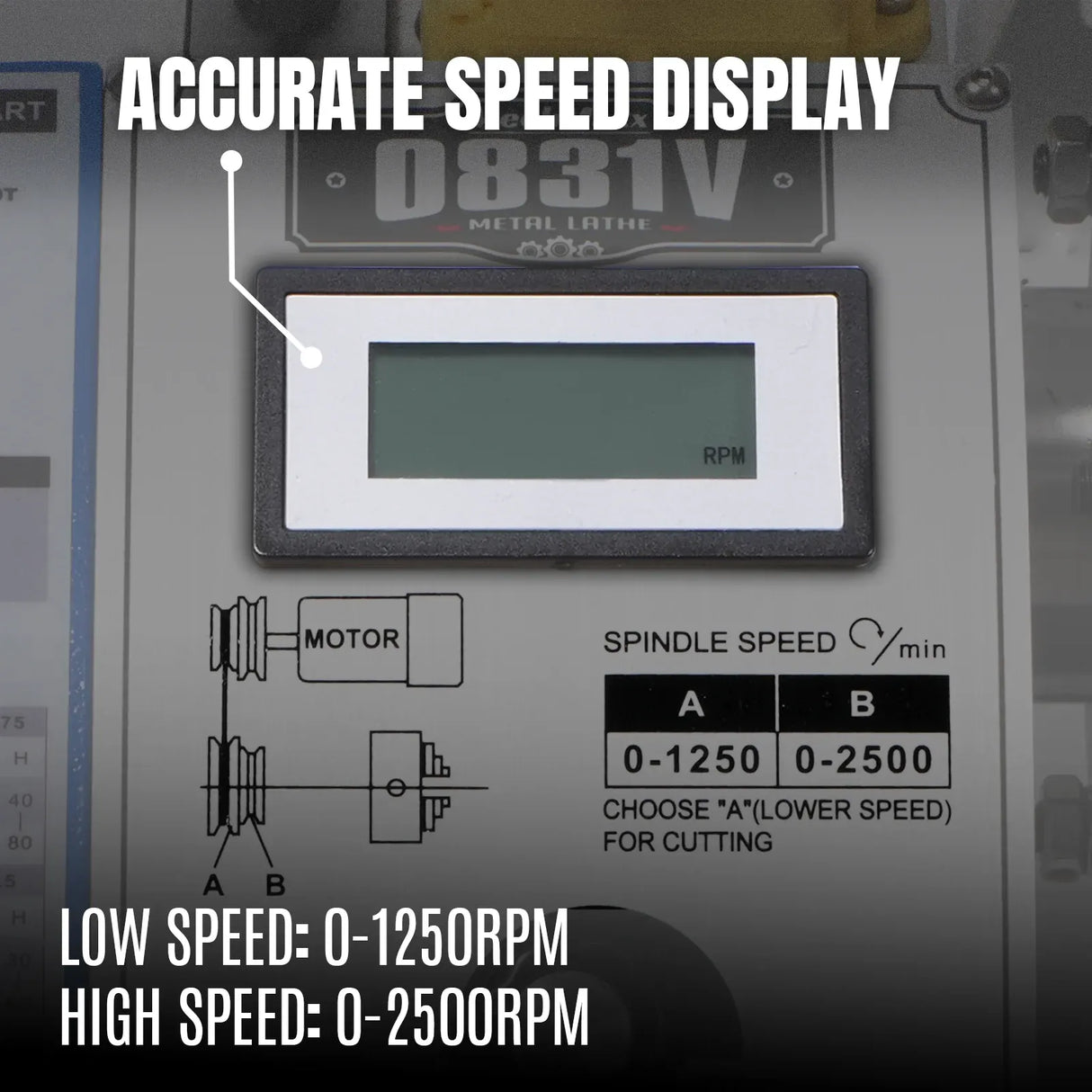

- Variable-speed spindle from 0–2500 RPM for precise speed control across different materials and tasks
- Cuts both inch (8–48 TPI, 18 kinds) and metric (0.4–3.5 mm, 15 kinds) threads with built-in thread dial indicator
- Heavy-duty one-piece spindle with MT#5 taper for rigidity and broad accessory compatibility
- 8-1/4" swing over bed and 15-3/4" distance between centers — ideal for small to medium projects
- Compact footprint suits home garages, small workshops, and commercial workspaces
| Specifications | Details |
|---|---|
| Motor | 1.5 HP, 110V, Single-Phase, 10A, 60Hz |
| Swing Over Bed | 8-1/4" (210 mm) |
| Swing Over Cross Slide | 4-5/8" (117 mm) |
| Swing Over Saddle | 3-1/2" (90 mm) |
| Distance Between Centers | 15-3/4" (400 mm) |
| Bed Width | 4" (100 mm) |
| Spindle Bore | 1-1/2" (38 mm) |
| Spindle Mount | Intrinsic Back Plate |
| Spindle Type | One-Piece Spindle |
| Spindle Taper | MT#5 |
| Tailstock Taper | MT#2 |

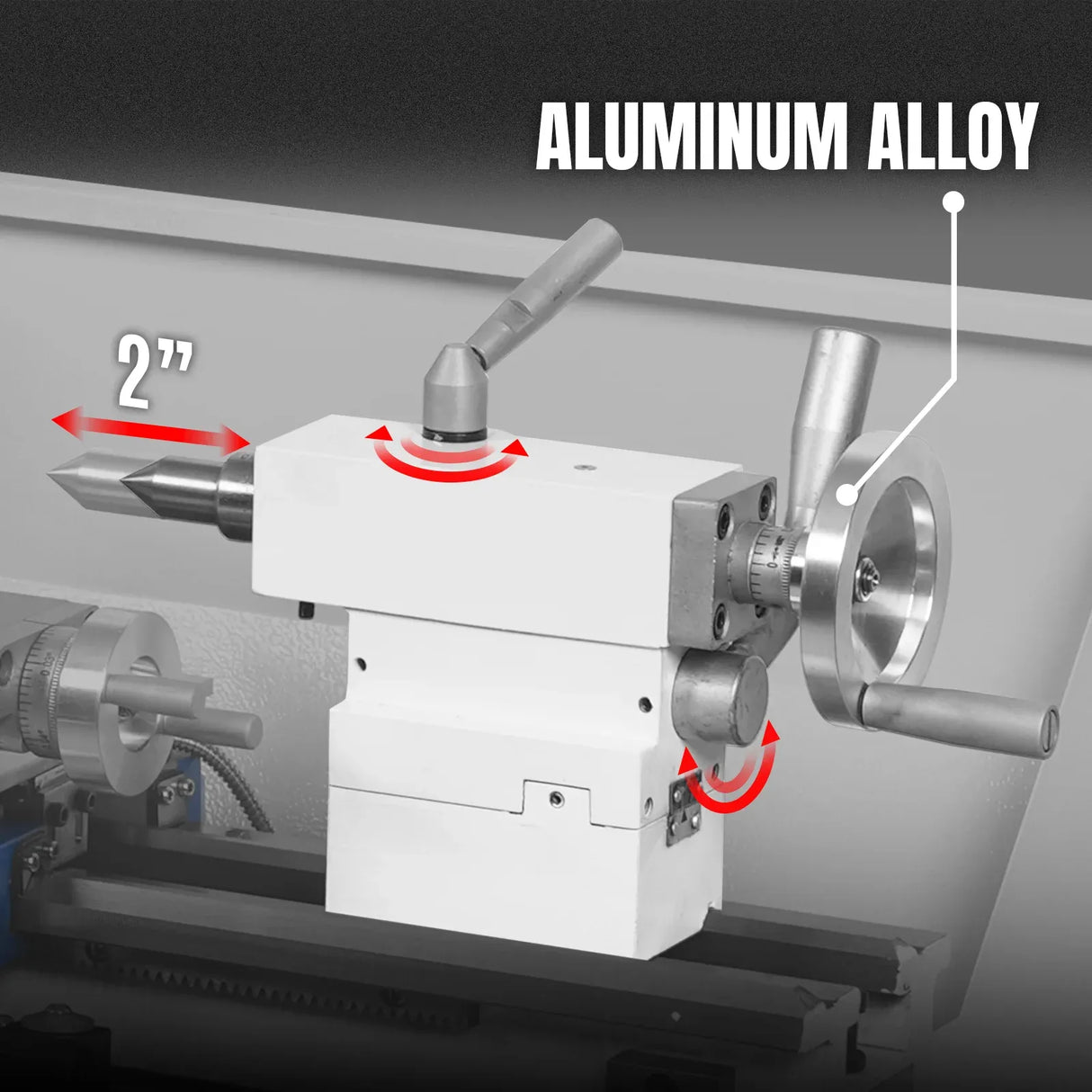

| Tailstock Quill Travel | 2" (50 mm) |

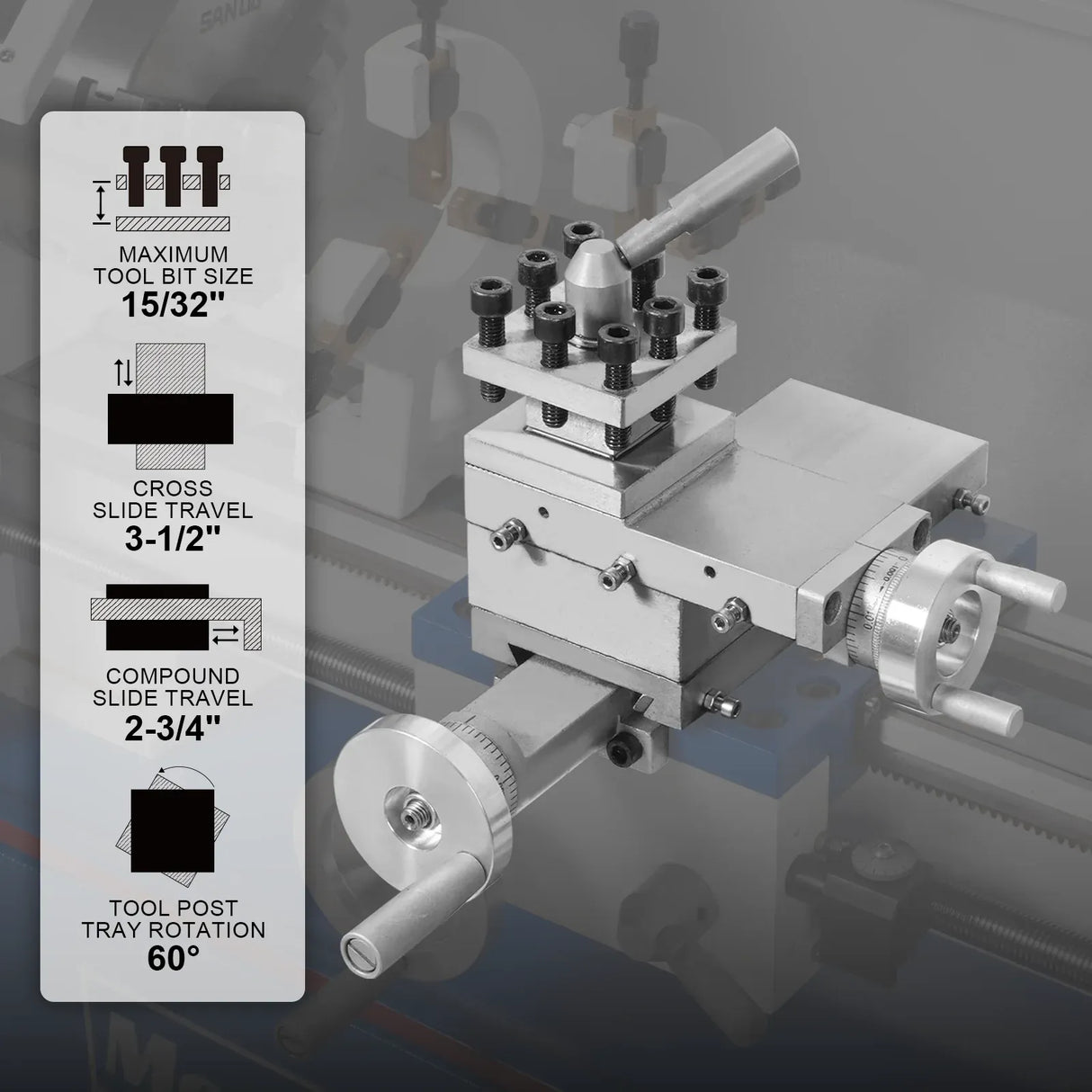

| Cross Slide Travel | 3-1/2" (90 mm) |
| Compound Slide Travel | 2-3/4" (70 mm) |
| Carriage Travel | 14-5/16" (350 mm) |
| Spindle Speeds | 0–2500 RPM |
| Number of Speed Ranges | Variable |
| Longitudinal Feeds | 0.0037 – 0.0068 in./rev. |
| Transverse Feed Rate | — |
| Leadscrew Size & Pitch | 16 mm (12 TPI) |
| Threading Capacity – Inch | 8–48 TPI (18 Kinds) |
| Threading Capacity – Metric | 0.4–3.5 mm (15 Kinds) |
| Maximum Tool Bit Size | 15/32" (12 mm) |

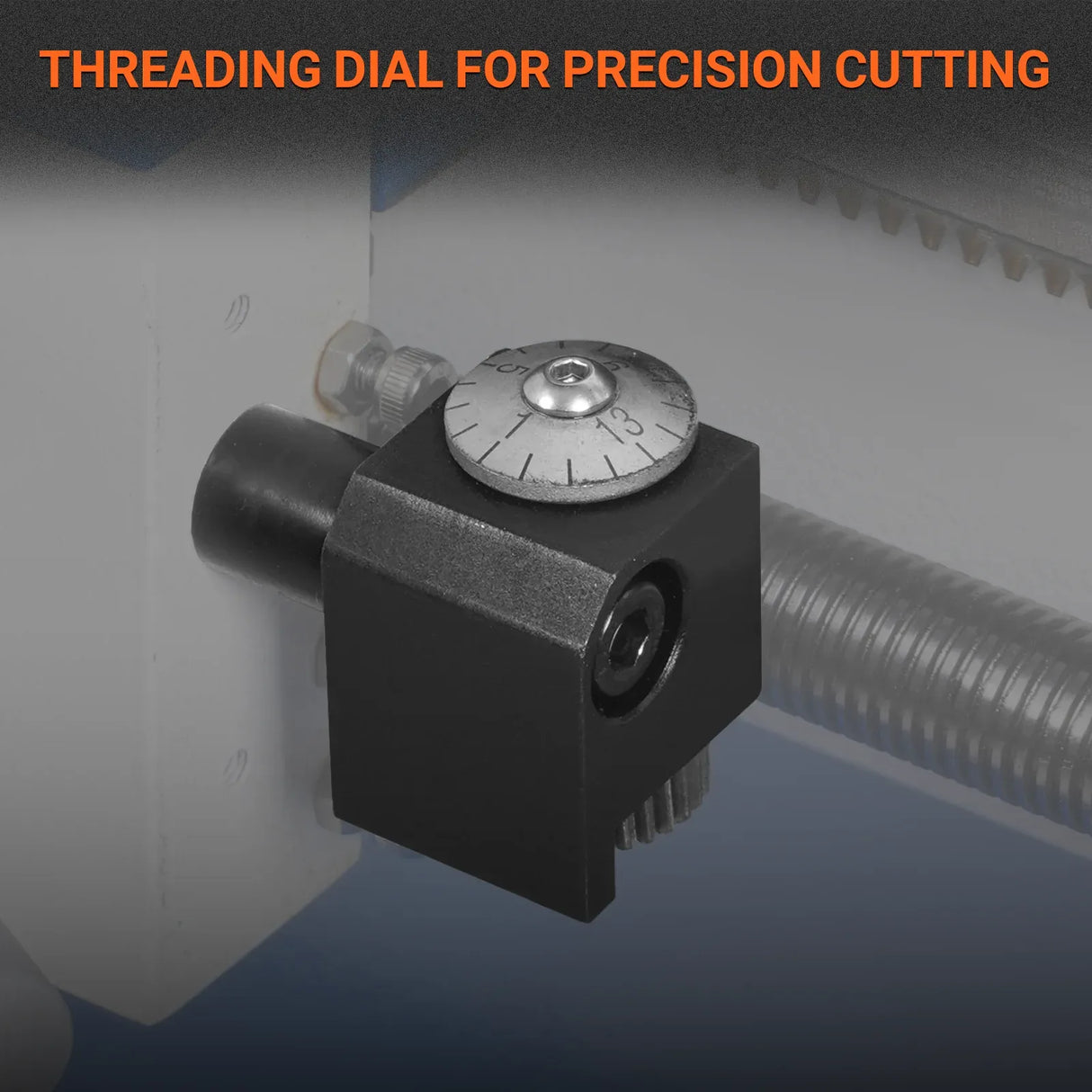

| Thread Dial Indicator | Yes |
| Overall Dimensions | 36" W × 19" D × 20" H (914 × 480 × 490 mm) |
| Approximate Shipping Weight | 190 lbs (75 kg) |
