MechMaxx  |  SKU: 101300

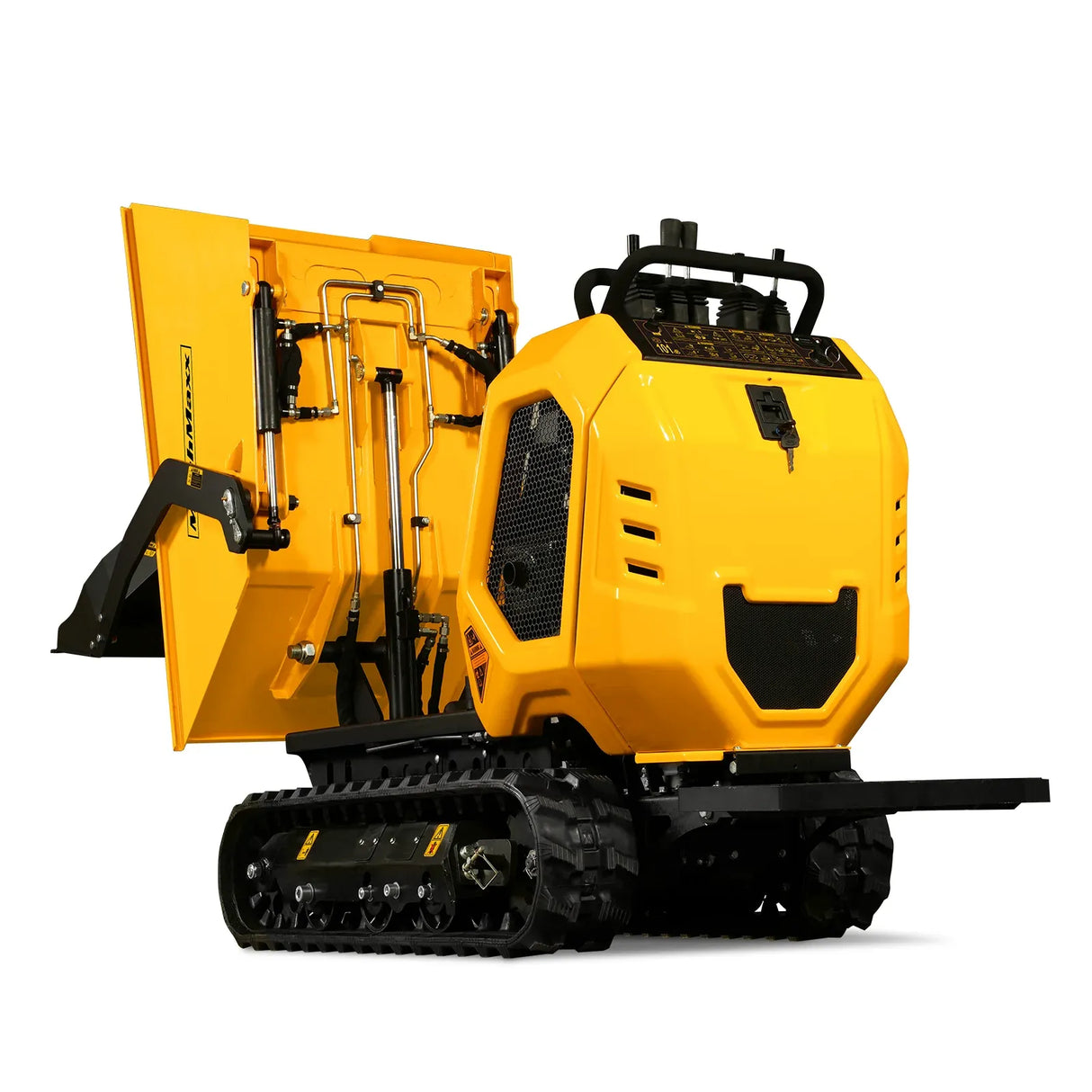

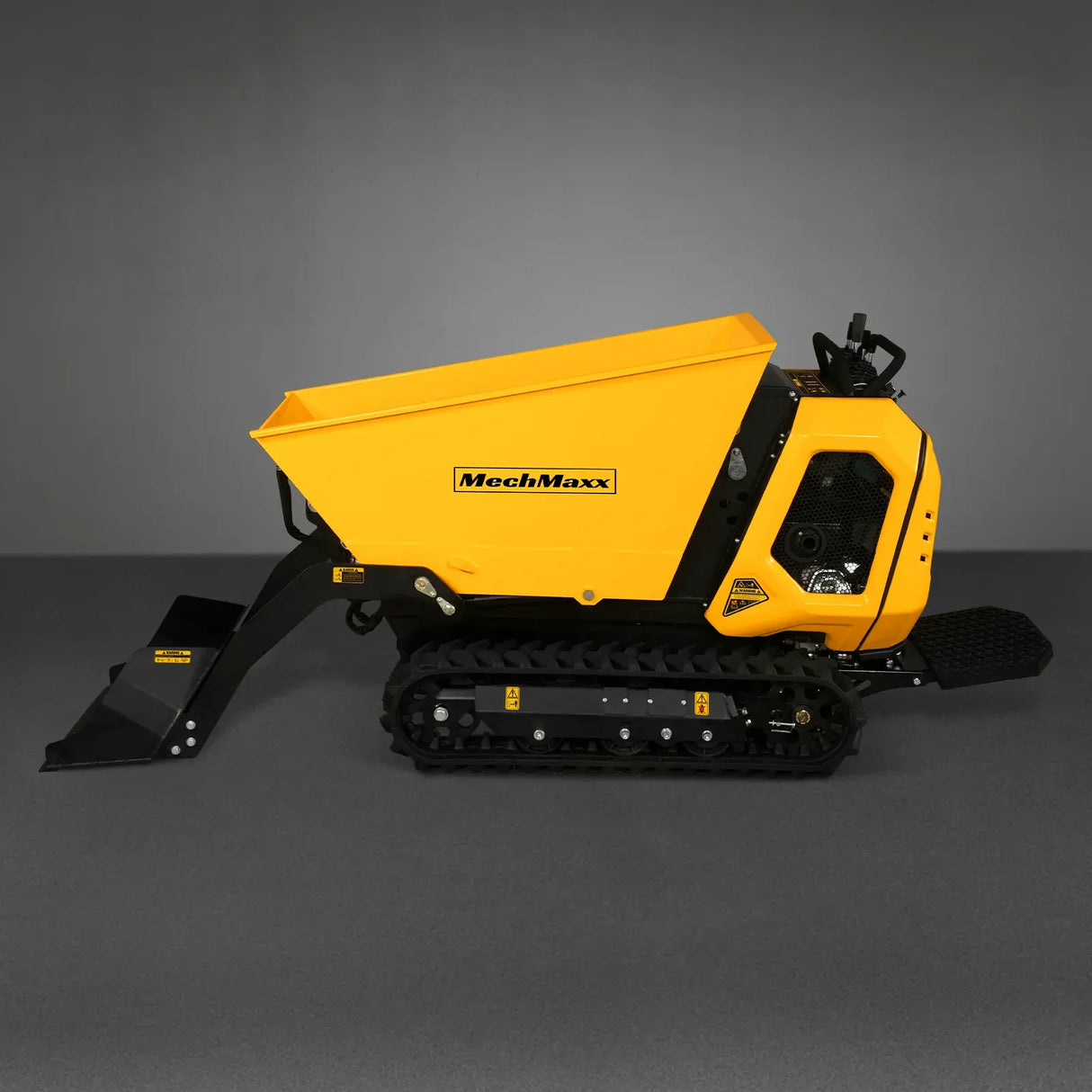

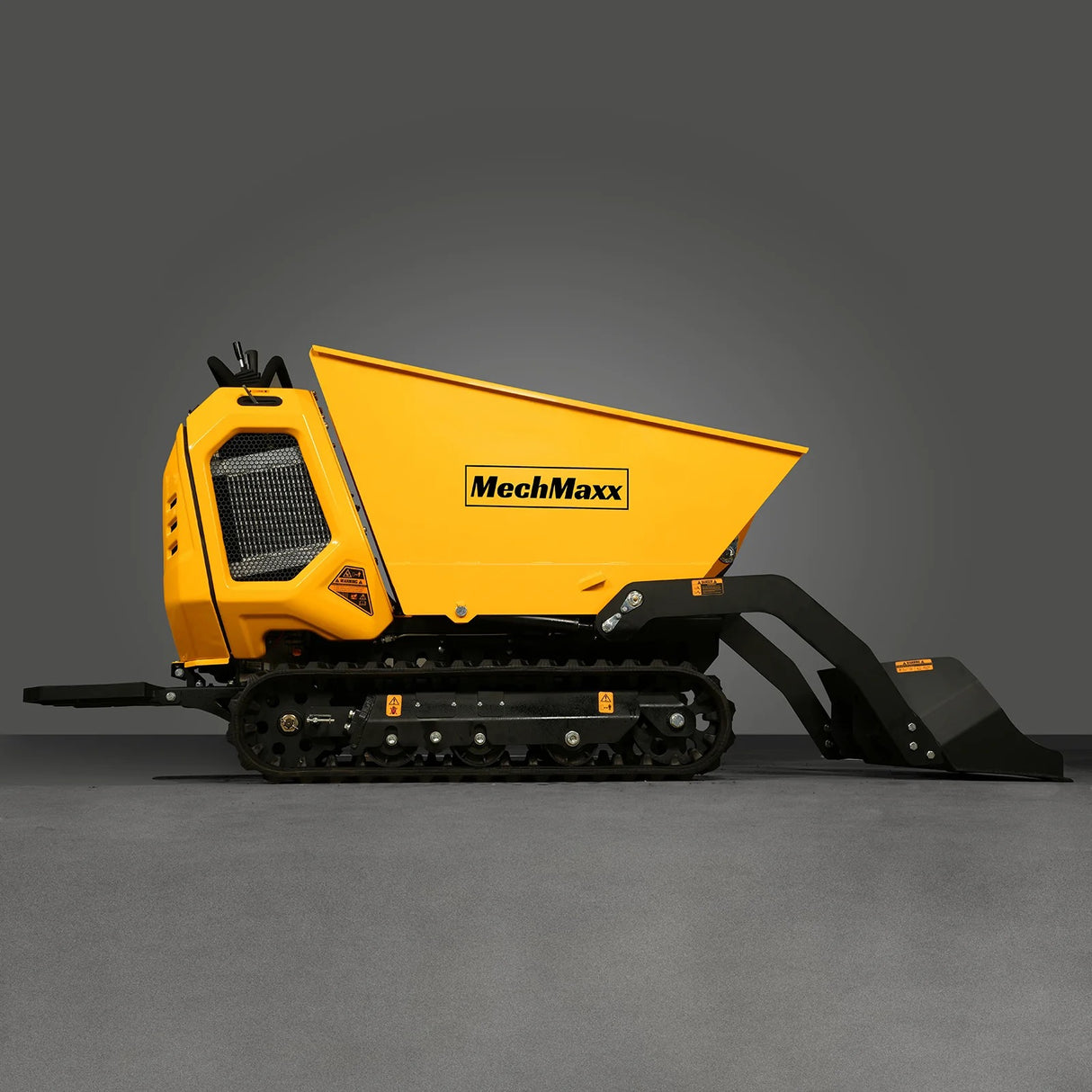

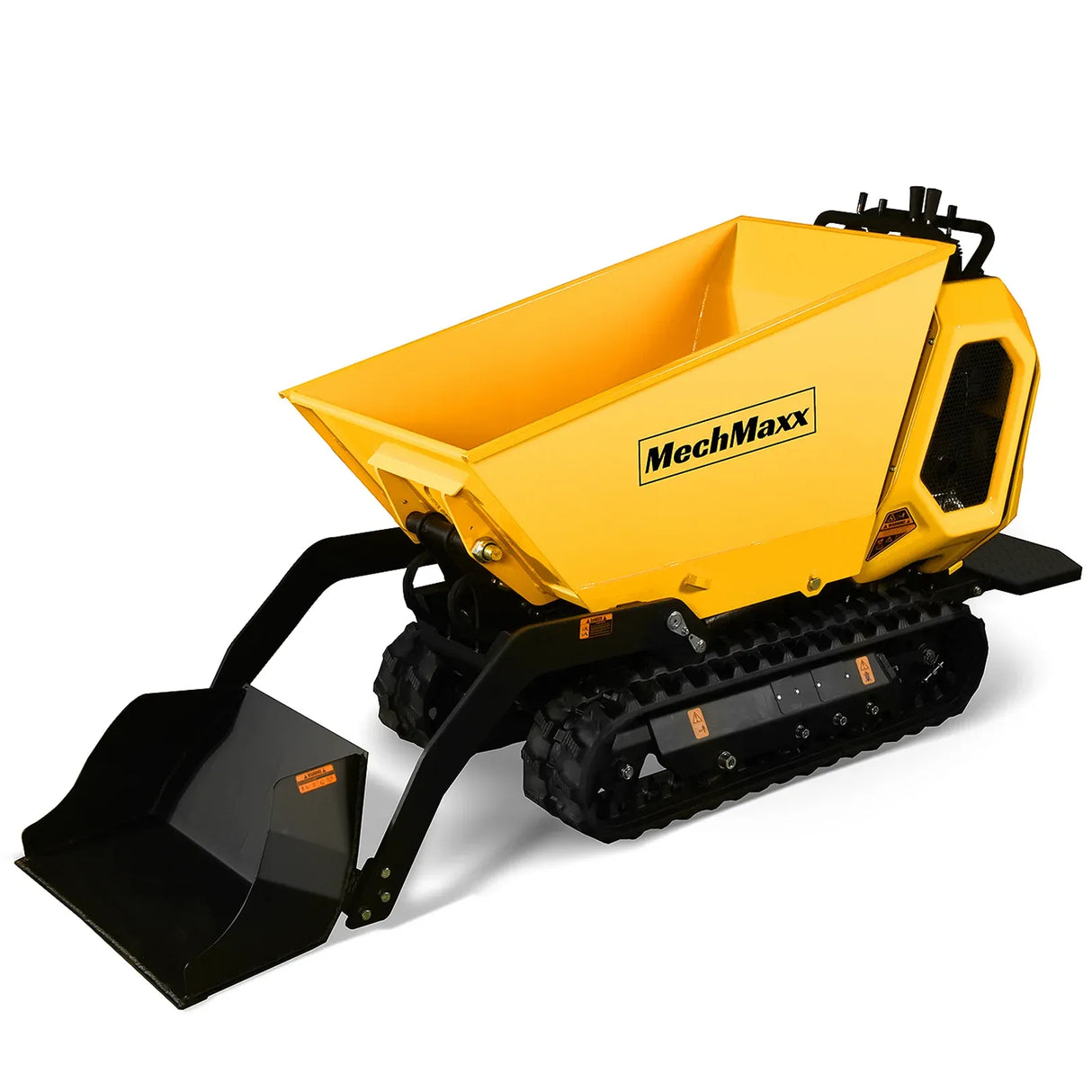

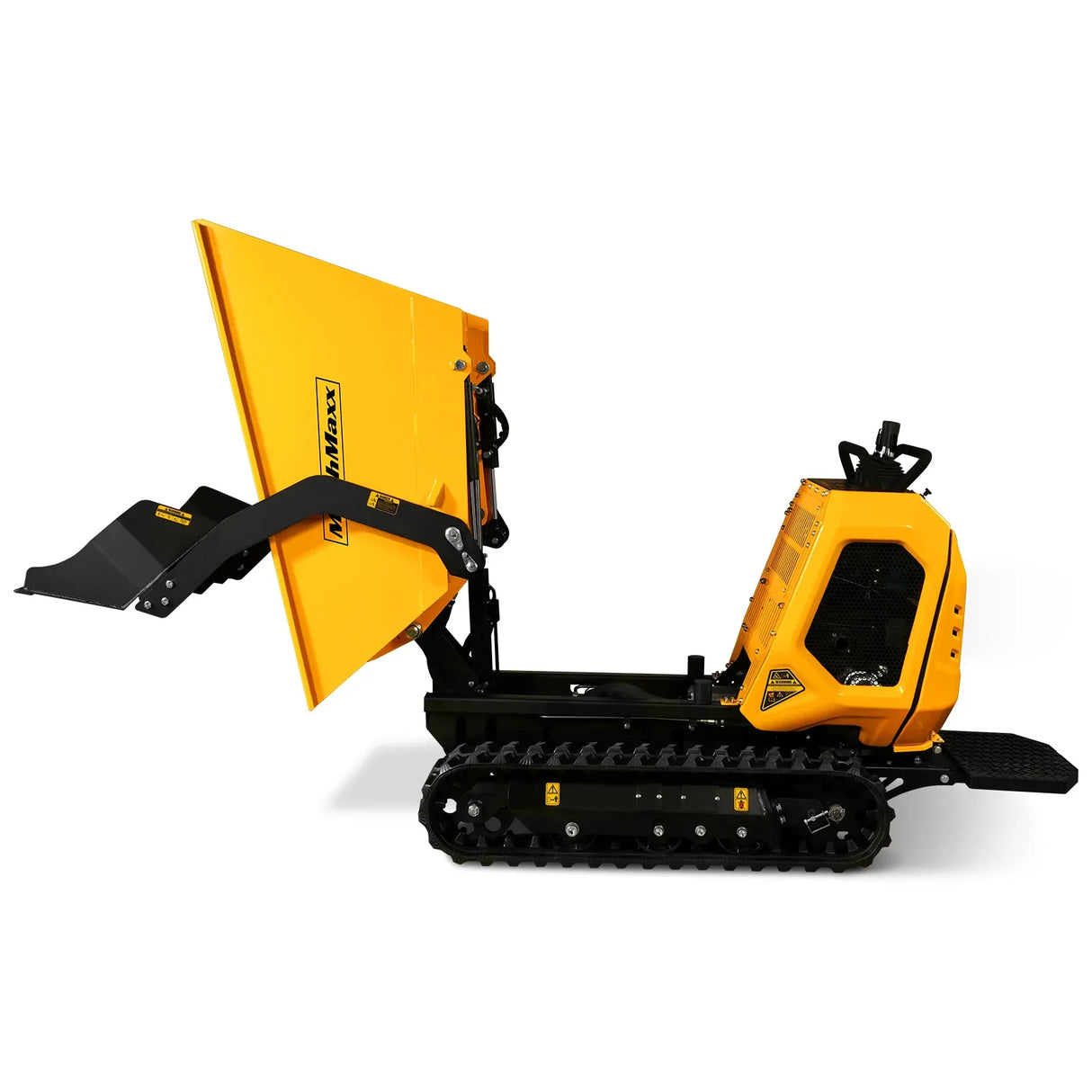

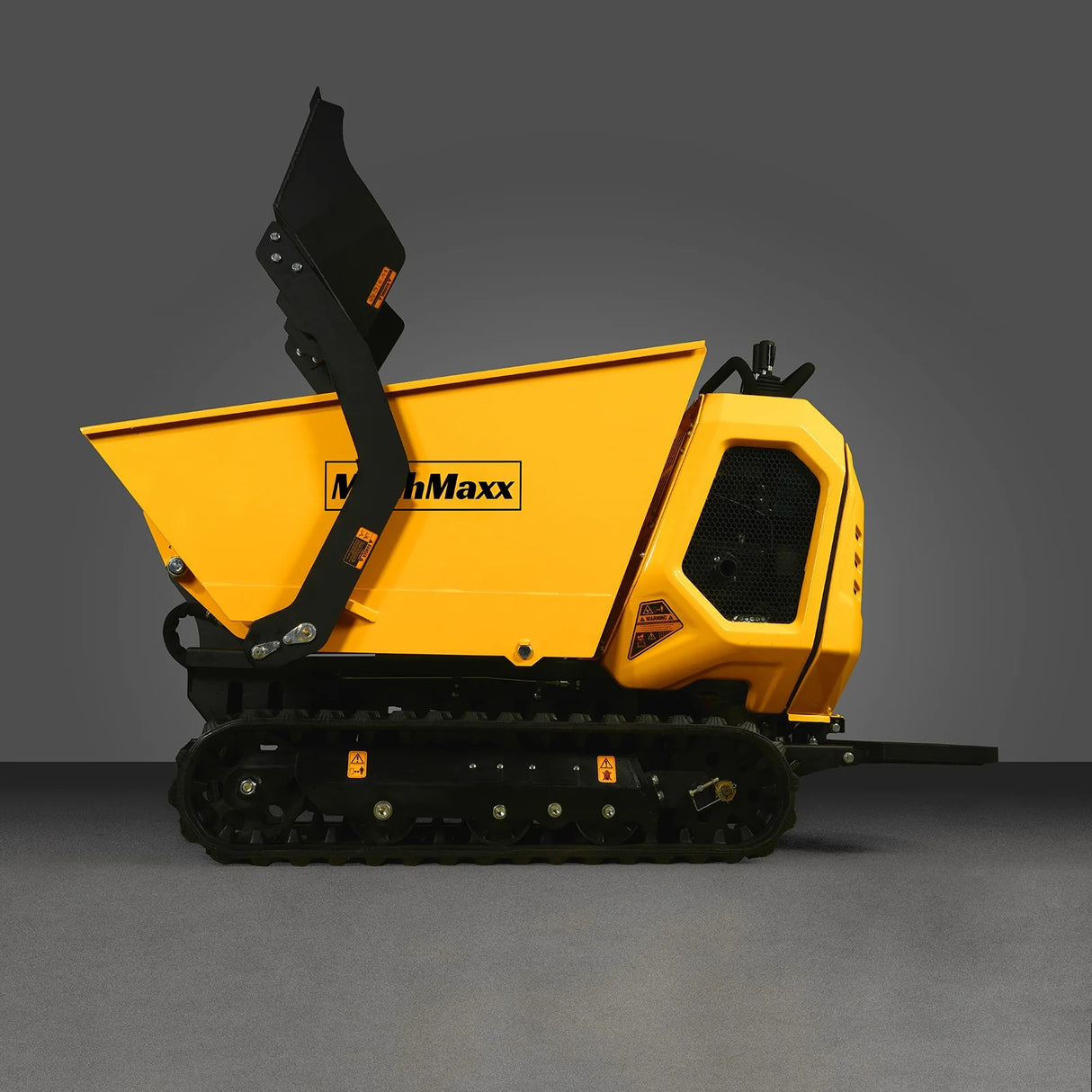

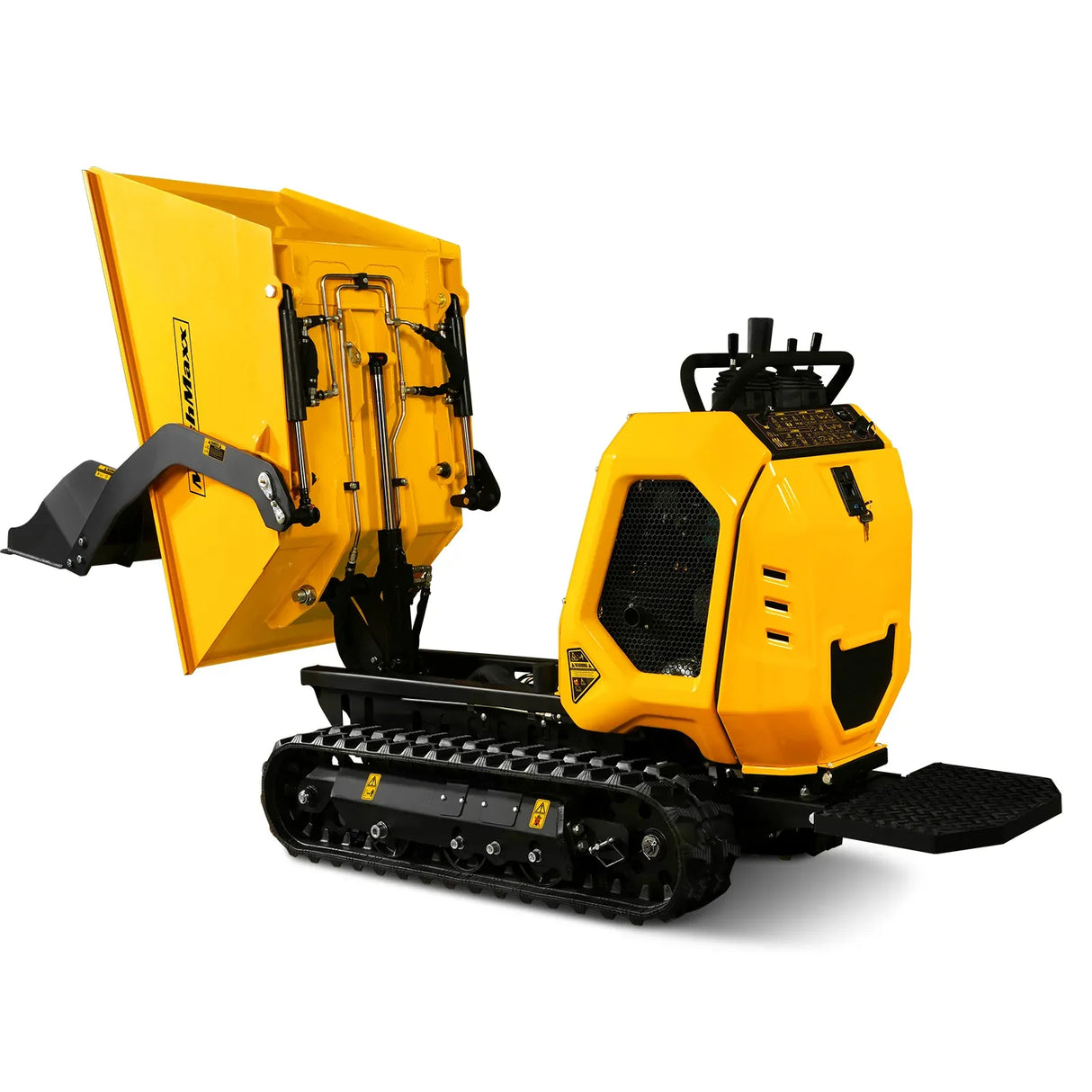

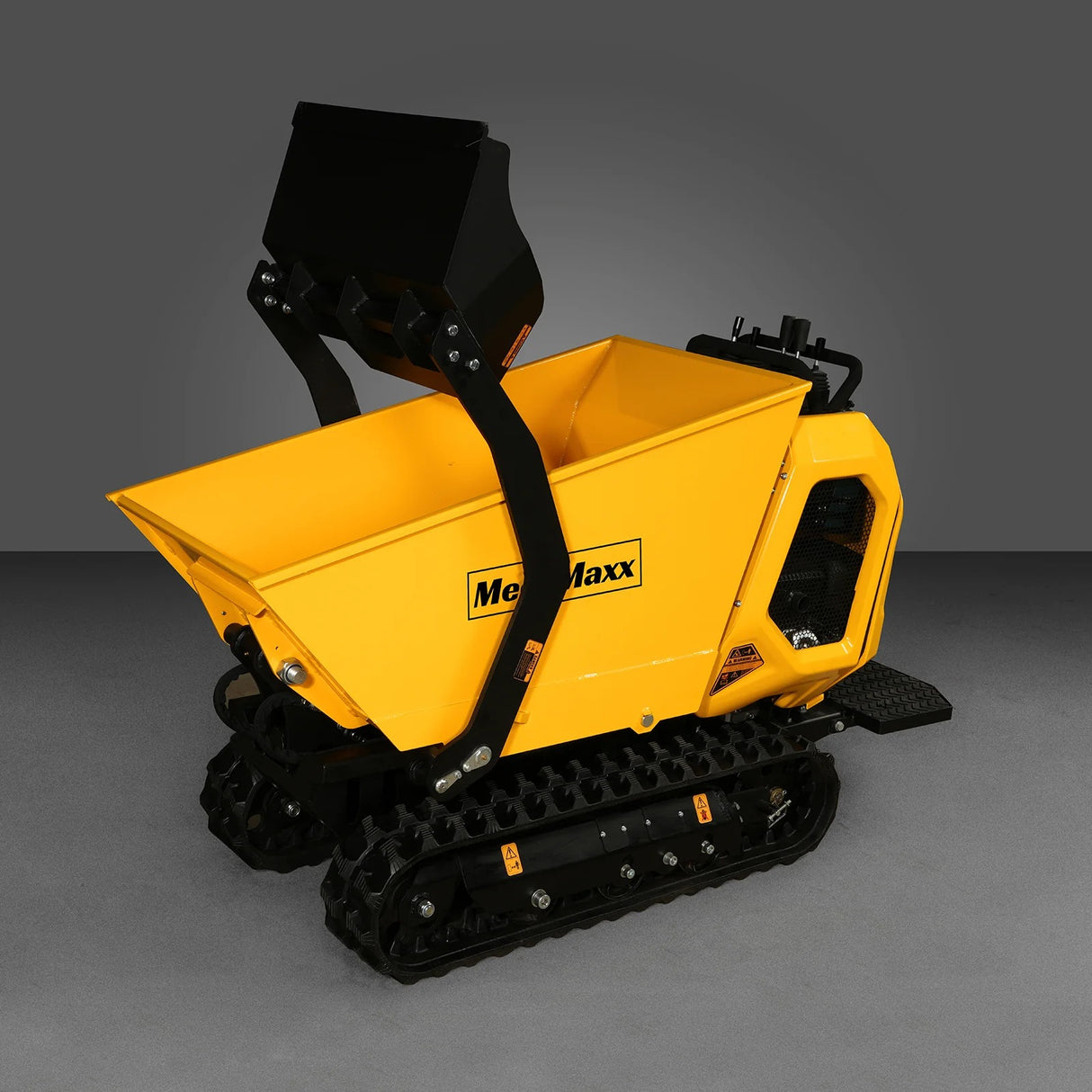

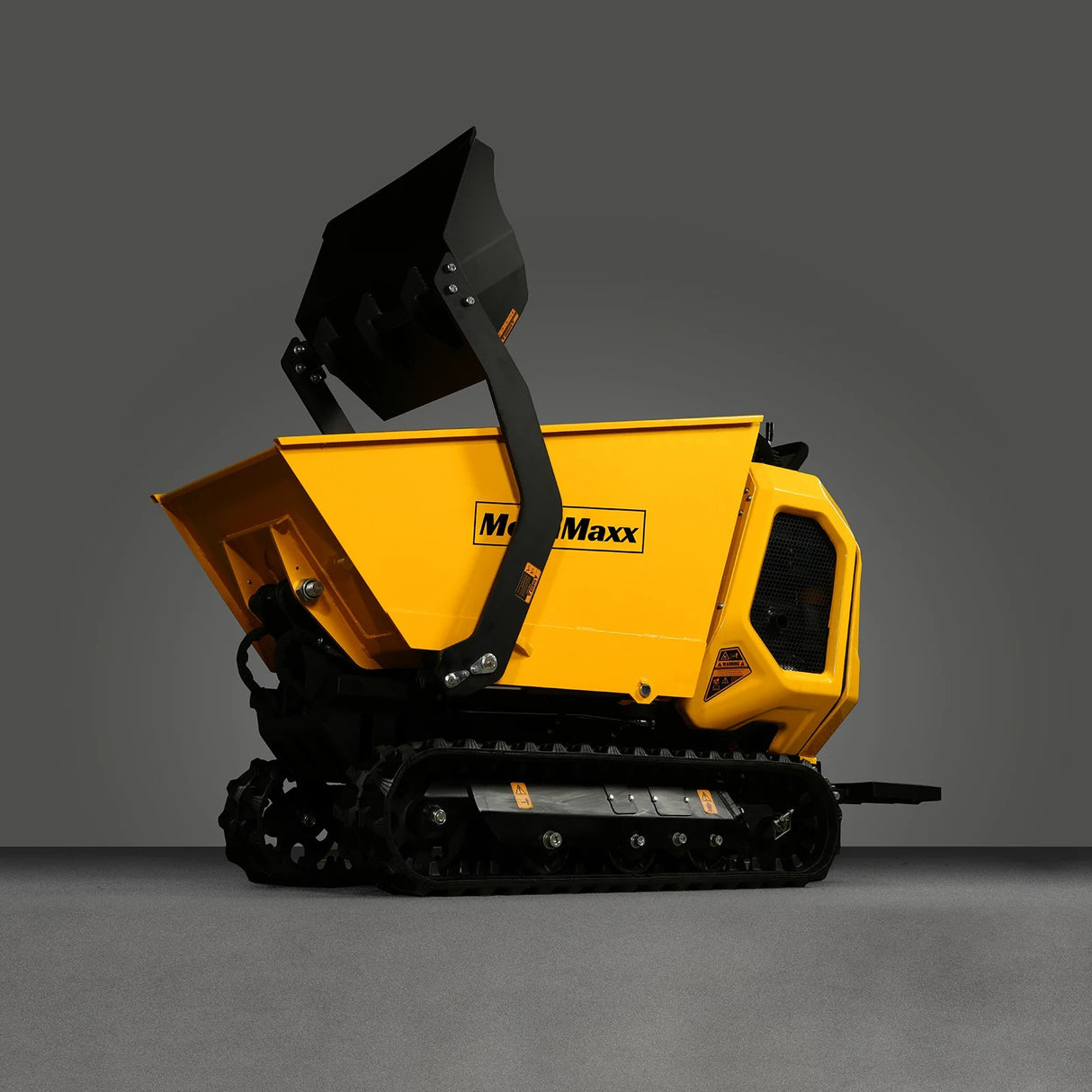

MechMaxx 1800 lb 420cc E-Start Gas Powered Hydraulic Track Mini Dumper with Self-Loading, Model T80

$6,299.00
Save $314.95 on this order paying by wire Get 5% off →
We're Here When You Need Us
Support team
Instant Live Chat
Available now
(888) 885-7067
Call us and talk to a real person, no call center
info@garageautosupplies.com
Email us for in-depth guidance

We're Available When You Need Us. Give Us A Call or Email.

This mini dumper features a two-speed travel system, with a low-speed setting for precise operation and a high-speed mode reaching up to 4.4 km/h for faster movement around the job site.

Powered by a 15HP gasoline engine, the machine delivers strong performance for both dumping and tracking applications, improving overall work efficiency.

With a compact width of 29 inches, it is designed to pass easily through standard doorways and gates, making it suitable for tight or restricted work areas.

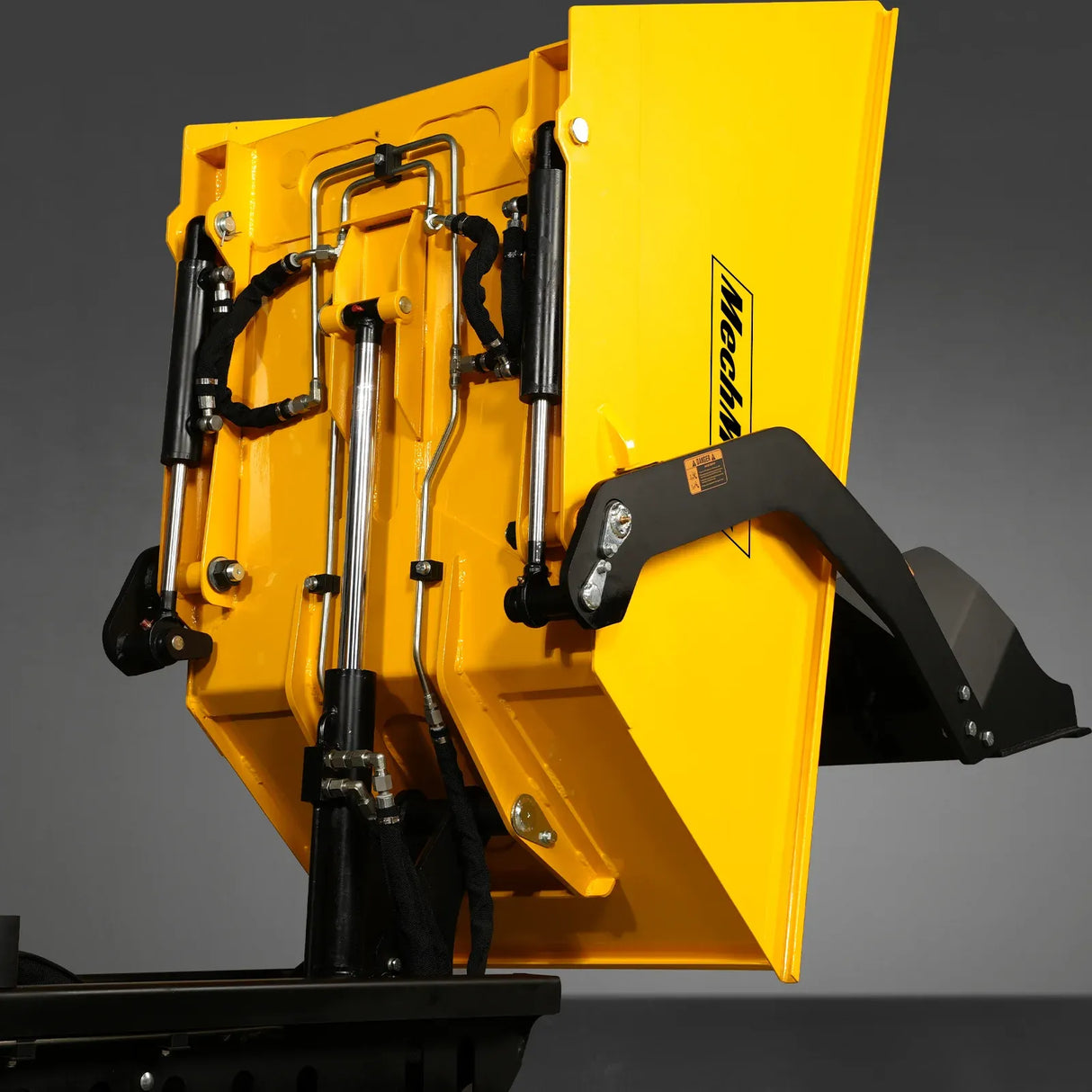

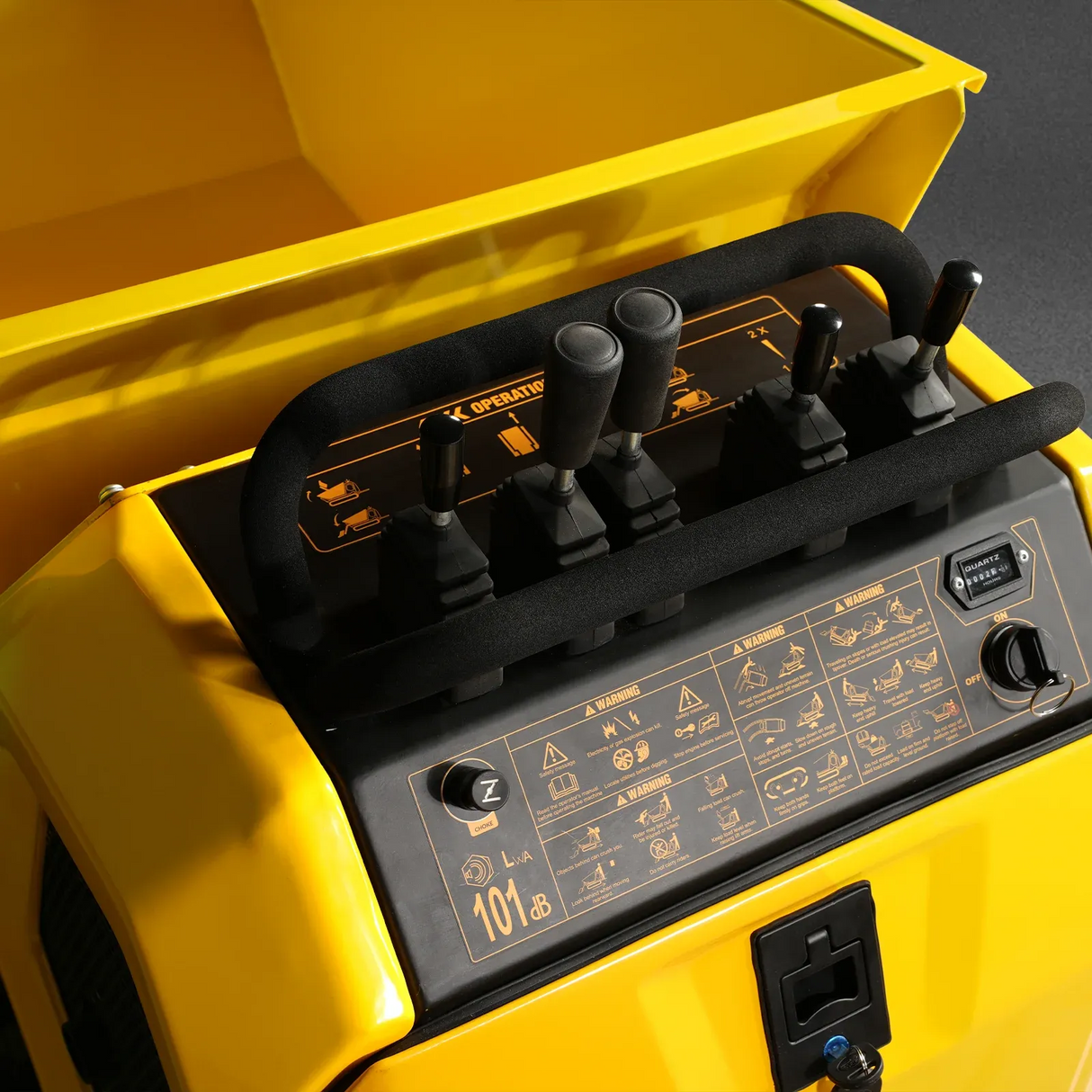

The unit offers a maximum loading capacity of 1800 lbs and is equipped with a fully hydraulic system for smooth and responsive operation. It also features an exclusive hydraulic control valve from Bondioli & Pavesi, enhancing control and reliability.

A triple gear pump system supports consistent hydraulic performance, while the machine provides up to 30% gradeability for operation on inclined surfaces. It also delivers a maximum torque of 26.5 Nm at 2500 RPM for dependable power output.

Specifications Details

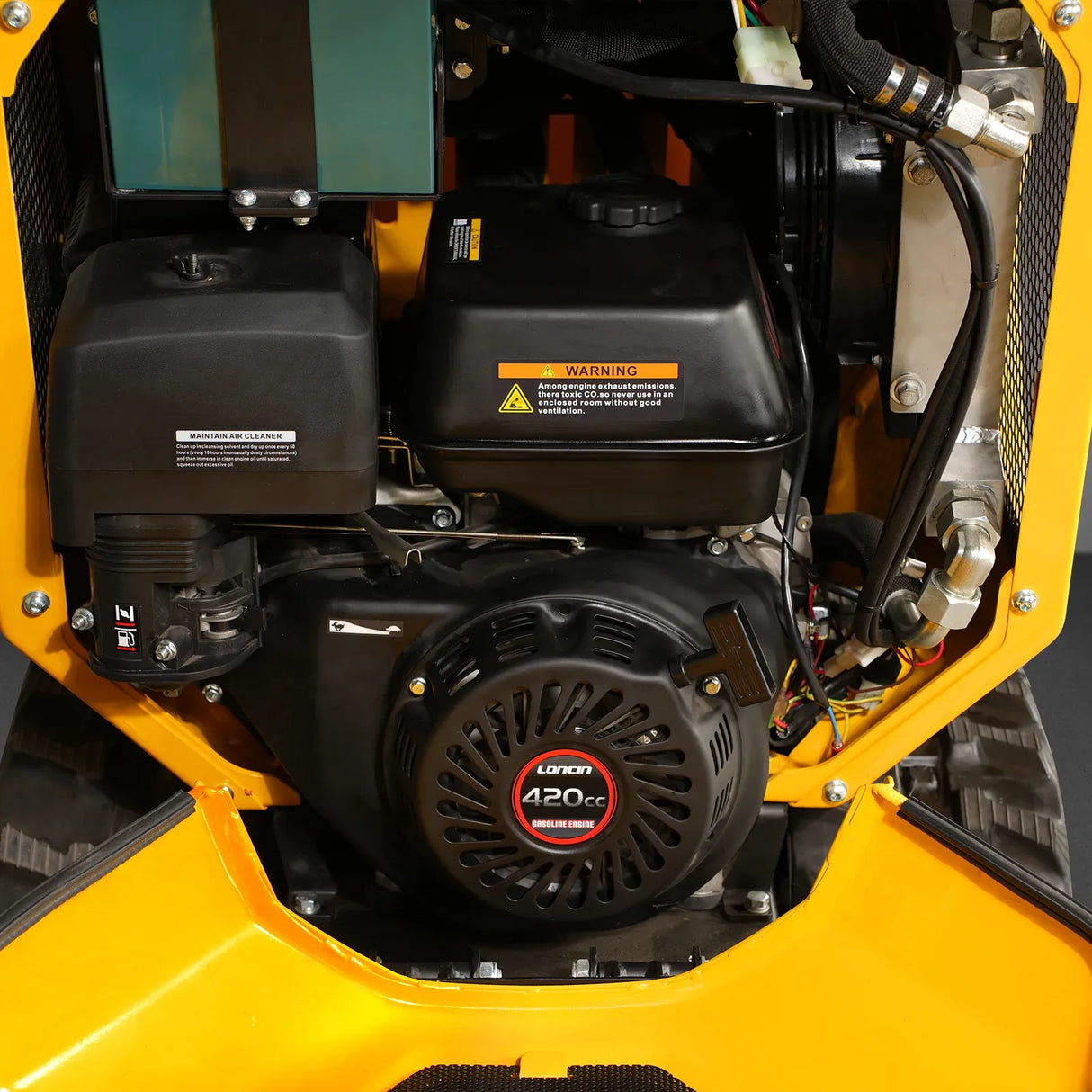

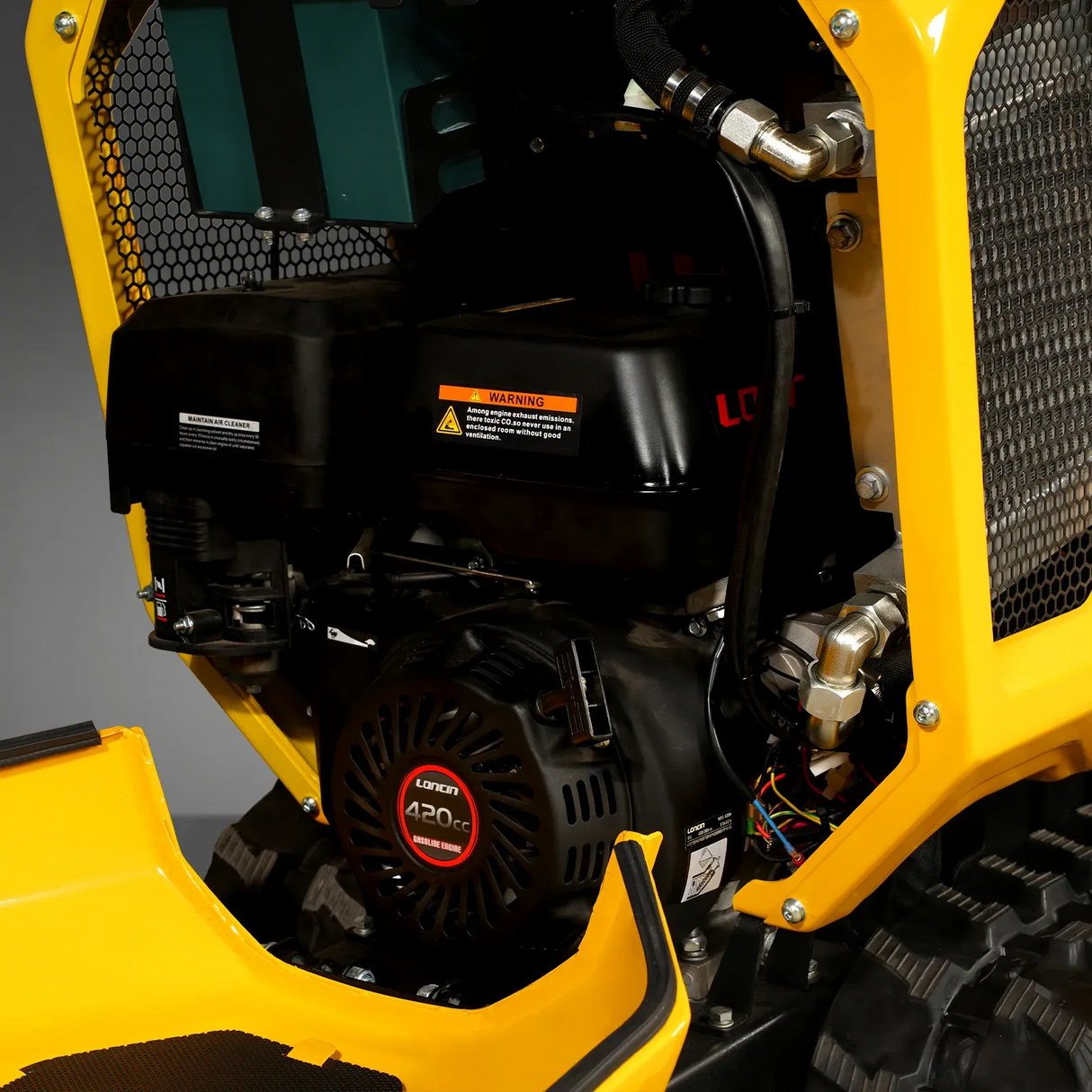

Engine LONCIN G420F(D)
Engine Type Single Cylinder, 4 Stroke, Air Cooled, OHV
Engine Displacement 420 cc
Horsepower 15 HP
Engine Power 9.0 kw / 3600 RPM
Start E-Start
Maximum Torque 26.5 N·m / 2500 RPM
Loading Capacity 1800 lbs
Wheelbase 39 in
Bucket Capacity 10.6 cu.ft.
Track Width 7.09 in
Track Length 51.2 in
Track Height 11.8 in
Shovel Height 63.8 in
Dump Front End Height 33.3 in
Dump Back End Height 43.3 in
Dump Width 24.3 in
Console Height 40.2 in
Platform Ground Clearance 10.4 in
Working Type Self Loading and Unloading
Transmission Hydrostatic Track Drive System
Parking Brake Yes
Operator Platform Stand-On
Max. Travel Speed 0-2.73 mph
Min. Travel Speed 0-1.37 mph
Max. Gradeability 0.3
Ground Pressure (with Operator) 2.9 psi (20 kPa)
Hydraulic Pressure 2900 psi (20 MPa)
Hydraulic Tank Capacity 6 gal
Fuel Tank Capacity 1.72 gal
Battery Capacity 12 V 20 Ah
Pump Type Triple Gear Pump
Overall Length (w/o Shovel) 80 in
Overall Length (with Shovel) 108 in
Overall Height 48 in
Overall Width 29 in
Weight (N.W./G.W.) 1253 / 1385 lbs
