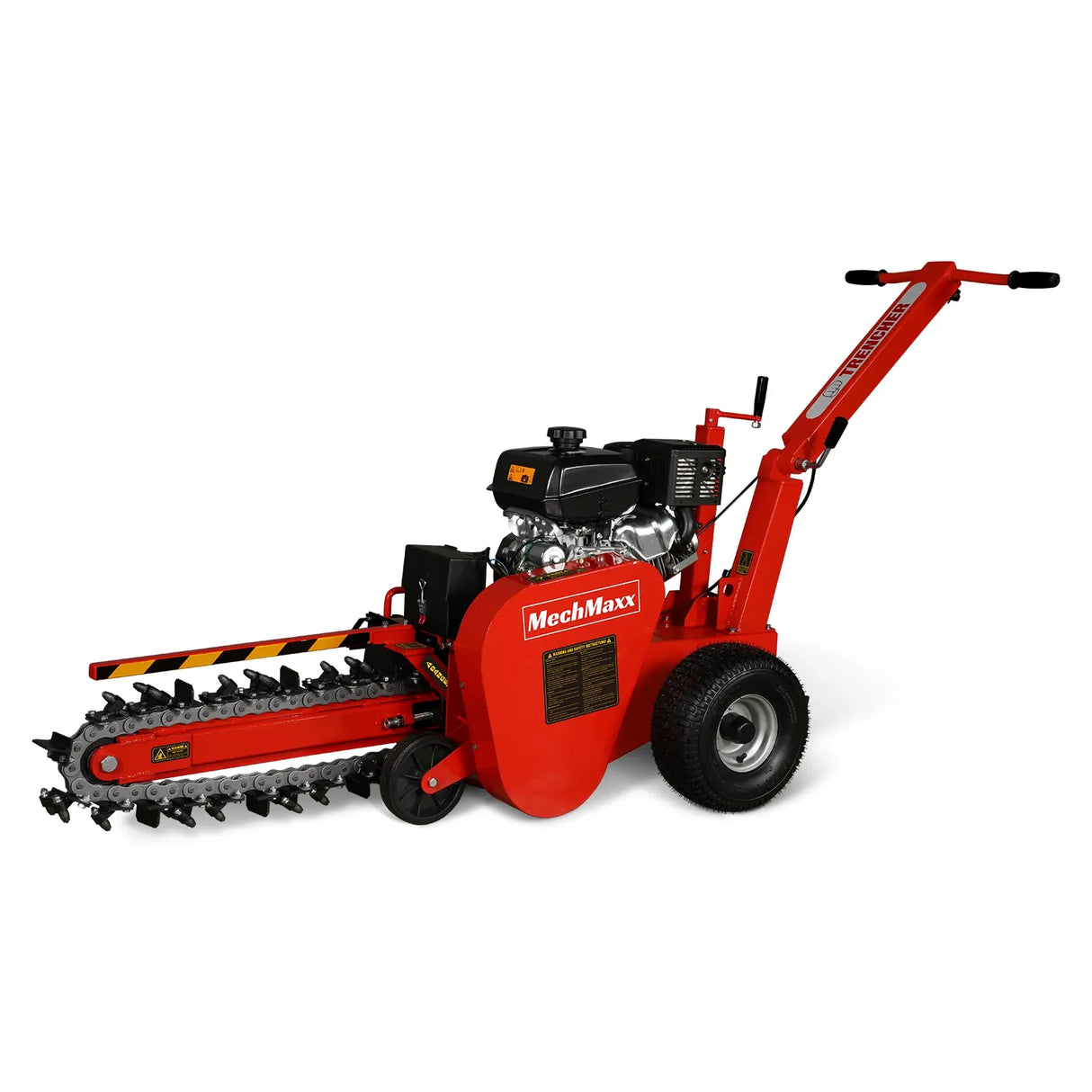

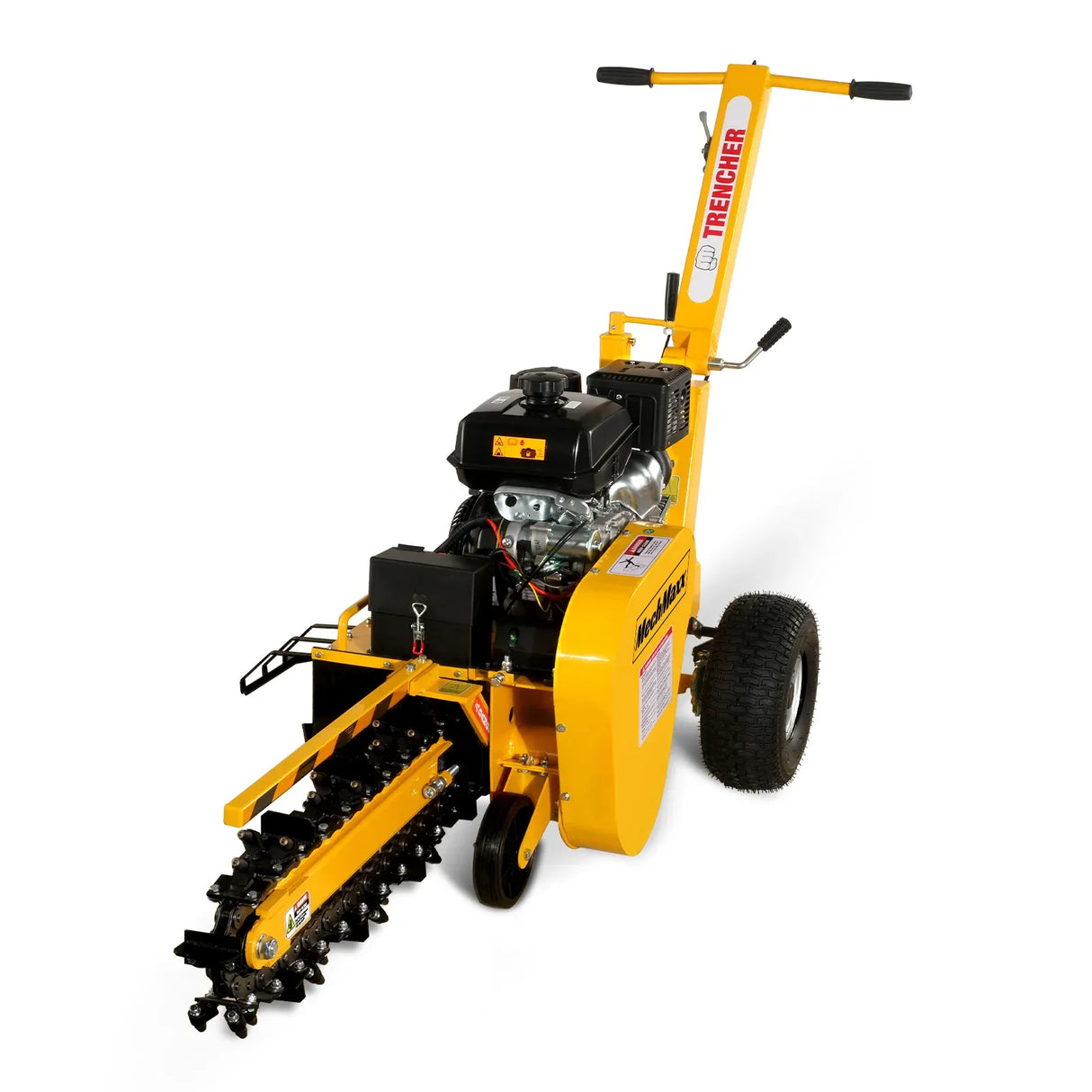

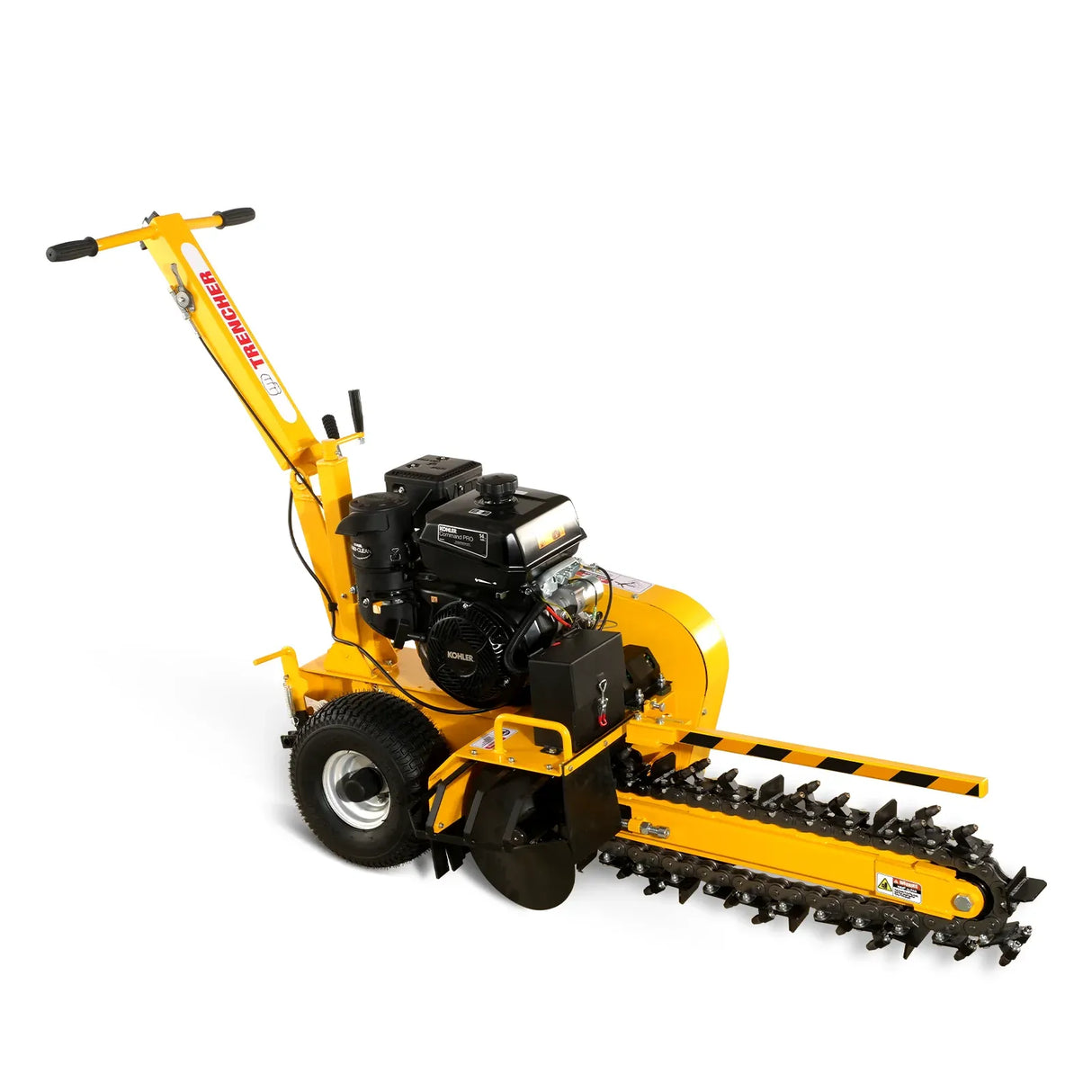

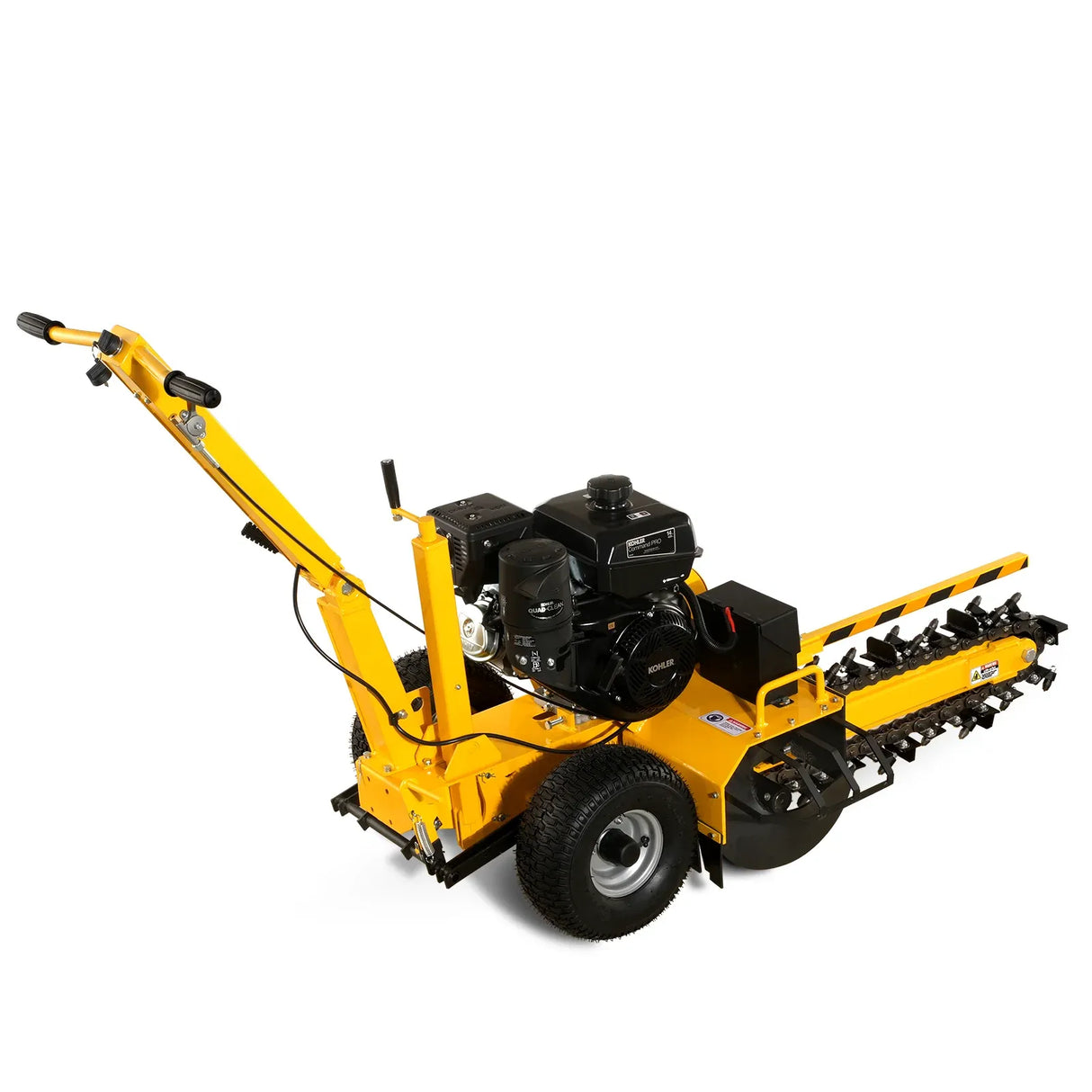

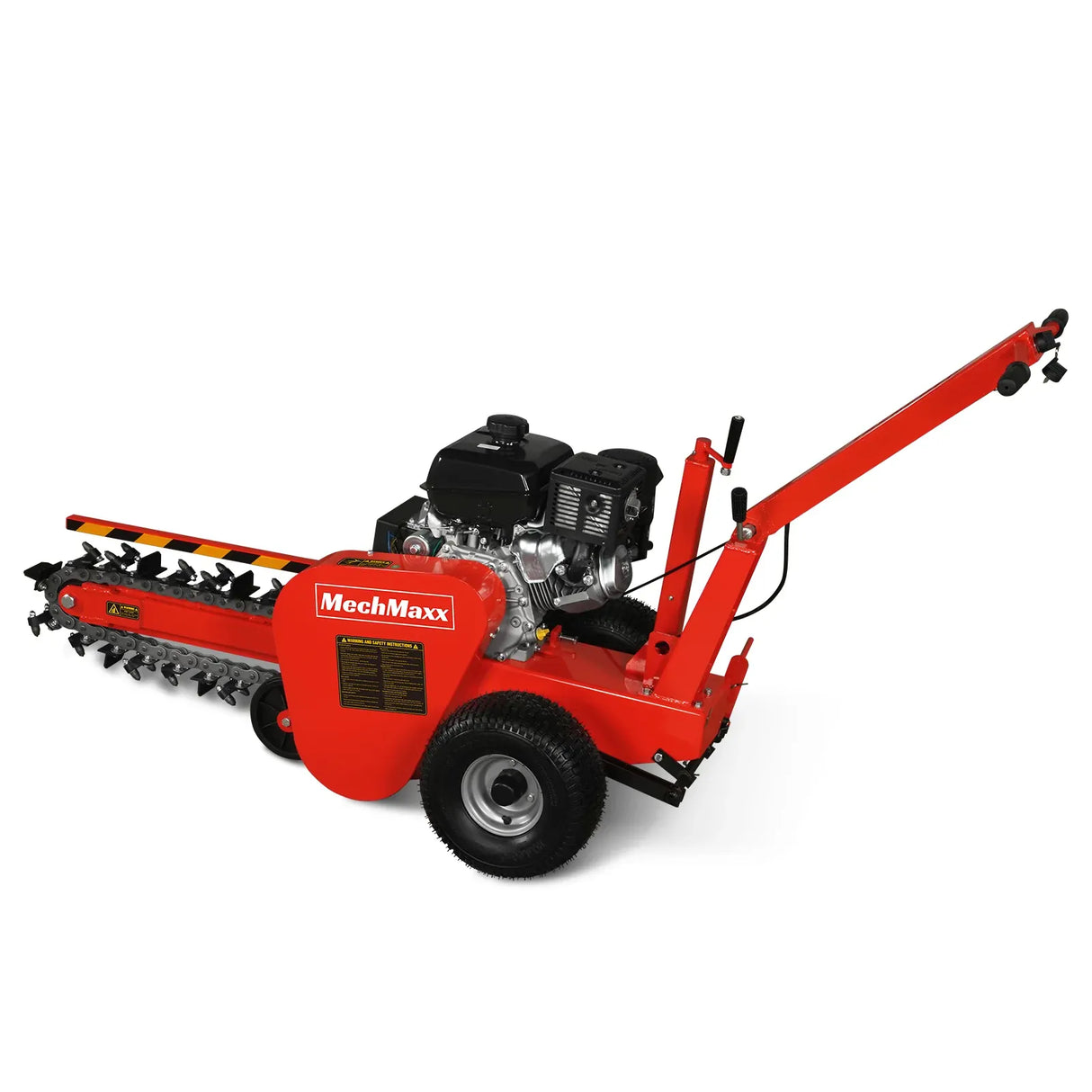

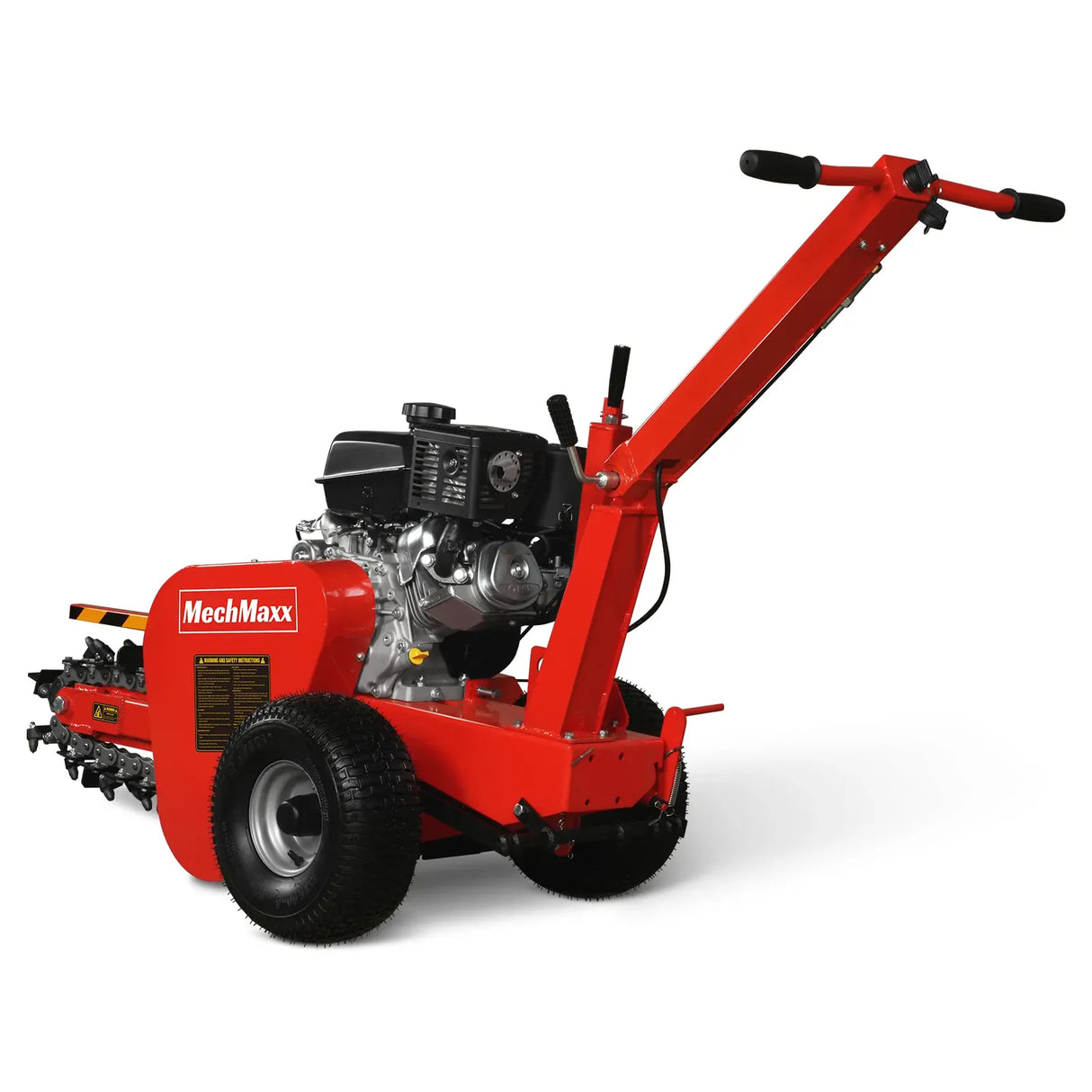

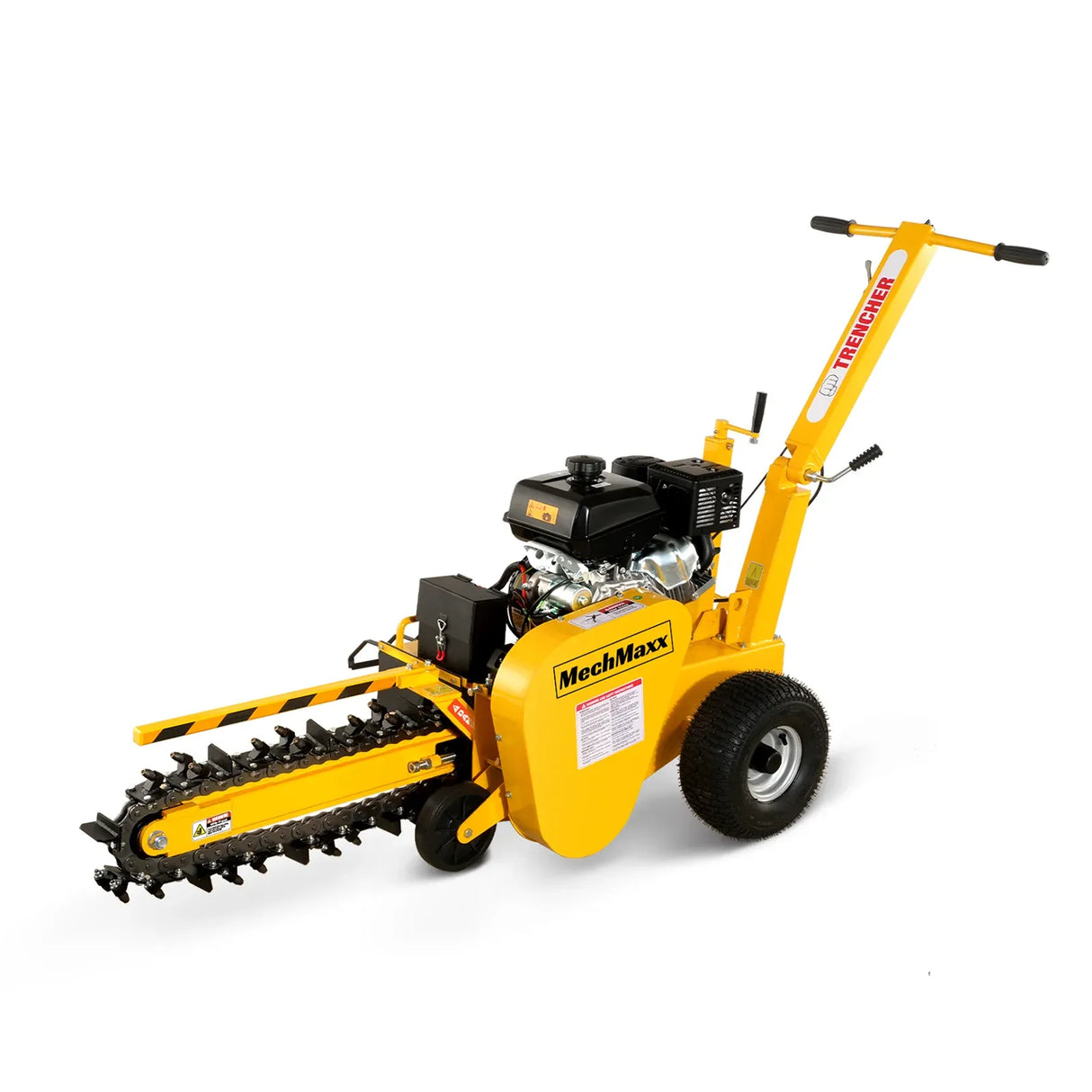

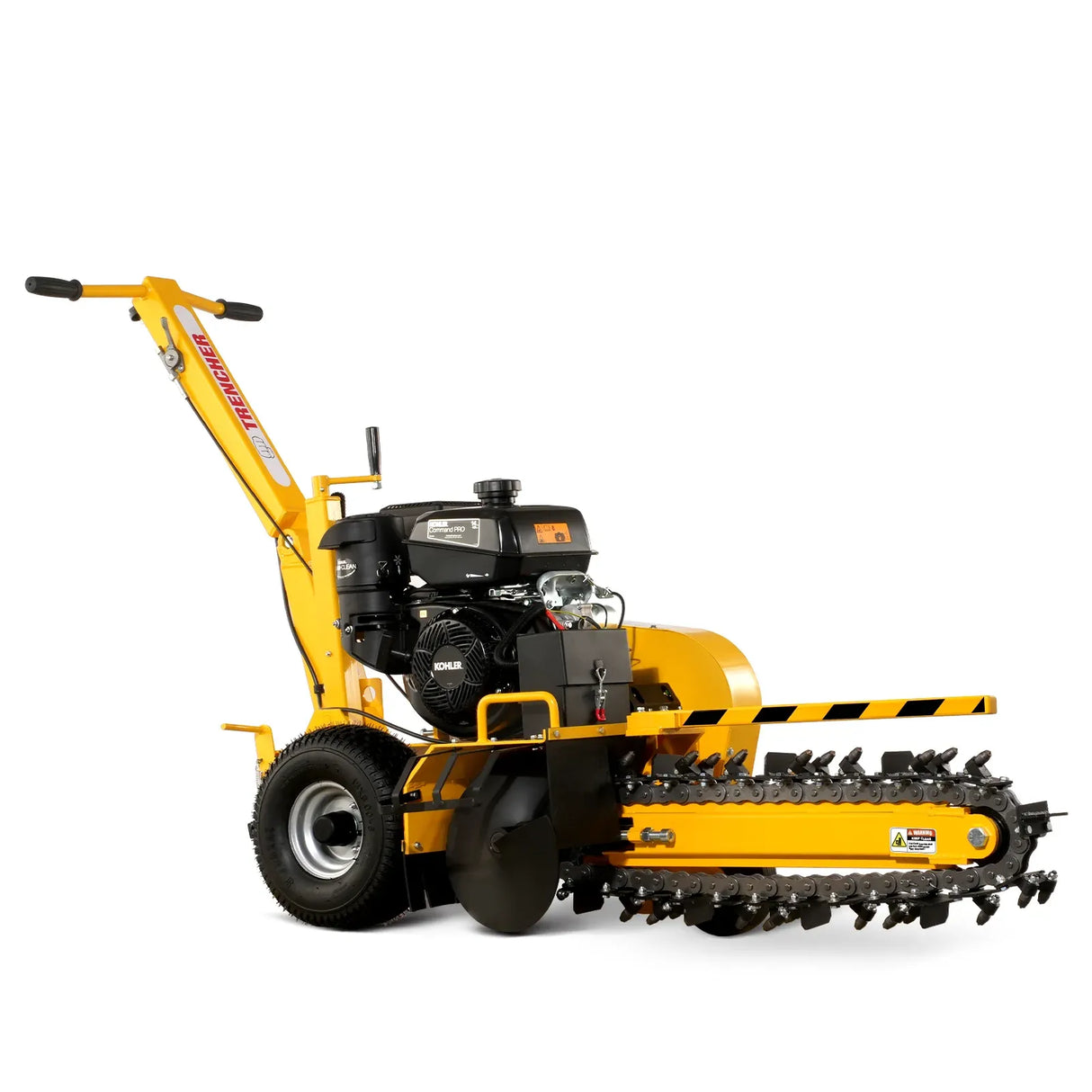

MechMaxx 14HP 429cc KOHLER E-Start 24" Mini Trencher, Model TCR1500
MechMaxx 14HP 429cc KOHLER E-Start 24" Mini Trencher, Model TCR1500 - Yellow is backordered and will ship as soon as it is back in stock.
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
MechMaxx 14HP 429cc KOHLER E-Start 24" Mini Trencher, Model TC...

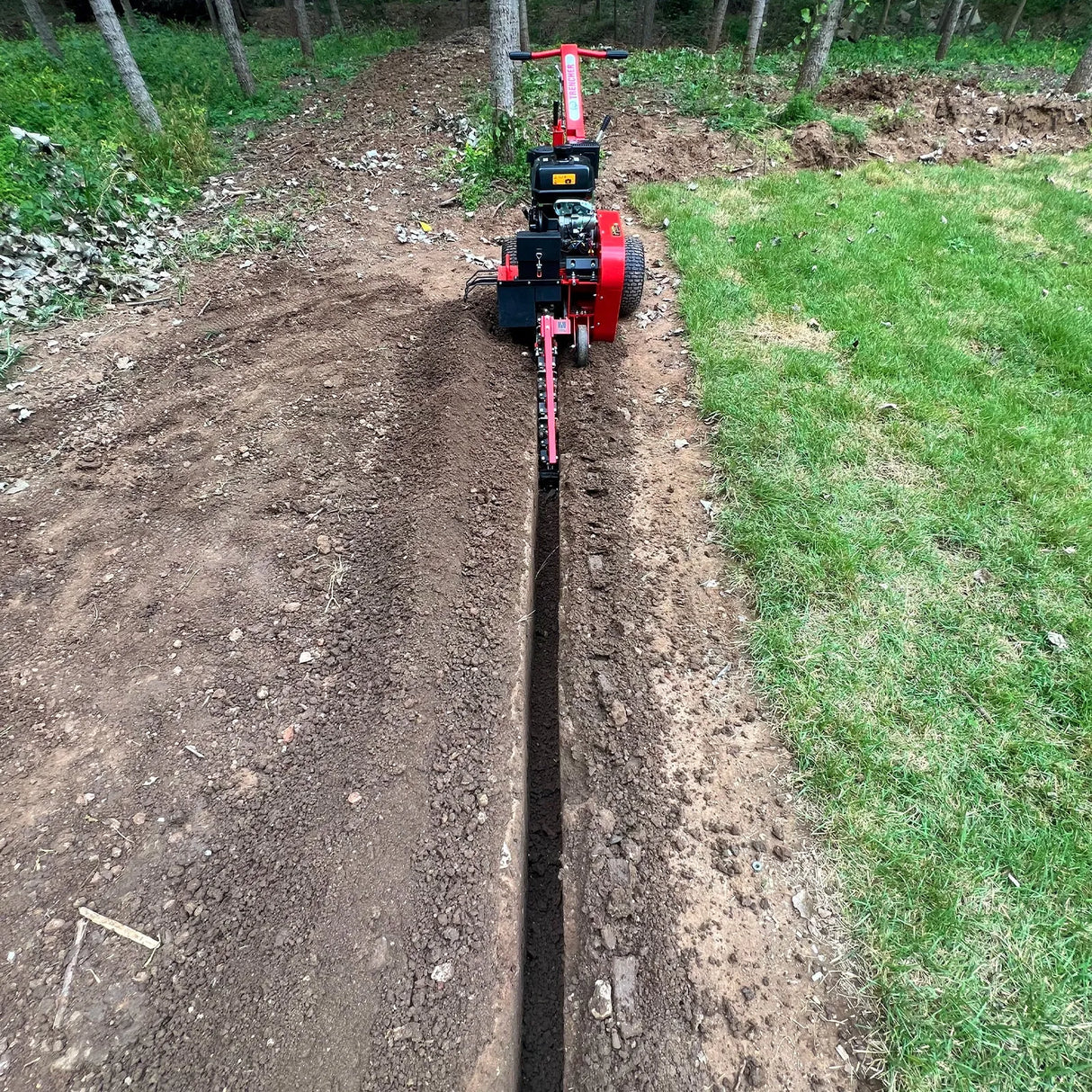

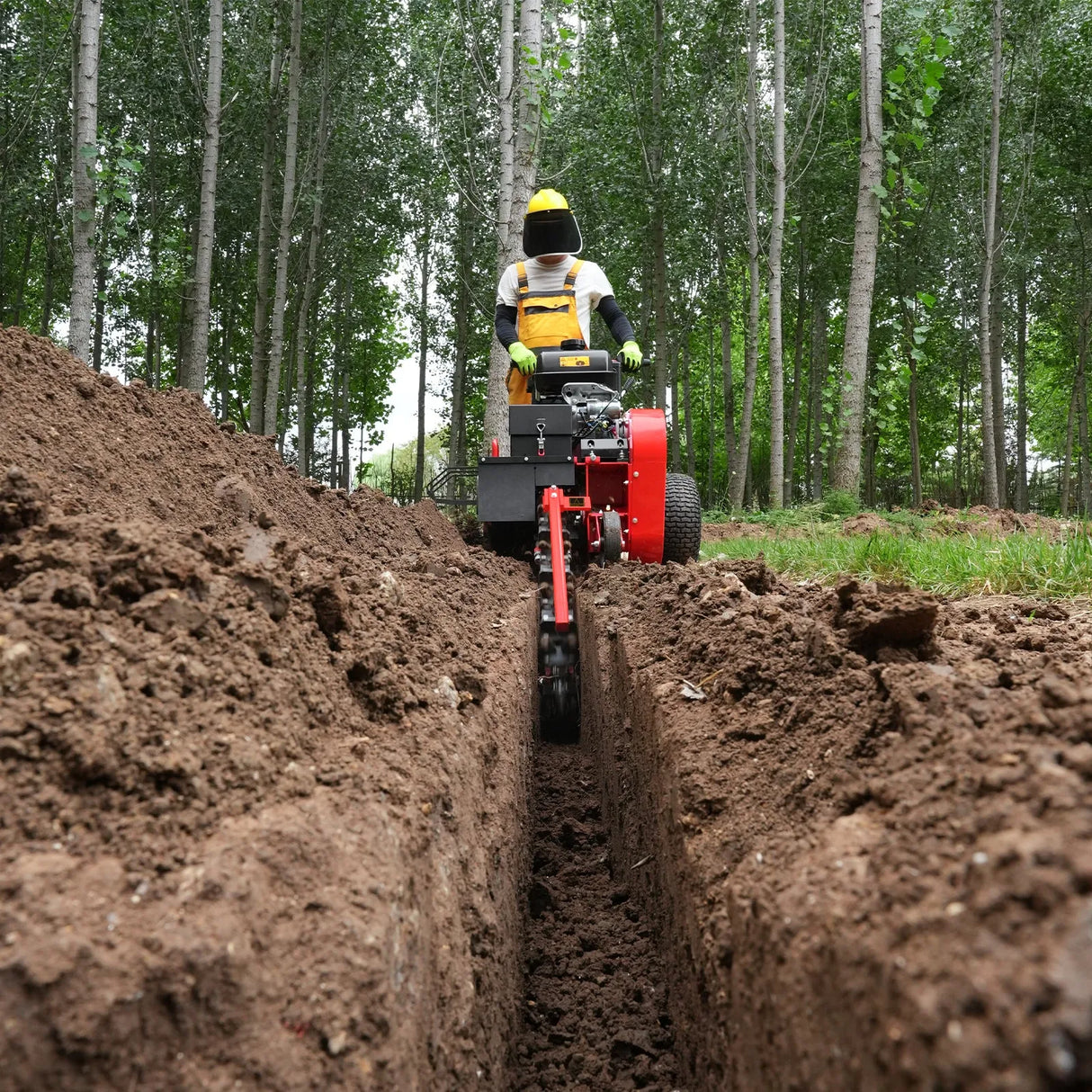

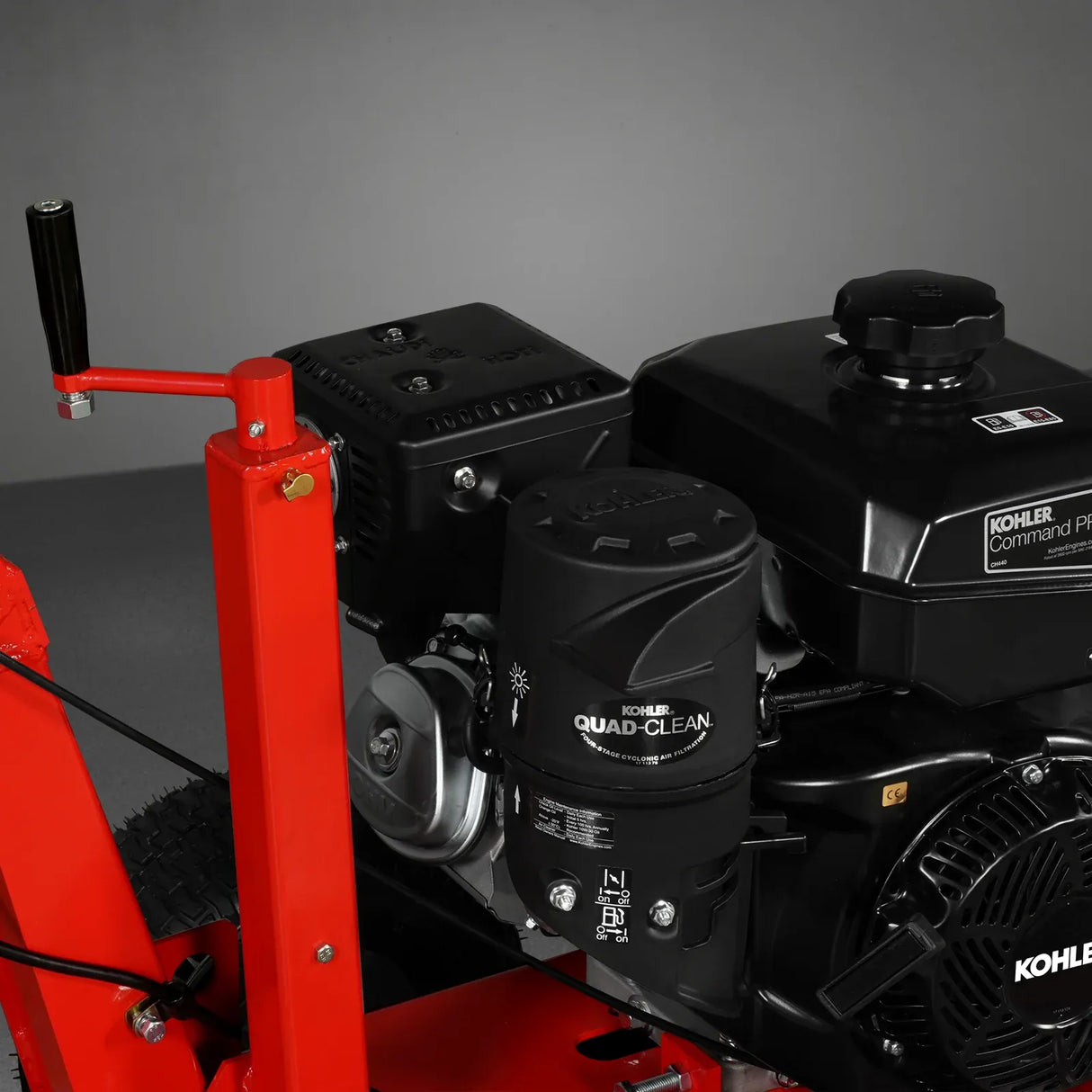

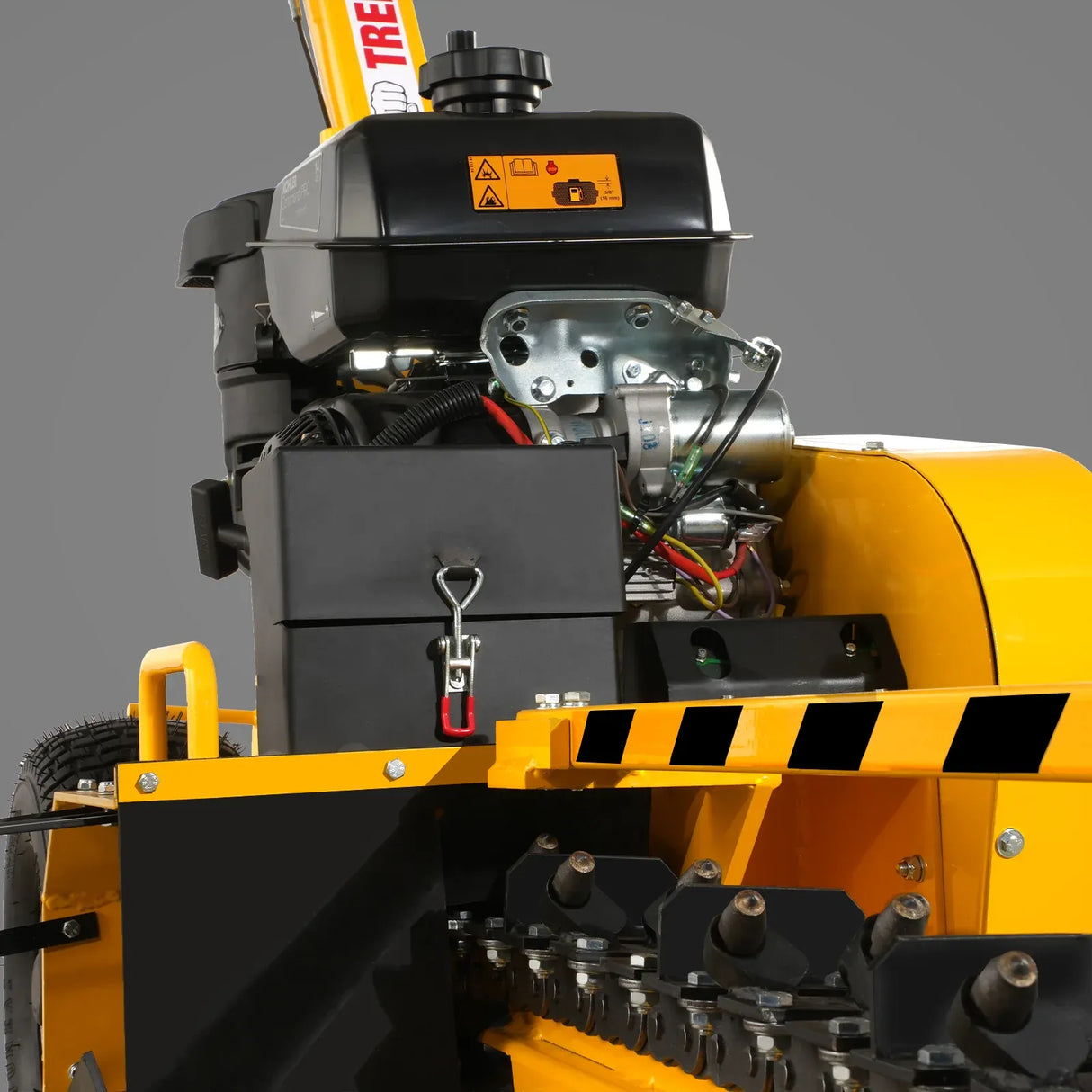

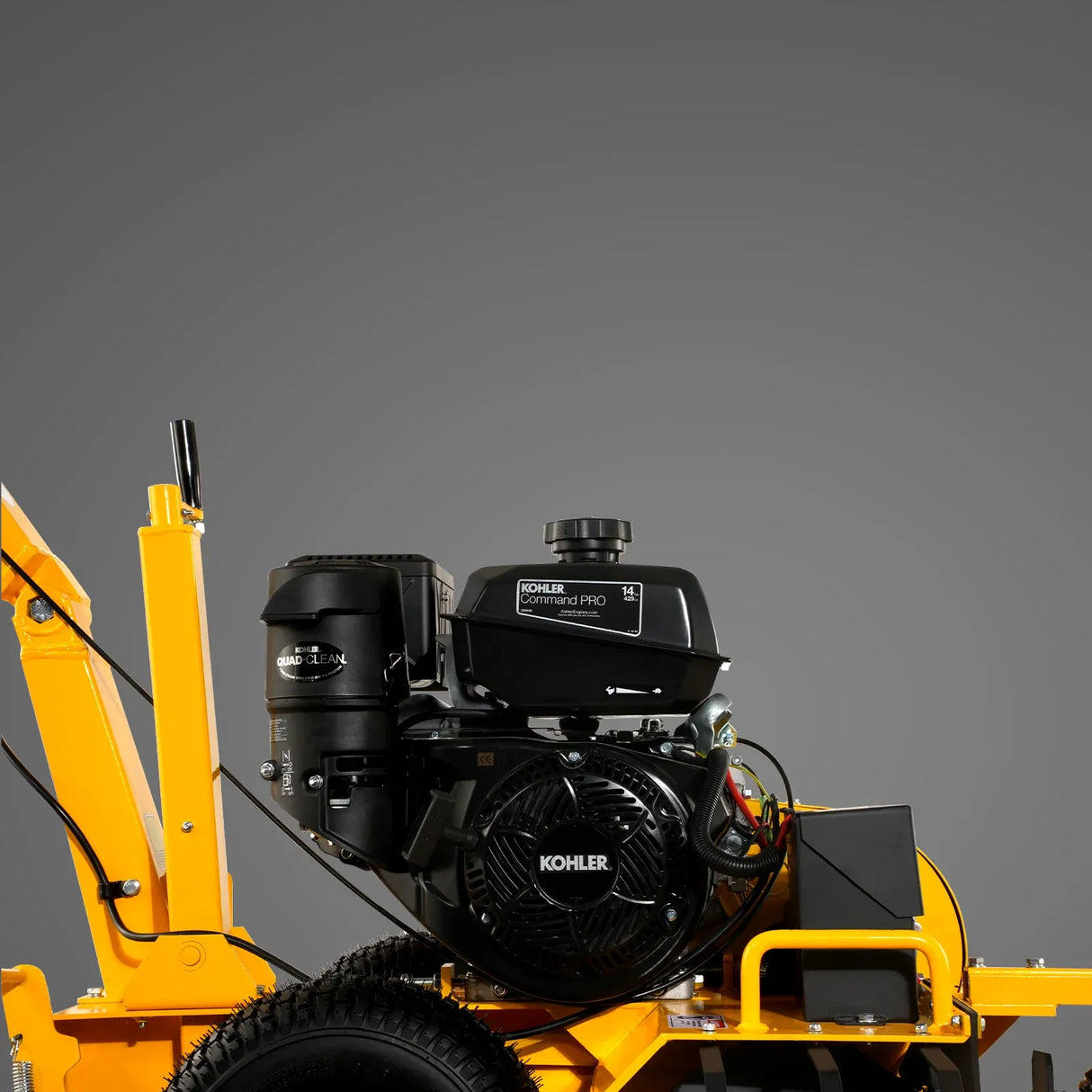

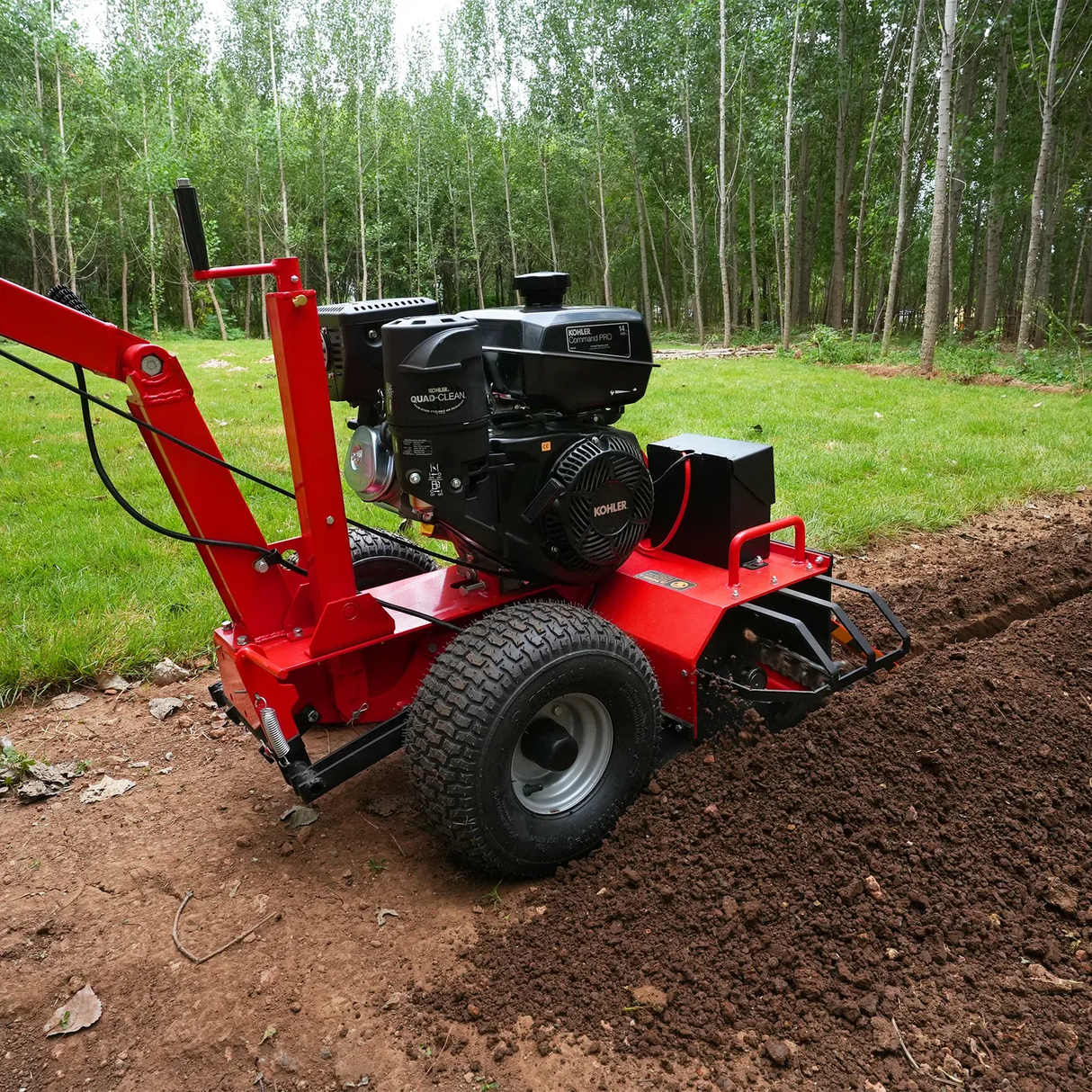

The TCR1500 mini trencher is powered by a 429cc gasoline engine from Kohler, delivering strong and reliable performance for a variety of trenching applications. It features a practical trenching width of 4 inches and can reach digging depths of up to 24 inches.
Built for demanding conditions, the engine provides the power needed to cut through dense and clay-heavy soil with consistent efficiency.

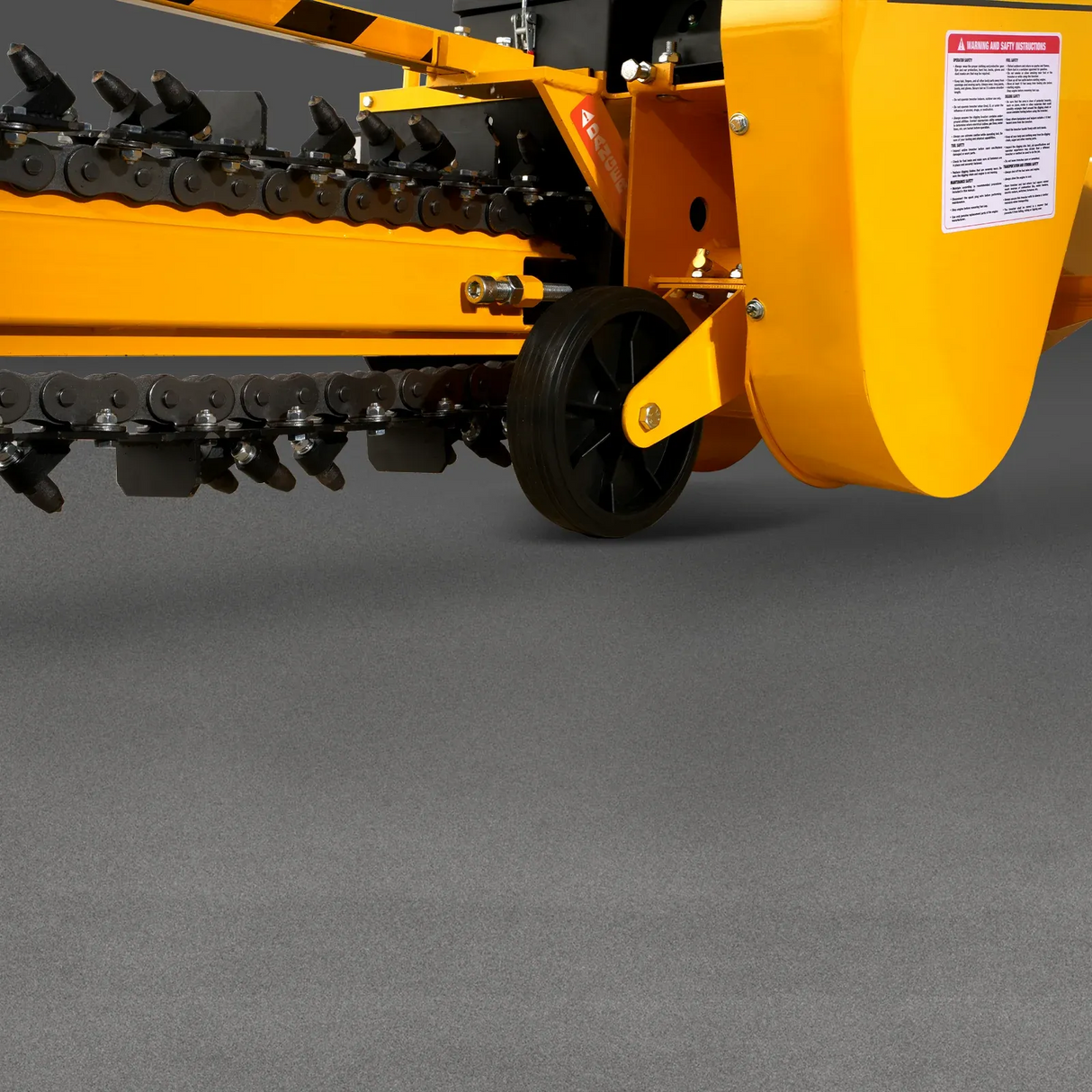

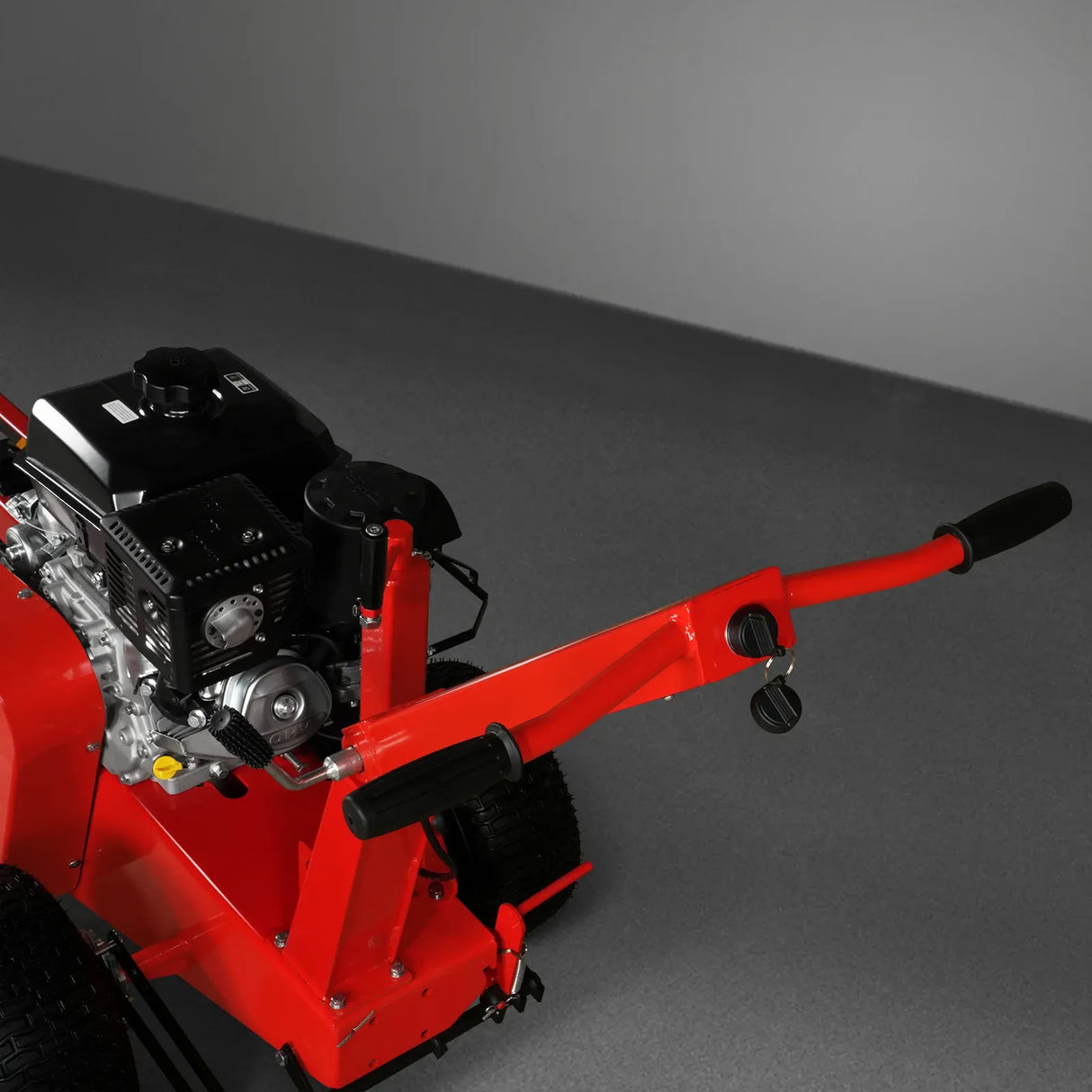

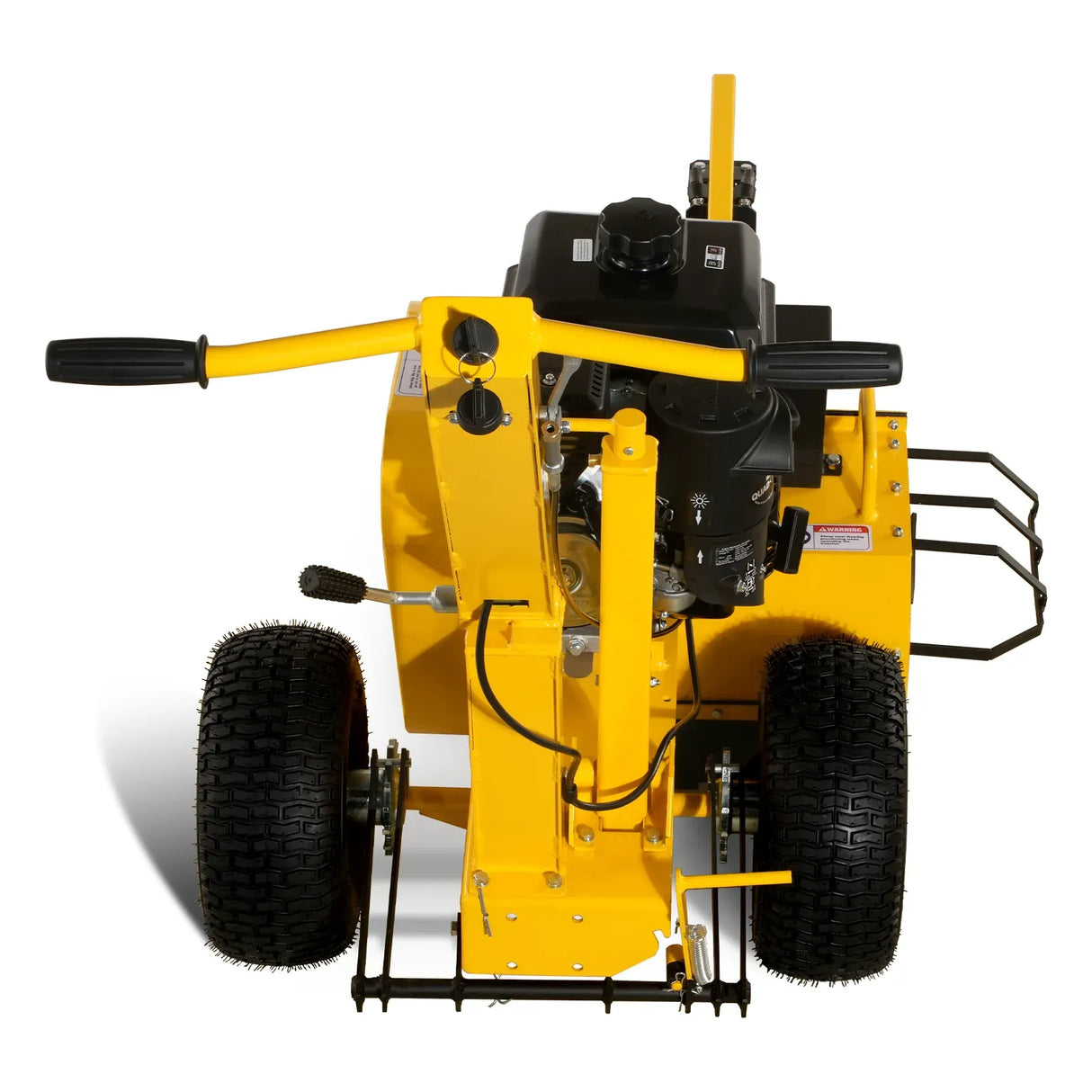

The unit is equipped with a threaded lifting lever, allowing operators to easily adjust the trench depth as needed. A front-mounted wheel is also included, making it easier to move and position the trencher at the job site.
Important:
- Use caution when operating around stones. Debris becoming lodged in the machine may lead to malfunctions.
| Specifications | Details |
|---|---|
| Engine | KOHLER CH440 |
| Certification(s) | EPA Phase III, CARB Phase III |
| Engine Type | Single Cylinder, 4 Stroke, Air-Cooled, OHV |
| Displacement / HP | 429 cc; 14 HP |
| Start | E-Start |
| Belt | 2 x V-Belts |
| Belts Material | Kevlar |
| Clutch | Centrifugal Clutch |

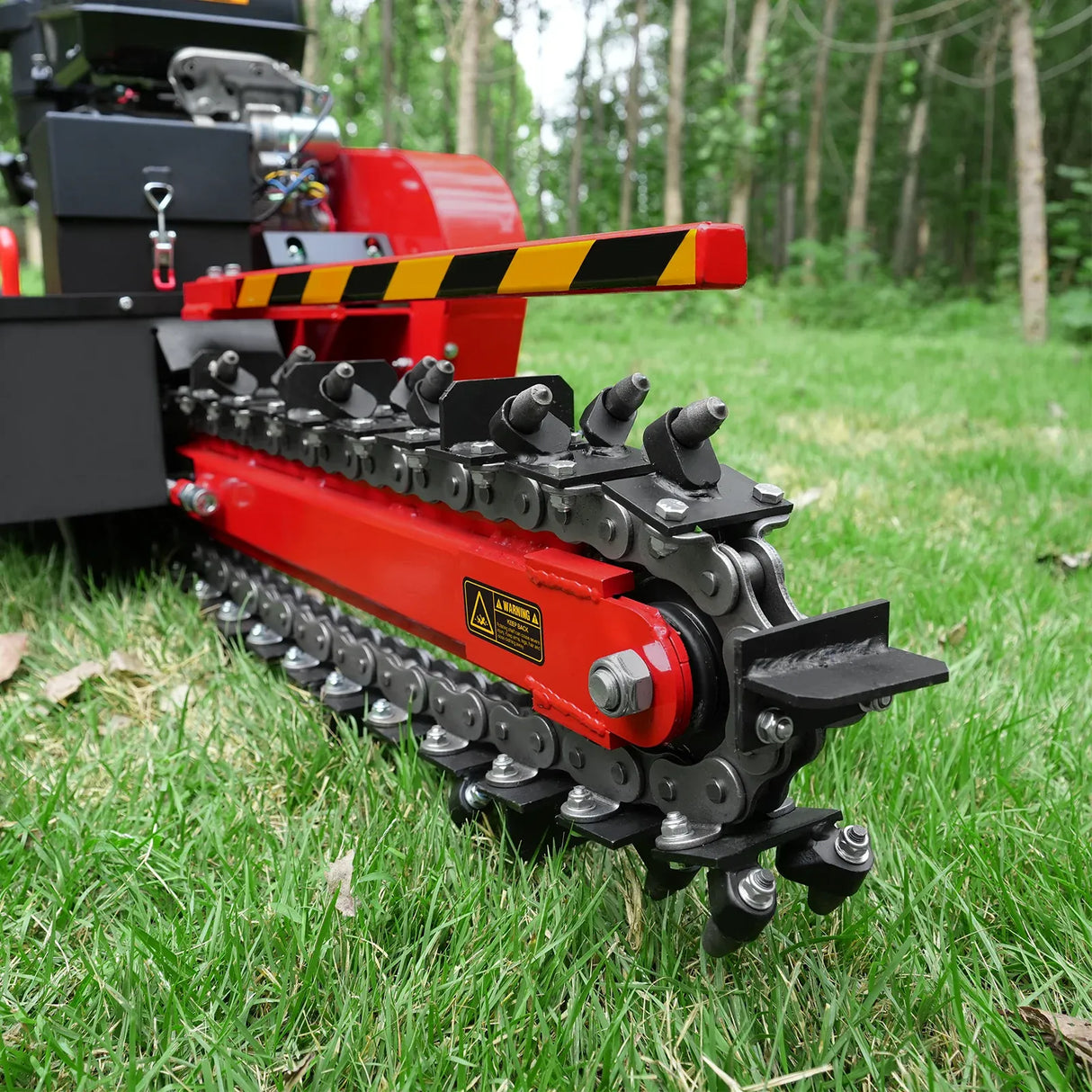

| Carbide Tip | 27 x Carbide Alloy High-Pressure Teeth |
| Scraper | 9 Pcs |
| Tip Holder Material | 42CrMo |
| Carbide Tip Material | YG11C Alloy |
| Chain Length | 81.5 in |
| Chain Speed | 574 ft / min |
| Max. Trench Depth | 24 in |
| Max. Trench Width | 4 in |
| Wheelbase | 29 in |
| Tire | 15 x 6-6 Tubeless |
| Assembled Weight | 402 lbs |
| Gross Weight | 450 lbs |
| Packing Size | 46 x 31 x 34 in |
| Warranty | 1 Year |
Documents
Assembly
Maintenance
