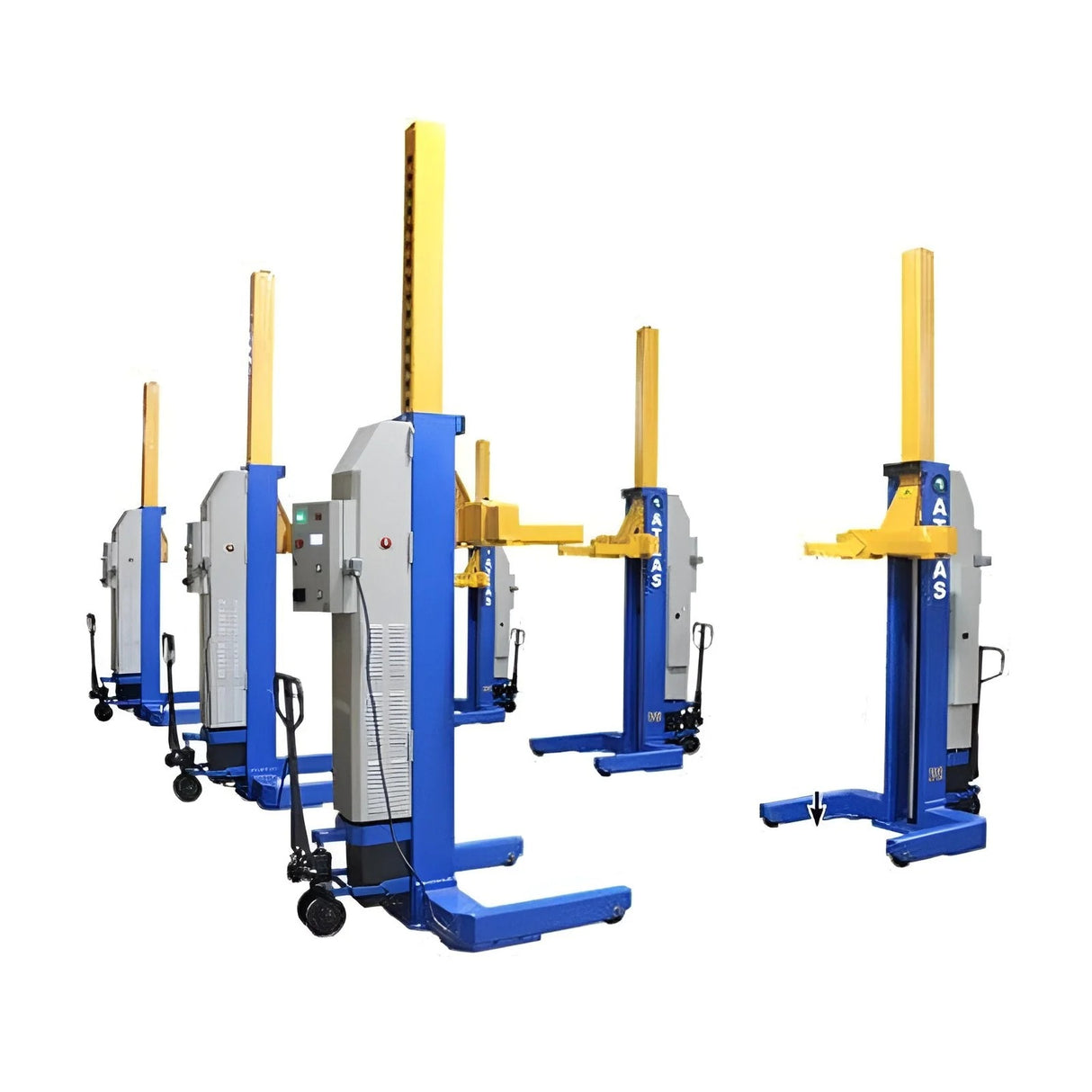

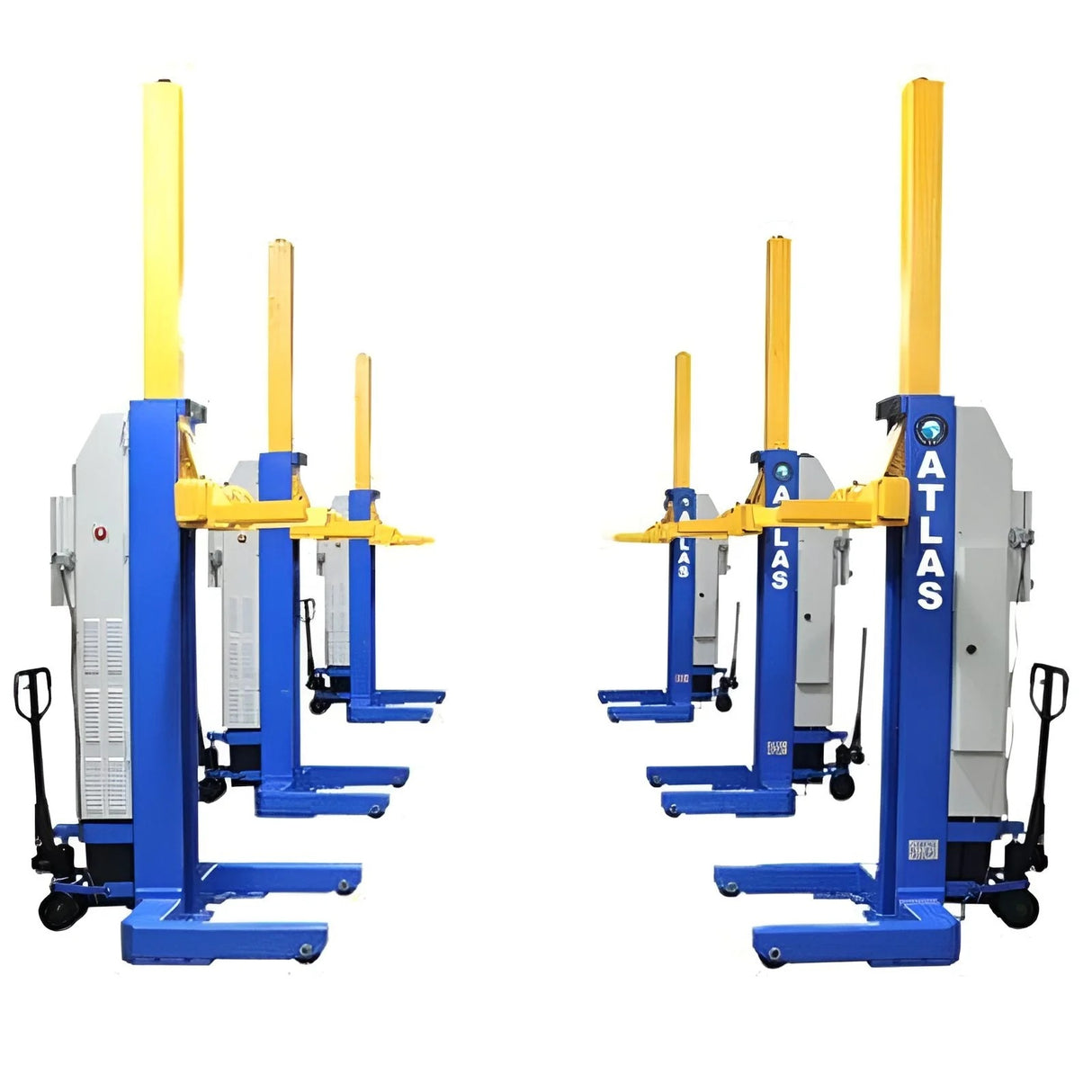

Atlas ALI Certified 111,000 lb Battery-Powered Mobile Column Lift System

The Atlas ALI Certified Battery Powered Mobile Column Lift System (111,000 lb Capacity) is a high-capacity, commercial-grade lifting solution designed for heavy-duty trucks, buses, and fleet vehicles. Built for shops that require maximum lifting power with flexibility, this system delivers reliable performance while allowing full mobility inside or outside the shop.

Powered by a 24V DC motor with dual rechargeable batteries per column, each unit operates independently while maintaining synchronized lifting across all columns. This eliminates the need for fixed installations and allows technicians to position the lift exactly where it's needed — ideal for shops with limited bay space or high workflow demands.

Key Features

• ALI Certified for verified safety and performance
• 111,000 lb Total Capacity (18,500 lbs per column)
• Battery Powered System with 24V DC motors and dual batteries per column
• Simultaneous Column Operation with electronic synchronization
• LCD Display on each column showing exact lifting height
• Dual Safety System – hydraulic flow control and mechanical locks
• Portable Design for use inside or outside on proper concrete surfaces

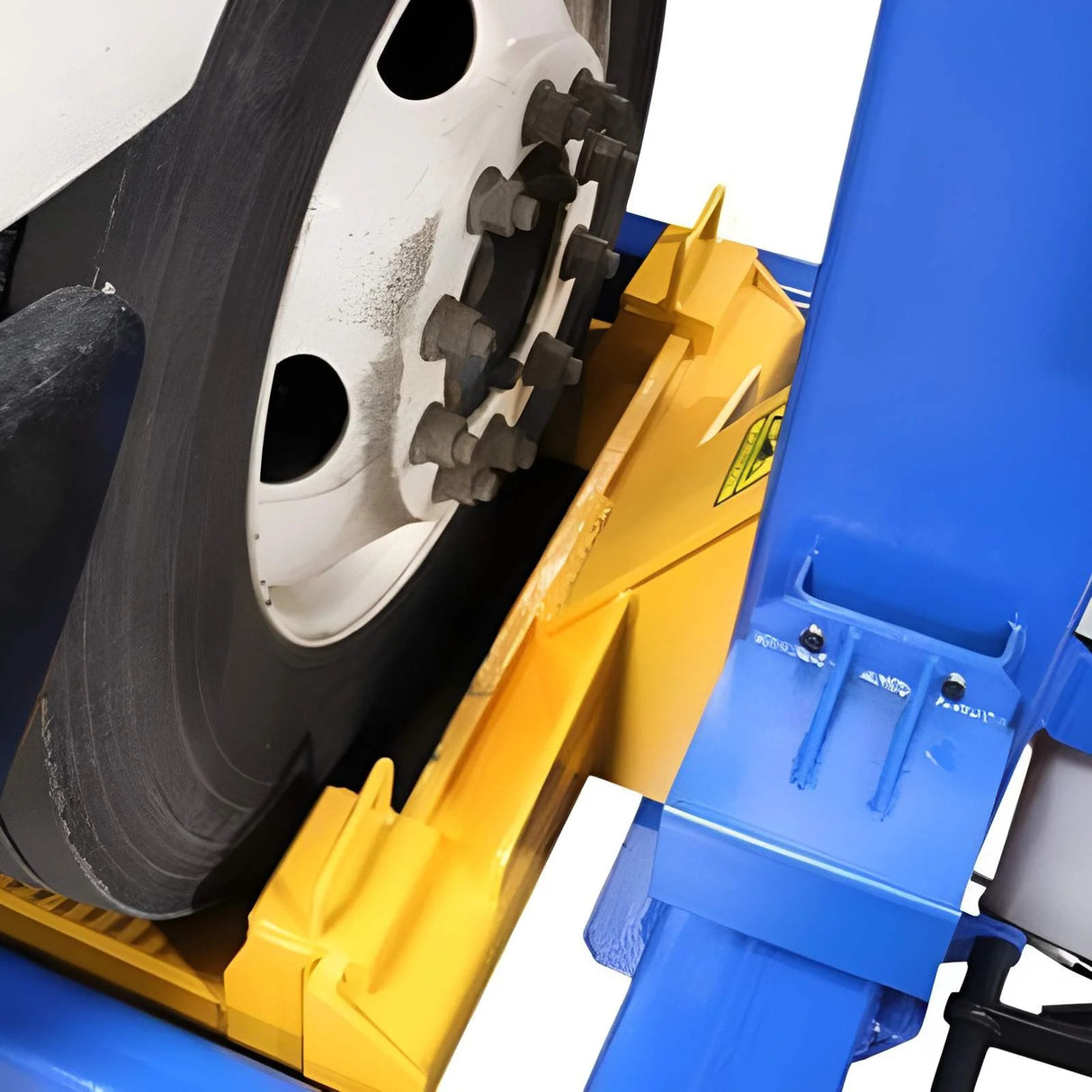

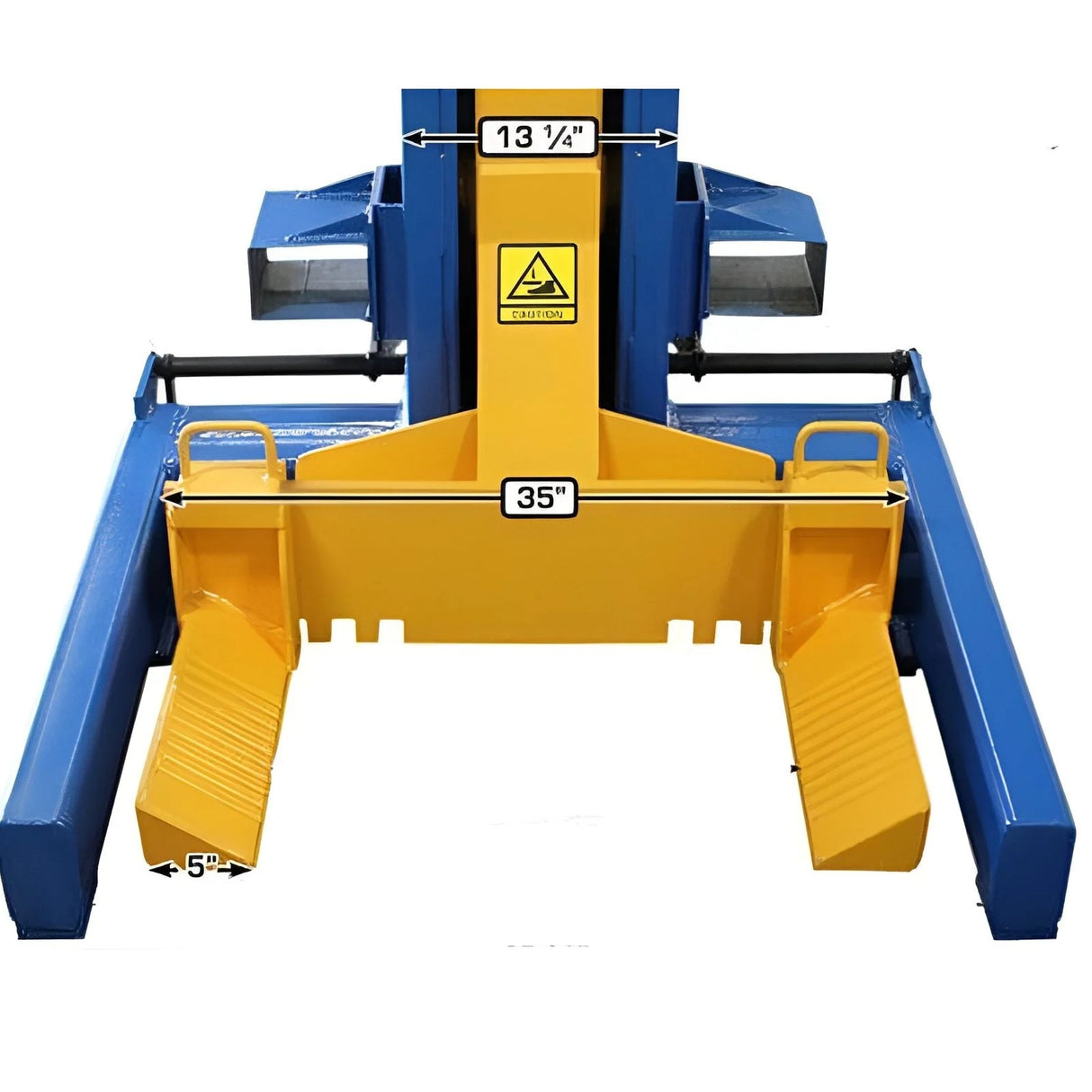

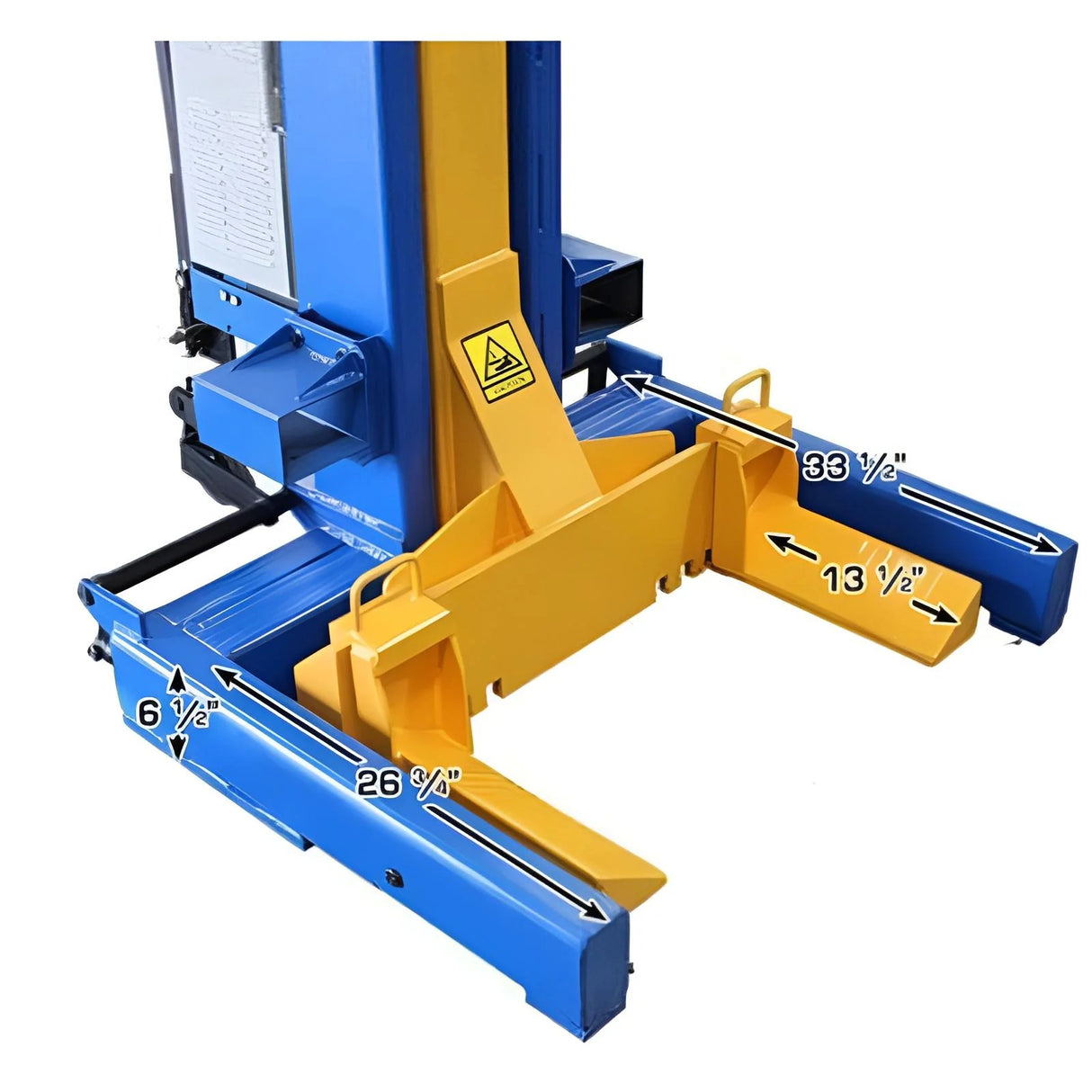

• Adjustable Forks accommodate tire diameters from 19" to 44"
• Emergency Stop Button on every column
• Includes six column connecting cables

Ideal For

Fleet service centers, truck repair facilities, and commercial vehicle maintenance operations that need to service large vehicles without being restricted by fixed lift installations. Each column can be easily moved and stored when not in use, maximizing shop space and efficiency. With a built-in pallet jack system, columns can be positioned quickly and used outdoors on a properly rated concrete surface.

Documents

• Manual
