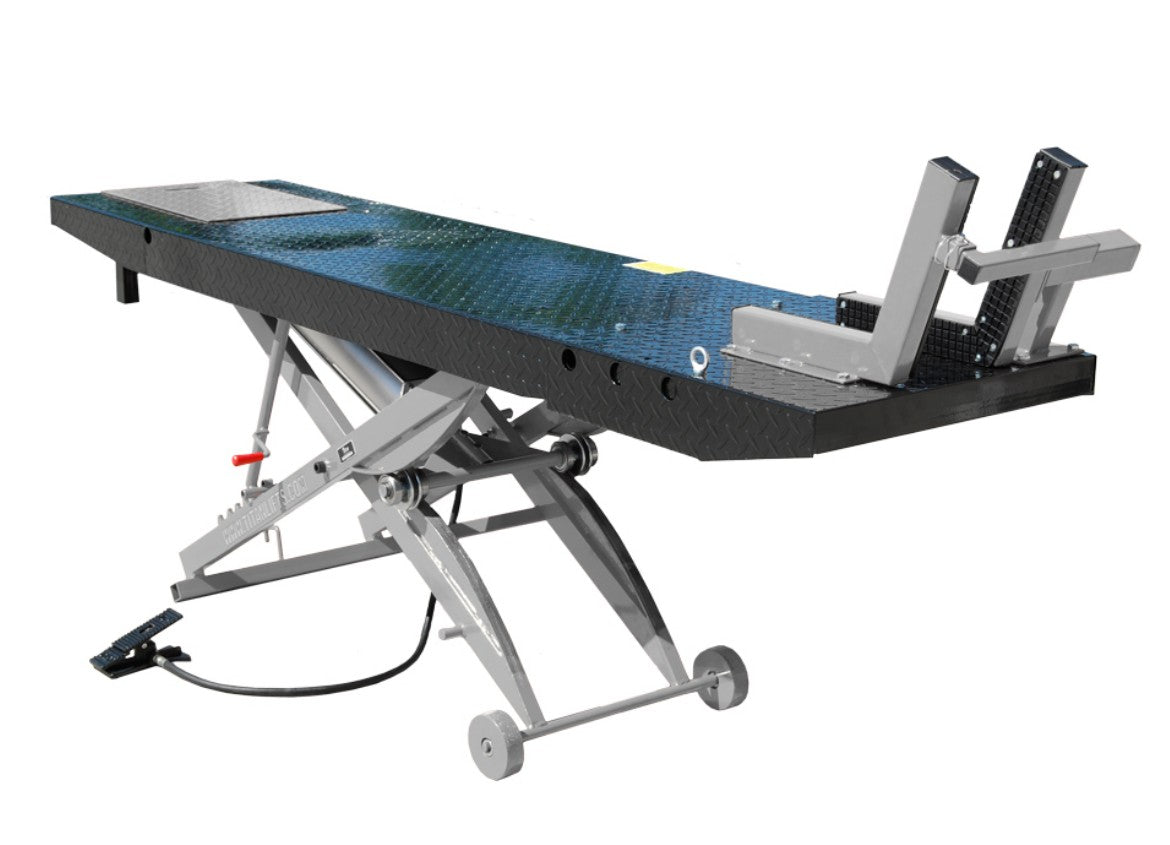

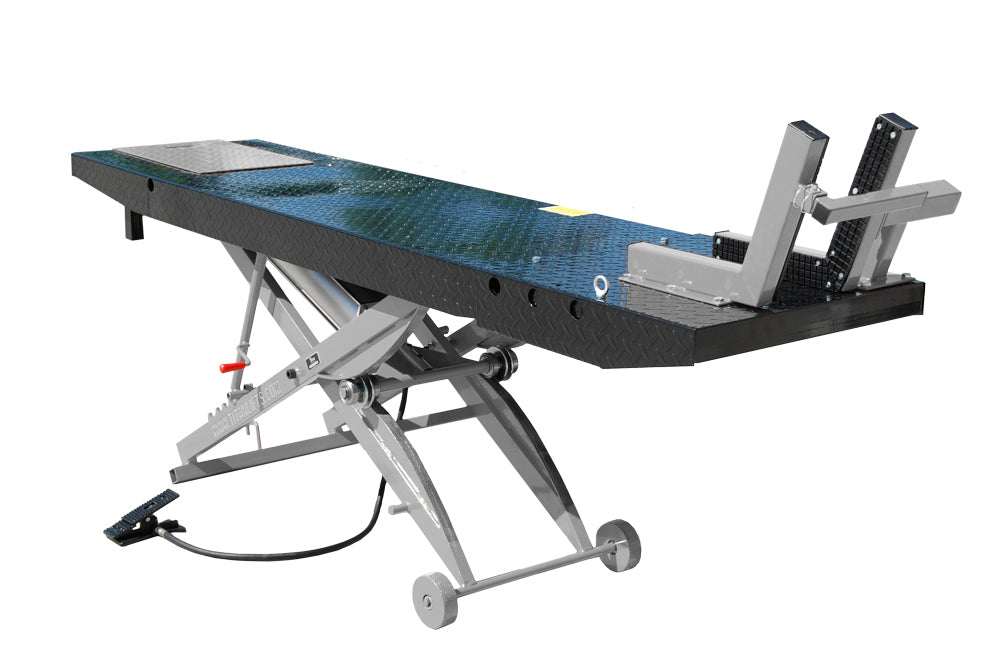

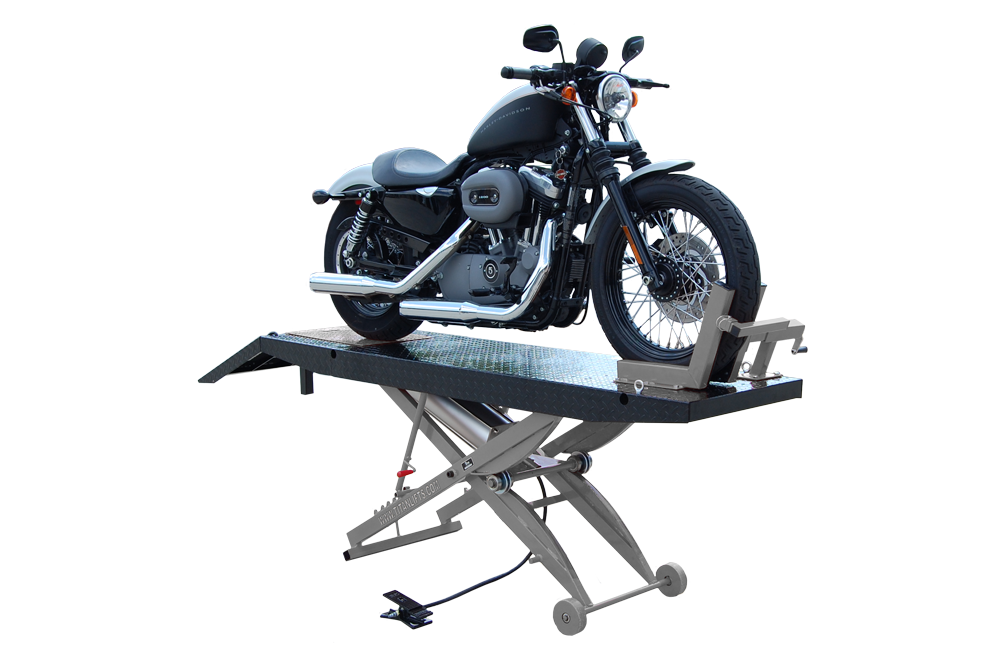

Titan SDML-1000D 1,000 lb Capacity Motorcycle Lift

The Titan SDML-1000D Motorcycle Lift is designed to handle a wide range of bikes with ease, featuring an extended table length up to 99 inches. This provides ample workspace for longer motorcycles while maintaining stability and support during service and maintenance tasks.

Air-Powered Lifting System

Powered entirely by compressed air (90–110 PSI), this lift raises smoothly up to 33 inches, allowing you to work comfortably at an elevated height. The foot-operated air controls provide hands-free operation, improving efficiency and control during use.

Stable Platform with Secure Positioning

Constructed with a heavy-duty diamond plate surface, this lift provides a strong and stable work platform. The included front wheel vise helps secure the motorcycle in place, while multiple locking height positions ensure safe operation at various working levels.

Flexible Setup with Included Extensions

The SDML-1000D comes equipped with a multi-position front extension and both standard and extended ramps, allowing you to adjust the setup based on the size of the bike or equipment. Drop-out panels are included for easier rear wheel access and maintenance.

Complete Workstation Without Extra Add-Ons

This model includes all essential components needed for day-to-day use, including a two-wheeled dolly for mobility. Unlike the XLT version, this unit does not include a stabilizer bar, making it a more streamlined option for standard motorcycle applications.

Key Features

• 1,000 lb lifting capacity
• Air-powered operation (90–110 PSI required)
• Extended table length up to 99"
• Heavy-duty diamond plate platform

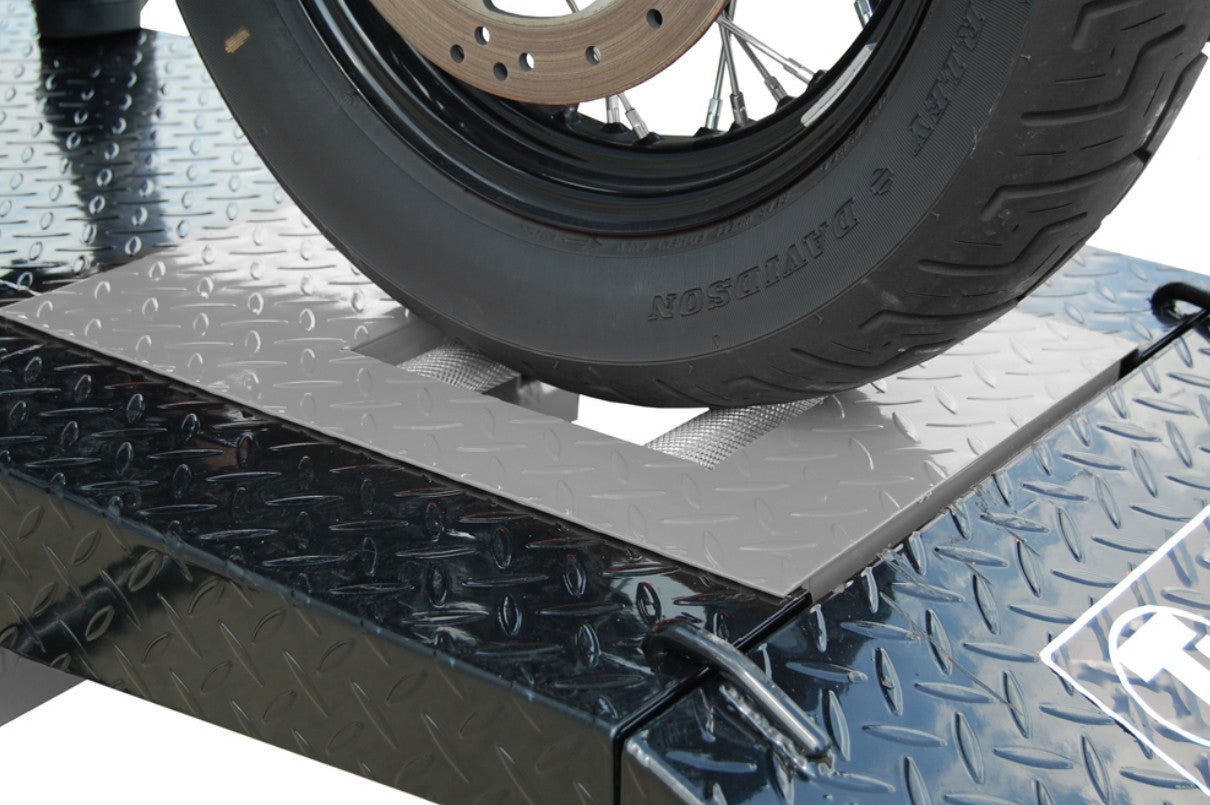

• Front wheel vise for secure positioning
• Multi-position front table extension
• Standard and extended detachable ramps
• Rear wheel drop-out and roller plate included
• Foot-operated lift controls for hands-free use

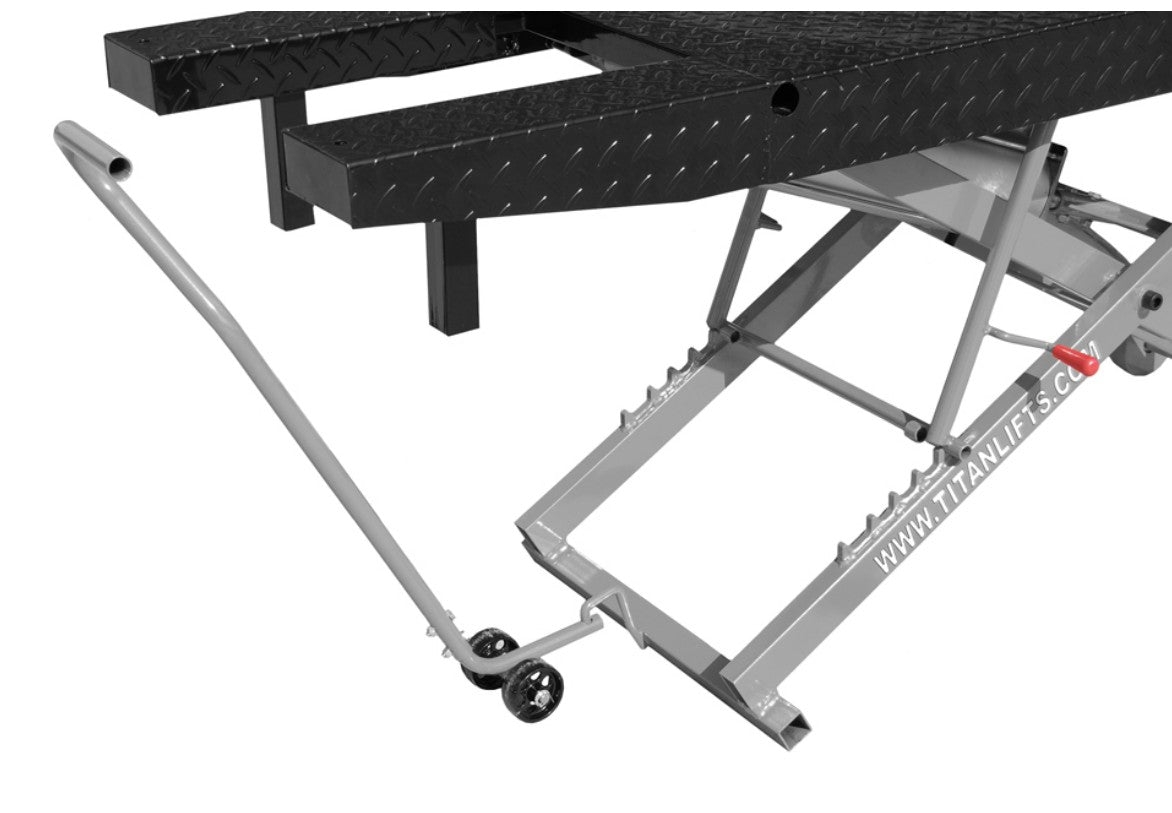

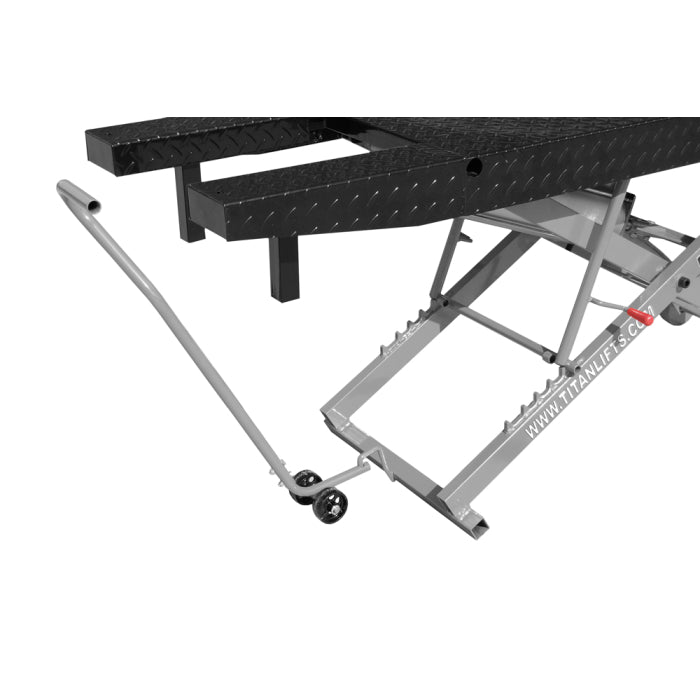

• Two-wheeled dolly for easy movement

Documents

• Manual
• Spec Sheet
