MechMaxx  |  SKU: 500301

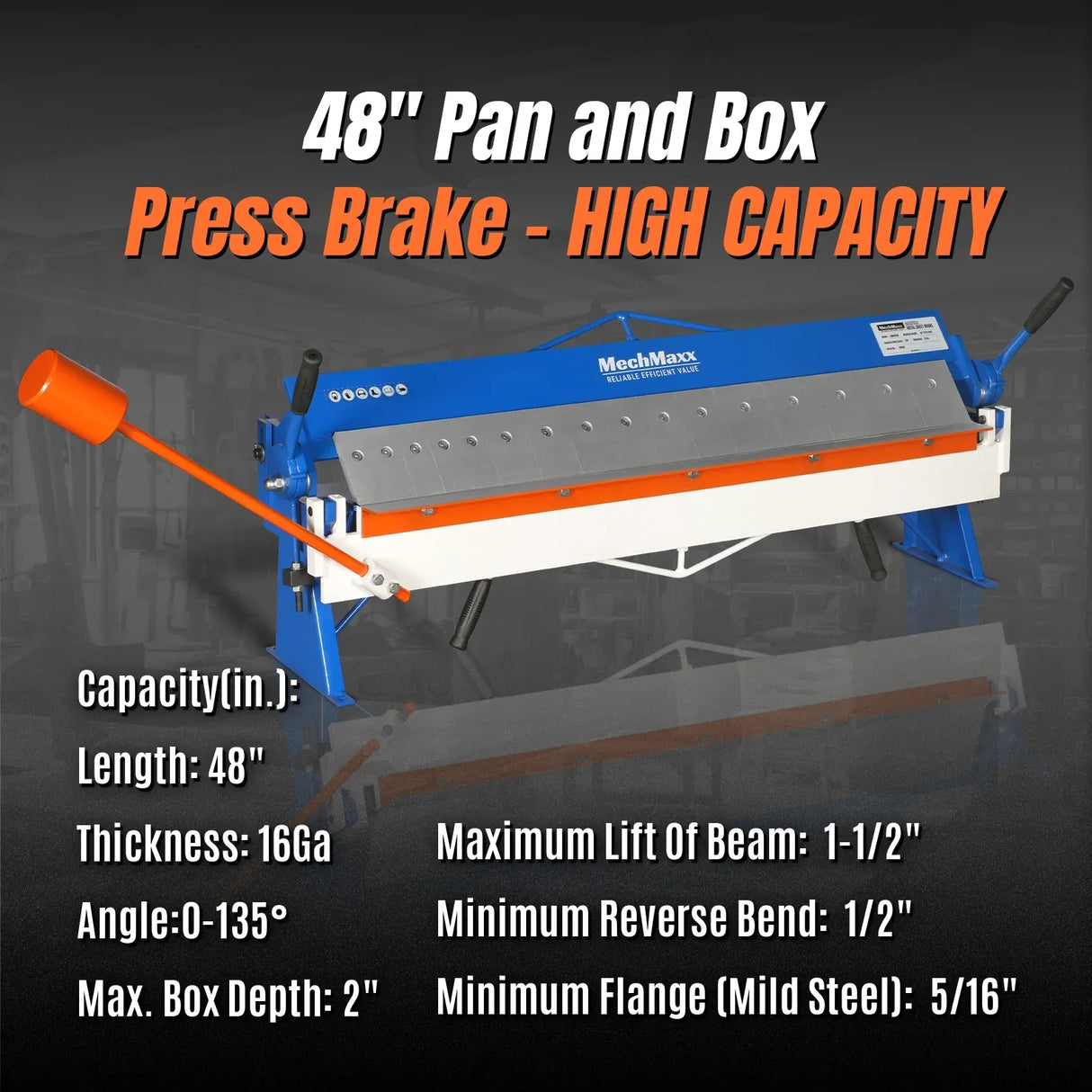

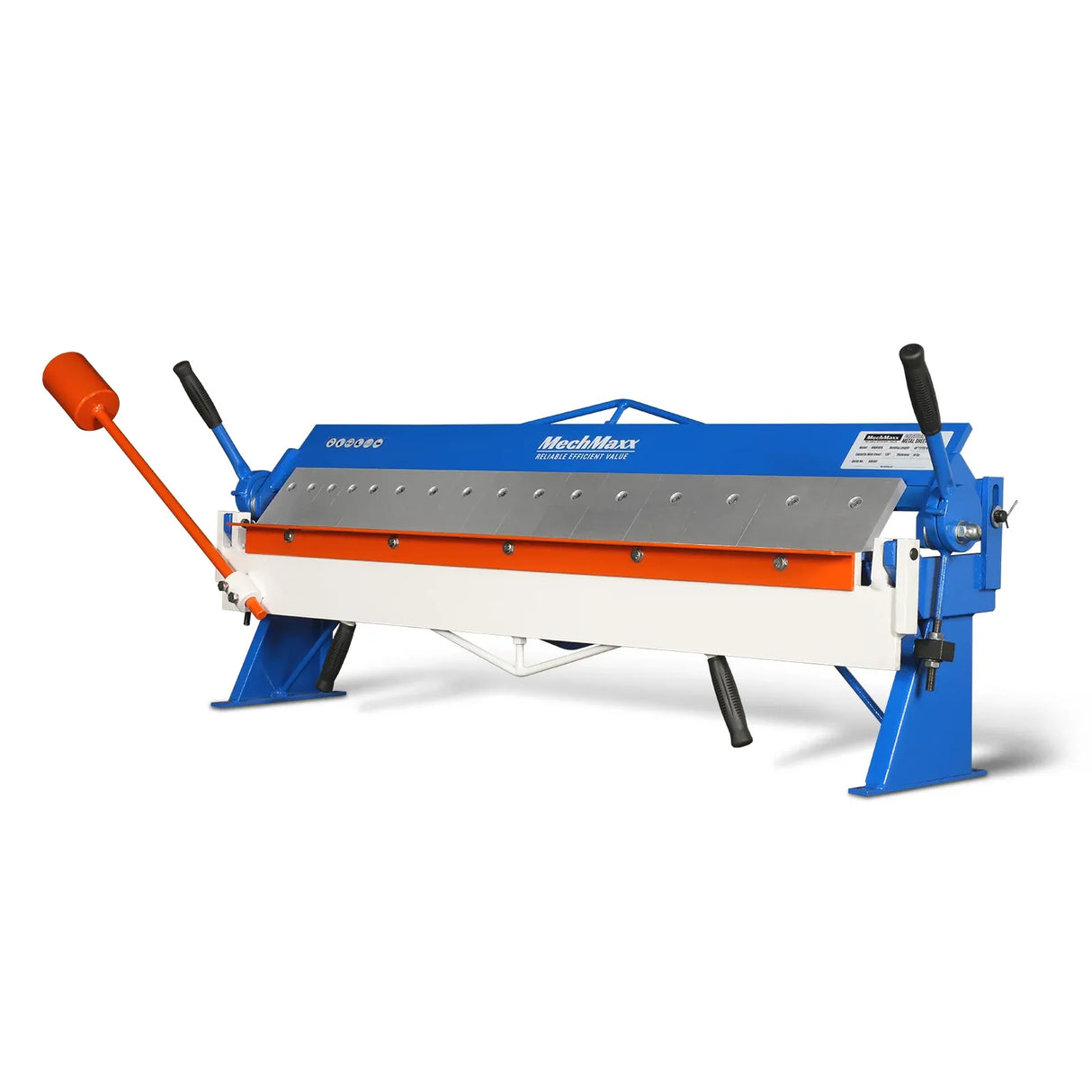

MechMaxx 48" Manual Pan and Box Brake with 16 Gauge Capacity, Model 500301

$1,470.00
Save $73.50 on this order paying by wire Get 5% off →
We're Here When You Need Us
Support team
Instant Live Chat
Available now
(888) 885-7067
Call us and talk to a real person, no call center
info@garageautosupplies.com
Email us for in-depth guidance

We're Available When You Need Us. Give Us A Call or Email.

The 48" Compact Box and Pan Sheet Metal Brake is a versatile, space-efficient solution designed for precision bending in light to medium-duty fabrication work. Built to handle its rated capacity with ease, this brake delivers consistent performance for workshops, HVAC applications, and general metalworking tasks.

With a 48-inch working length and the ability to bend up to 16-gauge mild steel, this unit is ideal for smaller projects that still require accuracy and flexibility. Its compact footprint makes it perfect for tight workspaces while still providing professional-grade results.

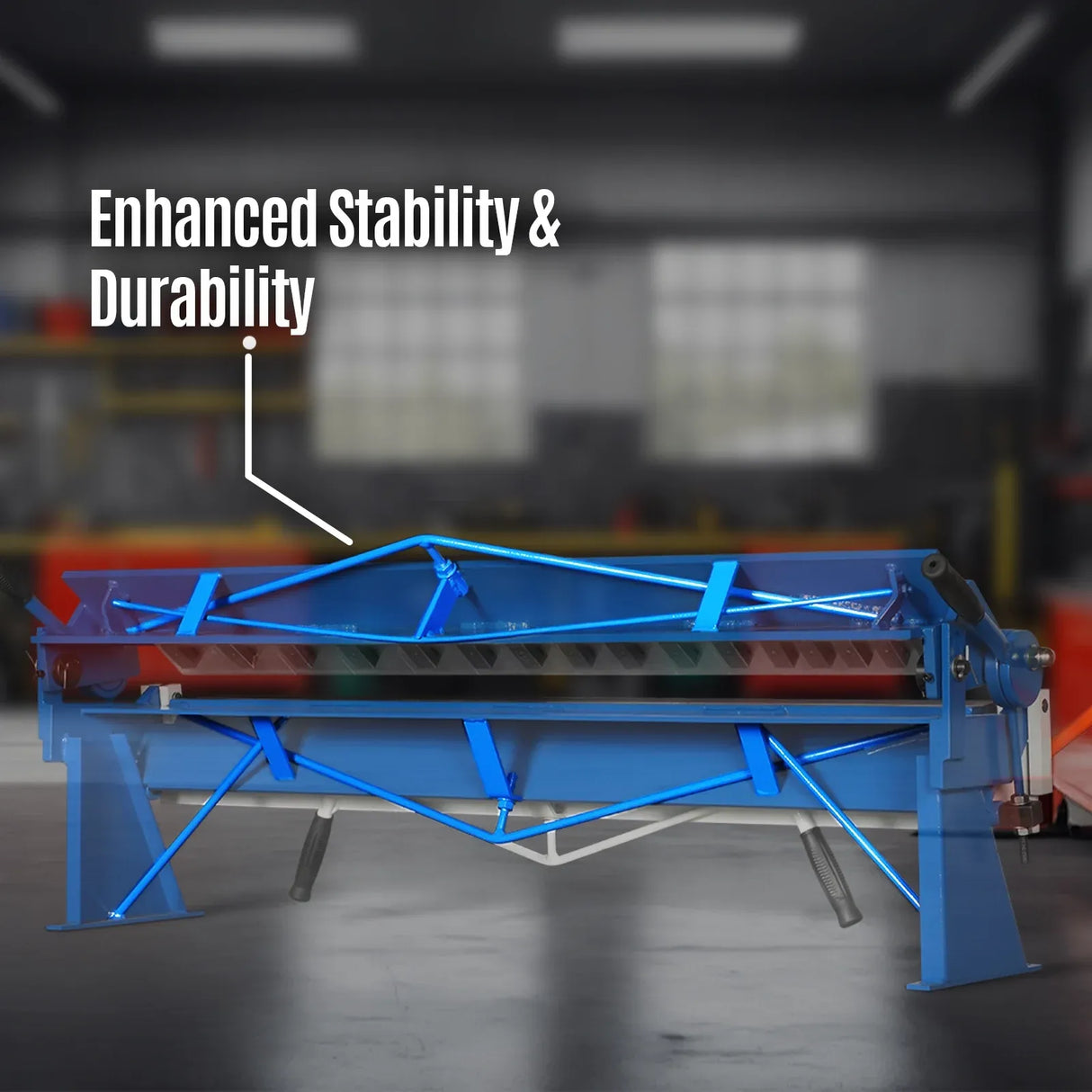

Constructed with a heavy-duty welded steel frame and reinforced bracing, this brake is designed to minimize flex and maintain accuracy during operation. The adjustable clamping blade and precision pressure beam allow operators to fine-tune bending pressure, helping prevent material distortion and ensuring clean, consistent bends.

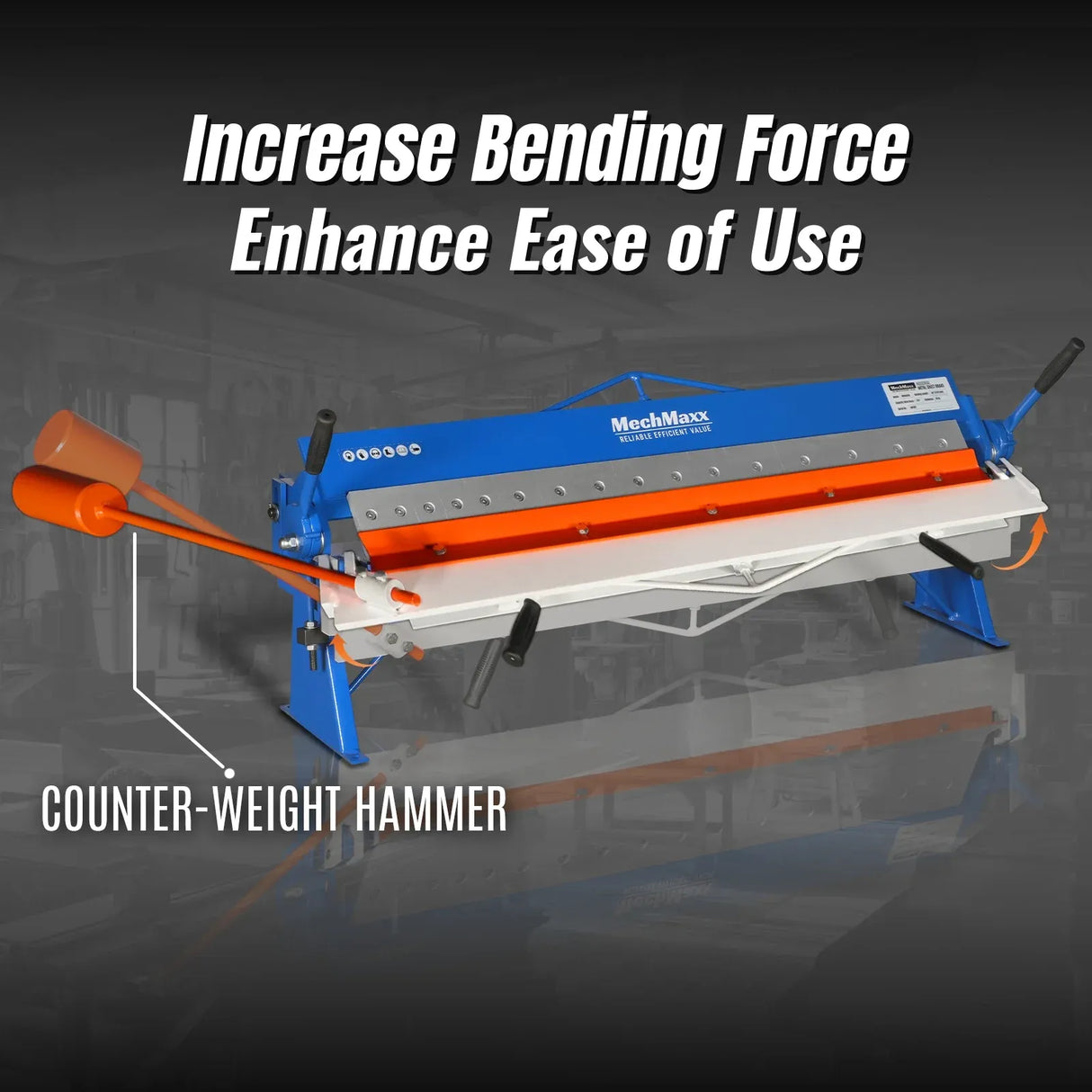

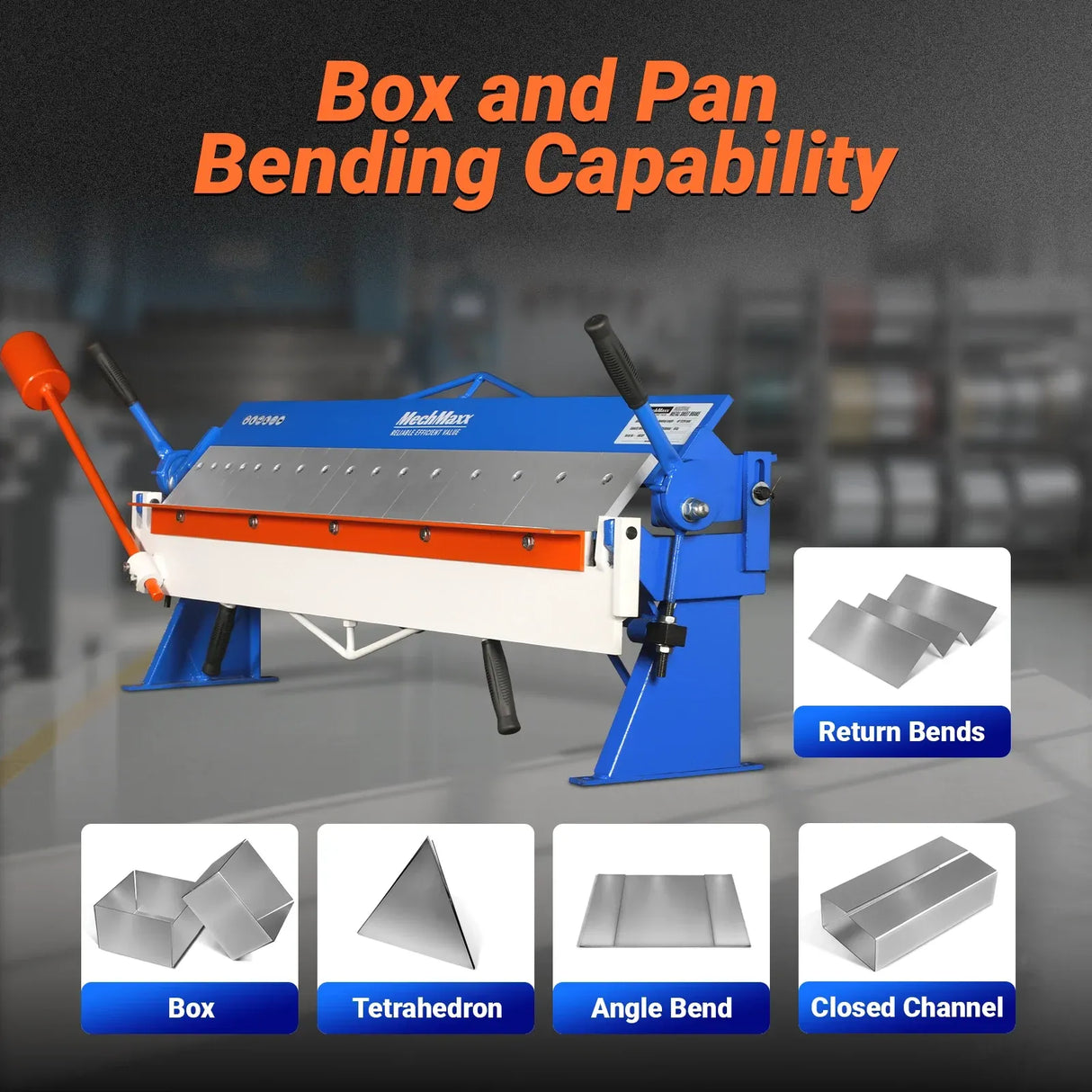

Precision-ground hardened steel fingers are fully removable and interchangeable, allowing for a wide range of box and pan configurations. A counter-balanced handle improves ease of use and control during operation.

Key Features & Benefits

  • 48" Working Length for compact fabrication projects
  • Handles up to 16-gauge mild steel
  • Adjustable bending angle from 0° to 135°
  • Heavy-duty welded steel construction for durability
  • Removable and interchangeable fingers for versatile forming

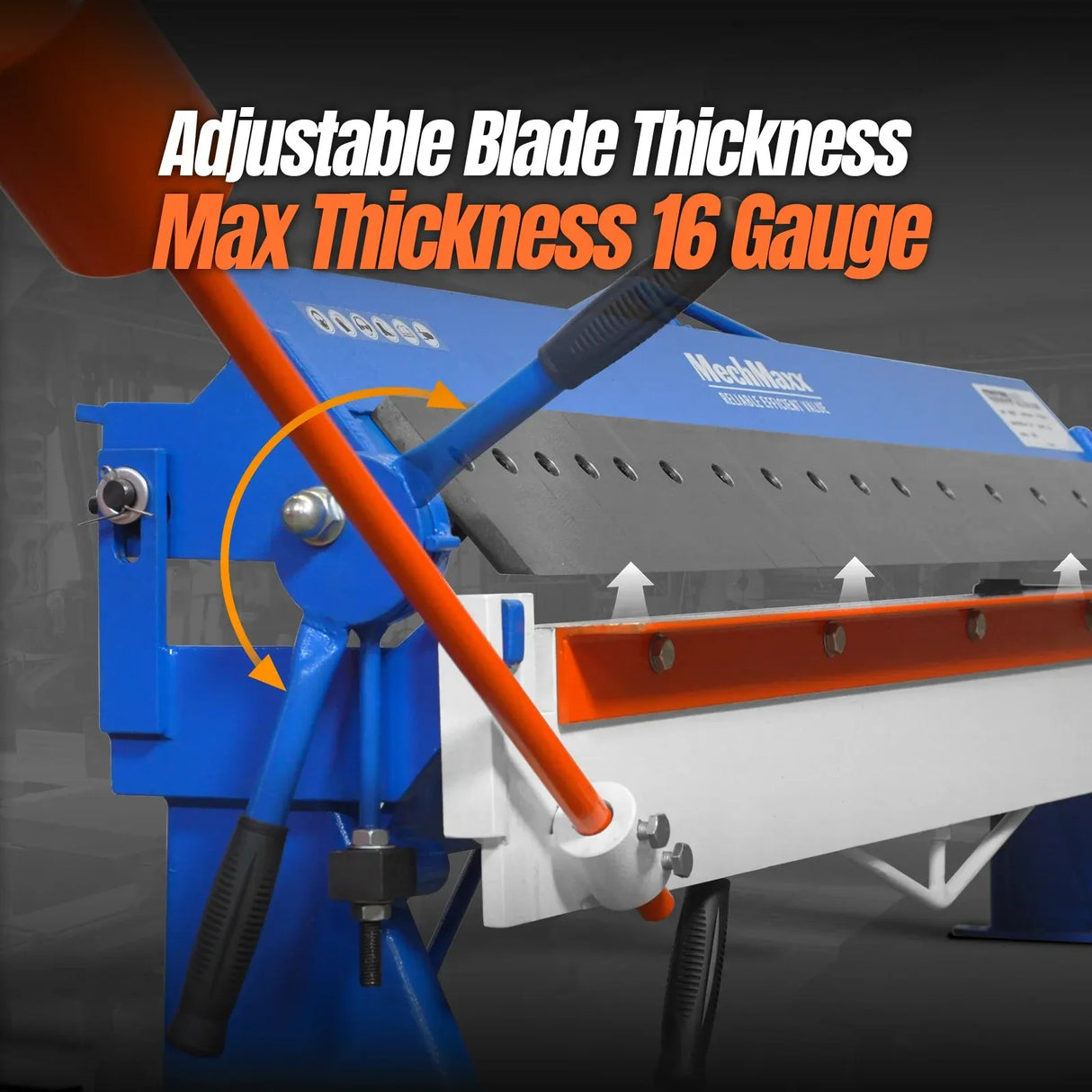

  • Adjustable clamping blade for different material thicknesses
  • Precision pressure beam adjustment for accurate bends
  • Lubrication points for smoother operation and reduced wear
  • Compact design ideal for small workshops
  • Counter-balanced handle for easier operation

Built for Versatile Applications

This brake is a great choice for users who need reliable bending performance in a smaller, more manageable machine. It's well-suited for fabrication shops, maintenance work, and DIY metalworking where precision and flexibility are key.

Specifications Details
Maximum Working Length 48"

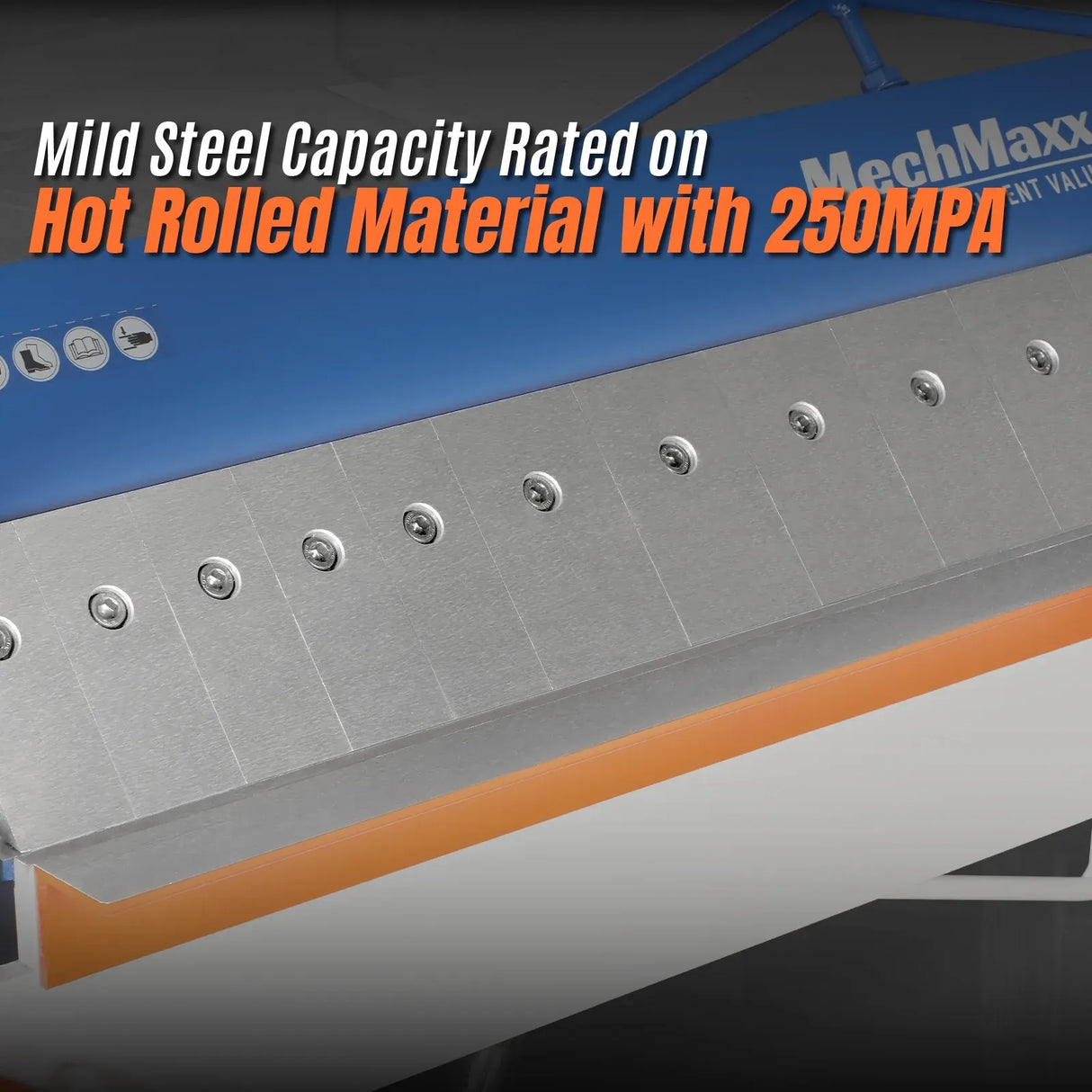

Maximum Thickness (Full Width) 16 Gauge Mild Steel
Bending Angle Range 0°–135°

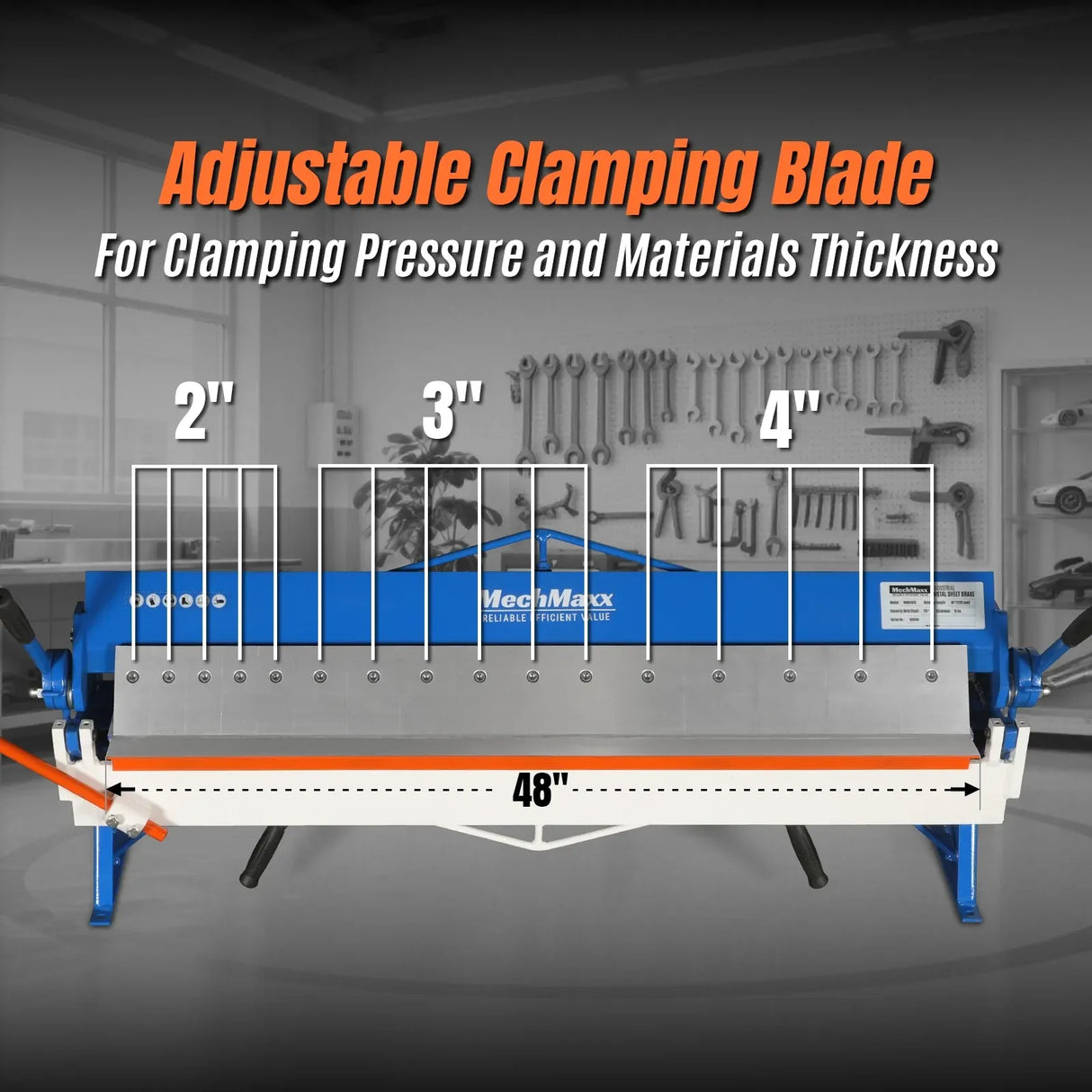

Finger Sizes & Quantity 2" (5), 3" (6), 4" (5) – 16 Total
Maximum Box Depth 2 1/2"
Maximum Beam Lift 1 1/2"
Minimum Reverse Bend 1/2"
Minimum Flange (Mild Steel) 5/16"
Footprint 12 1/2" x 52"
Packaging Size 61.42" x 16.14" x 24.80"
Net Weight 299.83 lbs
Gross Weight 350.53 lbs
Construction Features Precision-Ground Hardened Fingers, Counter-Balanced Handle, Reinforced Trussed Frame
