Atlas Platinum PTC500 Center Post Tire Changer and PWB90XL 3D Wheel Balancer Combo
SKU: ATEAP-TCWB-COMBO2
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

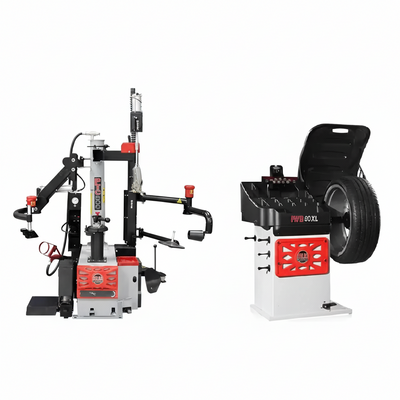

The Atlas Platinum PTC500 + PWB90XL combo package is a premium wheel service solution designed for high-volume tire shops and professionals working with high-end, low-profile, and run-flat tires. This package combines a center post tire changer with advanced assist features and a high-precision 3D computerized wheel balancer, allowing users to mount, demount, and balance wheels with maximum efficiency. The PTC500 features a Smart Lock clamping system and lever/leverless operation for easier handling, while the PWB90XL offers automatic 3D data entry, laser-guided weight placement, and a high-resolution display for precise balancing results. Both machines operate on 110V power and are built with high-quality components for reliable daily performance.
Key Features & Benefits
- Complete platinum tire changer and 3D wheel balancer combo package

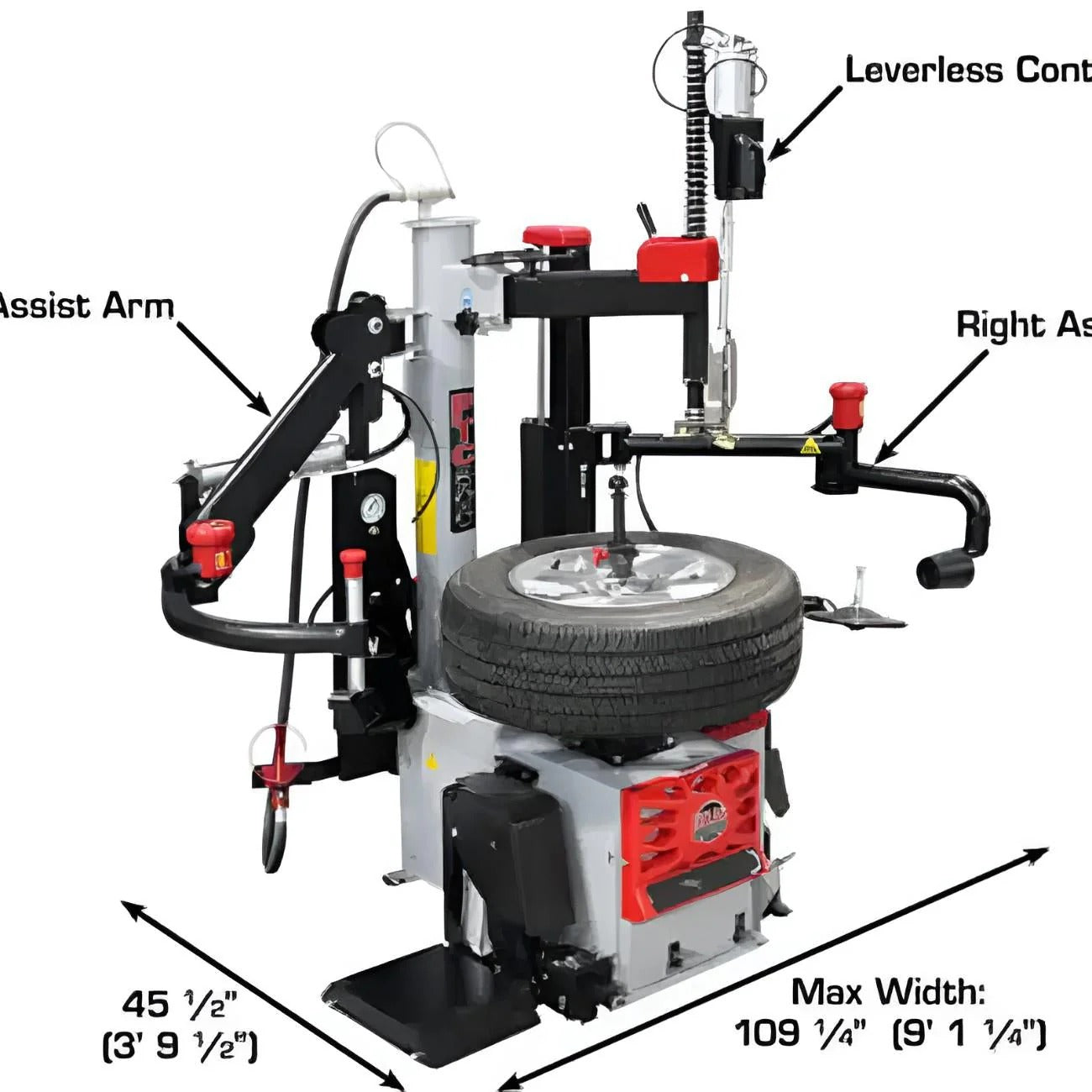

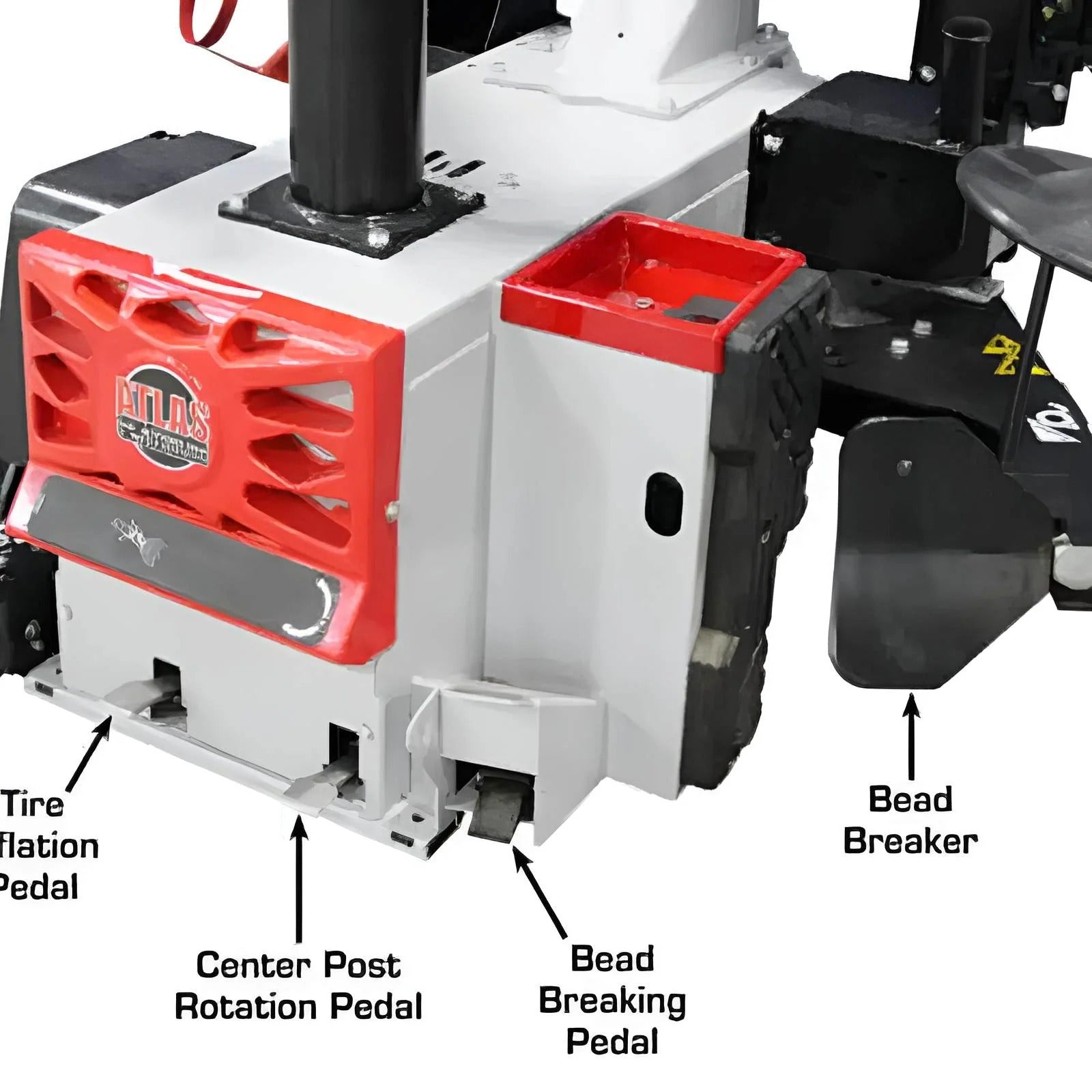

- PTC500 center post tire changer with dual assist arms and wheel lift
- PWB90XL computerized 3D wheel balancer with laser guidance
- 110V operation for both machines for easy installation
- Lever/No-Lever system for flexible tire changing operation
- Smart Lock center post mounting system for fast and secure clamping
- Built for handling low-profile, run-flat, and performance tires
- External air supply required for tire changer operation
- Durable construction for high-volume shop use
- CE approved equipment
- 2-year parts-only warranty included
- Freight prepaid for this package

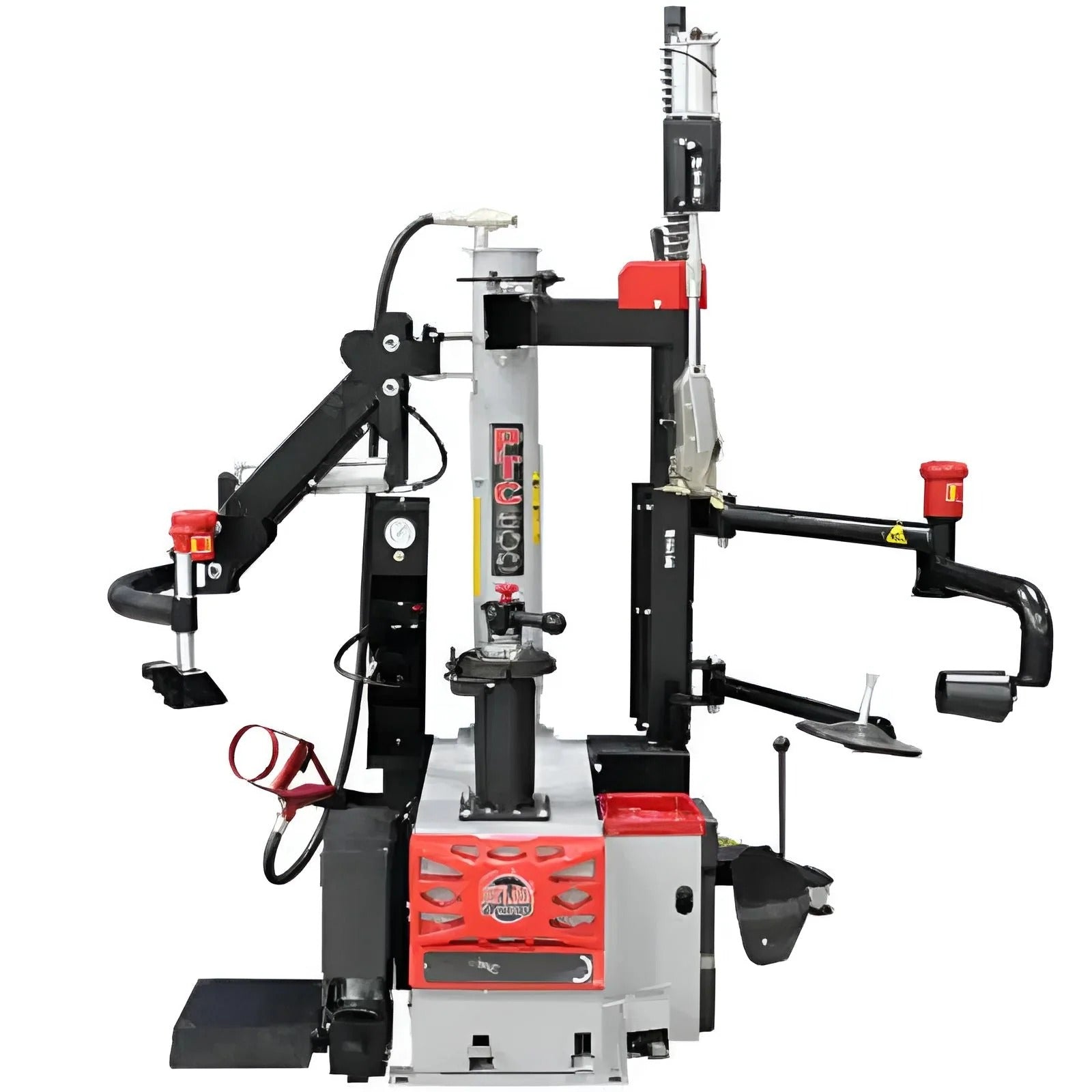

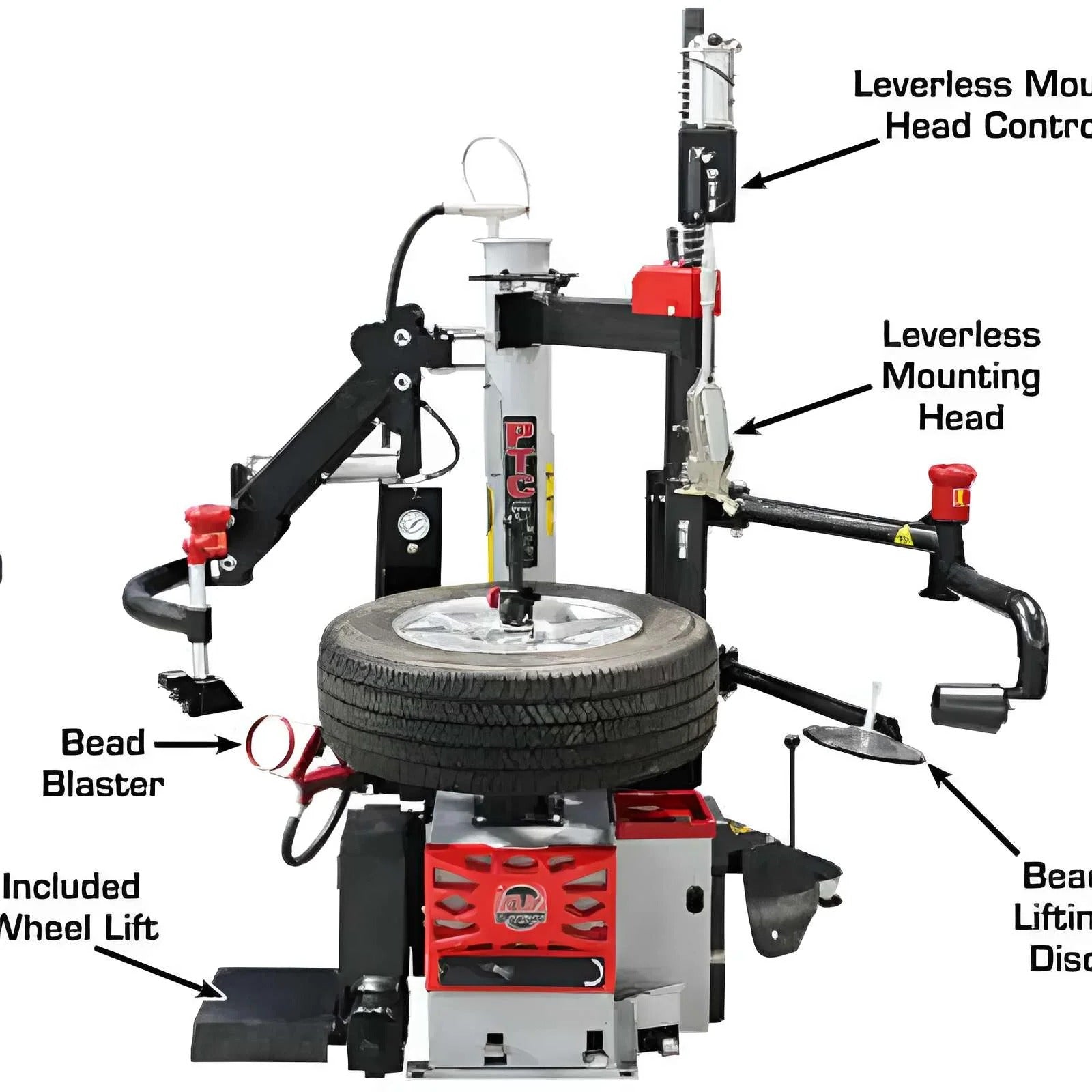

Tire Changer Features (PTC500)
- Center post tire changer design for maximum wheel stability

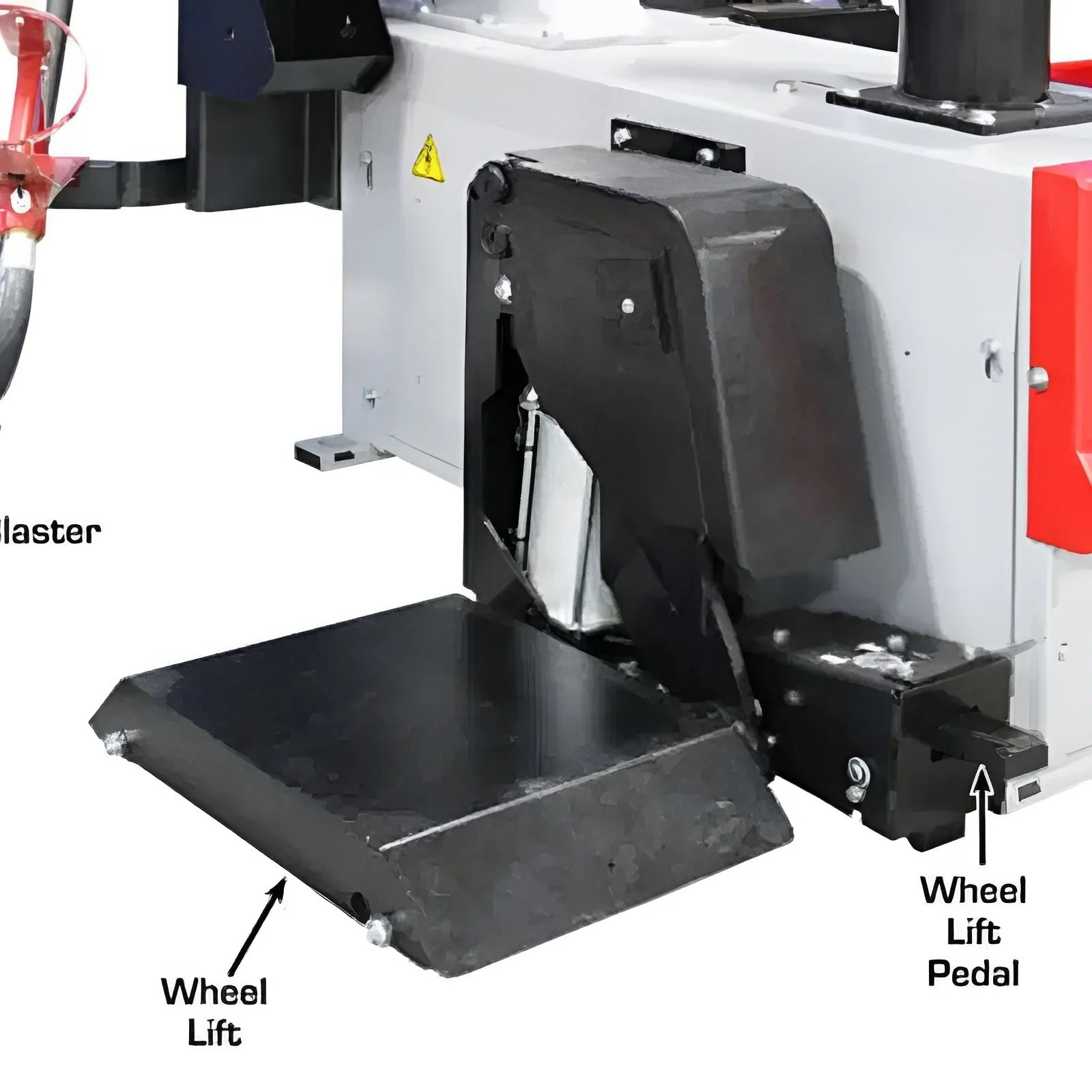

- Dual assist arms and integrated wheel lift included
- Lever/No-Lever system for tool-free operation capability
- Smart Lock mounting system for quick and secure positioning
- Oiler, filter, and regulator included (external air required)
- Plastic protectors included to help prevent wheel damage
- Tire tool, lube bucket, and lube brush included
- Inflation box with pressure gauge included

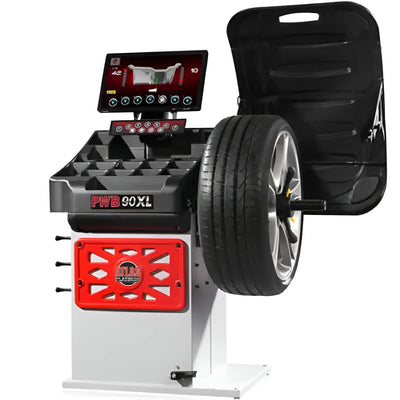

Wheel Balancer Features (PWB90XL)

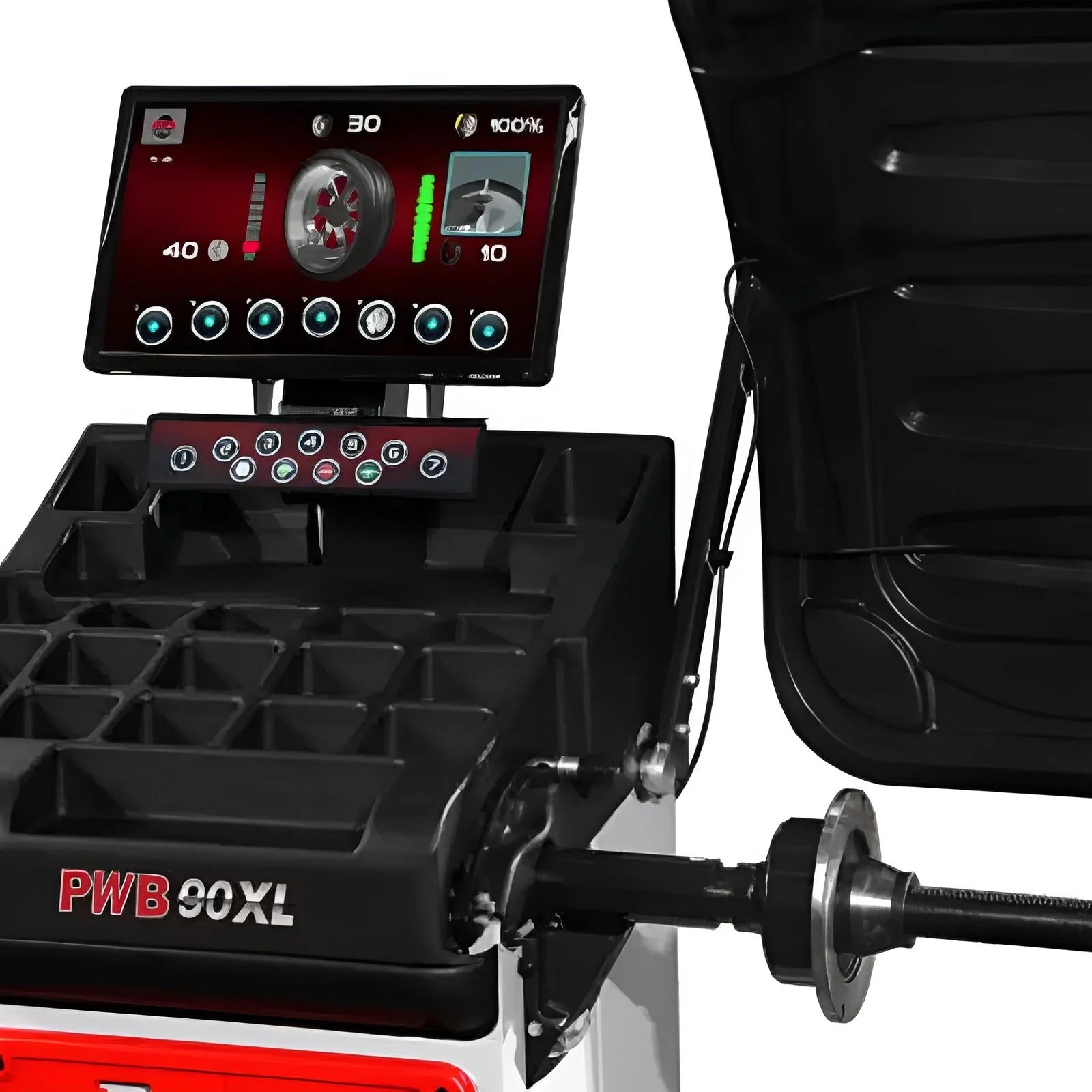

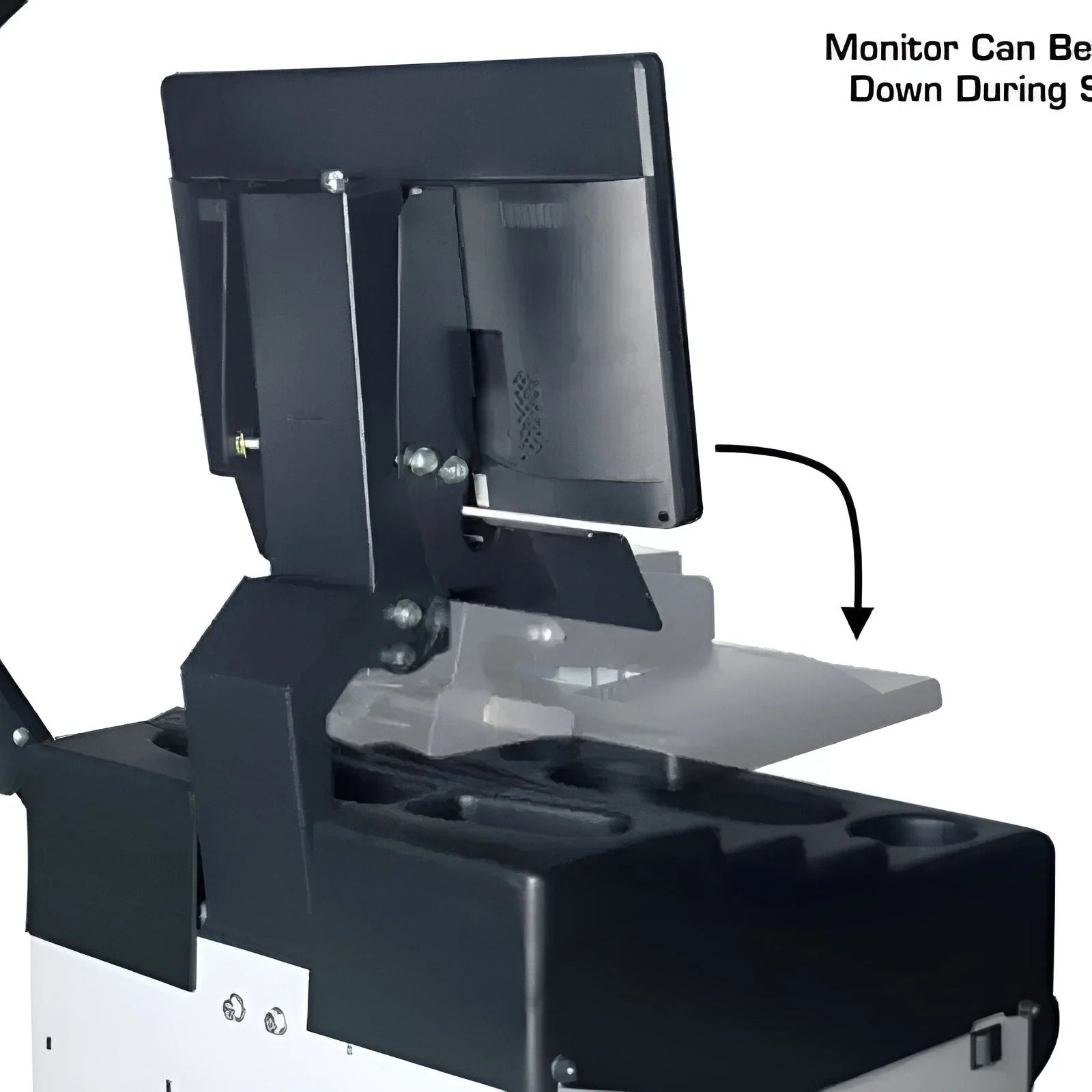

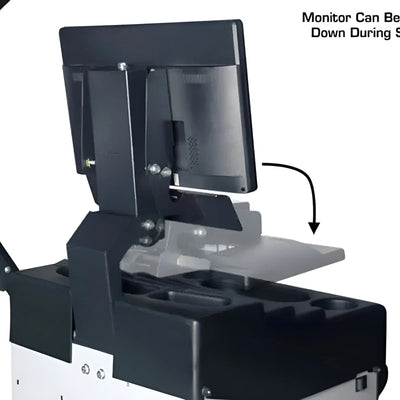

- Computer-controlled spin balancer with high-resolution display
- Automatic 3D data entry for fast and accurate setup

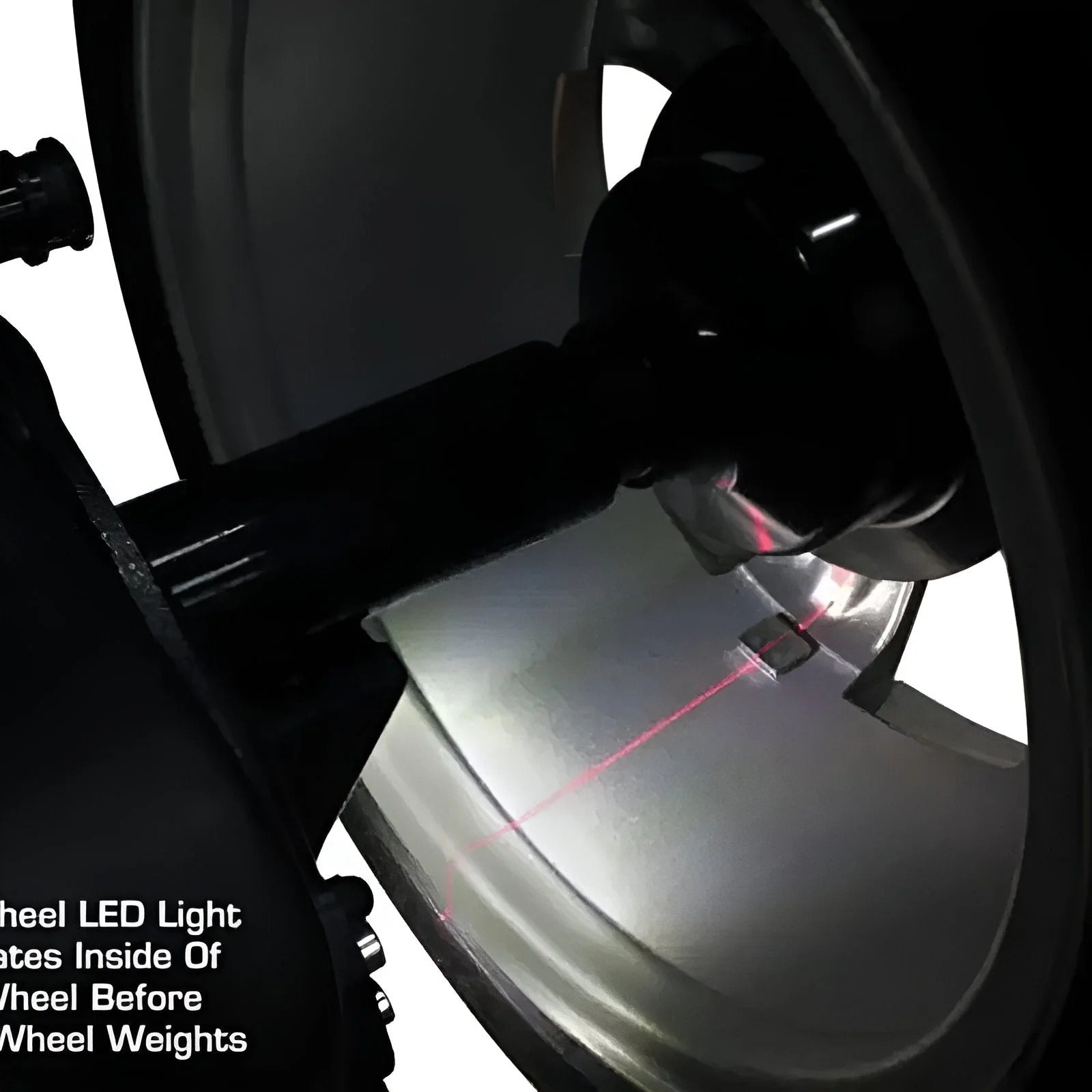

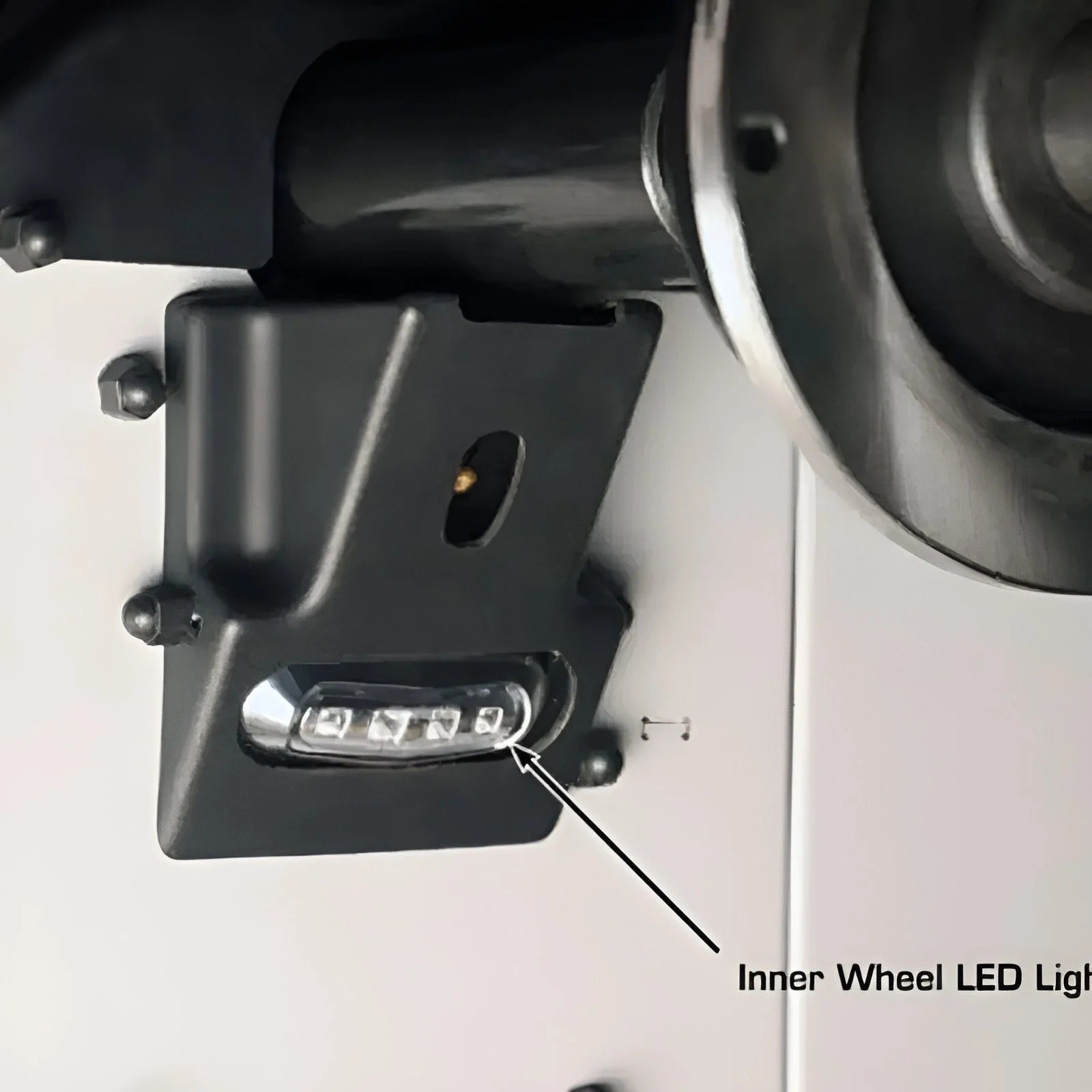

- LED lighting and laser line for precise weight placement
- Optimatch, FES (split), and OPF functions included
- Self-diagnosis and self-calibration system
- Displays measurements in grams or ounces, mm or inches
- Includes cones, quick nut, pliers, and measuring calipers
Performance & Use Case
This combo package is designed for shops that demand speed, accuracy, and ease of use when servicing high-end wheels. The PTC500 simplifies difficult tire changes with its assist systems and leverless capability, while the PWB90XL balancer provides advanced accuracy with its 3D measurement system and laser-guided weight placement. Together, they create a streamlined workflow that reduces manual effort, increases productivity, and delivers professional-grade results.

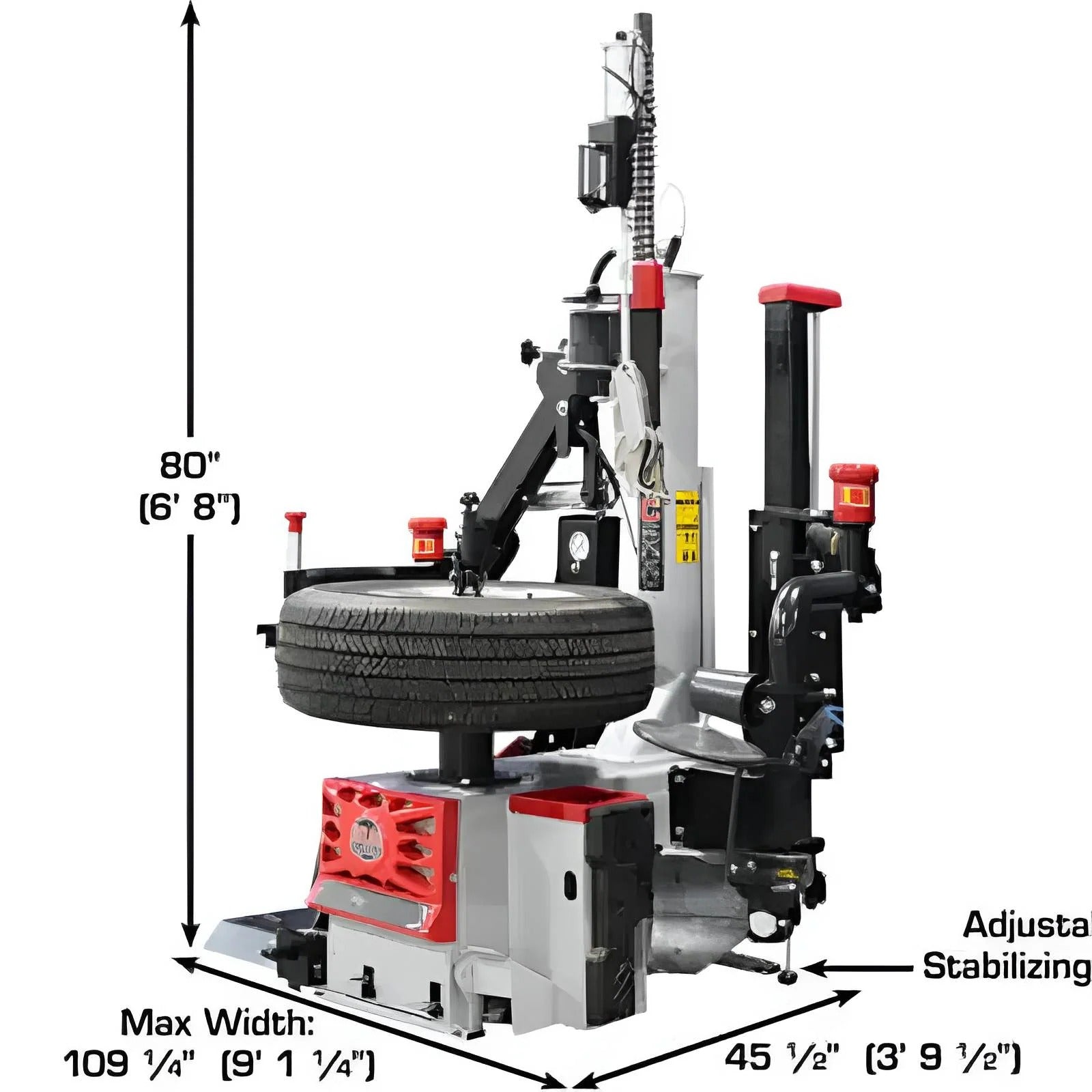

PTC500 Tire Changer Specifications
| Specifications | Details |
|---|---|
| Clamping Range | 12" – 30" |
| Maximum Tire Diameter | 47" |
| Maximum Wheel Width | 15" |
| Turntable Rotating Speed | 7 RPM |
| Bead Breaker Force | 6,924 LB. Force |
| Operating Pressure | 145 PSI |
| Electric Requirement | 110V |

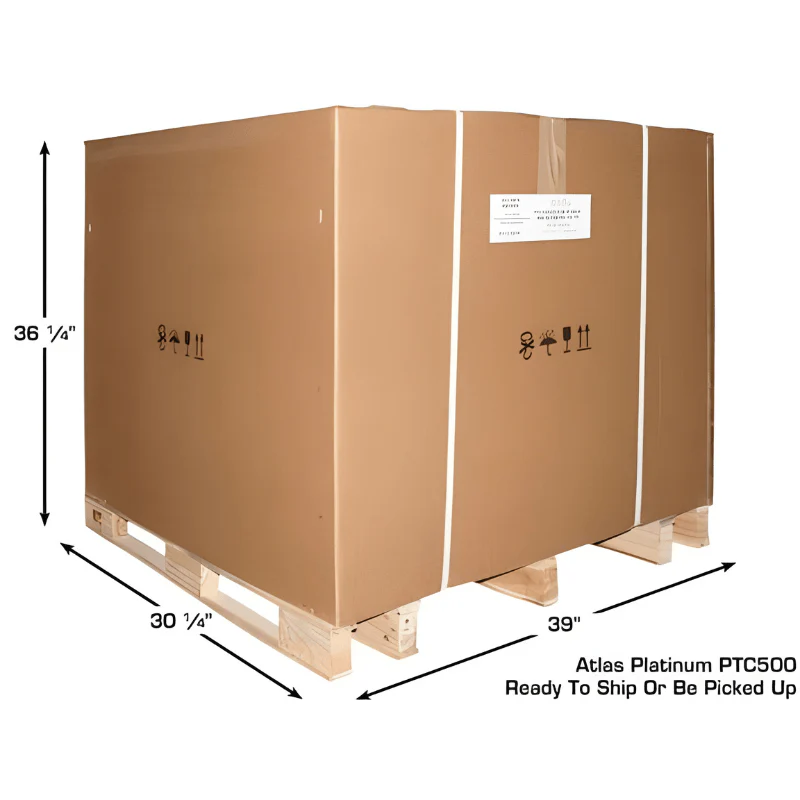

| Shipping Weight | 885 lbs. |
PWB90XL Wheel Balancer Specifications
| Specifications | Details |
|---|---|
| Max Tire Diameter | 43" |
| Rim Sizes – Cars & Light Trucks | 10" – 30" |
| Rim Width | 1 1/2" – 20" |
| Shaft Size | 40mm |
| Max Wheel Weight | 165 lbs. |
| Balancing Speed | 130 RPM |
| Data Entry | Super Automatic 3D |
| Measurement | Standard or Metric |
| Accuracy | 1 gram |
| Weight Position Resolution | 1.4 Degrees |
| Self Calibrating | Yes |
| Cycle Time | 7 seconds |
| Electric Requirement | 110V |
| Shipping Weight | 290 lbs. |
