Atlas PTC300 Platinum Tire Changer with PWB90XL Wheel Balancer Combo
SKU: ATEAP-TCWB-COMBO3
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The Atlas Platinum PTC300 + PWB90XL Combo is a high-end wheel service package built for shops that want maximum automation, speed, and precision. This setup combines a proven rim-clamp tire changer with a premium 3D video wheel balancer, making it ideal for high-volume tire shops and professional service centers.

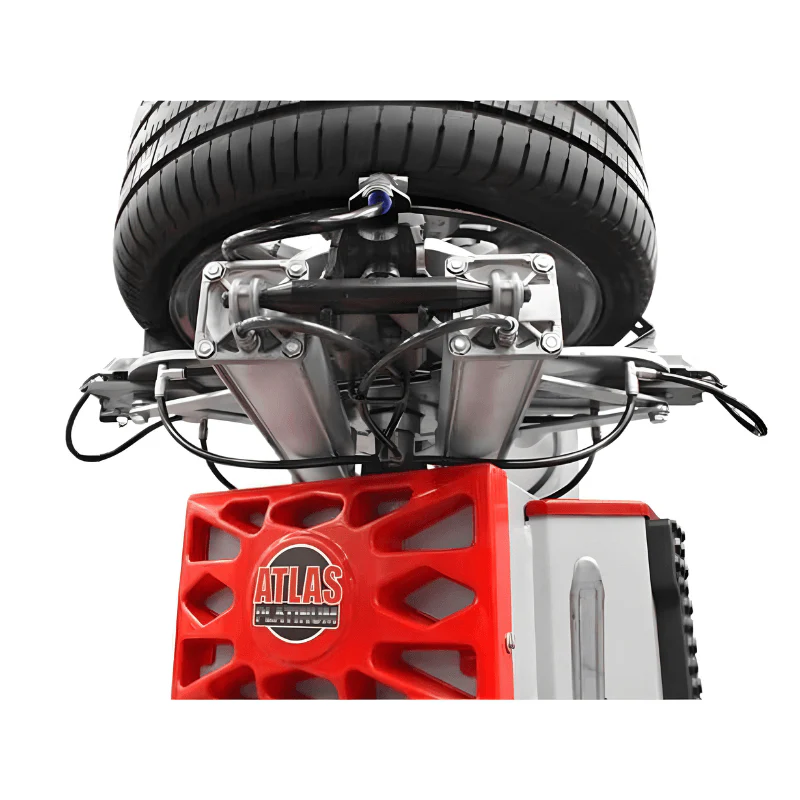

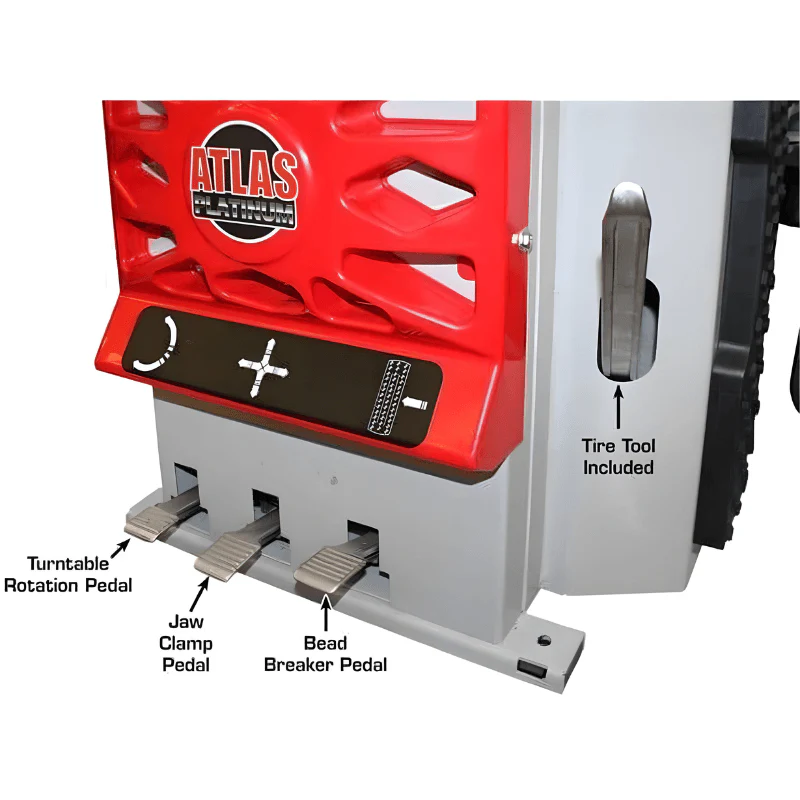

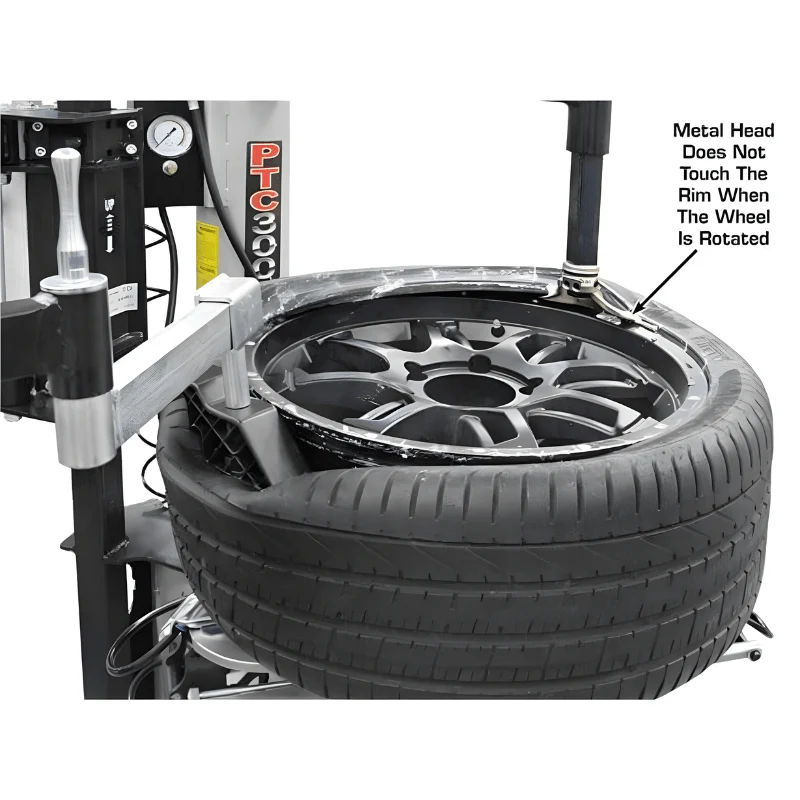

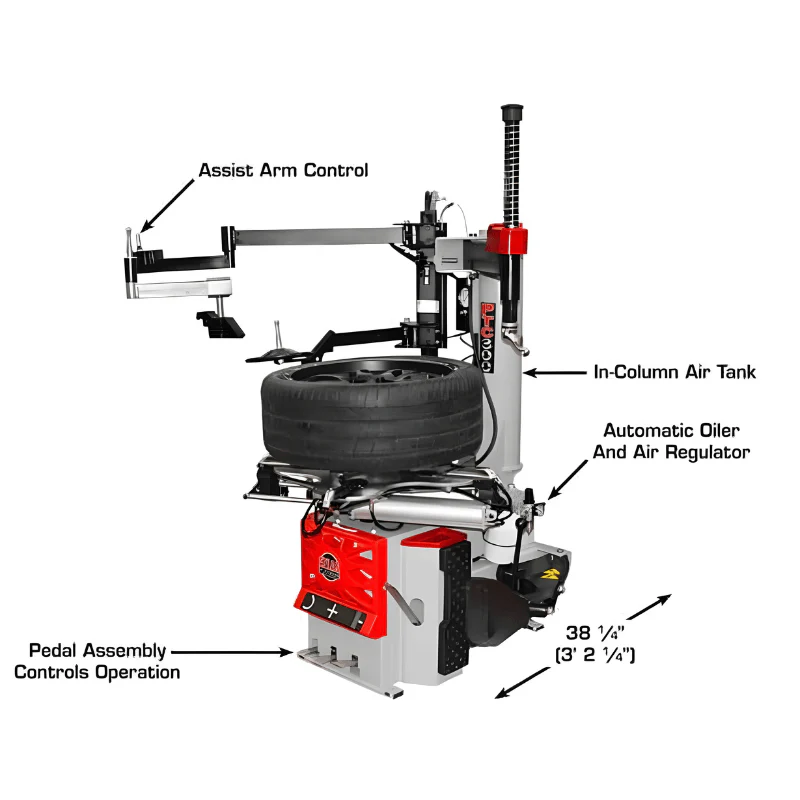

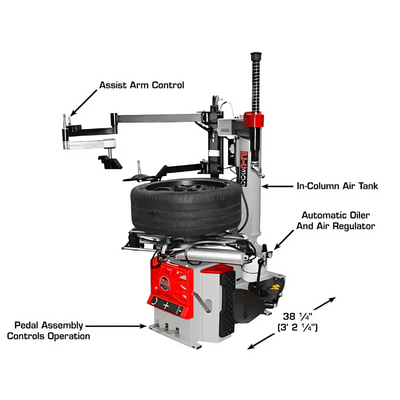

The PTC300 tire changer is a reliable swing-arm, rim-clamp design used across the industry, enhanced with a left-hand assist arm to handle stiff sidewall, low-profile, and run-flat tires. Its extra-large turntable and built-in bead blaster improve efficiency and ease of use.

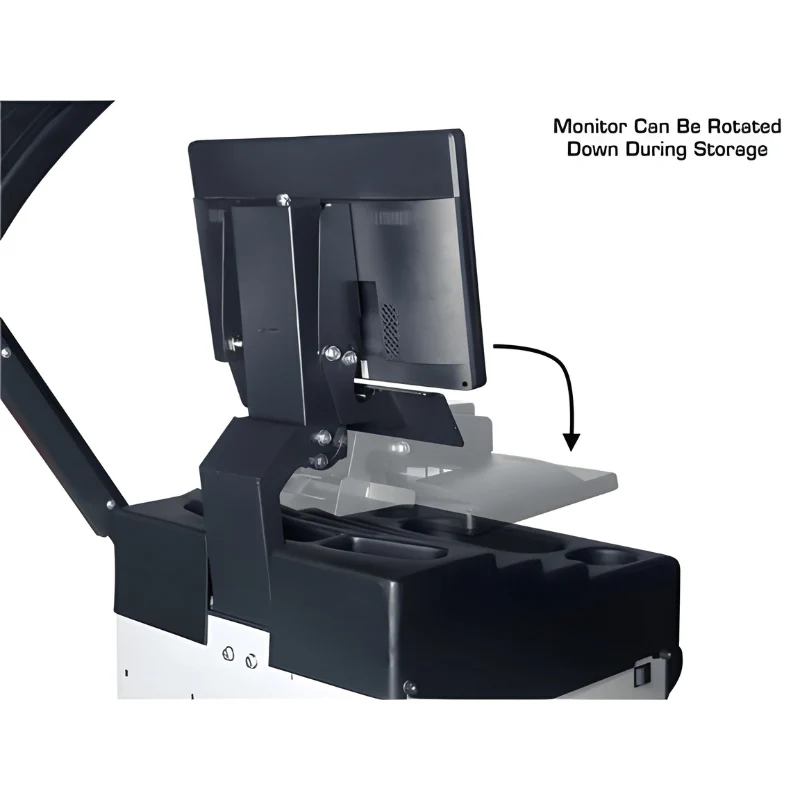

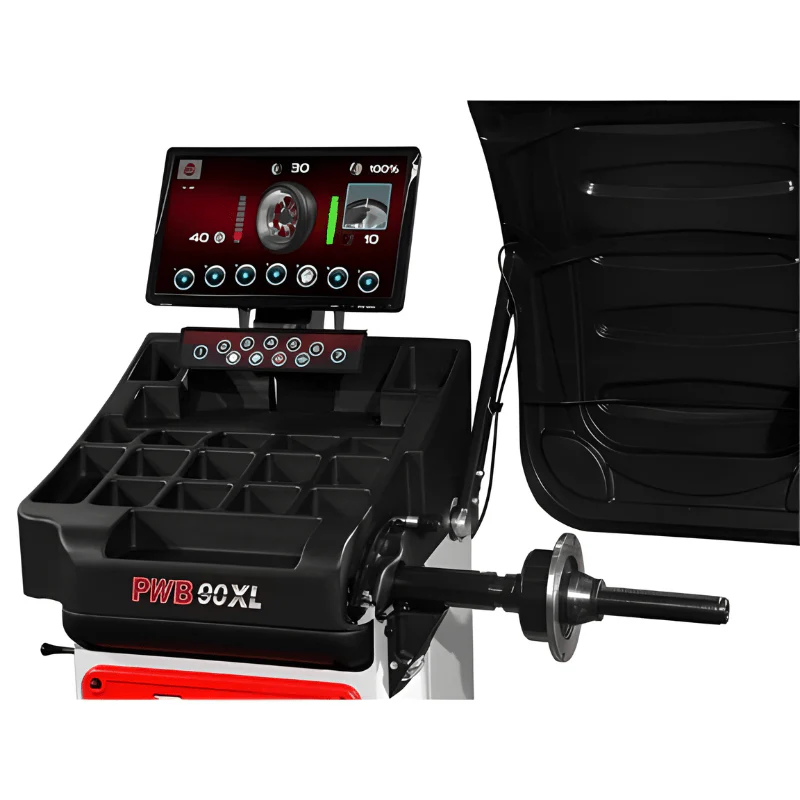

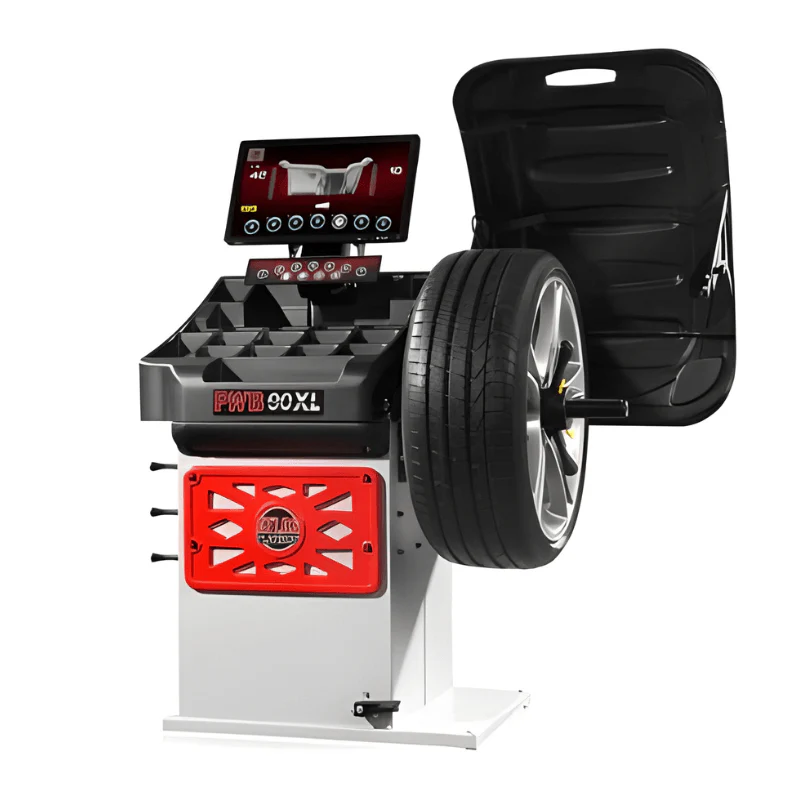

The PWB90XL wheel balancer is a top-tier 3D system featuring touchless sonar measurement, a high-resolution display, and laser-guided weight placement. This allows for extremely accurate, first-time balancing results with minimal operator input.
Features and Benefits
- Complete combo: PTC300 tire changer + PWB90XL 3D wheel balancer
- Ideal for high-volume shops and professional environments
- Rim-clamp swing-arm tire changer (industry-standard design)

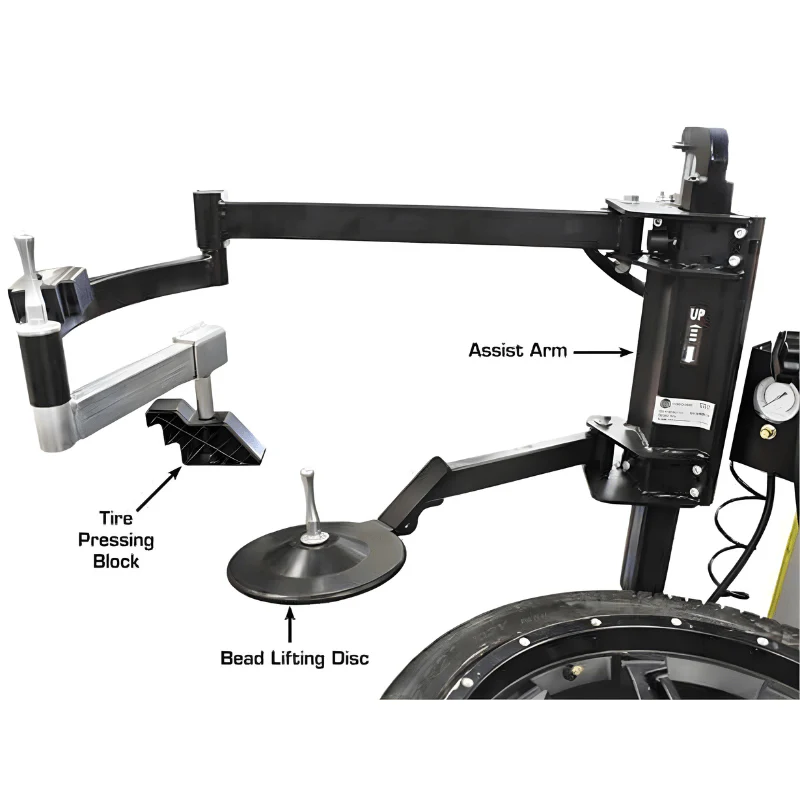

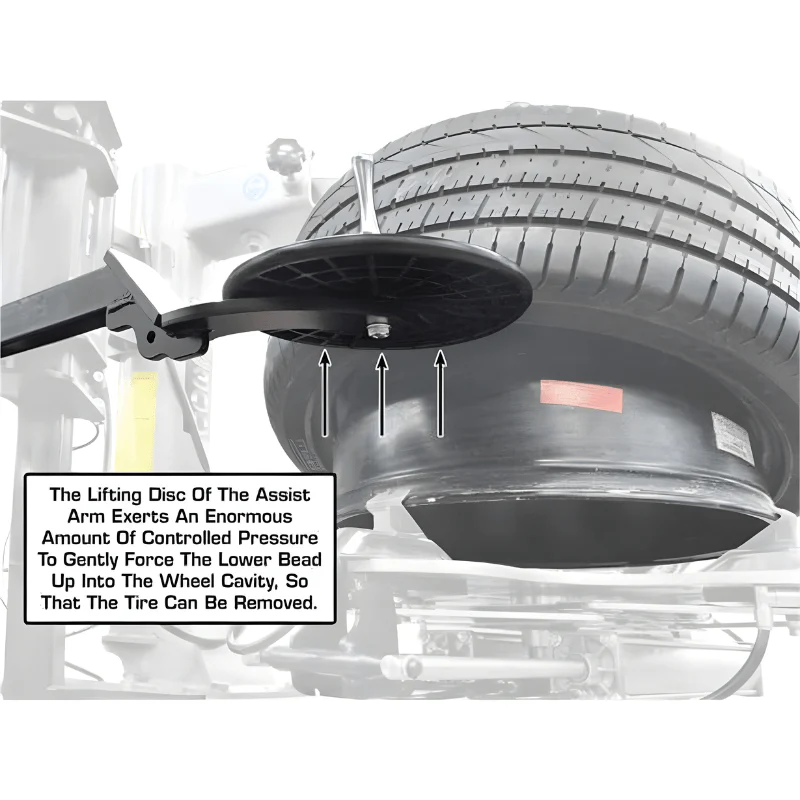

- Left-hand assist arm for run-flat and low-profile tires
- Extra-large star-shaped turntable for better wheel support
- Built-in bead blaster for fast inflation
- Includes inflator box, lube tools, and accessories
- Air-operated components (external air required)
- 3D video wheel balancer with high-resolution display
- Touchless sonar for automatic rim width measurement
- Laser-guided weight placement for precision

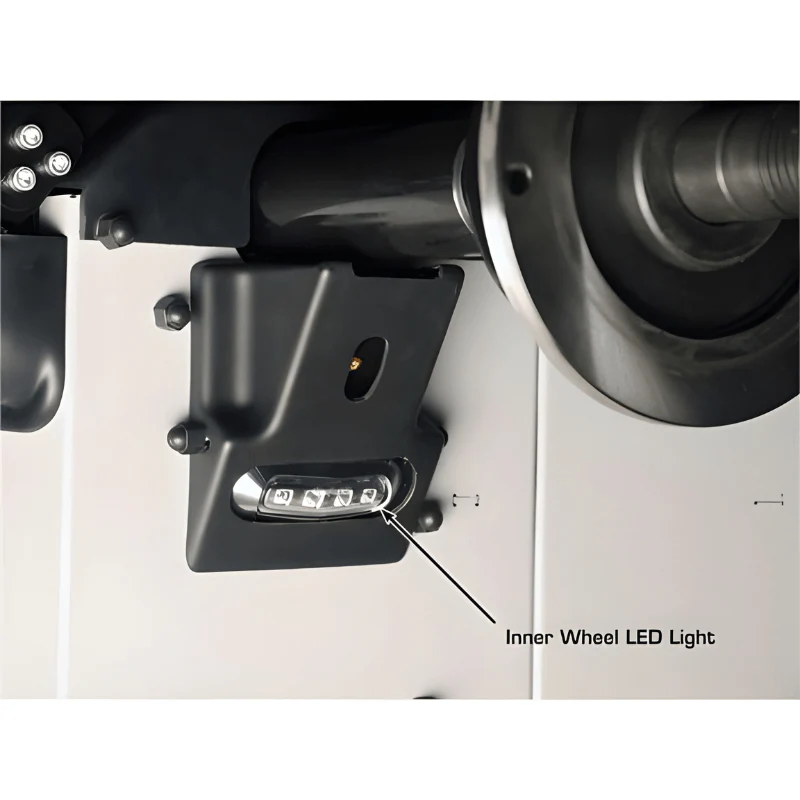

- LED lighting for enhanced visibility
- Static and dynamic balancing modes
- OPTIMATCH, FES (split), and OPF functions
- No Wheel Needed (NWN) system
- Self-diagnosing and self-calibrating
- No anchor-down installation required
- Includes cones, quick nut, pliers, and calipers
- 2-year parts-only warranty
- Freight prepaid

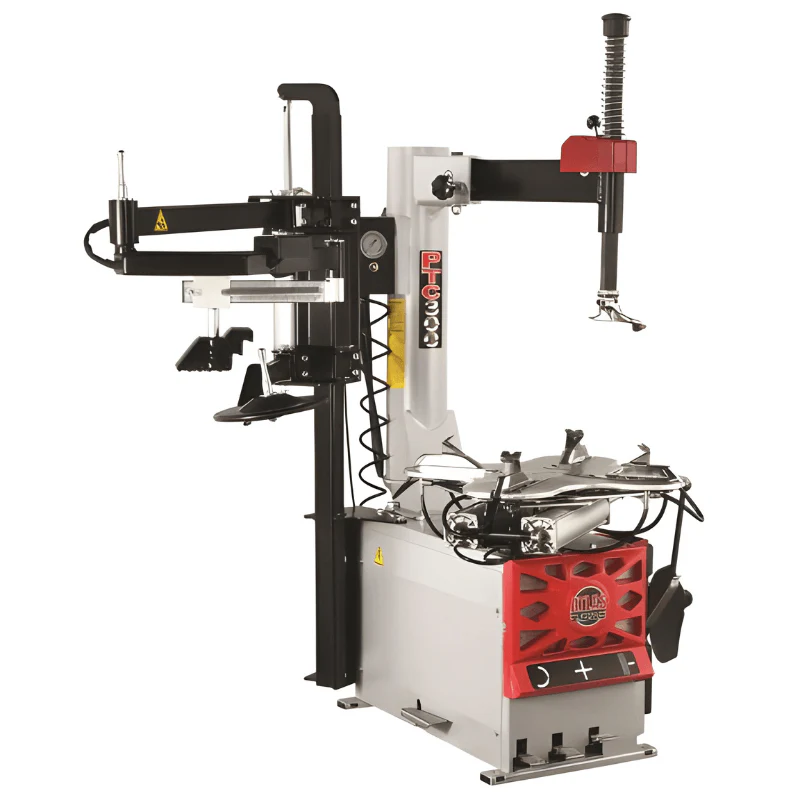

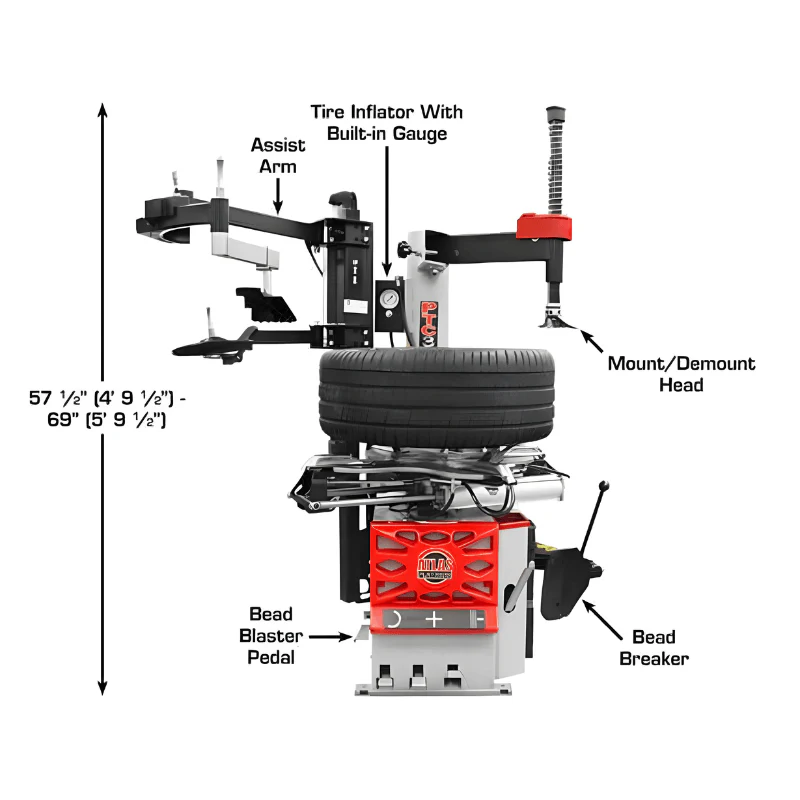

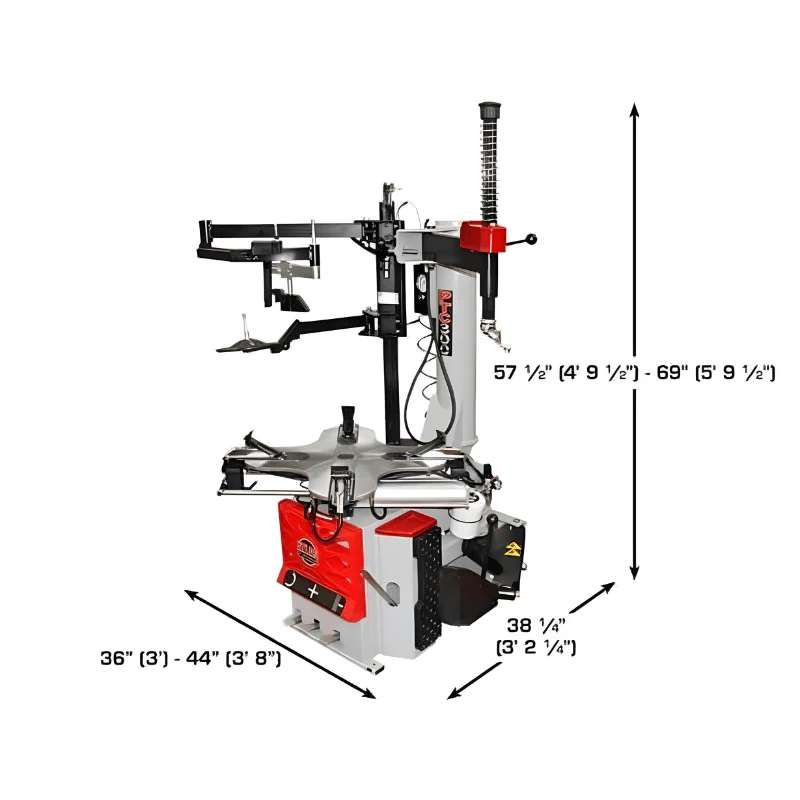

Atlas Platinum PTC300
| Specifications | Details |
|---|---|

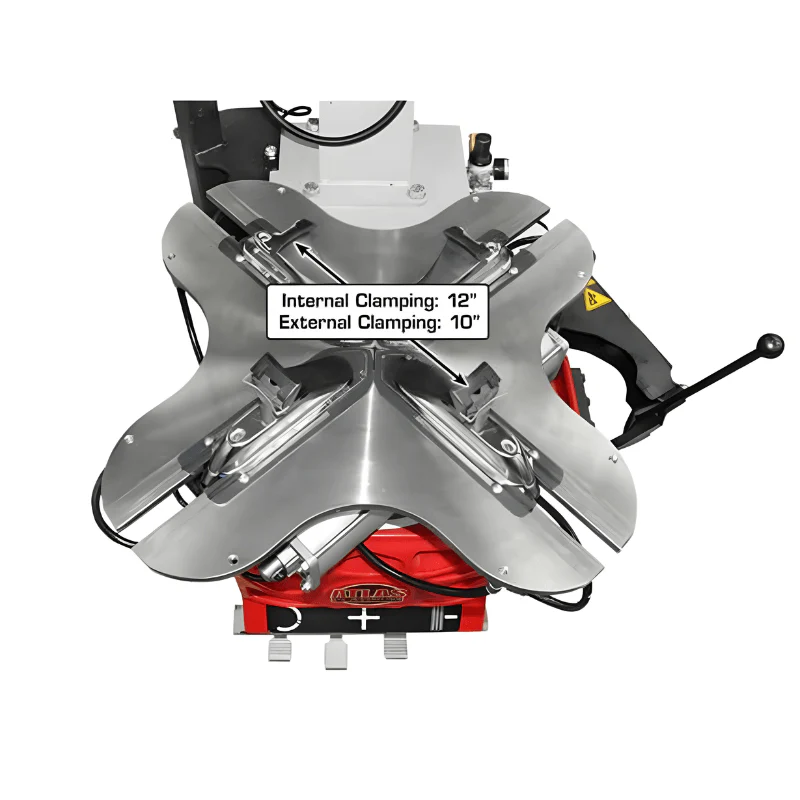

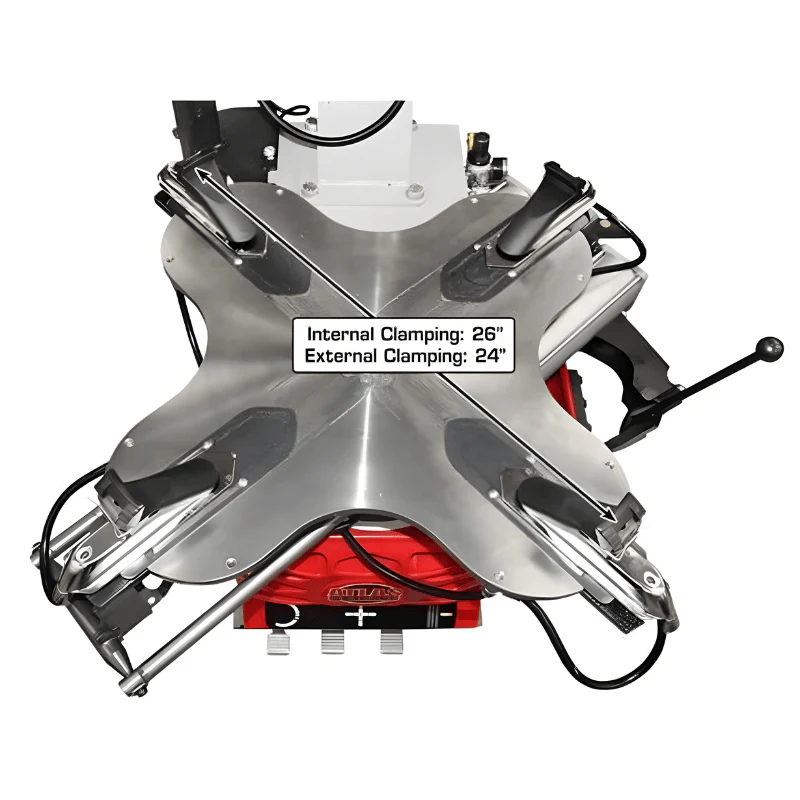

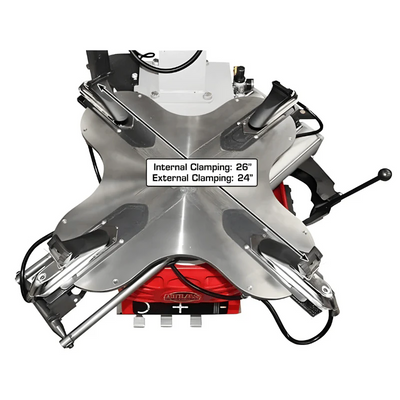

| External Locking Rim Dimensions | 10" – 24" |
| Internal Locking Rim Dimensions | 12" – 26" |
| Maximum Tire Diameter | 43" |
| Maximum Wheel Width (Bead Breaker) | 15" |
| Turntable Rotating Speed | 7 RPM |

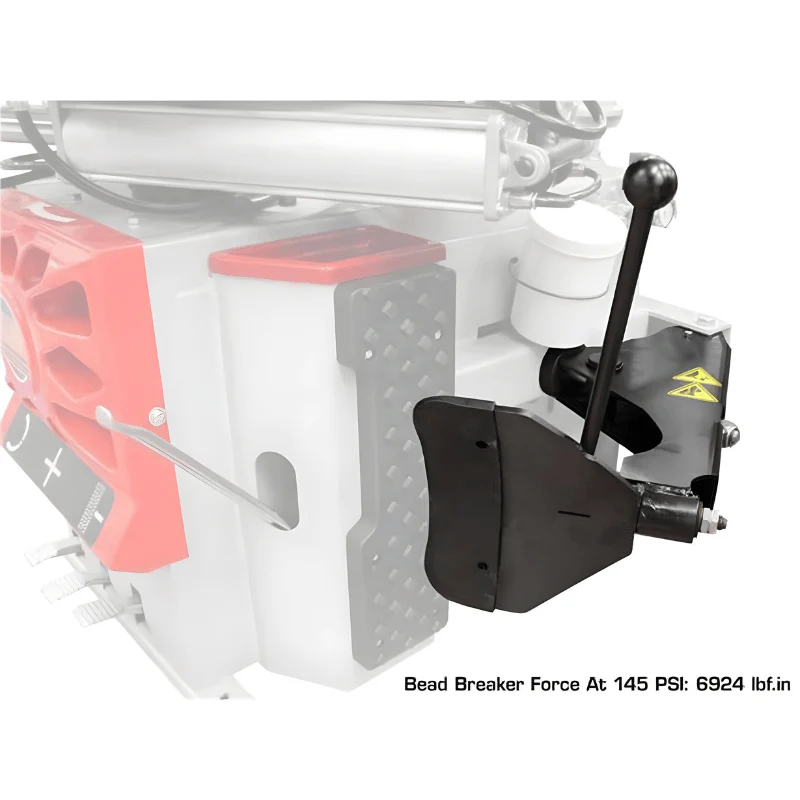

| Bead Breaker | 6,924 lb. Force |
| Operating Pressure | 145 PSI |
| Electric Requirement | 110V |

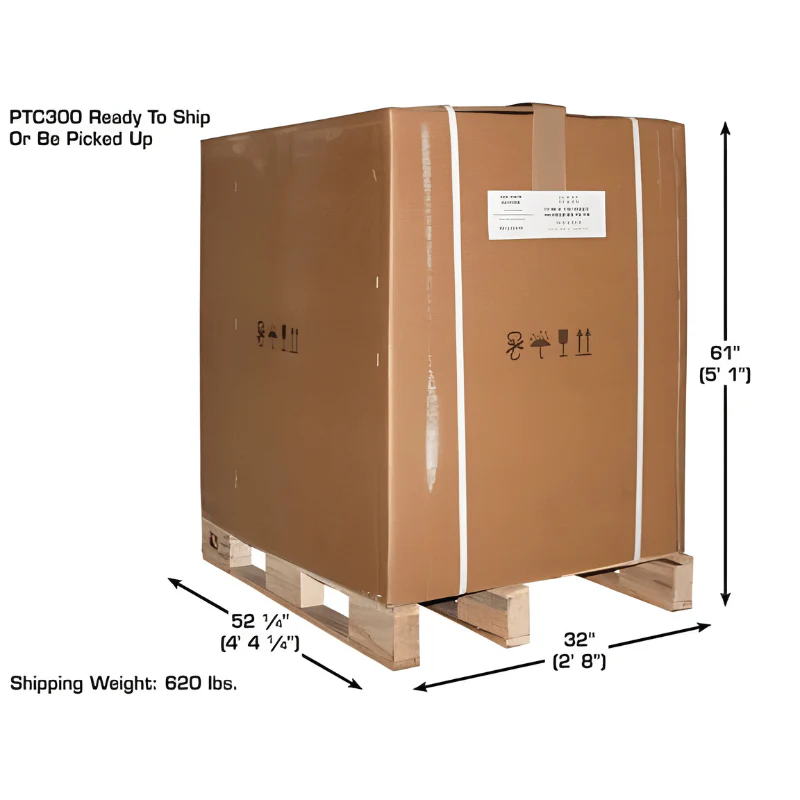

| Shipping Weight | 620 lbs. |

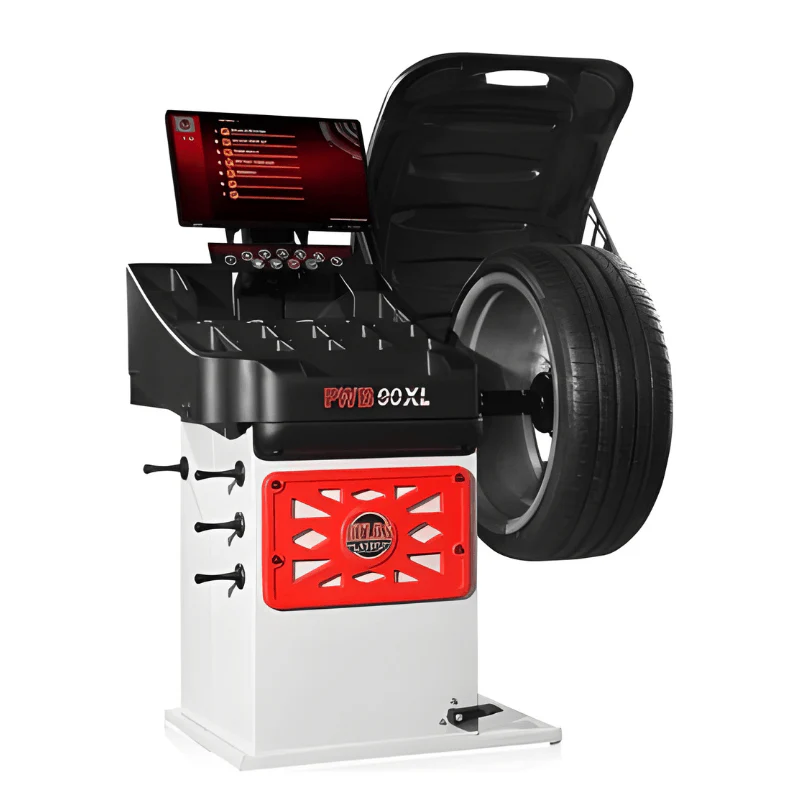

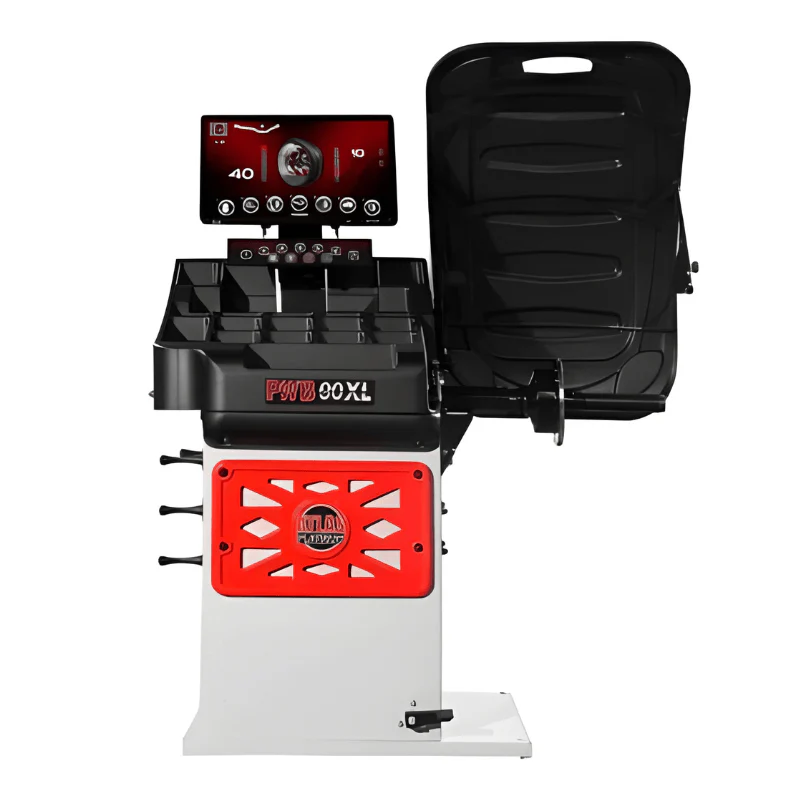

Atlas Platinum PWB90XL
| Specifications | Details |
|---|---|
| Max Tire Diameter | 43" |
| Rim Sizes (Cars & Light Trucks) | 10" – 30" |
| Rim Width | 1 1/2" – 20" |
| Shaft Size | 40mm |
| Max Wheel Weight | 165 lbs. |
| Balancing Speed | 130 RPM |
| Data Entry | Super Automatic 3D |
| Measurements | Standard or Metric |
| Accuracy | 1 gram |
| Weight Position Resolution | 1.4° |
| Self Calibration | Yes |
| Cycle Time | 7 seconds |
| Power Supply | 110V |
| Shipping Weight | 290 lbs. |
