Atlas PTC400 Platinum Center Post Tire Changer with PWB90XL Wheel Balancer Combo
SKU: ATEAP-TCWB-COMBO7
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

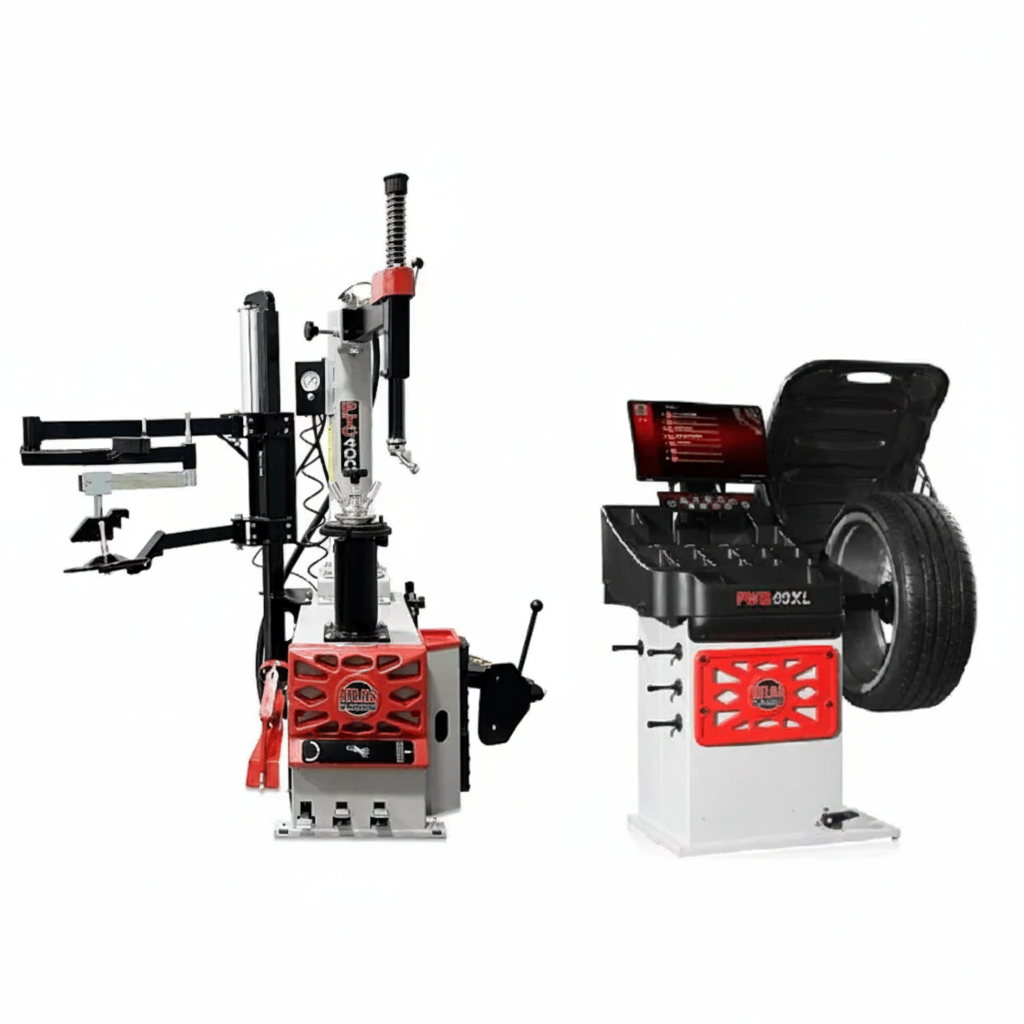

The Atlas Platinum PTC400 + PWB90XL Combo is a top-tier wheel service solution built for high-performance shops that want advanced automation and precision. This package combines a center-post tire changer with a premium 3D video wheel balancer, delivering next-level accuracy and efficiency.

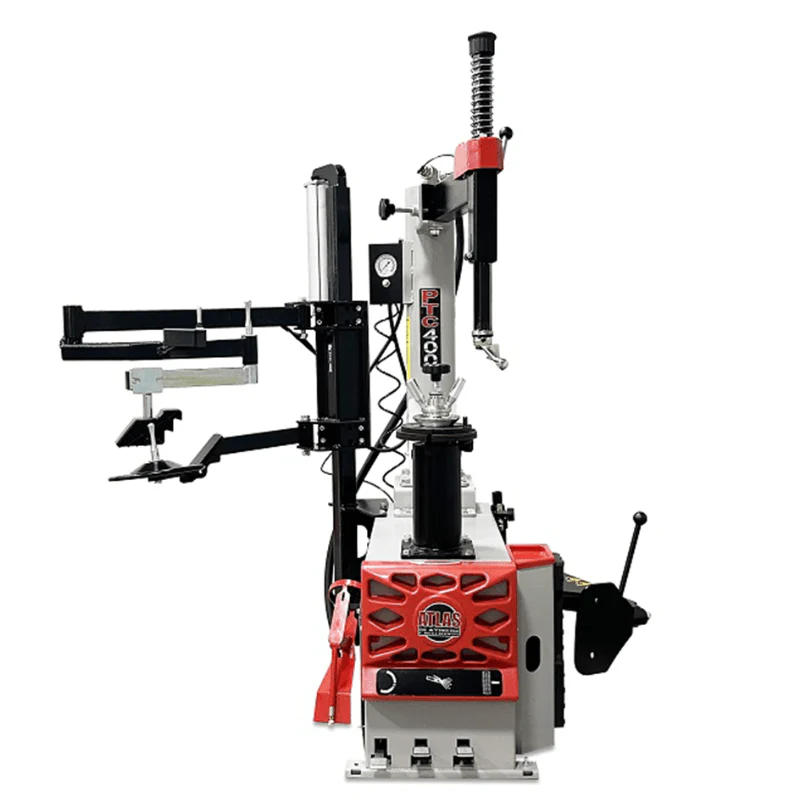

The PTC400 tire changer features a center-post swing-arm design with a left-hand assist arm, making it ideal for handling stiff sidewall, low-profile, and run-flat tires. Its electric turntable, air-operated bead breaker, and bead blasting system ensure smooth and efficient tire service.

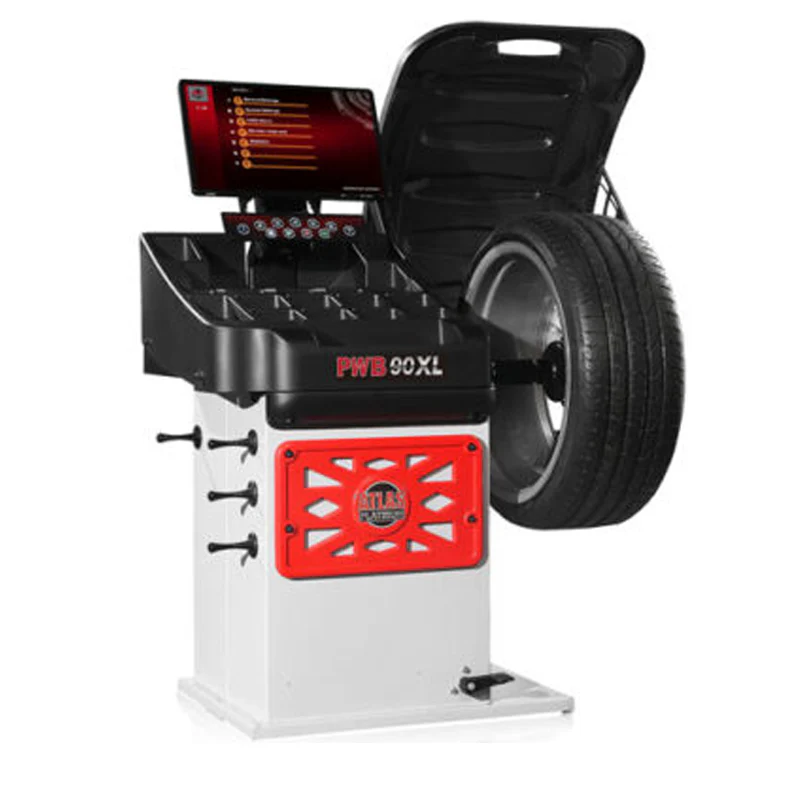

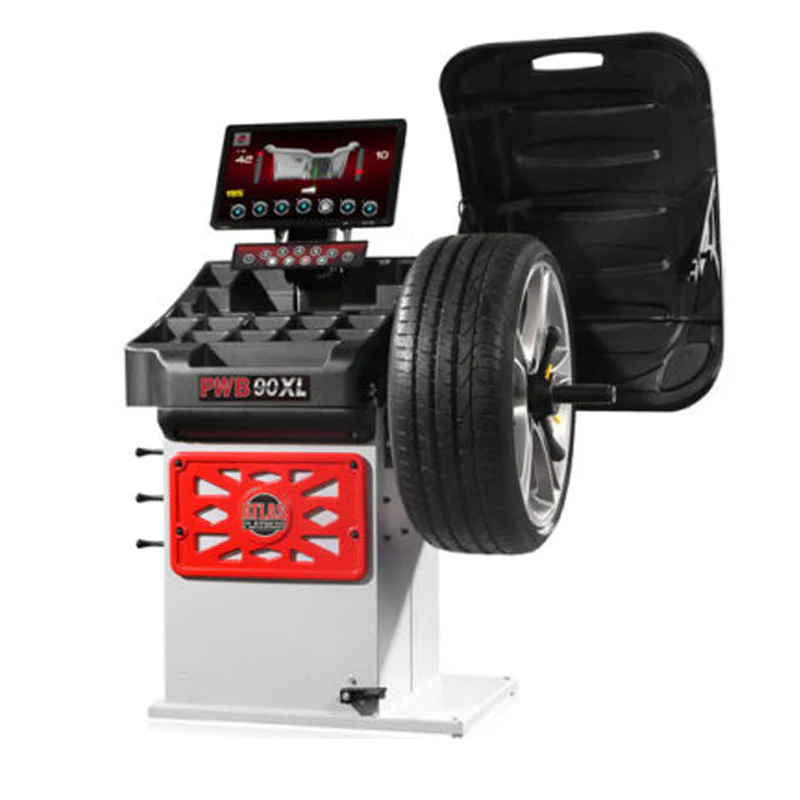

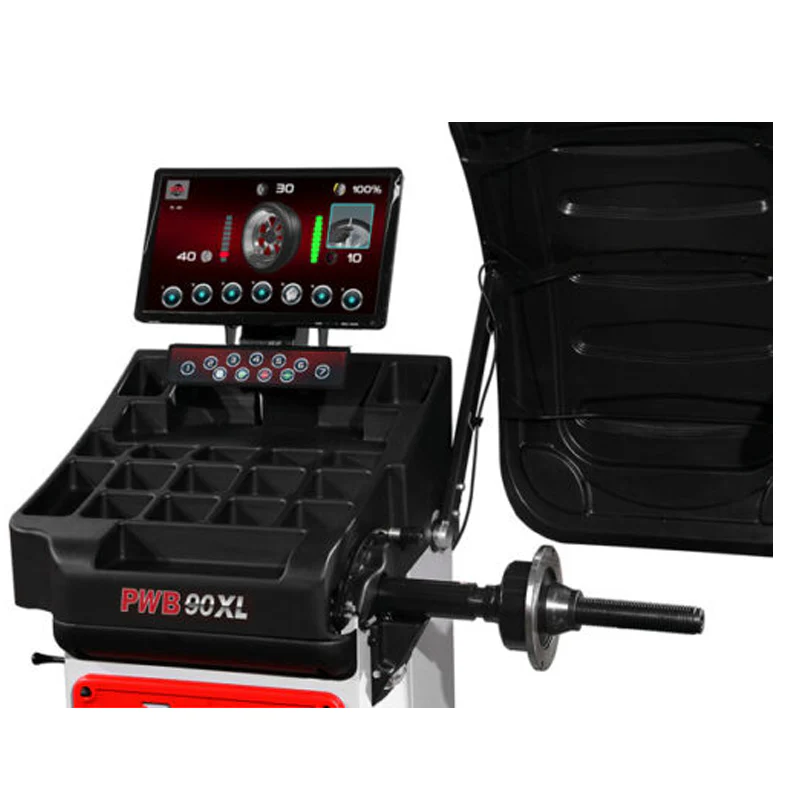

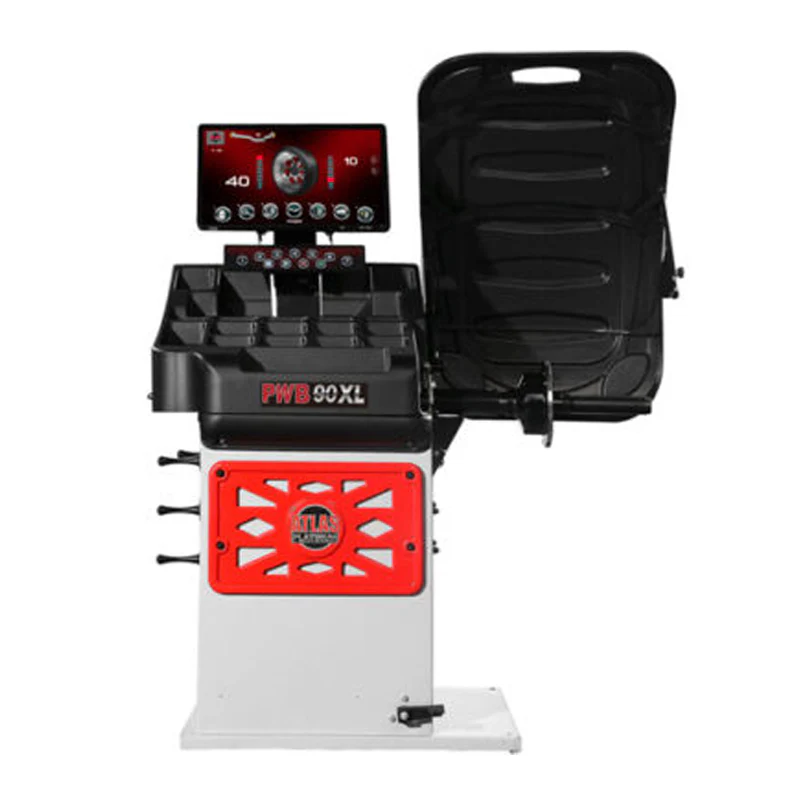

The PWB90XL wheel balancer is a standout, featuring fully automatic 3D data entry using touchless sonar technology. With a high-resolution video display, laser-guided weight placement, and LED illumination, it eliminates guesswork and ensures precise, first-time balancing results.
This combo is perfect for shops looking to offer premium tire services with maximum speed, accuracy, and minimal manual input.
Features and Benefits
- Complete combo: PTC400 tire changer + PWB90XL wheel balancer
- Center-post swing-arm tire changer for versatility
- Left-hand assist arm included for difficult tires
- External bead blasting system for fast inflation
- Air-operated bead breaker (external air required)
- High-torque electric turntable (110V)
- Metal mount/demount head with replaceable inserts
- Advanced 3D video wheel balancer with high-resolution display
- Touchless sonar for automatic rim width measurement
- Laser line for precise weight placement
- LED lighting for improved visibility
- Static and dynamic balancing modes
- OPTIMATCH, FES (split), and OPF functions
- No Wheel Needed (NWN) system
- Self-diagnosing and self-calibrating
- Multiple ALU balancing programs
- 2-year parts-only warranty
- Freight prepaid
Atlas Platinum PTC400
| Specifications | Details |
|---|---|
| Clamping Range | 10" – 26" |
| Max Tire Diameter | 43" |
| Max Wheel Width | 15" (13" for reverse) |
| Rotating Speed | 7 RPM |
| Bead Breaker Force | 6,924 lbs. |
| Operating Voltage | 110V |
| Air Requirement | 120–145 PSI |
| Shipping Weight | 620 lbs. |
Atlas Platinum PWB90XL
| Specifications | Details |
|---|---|
| Max Tire Diameter | 43" |
| Rim Sizes (Cars/Light Trucks) | 10" – 30" |
| Rim Width | 1.5" – 20" |
| Shaft Size | 40mm |
| Max Wheel Weight | 165 lbs. |
| Balancing Speed | 130 RPM |
| Data Entry | Super Automatic 3D |
| Accuracy | 1 gram |
| Cycle Time | 7 seconds |
| Weight Position Resolution | 1.4° |
| Power Supply | 110V |
| Shipping Weight | 290 lbs. |
