Atlas TC303 Super Duty Truck Tire Changer and WBT210 Heavy-Duty Wheel Balancer Combo
SKU: ATETTCWB-COMBO3
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

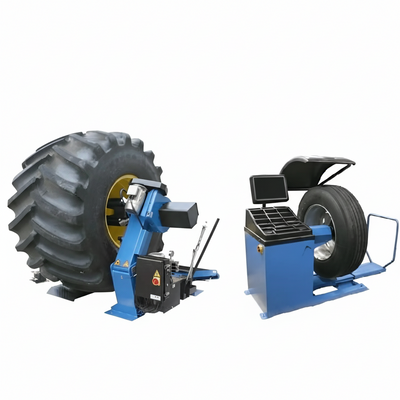

The Atlas TC303 + WBT210 combo package is an extreme-duty wheel service solution designed for shops handling the largest truck, agricultural, off-road, and industrial tires. This package combines the super-duty TC303 truck tire changer with the WBT210 computerized spin balancer, providing a complete system for mounting, demounting, and balancing oversized wheel assemblies. Built for high-volume and heavy-load environments, this setup is engineered to handle massive tire sizes and deliver consistent performance in demanding commercial applications.
Key Features & Benefits
- Complete super-duty truck tire changer and heavy-duty balancer combo
- Designed for commercial truck, agricultural, mining, and off-road tire service
- Handles extremely large tires and wheel assemblies with ease
- TC303 supports massive rim sizes and oversized tire diameters
- WBT210 balances both passenger and heavy-duty truck wheels
- Includes adapters for car, light truck, and commercial applications
- Built for high-volume and industrial environments
- Durable construction for continuous heavy-duty operation
- Both machines include 1-year parts-only warranty
- Freight prepaid for this package

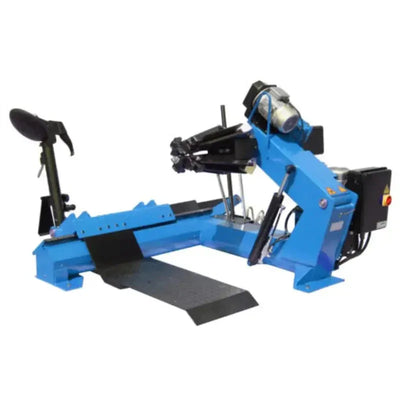

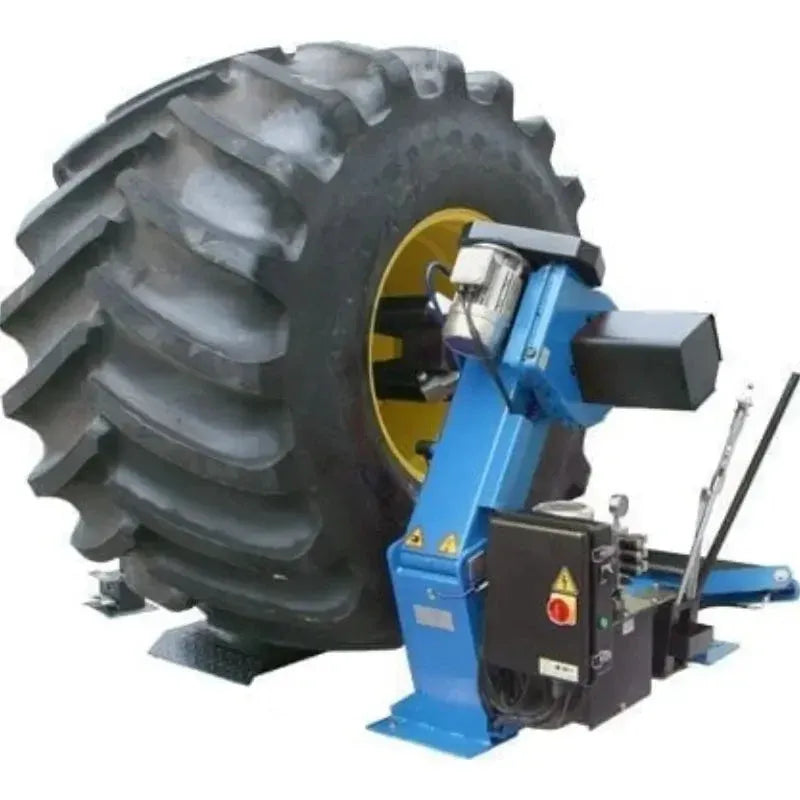

Tire Changer Features (TC303)
- Heavy-duty truck tire changer for extreme tire sizes

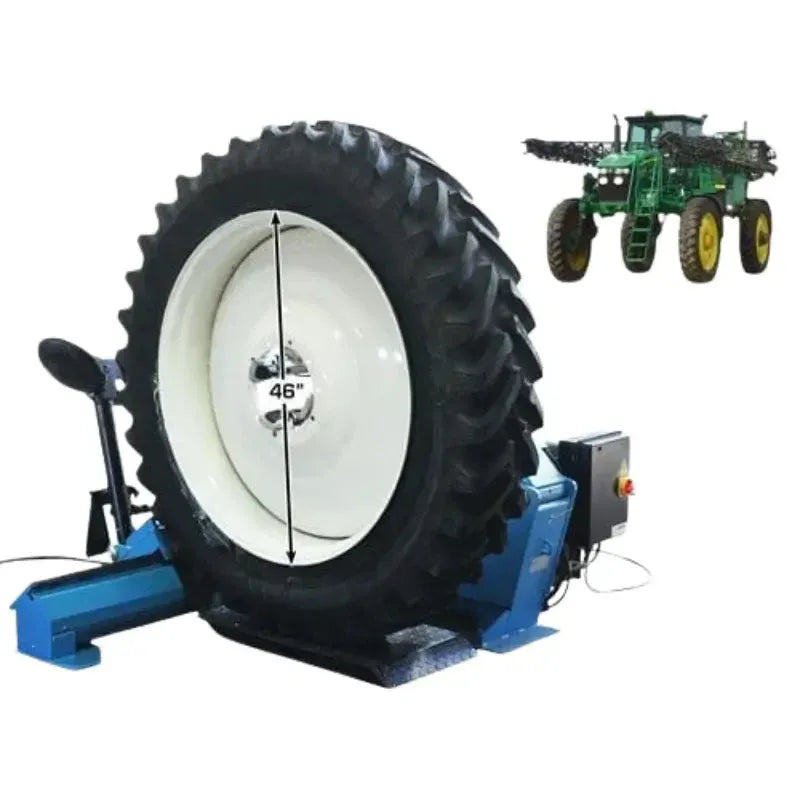

- Handles rims from 14" to 46" (up to 56" with extensions)
- Accommodates tire diameters over 90"
- Supports tire widths up to 42"
- Electric/hydraulic self-centering 4-jaw chuck
- 5 rim locking positions for flexibility
- Heavy-duty bead breaker system
- Mount/demount head for large tire handling
- Wired mobile control unit for operator convenience
- Heavy-duty tire tool included
- Rim clamps for steel and alloy wheels included
- Alloy rim adapter set with plastic inserts included

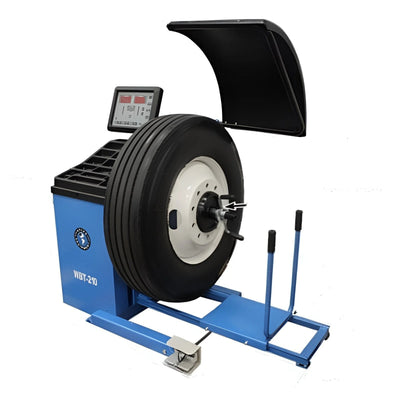

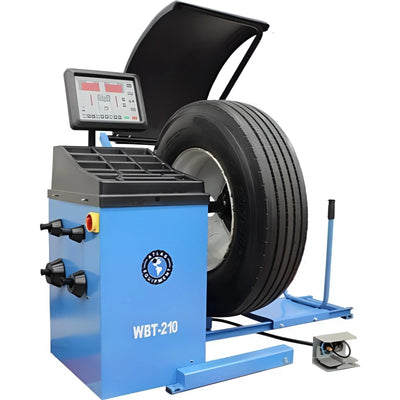

Wheel Balancer Features (WBT210)
- Heavy-duty computerized spin balancer
- Handles passenger, light truck, and large truck wheels
- Includes cone sets for cars and light trucks
- Includes cone and spacer sets for truck, bus, and implement tires
- Plastic quick-release nut and heavy-duty steel wing nut included
- Pneumatic wheel lift (external air required)
- Automatic start/stop with hood operation
- Static and dynamic balancing modes
- Rapid optimization (OPT) function
- Self-diagnosing and self-calibrating system
- High stability for accurate readings between planes
- Displays in grams or ounces, mm or inches
- Includes wheel weight pliers and width caliper
Performance & Use Case
This combo is built for operations that handle the most demanding tire service jobs. The TC303 provides the power and capacity needed for massive tires used in agriculture, construction, and industrial applications, while the WBT210 offers the versatility to balance everything from small passenger wheels to heavy-duty truck assemblies up to 440 lbs. Together, they create a powerful, scalable solution for commercial tire shops, fleet maintenance facilities, and heavy equipment service centers.
Atlas TC303 Tire Changer Specifications
| Specifications | Details |
|---|---|
| Max Tire Diameter | 90 1/2" (7' 6 1/2") |
| Max Tire Width | 42" |
| Rim Clamping Range | 14" – 46" |
| Rim Clamping Range w/ Extensions | 47" – 56" |
| Max Wheel Weight | 3,300 lbs. |
| Clamping Power | 13,173 lbs. |
| Operating Pressure | 0 – 1,885 PSI |
| Acoustic Pressure | <70 dBA |
| Bead Breaker Force | 5,930 lbs. |
| Tool Arm Positioning | Manual |
| Tool Head Positioning | Manual |
| Construction | Single Piece Frame w/ Solid Floor-Plate |
| Hydraulic Motor Power | 2 HP, 220v (±5% / 209–231 volts) 1-phase, 30 amp breaker required |
| Chuck Motor Power | 2 HP, 220v (±5% / 209–231 volts) 1-phase, 30 amp breaker required |
| Shipping Weight | 1,800 lbs. |
Atlas WBT210 Wheel Balancer Specifications
| Specifications | Details |
|---|---|
| Max Tire Diameter | 47" |
| Rim Sizes – Cars & Light Trucks | 10" – 32" |
| Rim Width | 1 1/2" – 20" |
| Shaft Size | 40mm |
| Max Wheel Weight | 440 lbs. |
| Balancing Speed | 150 rpm (Car/Light Truck Mode) / 90 rpm (Truck Mode) |
| Data Entry | All Dimensions Manual Entry |
