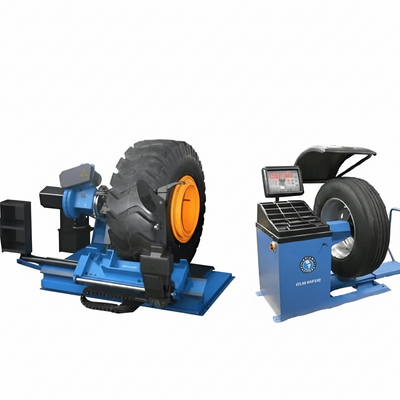

Atlas TC306 Automatic Super Duty Truck Tire Changer and WBT210 Heavy-Duty Wheel Balancer Combo
SKU: ATETTCWB-COMBO4
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The Atlas TC306 + WBT210 combo package is a top-tier heavy-duty wheel service system designed for high-volume shops handling the largest truck, agricultural, and earthmover tires. This package combines the fully automated TC306 truck tire changer with the WBT210 computerized spin balancer, delivering a complete solution for mounting, demounting, and balancing everything from passenger wheels to massive industrial tire assemblies. With advanced automation, extreme capacity, and durable construction, this combo is built for the most demanding commercial environments.
Key Features & Benefits
- Complete automatic super-duty truck tire changer and balancer combo
- Designed for commercial truck, agricultural, mining, and off-road tire service
- Handles extremely large tire and wheel assemblies with ease
- Automatic tool positioning reduces operator effort and increases efficiency
- WBT210 balances both passenger and heavy-duty truck wheels
- Includes adapters for cars, light trucks, and commercial applications
- Built for high-volume and industrial operations
- Both machines include 1-year parts-only warranty
- Freight prepaid for this package

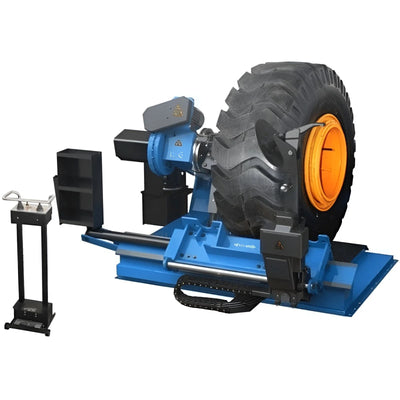

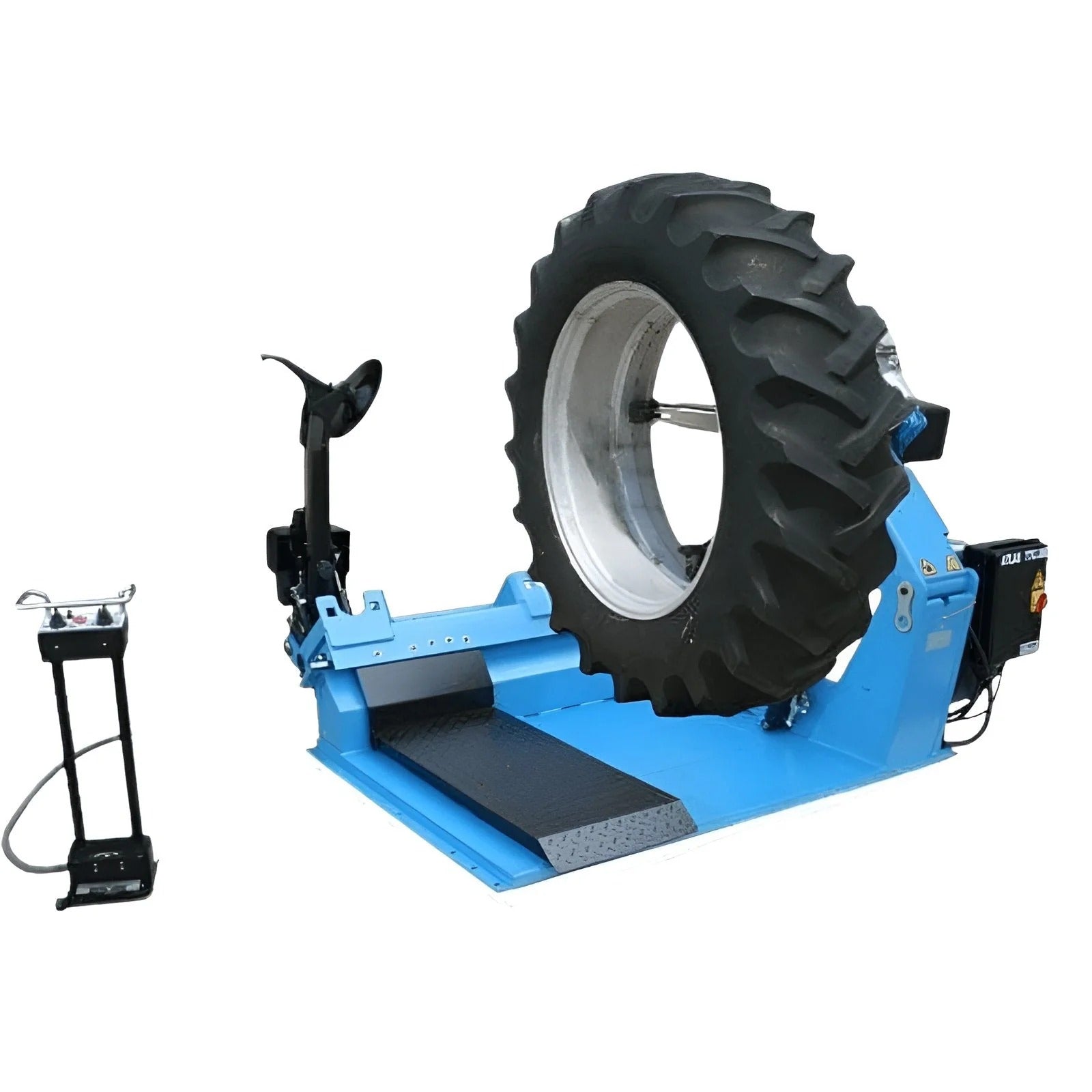

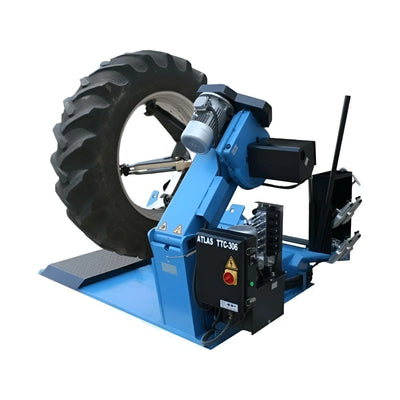

Tire Changer Features (TC306)
- Fully automatic super-duty truck tire changer
- 2-speed hydraulic chuck with 5 rim locking positions
- Handles rims from 14" to 56"
- Accommodates tire diameters up to 98"
- Supports tire widths up to 53"
- Automatic movement of bead tool, carriage, and chuck arm
- Electric/hydraulic self-centering 4-jaw chuck
- Heavy-duty bead breaker system
- Interchangeable mount/demount head
- Wired mobile control unit available (sold separately)
- Heavy-duty tire tool included
- Rim clamps for steel and alloy wheels included
- Alloy rim adapter set with plastic inserts included
- Clamping extensions included

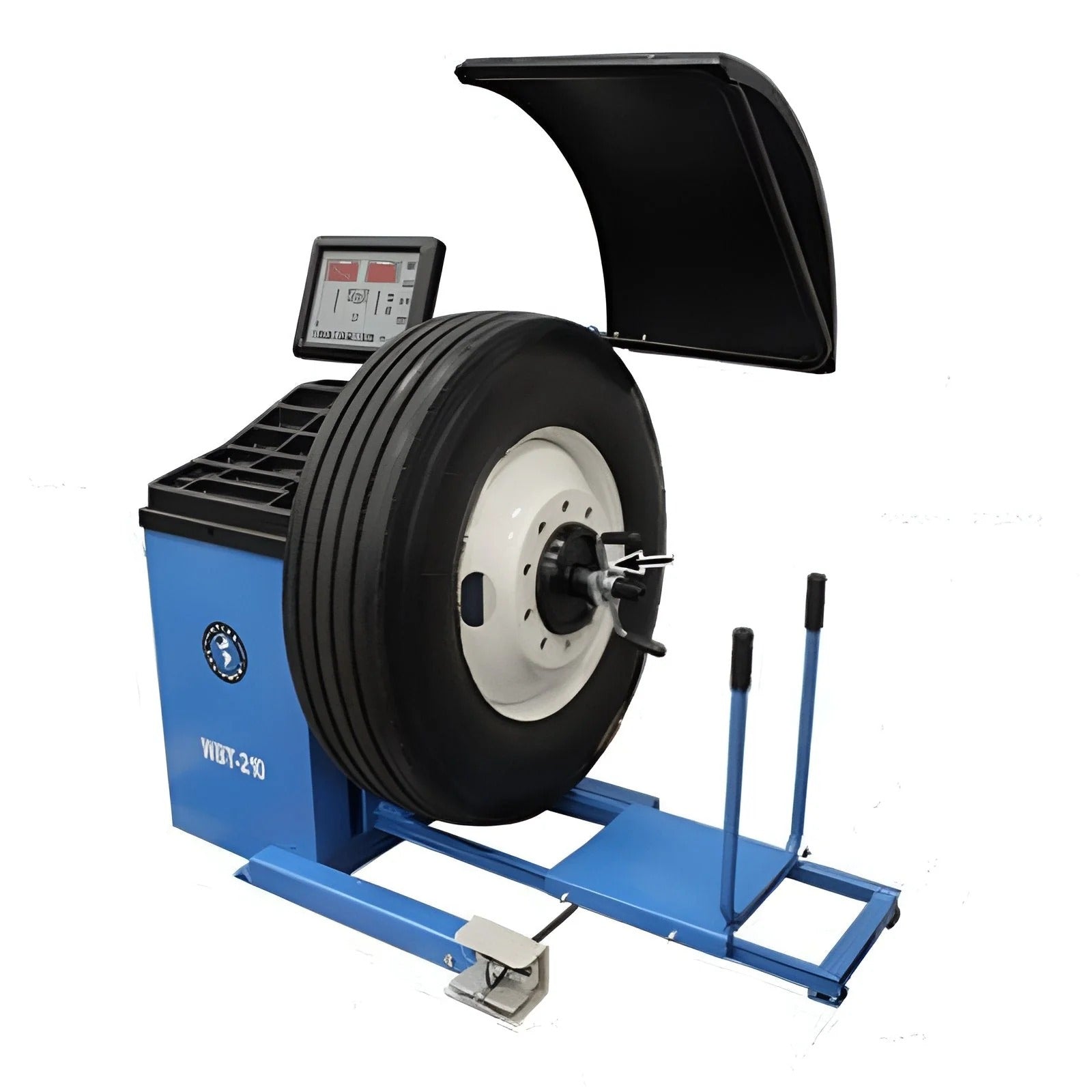

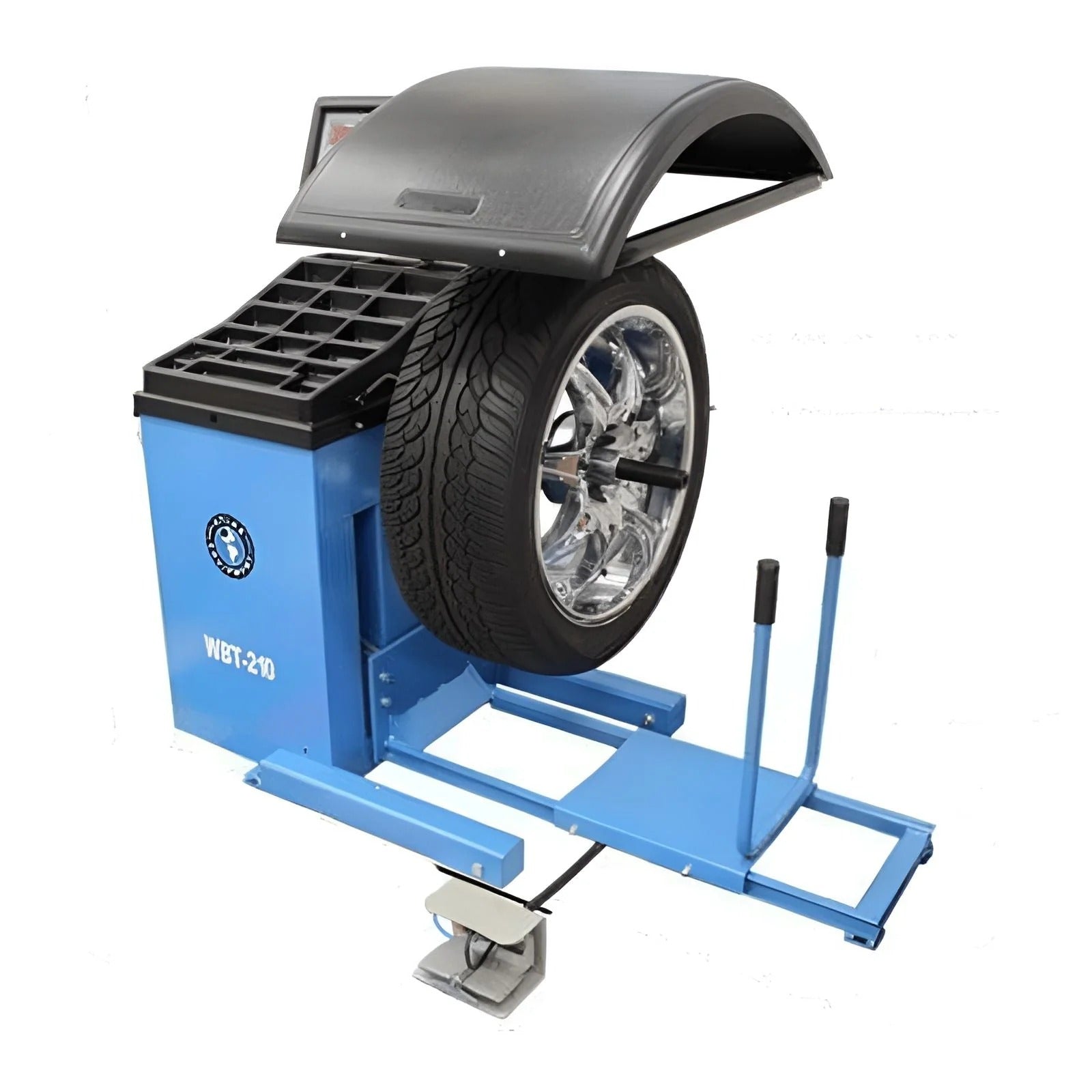

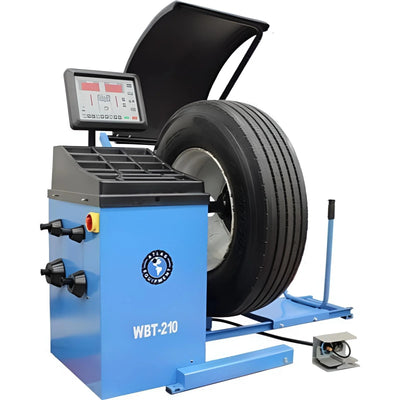

Wheel Balancer Features (WBT210)
- Heavy-duty computerized spin balancer
- Handles passenger, light truck, and large truck wheels
- Cone sets included for cars and light trucks
- Heavy-duty cone and spacer set for truck, bus, and implement tires
- Plastic quick-release nut and heavy-duty steel wing nut included
- Pneumatic wheel lift (external air required)
- Automatic start/stop with hood operation
- Static and dynamic balancing modes
- Rapid optimization (OPT) function
- Self-diagnosing and self-calibrating system
- High stability for accurate readings between planes
- Displays in grams or ounces, mm or inches
- Includes wheel weight pliers and width caliper
Performance & Use Case
This combo is built for operations that handle the most demanding tire service jobs. The TC306 offers full automation, allowing operators to control bead breaker movement and tool positioning with minimal manual effort, making it ideal for high-volume environments. With the ability to handle tires up to 98" in diameter and 53" wide, it is perfectly suited for agricultural equipment, construction machinery, and large commercial vehicles. The WBT210 complements this with the ability to balance everything from small passenger wheels to heavy-duty truck tires up to 440 lbs, making this a complete, all-in-one solution for serious commercial tire operations.
Atlas® TC306 Tire Changer – Specifications
| Specifications | Details |
|---|---|
| Max Tire Diameter | 98" (8' 2") |
| Max Tire Width | 53" |
| Rim Clamping Range | 14" – 46" |
| Rim Clamping Range w/ Extensions | 47" – 56" |
| Max Wheel Weight | 3,968 lbs. |
| Clamping Power | 13,173 lbs. |
| Operating Pressure | 0 – 1,885 PSI |
| Acoustic Pressure | 70 dBA |
| Bead Breaker Force | 5,930 lbs. |
| Tool Arm Positioning | Automatic |
| Tool Head Positioning | Automatic |
| Construction | Single Piece Frame w/ Solid Floor-Plate |
| Hydraulic Motor Power | 3 HP, 220v (±5% / 209–231 volts) 3-phase, 30 amp breaker required |
| Chuck Motor Power | 3.5–4 HP, 220v (±5% / 209–231 volts) 3-phase, 30 amp breaker required |
| Warranty | 1 Year Parts-Only |
| Shipping | Freight Prepaid |
Atlas® WBT210 Wheel Balancer – Specifications
| Specifications | Details |
|---|---|
| Max Tire Diameter | 47" |
| Rim Sizes – Cars & Light Trucks | 10" – 32" |
| Rim Width | 1 1/2" – 20" |
| Shaft Size | 40mm |
| Max Wheel Weight | 440 lbs. |
| Balancing Speed | 150 rpm (Car/Light Truck Mode) / 90 rpm (Truck Mode) |
| Data Entry | All Dimensions Manual Entry |
| Warranty | 1 Year Parts-Only |
| Shipping | Freight Prepaid |
