Atlas Platinum PTC300 Rim Clamp Tire Changer with Assist Arm
SKU: ATEAP-PTC300
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The Atlas Platinum PTC300 is a high-performance swing arm tire changer engineered for demanding shop environments. Designed with Italian-inspired engineering and premium components, this unit delivers reliability, precision, and efficiency for handling a wide range of tire and wheel combinations.

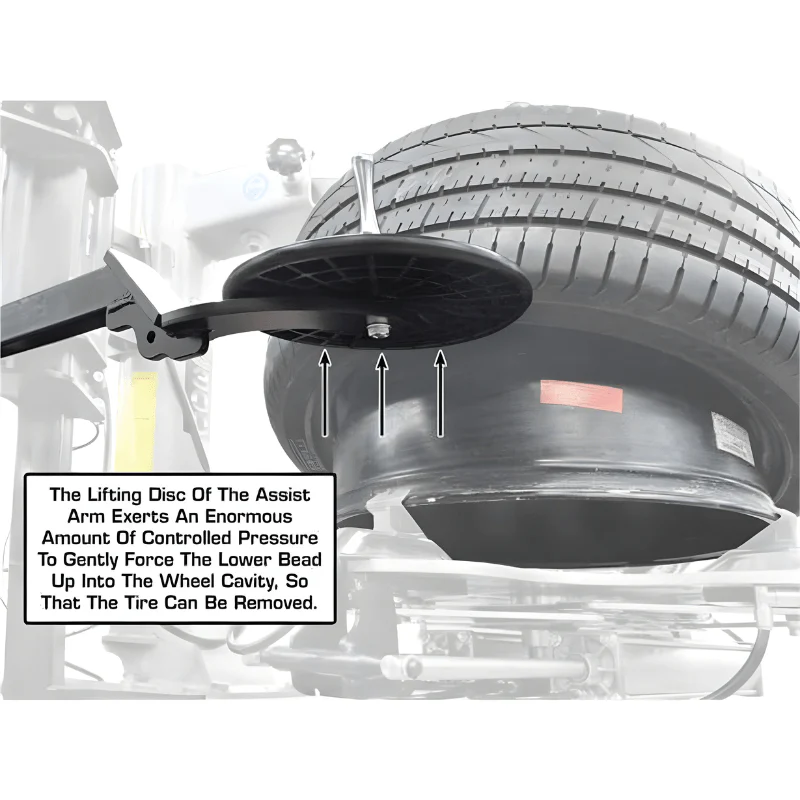

Equipped with a left-hand assist arm system, the PTC300 makes working with stiff sidewall and low-profile tires significantly easier. Its extra-large turntable, powerful bead breaker, and integrated beadblaster system make it a strong choice for shops looking to improve workflow and productivity.
Key Features & Benefits
- Platinum rim-clamp swing arm tire changer design

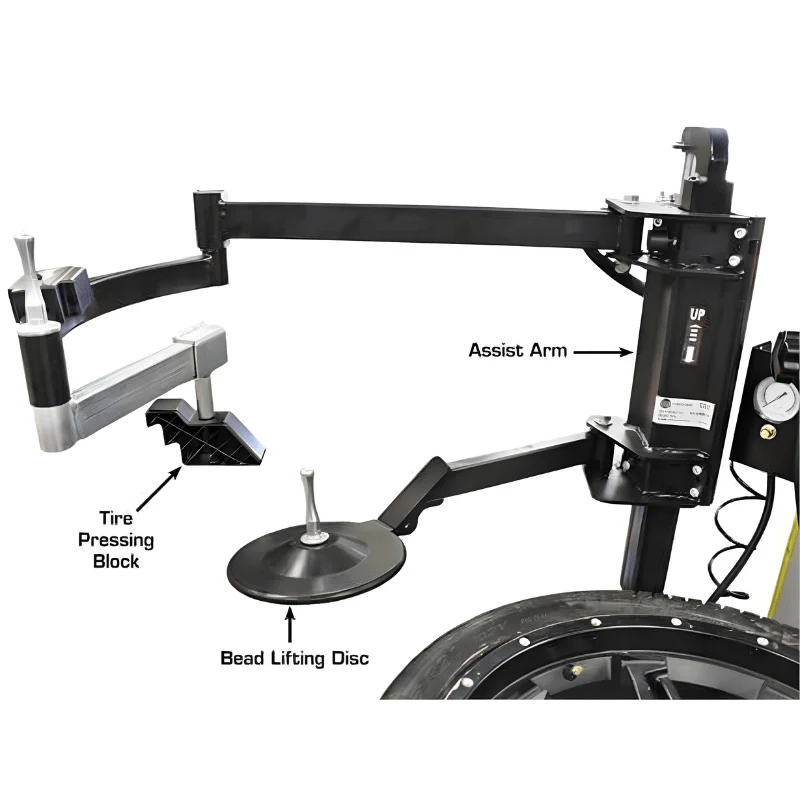

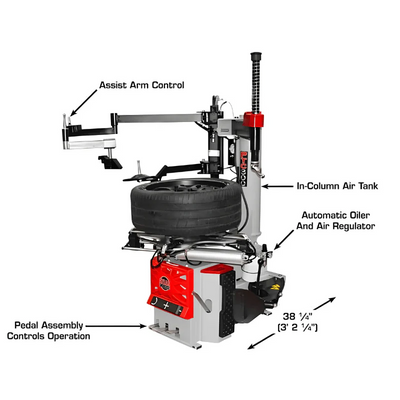

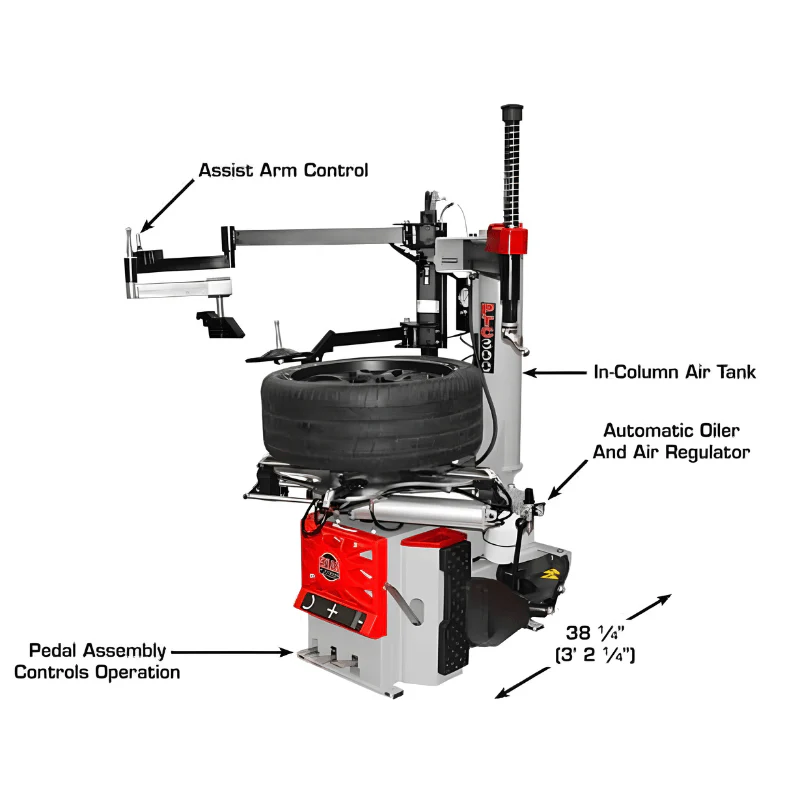

- Left-hand assist arm included for added control and efficiency

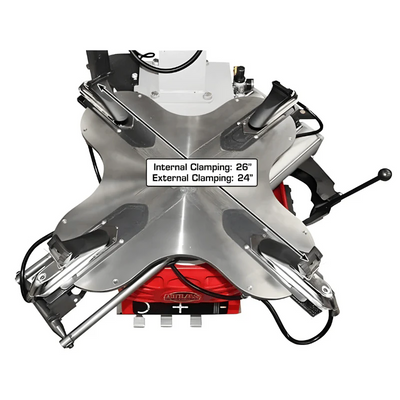

- Extra-large star-shaped turntable for improved wheel handling
- Air-operated jaws and bead breaker (external air required)
- Electric turntable with consistent rotation

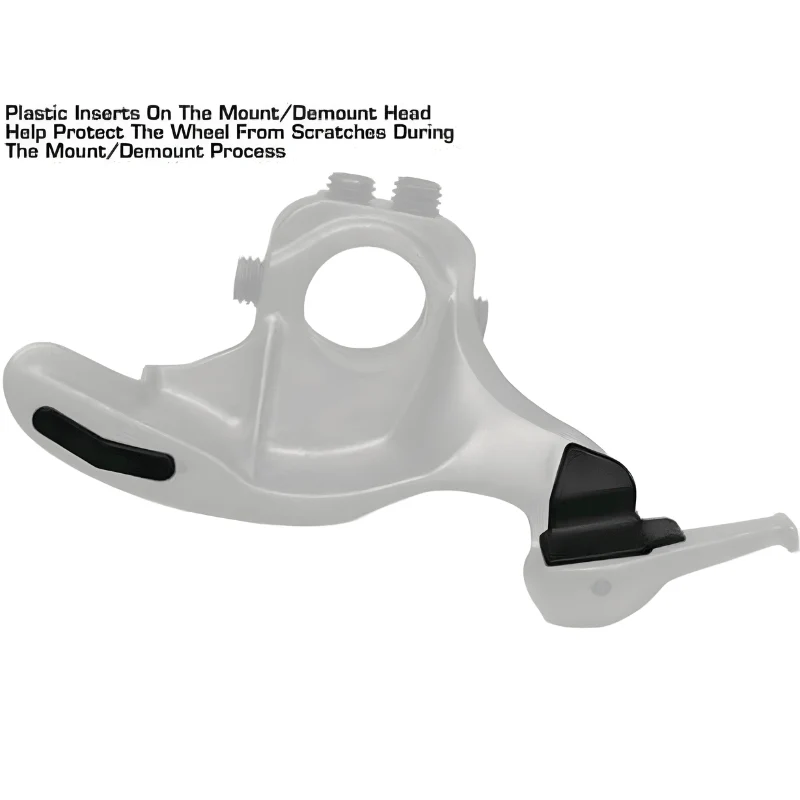

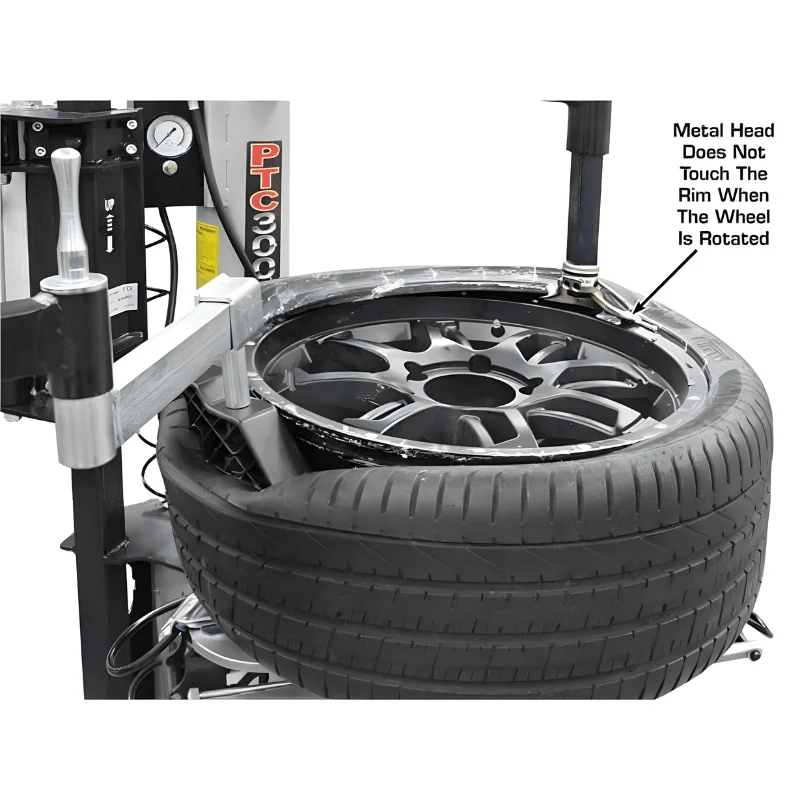

- Metal mount/demount head with replaceable plastic inserts

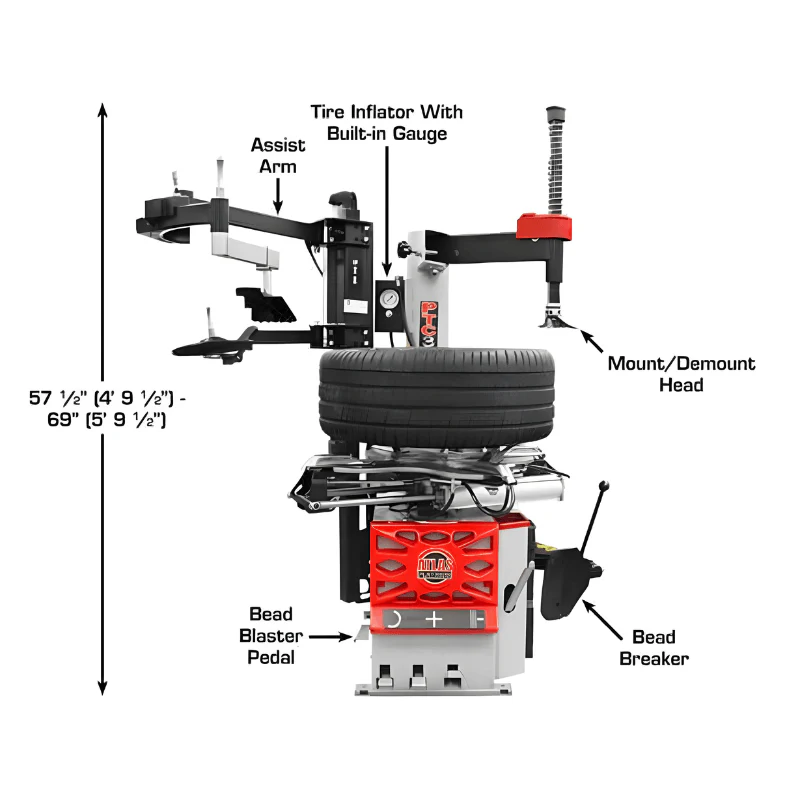

- Column-mounted inflator box with pressure gauge included
- Filter, regulator, and lubricator system included
- Built-in beadblaster system for seating difficult tire beads

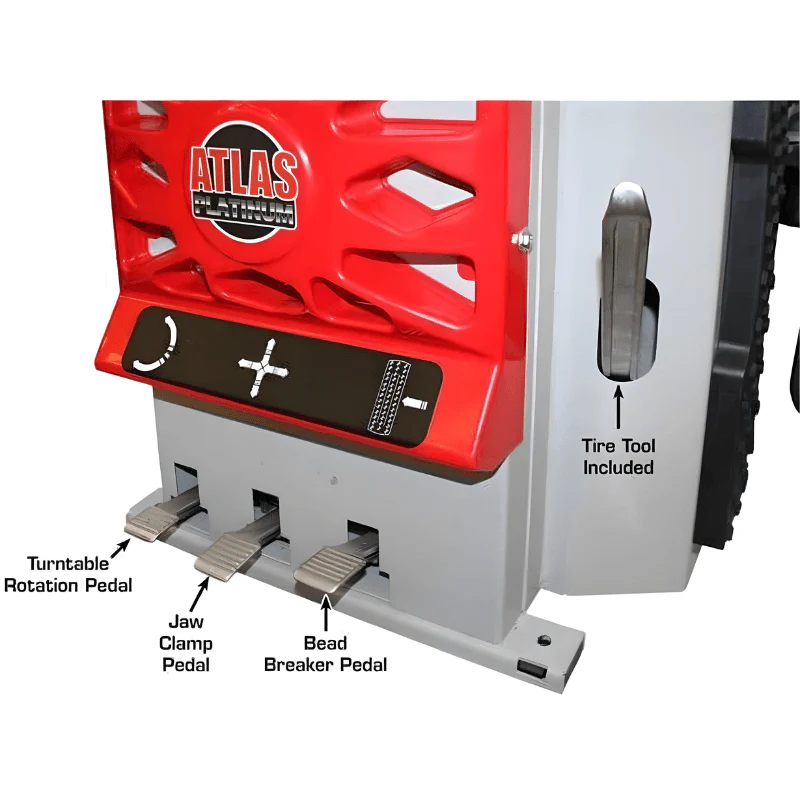

- Tire tool included for standard operations
- Lube bucket with brush included
- Protective plastic jaw covers included to prevent rim damage
- Bead breaker shovel includes protective plastic cover
- Multiple replacement inserts included for mount/demount head
- Replacement parts and wear items readily available
- Backed by a 2-year parts-only warranty
Performance & Design Highlights
The PTC300 is built for shops that need consistent performance across a variety of tire types. The swing arm configuration allows for easy positioning, while the assist arm system provides additional leverage and control when working with challenging tires.

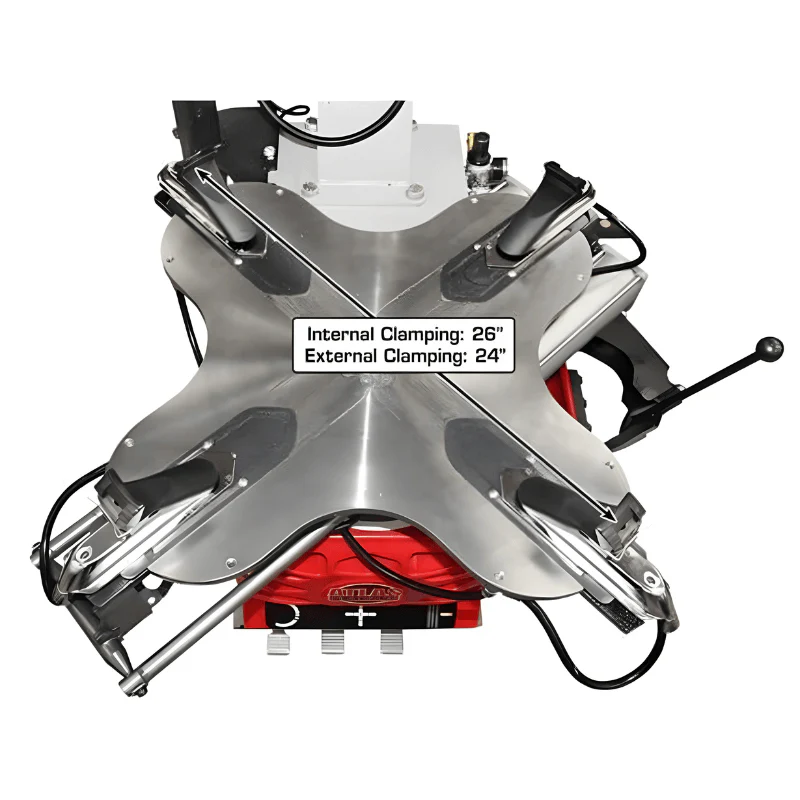

Its 26-inch clamping capability allows operators to handle larger wheels without additional adapters. The high-torque electric turntable ensures smooth and controlled operation, while the beadblaster system delivers the air burst needed to properly seat stubborn beads.
With durable construction and premium internal components, this machine is designed to withstand daily use in high-volume environments.
| Specifications | Details |
|---|---|
| Rims | Steel, Aluminum, Alloy |
| External Locking Rim Dimension | 10" – 24" |
| Internal Locking Rim Dimension | 12" – 26" |
| Maximum Tire Diameter | 43" |
| Maximum Wheel Width (Bead Breaker) | 15" |
| Turntable Rotating Speed | 7 RPM |

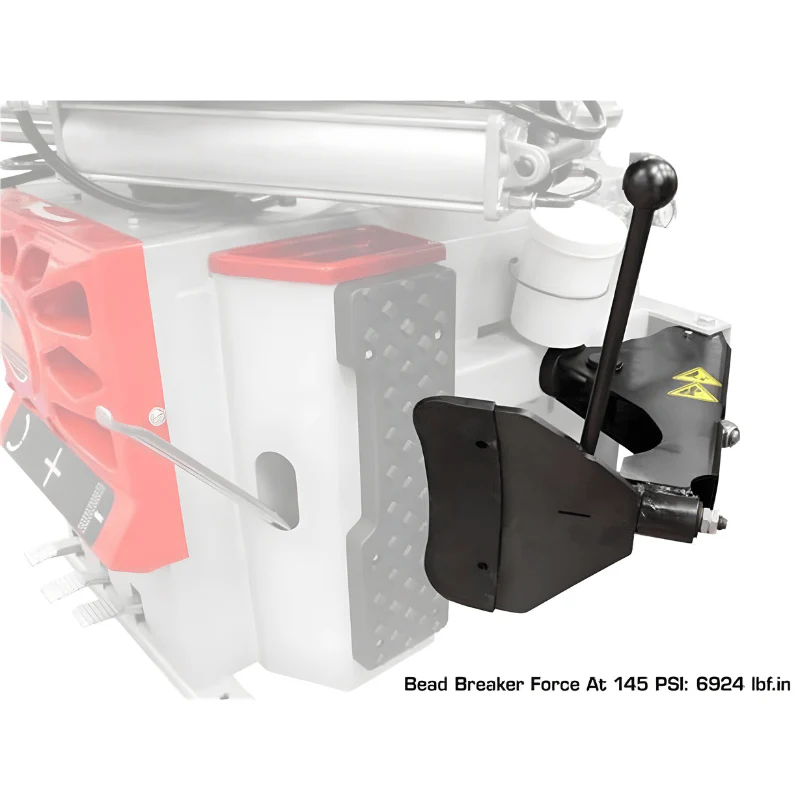

| Bead Breaker | 6,924 LB. Force |
| Air Requirement | 120–145 PSI |
| Operating Voltage | 110V |

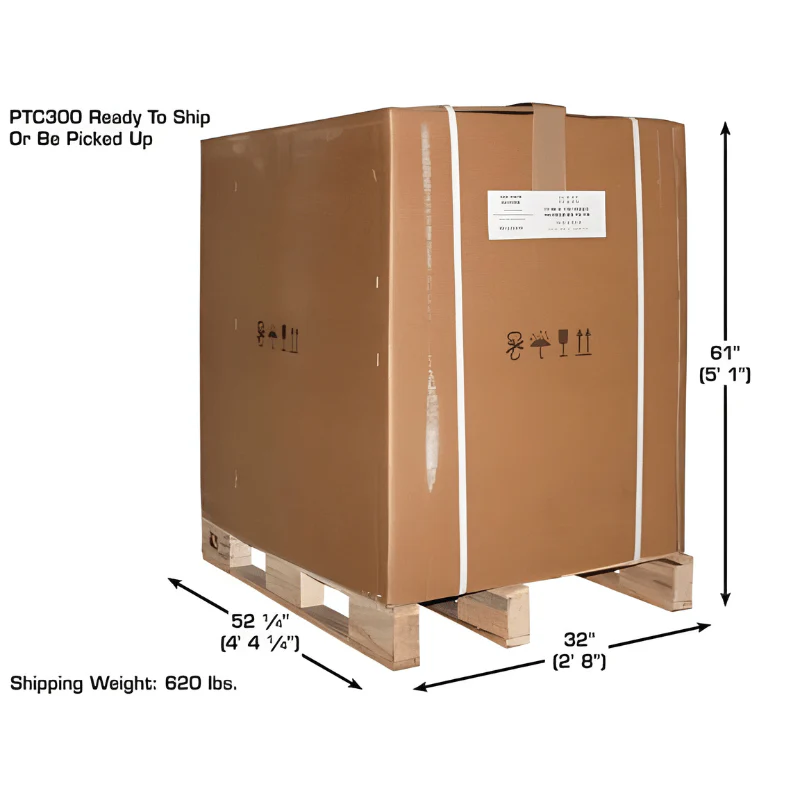

| Shipping Weight | 620 lbs. |
