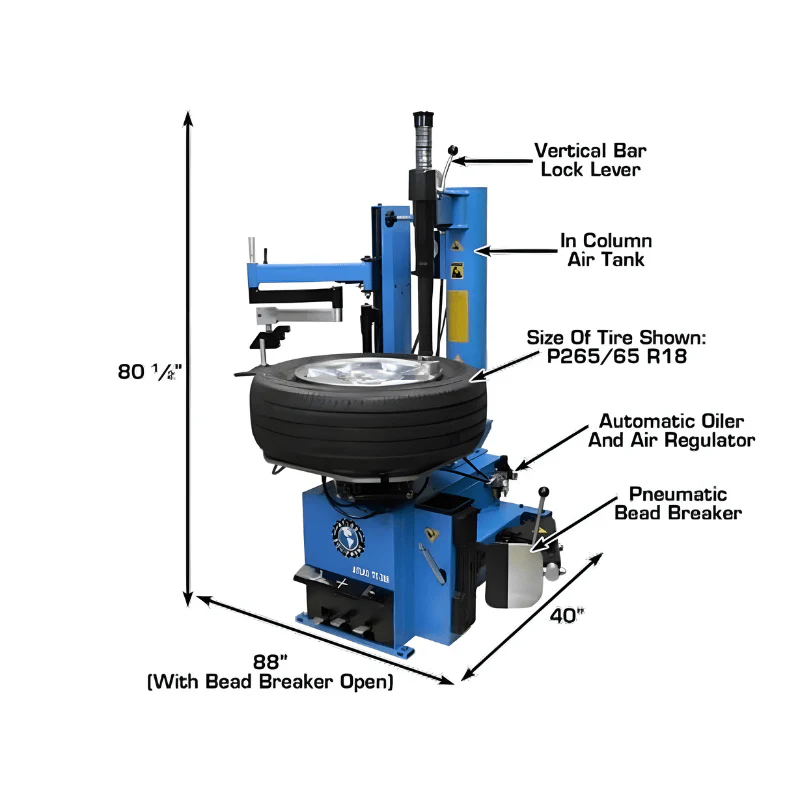

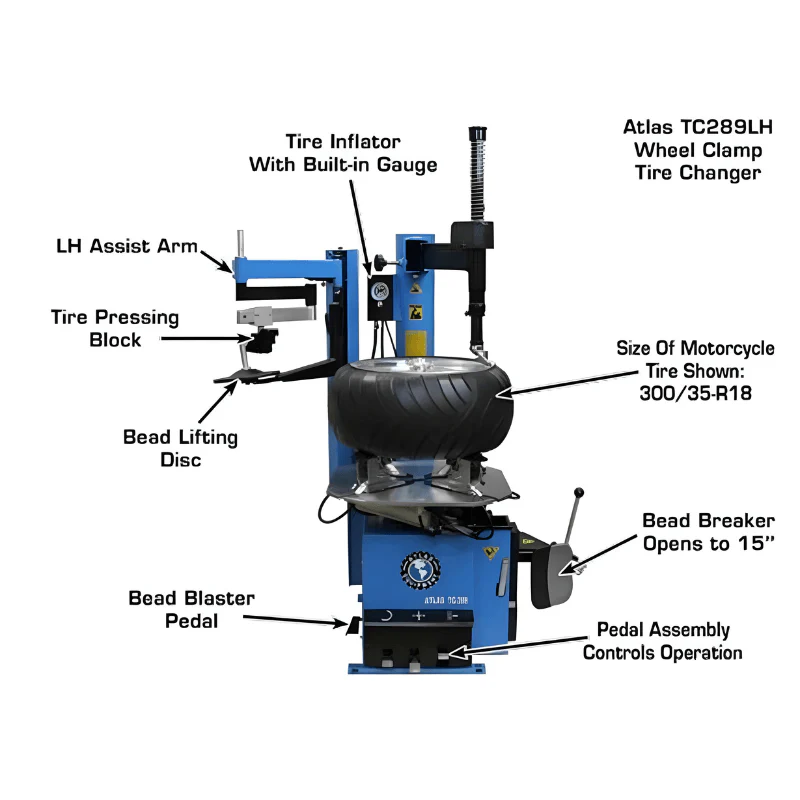

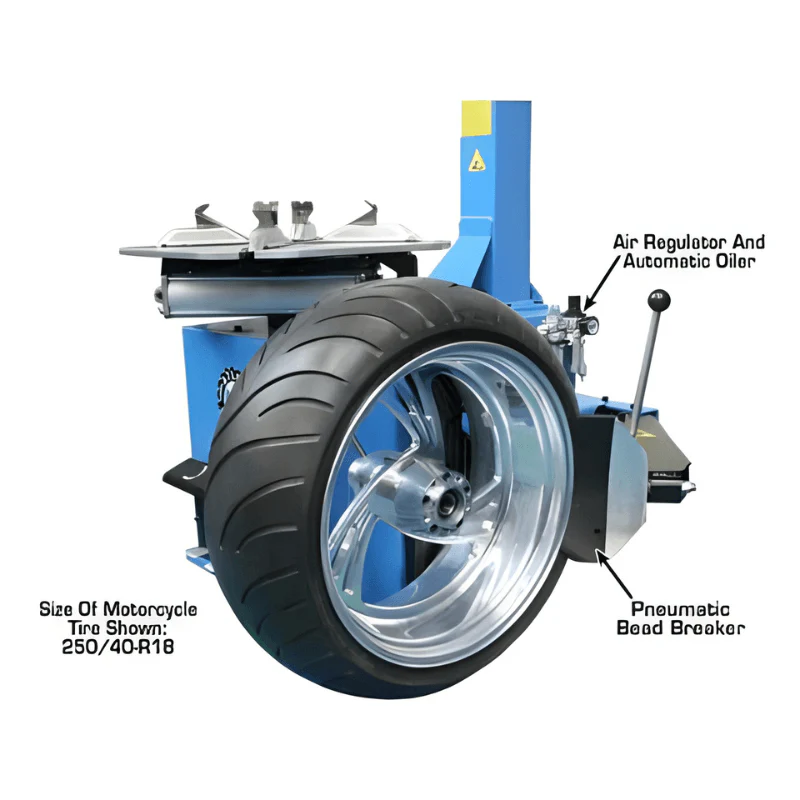

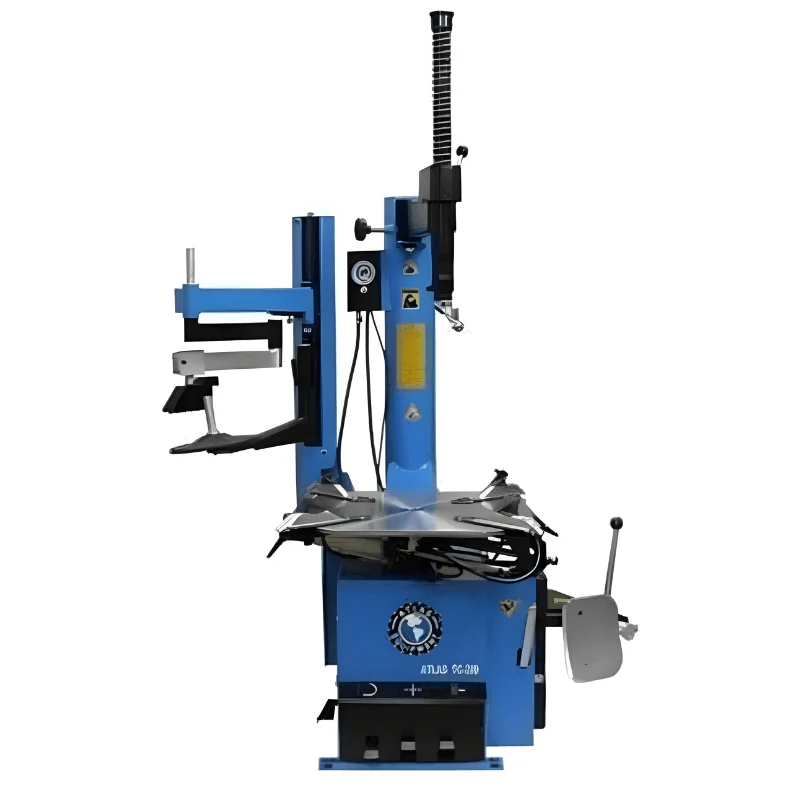

Atlas TC289LH Extra Large Rim Clamp Tire Changer with Left-Hand Assist Arm System for SUV and Truck Tires
SKU: ATETC289LH
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The Atlas TC289LH is a heavy-duty rim clamp tire changer designed for automotive service shops, medium-sized tire stores, and users working with larger wheels including SUVs, trucks, and agricultural equipment. Built with a large swing arm design and an oversized turntable, this machine provides the clearance needed to handle bigger diameter tires with ease. The included left-hand assist arm system adds extra control when working with stiff sidewall and low-profile tires, acting as an additional helping hand to improve efficiency and reduce operator fatigue. The integrated beadblaster system delivers the air burst required to seat difficult beads, while the adjustable bead breaker ensures consistent performance across a wide range of tire types. Designed for versatility and durability, the TC289LH is ideal for shops that need reliable performance across both standard and oversized applications.
Key Features & Benefits
- Large rim-clamp swing arm tire changer design

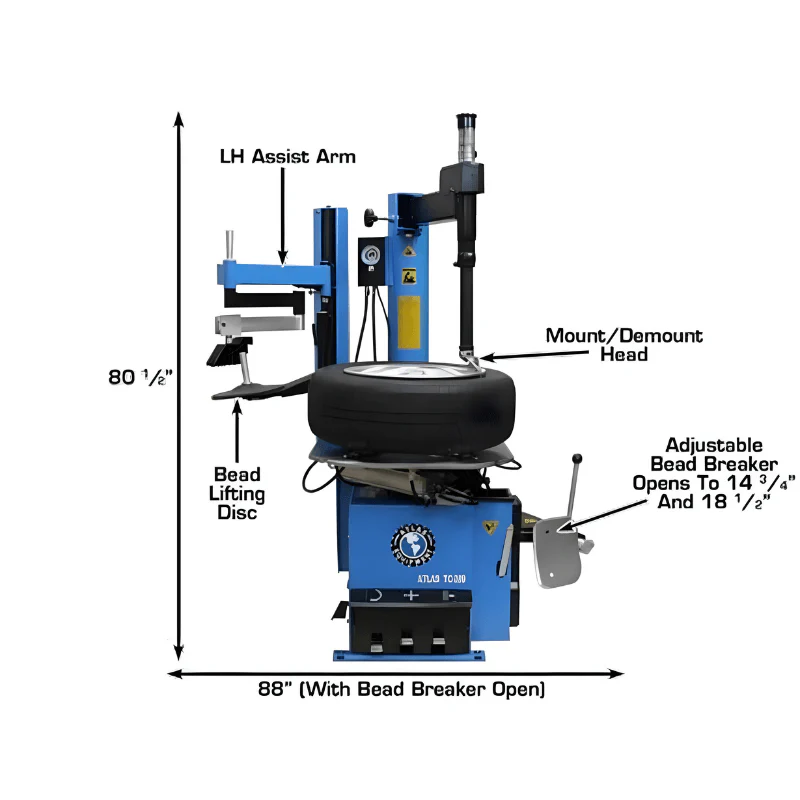

- Left-hand assist arm with pressing block and lifting disk
- Extra-large turntable provides increased clearance for larger wheels

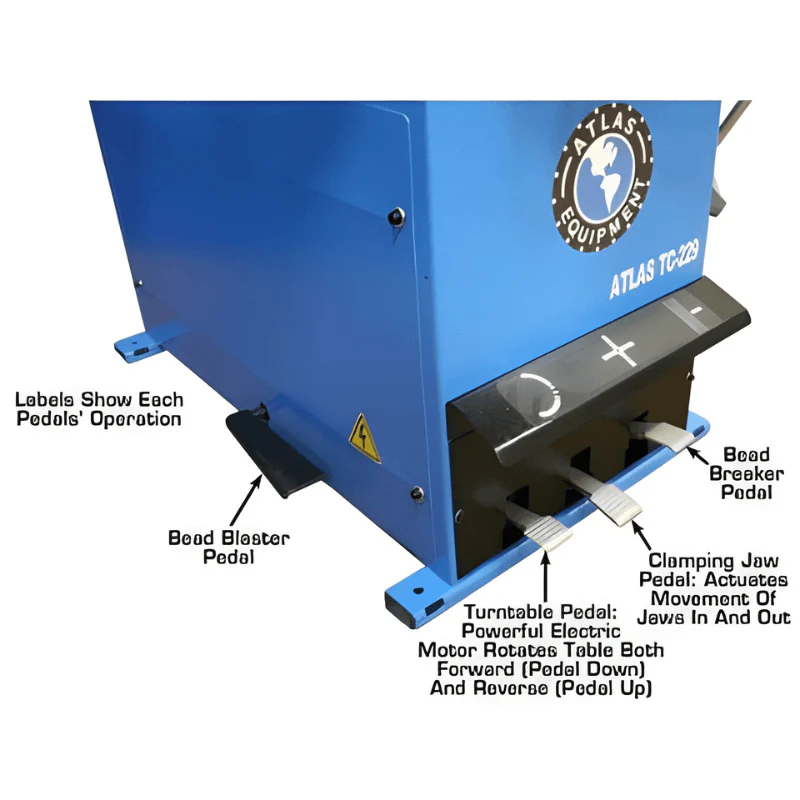

- Air-operated jaws and bead breaker (external air required)

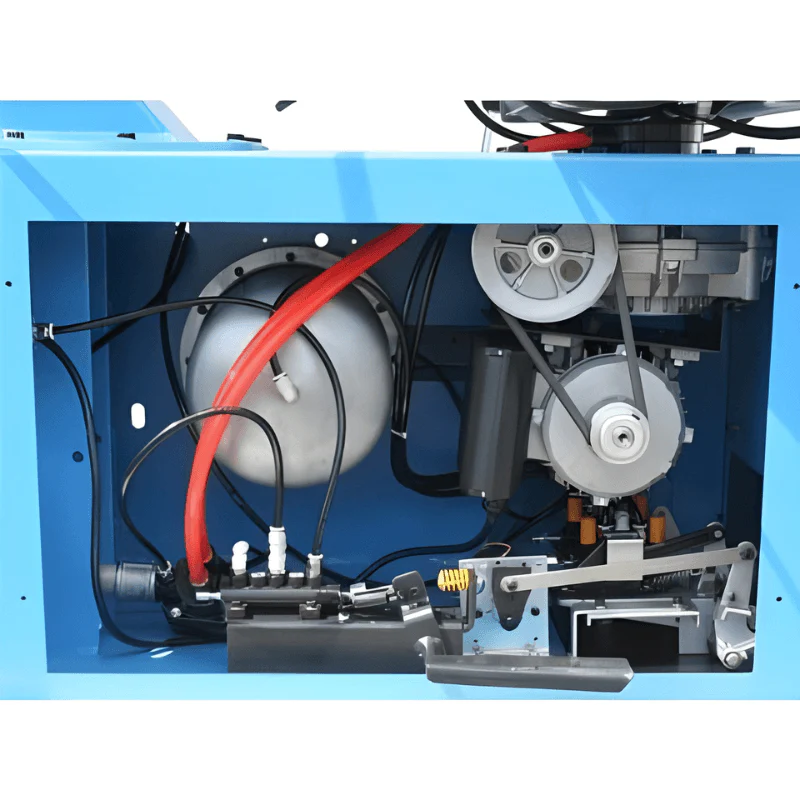

- Electric-powered turntable for smooth and consistent operation

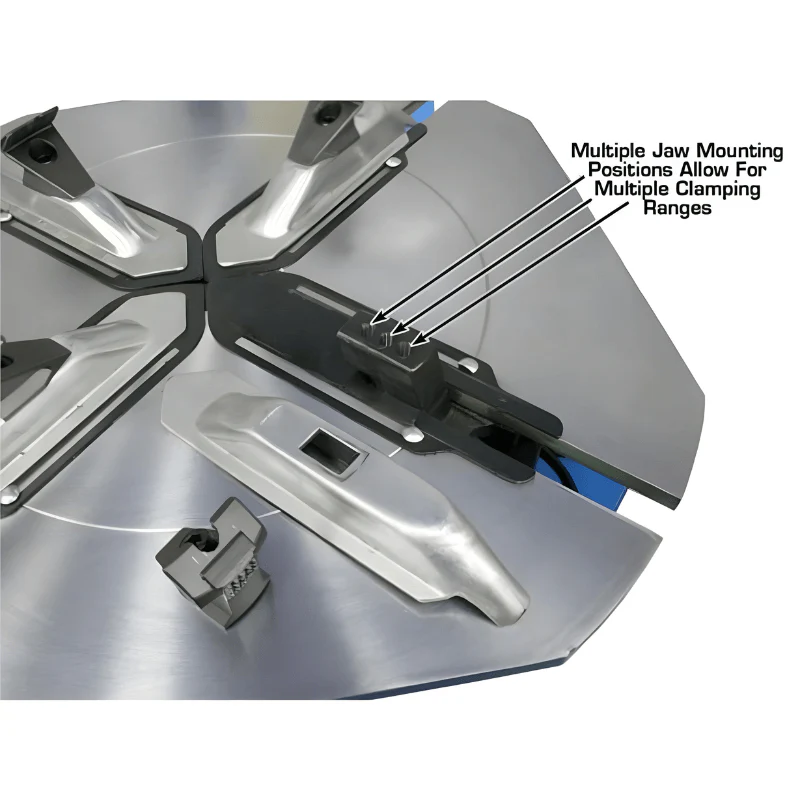

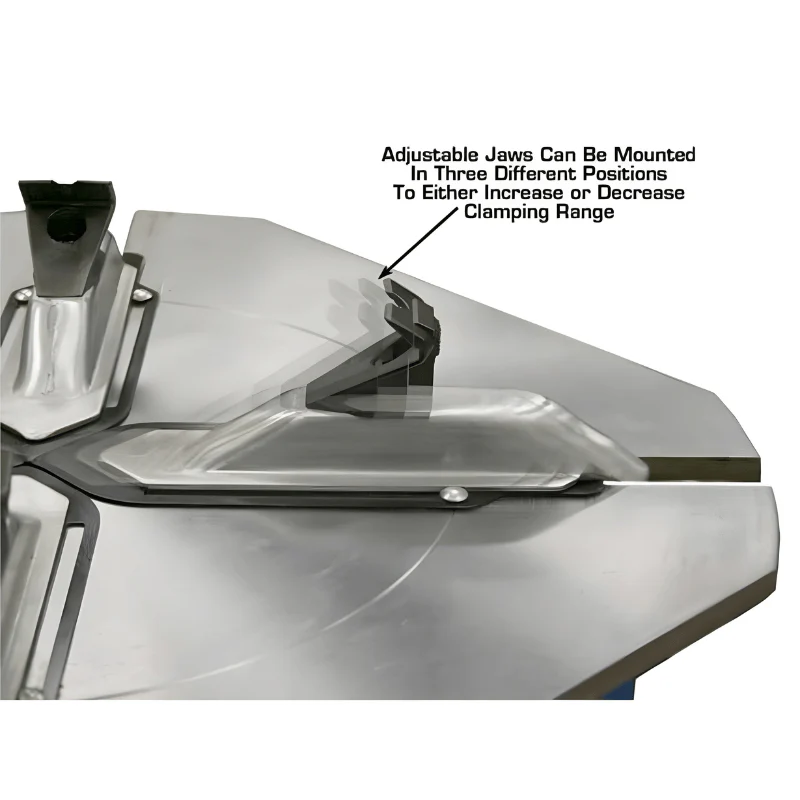

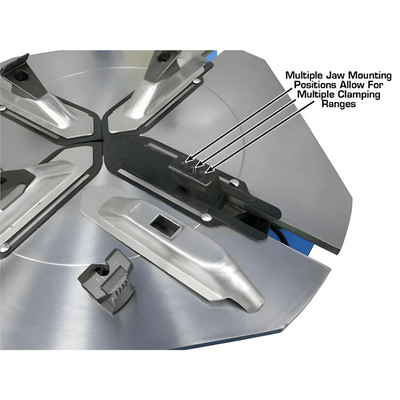

- Adjustable jaws with three mounting positions
- Adjustable bead breaker plate for improved flexibility

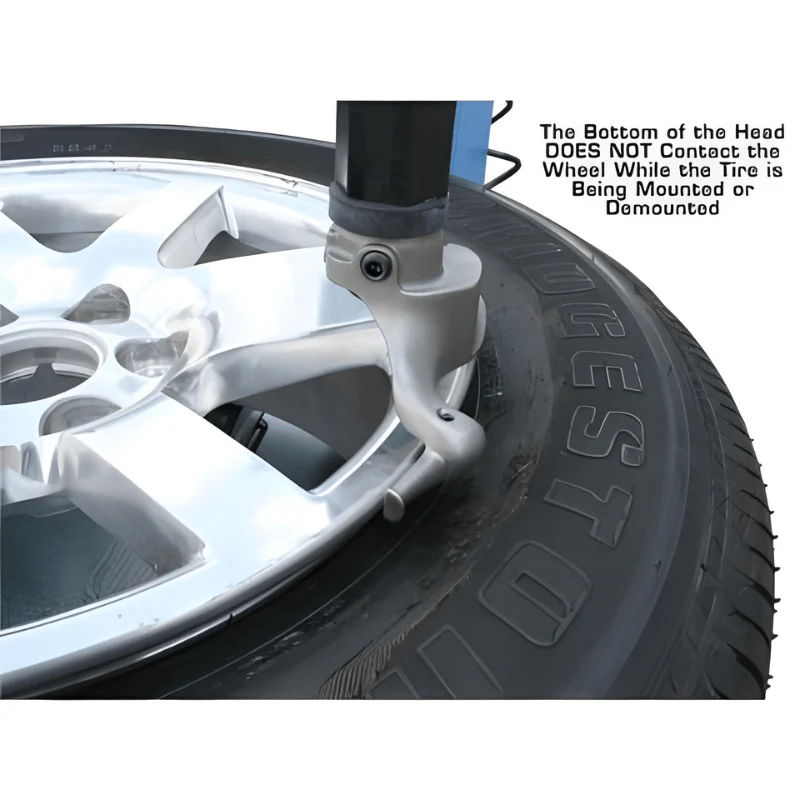

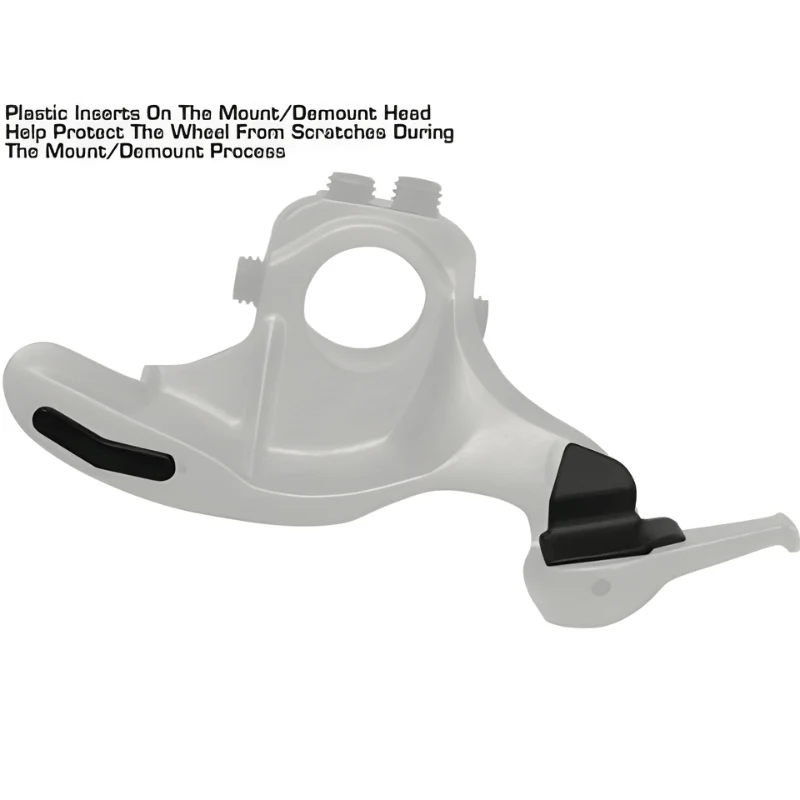

- Heavy-duty mount/demount head with roller or replaceable inserts

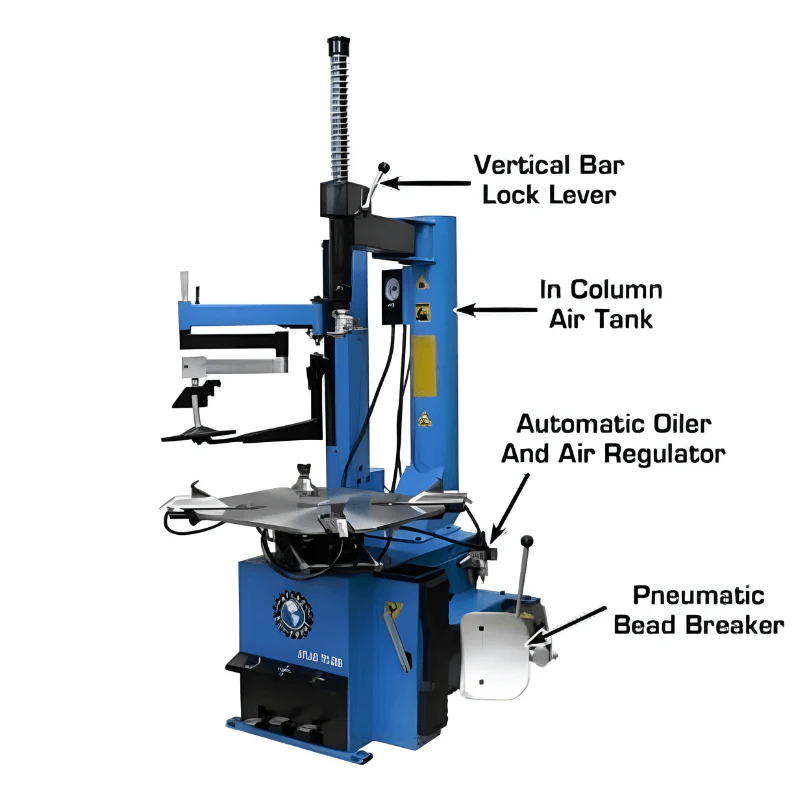

- Column-mounted inflator with pressure gauge included
- Filter, regulator, and lubricator system included

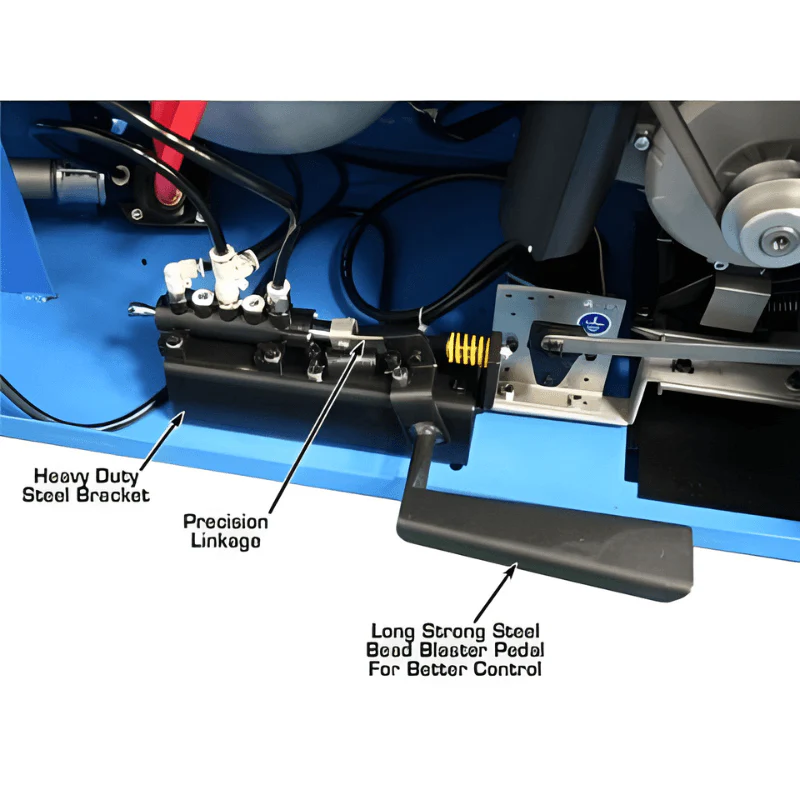

- Built-in beadblaster system for seating difficult tire beads

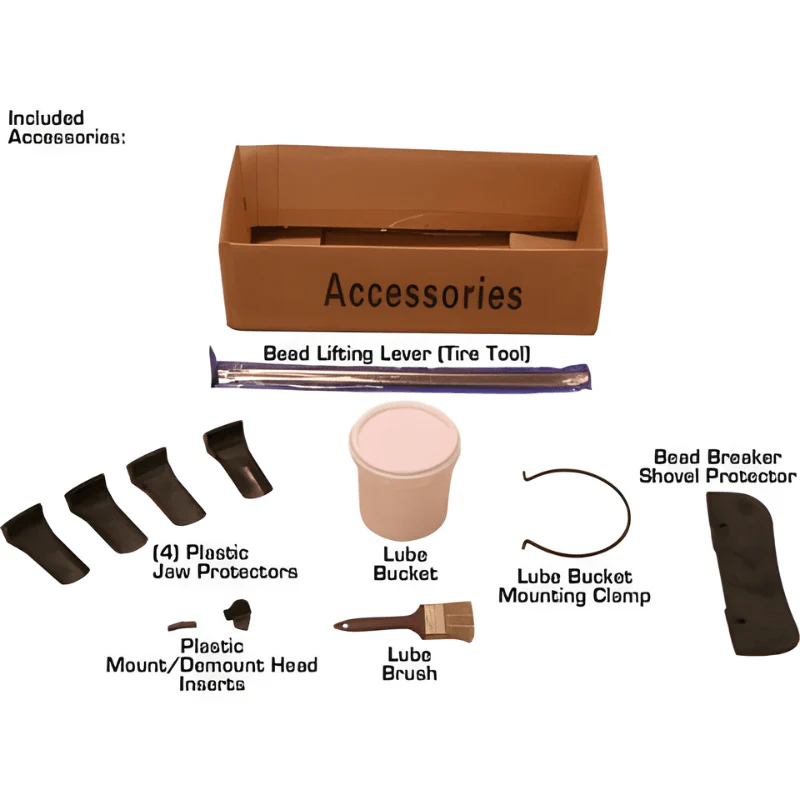

- Includes 20" tire tool for standard tire service
- Lube bucket with brush included
- Protective plastic jaw covers to help prevent rim damage
- Bead breaker shovel includes protective plastic cover
- Multiple replacement inserts included for mount/demount head
- Motorcycle and ATV adapters available (sold separately)

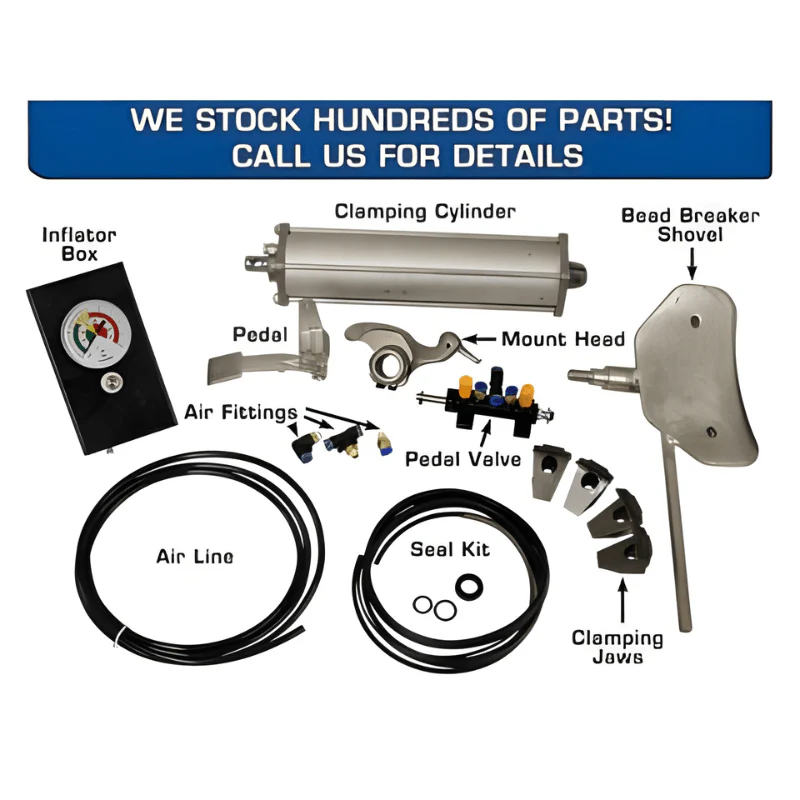

- Replacement parts and wear items readily available
- 1-year parts-only warranty included
Performance & Design Highlights
The TC289LH is engineered for shops that regularly handle larger and more demanding tire setups. Its oversized turntable and extended clamping range allow operators to work on larger diameter wheels without additional accessories. The left-hand assist arm improves control during mounting and demounting, especially when dealing with tough or low-profile tires. The adjustable bead breaker delivers strong, controlled force to separate stubborn beads without damaging the rim, while the clamping system securely holds wheels in place. The integrated beadblaster ensures proper bead seating, even on challenging tire combinations.
| Specifications | Details |
|---|---|
| Rims | Steel, Aluminum, Alloy |

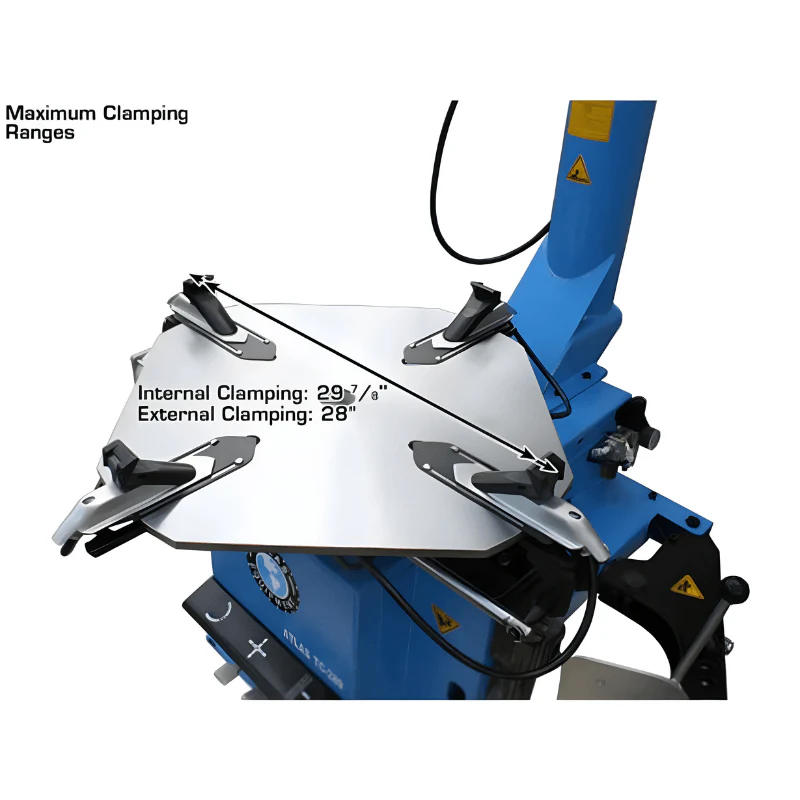

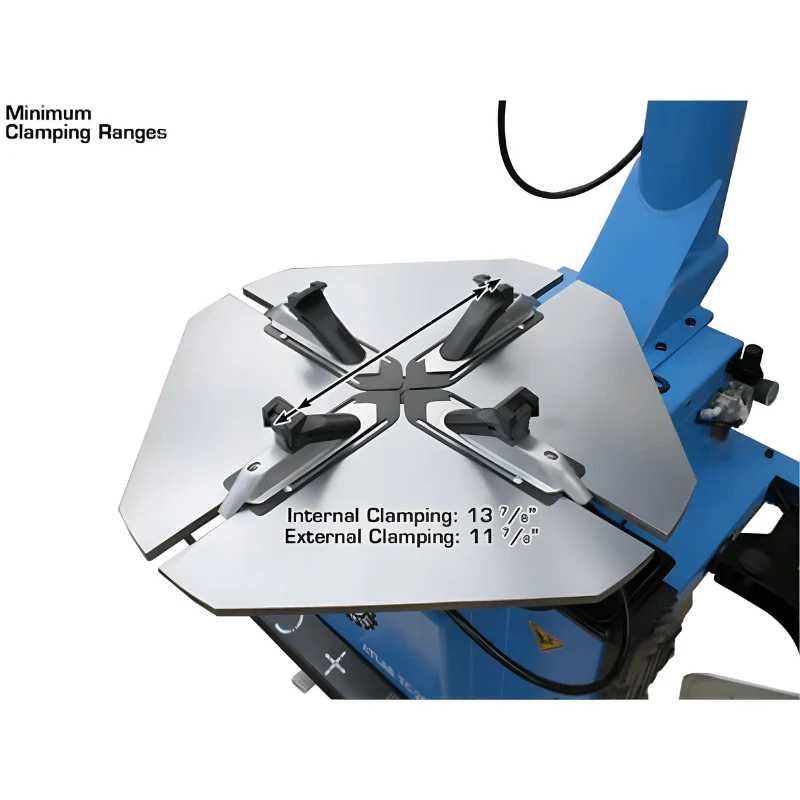

| External Locking Rim Dimension (3 Positions) | 1) 11 7/8" – 26" 2) 12 7/8" – 27" 3) 13 3/4" – 28" |
| Internal Locking Rim Dimension (3 Positions) | 1) 13 7/8" – 27 7/8" 2) 14 5/8" – 28 7/8" 3) 15 5/8" – 29 7/8" |
| Maximum Tire Diameter | 47" |
| Maximum Wheel Width (Bead Breaker) | 18" |
| Table Motor | 1 HP |
| Turntable Rotating Torque | 885 ft/lbs |
| Bead Breaker | 5,500 LB. Force |
| Air Requirement | 90–110 PSI (MUST NOT EXCEED 140 PSI) |
| Operating Voltage | 110V |
| Shipping Weight | 800 lbs. |
