Atlas TC755 Tilt-Back Rim Clamp Tire Changer with Integrated Beadblaster
SKU: ATEATTC755
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

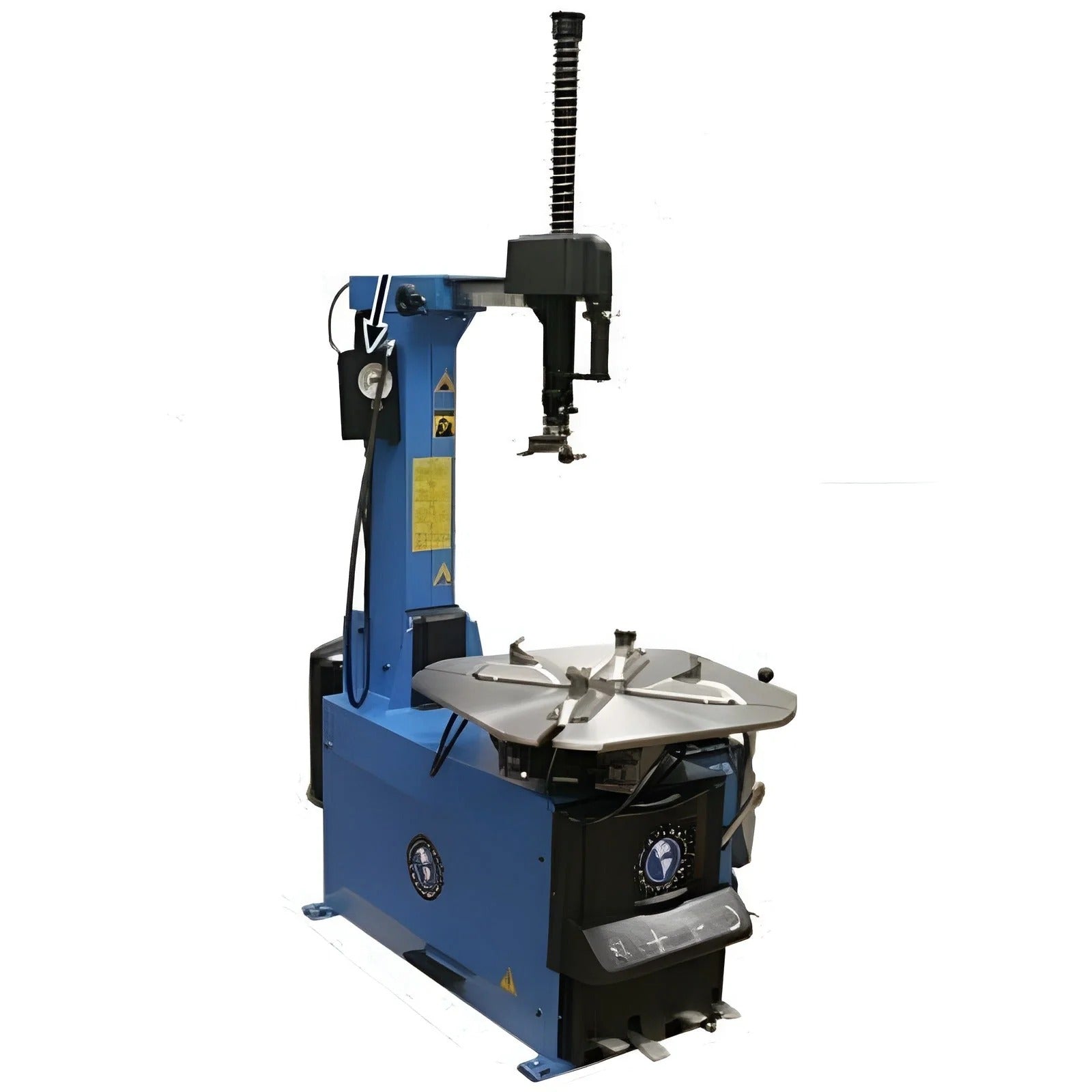

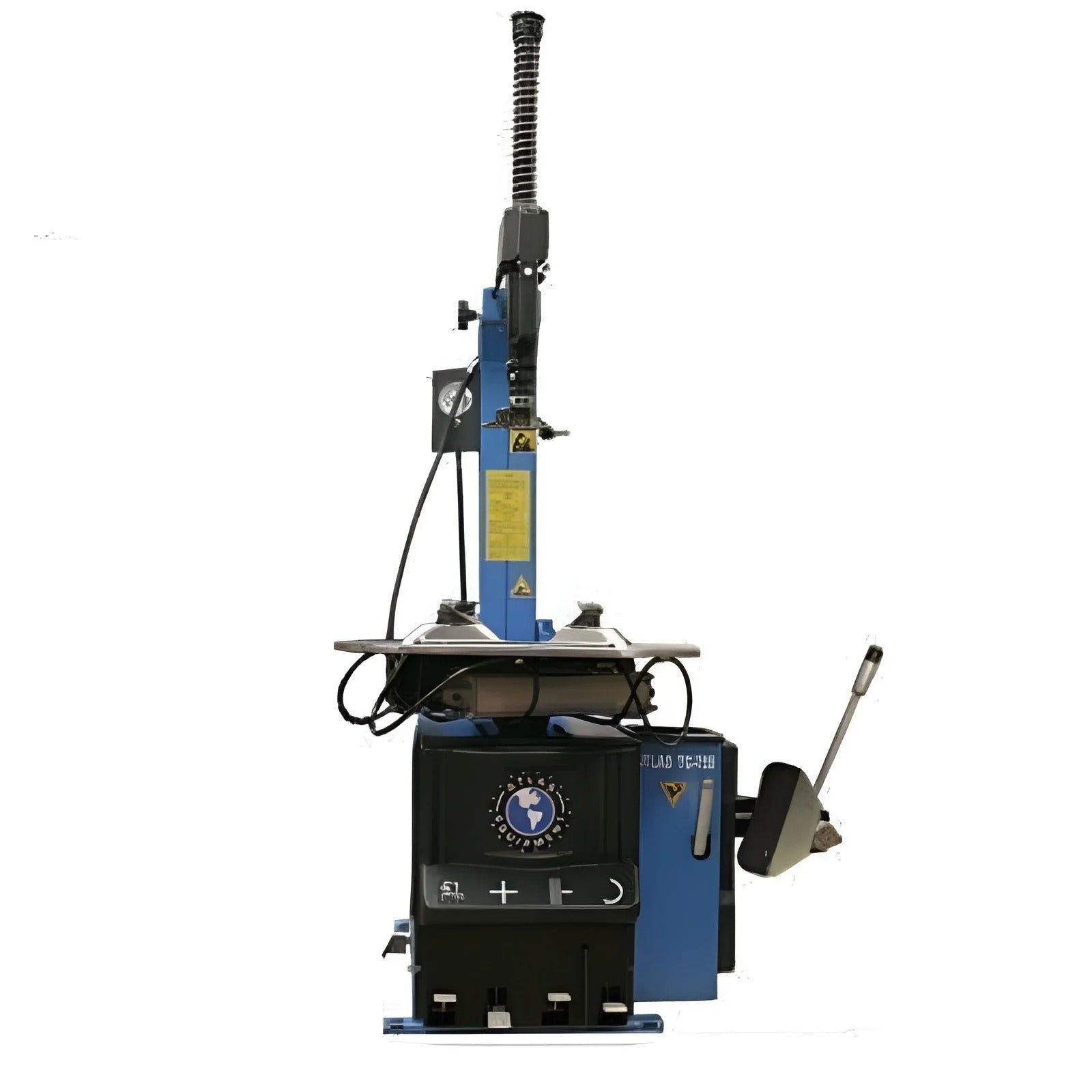

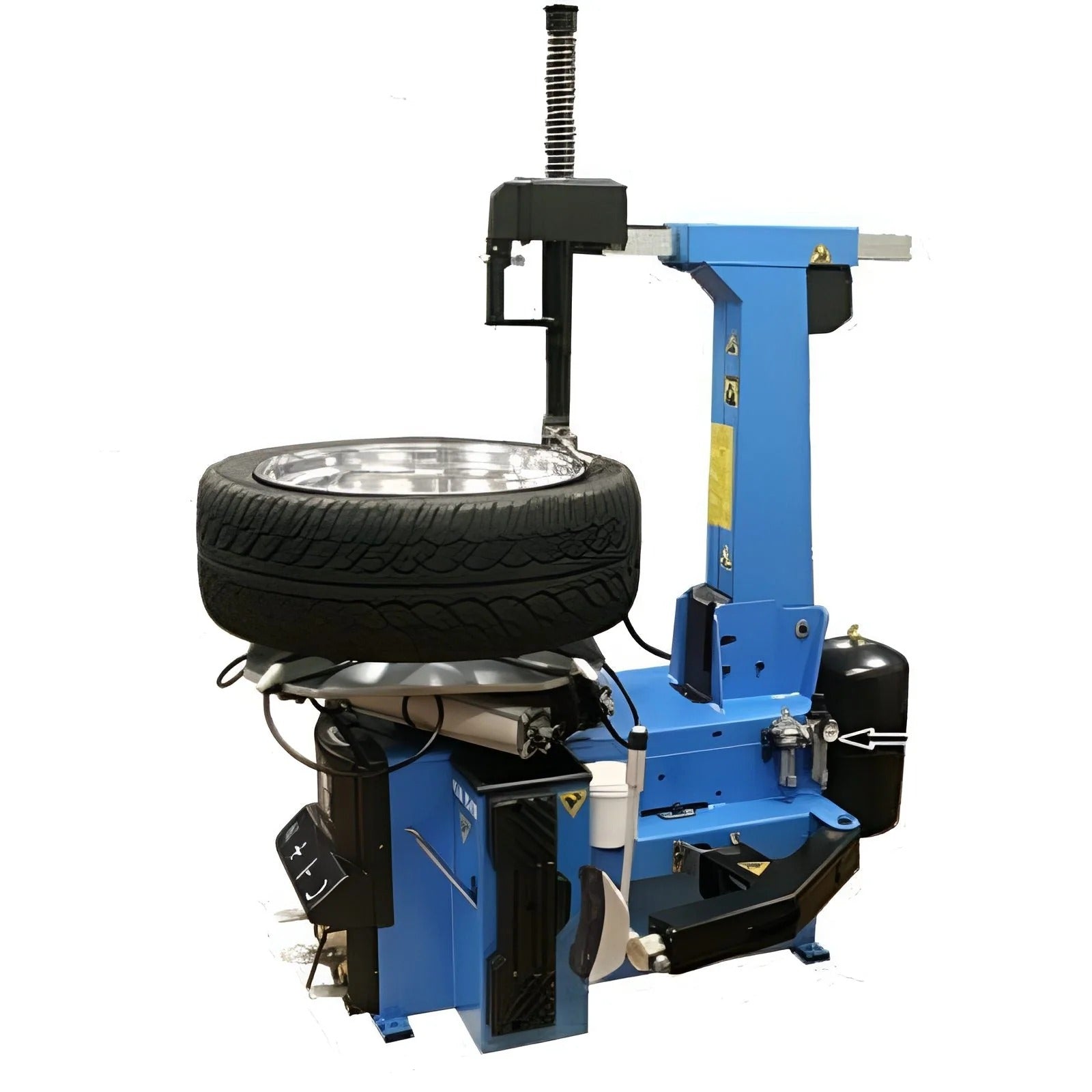

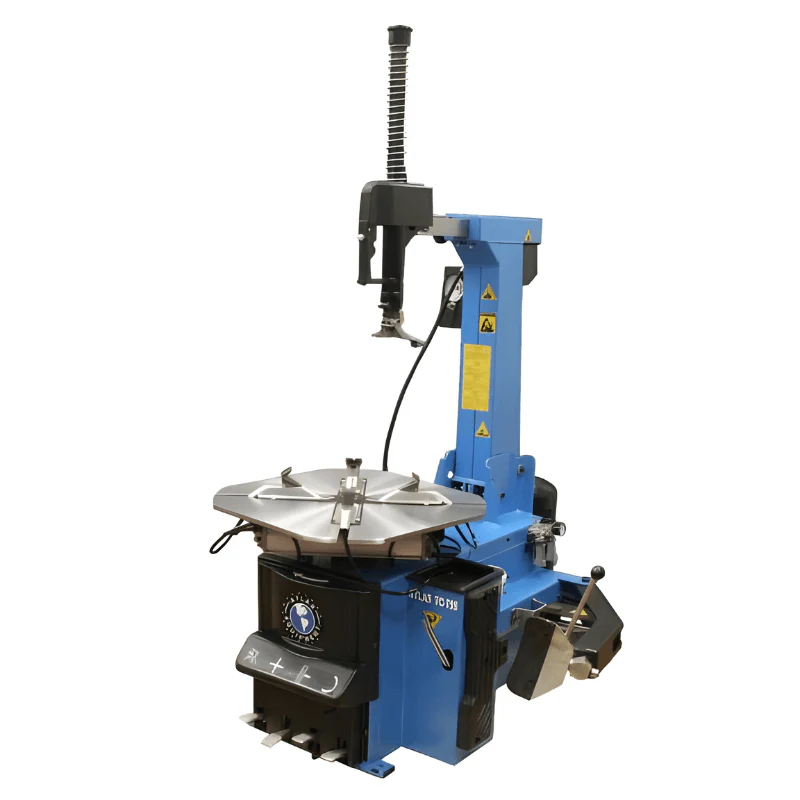

The Atlas TC755 is a professional-grade tilt-back tire changer designed for high-volume shops, tire dealers, and automotive service centers. Built for efficiency and durability, this machine combines a powerful bead breaker, large turntable capacity, and an integrated beadblaster system to handle a wide range of tire and wheel combinations with ease.

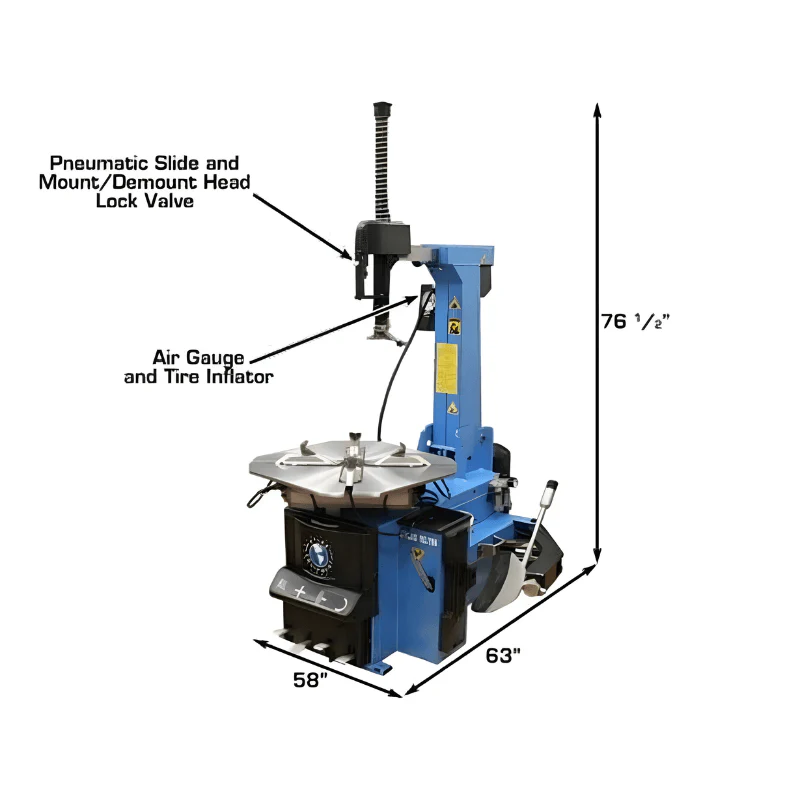

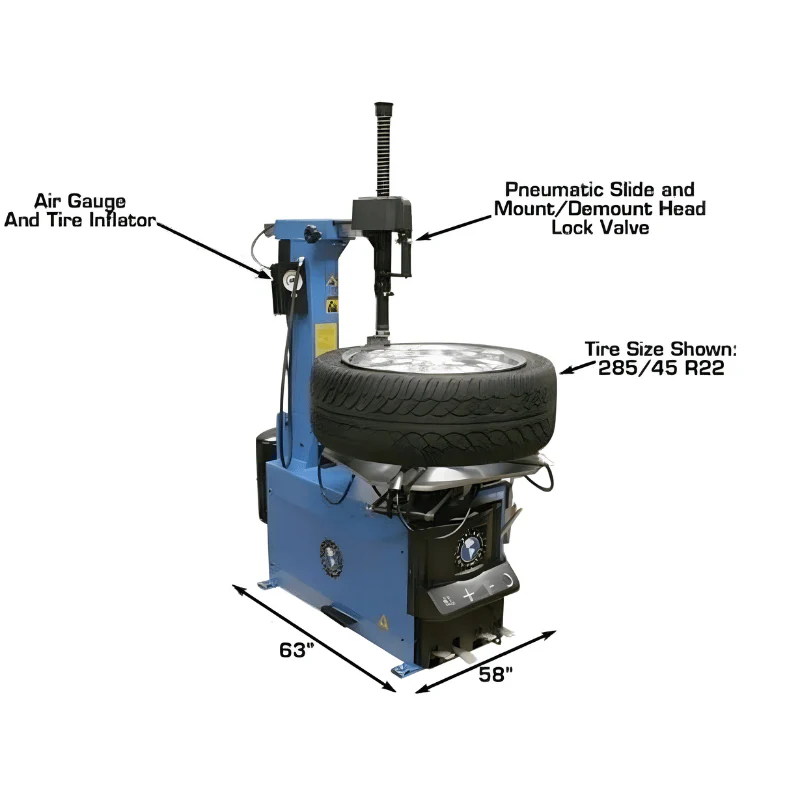

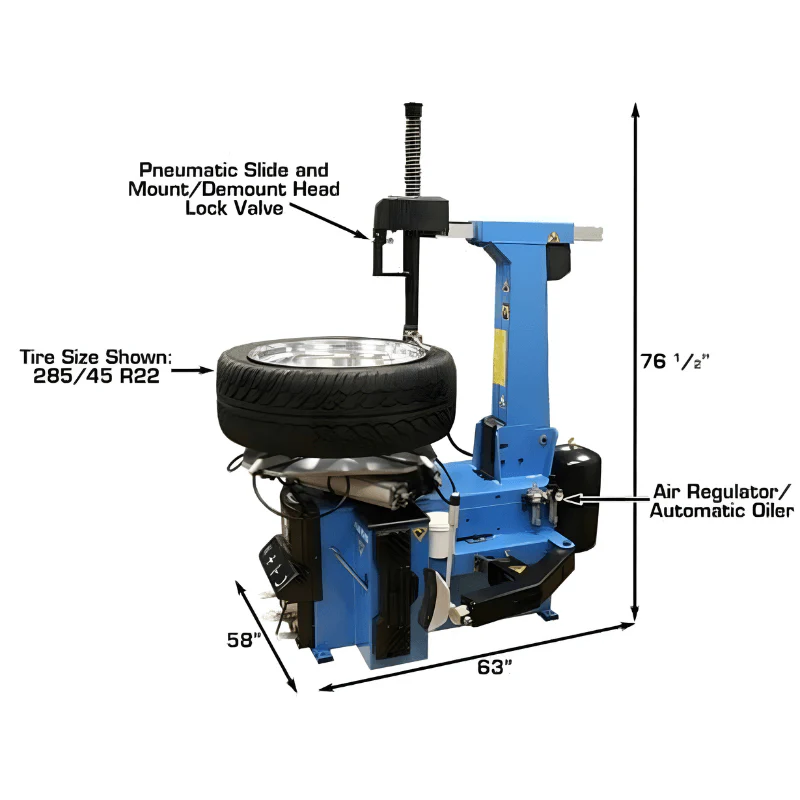

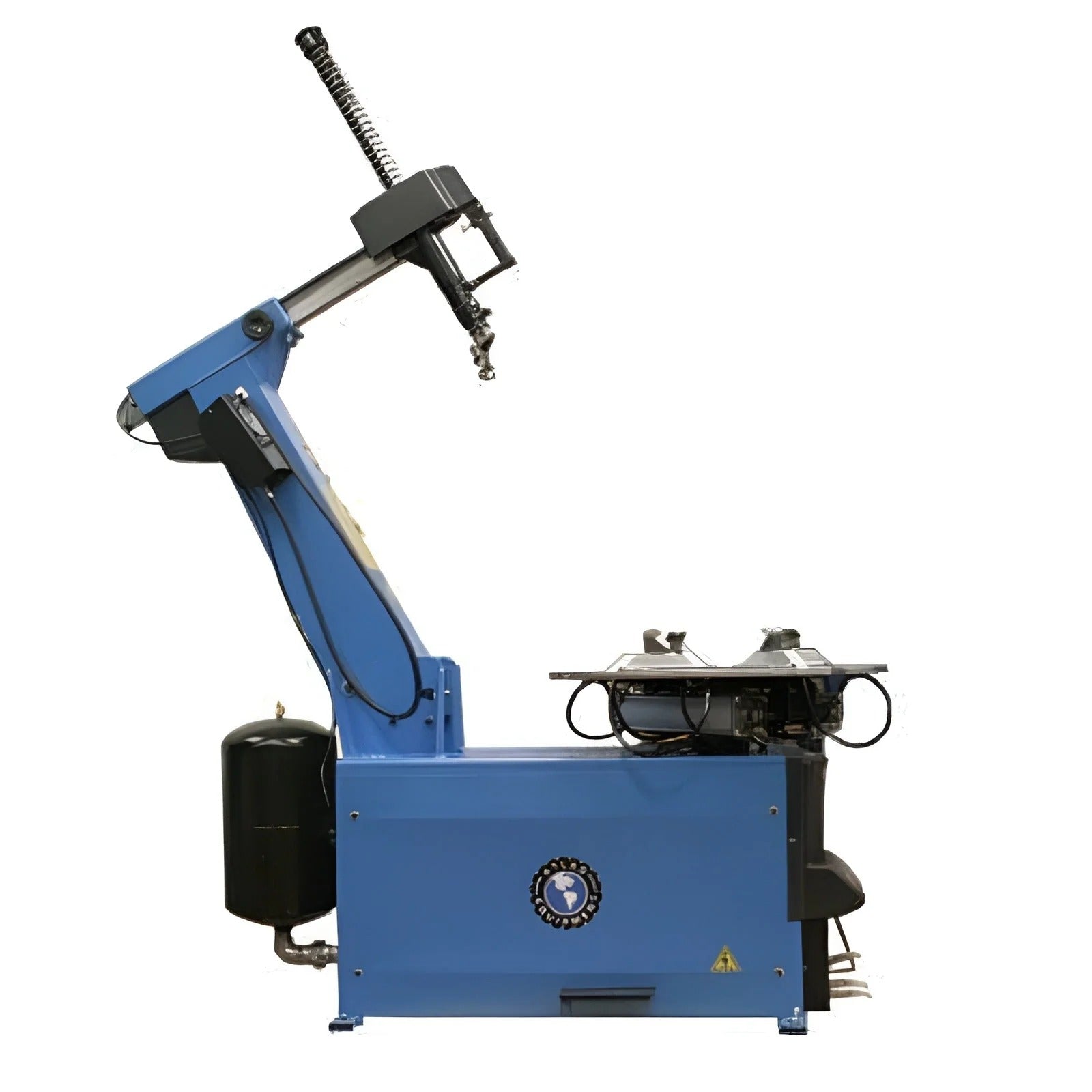

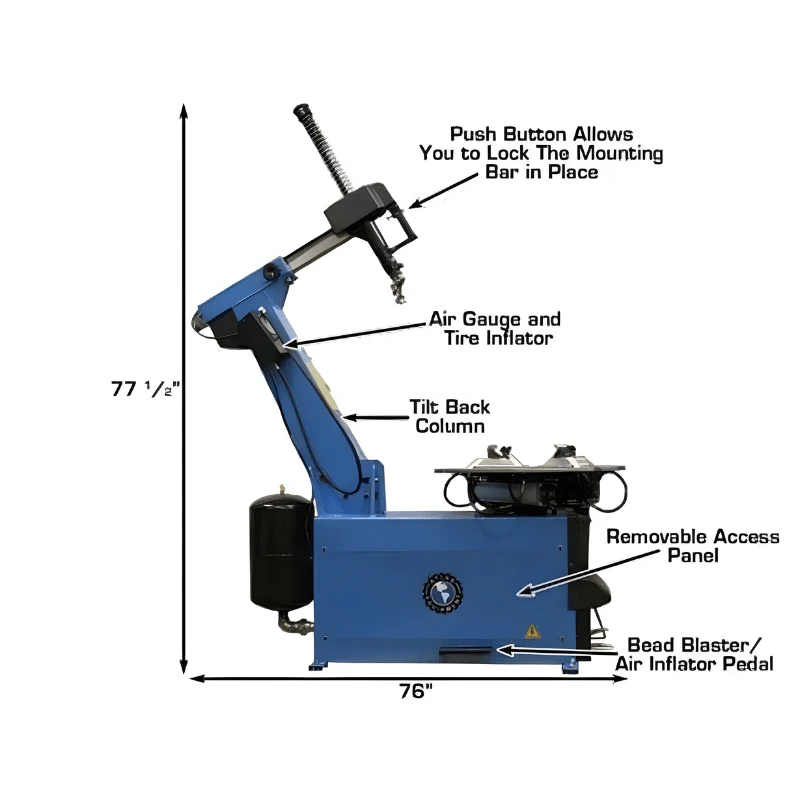

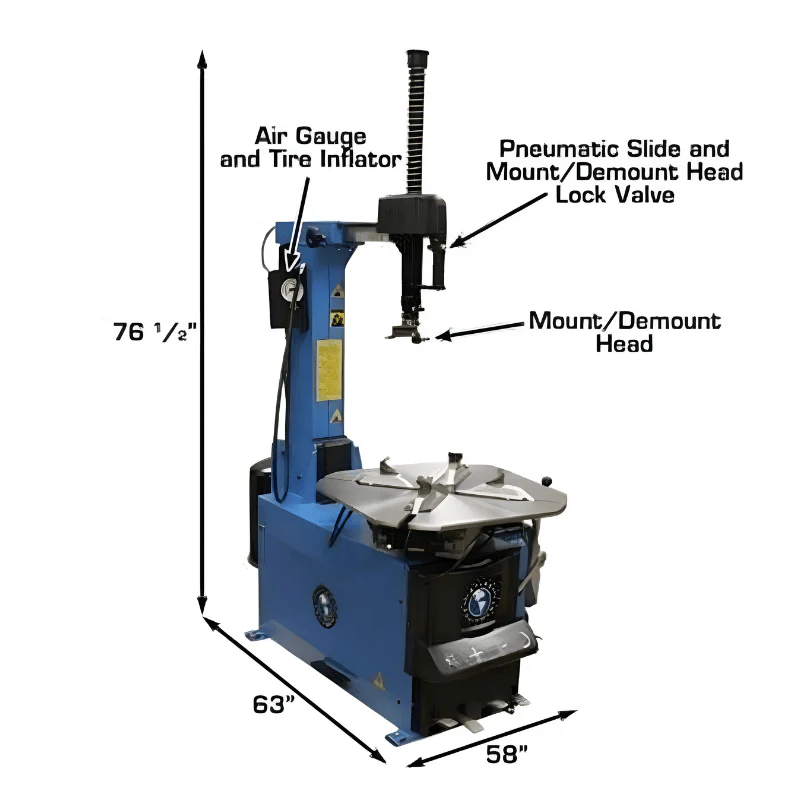

The tilt-back column design allows for faster operation and improved workspace access, reducing the risk of accidental contact with the machine while mounting or demounting tires. With its pneumatic locking mount/demount head and adjustable clamping system, the TC755 helps protect rims while delivering consistent, reliable performance.
Key Features & Benefits
- Tilt-back column design for quick and easy tire servicing
- Rim-clamp style turntable for secure wheel handling
- Oversized turntable provides added clearance for larger wheels
- Air-operated jaws and bead breaker (external air required)

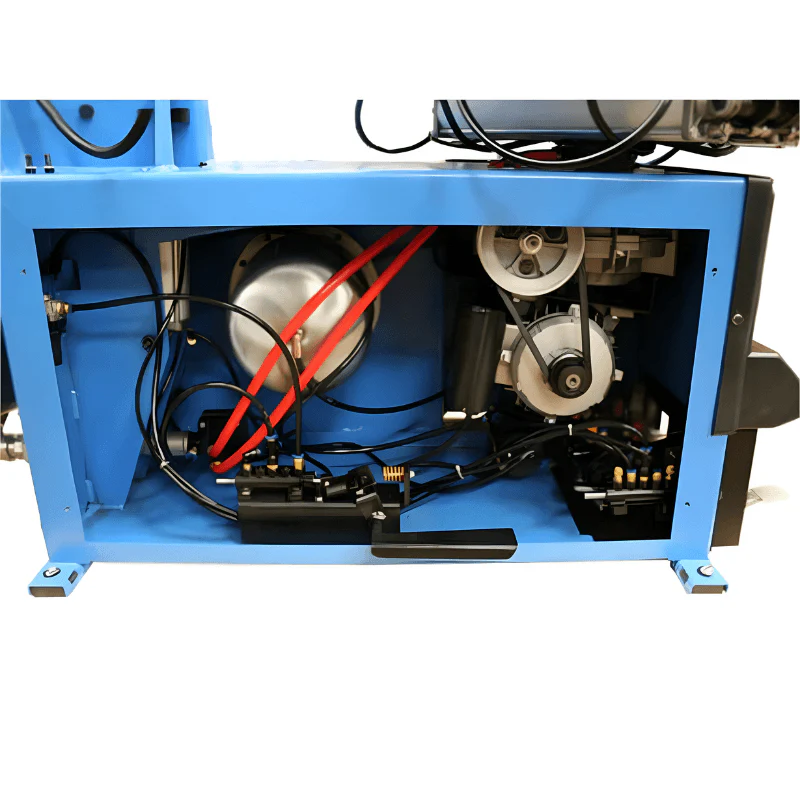

- Electric-powered turntable for smooth operation

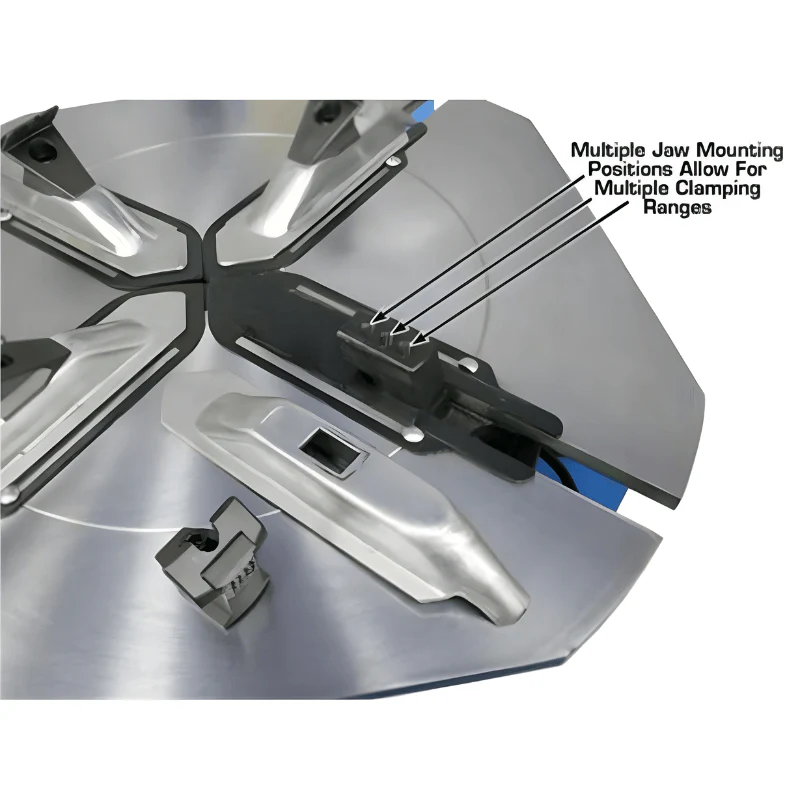

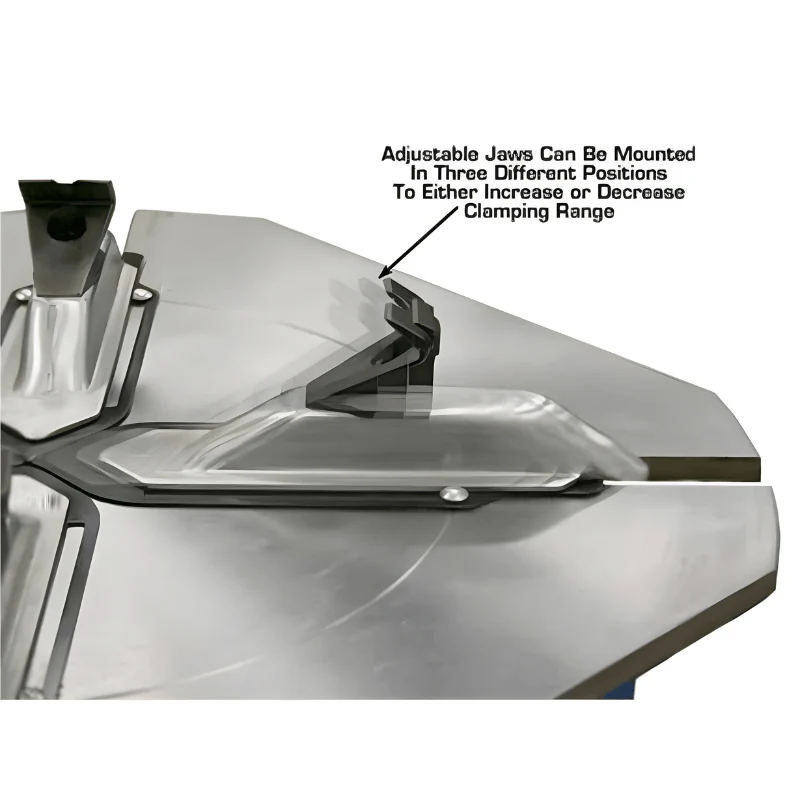

- Adjustable clamping jaws with three mounting positions

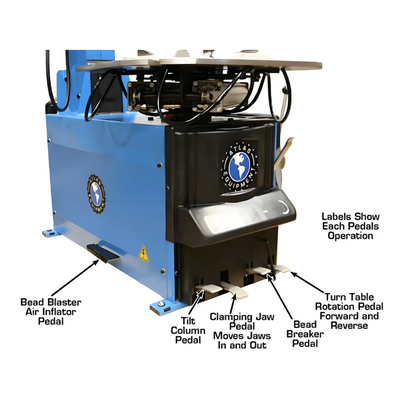

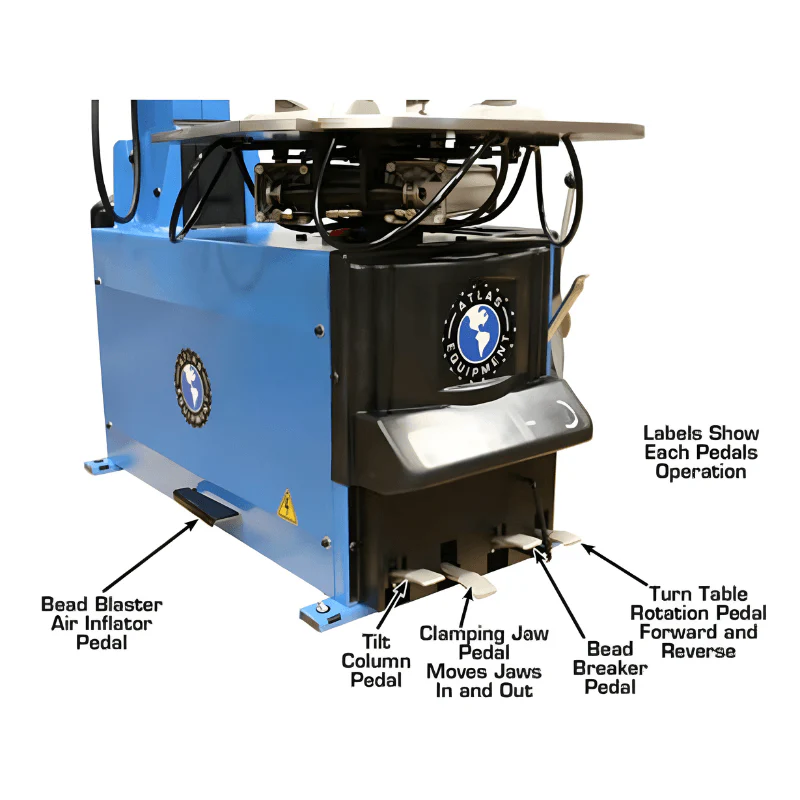

- Button-controlled bead breaker positioned at the blade

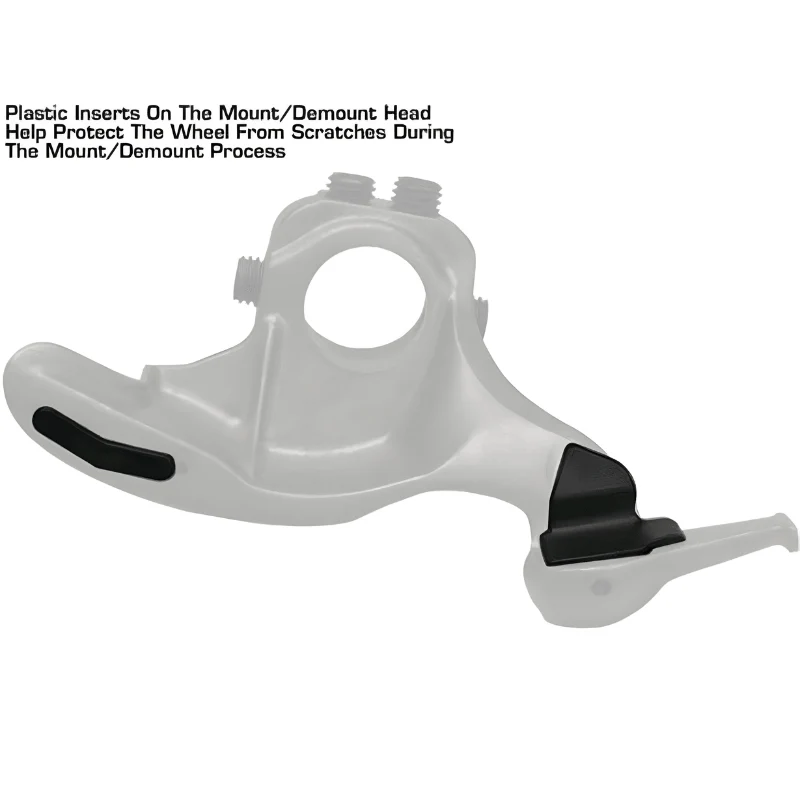

- Durable metal mount/demount head with roller or replaceable inserts
- Integrated inflator box with pressure gauge mounted on column
- Filter, regulator, and lubricator system included
- Built-in beadblaster system for seating difficult tire beads

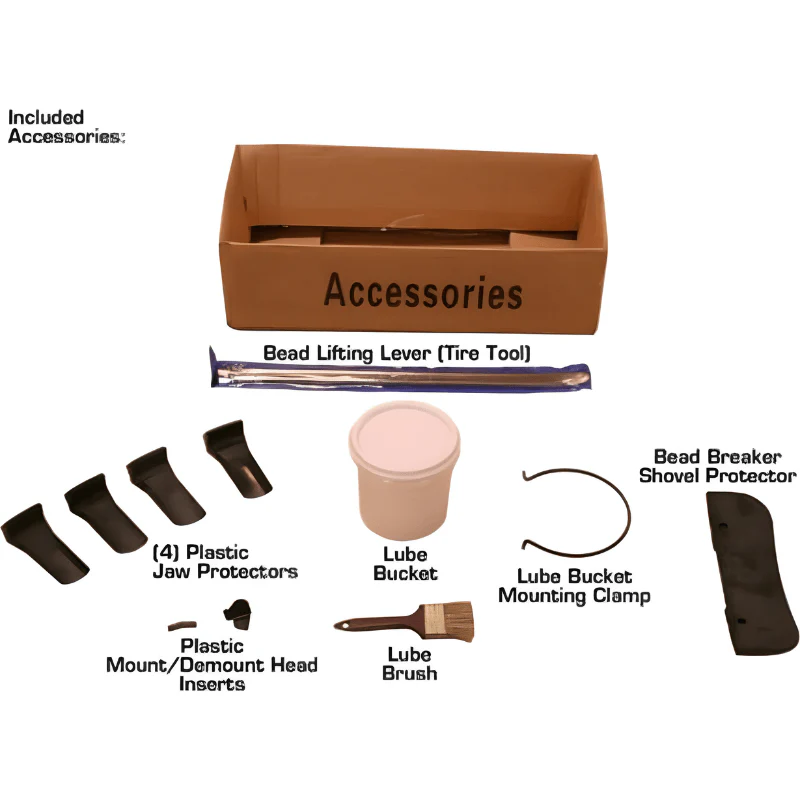

- Includes 20" tire tool for standard operations
- Lube bucket with brush included for efficient workflow
- Protective plastic jaw covers included to prevent rim damage
- Bead breaker shovel includes protective plastic cover
- Multiple replacement inserts included for mount/demount head

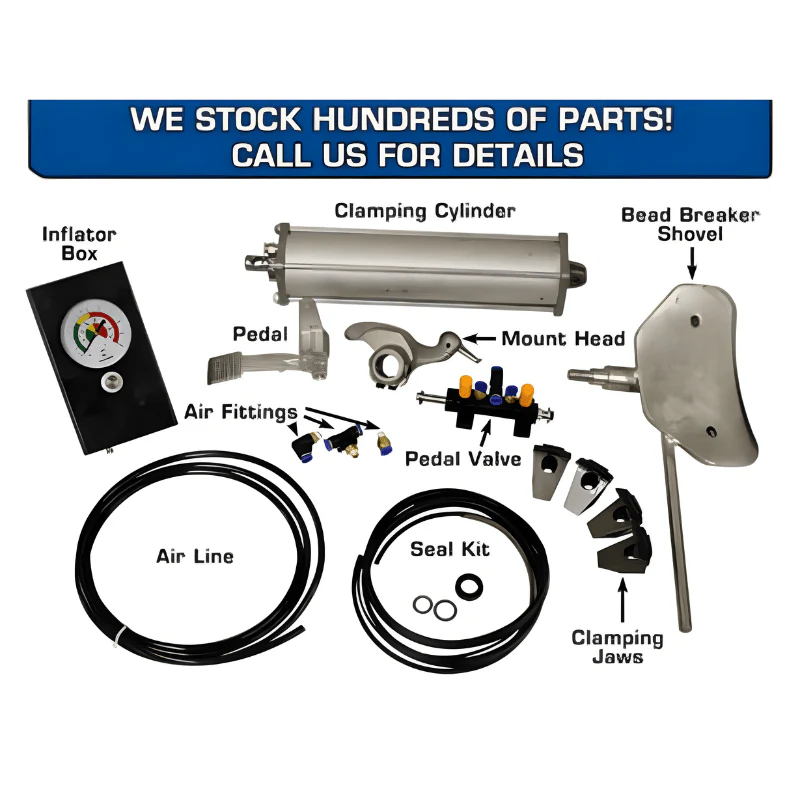

- Replacement parts and wear items readily available
- Backed by a 1-year parts-only warranty
Performance & Design Highlights

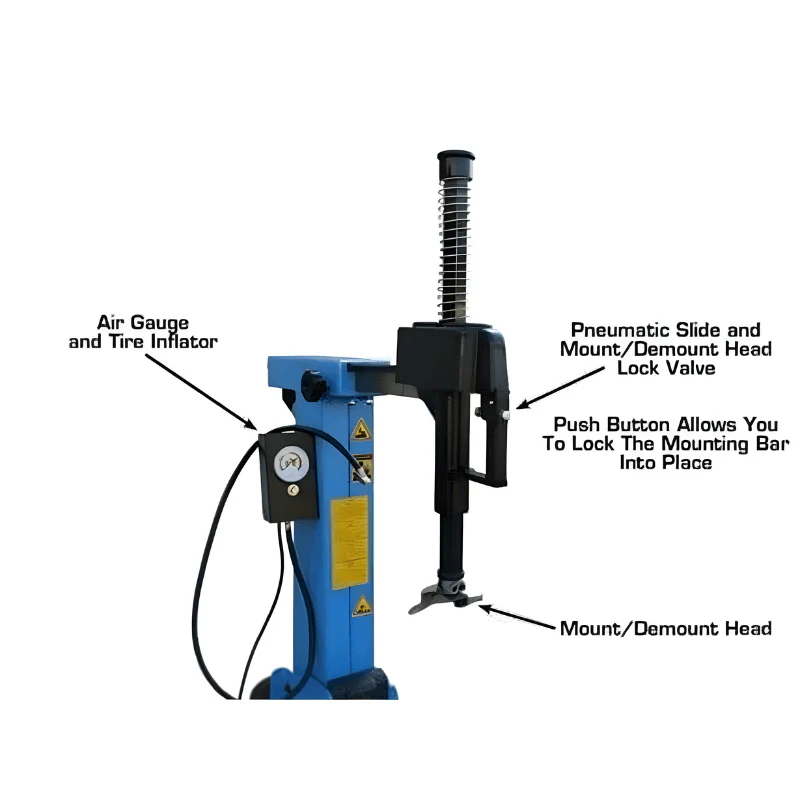

The TC755 is engineered for shops that need speed and reliability. The tilt-back column eliminates the need to manually reposition components, allowing for smoother transitions between jobs. Its pneumatic locking system keeps the mount/demount head securely in place, minimizing the chance of wheel damage.
The extra-large turntable allows the machine to clamp larger rims—often up to 26 inches—without requiring additional adapters. Meanwhile, the integrated beadblaster system provides the extra burst of air needed to seat stiff or low-profile tires efficiently.

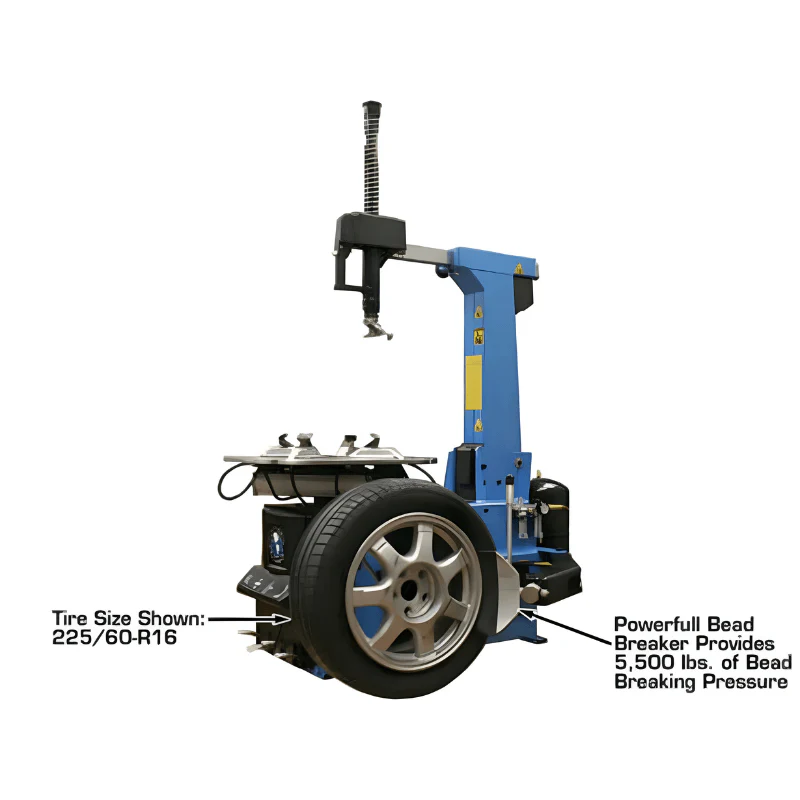

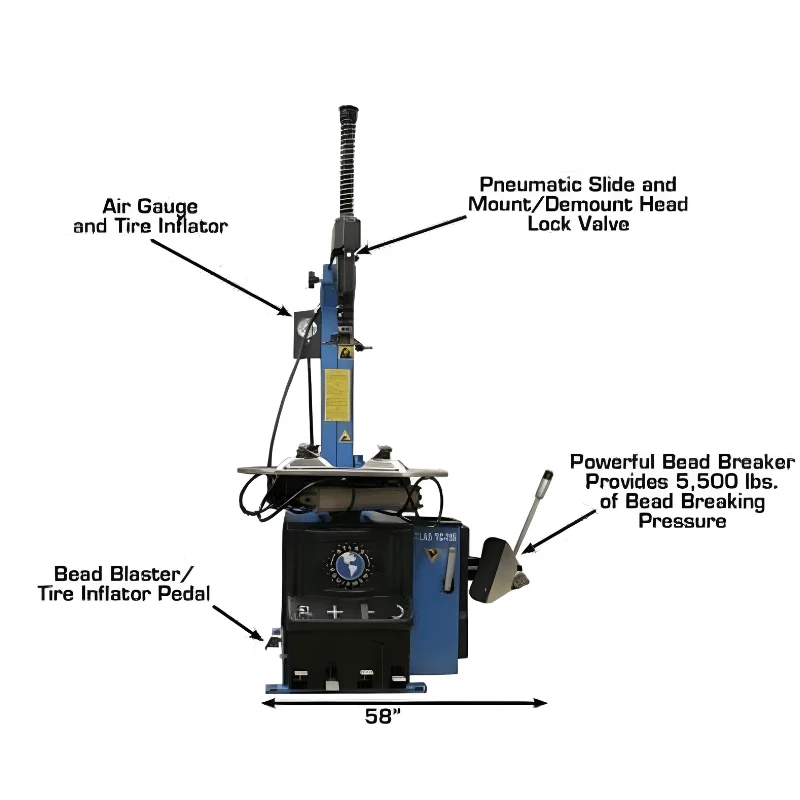

A powerful side-mounted bead breaker delivers strong, controlled force to handle stubborn or corroded beads, while the adjustable jaw system ensures compatibility with a wide variety of wheel sizes.
| Specifications | Details |
|---|---|
| Rims | Steel, Aluminum, Alloy |

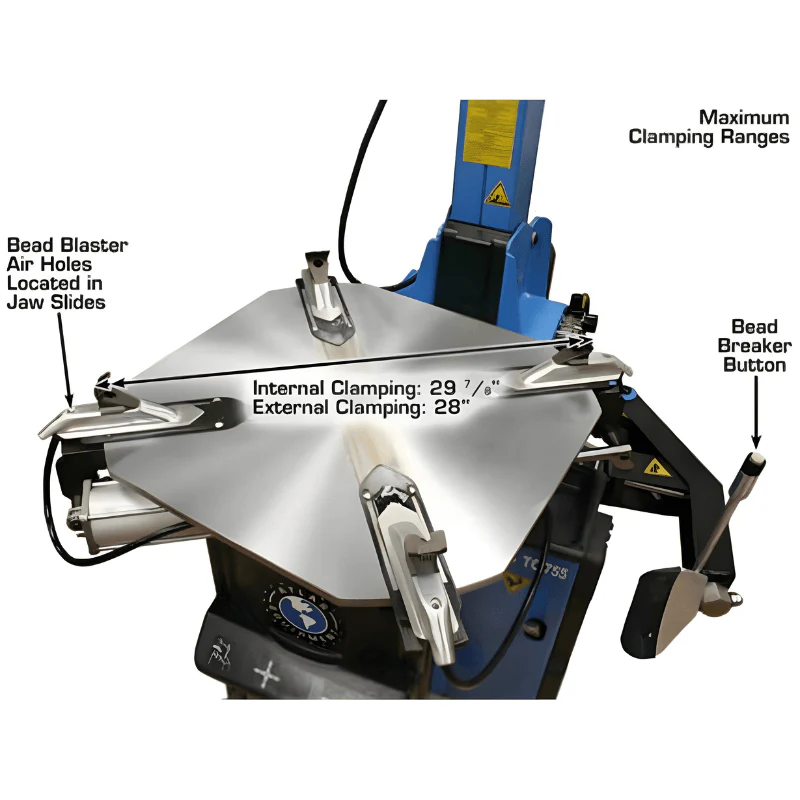

| External Locking Rim Dimension (3 Positions) | 1) 11 7/8" – 26" 2) 12 7/8" – 27" 3) 13 3/4" – 28" |
| Internal Locking Rim Dimension (3 Positions) | 1) 13 7/8" – 27 7/8" 2) 14 5/8" – 28 7/8" 3) 15 5/8" – 29 7/8" |
| Maximum Tire Diameter | 47" |
| Maximum Wheel Width (Bead Breaker) | 18" |
| Table Motor | 1 HP |
| Turntable Rotating Torque | 885 ft/lbs |
| Bead Breaker | 5,500 LB. Force |
| Air Requirement | 90–110 PSI (MUST NOT EXCEED 140 PSI) |
| Operating Voltage | 110V |

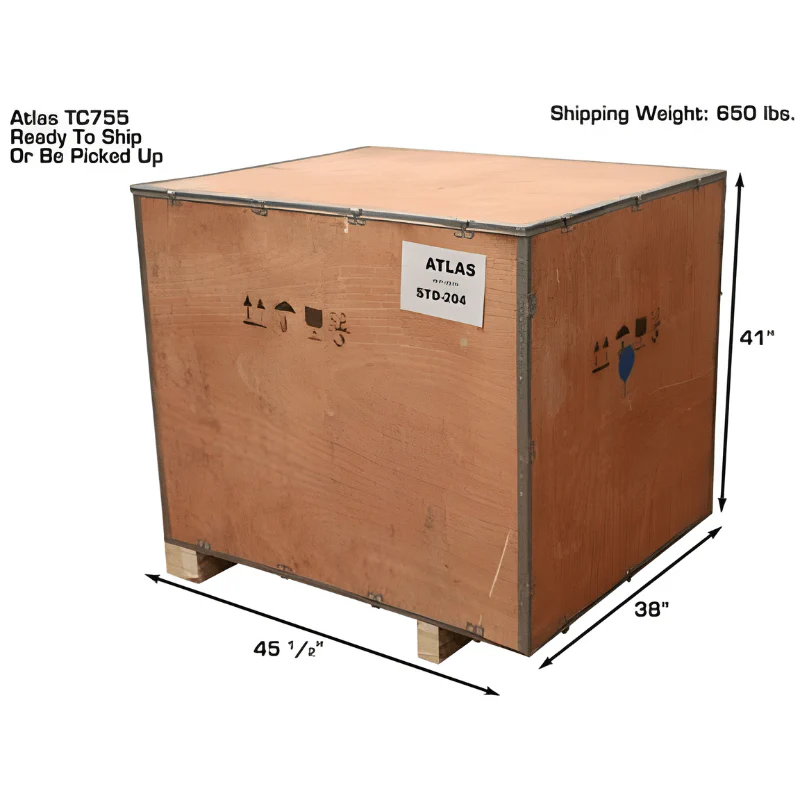

| Shipping Weight | 650 lbs. |
