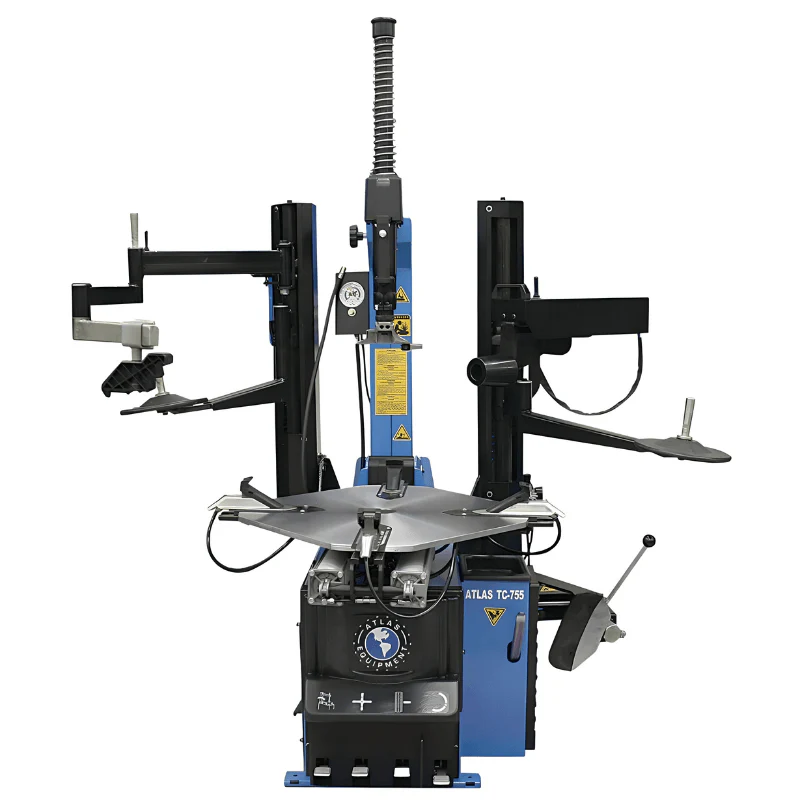

Atlas TC755DAA Wheel Clamp Tire Changer with Dual Assist Arms
SKU: ATETC755DAA
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

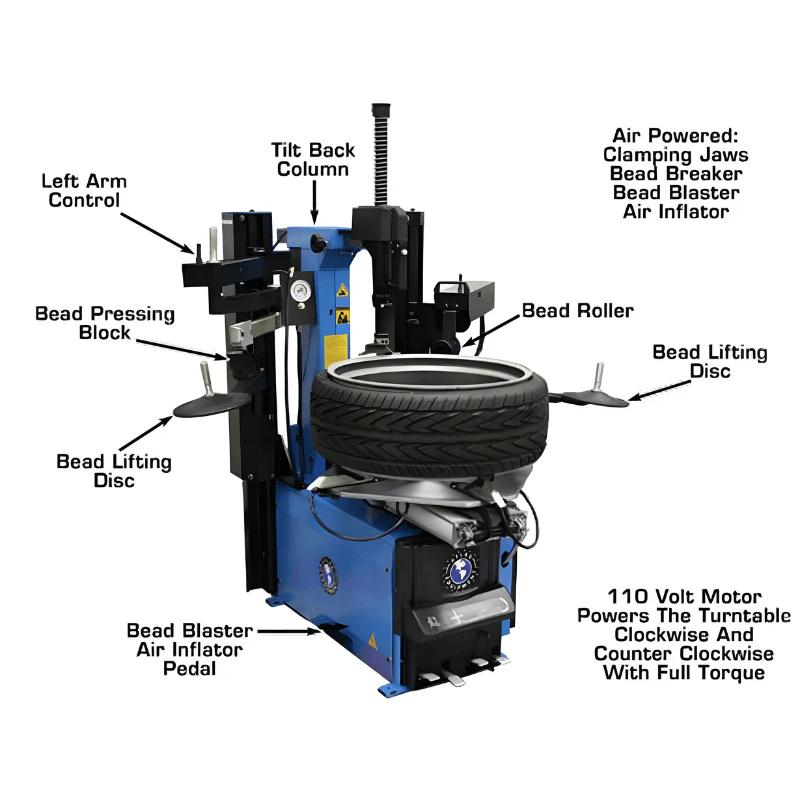

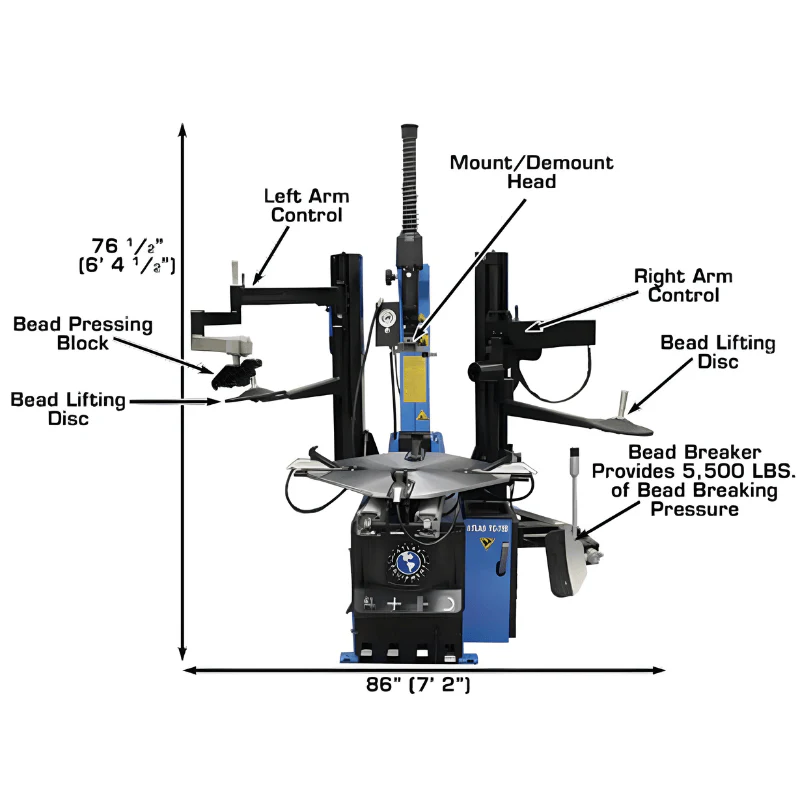

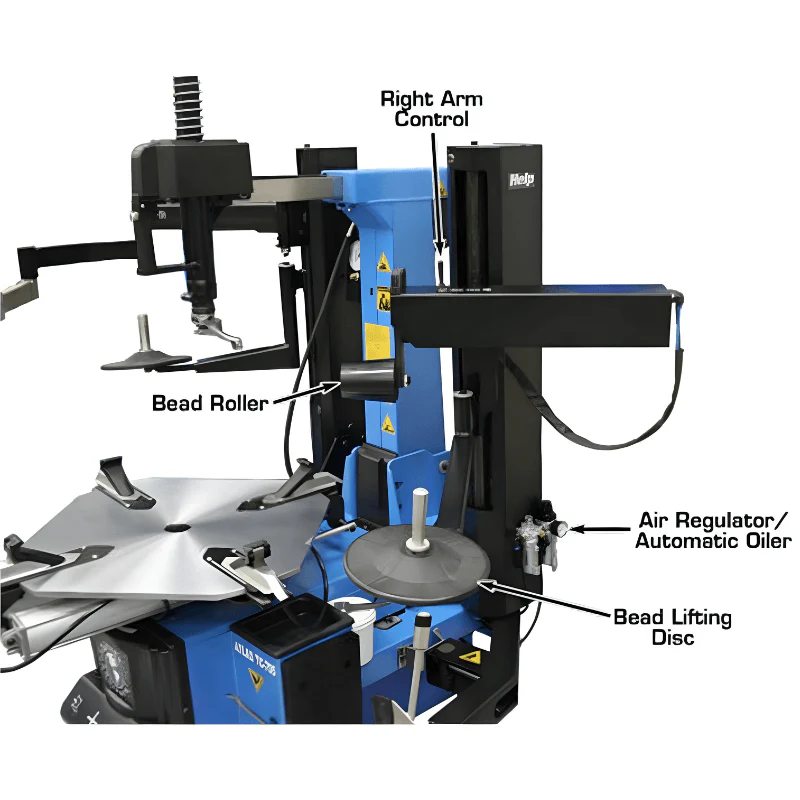

The Atlas TC755DAA is a professional-grade tilt-back rim clamp tire changer designed for high-volume tire shops and large automotive service centers. Equipped with a dual assist arm system, this unit makes handling stiff sidewall, low-profile, and run-flat tires significantly easier while improving speed and efficiency. The tilt-back column design allows for quick positioning and better working clearance, while the pneumatic locking mount/demount head helps reduce movement during operation to protect both the wheel and tire. Its extra-large turntable allows clamping of larger rims without the need for additional adapters, and the integrated beadblaster system delivers the air power needed to seat difficult beads. Built for demanding environments, the TC755DAA combines strength, precision, and ease of use for consistent daily performance.
Key Features & Benefits

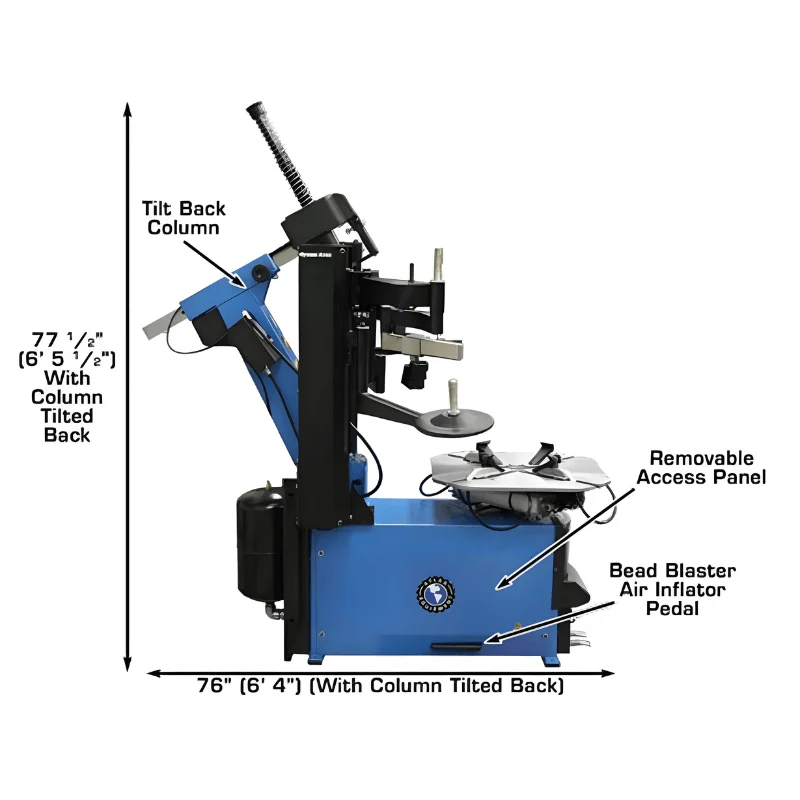

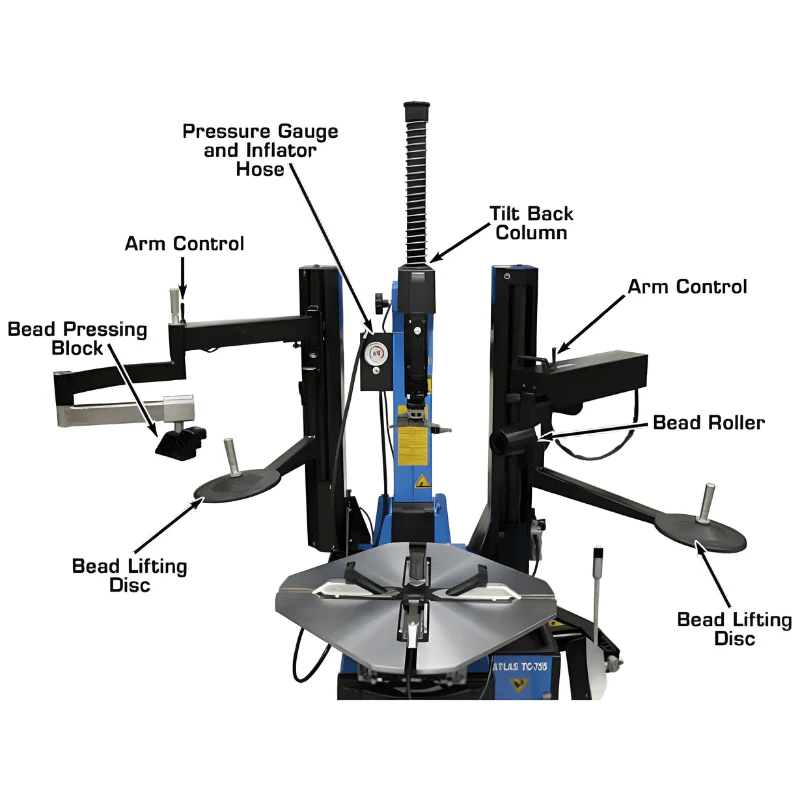

- Tilt-back column design for faster and safer operation

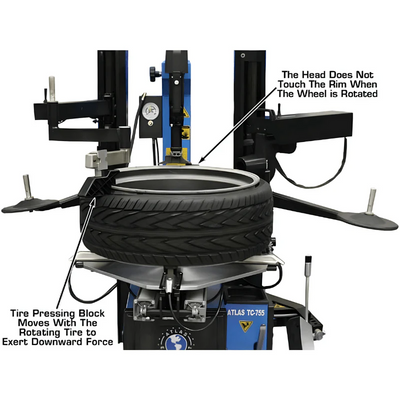

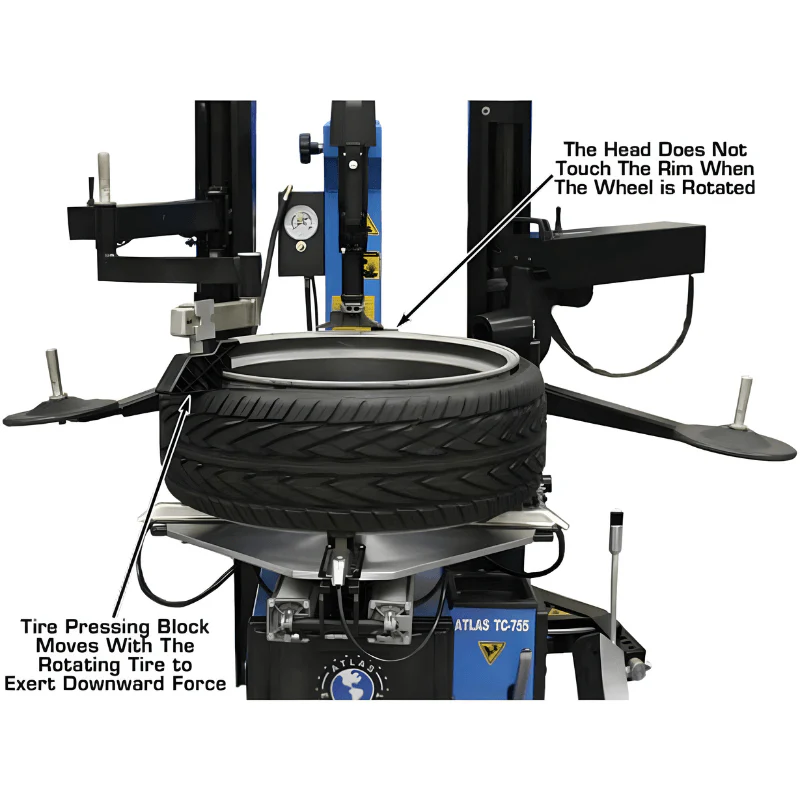

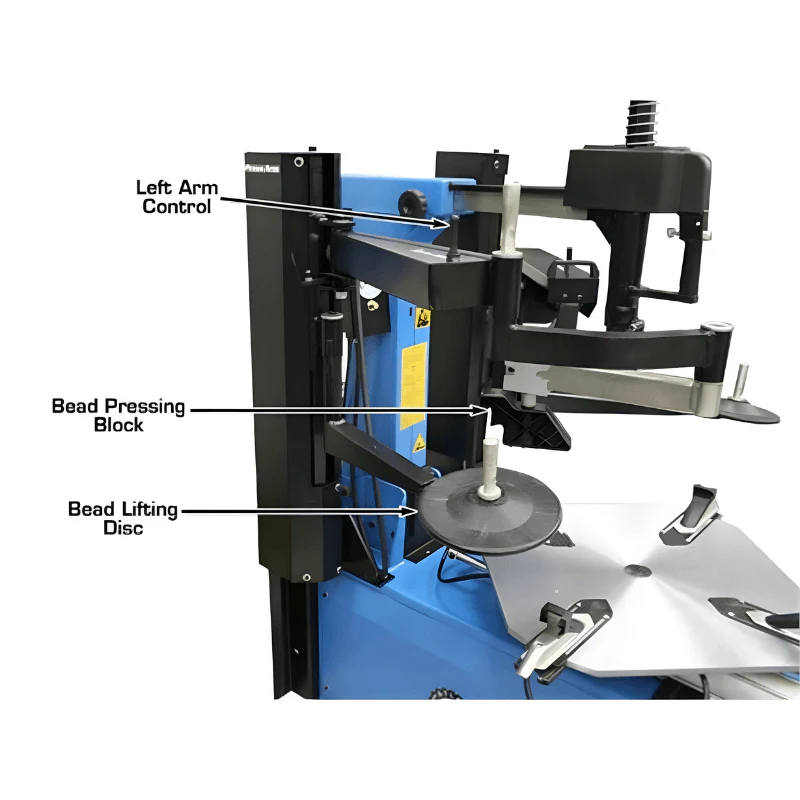

- Dual assist arms for improved control on low-profile and run-flat tires
- Rim-clamp style turntable for secure wheel positioning
- Extra-large turntable provides increased clearance for larger rims
- Air-operated jaws and bead breaker (external air required)
- Electric-powered turntable for smooth, consistent rotation
- Adjustable clamping jaws with three mounting positions

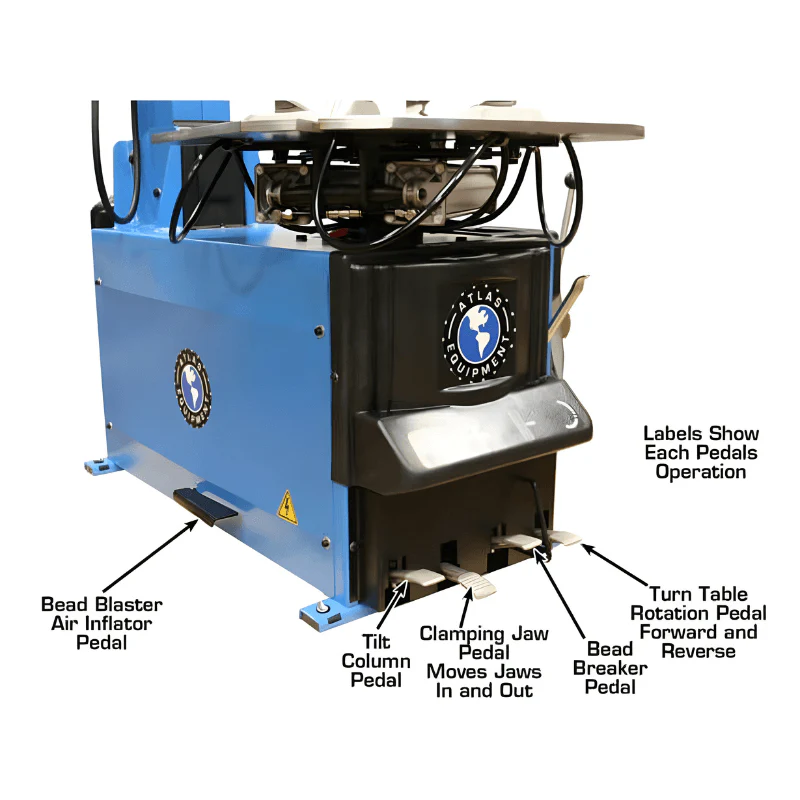

- Button-controlled bead breaker located at the blade

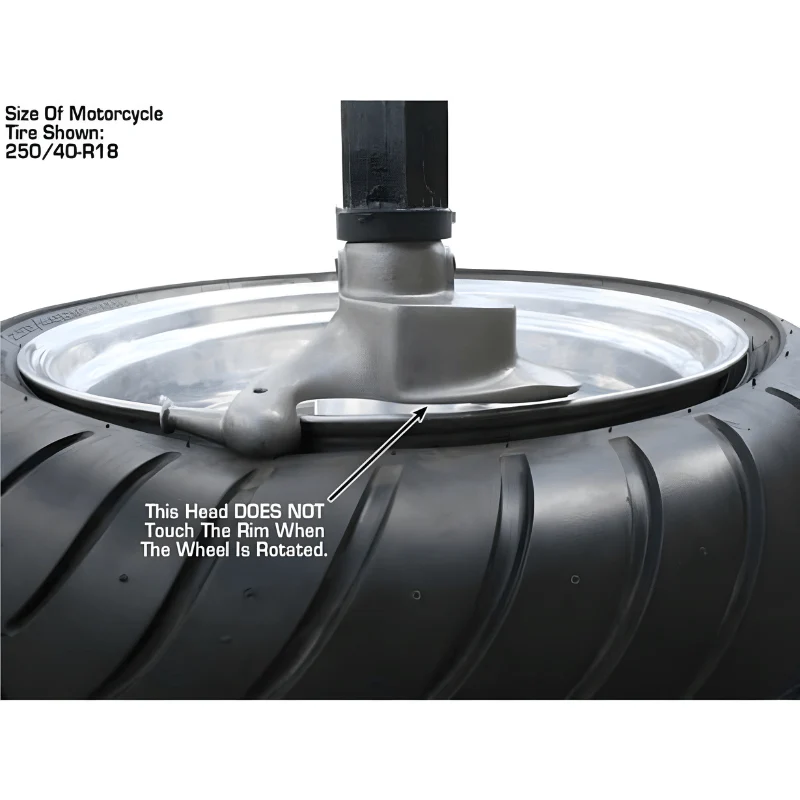

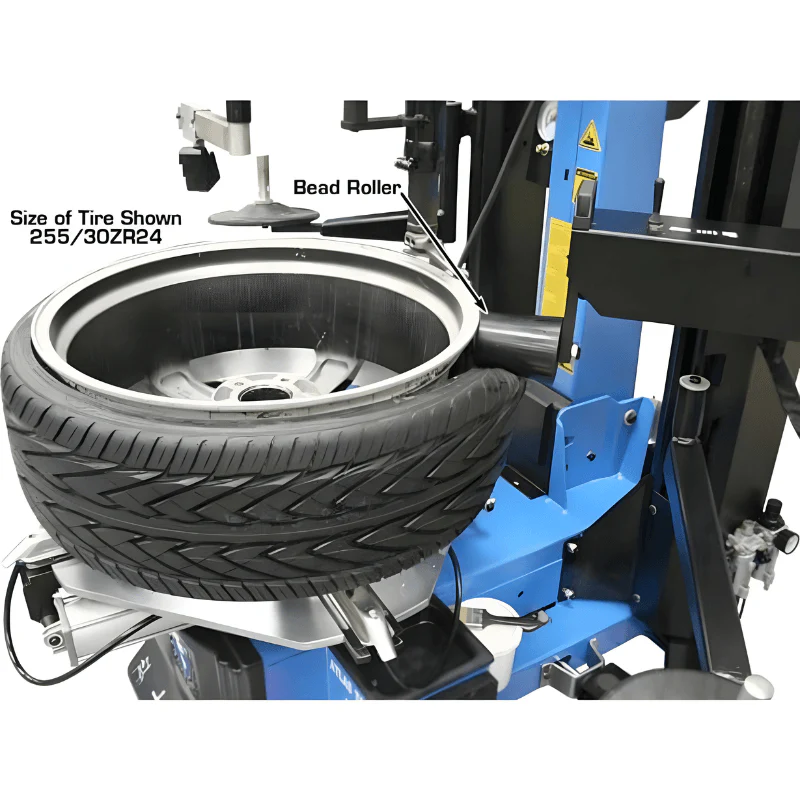

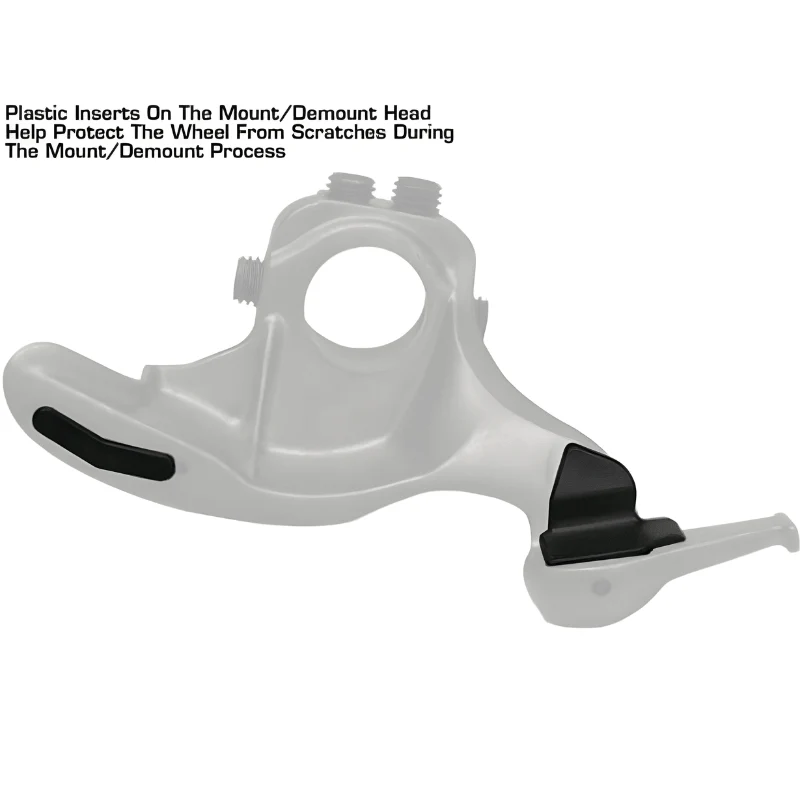

- Heavy-duty metal mount/demount head with roller or replaceable inserts
- Column-mounted inflator with pressure gauge included
- Filter, regulator, and lubricator system included
- Built-in beadblaster system for seating difficult tire beads

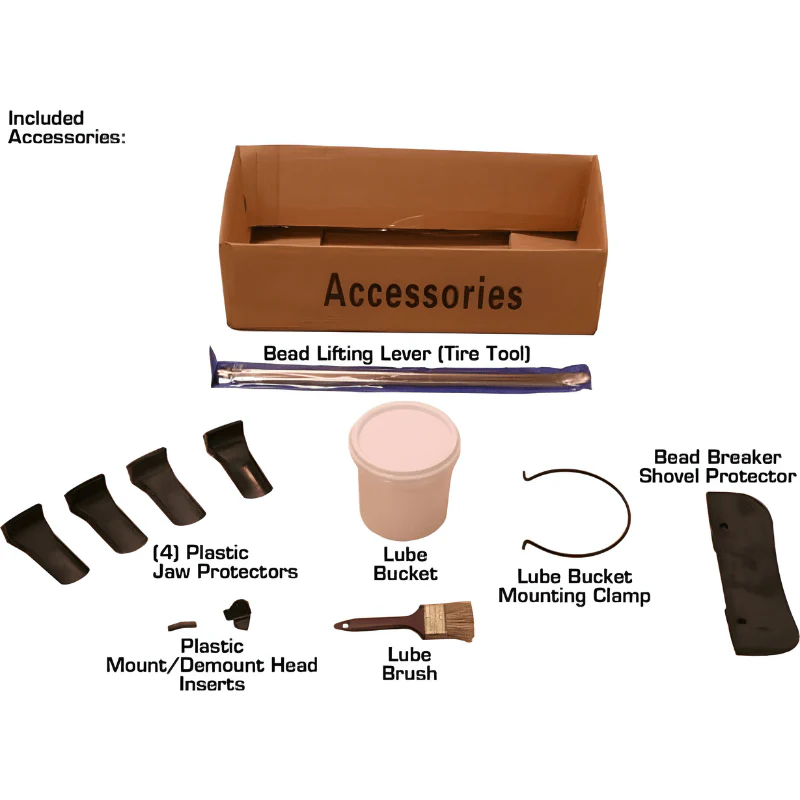

- Includes 20" tire tool for standard tire service
- Lube bucket with brush included
- Protective plastic jaw covers to help prevent rim damage
- Bead breaker shovel includes protective plastic cover
- Multiple replacement inserts included for mount/demount head

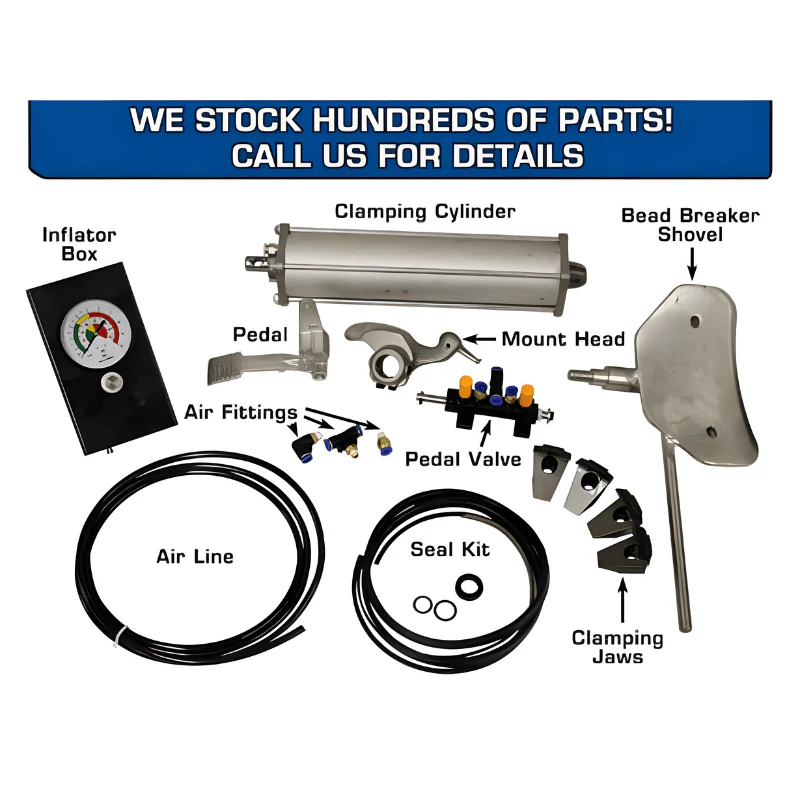

- Replacement parts and wear items readily available
- Backed by a 1-year parts-only warranty
Performance & Design Highlights

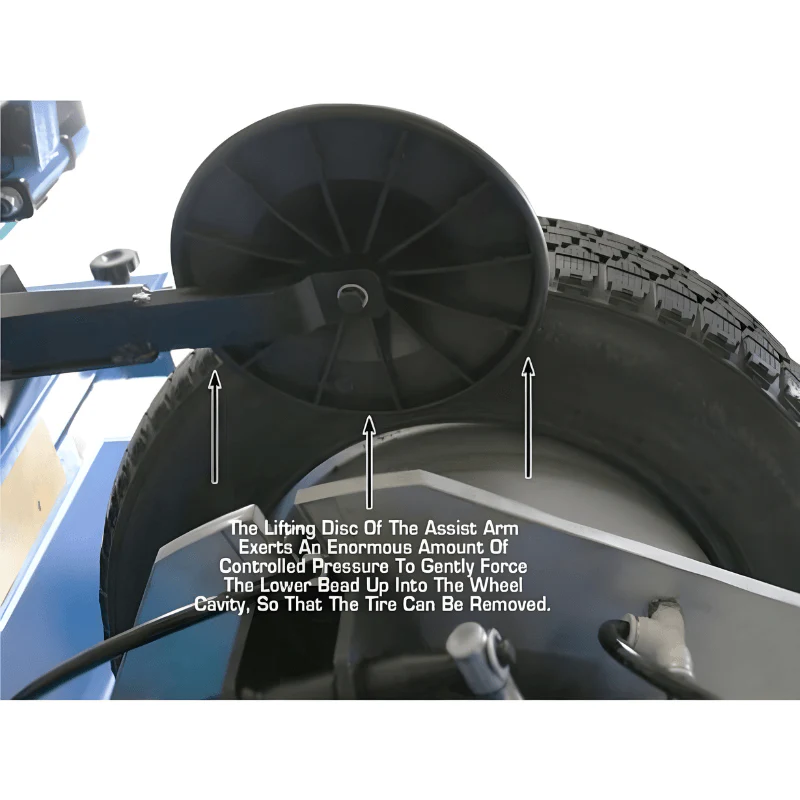

The TC755DAA is engineered for shops that frequently work with performance tires and demanding wheel setups. The dual assist arm system provides additional leverage and stability, reducing operator fatigue while increasing efficiency during mounting and demounting. The tilt-back column eliminates unnecessary repositioning, allowing for smoother workflow. The powerful side-mounted bead breaker delivers consistent force for breaking stubborn beads, while the adjustable jaw system accommodates a wide range of wheel sizes. The integrated beadblaster ensures proper bead seating, even on difficult tire combinations.
| Specifications | Details |
|---|---|
| Rims | Steel, Aluminum, Alloy |

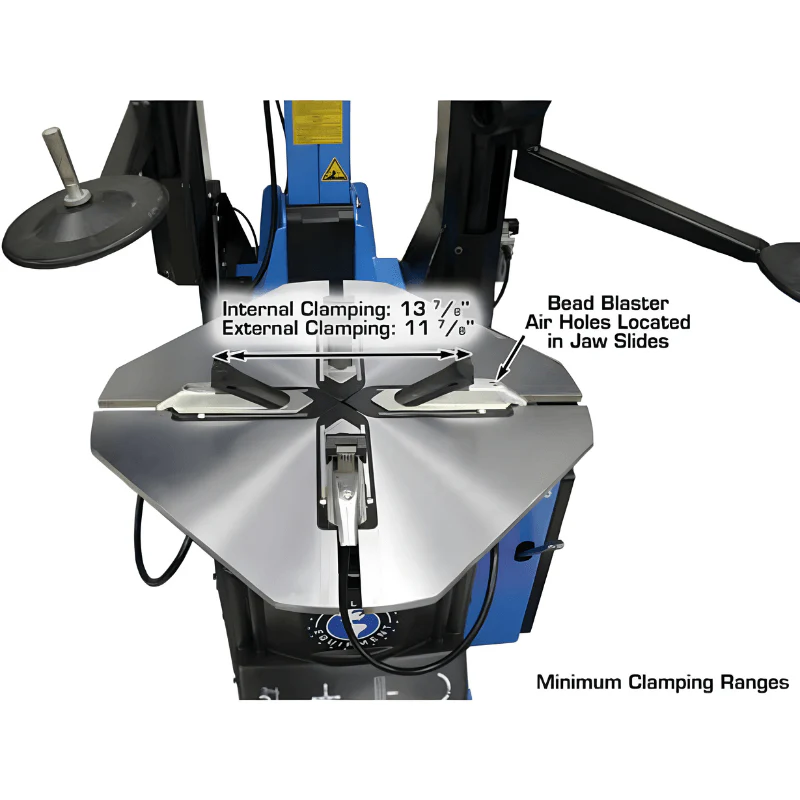

| External Locking Rim Dimension (3 Positions) | 1) 11 7/8" – 26" 2) 12 7/8" – 27" 3) 13 3/4" – 28" |
| Internal Locking Rim Dimension (3 Positions) | 1) 13 7/8" – 27 7/8" 2) 14 5/8" – 28 7/8" 3) 15 5/8" – 29 7/8" |
| Maximum Tire Diameter | 47" |
| Maximum Wheel Width (Bead Breaker) | 18" |
| Table Motor | 1 HP |
| Turntable Rotating Torque | 885 ft/lbs |

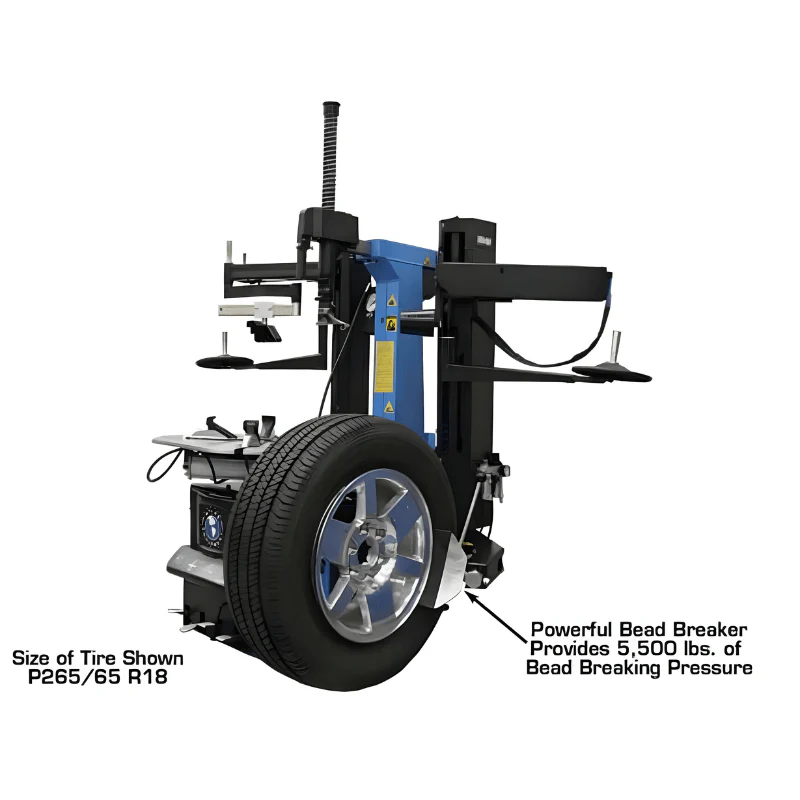

| Bead Breaker | 5,500 LB. Force |
| Air Requirement | 90–110 PSI (MUST NOT EXCEED 140 PSI) |
| Operating Voltage | 110V |

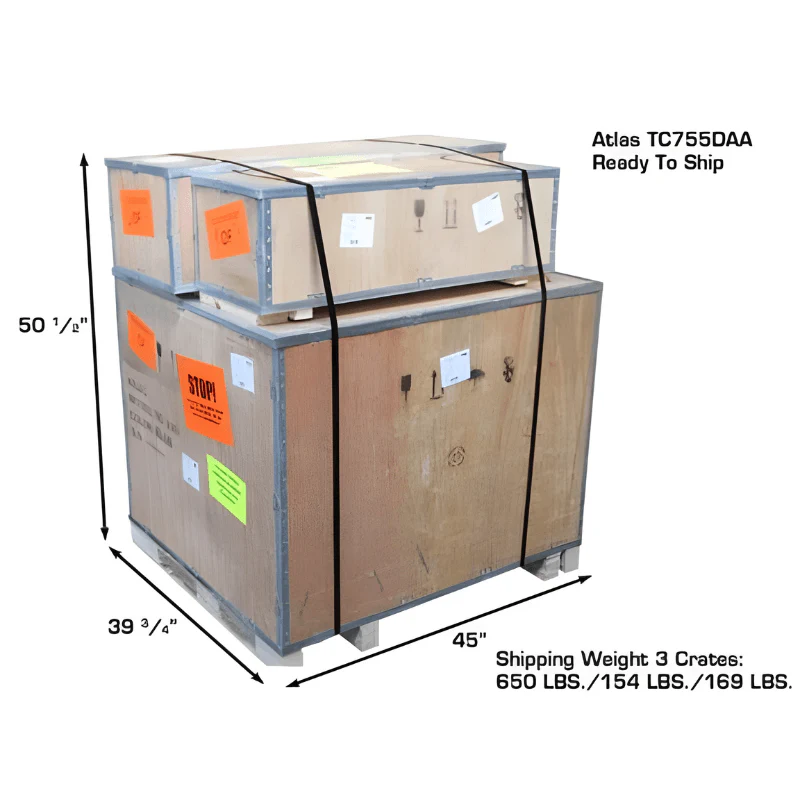

| Shipping Weight | 1,000 lbs. |
