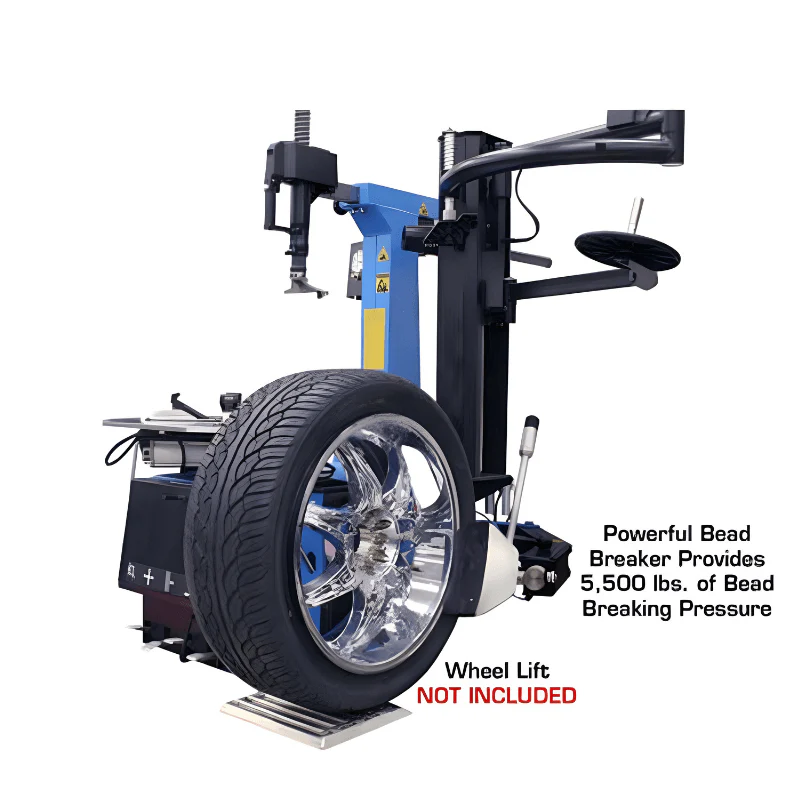

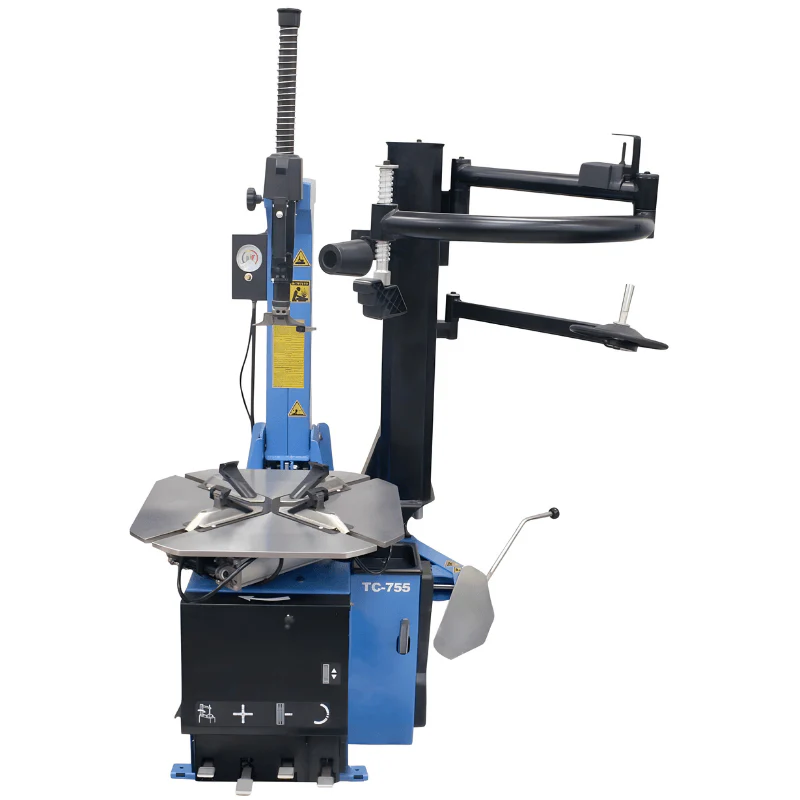

Atlas TC755EZ Tilt-Back Rim Clamp Tire Changer with E-Z Assist Arm System
SKU: ATETC755EZ
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

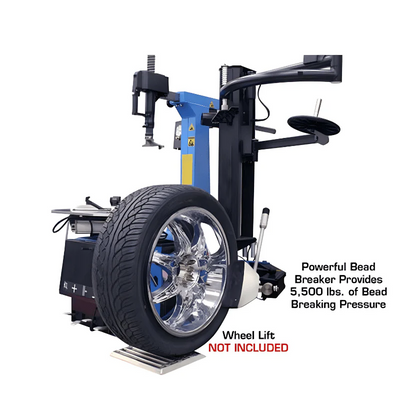

The Atlas TC755EZ is a professional-grade tilt-back rim clamp tire changer designed for high-volume shops and automotive service centers that need added assistance when working with difficult tires. Equipped with the E-Z assist arm system, this unit combines multiple assist features including a pressing block, bead roller, and lifting disk to improve control when handling low-profile, stiff sidewall, and run-flat tires. The tilt-back column design allows for faster positioning and better working clearance, while the pneumatic locking mount/demount head helps keep everything stable to reduce the risk of damage. Its oversized turntable can clamp larger rims without requiring additional adapters, and the built-in beadblaster system provides the air power needed to properly seat stubborn beads. Built for consistent daily use, the TC755EZ delivers efficiency, precision, and durability in demanding shop environments.
Key Features & Benefits
- Tilt-back column design for faster and more efficient operation

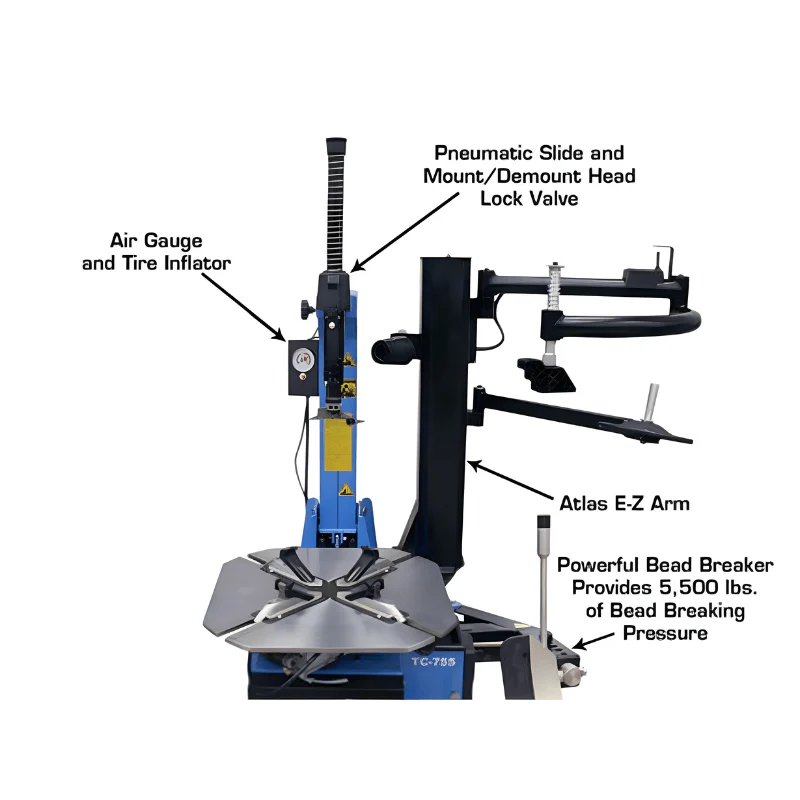

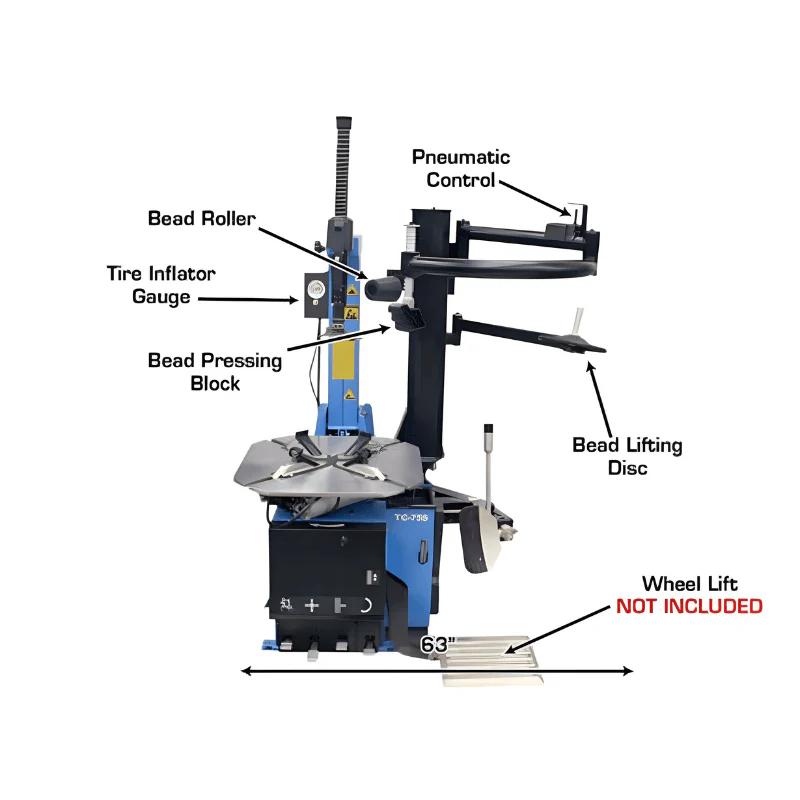

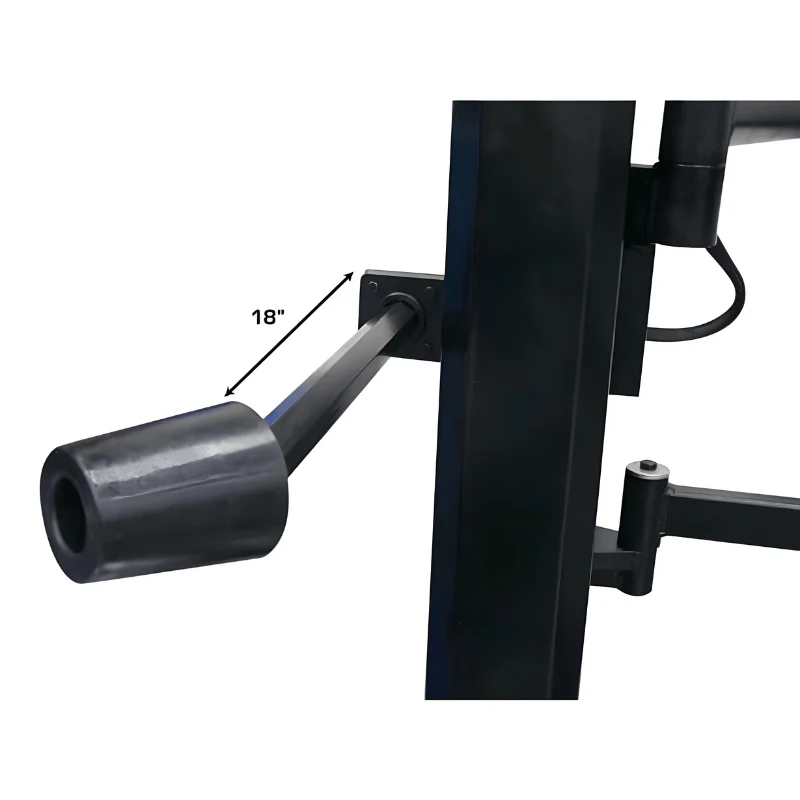

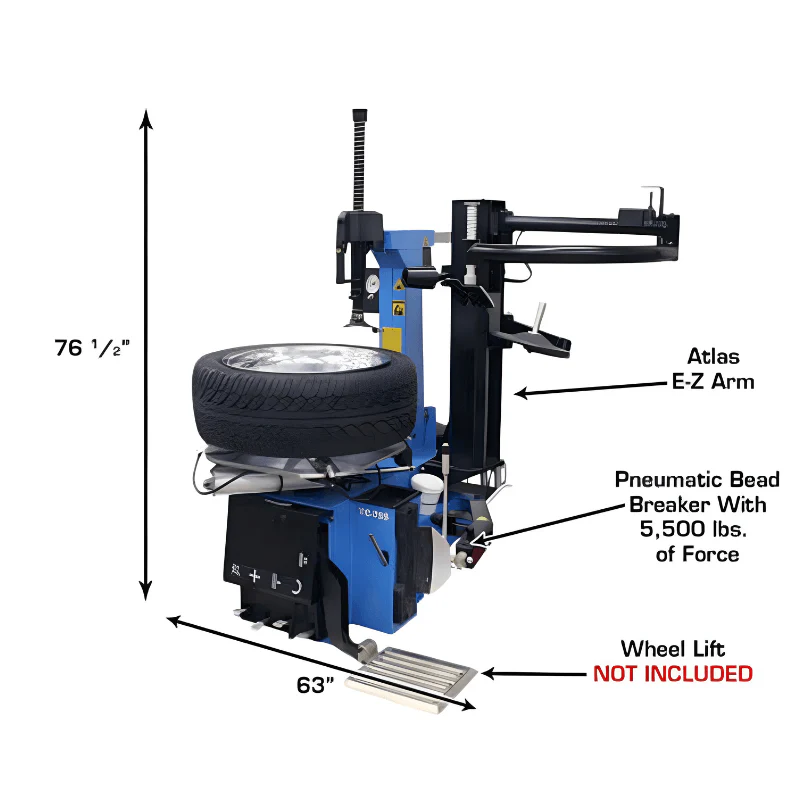

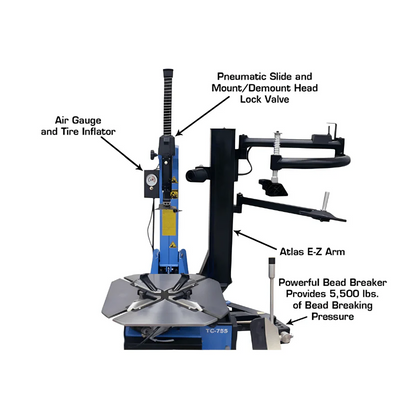

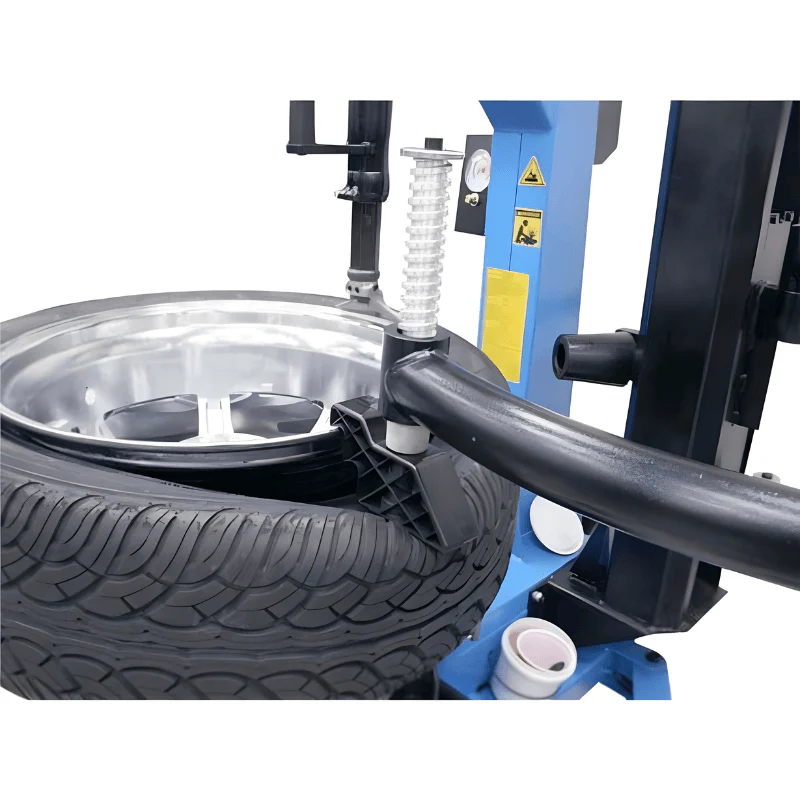

- E-Z assist arm system with pressing block, bead roller, and lifting disk
- Rim-clamp style turntable for secure wheel positioning
- Extra-large turntable provides increased clearance for larger rims
- Air-operated jaws and bead breaker (external air required)
- Electric-powered turntable for smooth and consistent rotation
- Adjustable jaws with three mounting positions
- Button-controlled bead breaker located at the blade
- Heavy-duty metal mount/demount head with roller or replaceable inserts
- Column-mounted inflator with pressure gauge included

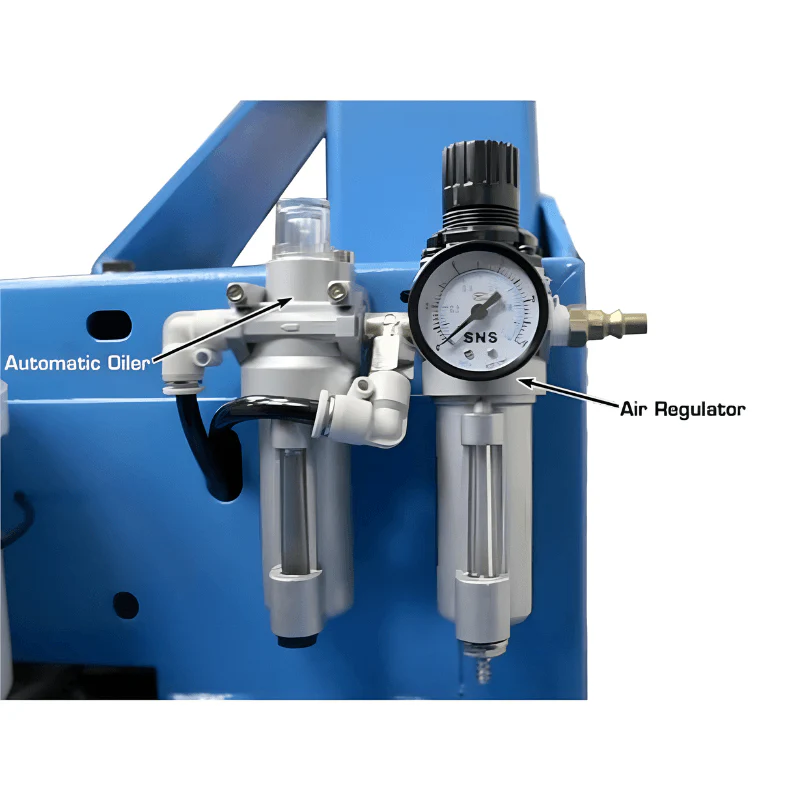

- Filter, regulator, and lubricator system included
- Built-in beadblaster system for seating difficult tire beads

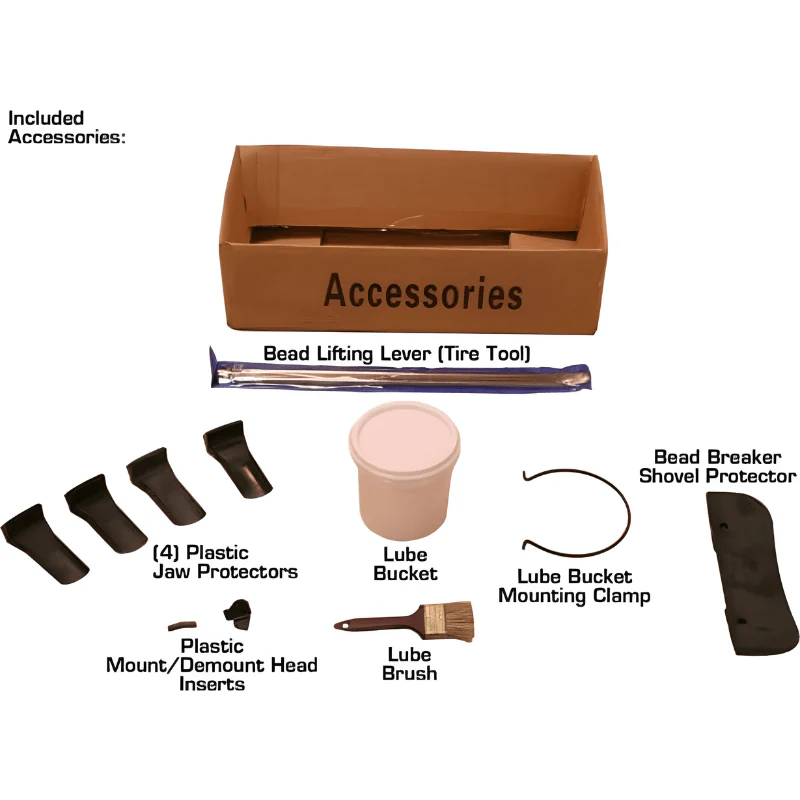

- Includes 20" tire tool for standard tire service
- Lube bucket with brush included
- Protective plastic jaw covers to help prevent rim damage
- Bead breaker shovel includes protective plastic cover

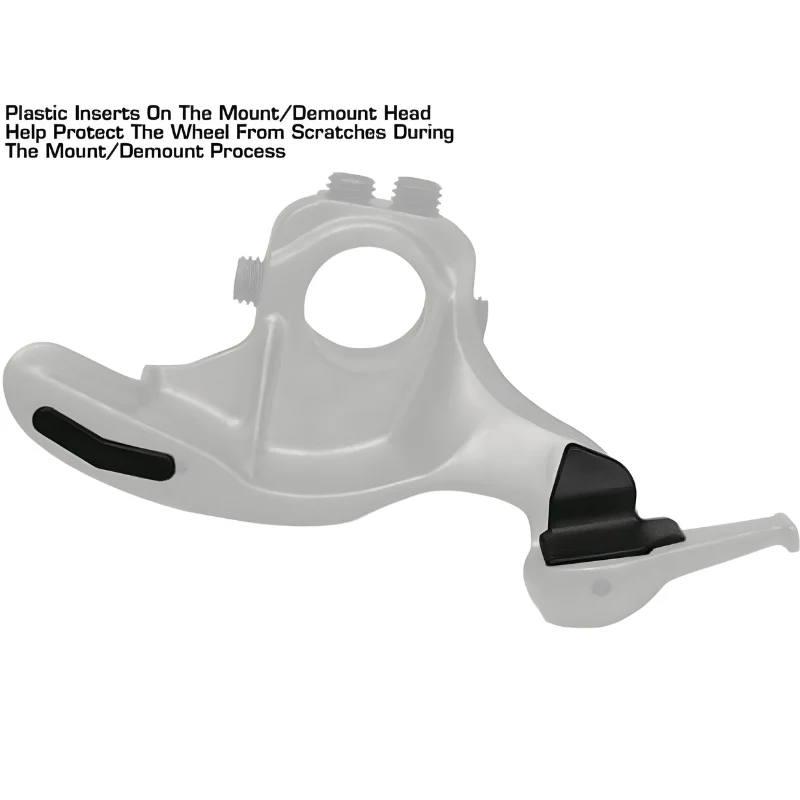

- Multiple replacement inserts included for mount/demount head

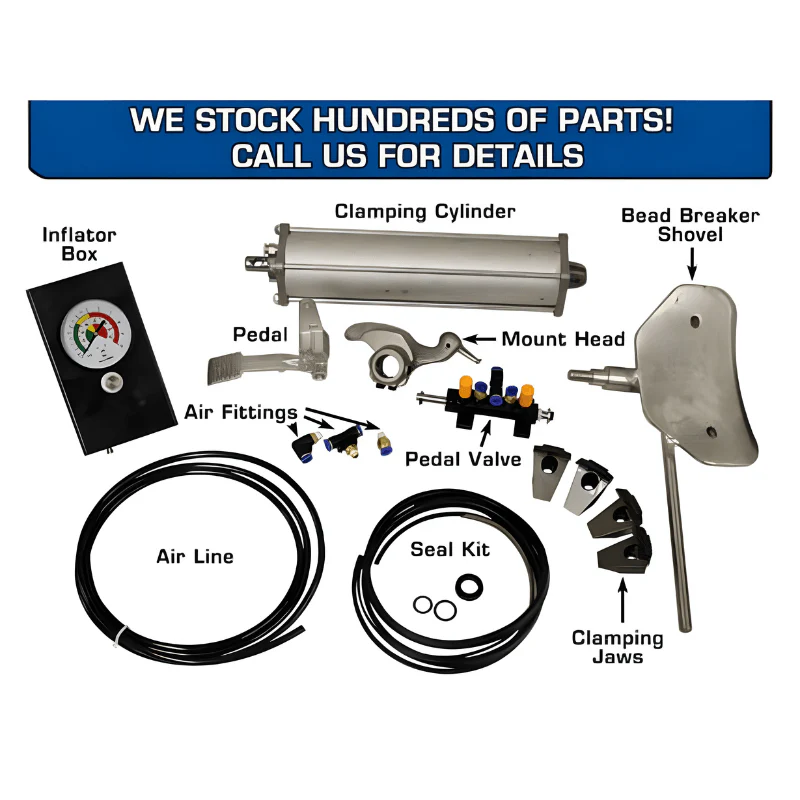

- Replacement parts and wear items readily available
- 1-year parts-only warranty included
Performance & Design Highlights
The TC755EZ is engineered for shops that regularly deal with performance tires and challenging wheel setups. The E-Z assist arm system provides added leverage and control, combining multiple assist tools into one system to improve workflow and reduce operator strain. The tilt-back column eliminates unnecessary repositioning, allowing for quicker operation. The powerful bead breaker delivers consistent force to handle stubborn or rusted beads, while the adjustable clamping system accommodates a wide variety of wheel sizes. The integrated beadblaster ensures proper bead seating, even on difficult tire combinations.
| Specifications | Details |
|---|---|
| Rims | Steel, Aluminum, Alloy |

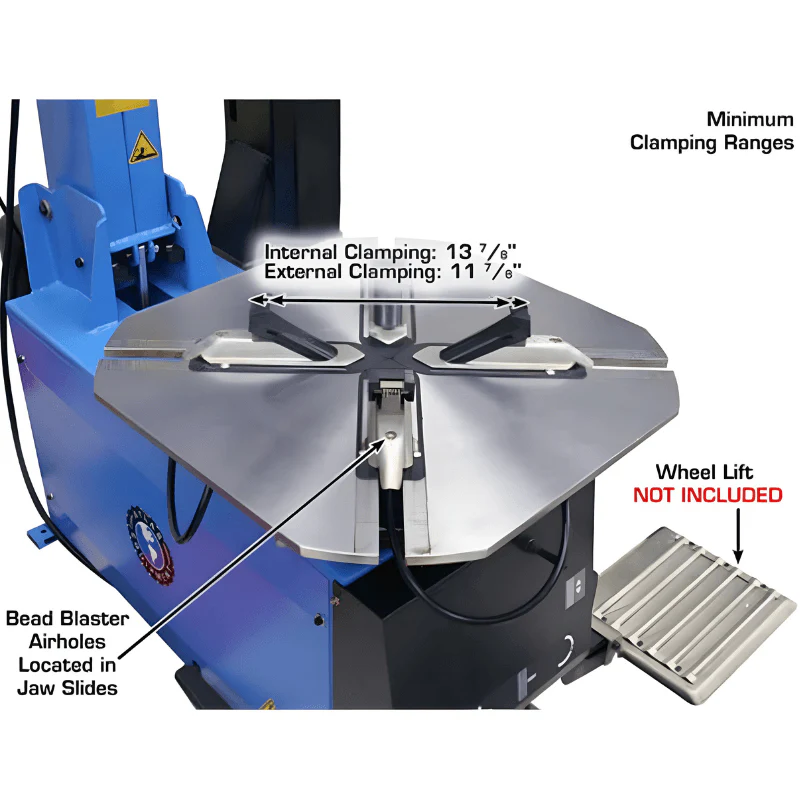

| External Locking Rim Dimension (3 Positions) | 1) 11 7/8" – 26" 2) 12 7/8" – 27" 3) 13 3/4" – 28" |
| Internal Locking Rim Dimension (3 Positions) | 1) 13 7/8" – 27 7/8" 2) 14 5/8" – 28 7/8" 3) 15 5/8" – 29 7/8" |
| Maximum Tire Diameter | 47" |
| Maximum Wheel Width (Bead Breaker) | 18" |
| Table Motor | 1 HP |
| Turntable Rotating Torque | 885 ft/lbs |

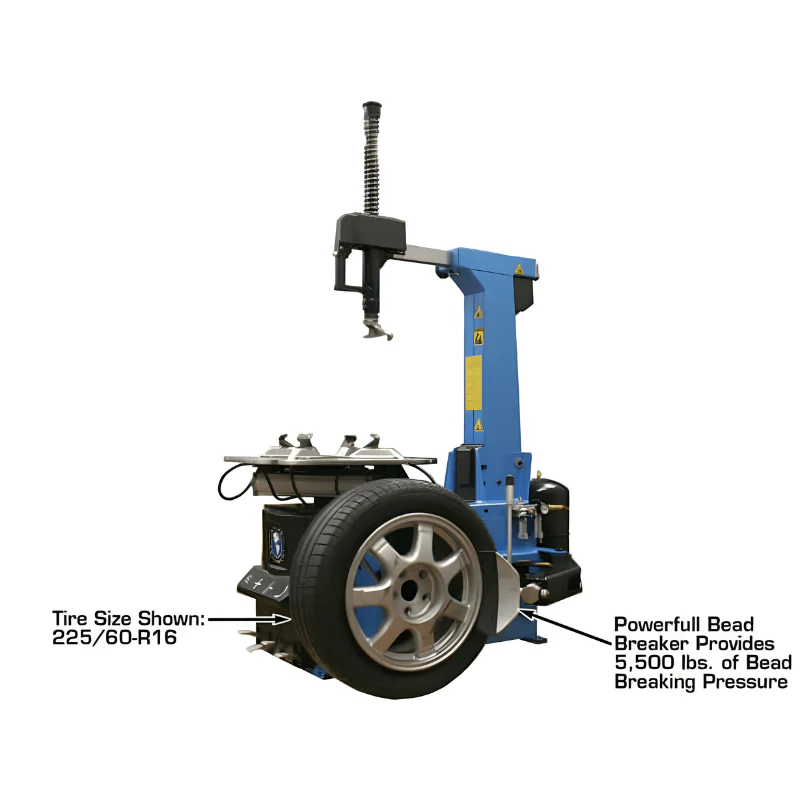

| Bead Breaker | 5,500 LB. Force |
| Air Requirement | 90–110 PSI (MUST NOT EXCEED 140 PSI) |
| Operating Voltage | 110V |
| Shipping Weight | 900 lbs. |
