Atlas TTC301 Heavy-Duty Truck Tire Changer for Commercial and Agricultural Tires
SKU: ATEATTC301
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

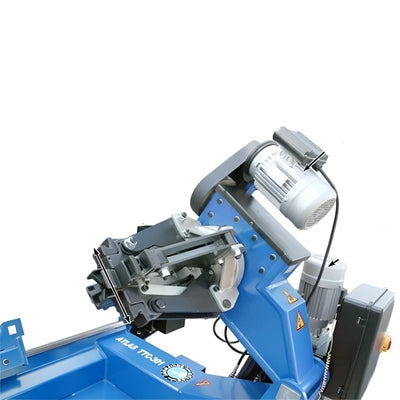

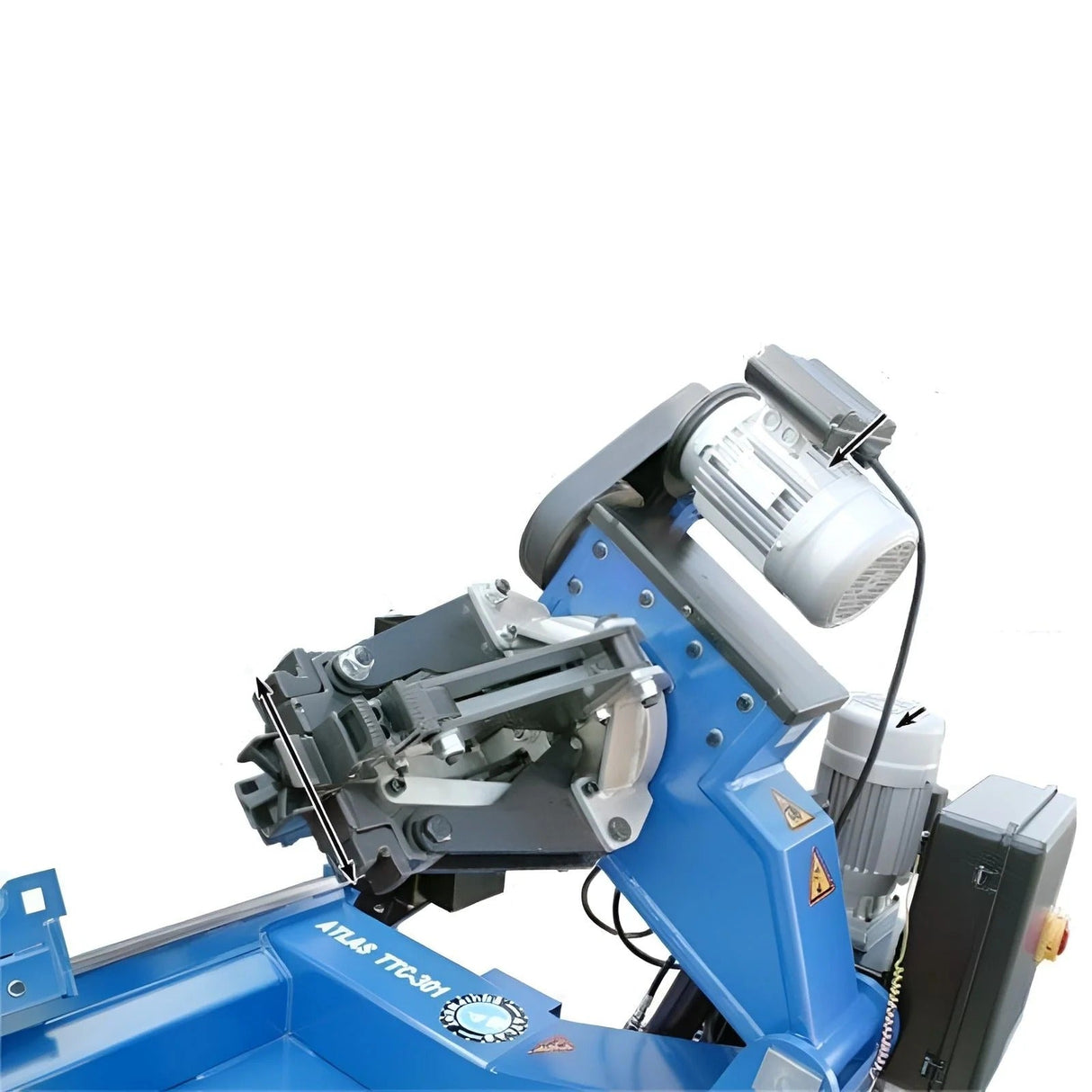

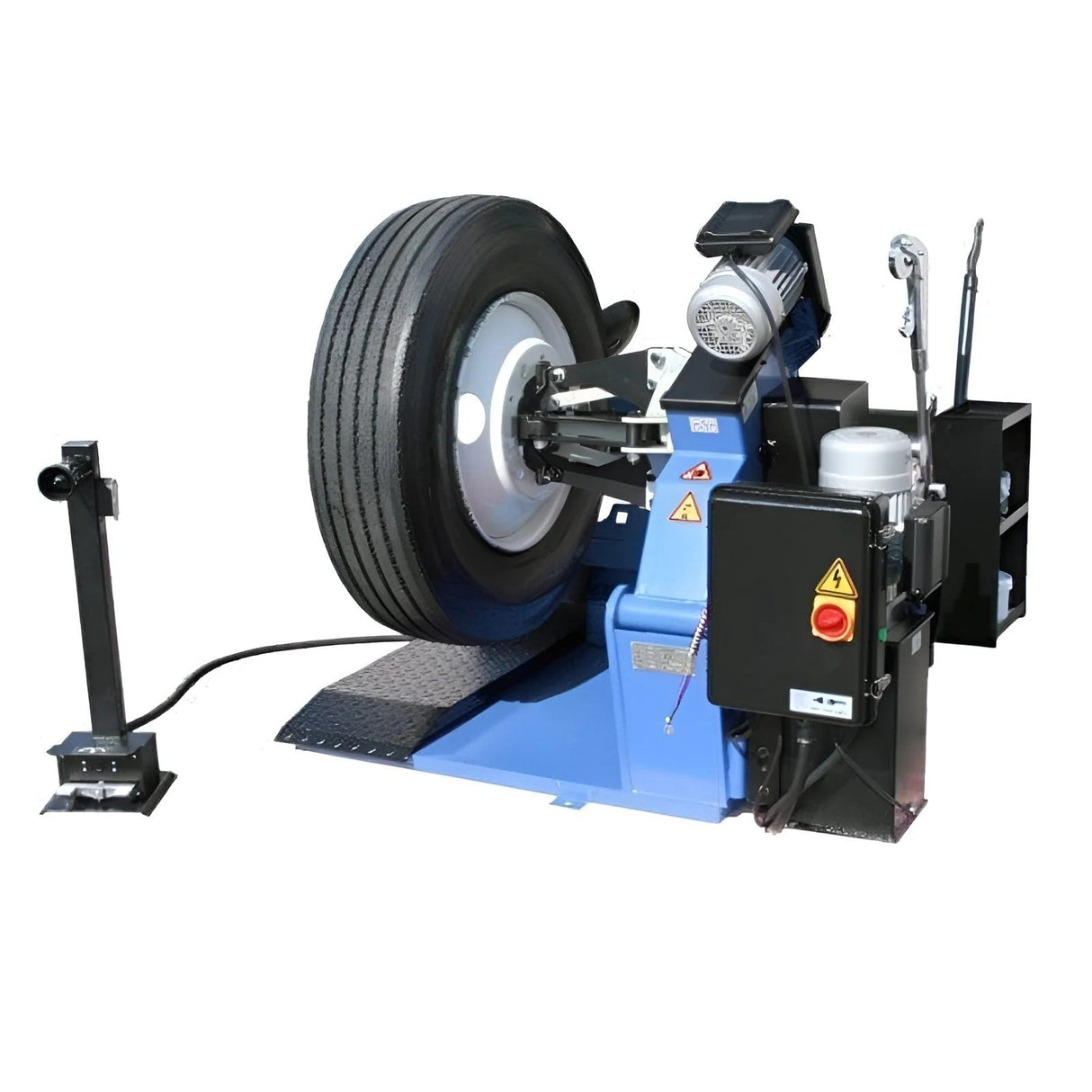

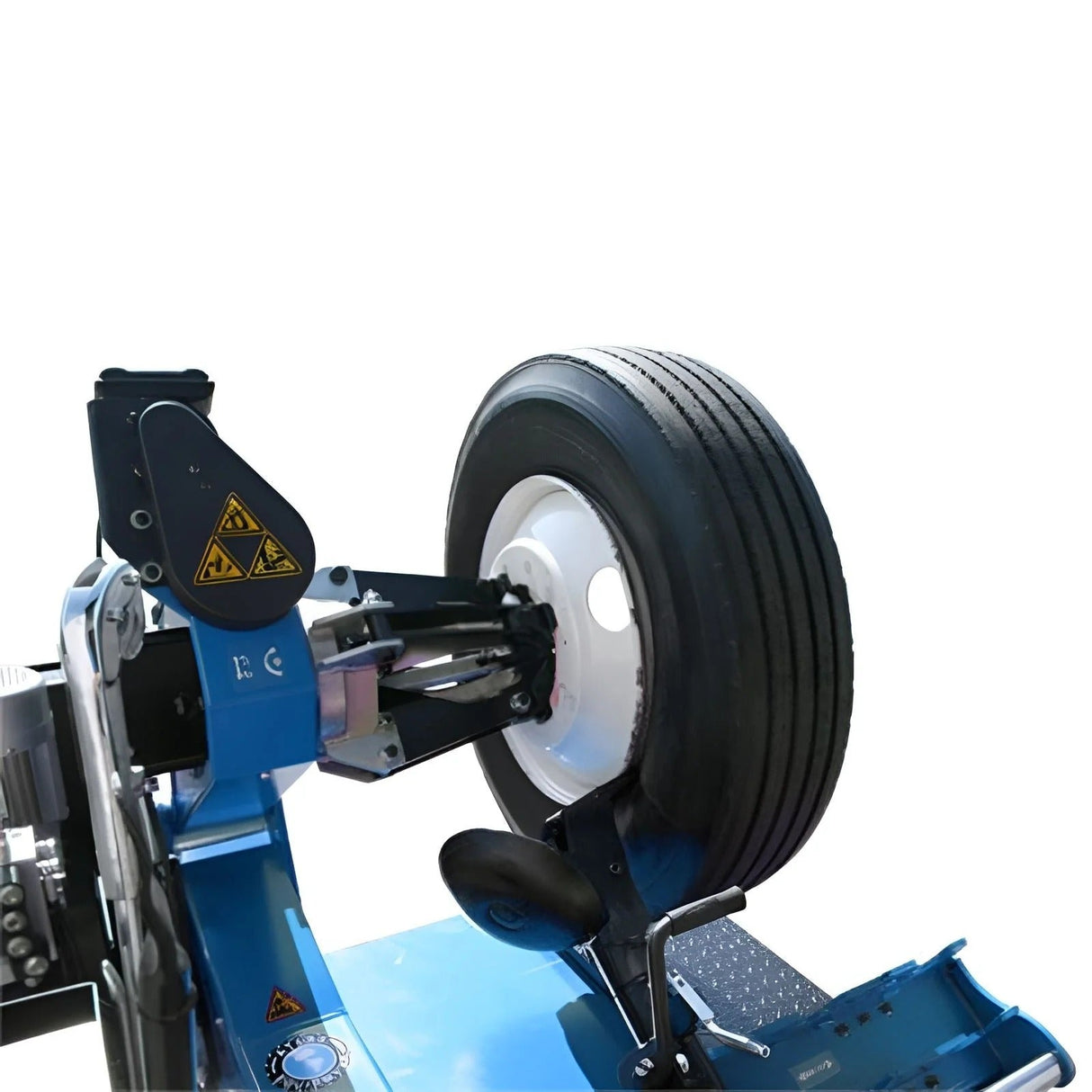

The Atlas TTC301 is a heavy-duty truck tire changer engineered for high-volume commercial tire shops, fleet service centers, and agricultural operations. Built to handle large and demanding tire applications, this machine accommodates rim sizes from 13" to 27" and tire diameters exceeding 63", making it ideal for over-the-road truck assemblies and farm equipment. Its electric/hydraulic self-centering four-jaw chuck provides strong and secure clamping, while the wired mobile control unit allows for precise operation. Designed for durability and consistent performance, the TTC301 is well-suited for environments that require reliable handling of large, heavy-duty tires.
Key Features & Benefits
- Standard truck tire changer designed for heavy-duty applications
- Handles rim sizes from 13" to 27"
- Accommodates tire diameters over 63"
- Supports tire widths up to 30 1/2"
- Electric/hydraulic self-centering four-jaw chuck for secure clamping
- Five rim locking positions for increased versatility
- Wired mobile control unit for precise operation
- Integrated bead breaker for efficient tire removal

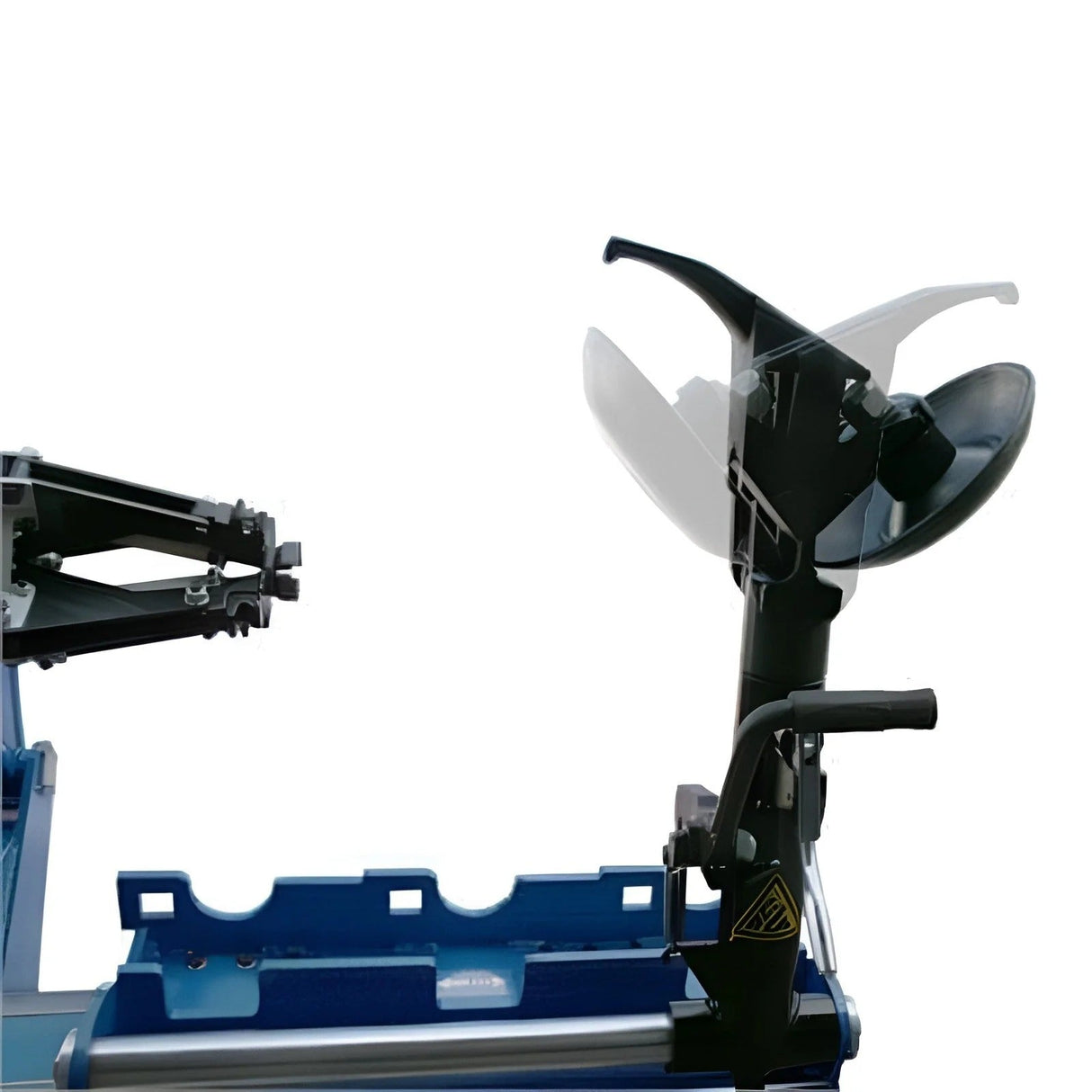

- Mount/demount head for controlled tire handling
- Heavy-duty tire tool included
- Rim clamps for both steel and alloy wheels included
- Alloy rim adapter set with protective plastic inserts included
- Built for durability in high-volume environments
- 1-year parts-only warranty included
Performance & Design Highlights
The TTC301 is designed for demanding environments where large truck and agricultural tires are serviced regularly. Its hydraulic-powered system delivers strong clamping force and smooth operation, allowing operators to handle heavy wheel assemblies with confidence. The self-centering chuck ensures proper positioning, while multiple locking positions increase flexibility across different rim sizes. The wired control unit allows for controlled and accurate adjustments during operation. Built with a solid frame and industrial-grade components, this machine is engineered for long-term reliability in commercial settings.
| Specifications | Details |
|---|---|
| Rim Clamping Range | 13" – 27" |
| Minimum Clamping Size w/ Alloy Adapters | 6 3/8" |
| Max Wheel Weight | 3,300 lbs. |
| Max Tire Diameter | 63" (5' 3") |
| Max Tire Width | 30 1/2" (2' 6 1/2") |
| Clamping Power | 6,614 lbs. |
| Operating Pressure | 0–1,885 PSI |
| Acoustic Pressure | <70 dBA |
| Bead Breaker Force | 4,112 lbs. |
| Tool Arm Positioning | Manual |
| Tool Head Positioning | Manual |
| Construction | Single Piece Frame w/ Solid Floor Plate |
| Hydraulic Motor Power | 2 HP, 220V (±5%, 209–231V), 1-phase, 30A breaker required |
| Chuck Motor Power | 3 HP, 220V (±5%, 209–231V), 1-phase, 30A breaker required |
| Shipping Weight | 1,390 lbs. |
