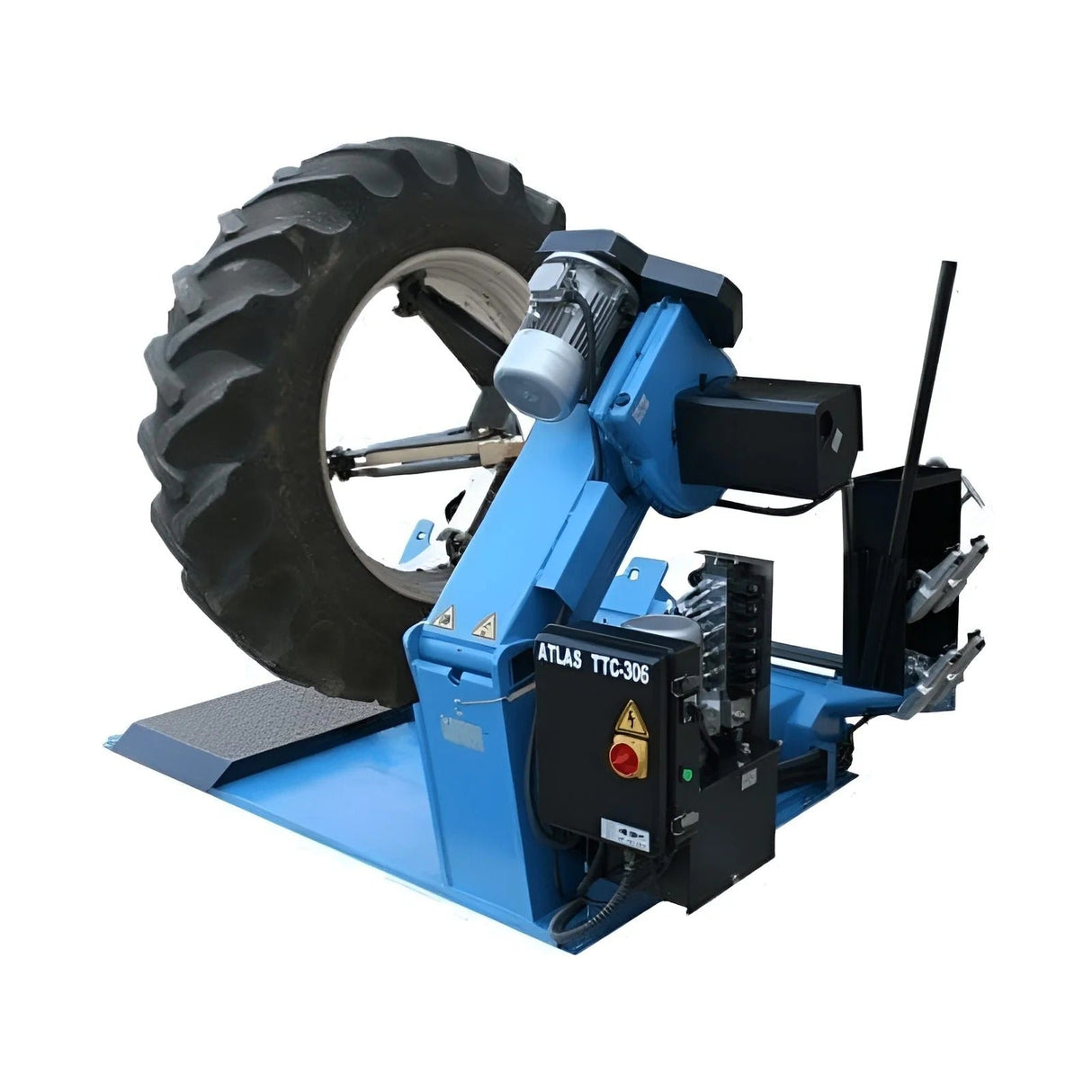

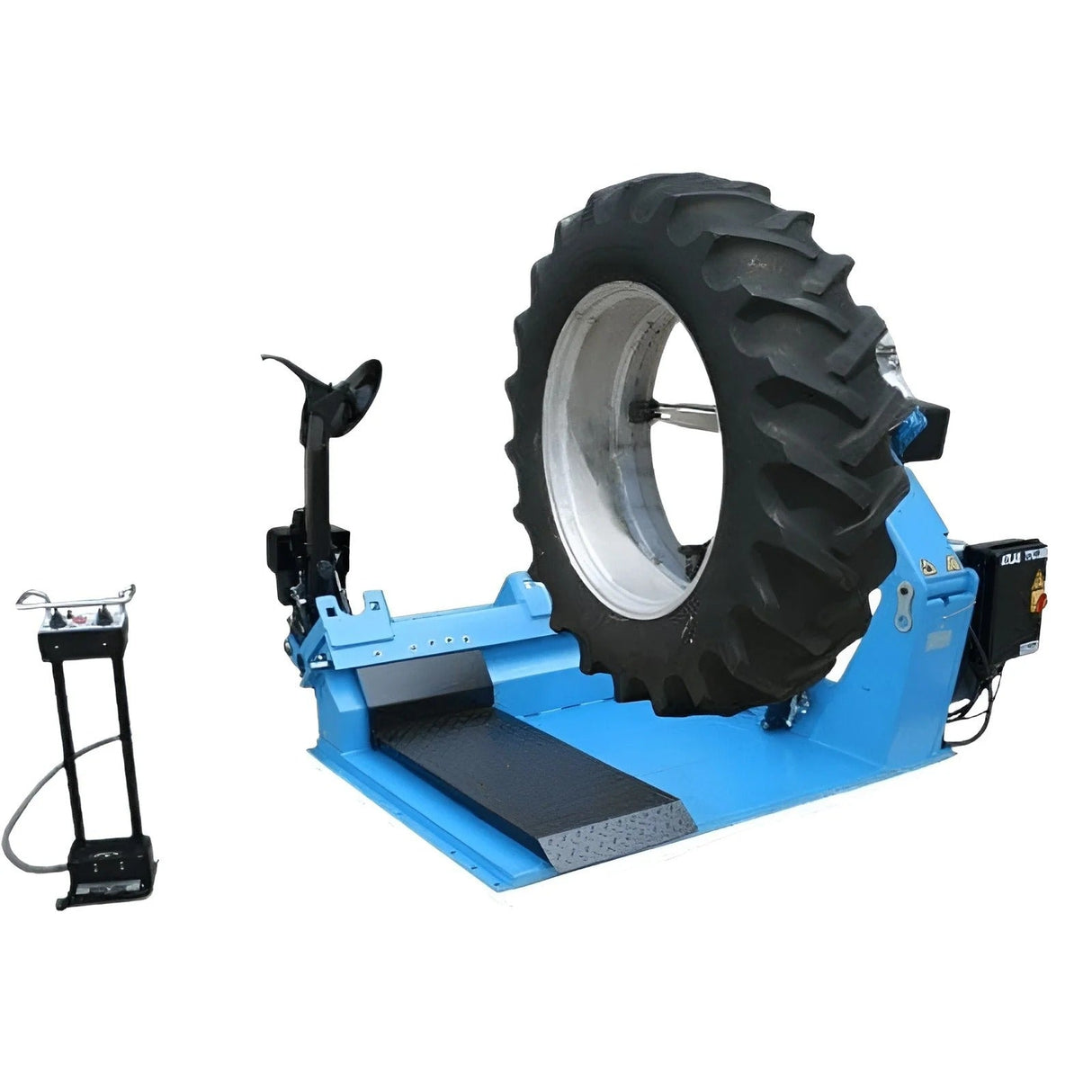

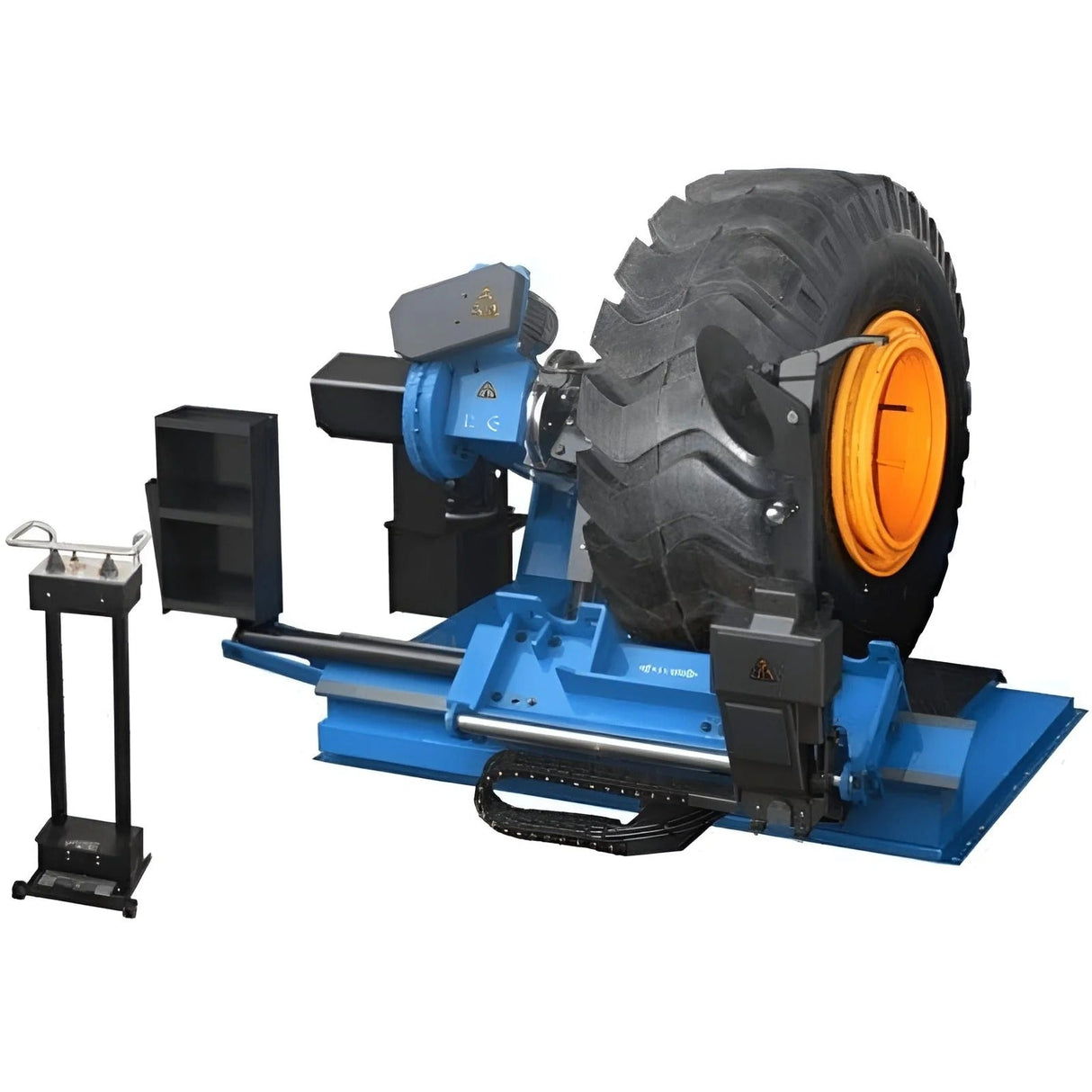

Atlas TTC306 Deluxe Automated Truck Tire Changer for Heavy-Duty, Agricultural & OTR Applications
SKU: ATEATTC306
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The Atlas TTC306 is a fully automated, heavy-duty truck tire changer designed for high-volume commercial, agricultural, and off-road tire service operations. Built to handle extreme tire sizes and weights, this machine features automatic positioning of the tool head, carriage, and chuck arm, allowing operators to work more efficiently with minimal manual effort. The hydraulic-powered system and self-centering four-jaw chuck provide strong, secure clamping, while the 2-speed operation allows for better control across different tire types. Designed to handle large truck, agricultural, earthmover, and off-road tires, the TTC306 delivers the capacity and automation needed for demanding environments. The wired mobile control unit allows precise operation, with an optional wireless upgrade available for added flexibility across the shop floor.
Key Features & Benefits
- Deluxe automated truck tire changer for heavy-duty applications
- 220V 3-phase electric operation for industrial performance
- 2-speed hydraulic chuck with five rim locking positions
- Automatic movement and positioning of bead tool, carriage, and chuck arm
- Handles rim sizes from 14" up to 56" with extensions
- Supports tire diameters exceeding 97"
- Accommodates wide tires for agricultural and off-road use
- Electric/hydraulic self-centering four-jaw chuck
- Heavy-duty bead breaker system for large tire assemblies
- Mount/demount head designed for large and specialty tires
- Wired mobile control unit for precise operation (wireless optional)
- Includes heavy-duty tire tool for large applications
- Rim clamps compatible with steel and alloy wheels
- Alloy rim adapter set with protective plastic inserts included
- Clamping extensions included for increased capacity
- Designed for high-volume commercial, farm, and industrial use
- 1-year parts-only warranty included
Performance & Design Highlights
The TTC306 is engineered for operations that regularly service oversized and heavy tire assemblies. Its automated system reduces manual labor by allowing operators to control key movements remotely, improving both efficiency and safety. The powerful hydraulic system delivers high clamping force to securely hold large wheels in place, while the multi-position chuck ensures compatibility across a wide range of rim sizes. The ability to handle agricultural, off-road, and mining tires makes this unit ideal for shops that need maximum versatility. The optional wireless control system provides added mobility and eliminates cables on the shop floor, enhancing overall workflow.
| Specifications | Details |
|---|---|
| Rim Clamping Range | 14" – 46" |
| Max Clamping Size w/ Extensions | 56" |
| Max Wheel Weight | 3,968 lbs |
| Max Tire Diameter | 98" |
| Max Tire Width | 42" |
| Clamping Force | 13,173 lbs |
| Operating Pressure | 0–1885 PSI |
| Noise Level | <70 dBA |
| Bead Breaker Force | 5,930 lbs |
| Tool Arm Positioning | Automatic |
| Tool Head Positioning | Automatic |
| Construction | Single-piece frame with solid floor plate |
| Hydraulic Motor | 3 HP, 220V, 3-phase |
| Chuck Motor | 3.5–4 HP, 220V, 3-phase |
| Shipping Weight | 2,260 lbs |
| Warranty | 1-Year Parts-Only |
