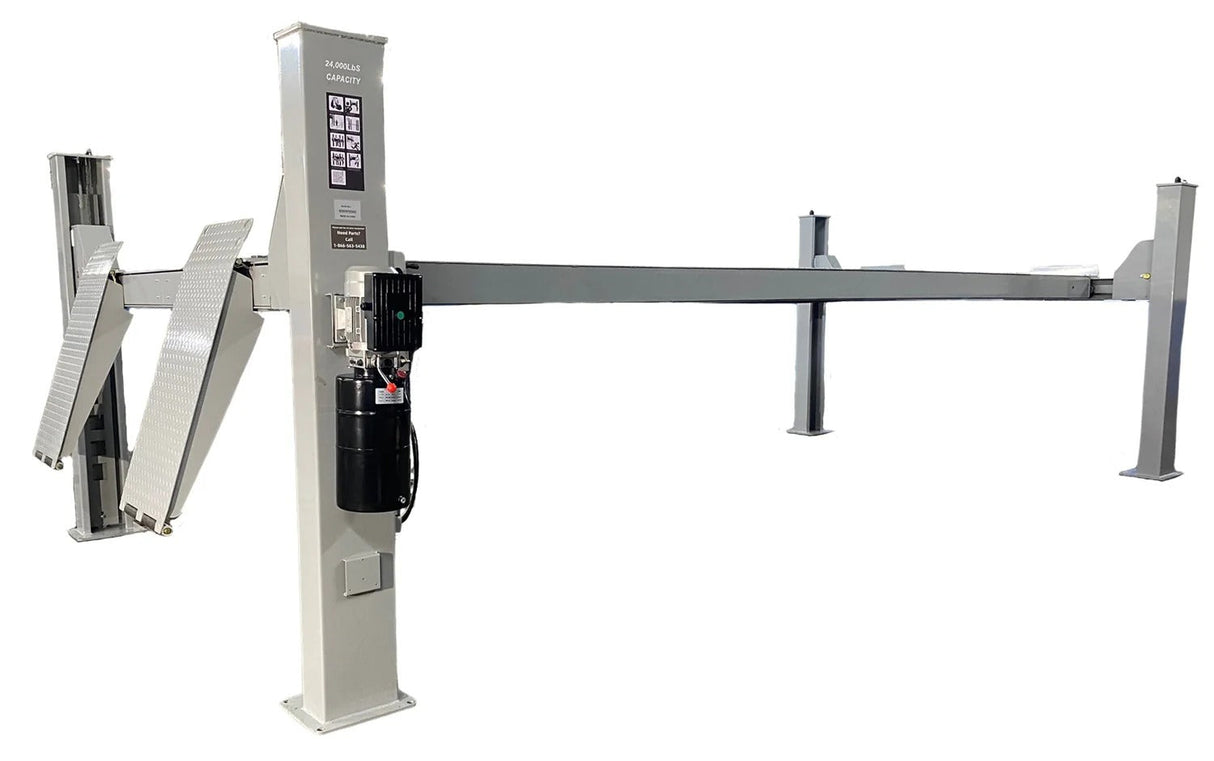

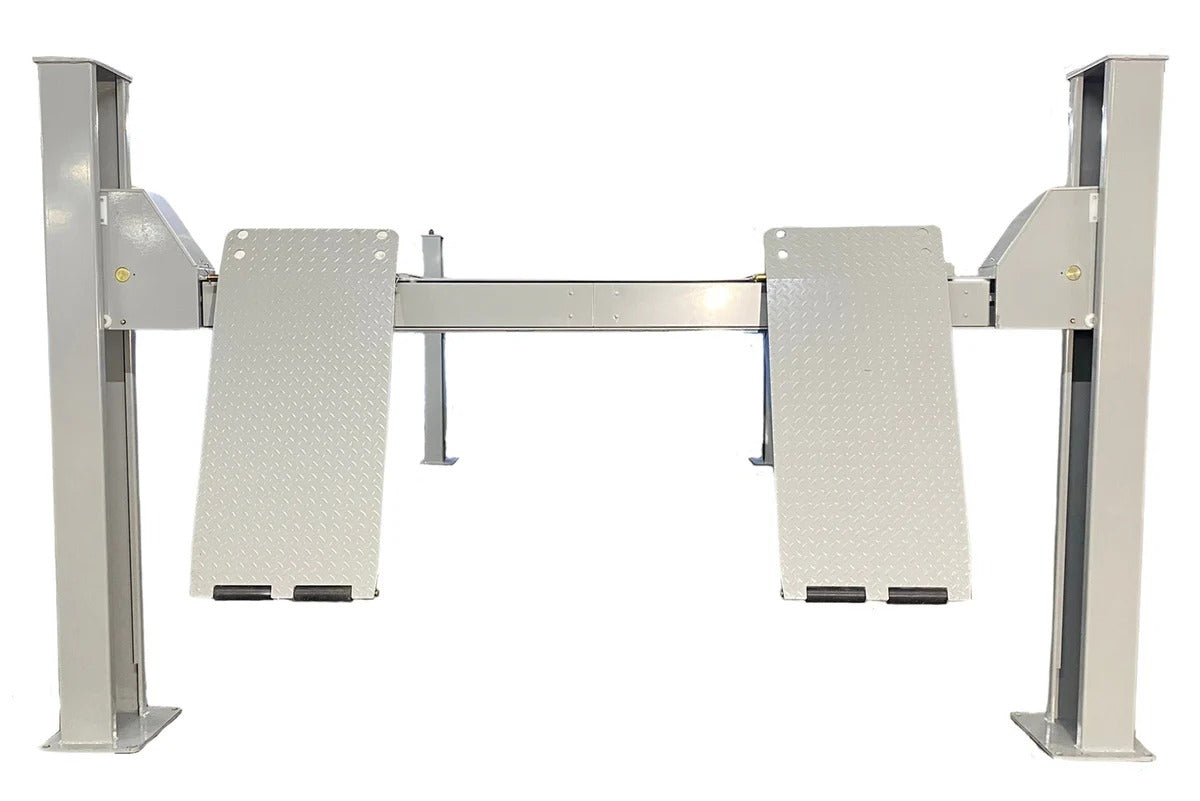

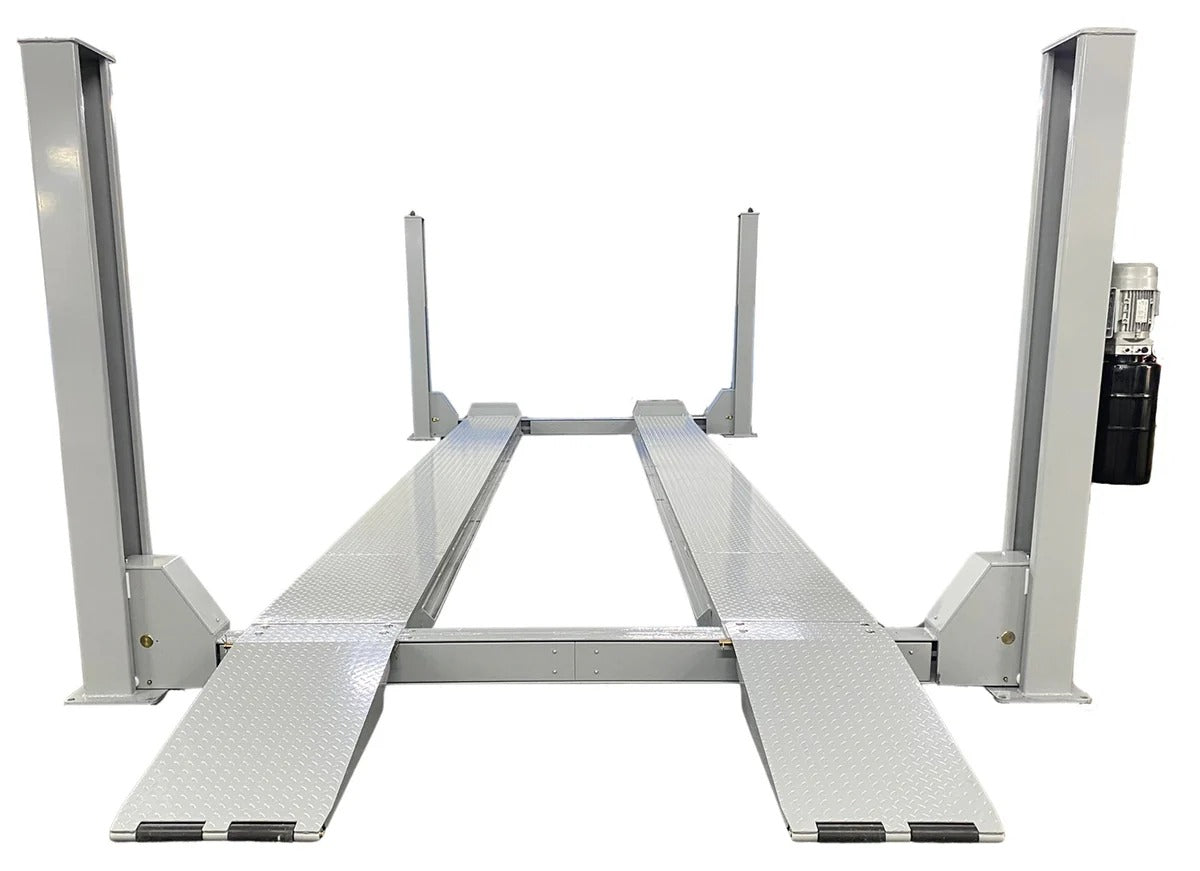

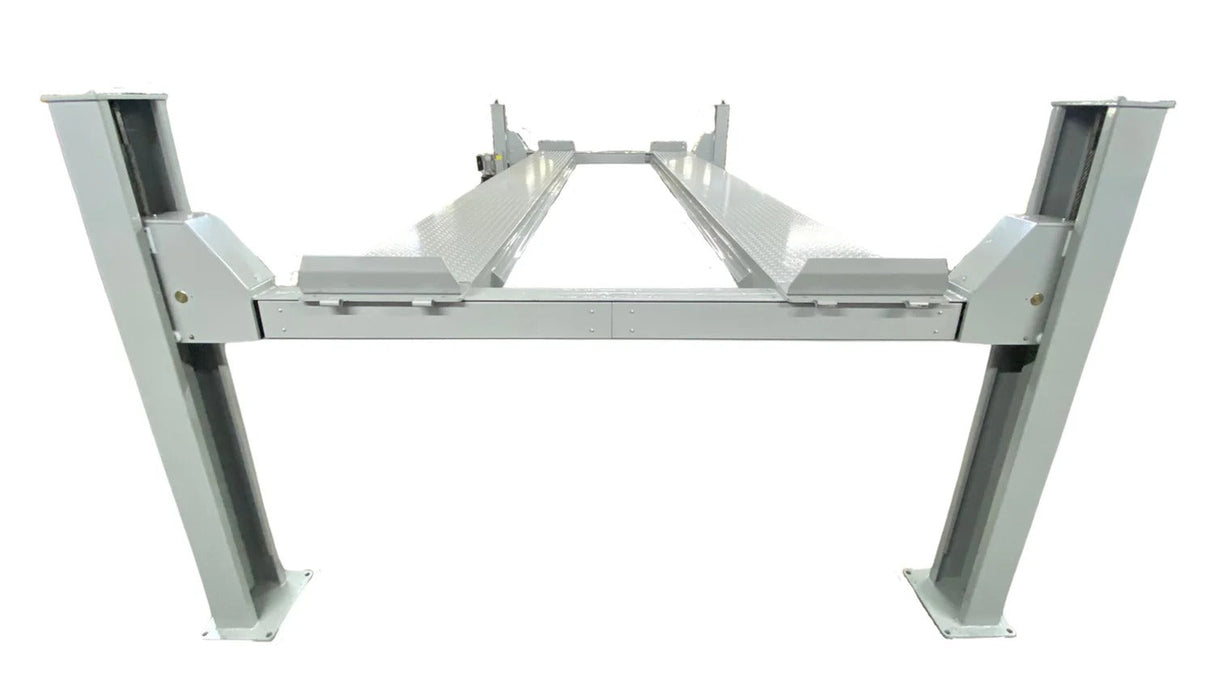

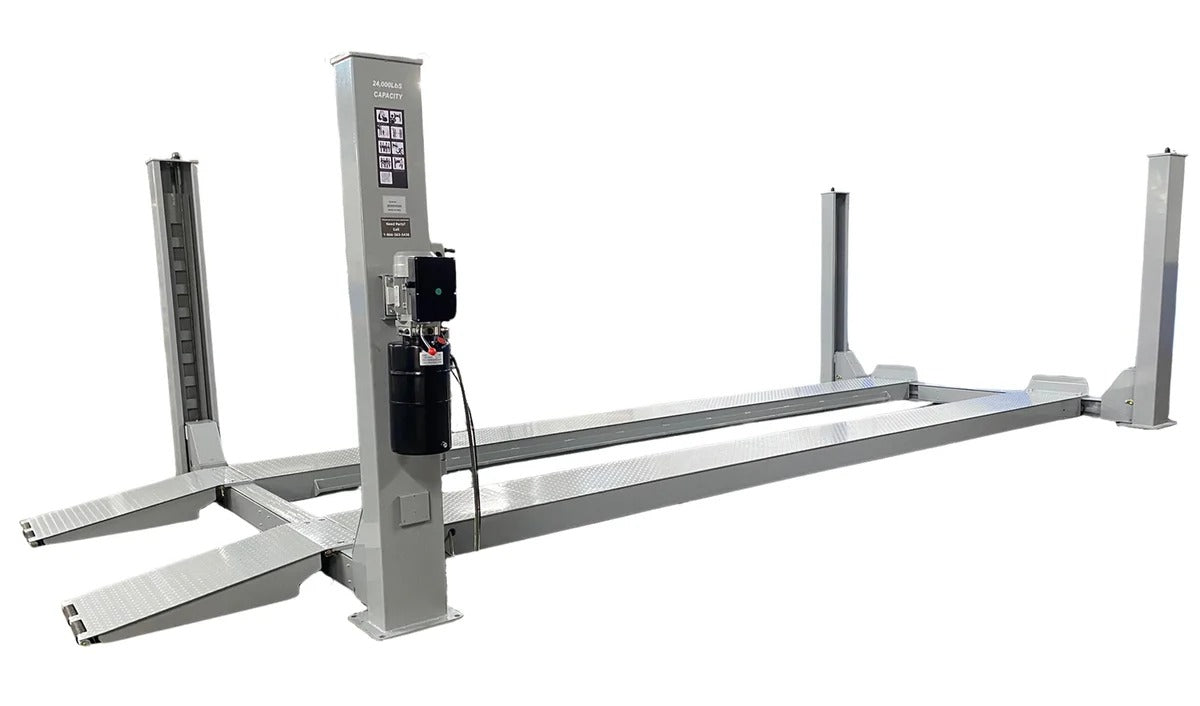

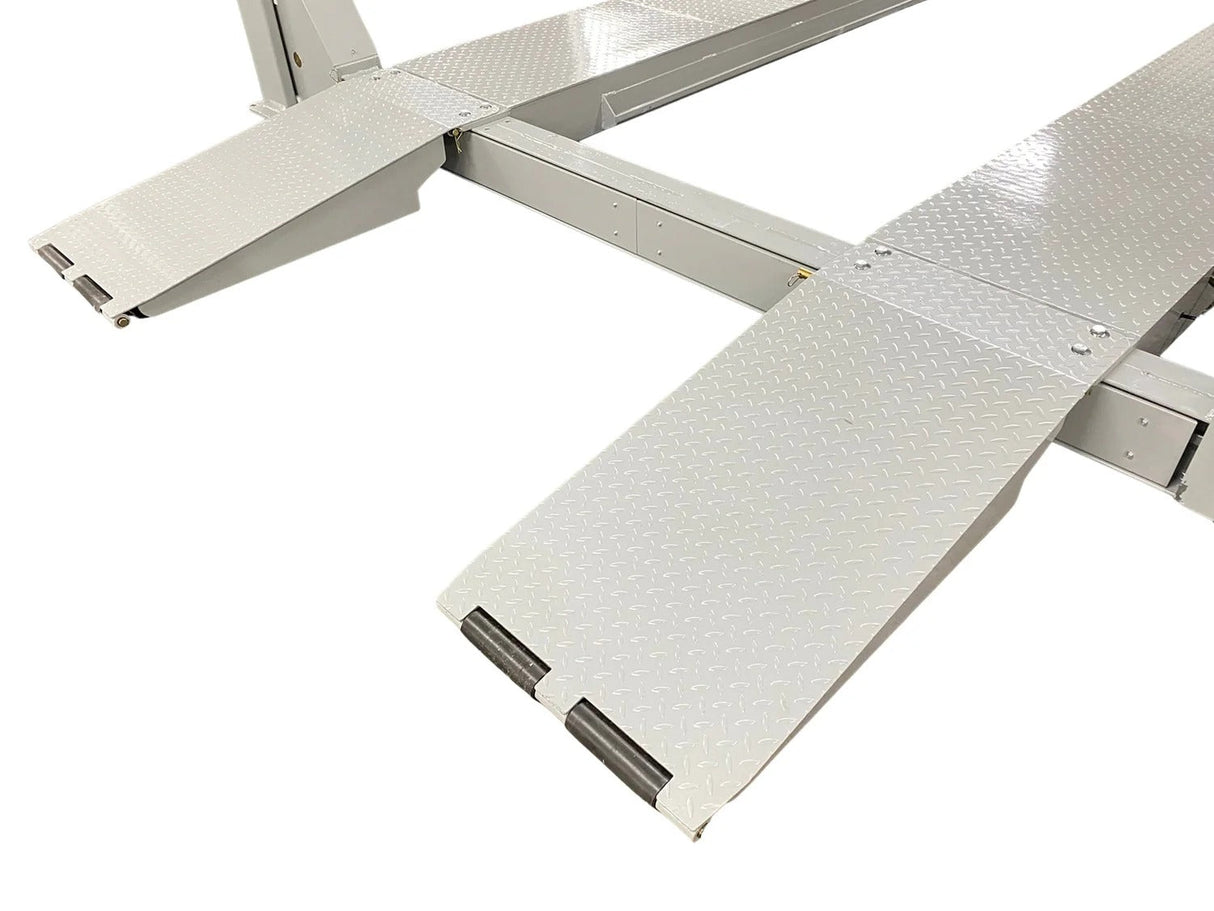

Triumph NTR-32 4-Post Truck Lift 32,000 lb Capacity
The Triumph NTR-32 is a super heavy-duty four-post lift built for extreme lifting capacity and large vehicle service applications. With an impressive 32,000 lb capacity, it's engineered to handle oversized trucks, fleet vehicles, and commercial equipment with stability and control. Featuring extended runways, wider column spacing, and multiple locking positions, the NTR-32 is designed for shops that need maximum strength, space, and reliability in a lifting system.
Key Features & Benefits
- 32,000 lb lifting capacity for large trucks and commercial vehicles
- Four-post design provides stable and secure lifting

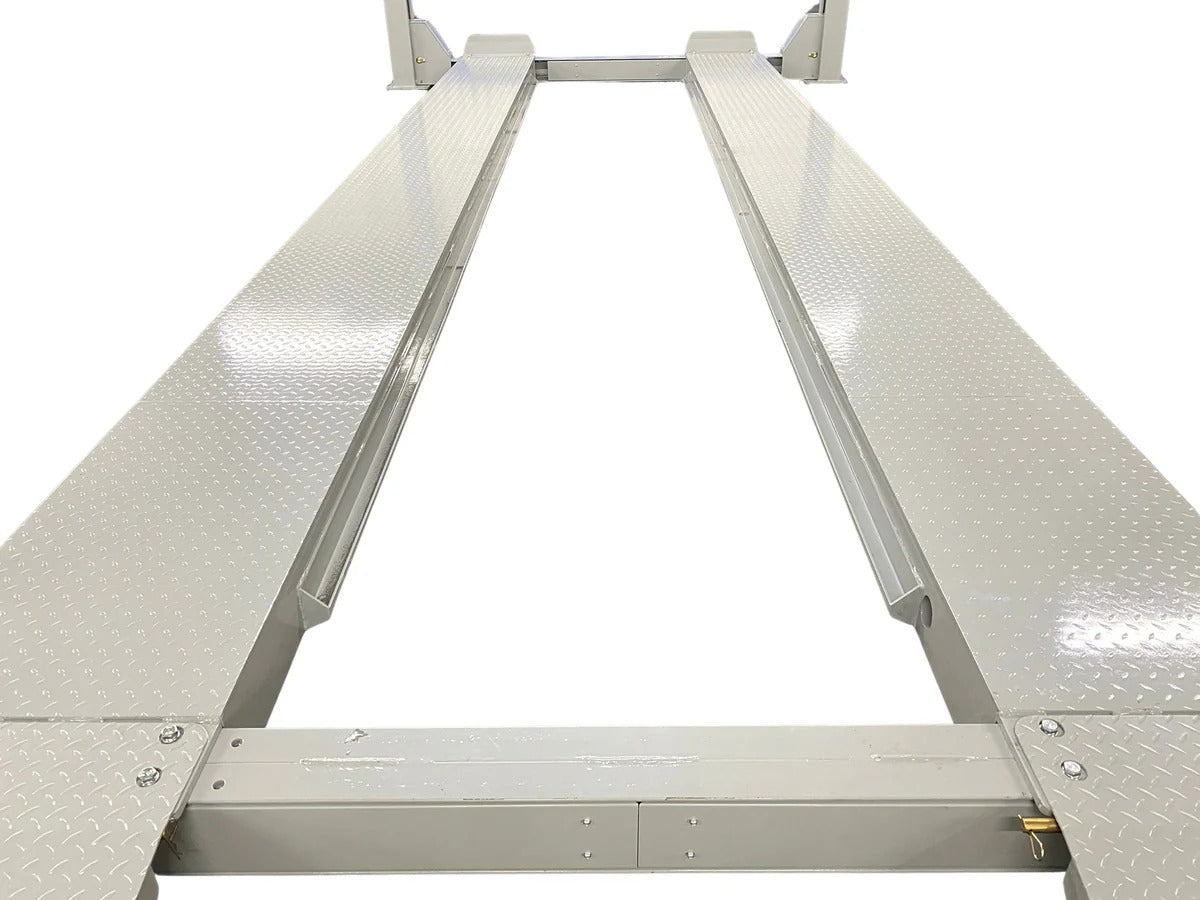

- Extended runway length supports long wheelbase vehicles
- Wide platform spacing for larger vehicle compatibility
- 9 locking positions for flexible working heights
- Adjustable runway spacing for different vehicle widths
- Low-profile runway height for easier loading
- Built for commercial and fleet service use

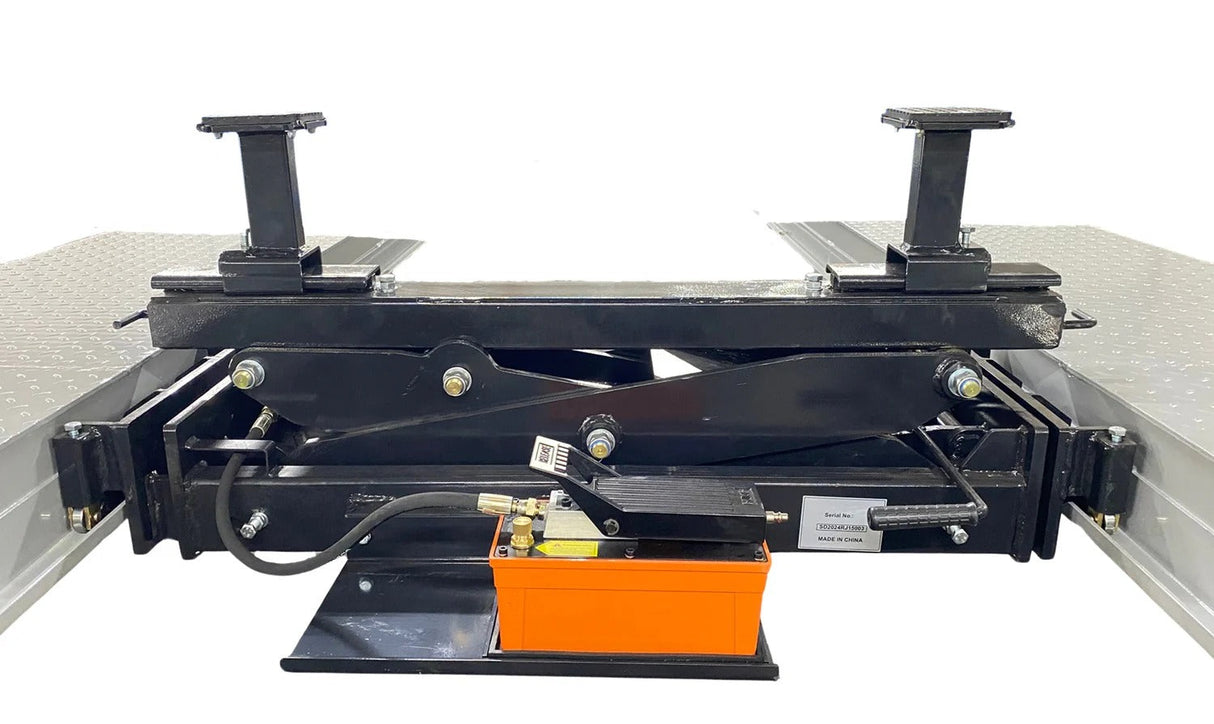

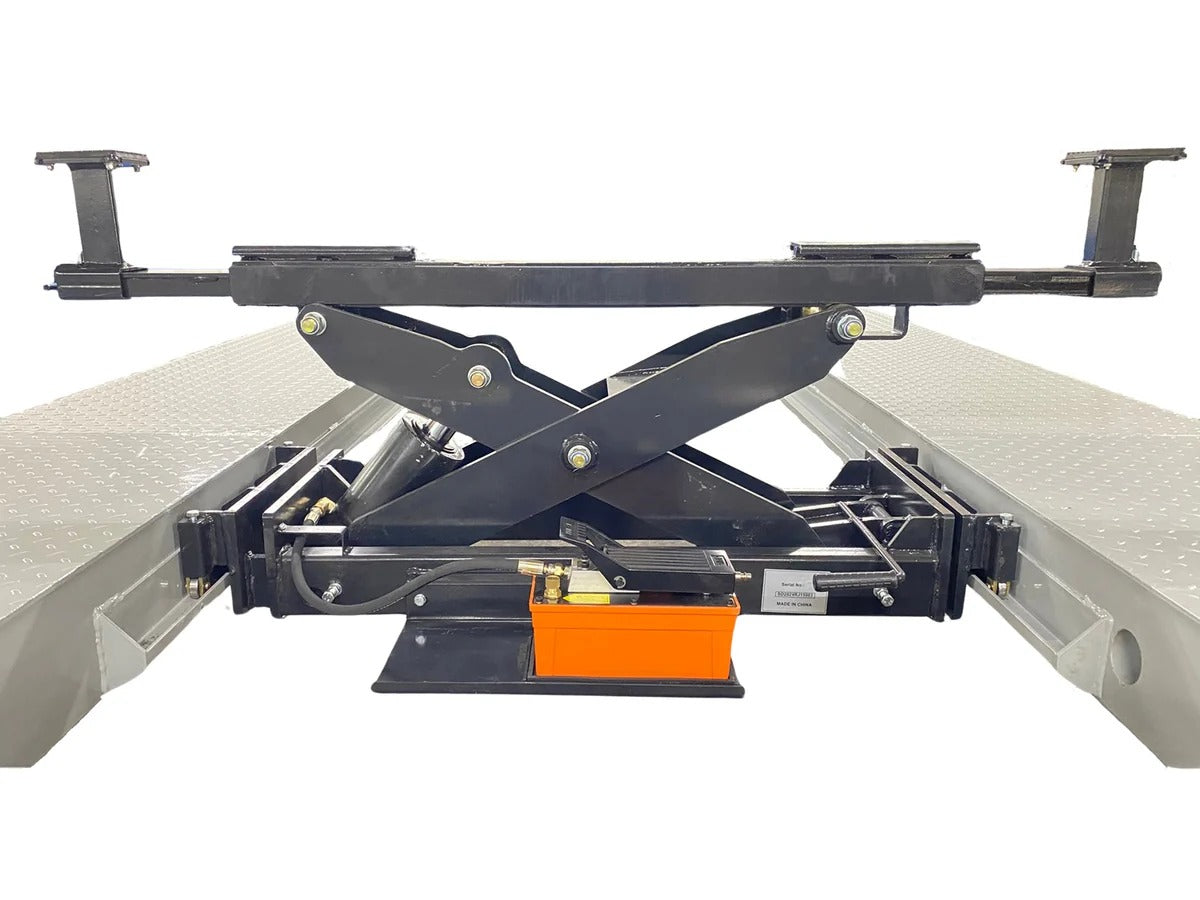

- Compatible with rolling jacks (sold separately)
Performance & Design
The NTR-32 is built with a reinforced heavy-duty structure, providing dependable performance under extreme loads. Its wider stance and longer runways allow it to accommodate larger vehicles more comfortably than lower-capacity lifts. The multi-lock system ensures safe operation at different working heights, while the adjustable runway spacing improves flexibility across various vehicle sizes.
Installation Requirements
- 220V single-phase power required
- Must be installed on a level, reinforced concrete surface
- Designed for commercial-grade environments
- Professional installation recommended
What's Included
- Four-post lift structure
- Runways and ramp system
- Power unit
- Safety lock system
Note: Rolling jack (RJ5000) not included.
Ideal Applications
- Fleet maintenance facilities
- Heavy-duty truck repair shops
- Commercial vehicle service centers
- Large vehicle storage solutions
Why Choose the NTR-32
The NTR-32 is built for maximum lifting capacity and durability, making it the right choice for operations that regularly handle oversized or heavy-duty vehicles and need a lift that can perform under demanding conditions.
| Specifications | Details |
|---|---|
| Model | NTR-32 |
| Lift Type | Super Heavy-Duty Four-Post Lift |
| Lifting Capacity | 32,000 lbs |
| Maximum Lifting Height | 70.8" |
| Minimum Runway Height | 9" |
| Overall Height | 93.1" |
| Overall Length (Without Ramps) | 305.5" |
| Overall Length (With Ramps) | 344.6" |
| Overall Width | 168.7" |
| Runway Length | 295.2" |
| Runway Width | 24" |
| Width Between Runways | 48.75" – 52.7" |
| Width Between Columns | 139.2" |
| Number of Lock Positions | 9 |
| Electrical Requirement | 220V Single Phase |
| Shipping Weight | 9,037 lbs |
| Shipping Dimensions | 301" x 30" x 43" |
