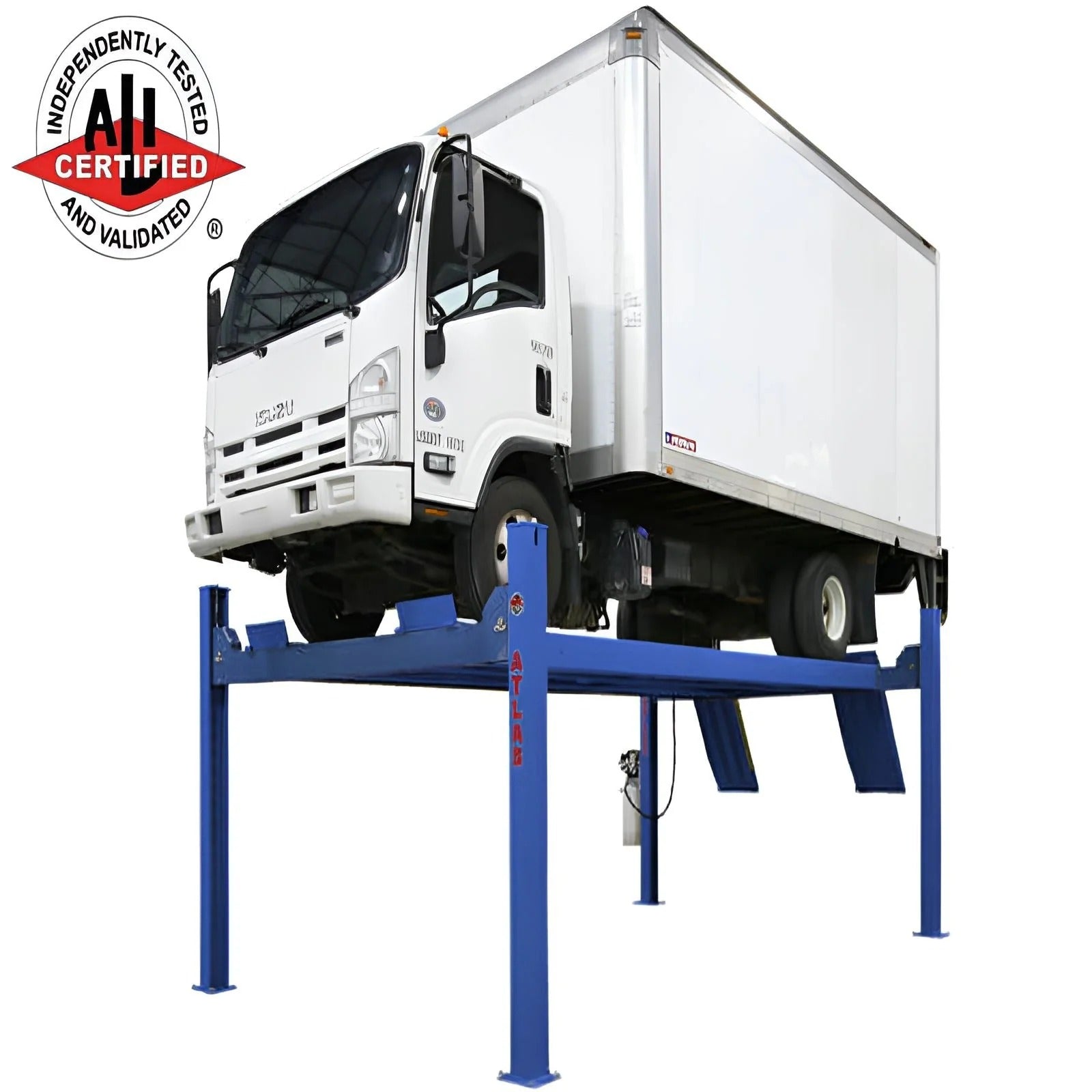

Atlas 14,000 lb ALI Certified 4-Post Car Lift
SKU: ATEAP-PVL14
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The Atlas Platinum PVL14 14,000 lb ALI Certified 4-Post Lift is a heavy-duty, commercial-grade lifting solution designed for professional shops and serious garage setups that require strength, stability, and long-term reliability. With its extra tall, extra wide, and extended length design, this lift is built to accommodate a wide range of vehicles including cars, SUVs, trucks, vans, and light to medium-duty commercial vehicles.

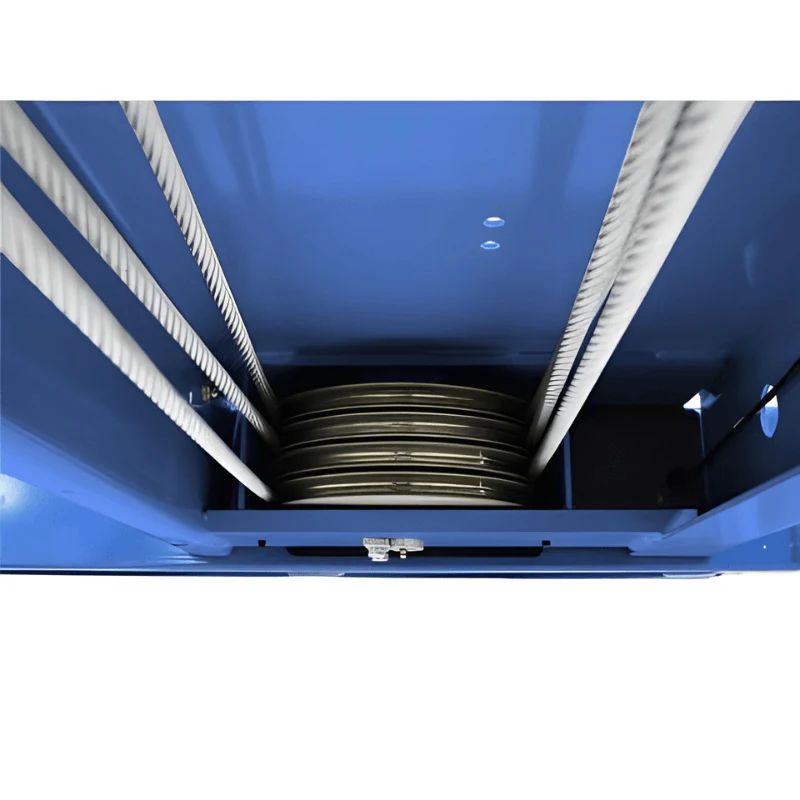

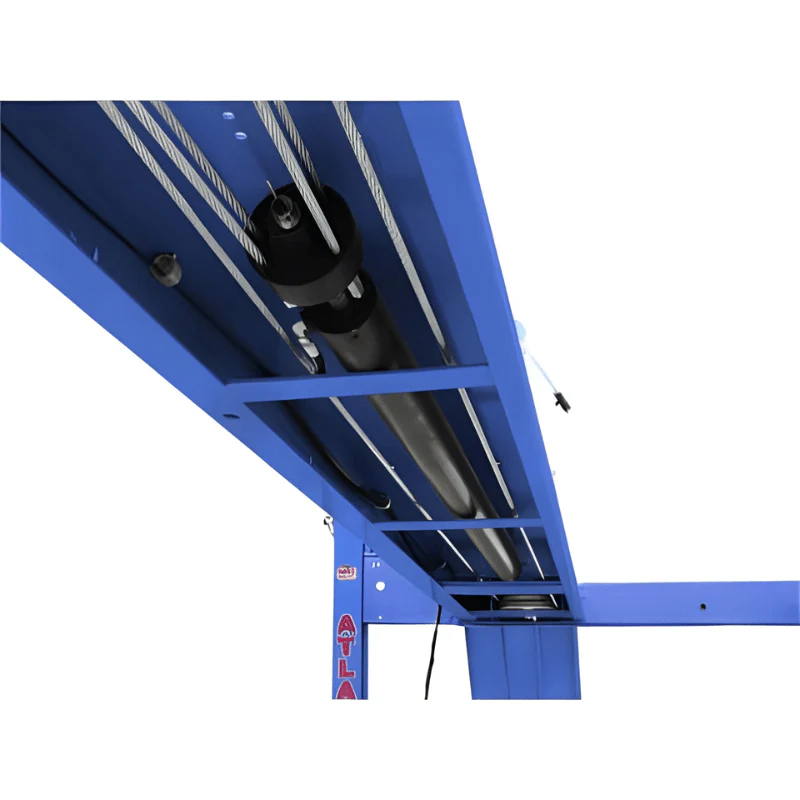

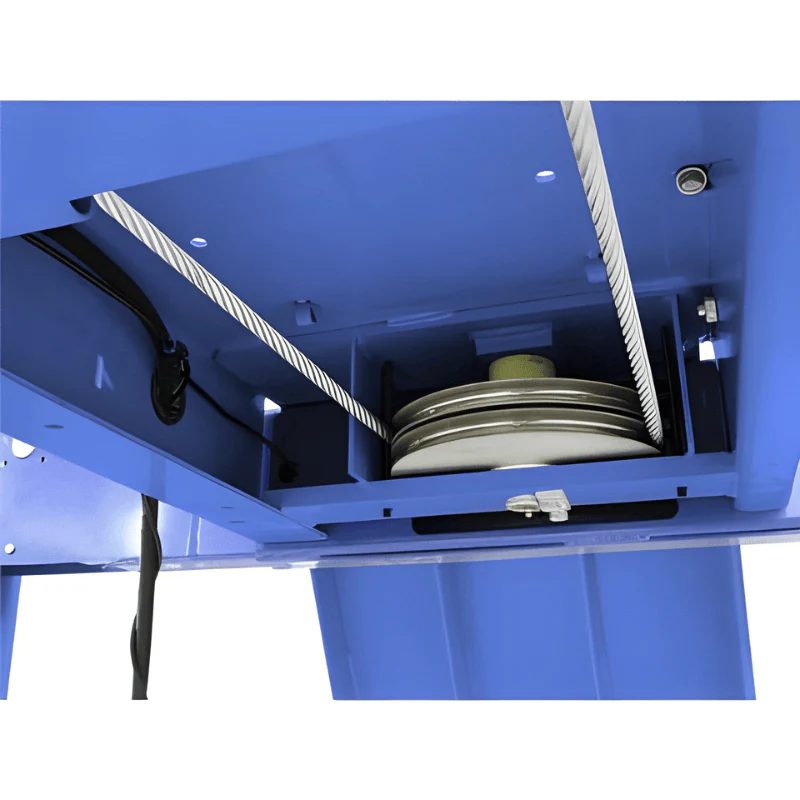

Engineered with a high-strength cable lifting system and an oversized hydraulic cylinder positioned under the runway, the PVL14 delivers smoother operation and more consistent leveling compared to traditional chain-driven lifts. This design also reduces the risk of vehicle damage, making it a safer and more refined choice for professional environments.
Constructed with heavy-duty steel and finished with a high-quality powder coating, the PVL14 is built to withstand demanding shop conditions while maintaining a clean, professional appearance. The adjustable lock ladder system and double-lock safety mechanism ensure secure positioning at multiple heights, providing confidence during operation.

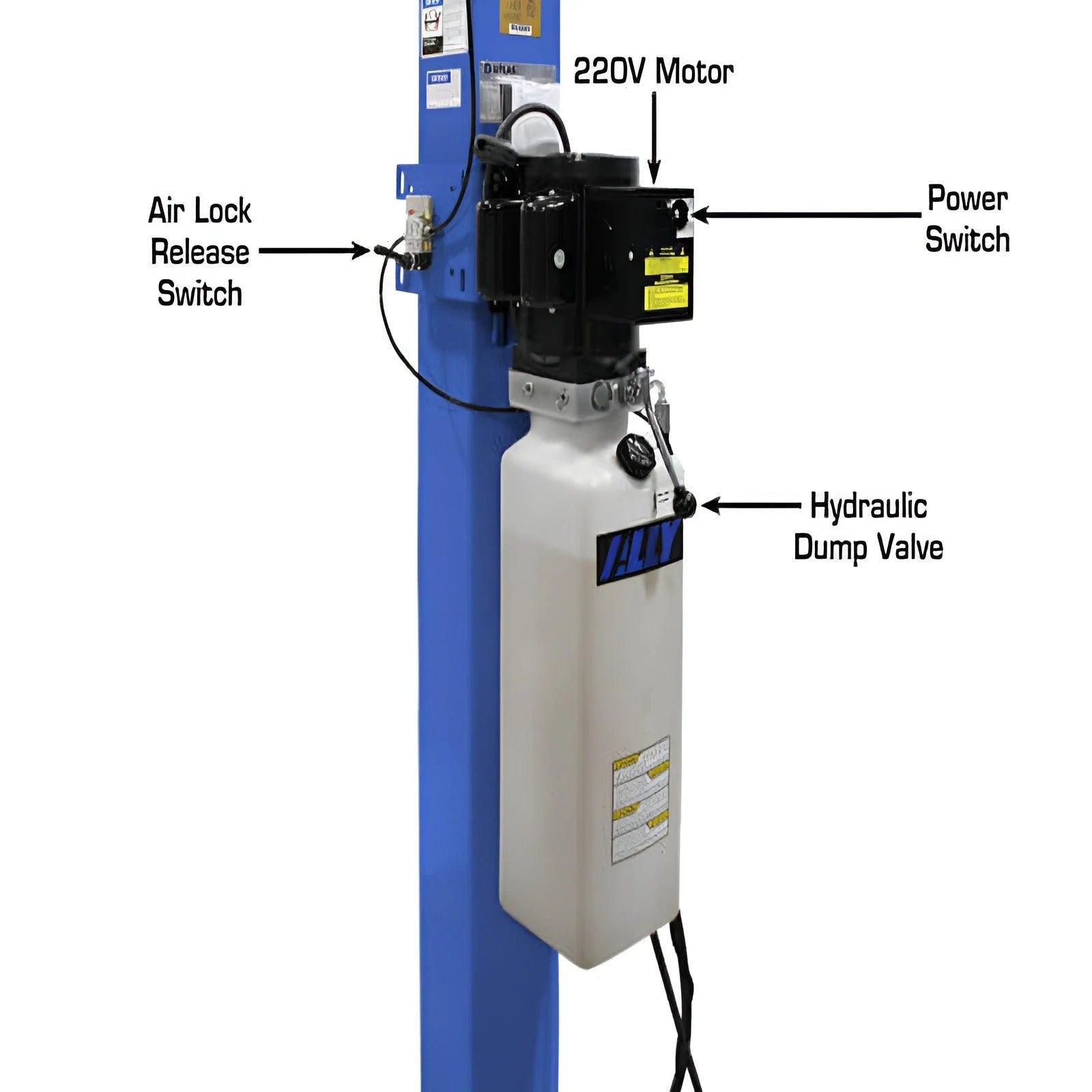

The included ALLY AL2650 hydraulic power unit delivers reliable performance with reduced heat buildup and consistent torque throughout the lifting process. Certified for electrical compliance in the U.S. and Canada, this premium power unit enhances durability and long-term reliability.
Key Features
- 14,000 lb Capacity for cars, trucks, and commercial vehicles
- ALI Certified for proven safety and performance
- Heavy-duty commercial grade construction
- Extra tall, wide & long design for larger vehicles
- High-strength cable system with under-runway hydraulic cylinder
- Air-operated single-point lock release (external air required)
- Double lock safety system for added protection

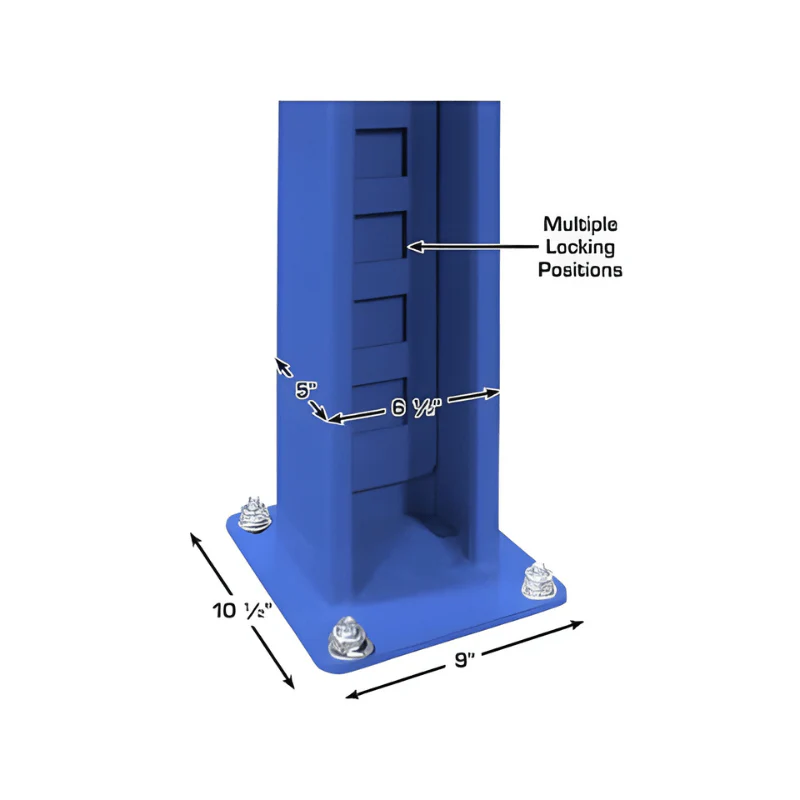

- Adjustable lock ladder design for secure height positioning
- Premium powder-coated finish for durability and corrosion resistance
- Steel approach ramps included
- Compatible with rolling bridge jacks (sold separately)
- Premium ALLY hydraulic power unit included
- Freight Prepaid (FPD) – Will Call Only
Designed for Versatility & Shop Efficiency
The PVL14 features integrated runway tracks, allowing the use of rolling bridge jacks such as the Atlas Platinum RJ7000 (sold separately). This adds the ability to perform wheel service, brake work, and suspension repairs directly on the lift, increasing overall shop productivity. With its extended dimensions and robust construction, this lift is ideal for high-volume shops and service facilities that require dependable performance across a wide range of vehicle types.

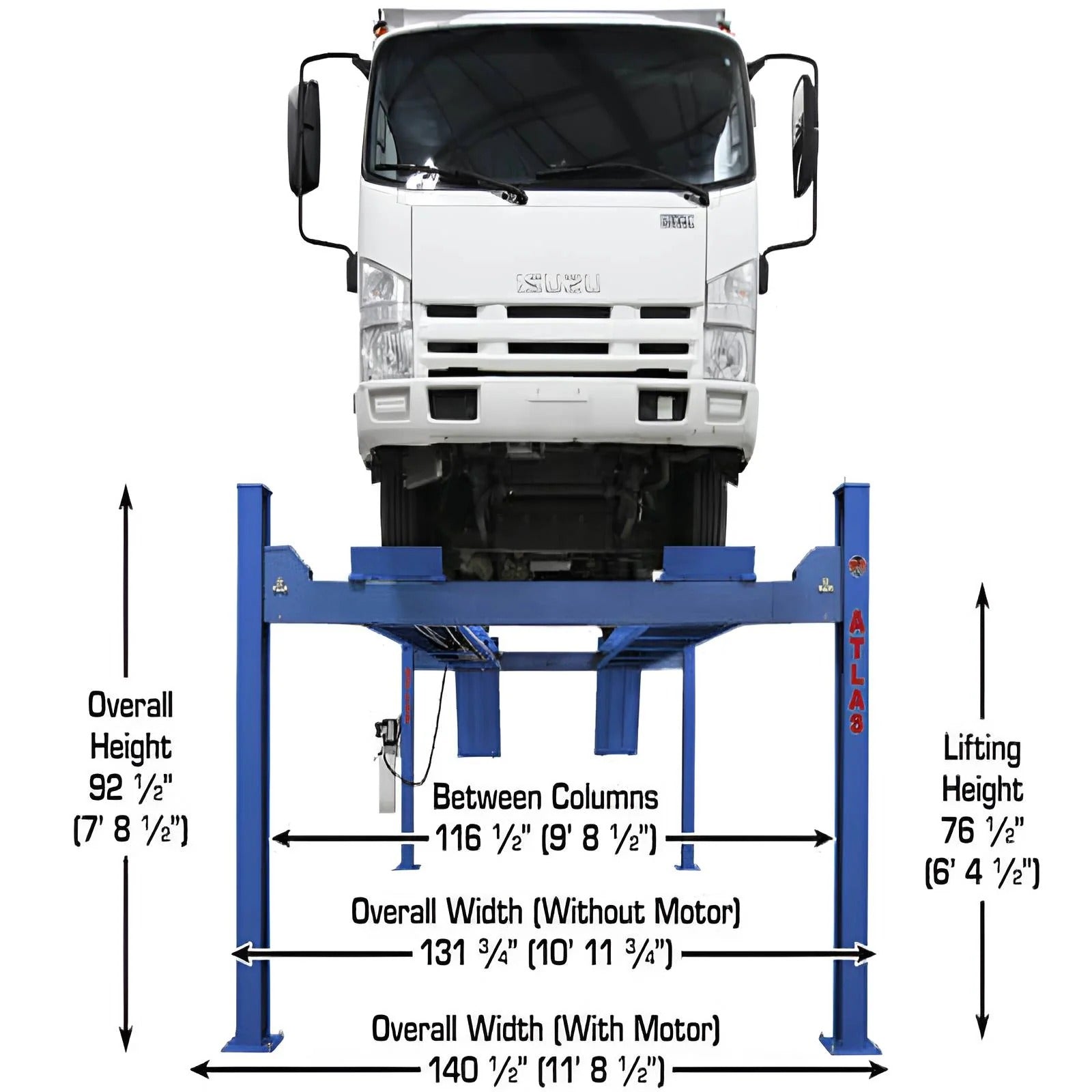

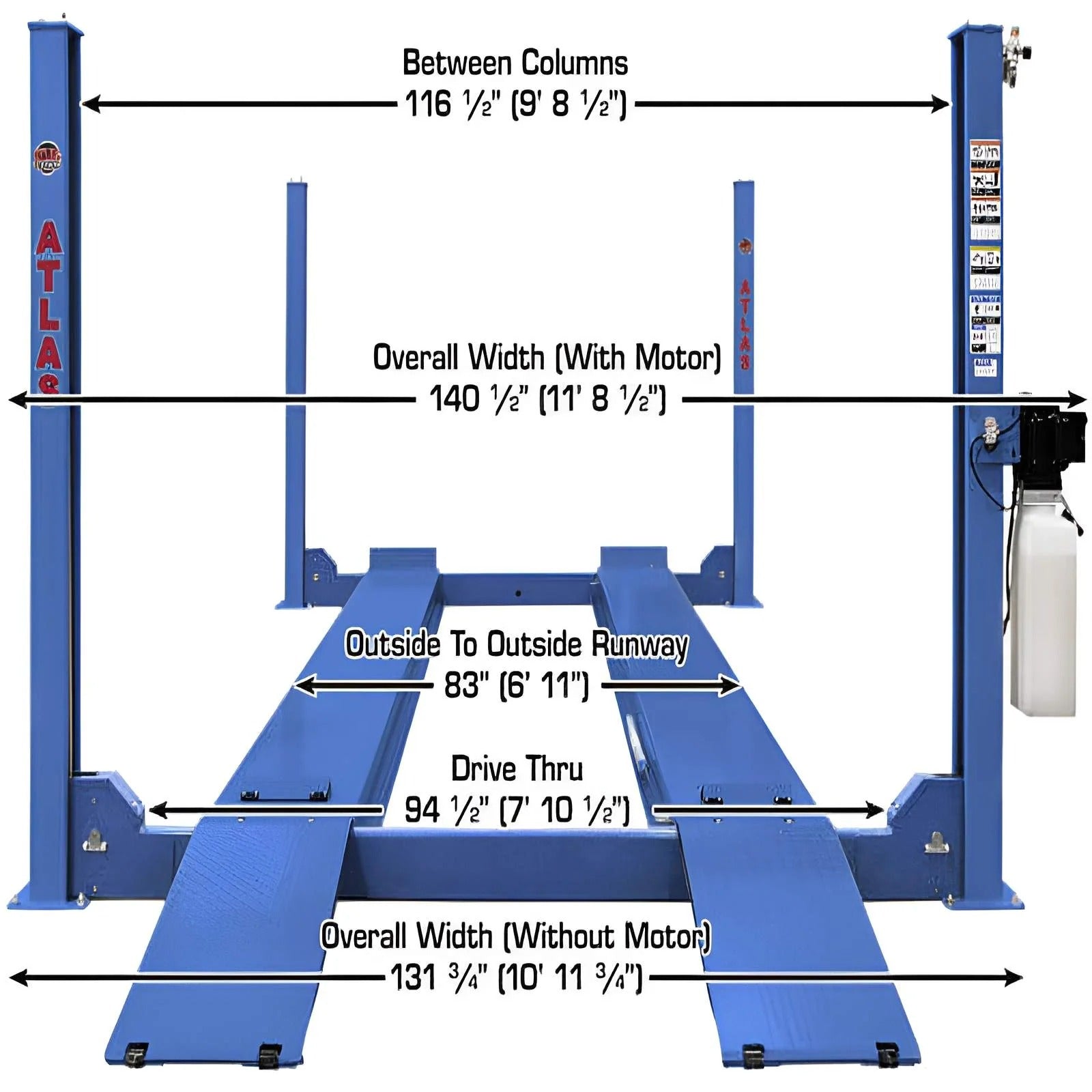

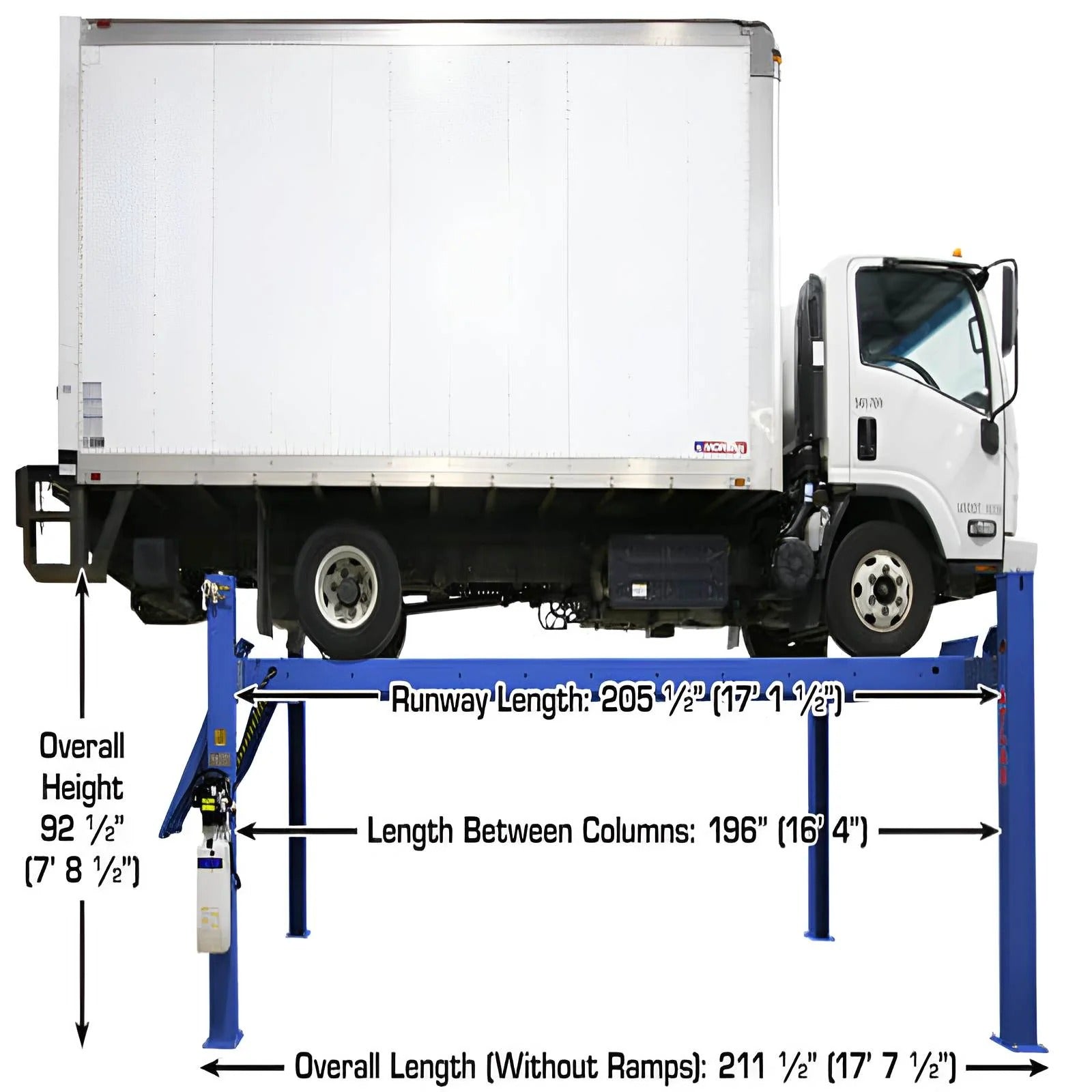

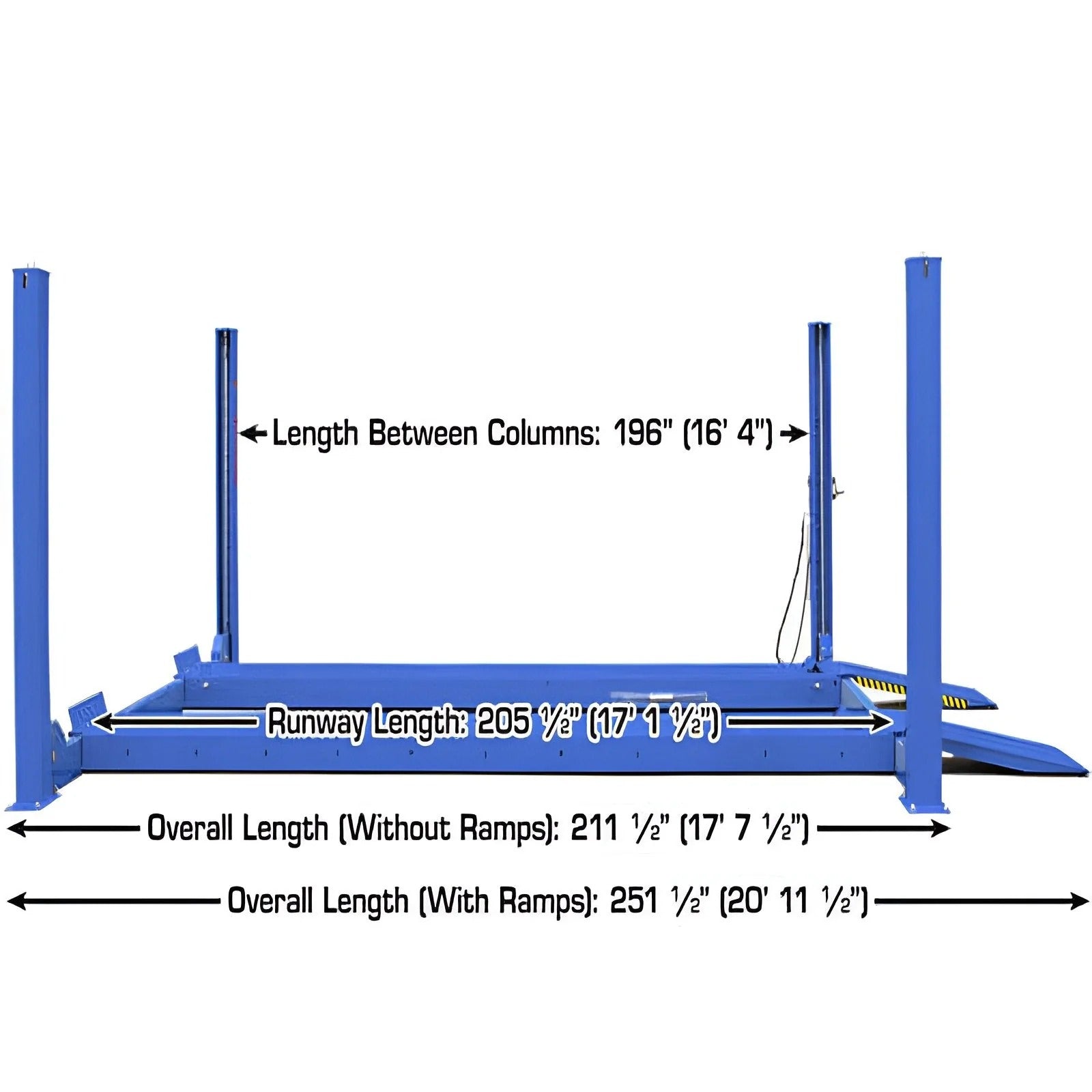

| Specifications | Details |
|---|---|
| Capacity | 14,000 lbs |

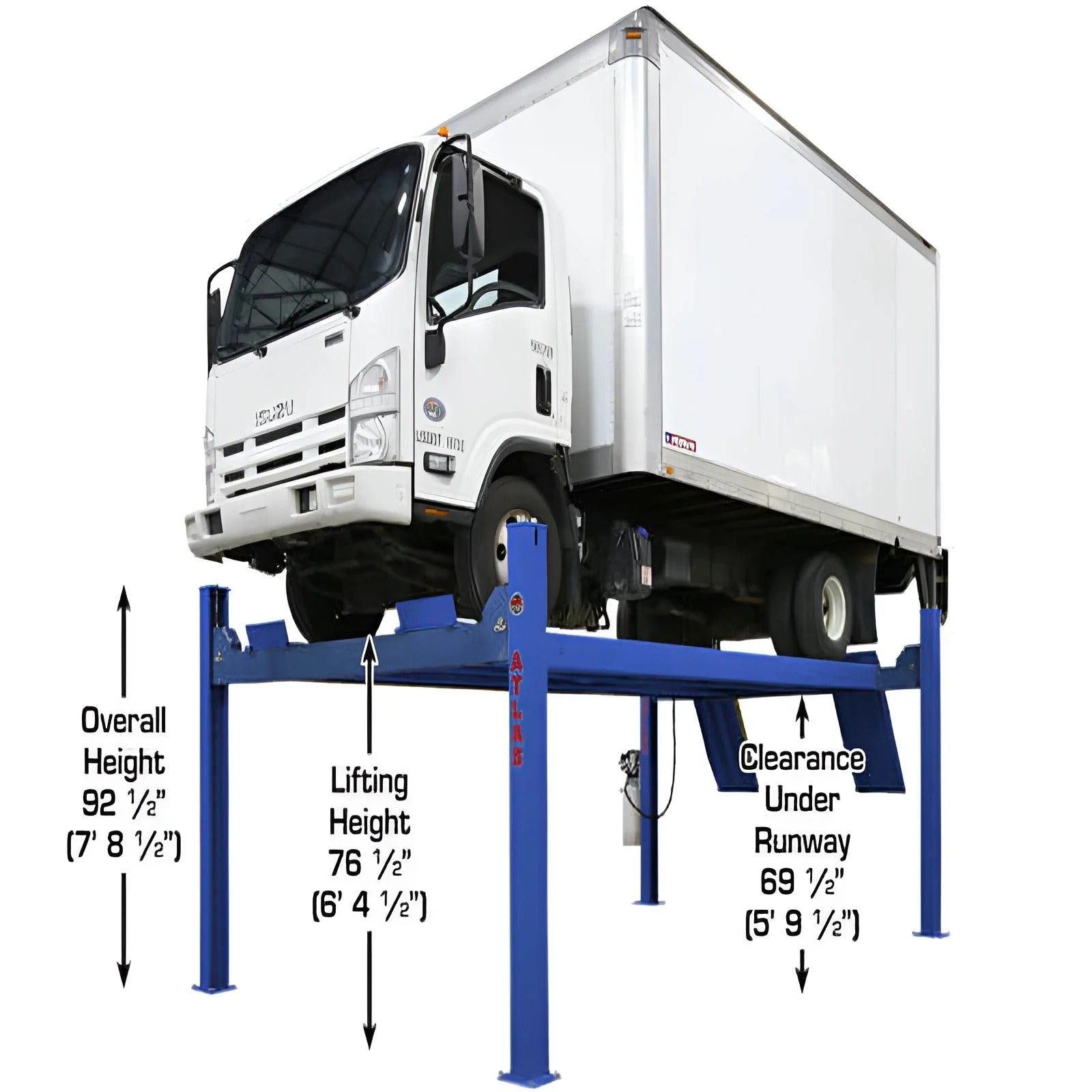

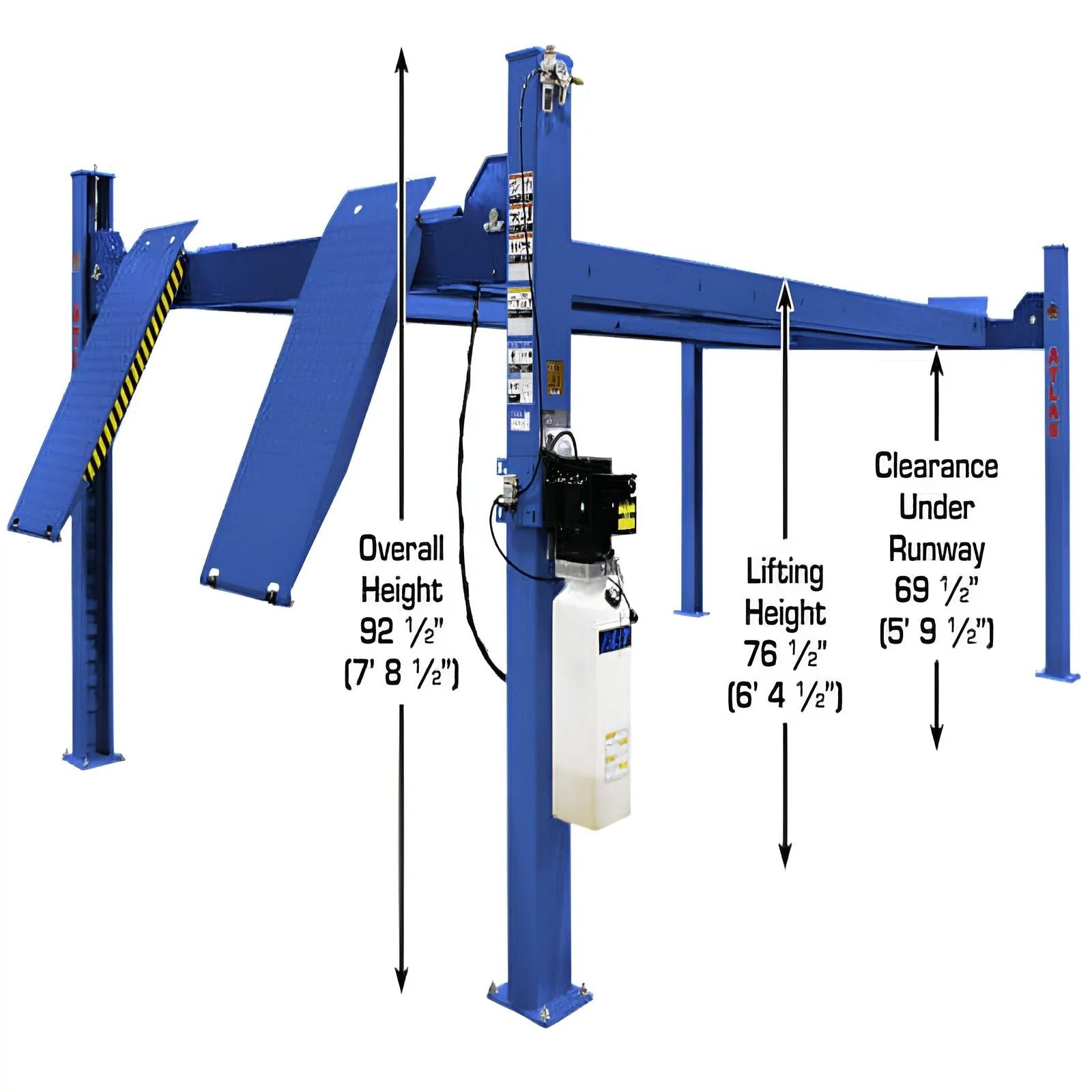

| Lifting Height | 76 1/2" (6' 4 1/2") |
| Overall Width (Without Motor) | 131 3/4" |
| Overall Width (With Motor) | 140 1/2" |
| Overall Length (With Ramps) | 251 1/2" |
| Length Between Columns | 196" |
| Runway Length | 205 1/2" |

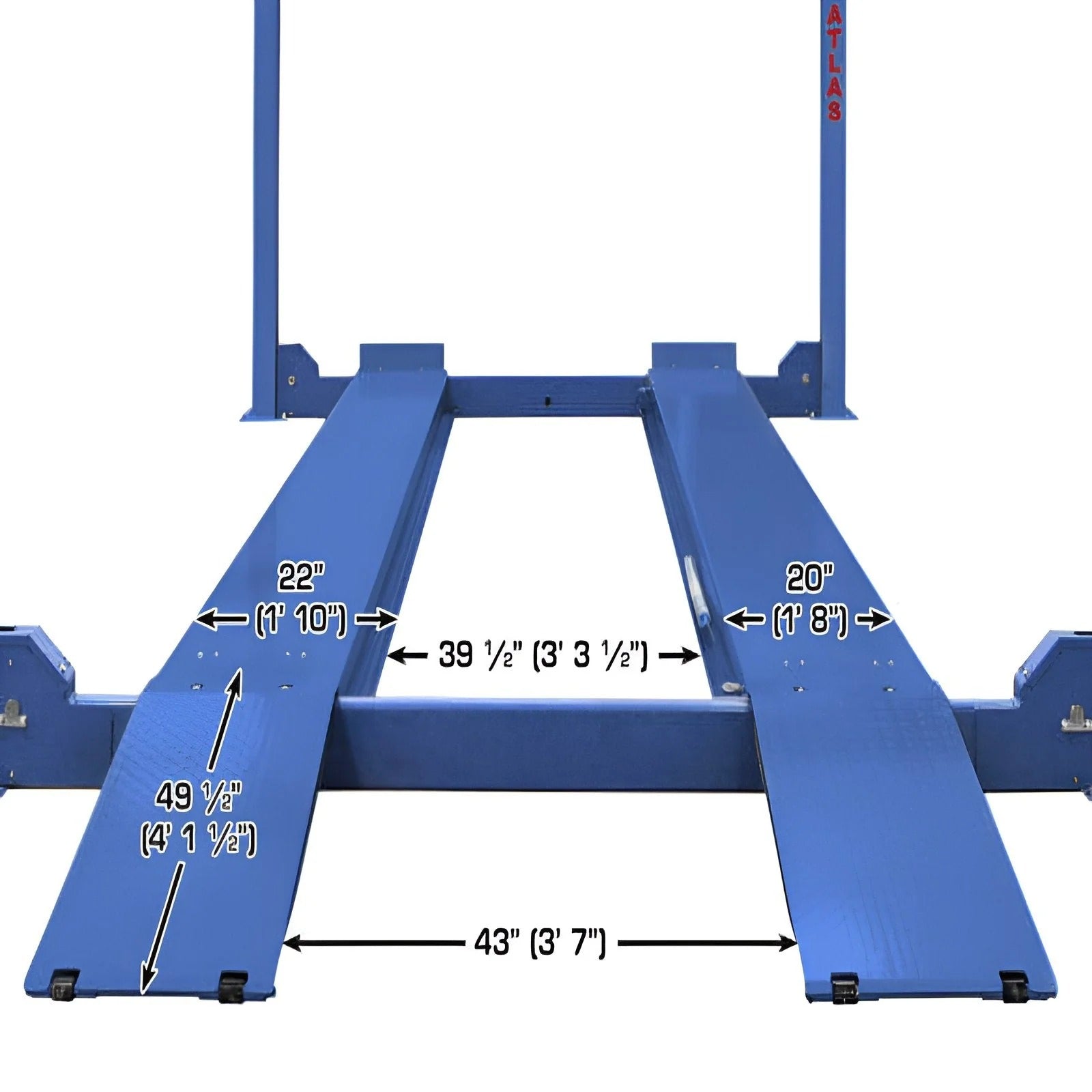

| Runway Width | 20" |
| Runway Thickness | 7" |
| Width Between Runways | 42 3/4" (w/ Rail 39 1/4") |
| Outside Runway to Outside Runway | 83 1/8" |
| Clearance Under Runways | 69 1/2" |
| Clearance Between Columns | 116 3/8" |
| Column Height | 92 1/2" |
| Max Wheelbase | 195" |
| Drive-Thru Width | 94 1/2" |
| Air Requirement | 85–115 PSI |
| Power Requirement | 220V Single Phase (30 Amp Breaker Recommended) |
| Oil Requirement | 3–5 Gallons AW32/AW46 |
| Concrete Requirement | Minimum 6" thickness, 3,000 PSI rating |

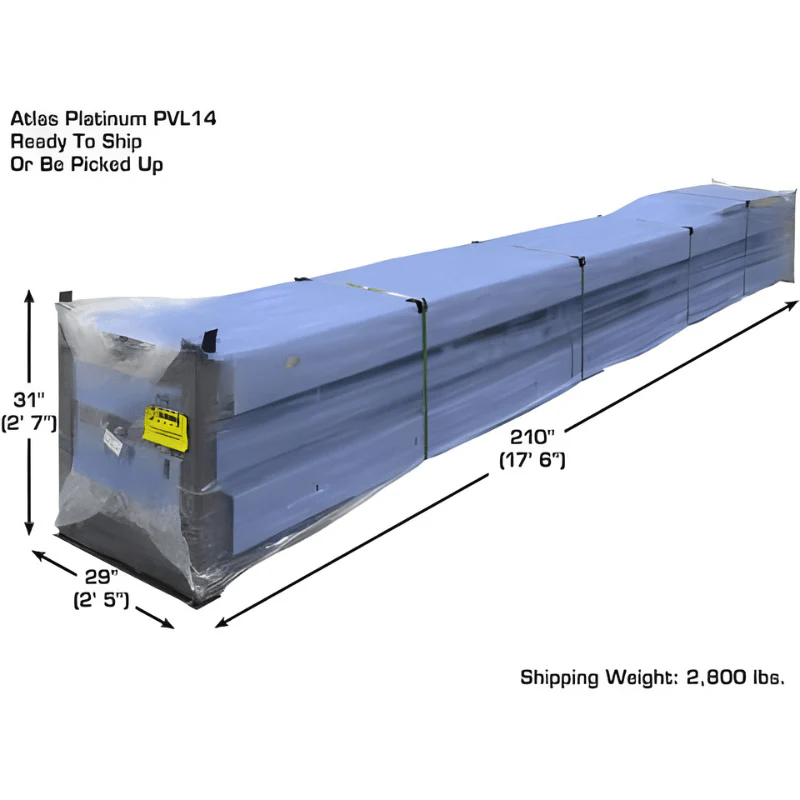

| Shipping Weight | 2,800 lbs |
