Atlas 412 Commercial 12,000 lb 4-Post Lift with RJ6 Rolling Jacks Combo
SKU: ATEATTD-412-COMBO
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

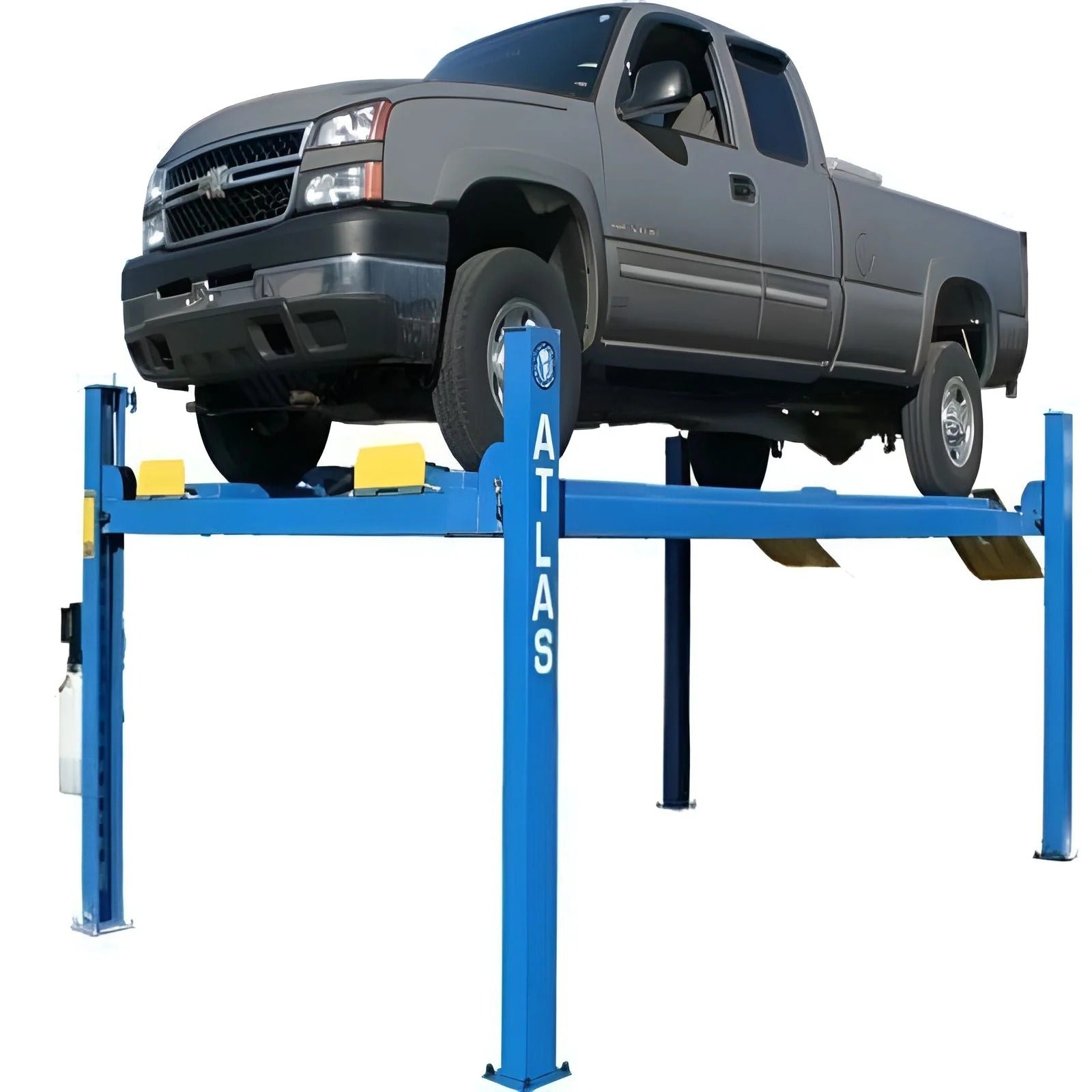

The Atlas 412 Commercial Combo is a full-service 4-post lift package built for professional automotive shops that need both heavy lifting capability and wheel-off service functionality. This package includes the 12,000 lb Atlas 412 lift and two RJ6 rolling bridge jacks, making it ideal for alignment work, brake service, suspension jobs, and general maintenance.

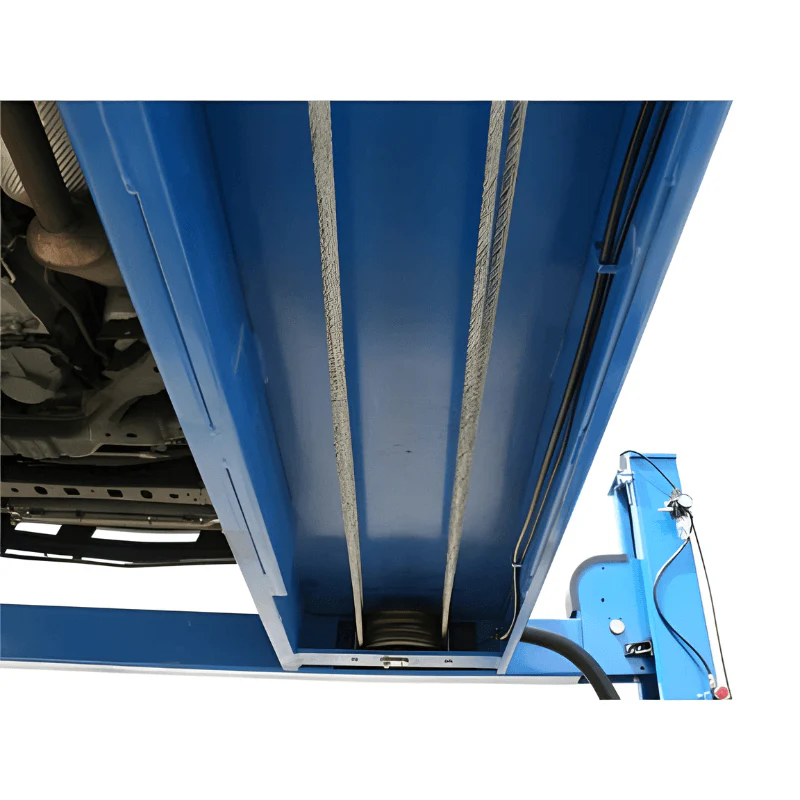

Engineered with a high-strength cable lifting system and an under-runway hydraulic cylinder, the Atlas 412 provides smoother lifting, improved leveling, and reduced risk of vehicle damage compared to traditional chain-driven systems. Its extra tall, wide, and long design accommodates a wide range of vehicles, including long wheelbase trucks and vans.
The included RJ6 rolling jacks allow technicians to lift vehicles off the runways, transforming the lift into a complete service station for tires, brakes, and suspension work.
Features and Benefits

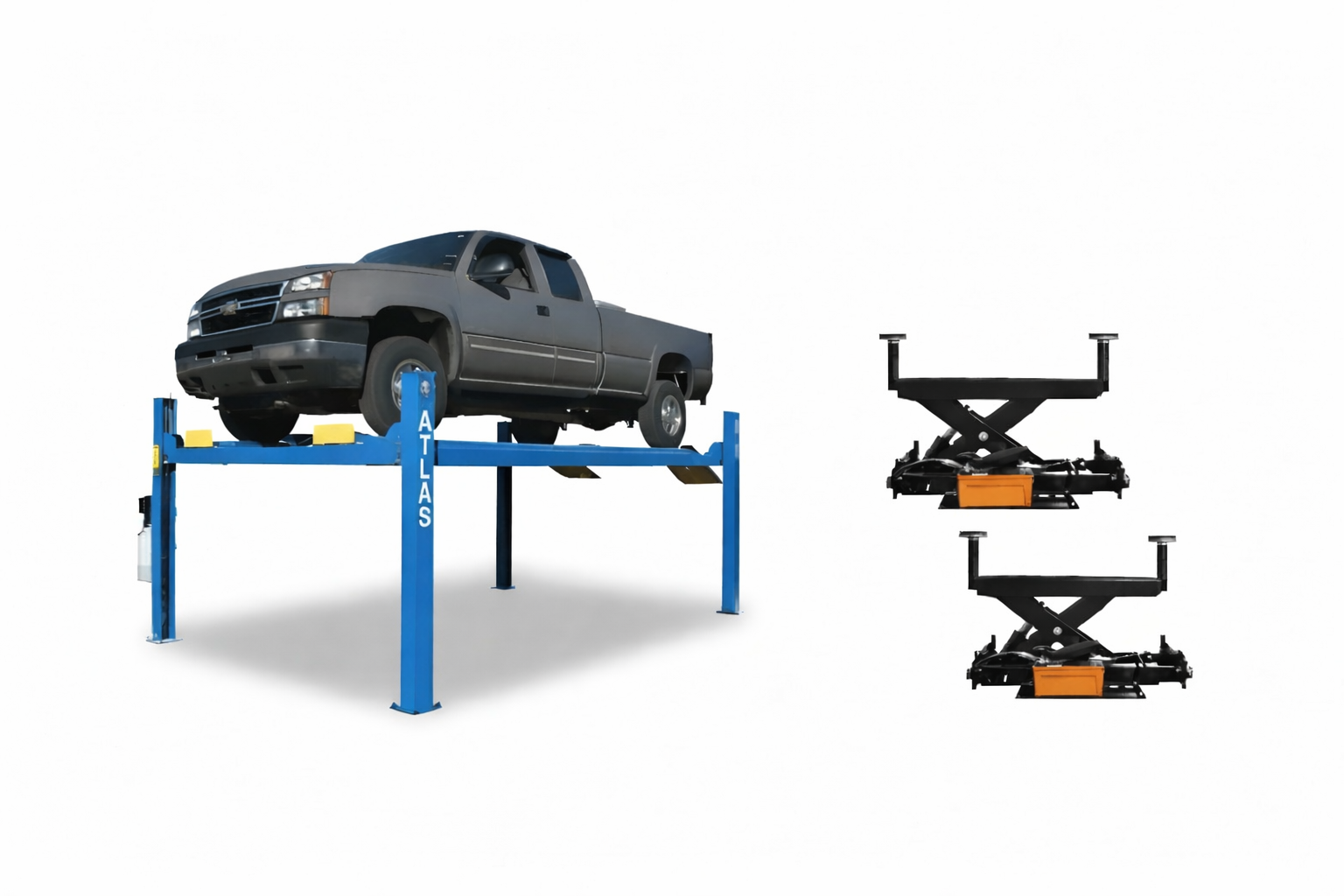

- Combo package includes Atlas 412 lift and two RJ6 rolling jacks
- 12,000 lb lift capacity with dual 6,000 lb rolling jacks
- Heavy-duty commercial-grade construction
- Extra tall, extra wide, and extra long design
- Diamond-plated runways
- Air-operated single-point lock release (external air required)

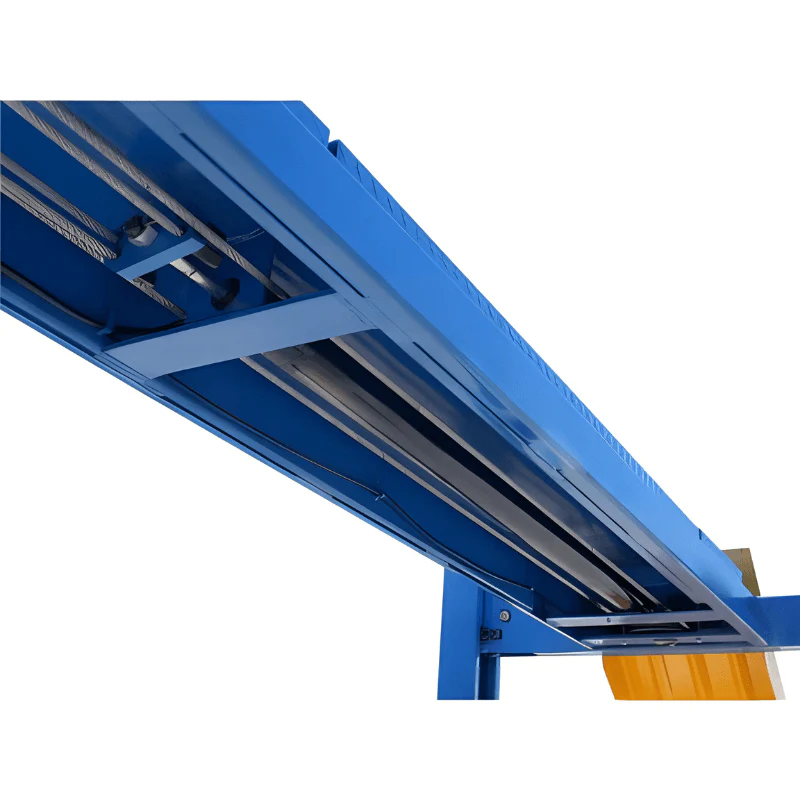

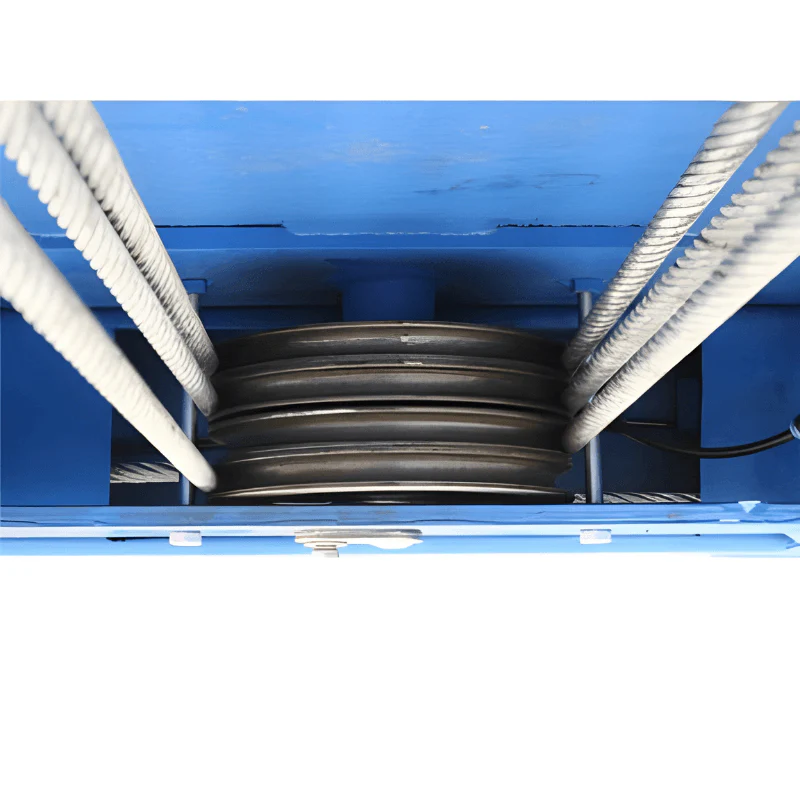

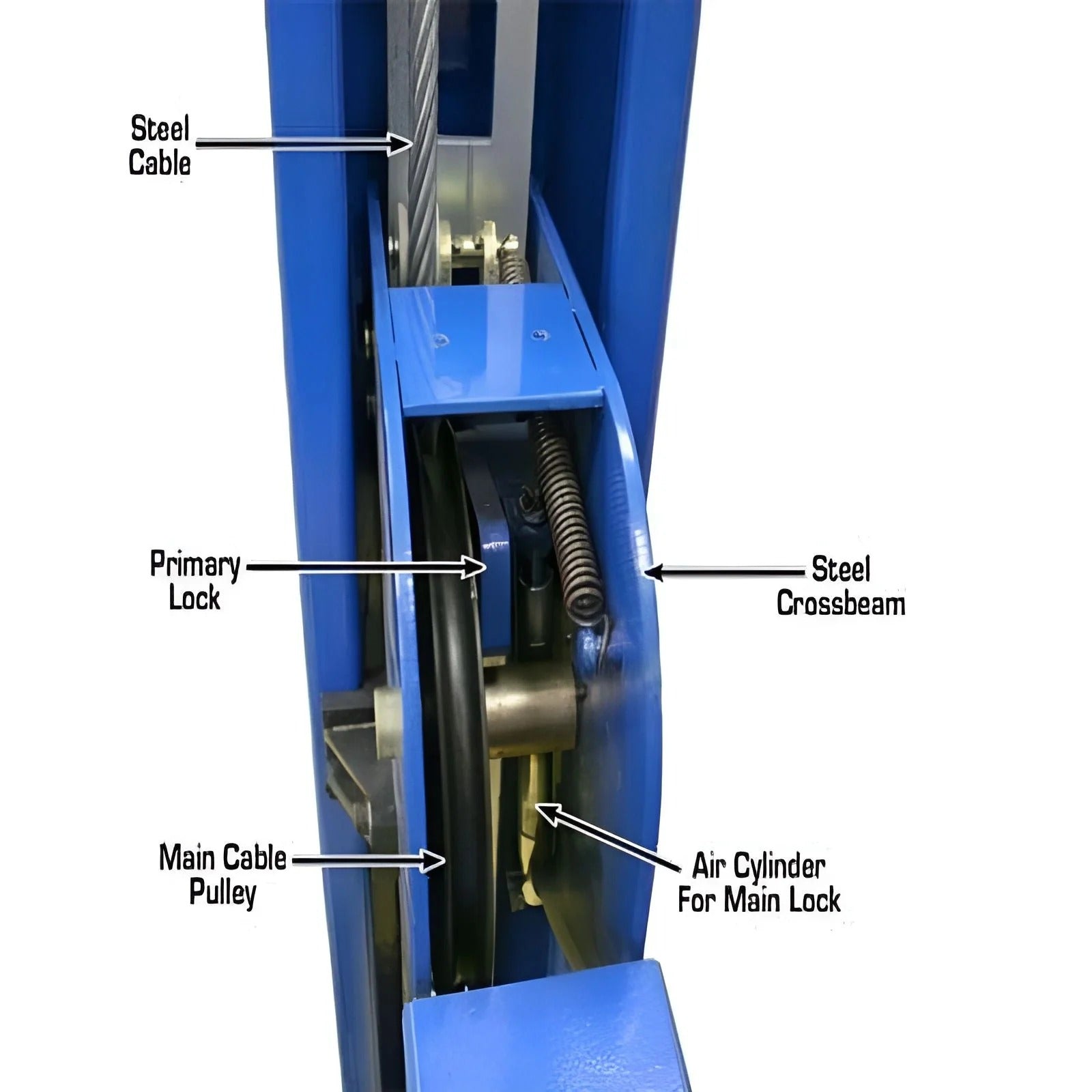

- High-strength cable system with concealed hydraulic cylinder

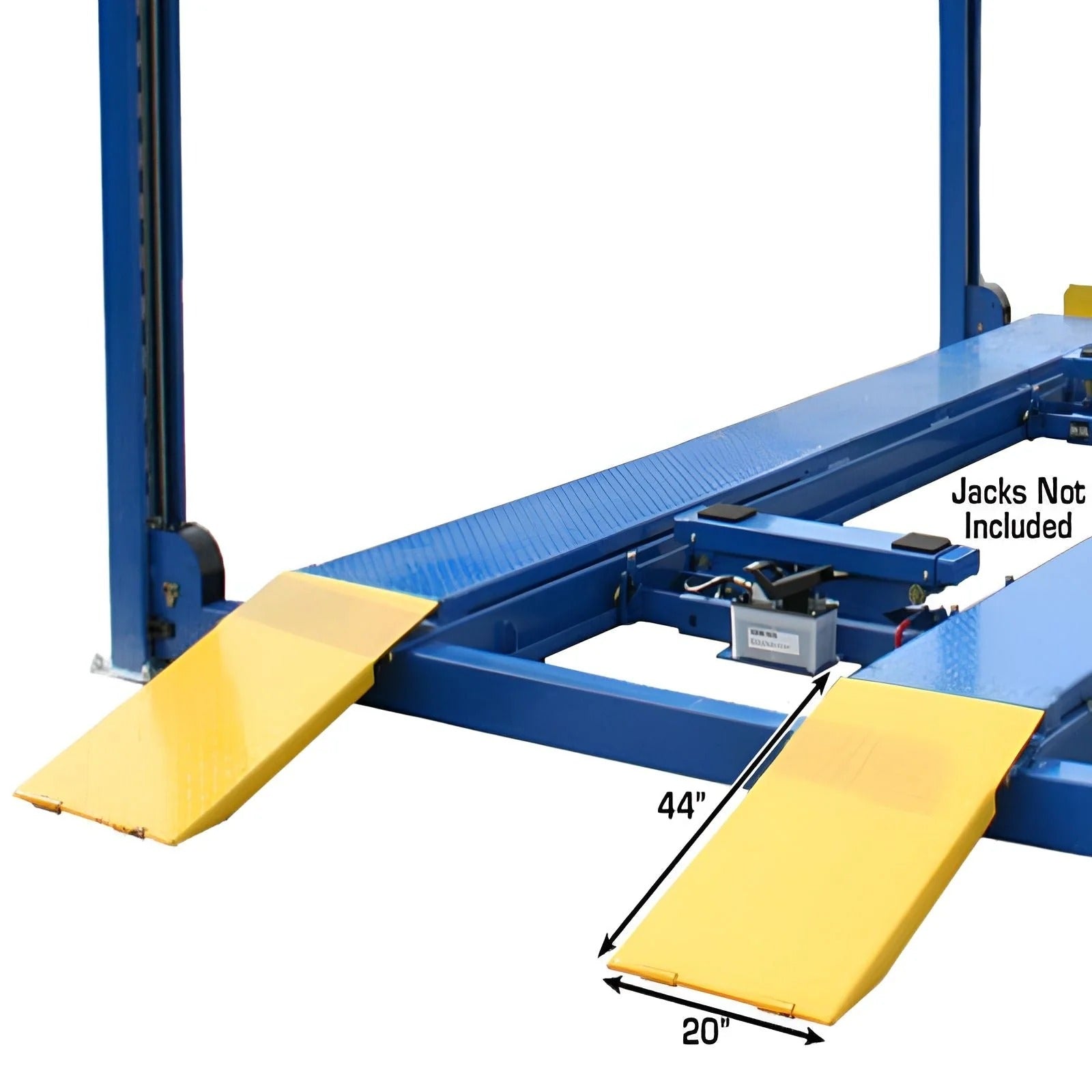

- Steel approach ramps included
- Optional drive-off ramps and runway extensions available

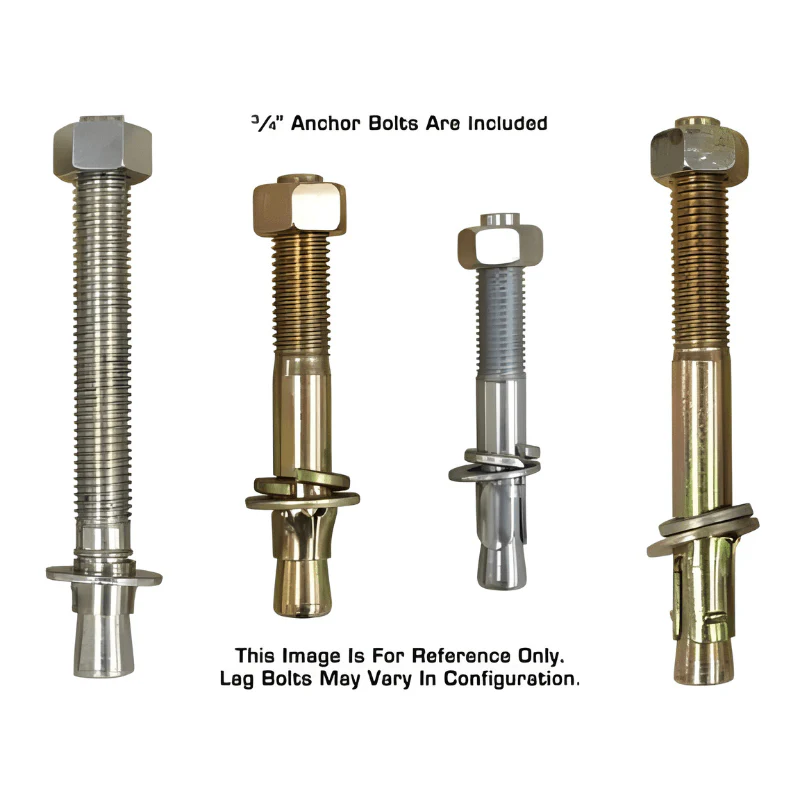

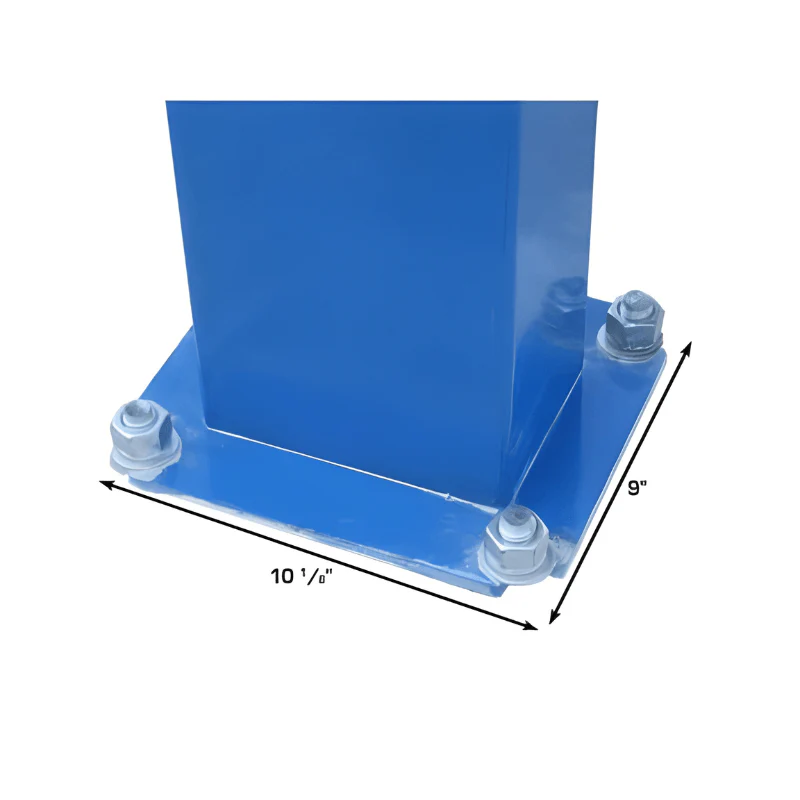

- Mounting hardware included
- Rolling jacks are air-over-hydraulic operated
- Truck adapter set included for each jack
- Ideal for full-service automotive shops
- Freight prepaid
Atlas 412
| Specifications | Details |
|---|---|
| Capacity | 12,000 lb. |

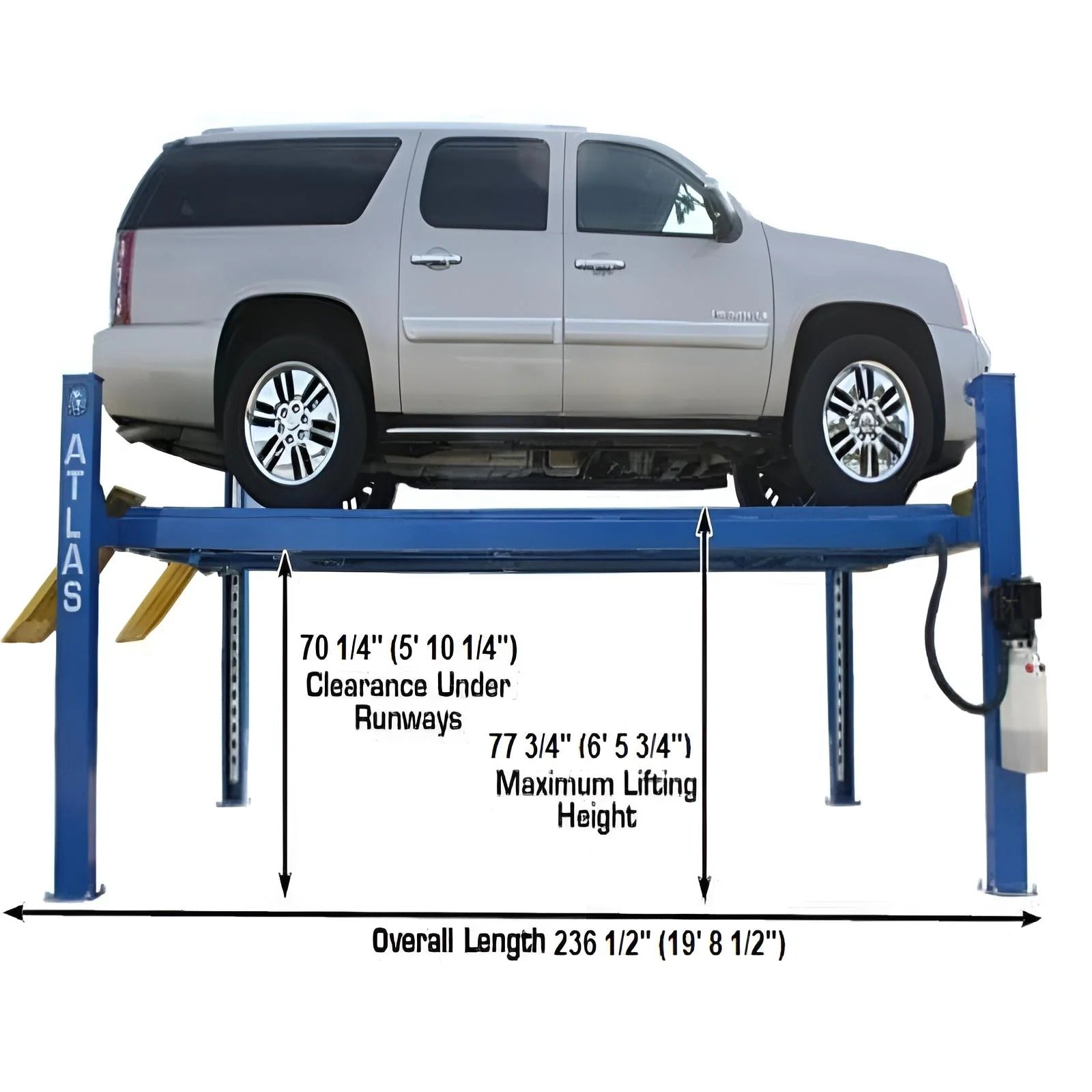

| Lifting Height | 77 3/4" (6' 5 3/4") |

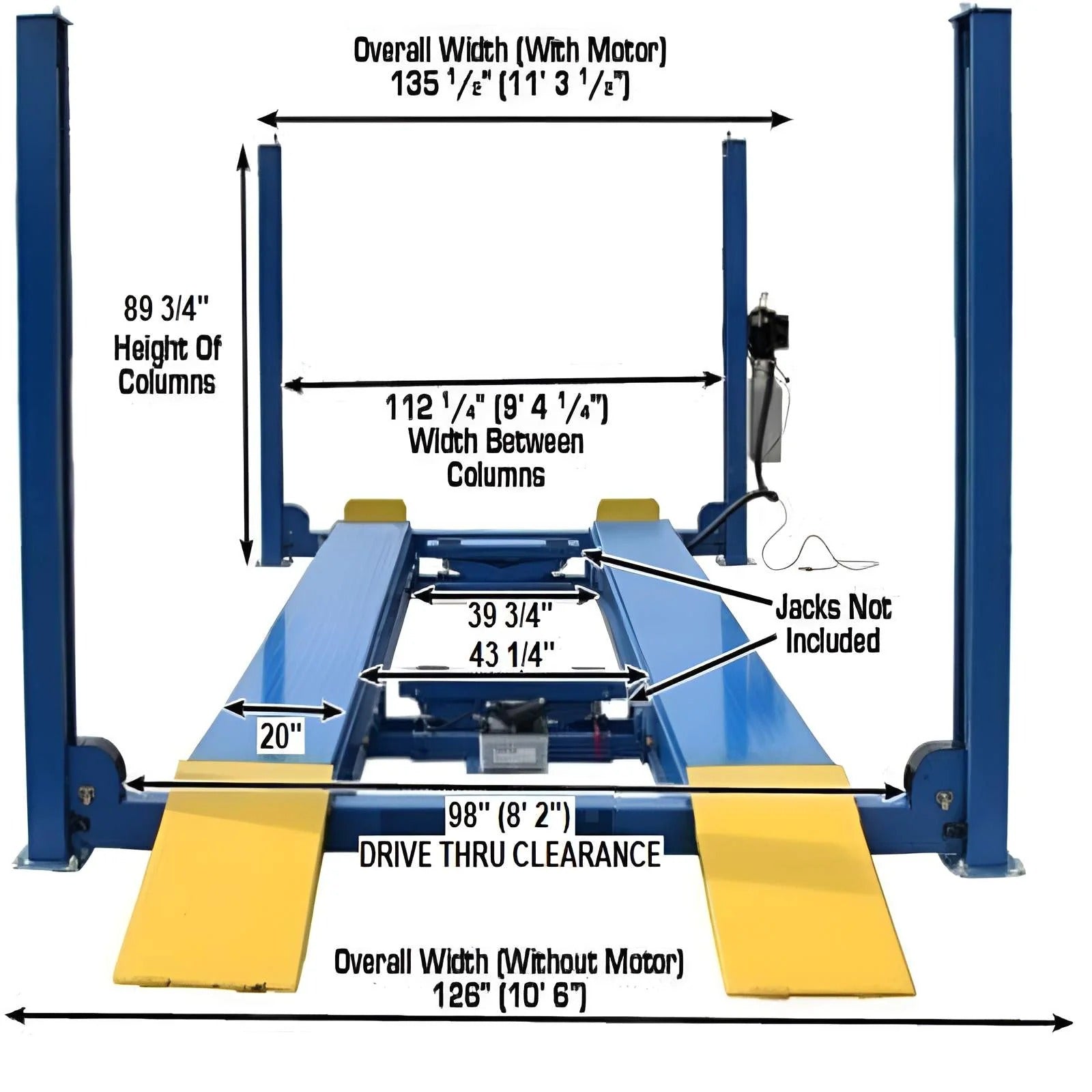

| Overall Width Of Columns (Without Motor) | 126 1/4" (10' 6 1/4") |
| Overall Width Of Columns (With Motor) | 135 1/4" (11' 3 1/4") |

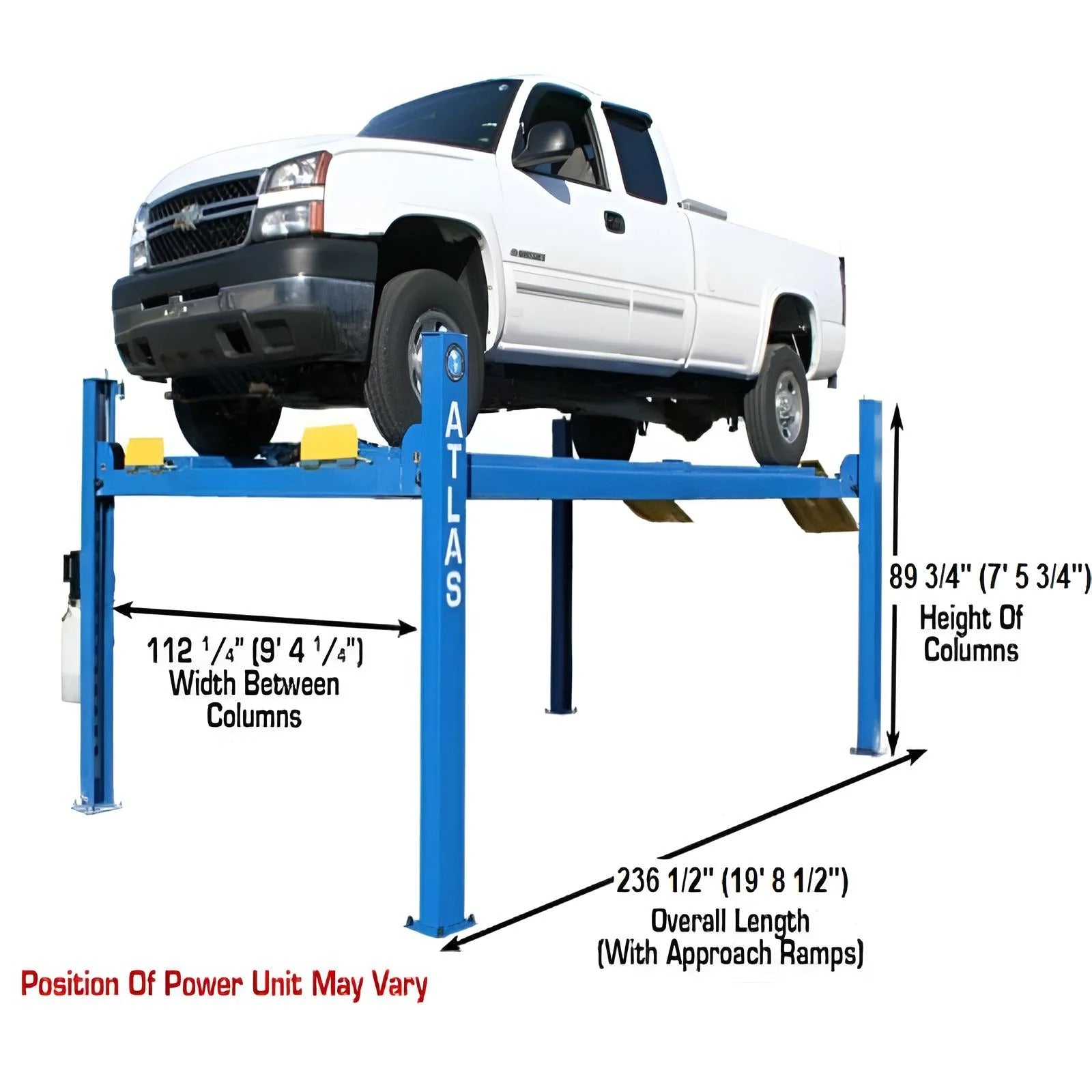

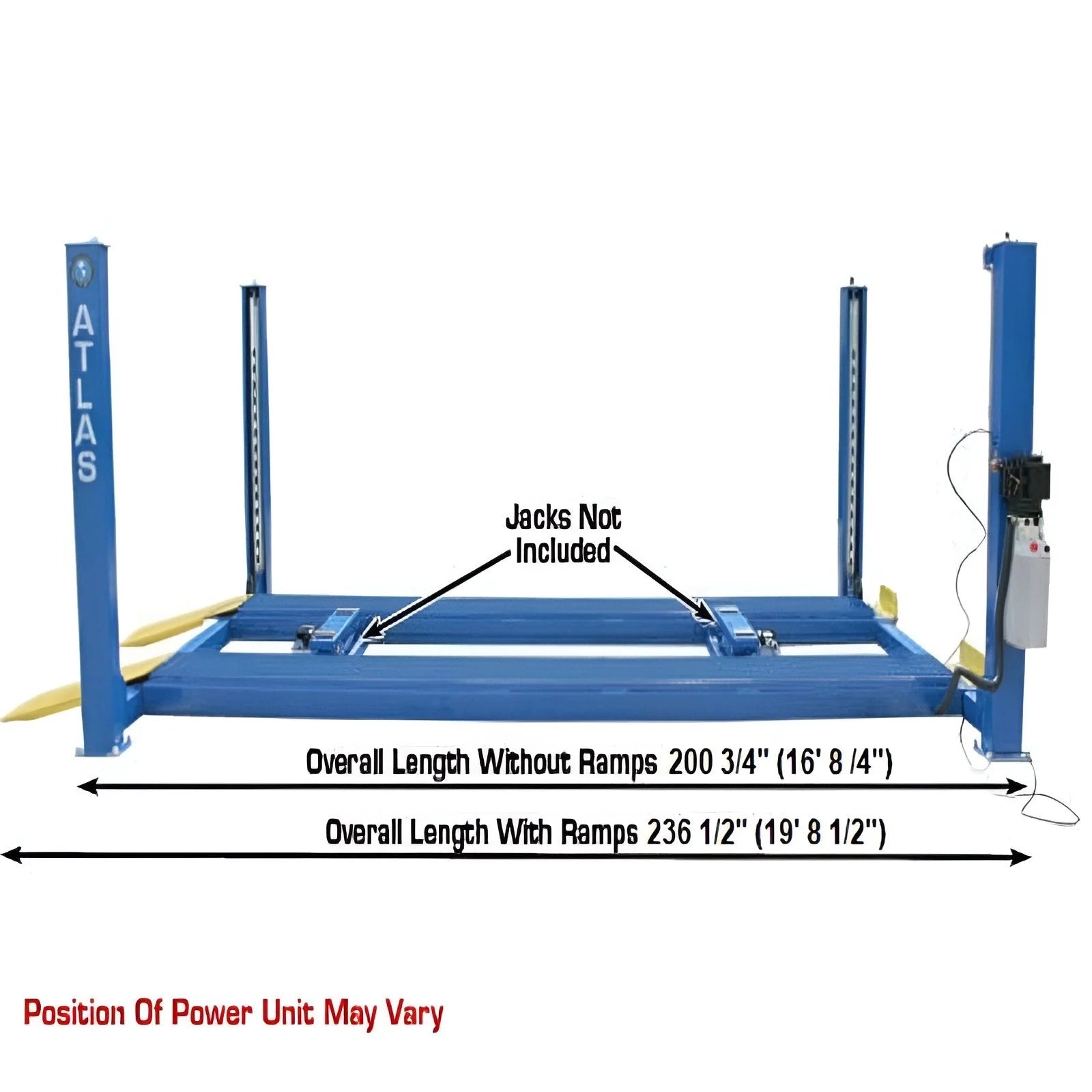

| Overall Length With Approach Ramp | 236 1/2" (19' 8 1/2") |
| Length Between Columns | 183 1/4" (15' 3 1/4") |
| Runway Length | 194 1/2" (16' 2 1/2") |
| Runway Width | 20" |
| Thickness Of Runway | 7 1/2" |
| Width Between Runways | 43 1/4" (w/ Rail 39 3/4") |
| Outside Runway To Outside Runway | 83 1/4" (6' 11 1/4") |
| Clearance Under Runways | 70 1/4" (5' 10 1/4") |

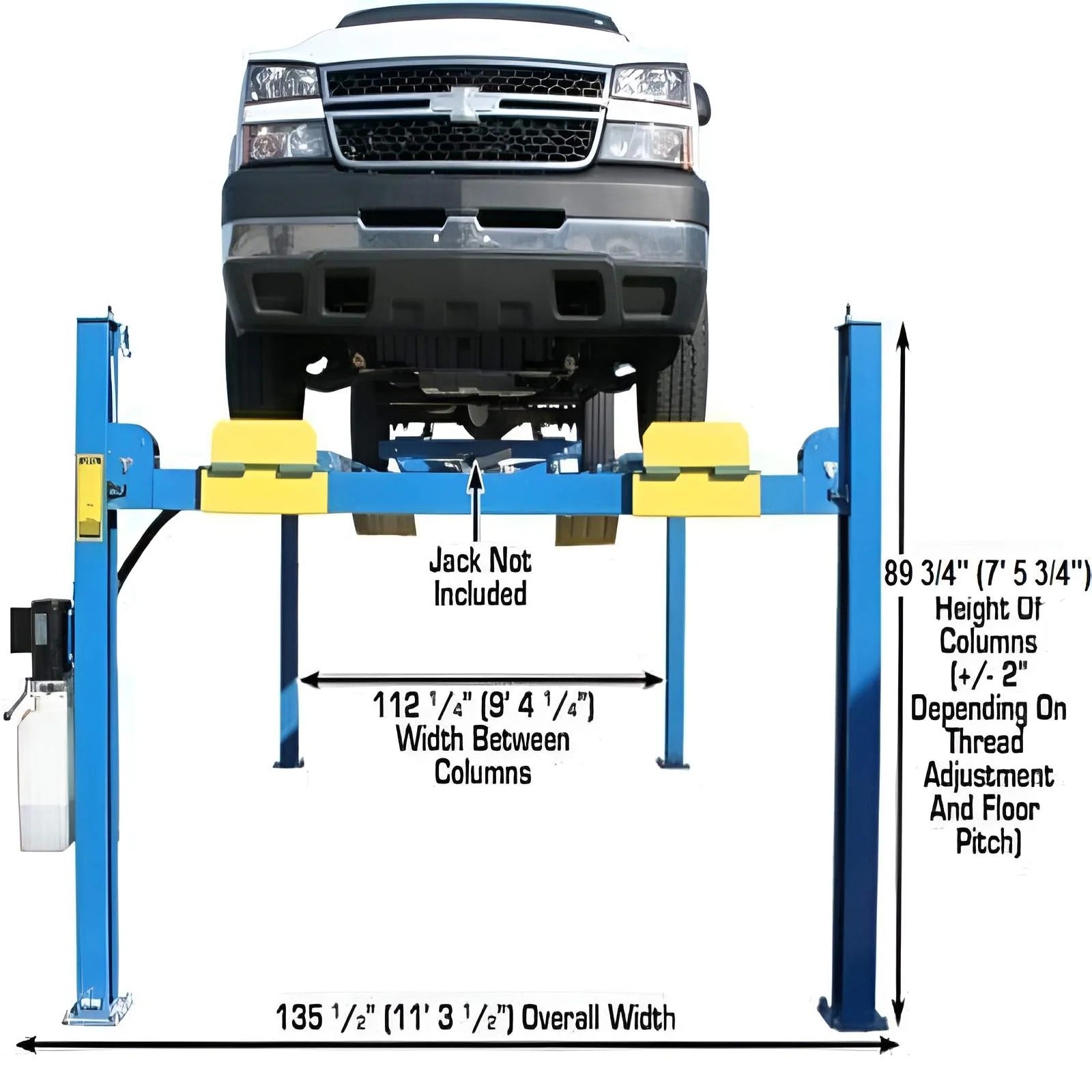

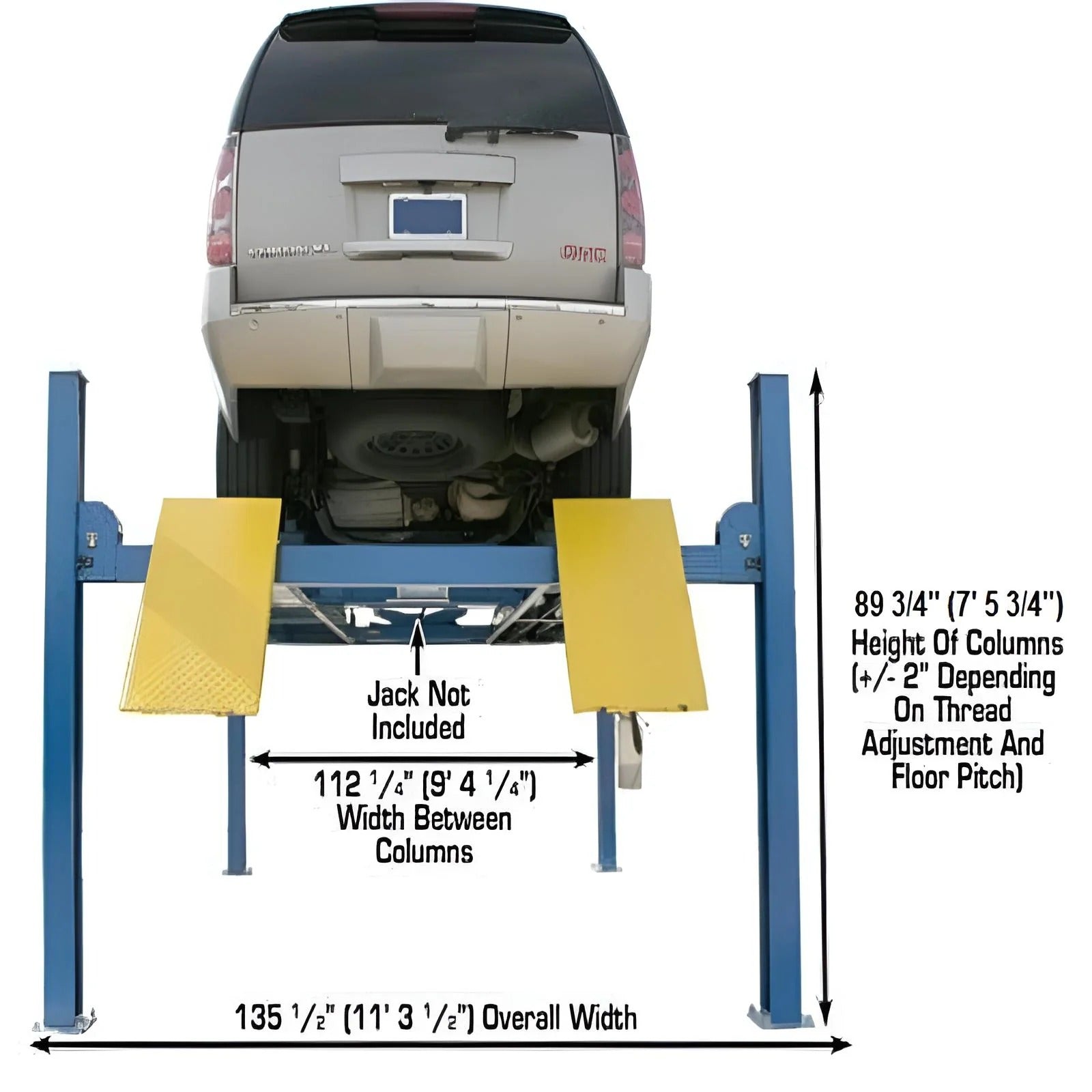

| Clearance Between Columns | 112 5/8" (9' 4 5/8") |
| Height Of Columns | 89 3/4" (7' 5 3/4") |
| Maximum Wheel Base | 185" (15' 5") |
| Drive Thru | 98" (8' 2") |
| Air Requirement | 85–115 PSI (External Air Supply Required) |

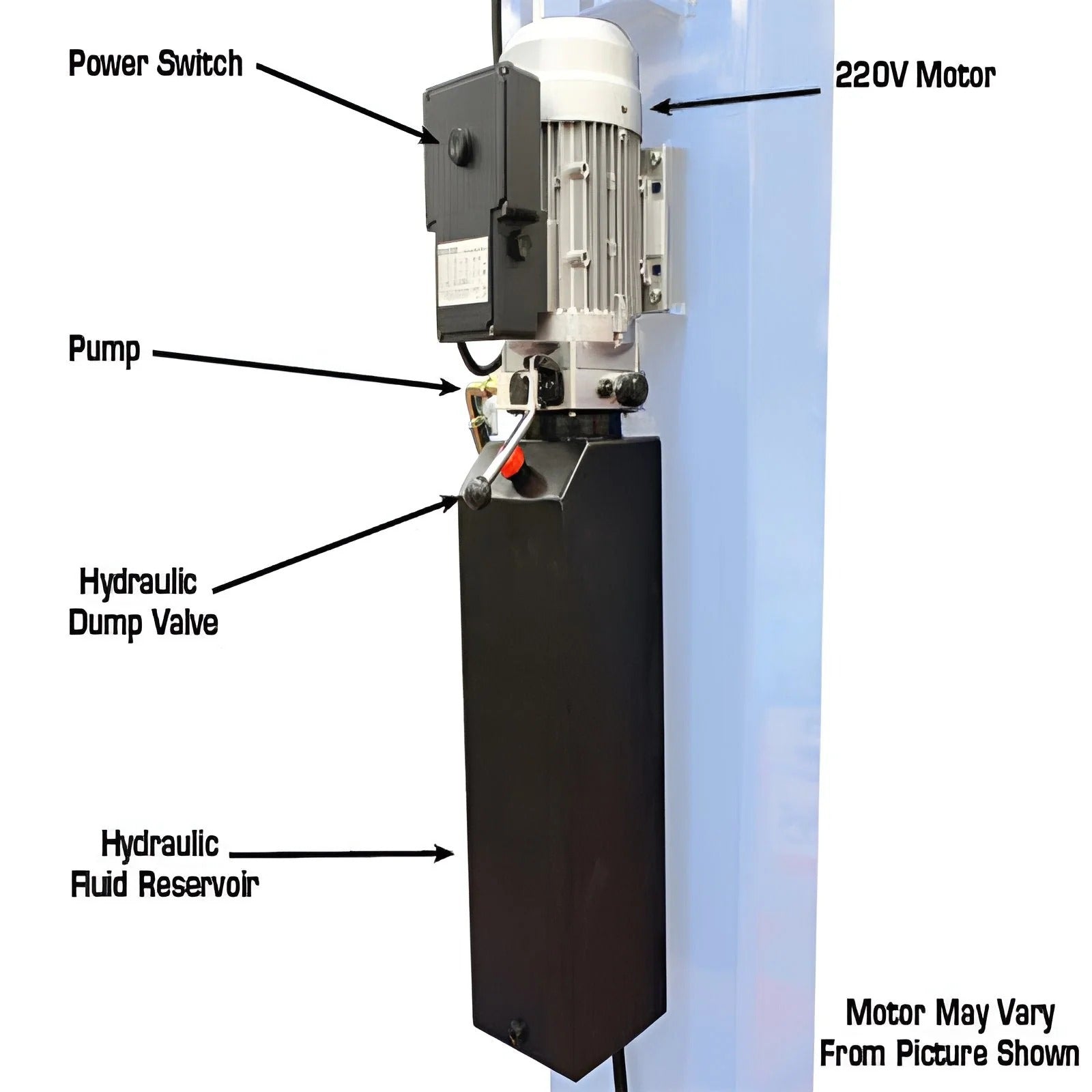

| Motor/Electrical Requirement | 220V Single Phase (30 Amp Breaker Recommended) |
| Oil Requirement | 3–5 Gallons AW32/AW46 (Not Included) |
| Shipping Weight | 2,800 lbs. |
Atlas RJ6BK
| Specifications | Details |
|---|---|
| Capacity | 6,000 lbs. |
| Minimum Width | 35" |
| Maximum Width | 55" |
| Distance Between Runway Capability | 32" – 52" |
| Minimum Lifting Height | 8 1/4" |
| Maximum Lifting Height (w/ Adapters) | 21" |
| Air Requirement | 70–115 PSI |
| Shipping Weight | 350 lbs. |
| Adapter Heights | 2 Each: 2", 3" |
| Arm Hole/Adapter Peg Size | 1 1/2" |
