Atlas 414A 14,000 lb 4-Post Alignment Lift with Adjustable Turntables and Built-In Slip Plates
SKU: ATEATTD-414AT
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The Atlas 414A is a heavy-duty, commercial-grade 4-post alignment lift designed for professional shops that require precision, durability, and versatility. Built to handle larger vehicles such as trucks, vans, and long-wheelbase applications, this lift features integrated slip plates and alignment turntables, allowing accurate alignment work without additional equipment. Its extended height, width, and length provide the clearance needed for a wide range of vehicle sizes while maintaining stability during operation. The high-strength cable lifting system paired with an oversized hydraulic cylinder positioned beneath the runways improves lifting balance, simplifies leveling, and helps reduce the risk of vehicle contact or damage. With a focus on safety and long-term performance, this lift is built to perform reliably in demanding shop environments.
Key Features & Benefits
- 14,000 lb lifting capacity for commercial applications

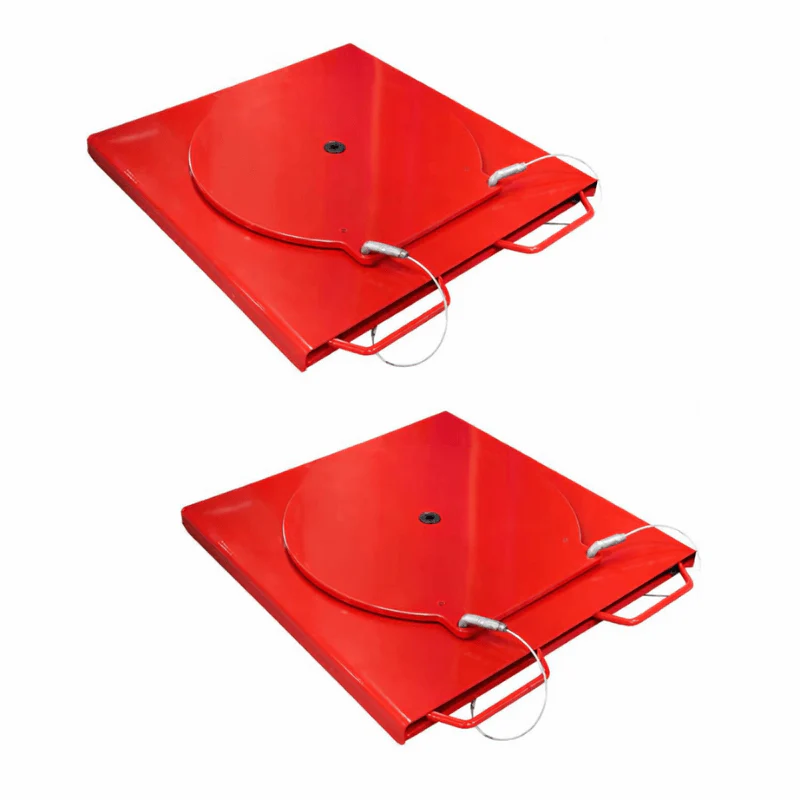

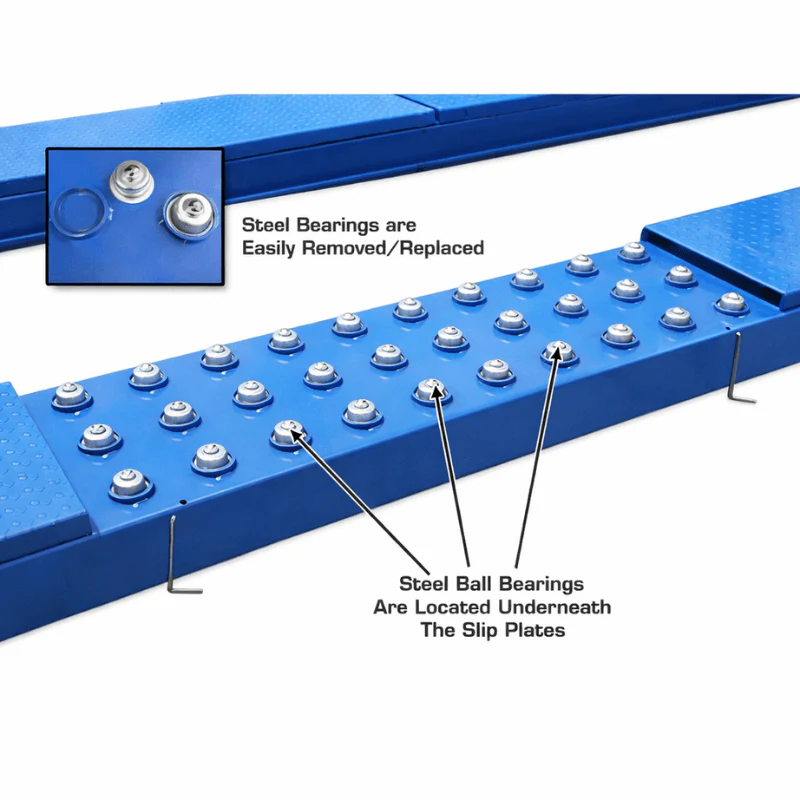

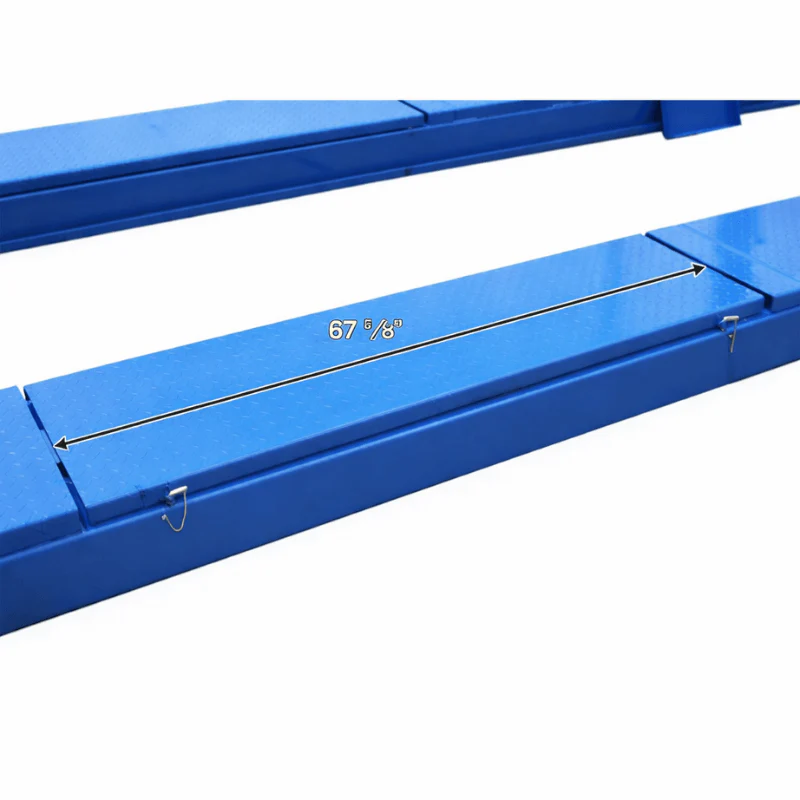

- Built-in slip plates and alignment turntables included

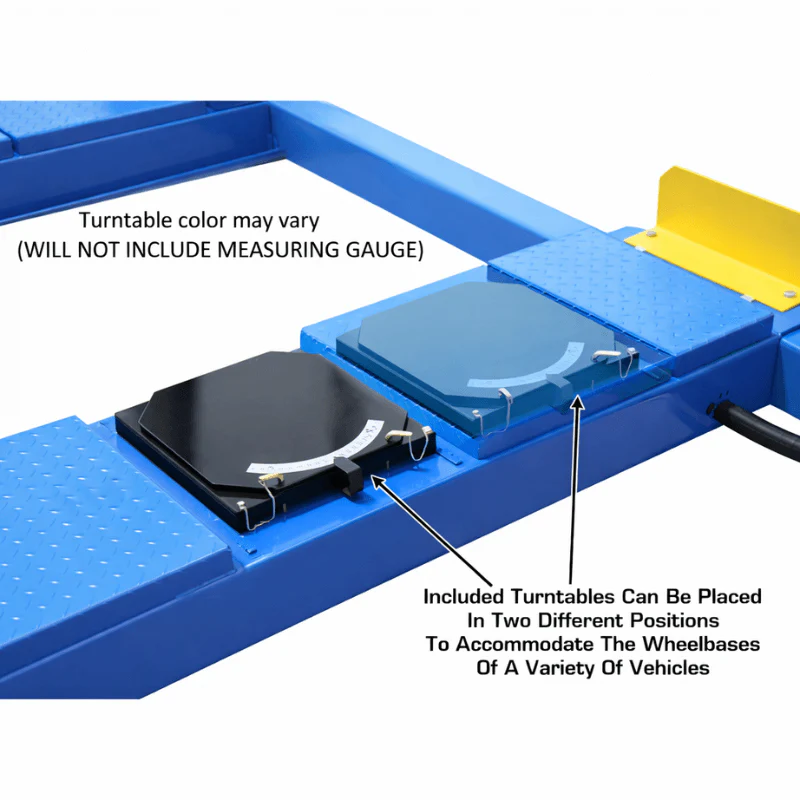

- Multiple turntable positions for different wheelbase vehicles
- Extra-tall, extra-wide, and extra-long design for larger vehicles

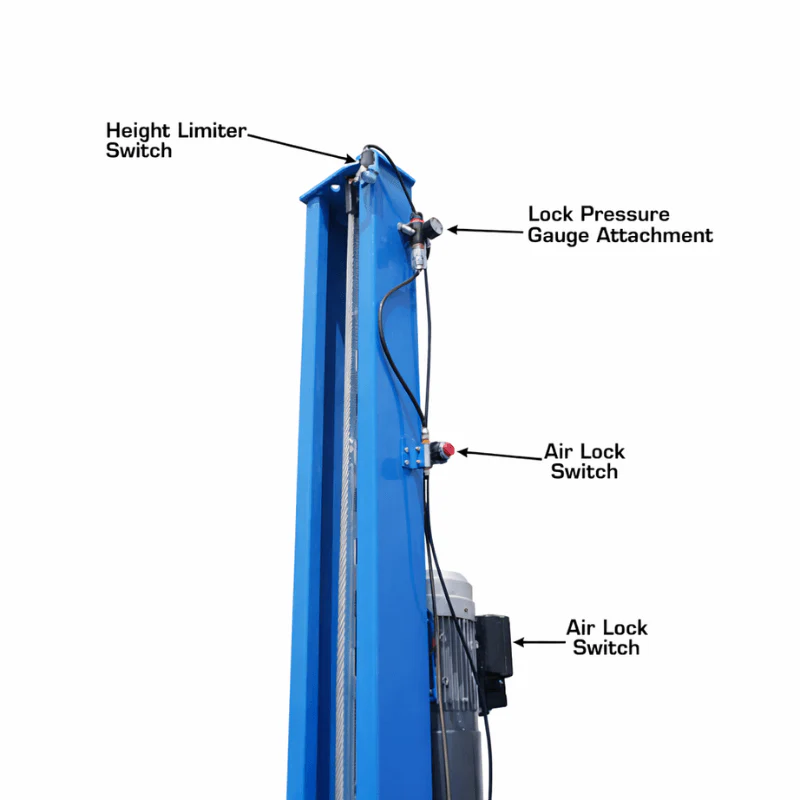

- Air-operated single-point lock release (external air required)

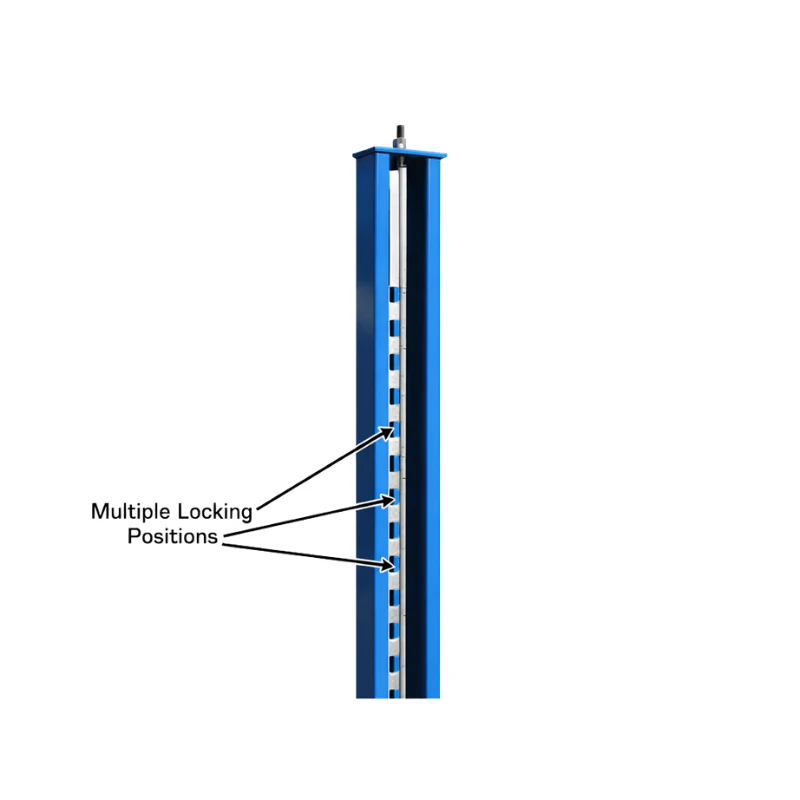

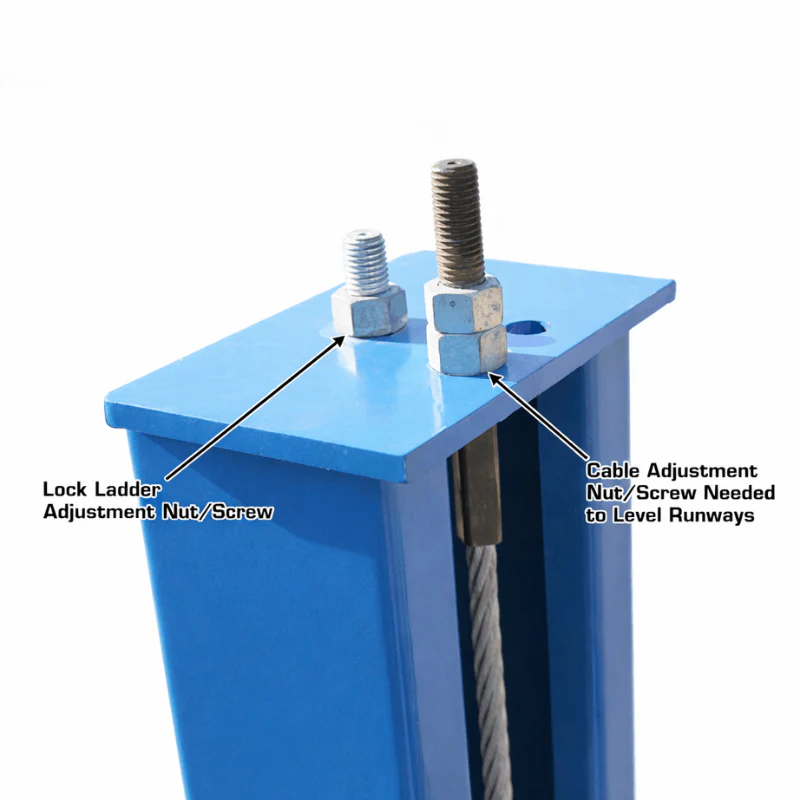

- Lock ladder design with double-lock safety system

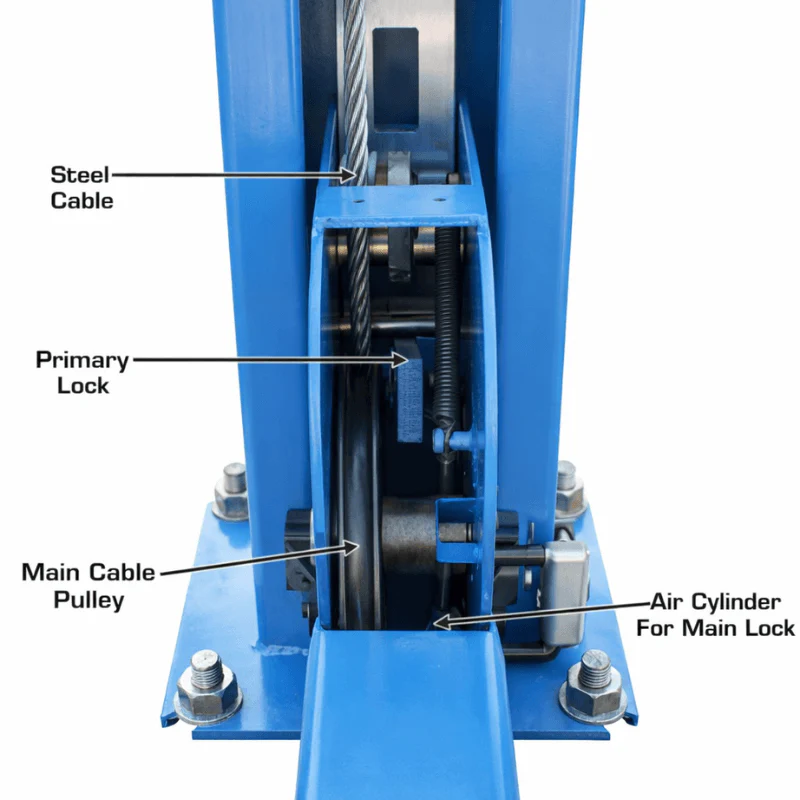

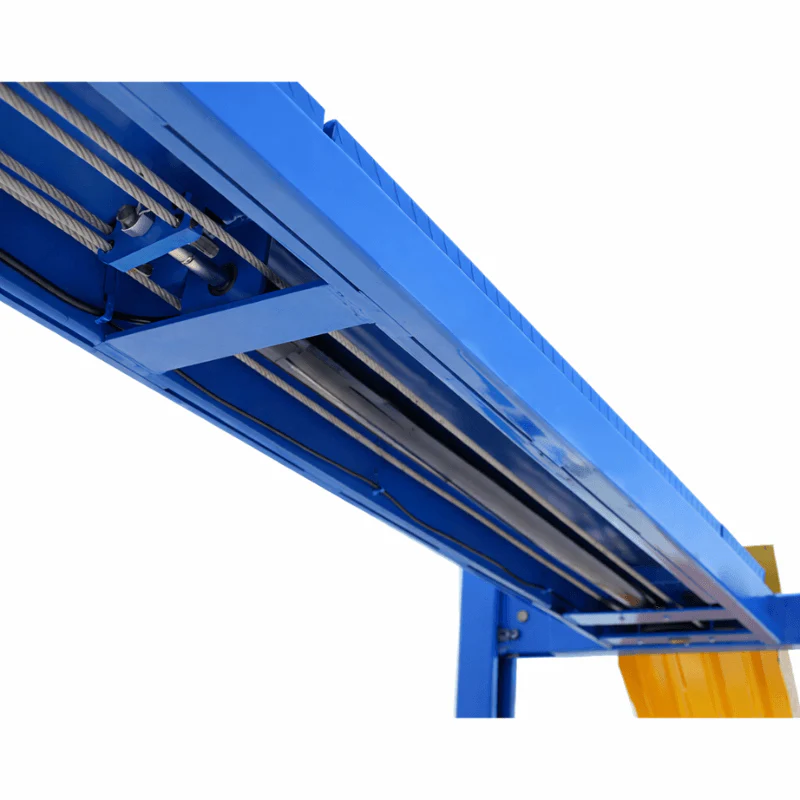

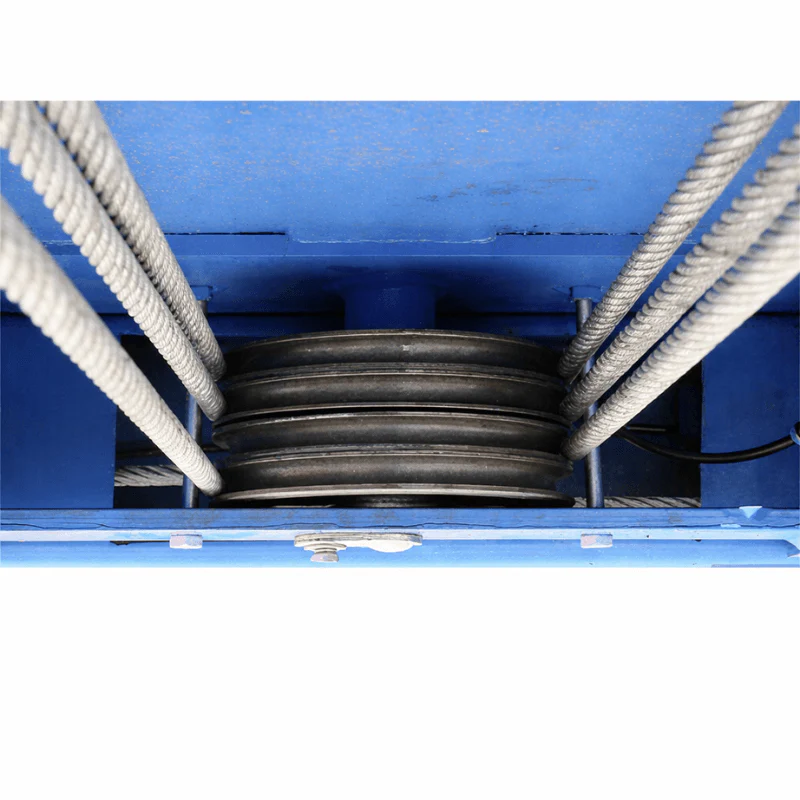

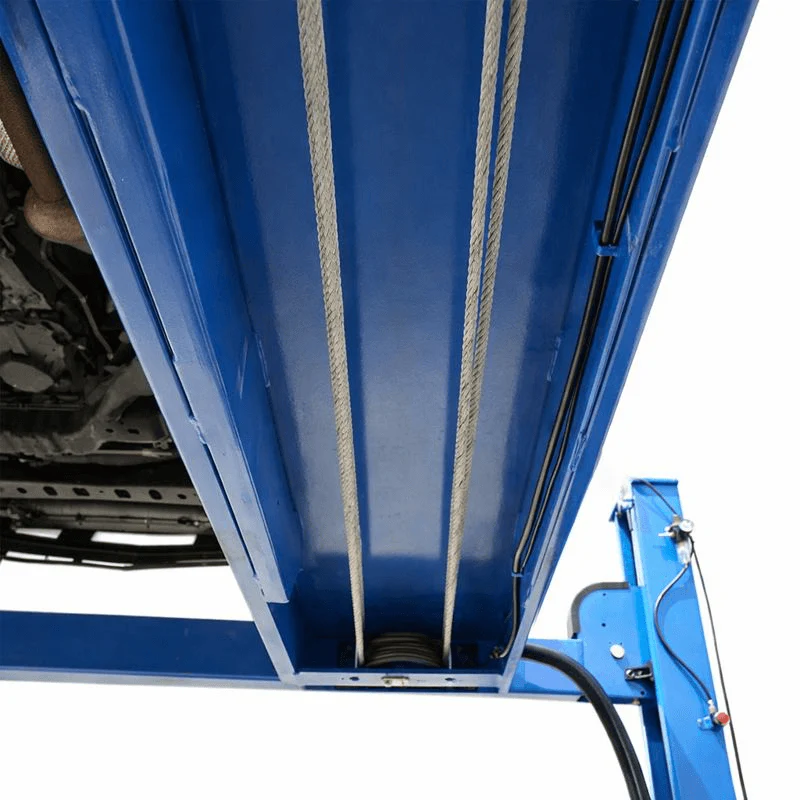

- High-strength cable system with under-runway hydraulic cylinder
- Durable powder-coated finish for long-term protection

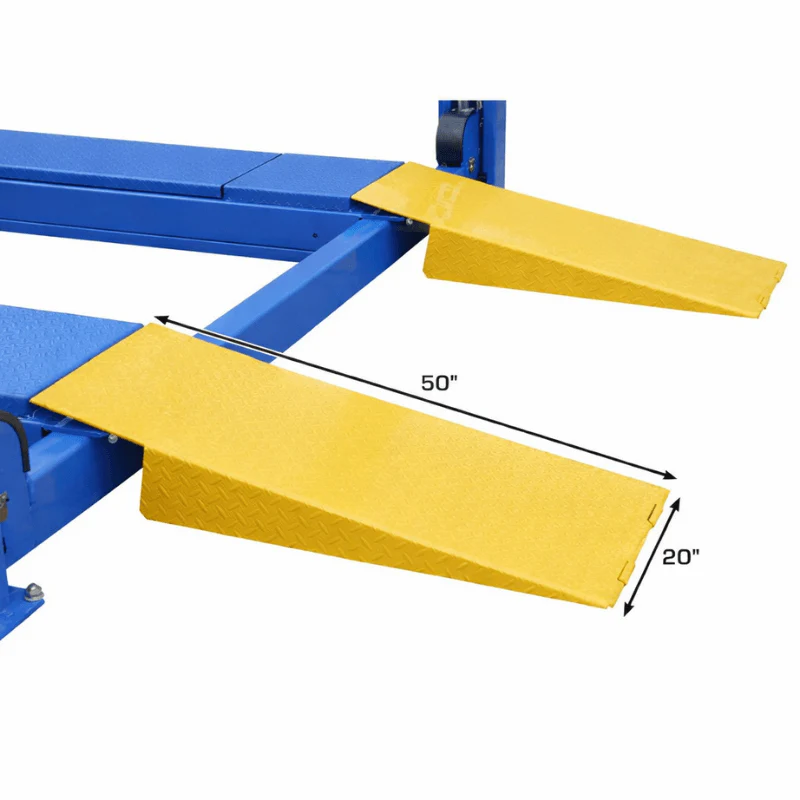

- Steel approach ramps included

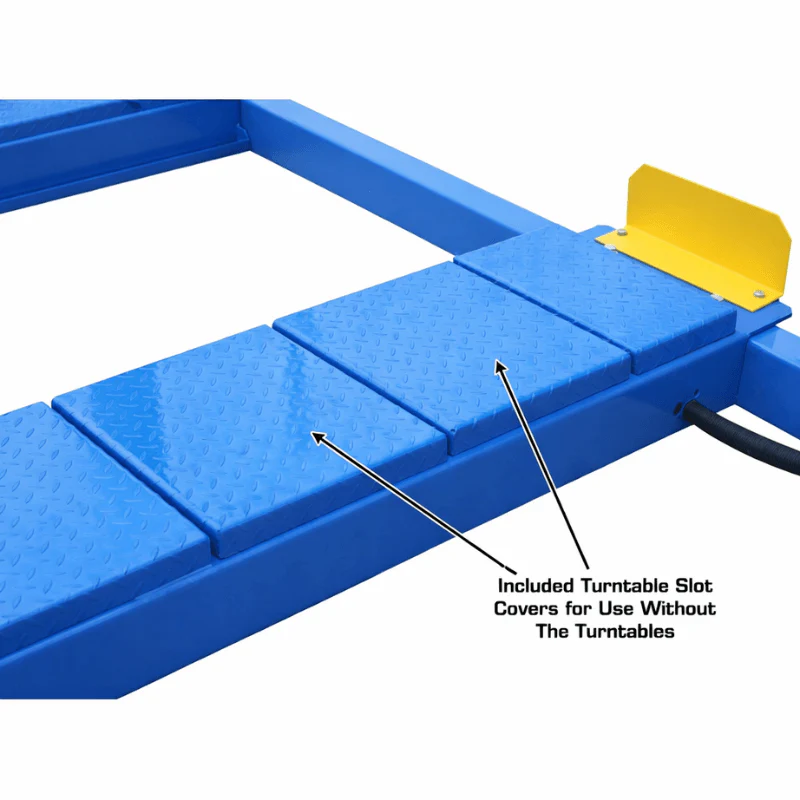

- Runway covers included for non-alignment service use
- Compatible with rolling bridge jacks (sold separately)

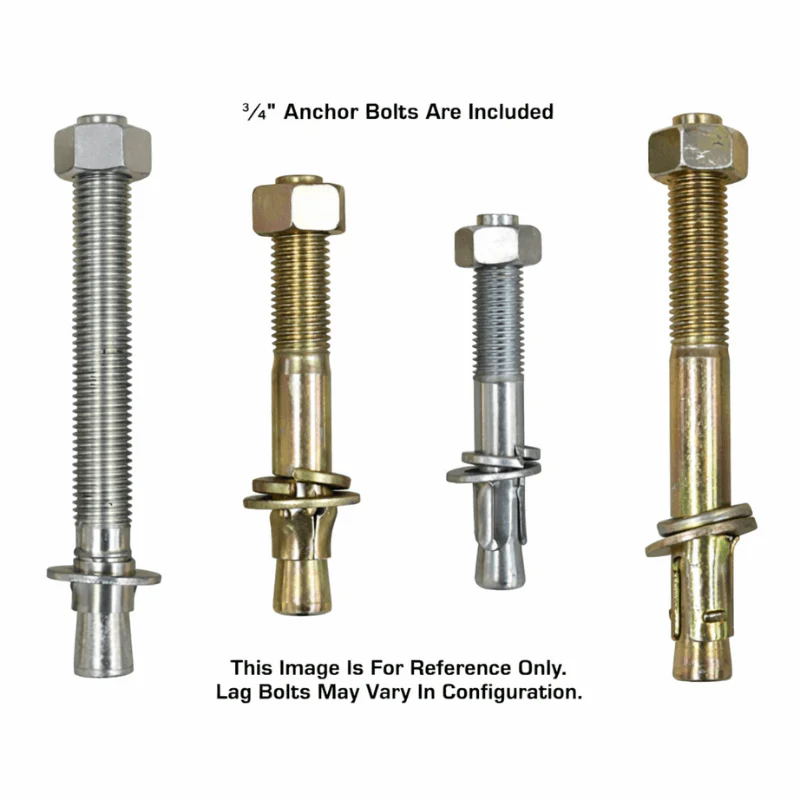

- Mounting hardware included
- 5-year structural and 2-year hydraulic parts-only warranty included
Performance & Design Highlights
The 414A is engineered for shops that need both alignment capability and general service functionality in one lift. The integrated slip plates and turntables are designed to sit flush with the runways, ensuring accurate alignment results with minimal setup. Adjustable turntable positions allow technicians to work with a variety of vehicle sizes, while the cable-driven lifting system provides smoother operation compared to traditional chain-driven designs. The enclosed hydraulic system also helps protect vehicle doors and reduces maintenance concerns. With added compatibility for rolling bridge jacks, this lift offers flexibility for brake, suspension, and tire work beyond alignments.
| Specifications | Details |
|---|---|
| Capacity | 14,000 lbs. |
| Lift Type | 4-Post Alignment Lift |

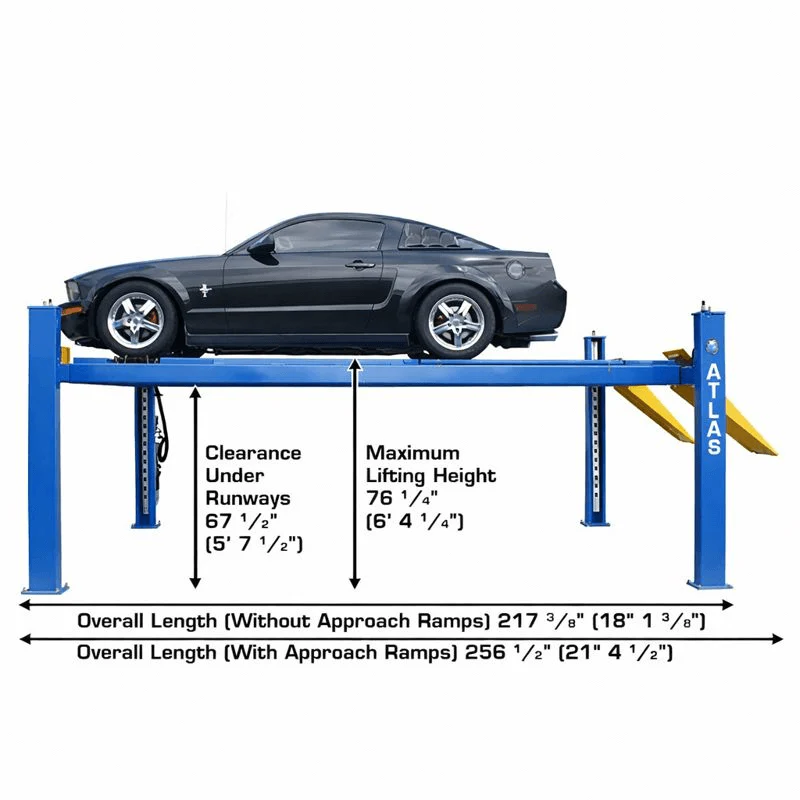

| Lifting Height | 80" (6' 8") |

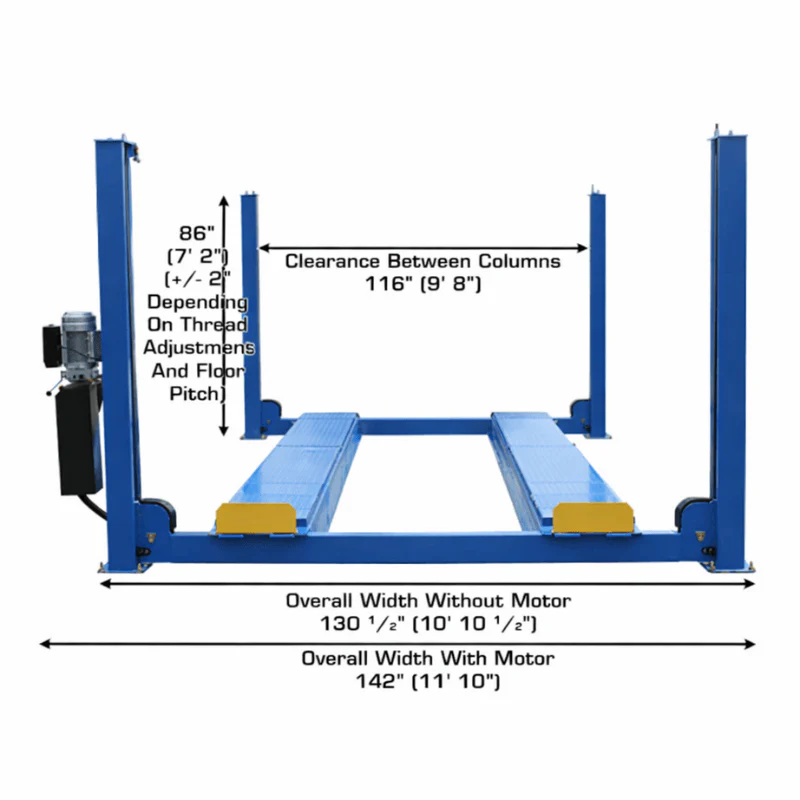

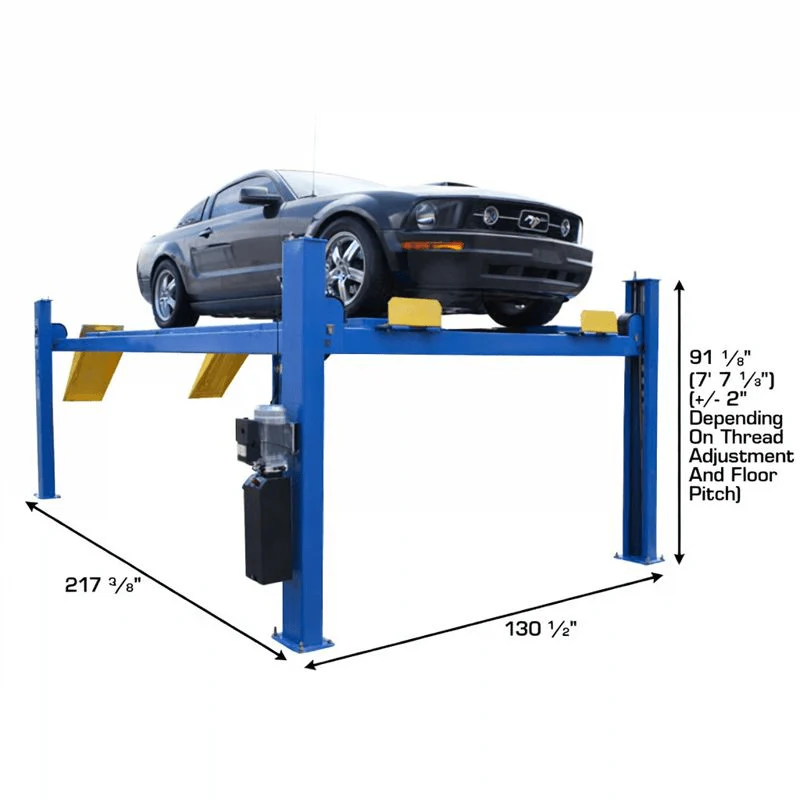

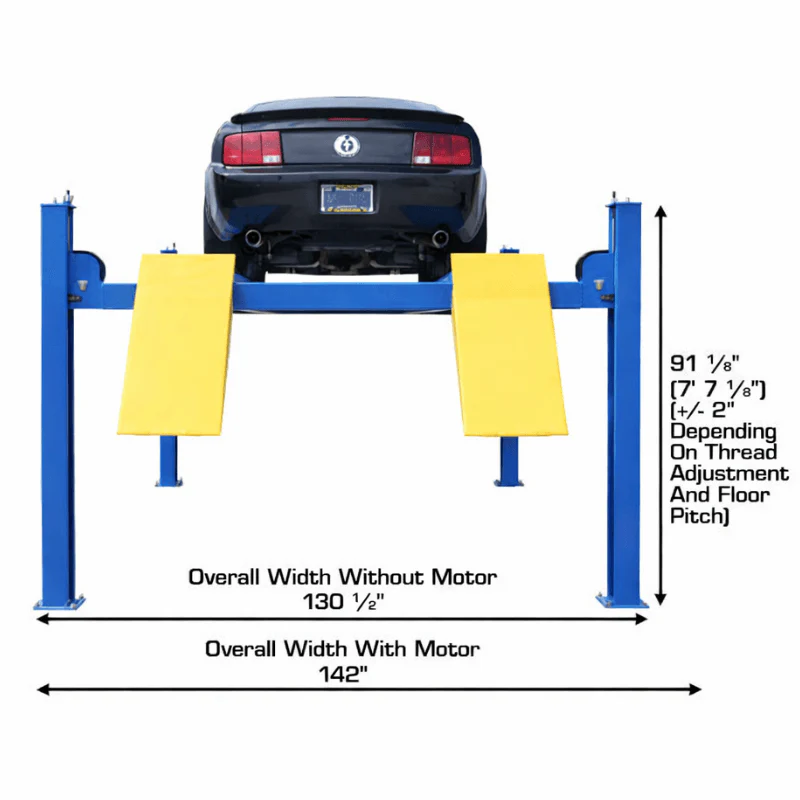

| Overall Width (without motor) | 130 7/8" (10' 10 7/8") |
| Overall Width (with motor) | 138 7/8" (11' 6 7/8") |

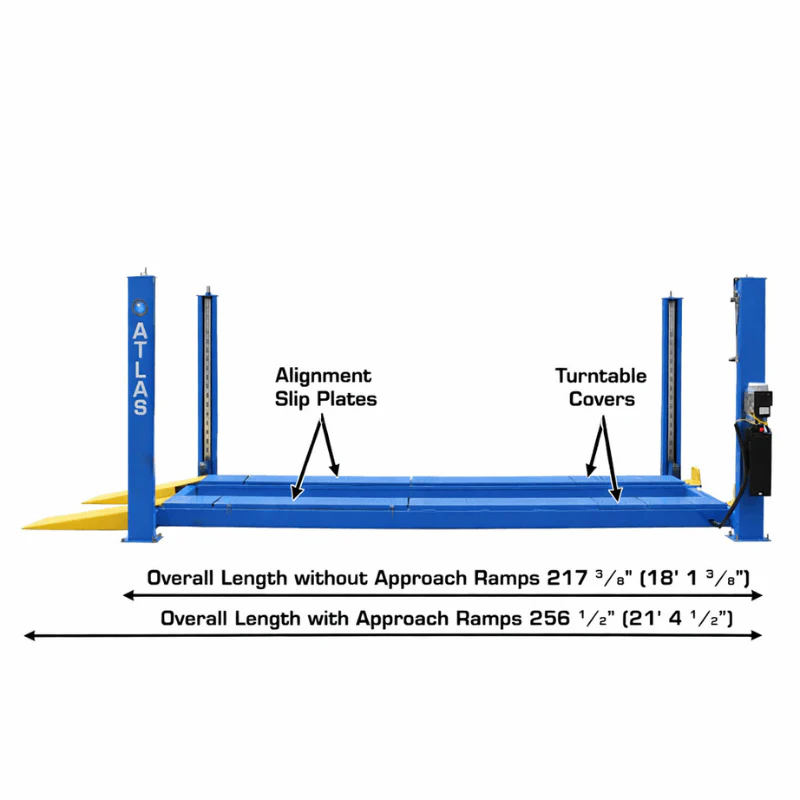

| Overall Length with Approach Ramp | 255" (21' 3") |
| Length Between Columns | 197 1/4" (16' 5 1/4") |
| Runway Length | 208 5/8" (17' 4 5/8") |
| Runway Width | 20" |
| Runway Thickness | 8 3/4" |
| Width Between Runways | 46 7/8" (44 3/8" with rail) |
| Outside Runway to Outside Runway | 86 7/8" (7' 2 7/8") |

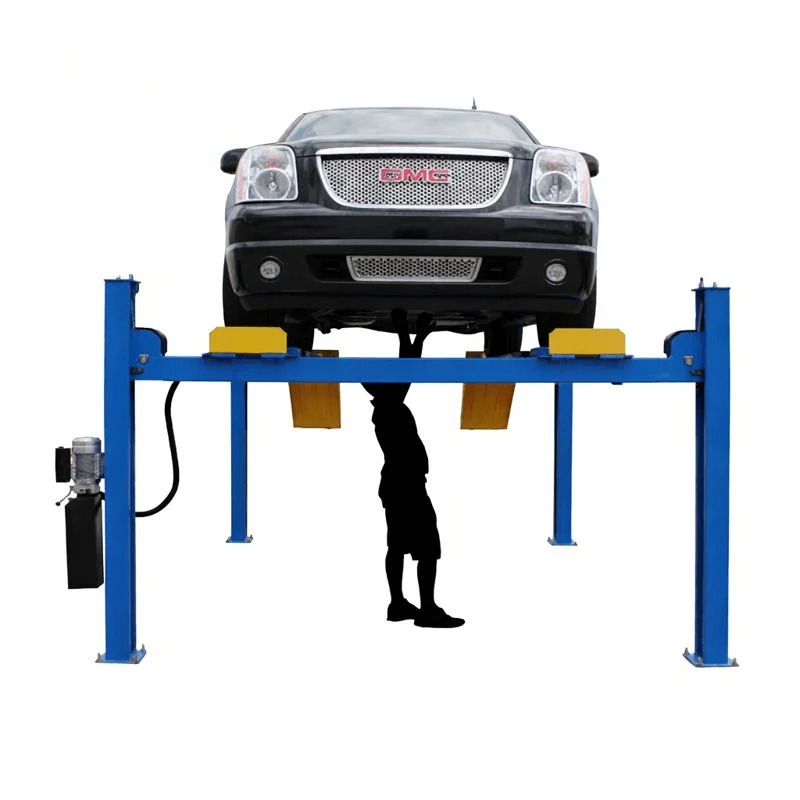

| Clearance Under Runways | 71 1/4" (5' 11 1/4") |

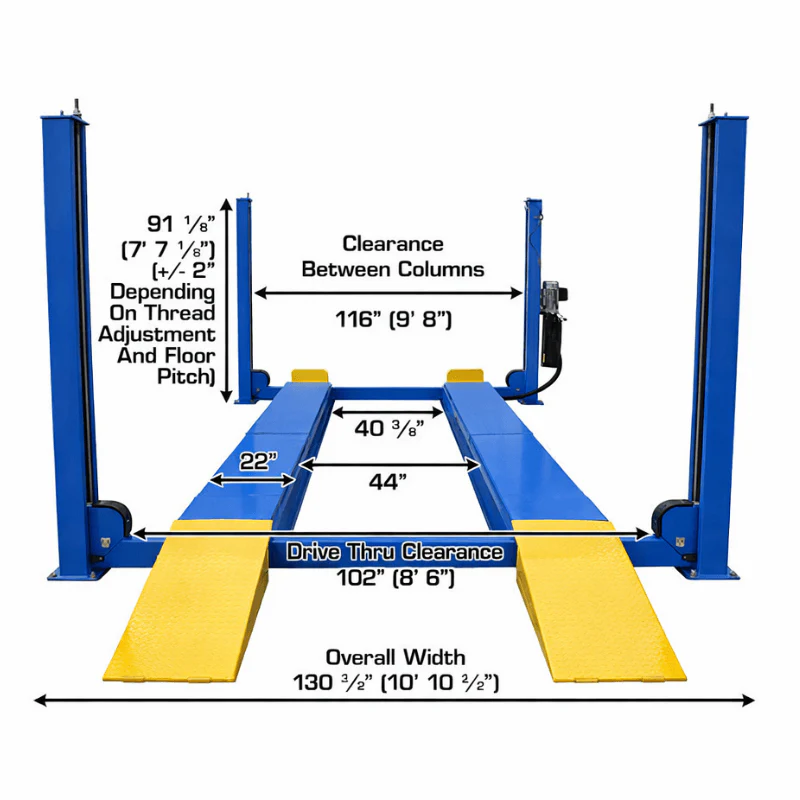

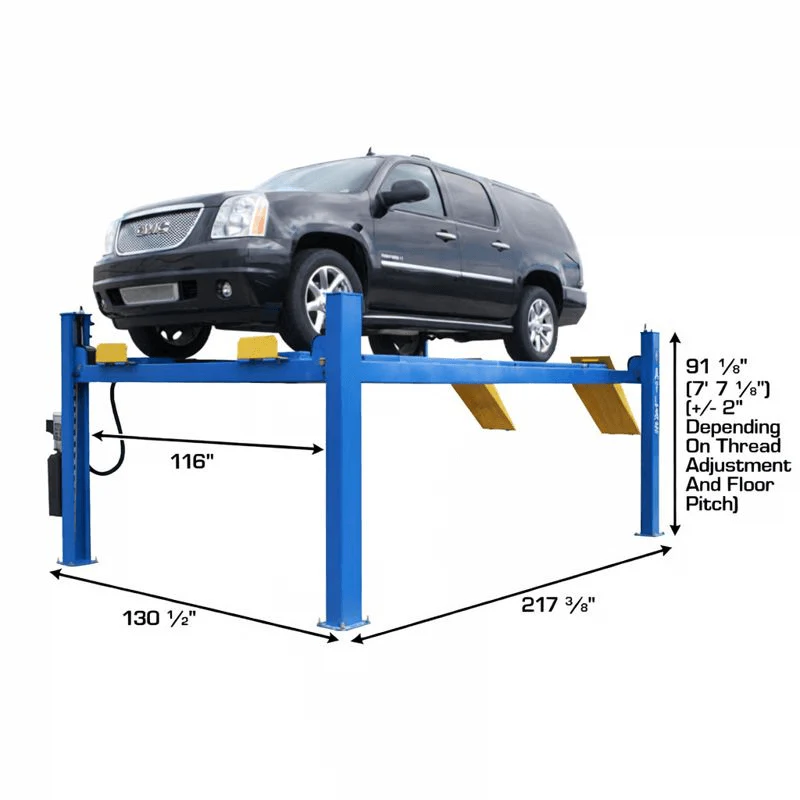

| Clearance Between Columns | 116" (9' 8") |
| Column Height | 91 1/8" (7' 7 1/8") |

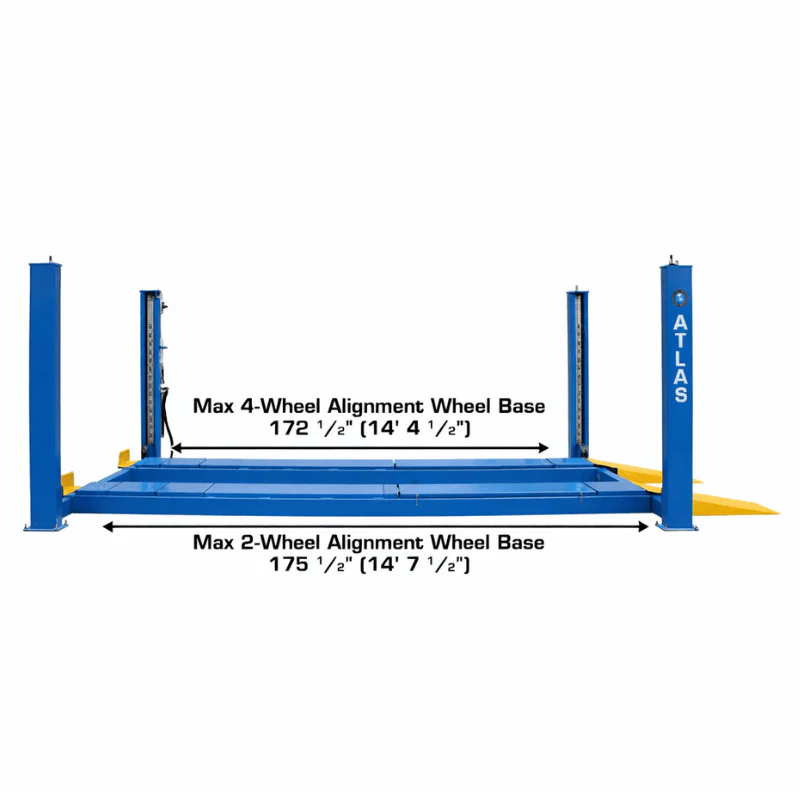

| Maximum Wheelbase | 197" (16' 5") |
| Drive-Thru Width | 102 1/8" (8' 6 1/8") |
| Air Requirement | 85–115 PSI (external air supply required) |

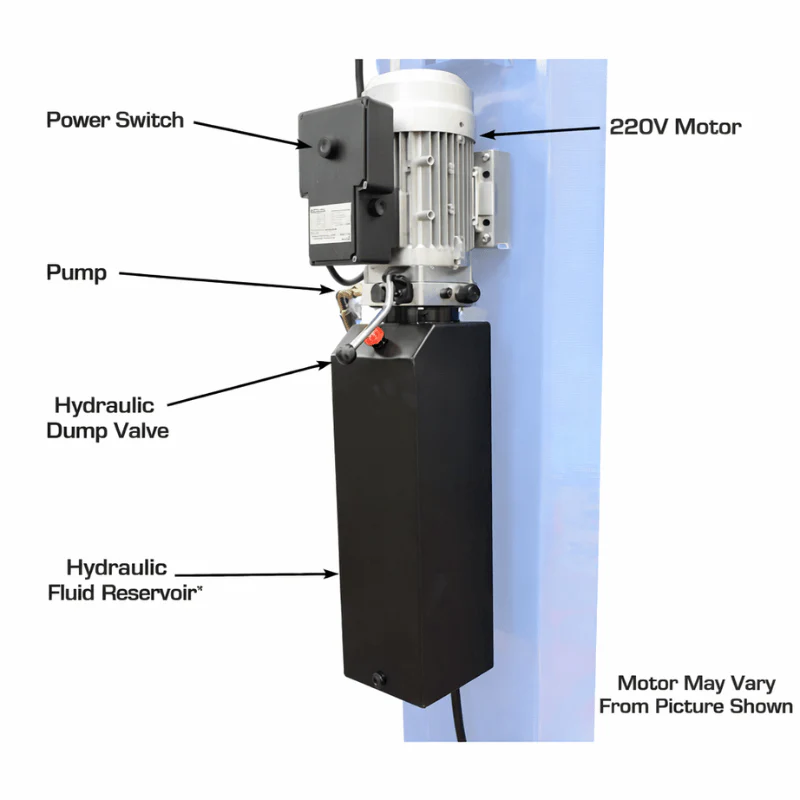

| Electrical Requirement | 220V, single-phase, 30A breaker recommended |
| Oil Requirement | 3–5 gallons AW32 / AW46 (not included) |

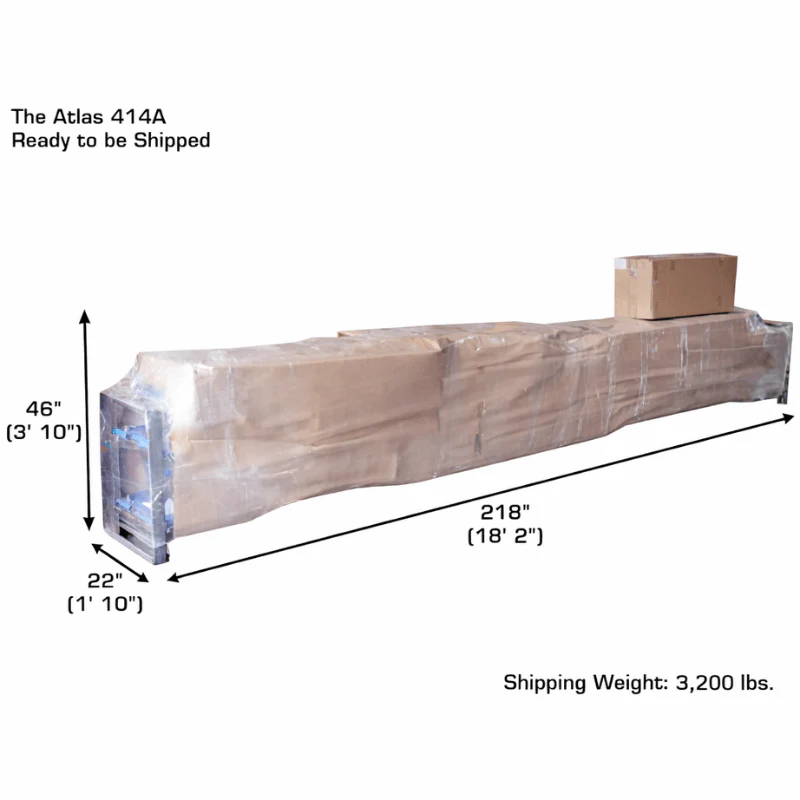

| Shipping Weight | 3,200 lbs. |
