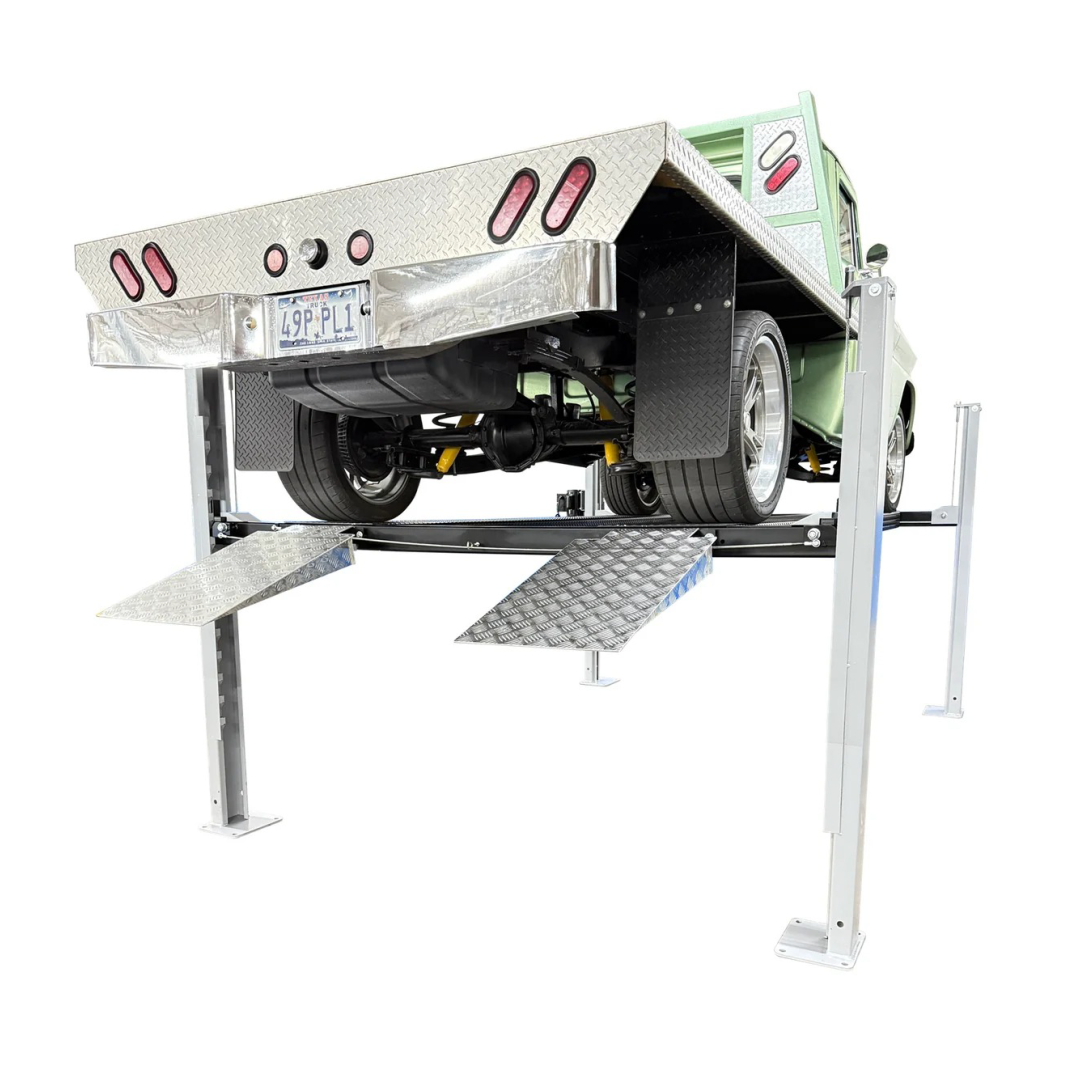

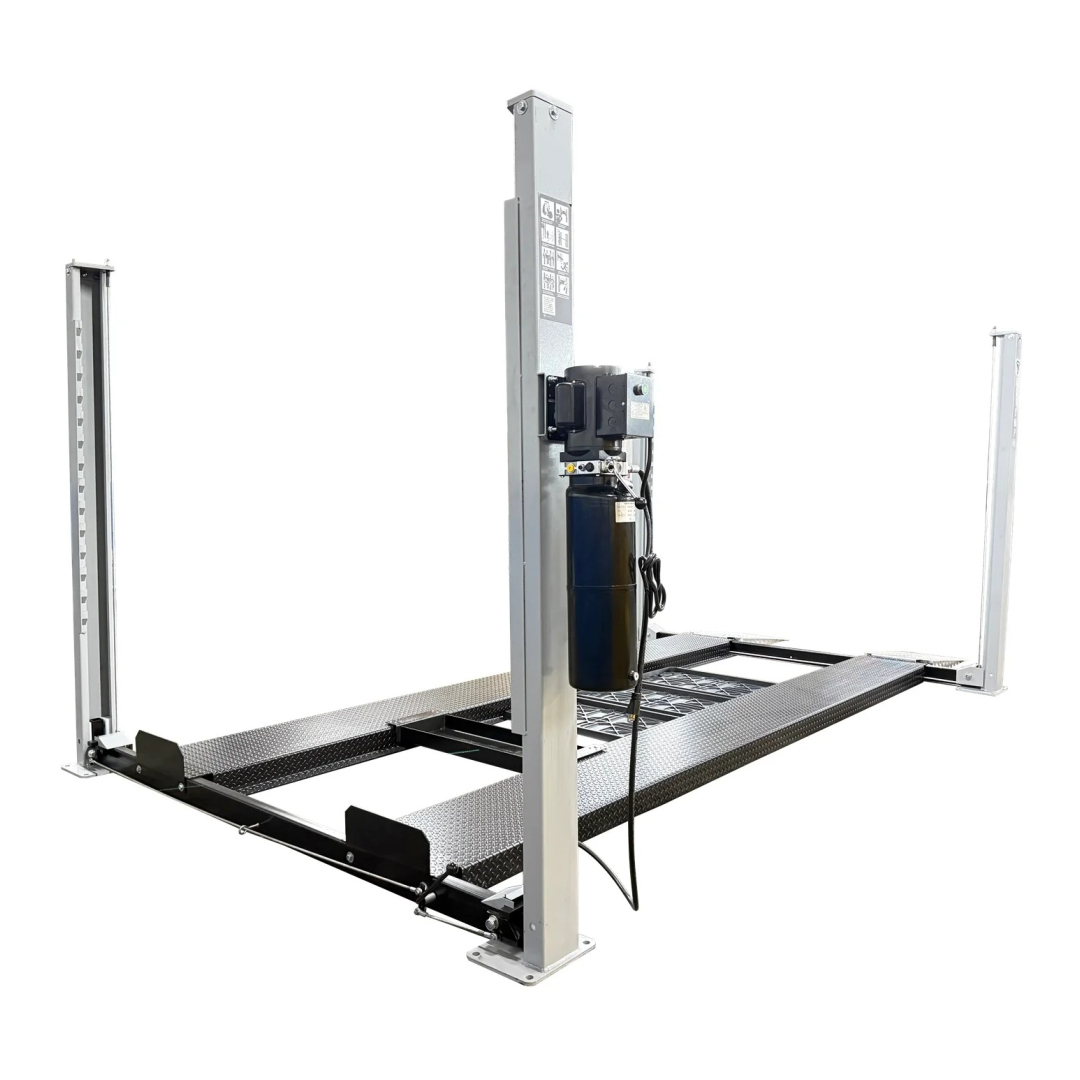

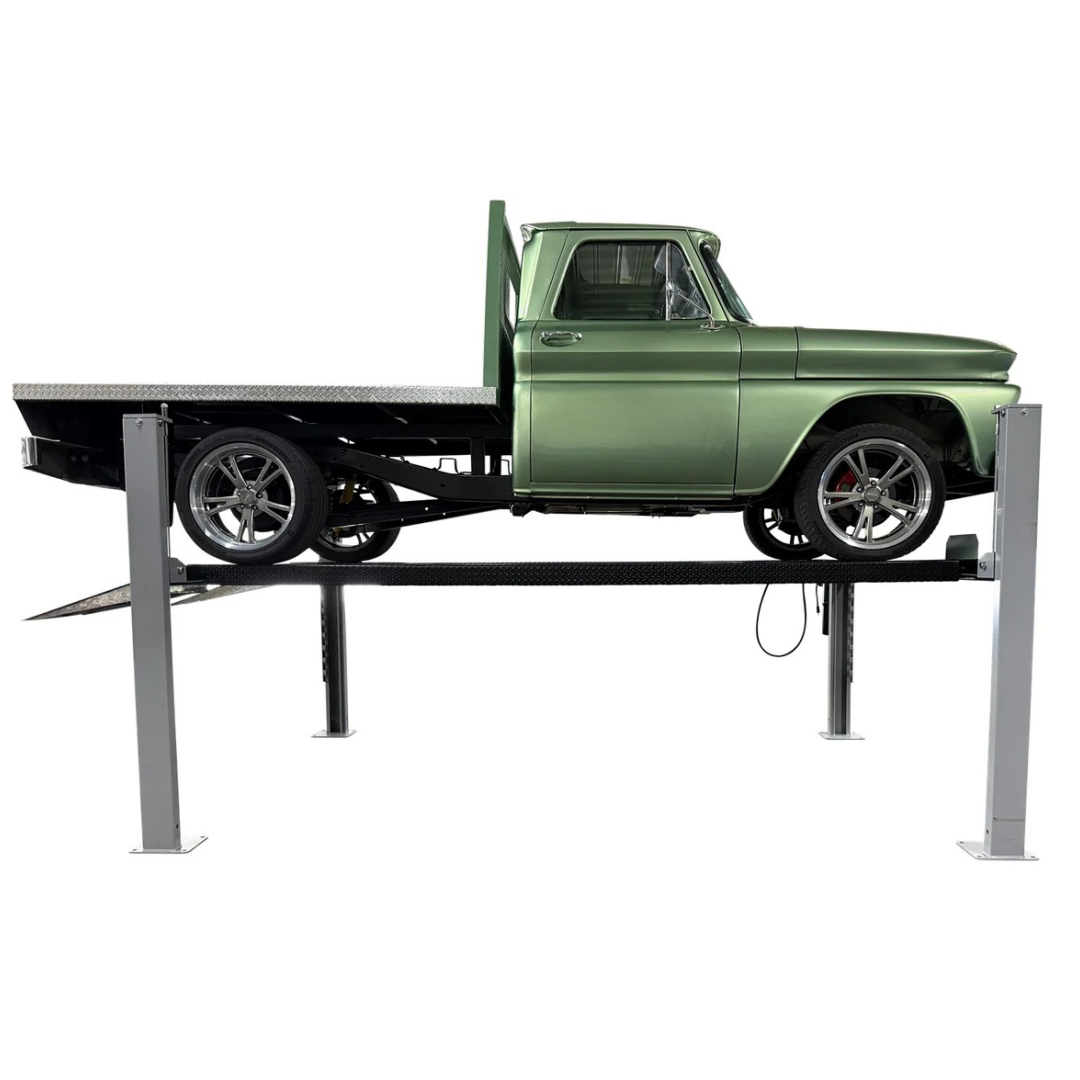

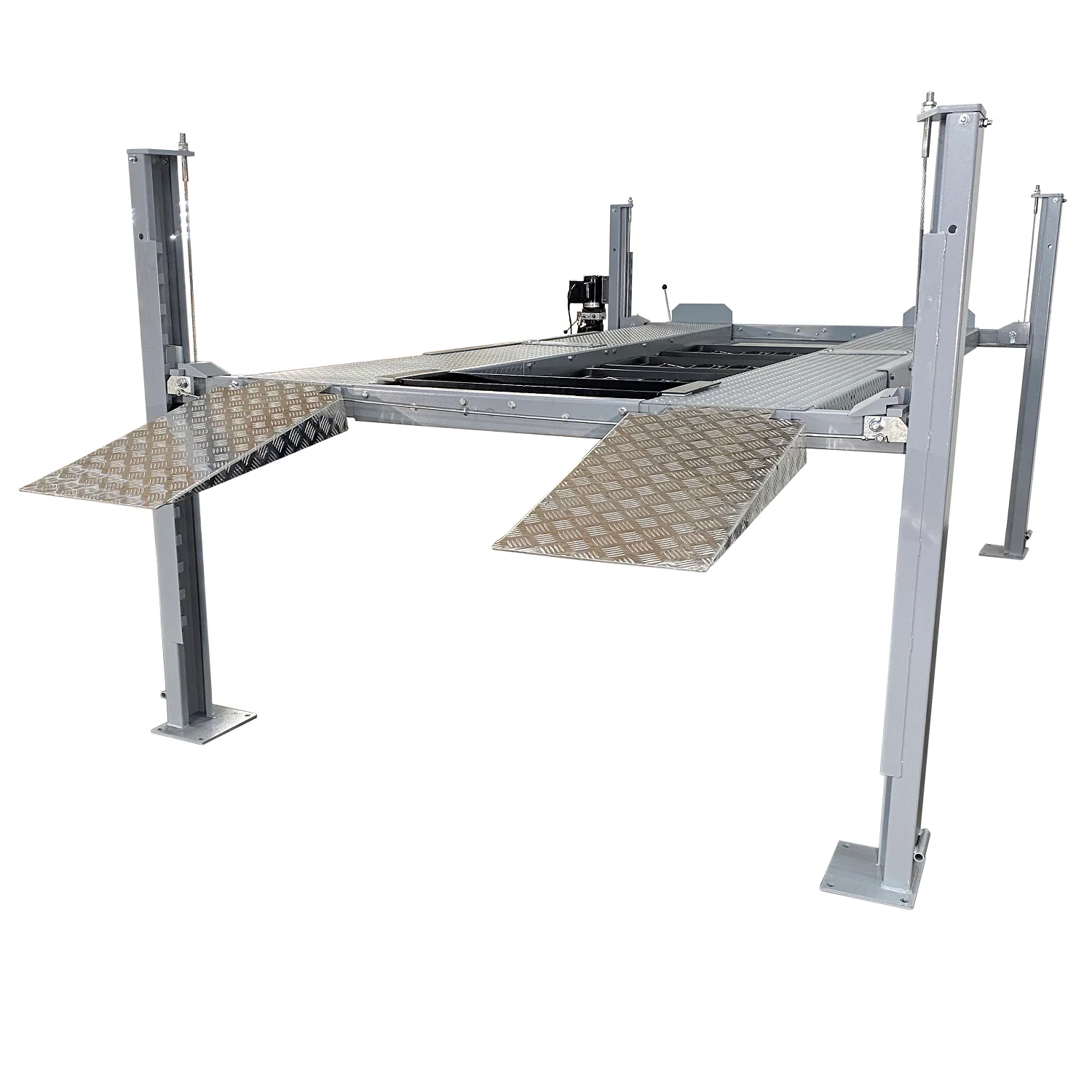

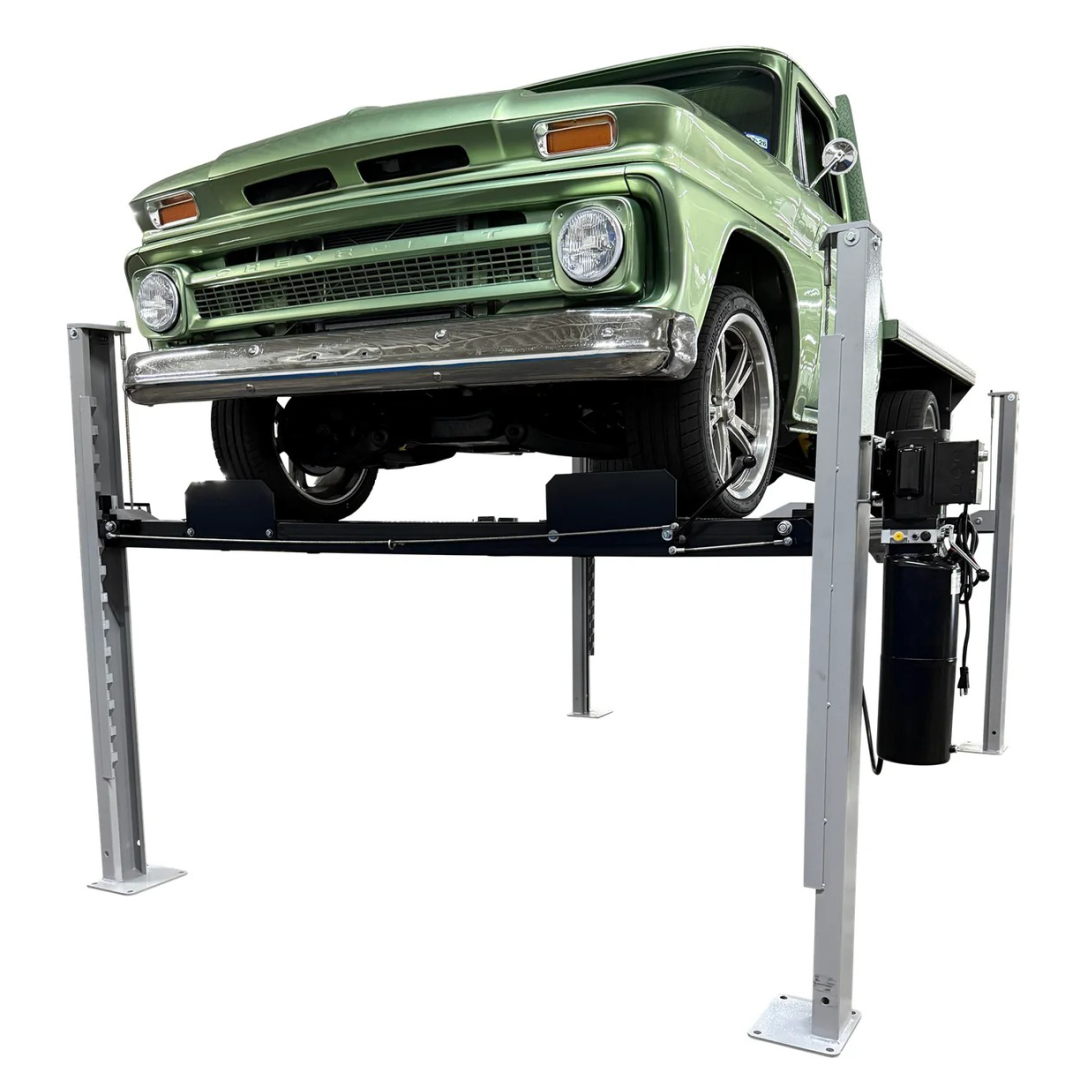

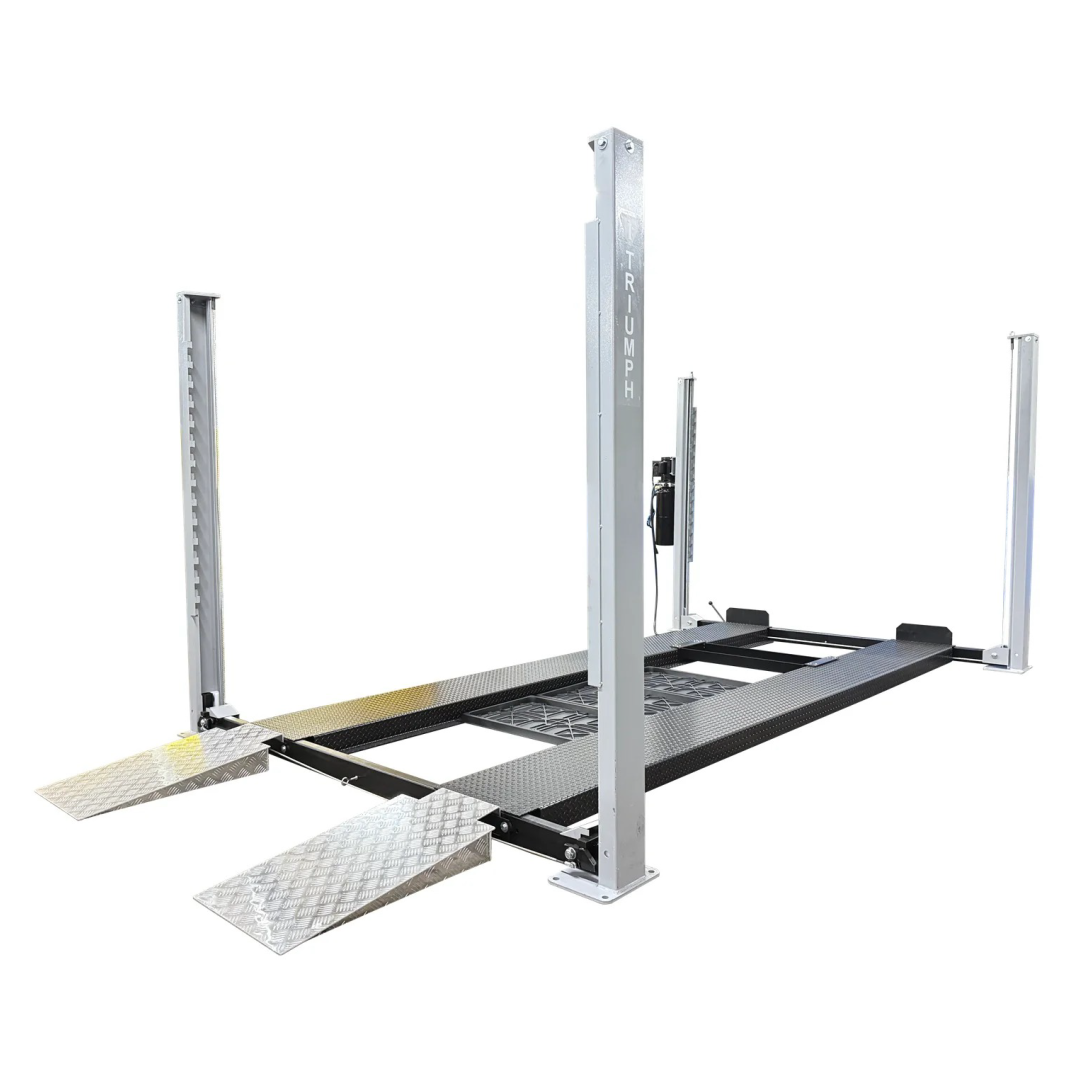

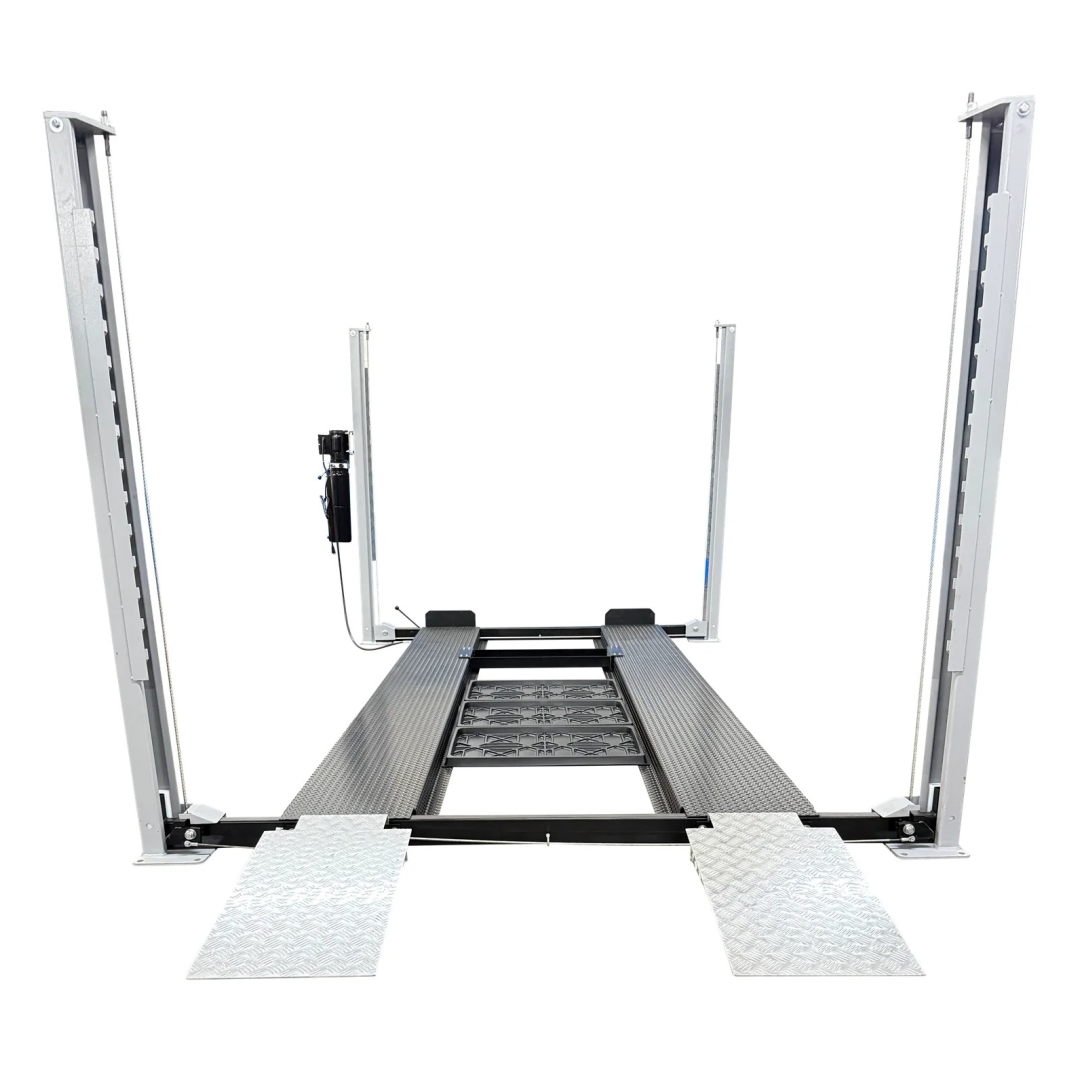

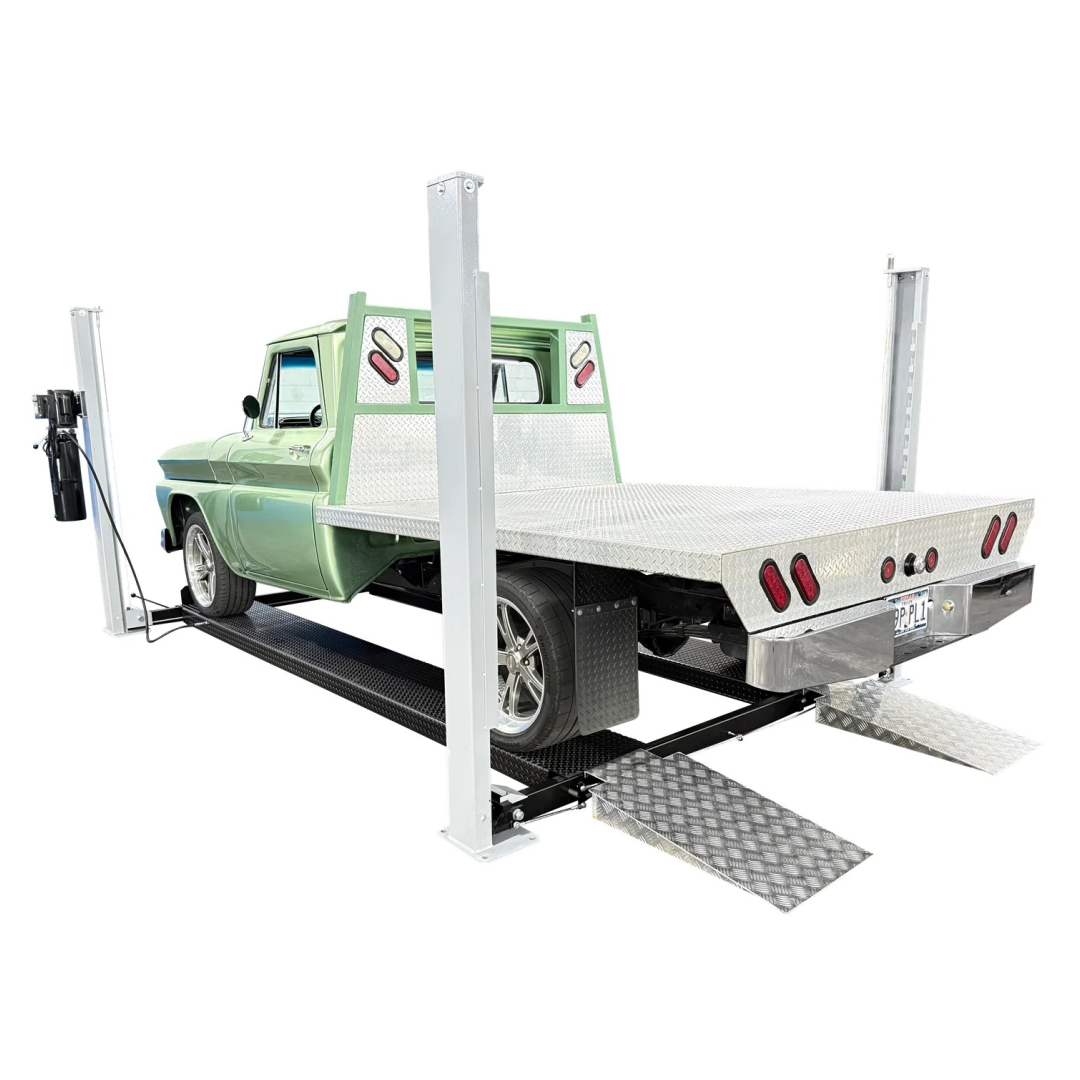

Triumph USA8000XLT 4-Post Service and Storage Lift 8,000 lb Extended
SKU: USA8000XLT
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The Triumph USA8000XLT takes everything people love about the standard 8,000 lb lift and upgrades it with more height and longer runways, giving you the extra clearance needed for SUVs, trucks, and longer vehicles. Built for both vehicle storage and light service work, this lift is a perfect fit for garages that want maximum space efficiency without giving up functionality. And with its portable design, you're not locked into one layout — you can move it when needed.
Why This Lift Stands Out
- 8,000 lb capacity for cars, SUVs, and light trucks
- Extended height and runway length for larger vehicles
- Made in the USA (lift structure)
- Portable design with caster kit — move it when needed
- 14 locking positions for flexible working heights
- No permanent anchoring required
- Runs on standard 110V power
Built for Storage AND Service
This isn't just a parking lift — it's a dual-purpose system:
- Store one vehicle safely above another
- Use the included jack tray to lift wheels for service
- Keep your lower vehicle protected with drip trays
Smart Design Details
- Longer runways make loading easier for extended vehicles
- Extra lifting height gives more room underneath
- Low-profile approach height for easier drive-on
- Single-point lock release keeps operation simple
- Proven design used for over 20 years
Ideal Applications
- Home garages with limited space
- SUV and truck owners needing extra clearance
- Car storage setups
- Light-duty service work
What's Included
- Four-post lift system
- Caster kit (mobility)

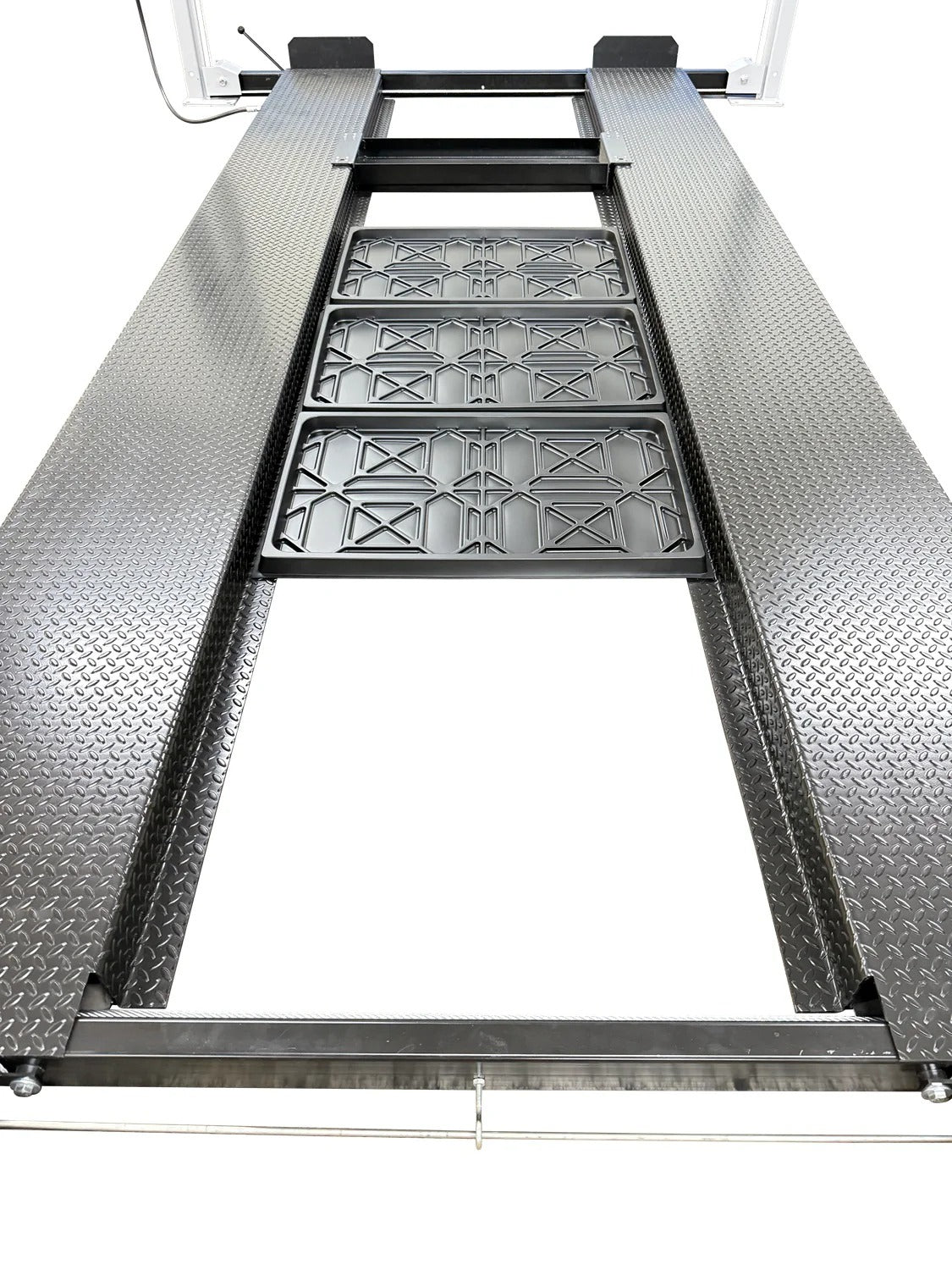

- Three drip trays
- Jack tray
- Power unit
- Safety lock system
| Specifications | Details |
|---|---|
| Model | USA8000XLT |
| Type | Four-Post Service and Storage Lift (Extended) |
| Lifting Capacity | 8,000 lbs |
| Overall Height | 90" |
| Overall Length (without ramps) | 190" |
| Overall Length (with ramps) | 222" |
| Overall Width | 112" |
| Overall Width (with power unit) | 124" |
| Lift Height | 83" |
| Height Under Runway | 79" |
| Runway Length | 180" |
| Runway Width | 19" |
| Distance Between Runways | 37" |
| Drive-Thru Width | 102.5" |
| Lowered Height | 5" |
| Locking Positions | 14 |
| Base Plate Size | 12" x 10" |
| Lock Release | Single Point |
| Lift Time | ~40 seconds |
| Voltage | 110V |
| Shipping Weight | 1,800 lbs |
