Atlas  |  SKU: ATEAP-TCWB-COMBO7

Atlas PTC400 Platinum Center Post Tire Changer with PWB90XL Wheel Balancer Combo

$11,349.00
Save $567.45 on this order paying by wire Get 5% off →
We're Here When You Need Us
Support team
Instant Live Chat
Available now
(888) 885-7067
Call us and talk to a real person, no call center
info@garageautosupplies.com
Email us for in-depth guidance

We're Available When You Need Us. Give Us A Call or Email.

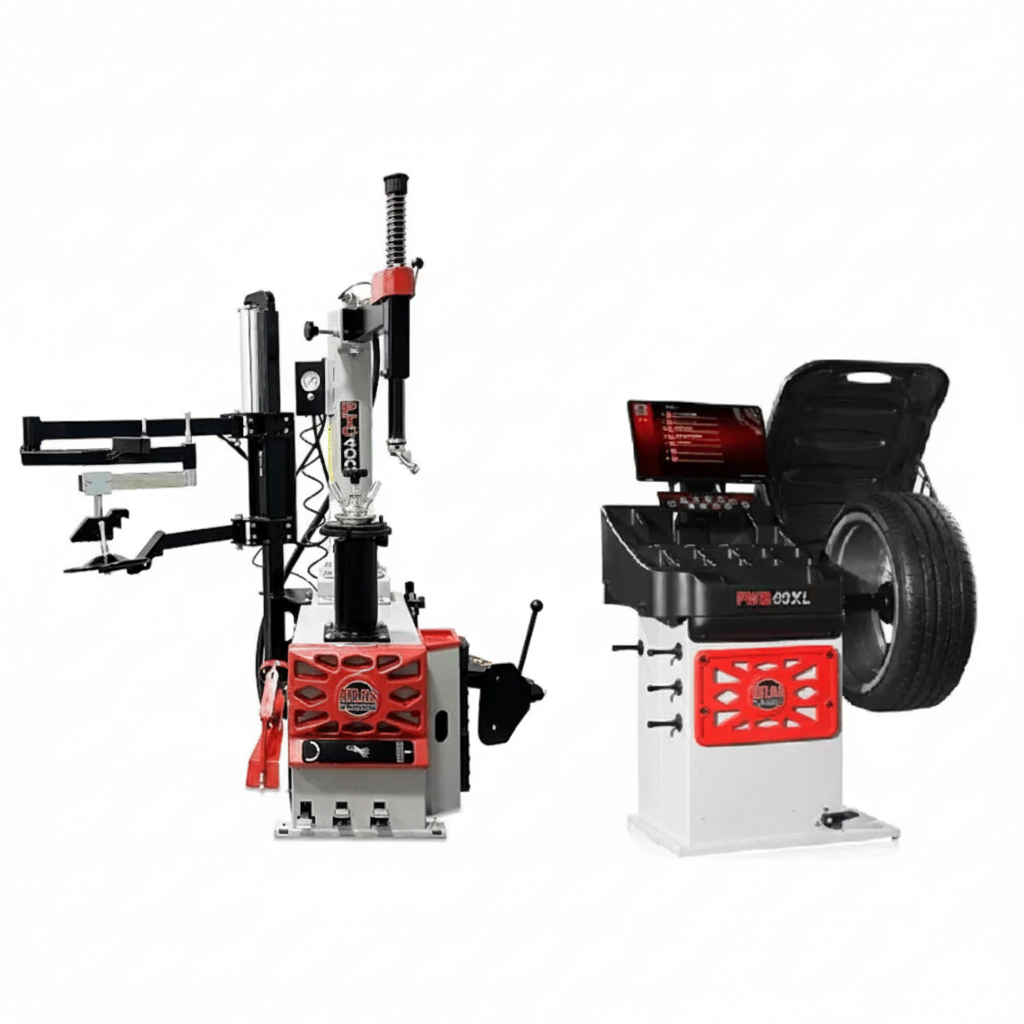

The Atlas Platinum PTC400 + PWB90XL Combo is a top-tier wheel service solution built for high-performance shops that want advanced automation and precision. This package combines a center-post tire changer with a premium 3D video wheel balancer, delivering next-level accuracy and efficiency.

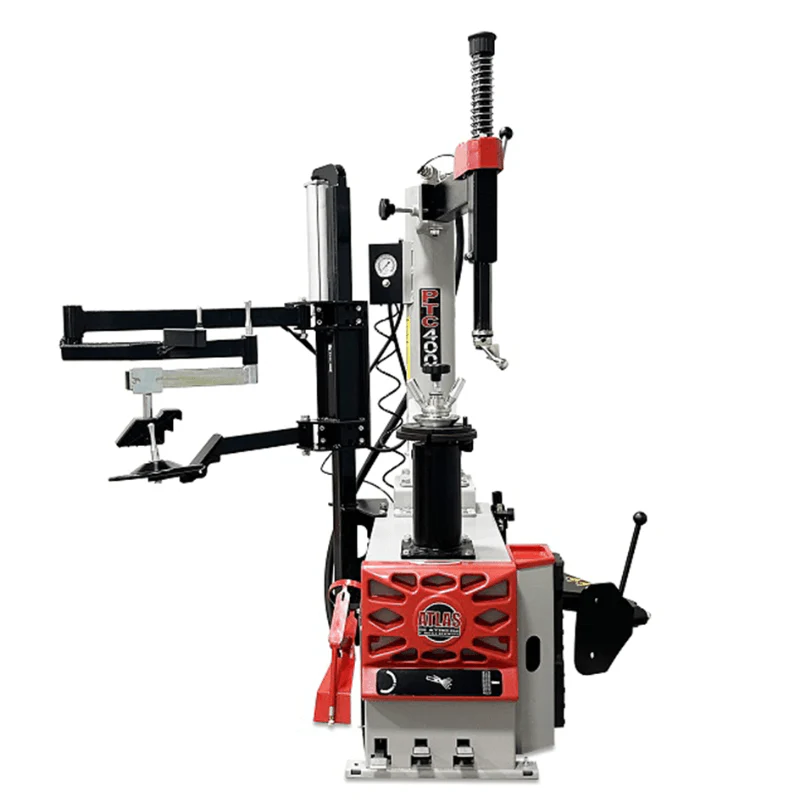

The PTC400 tire changer features a center-post swing-arm design with a left-hand assist arm, making it ideal for handling stiff sidewall, low-profile, and run-flat tires. Its electric turntable, air-operated bead breaker, and bead blasting system ensure smooth and efficient tire service.

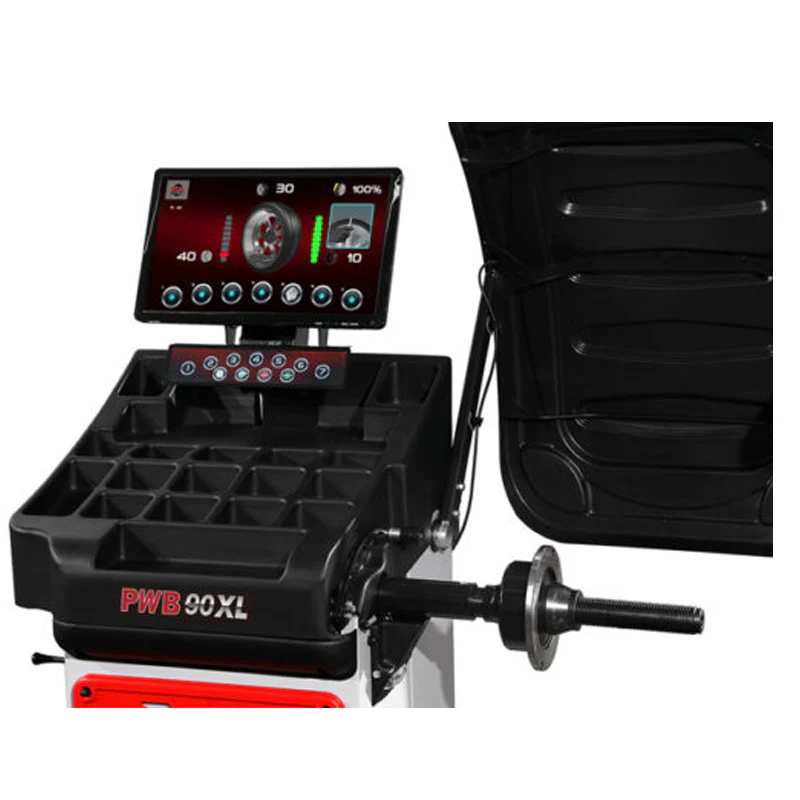

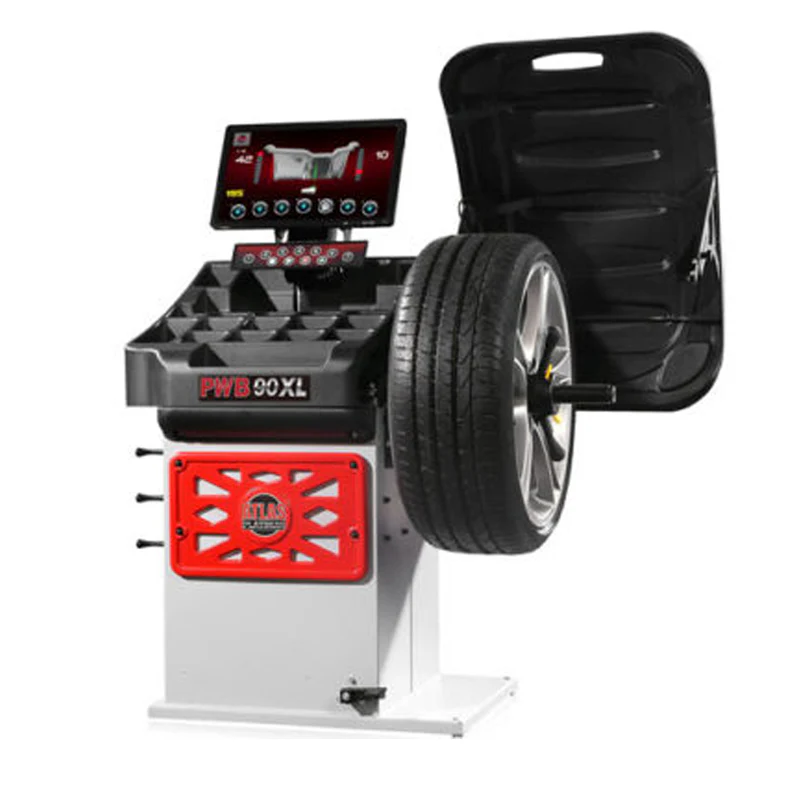

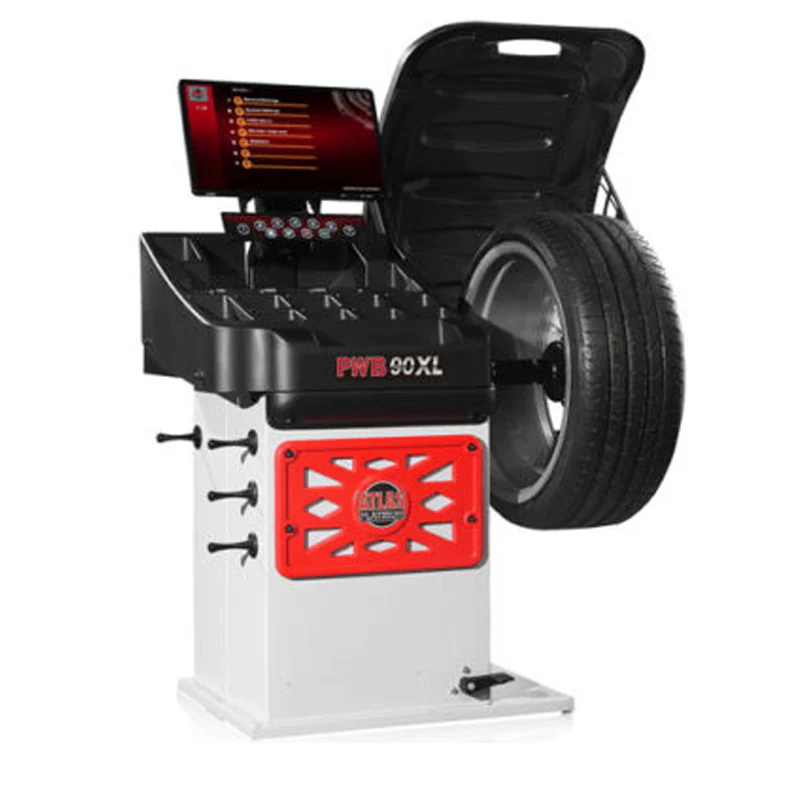

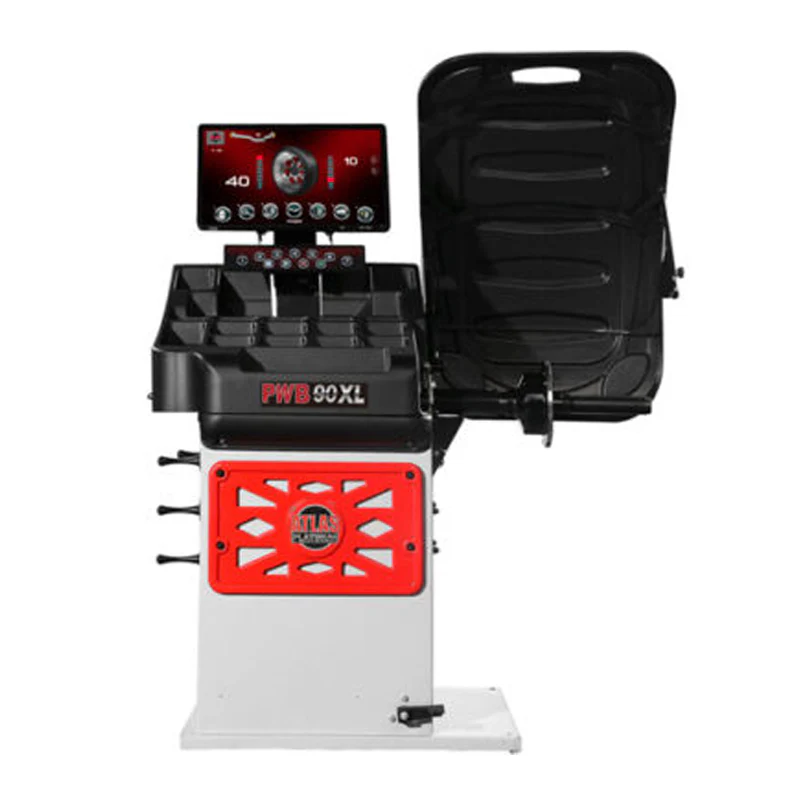

The PWB90XL wheel balancer is a standout, featuring fully automatic 3D data entry using touchless sonar technology. With a high-resolution video display, laser-guided weight placement, and LED illumination, it eliminates guesswork and ensures precise, first-time balancing results.

This combo is perfect for shops looking to offer premium tire services with maximum speed, accuracy, and minimal manual input.

Features and Benefits

  • Complete combo: PTC400 tire changer + PWB90XL wheel balancer
  • Center-post swing-arm tire changer for versatility
  • Left-hand assist arm included for difficult tires
  • External bead blasting system for fast inflation
  • Air-operated bead breaker (external air required)
  • High-torque electric turntable (110V)
  • Metal mount/demount head with replaceable inserts
  • Advanced 3D video wheel balancer with high-resolution display
  • Touchless sonar for automatic rim width measurement
  • Laser line for precise weight placement
  • LED lighting for improved visibility
  • Static and dynamic balancing modes
  • OPTIMATCH, FES (split), and OPF functions
  • No Wheel Needed (NWN) system
  • Self-diagnosing and self-calibrating
  • Multiple ALU balancing programs
  • 2-year parts-only warranty
  • Freight prepaid

Atlas Platinum PTC400

Specifications Details
Clamping Range 10" – 26"
Max Tire Diameter 43"
Max Wheel Width 15" (13" for reverse)
Rotating Speed 7 RPM
Bead Breaker Force 6,924 lbs.
Operating Voltage 110V
Air Requirement 120–145 PSI
Shipping Weight 620 lbs.

Atlas Platinum PWB90XL

Specifications Details
Max Tire Diameter 43"
Rim Sizes (Cars/Light Trucks) 10" – 30"
Rim Width 1.5" – 20"
Shaft Size 40mm
Max Wheel Weight 165 lbs.
Balancing Speed 130 RPM
Data Entry Super Automatic 3D
Accuracy 1 gram
Cycle Time 7 seconds
Weight Position Resolution 1.4°
Power Supply 110V
Shipping Weight 290 lbs.
