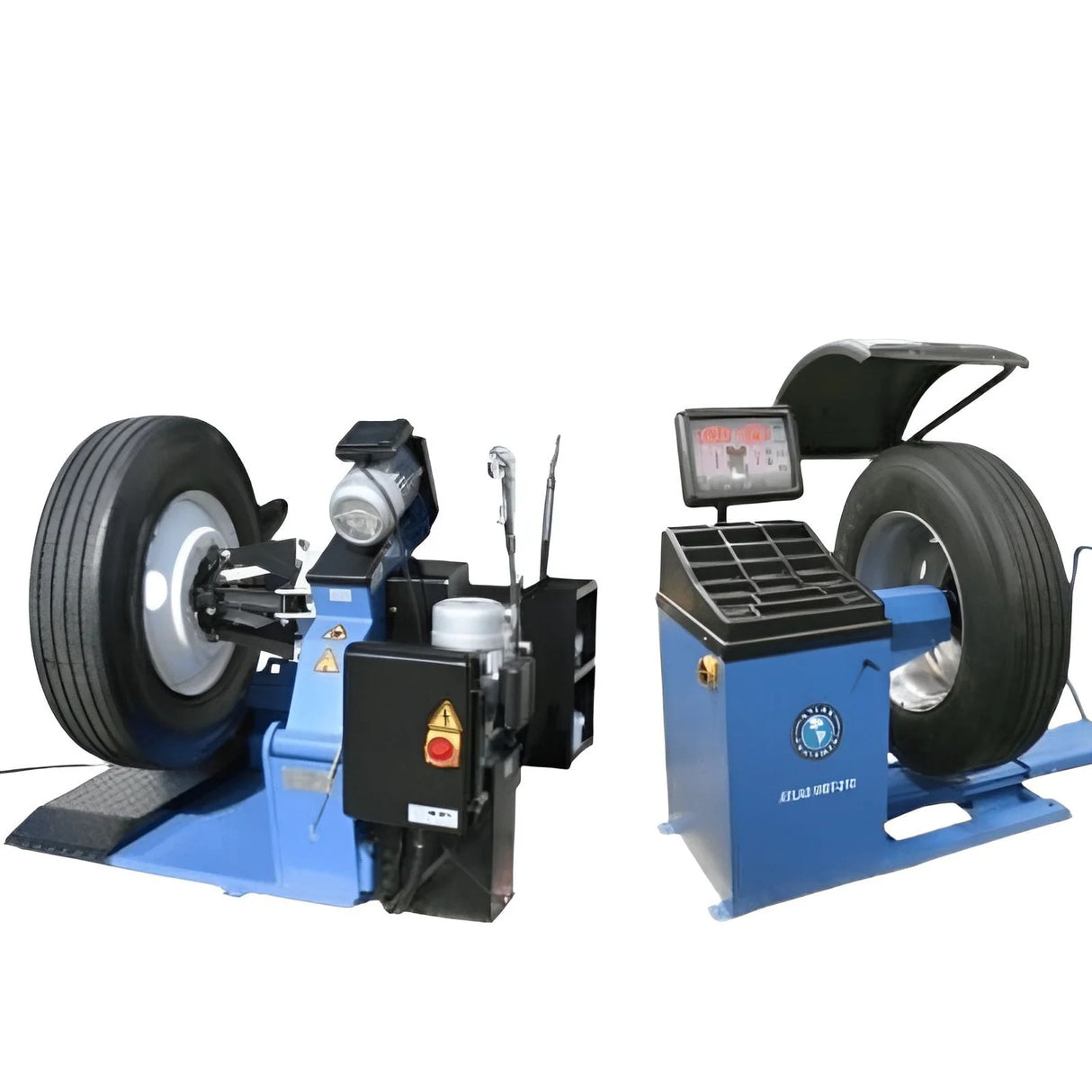

Atlas TC301 Truck Tire Changer and WBT210 Heavy-Duty Wheel Balancer Combo

The Atlas TC301 + WBT210 combo package is a heavy-duty wheel service solution built for shops that service large truck, bus, agricultural, and off-road tires. This package combines the industrial-grade TC301 truck tire changer with the WBT210 computerized spin balancer, providing a complete system for mounting, demounting, and balancing oversized wheel assemblies. Designed for high-volume environments, this setup is capable of handling everything from passenger vehicles to full-size semi-truck tires, making it an ideal choice for fleet service centers and commercial tire shops.

Key Features & Benefits

• Complete truck tire changer and heavy-duty wheel balancer combo
• Designed for commercial truck, bus, and agricultural tire service
• Handles large diameter and wide tire assemblies with ease
• Includes adapters for both passenger and heavy-duty truck wheels
• Pneumatic wheel lift on balancer reduces operator strain
• Built for high-volume shops and fleet maintenance operations
• Durable construction for continuous daily use
• Both machines include 1-year parts-only warranty
• Freight prepaid for this package

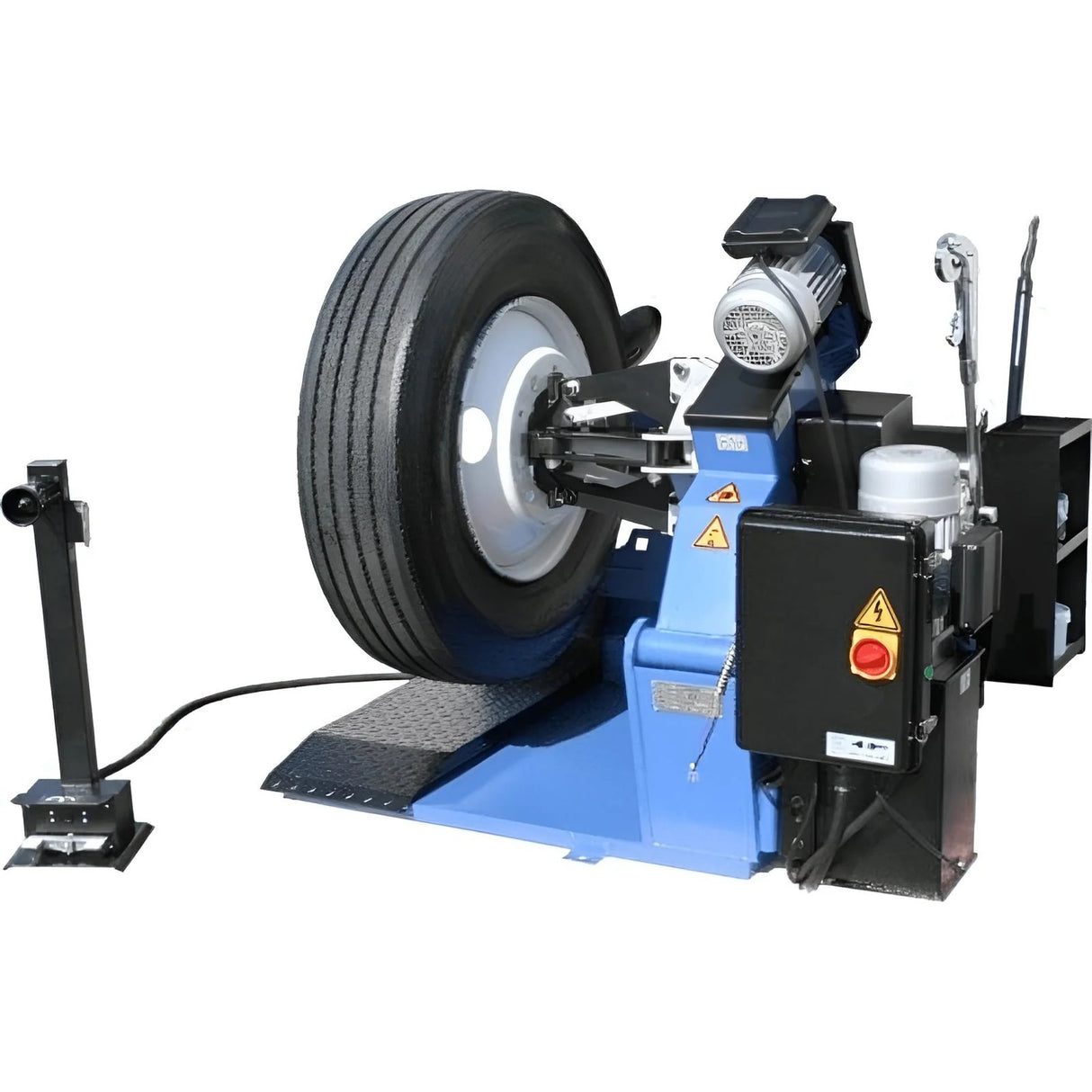

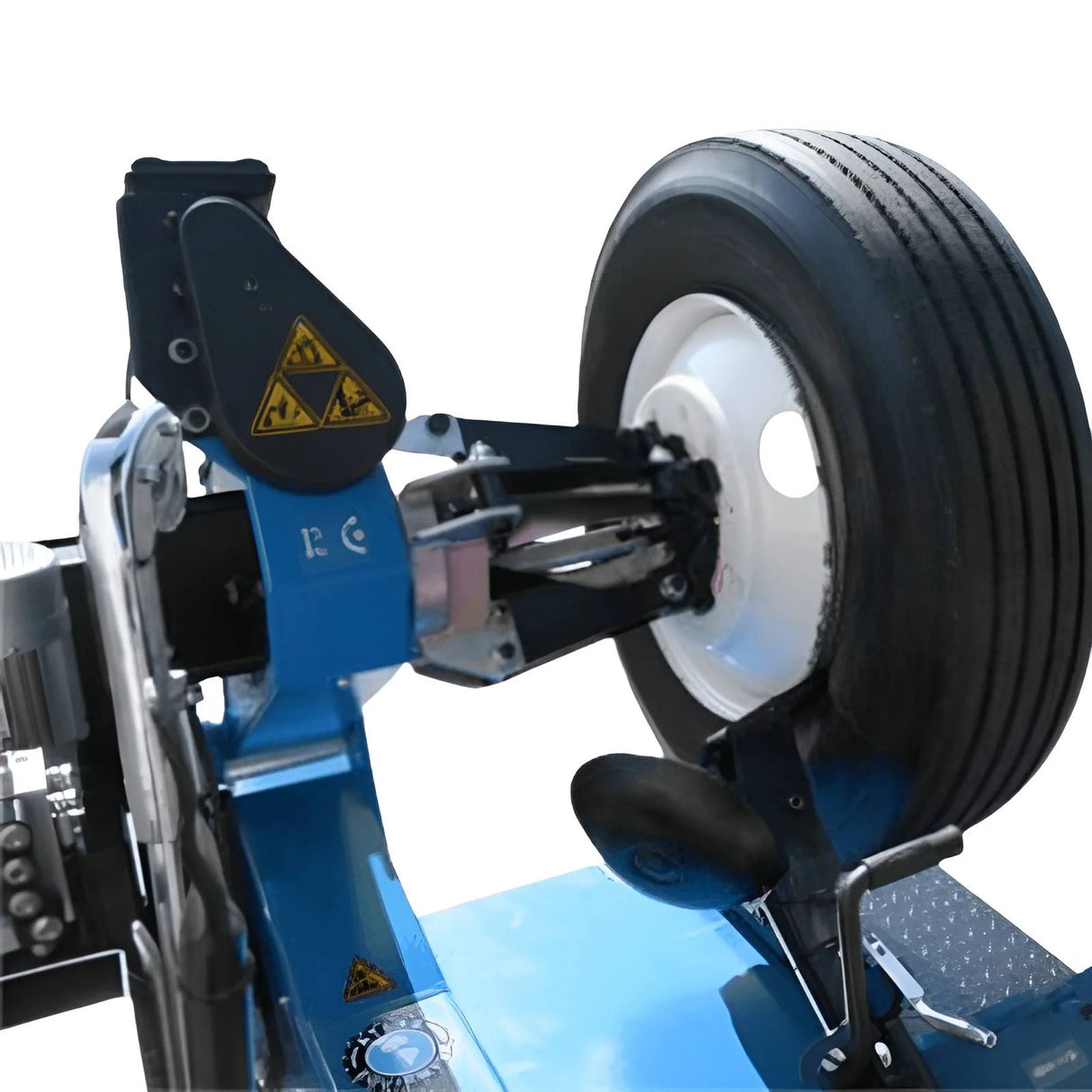

Tire Changer Features (TC301)

• Handles rim sizes from 13" to 27"
• Accommodates tire diameters over 63"
• Supports tire widths up to 30 1/2"
• Electric/hydraulic self-centering 4-jaw chuck
• 5 rim locking positions for flexibility
• Heavy-duty bead breaker system
• Mount/demount head for large tire handling
• Wired mobile control unit for operator convenience
• Includes heavy-duty tire tool and rim clamps
• Alloy rim adapter set with plastic inserts included

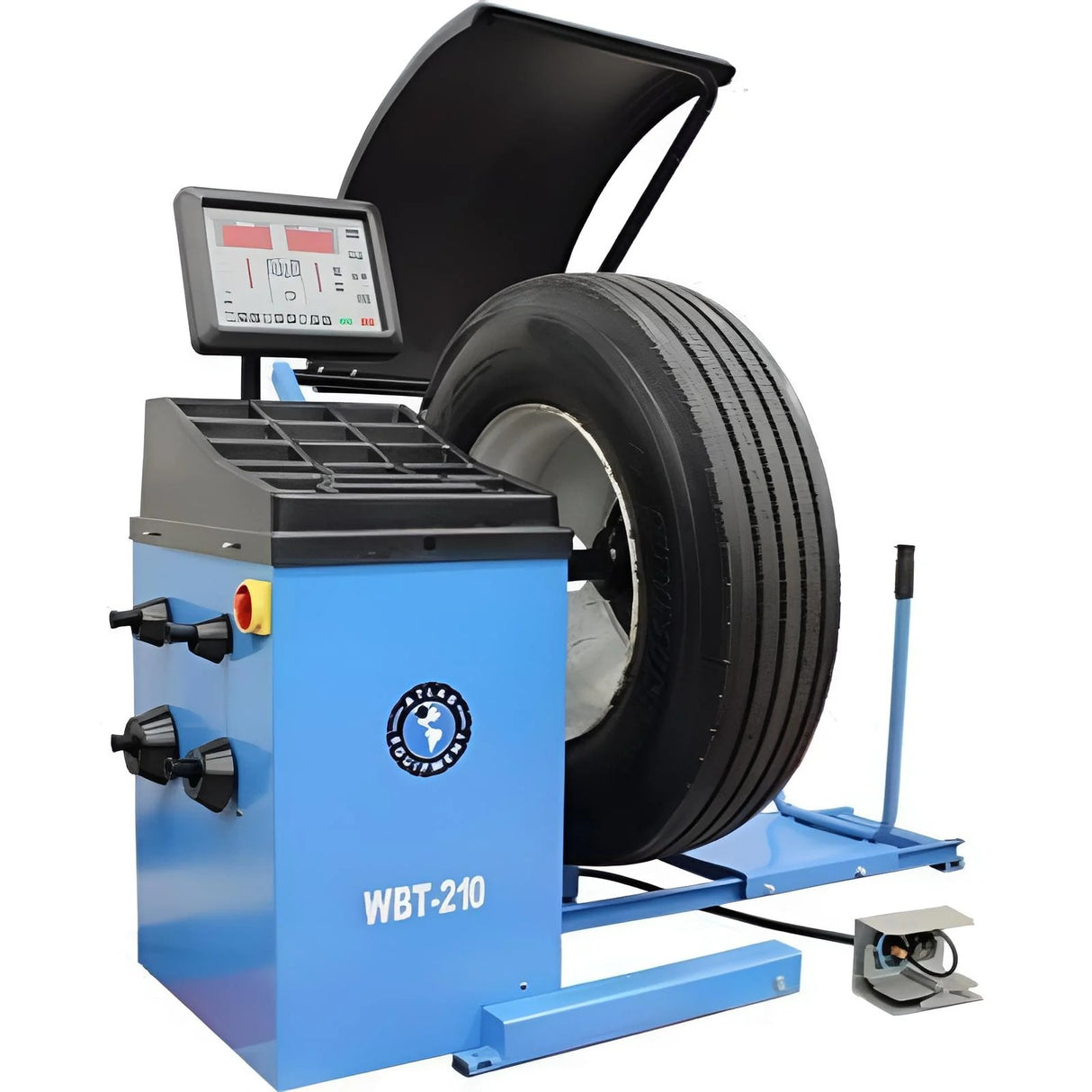

Wheel Balancer Features (WBT210)

• Heavy-duty computerized spin balancer
• Handles passenger, light truck, and large truck wheels
• Includes cone sets for cars, light trucks, and heavy-duty applications
• Includes truck, bus, and implement adapters
• Plastic quick-release nut and heavy-duty steel wing nut included
• Pneumatic wheel lift (external air required)
• Automatic start/stop with hood operation
• Static and dynamic balancing modes
• Rapid optimization (OPT) function
• Self-diagnosing and self-calibrating system
• High stability for accurate readings between planes
• Displays in grams or ounces, mm or inches
• Includes wheel weight pliers and width caliper

Performance & Use Case

This combo is designed for shops that need to handle a wide range of tire sizes, from standard passenger vehicles to large commercial truck assemblies. The TC301 tire changer provides the power and control needed for oversized tires, while the WBT210 balancer offers the versatility to balance everything from small wheels to heavy-duty truck tires up to 440 lbs. Together, they create a highly efficient and scalable solution for commercial tire operations, fleet maintenance facilities, and agricultural service environments.

Documents

• TTC301 Manual
• WBT-210 Manual
