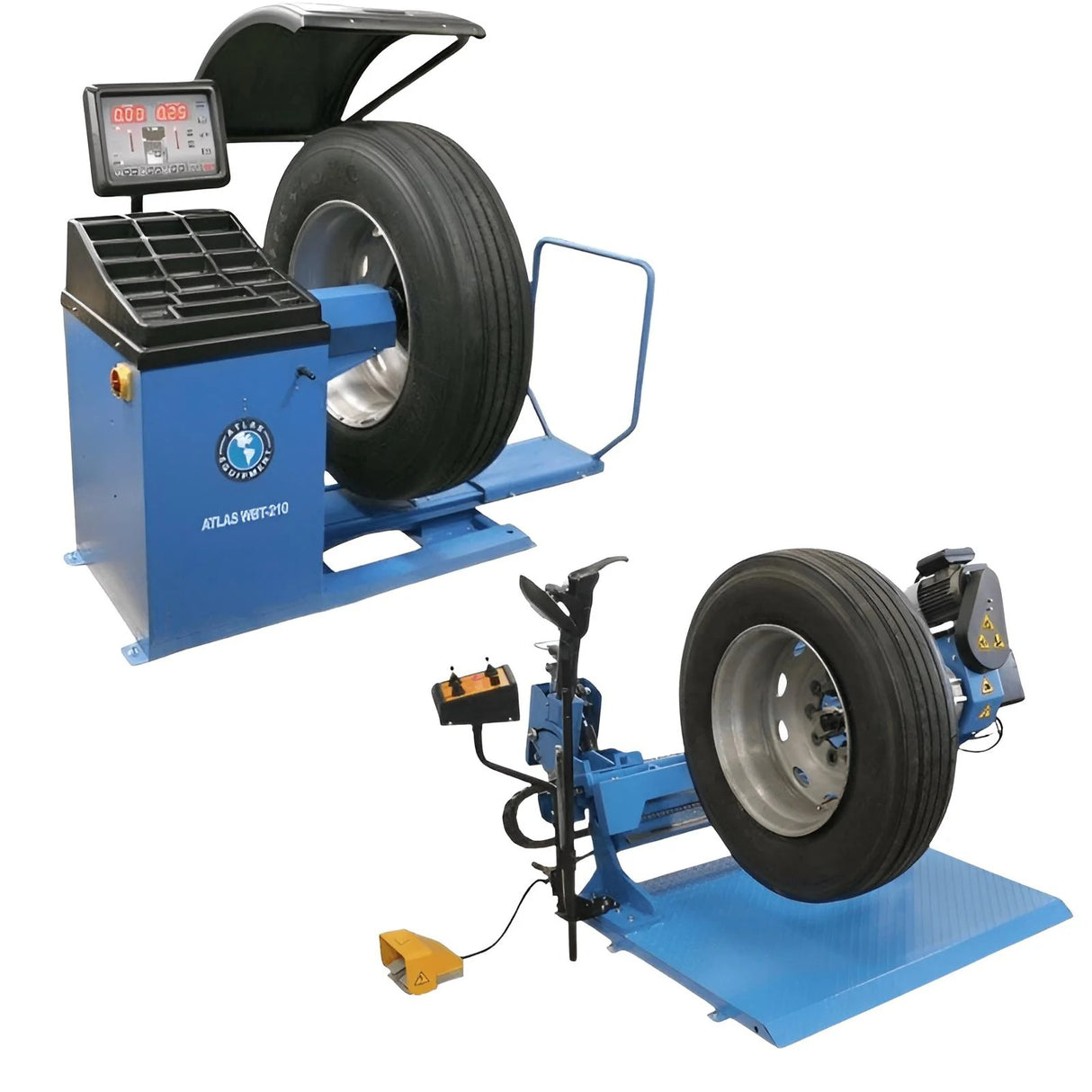

Atlas TC305A Automatic Truck Tire Changer and WBT210 Heavy-Duty Wheel Balancer Combo

The Atlas TC305A + WBT210 combo package is a high-performance wheel service system designed for commercial shops handling large truck, agricultural, and oversized tires. This package combines a fully automatic truck tire changer with a heavy-duty computerized spin balancer, providing a complete solution for mounting, demounting, and balancing everything from passenger wheels to heavy-duty truck assemblies. Built for high-volume environments, this combo delivers efficiency, precision, and durability for demanding daily operations.

Key Features & Benefits

• Complete automatic truck tire changer and heavy-duty balancer combo
• Designed for commercial truck, agricultural, and fleet service applications
• Fully automatic TC305A reduces manual effort and increases efficiency
• Handles large diameter and wide tire assemblies
• WBT210 balances both passenger and heavy-duty truck wheels
• Includes adapters for cars, light trucks, and commercial wheels
• Built for high-volume shops and continuous operation
• Both machines include 1-year parts-only warranty
• Freight prepaid for this package

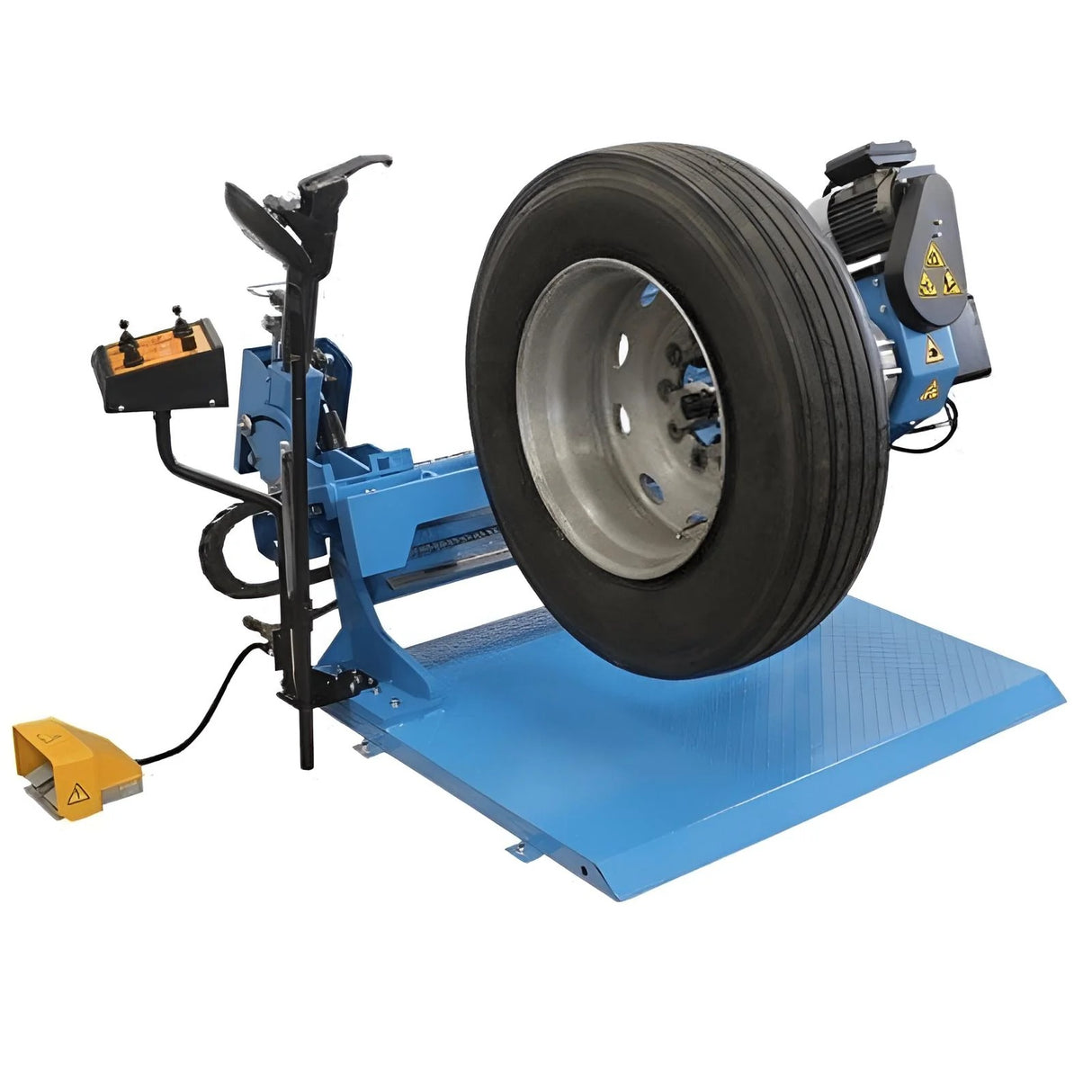

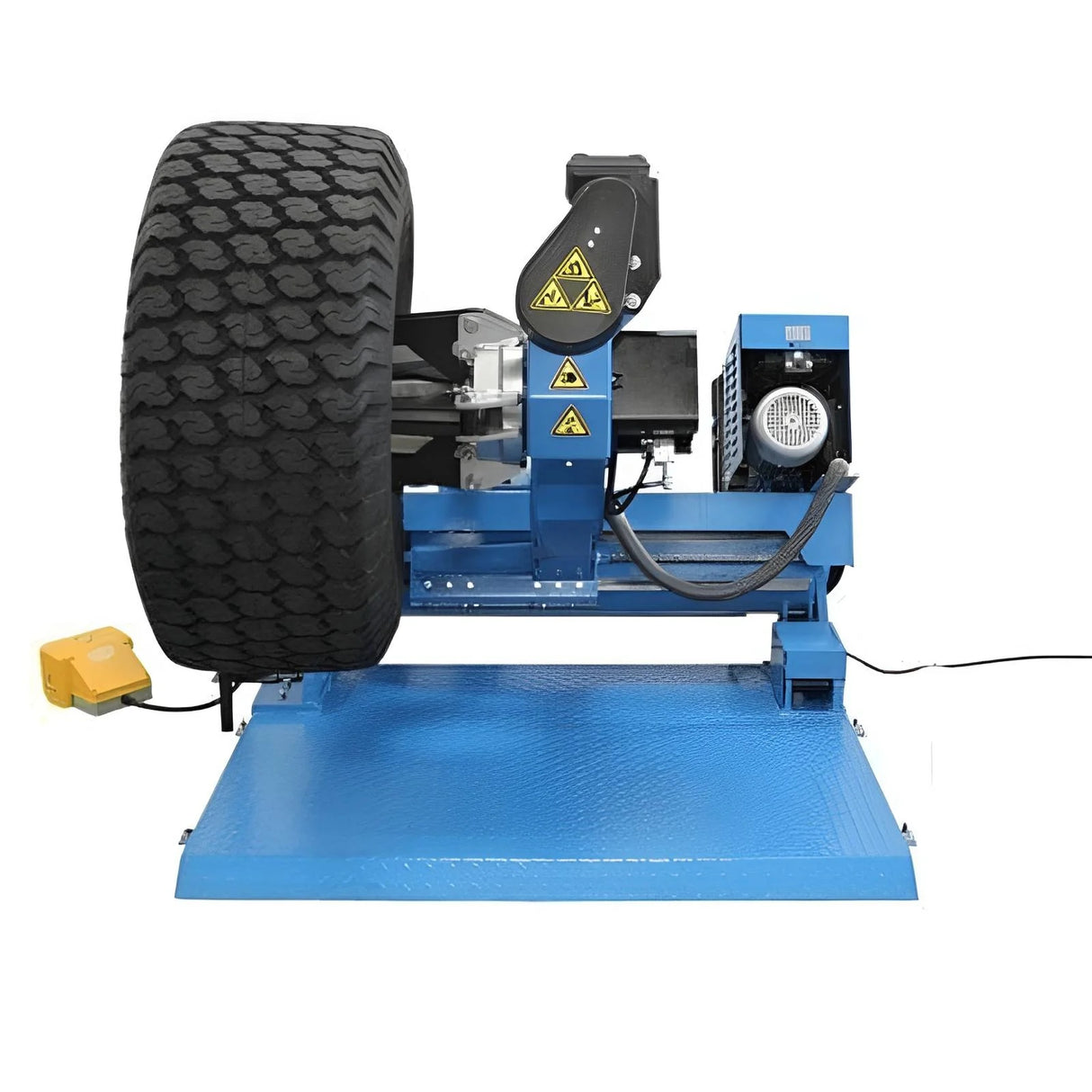

Tire Changer Features (TC305A)

• Fully automatic truck tire changer
• Handles rims from 8" to 26" (with adapters)
• Accommodates tire diameters over 55"
• Supports tire widths up to 30 1/2"
• Automatic positioning of bead tool, carriage, and chuck arm
• Interchangeable mount/demount and roller heads

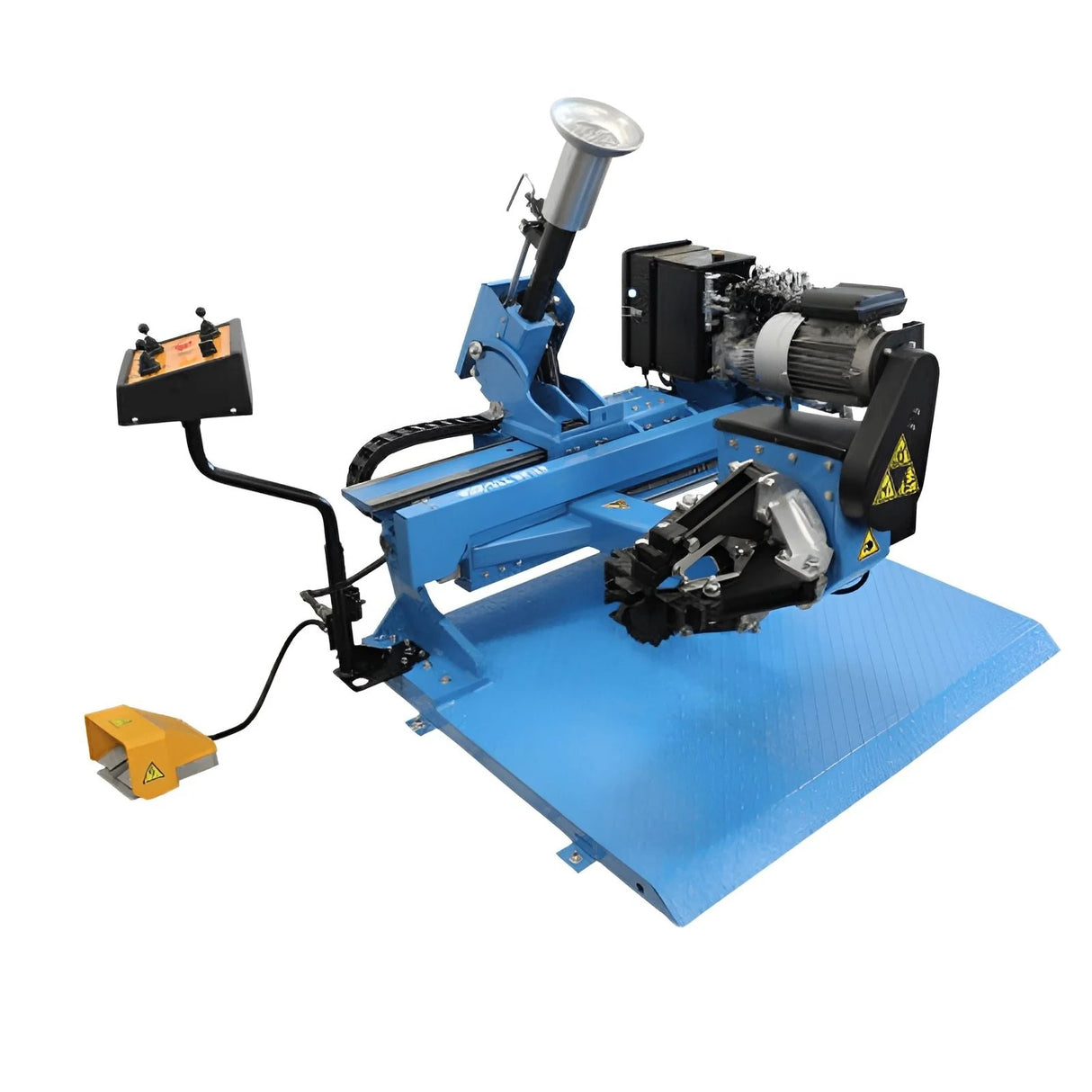

• Electric/hydraulic self-centering 4-jaw chuck
• 5 rim locking positions for flexibility

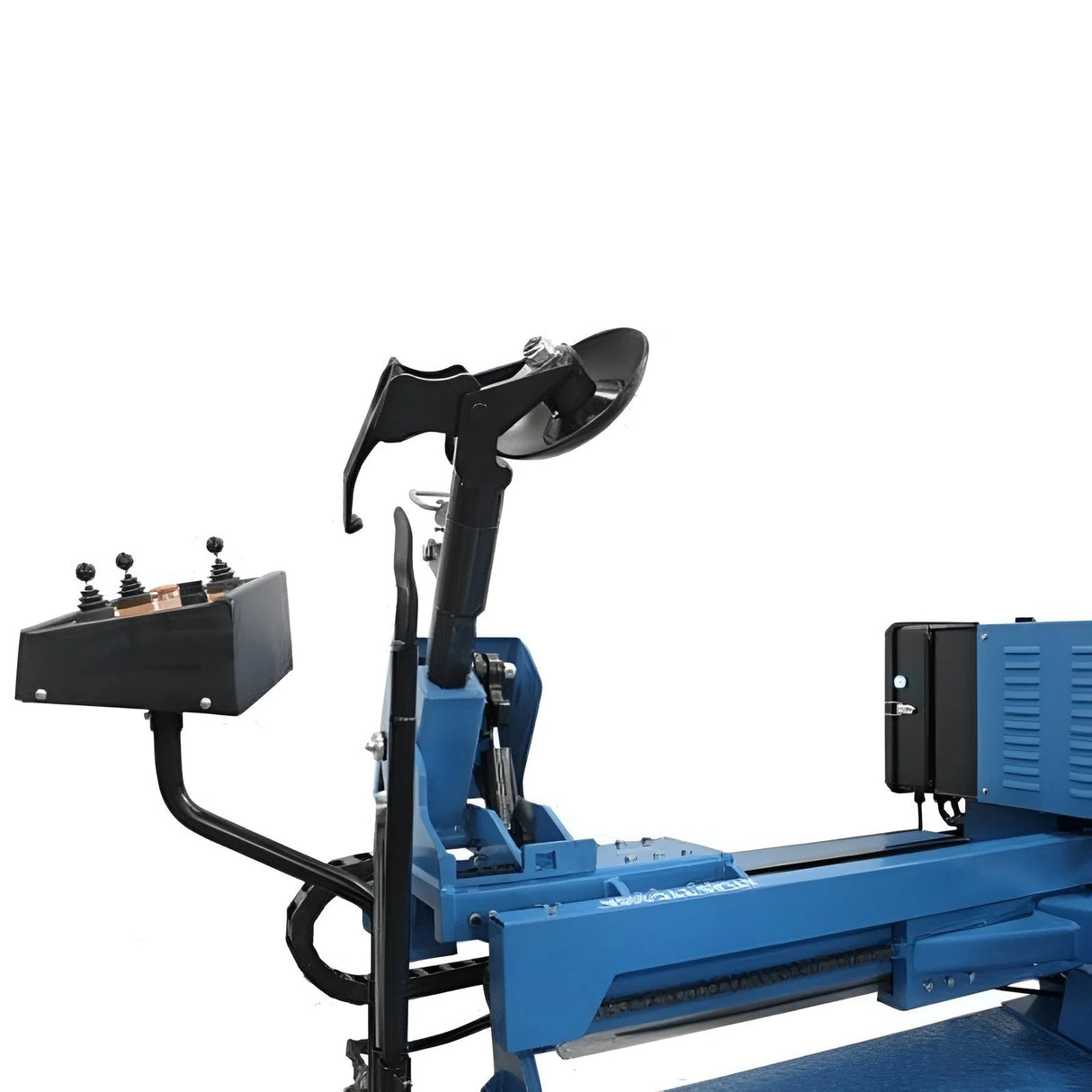

• Mounted control unit with additional foot pedal controls
• Heavy-duty tire tool included
• Rim clamps for steel and alloy wheels included
• Alloy rim adapter set with plastic inserts included

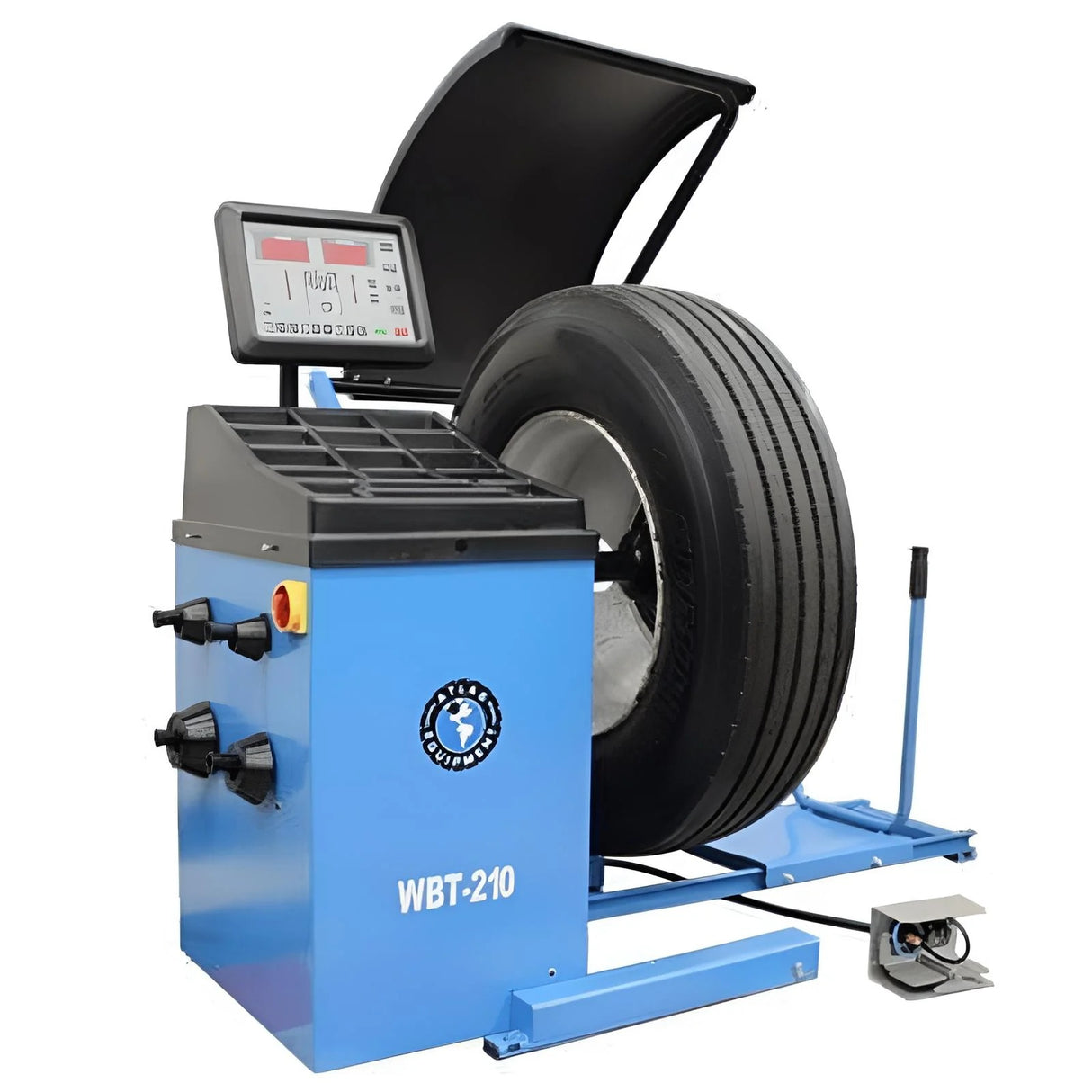

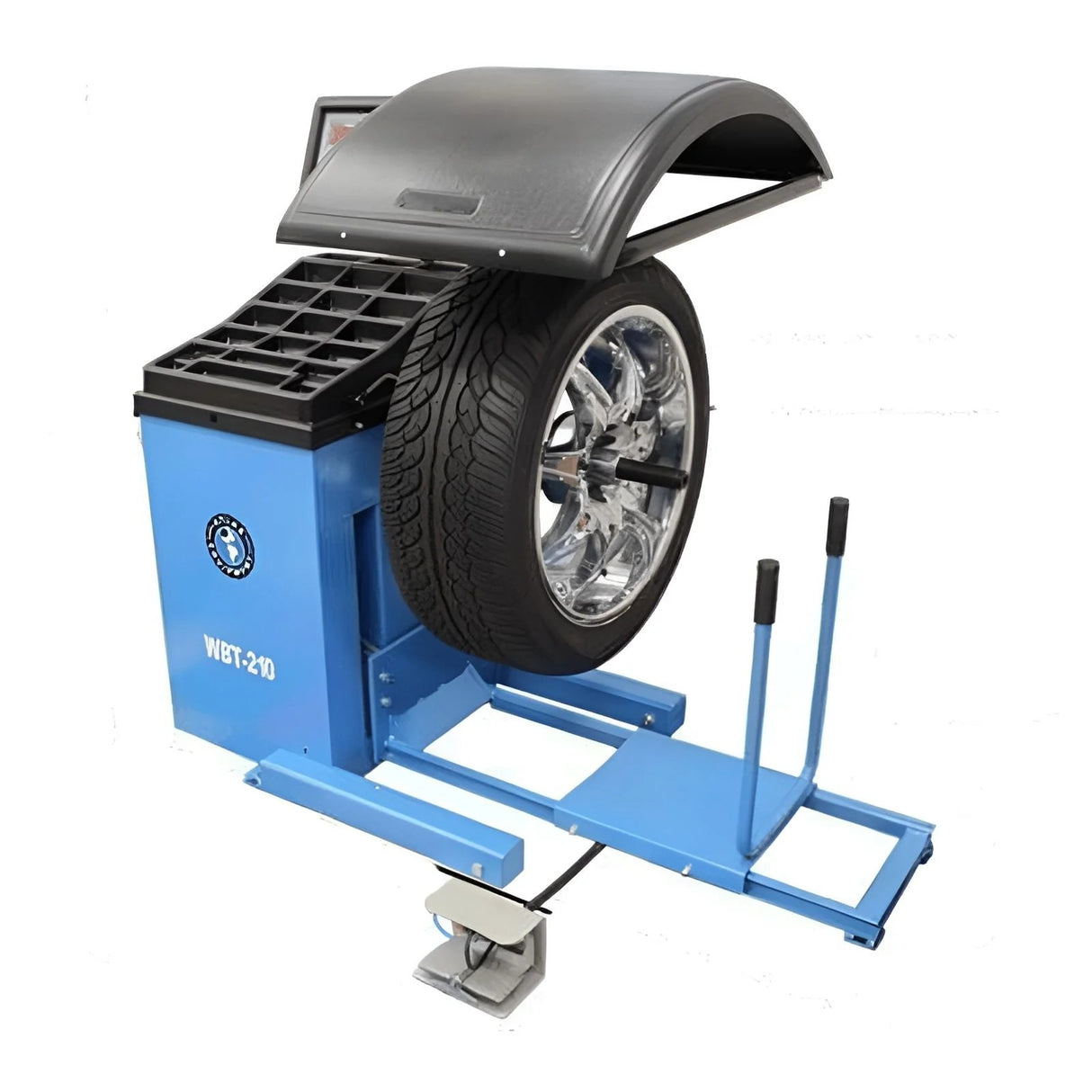

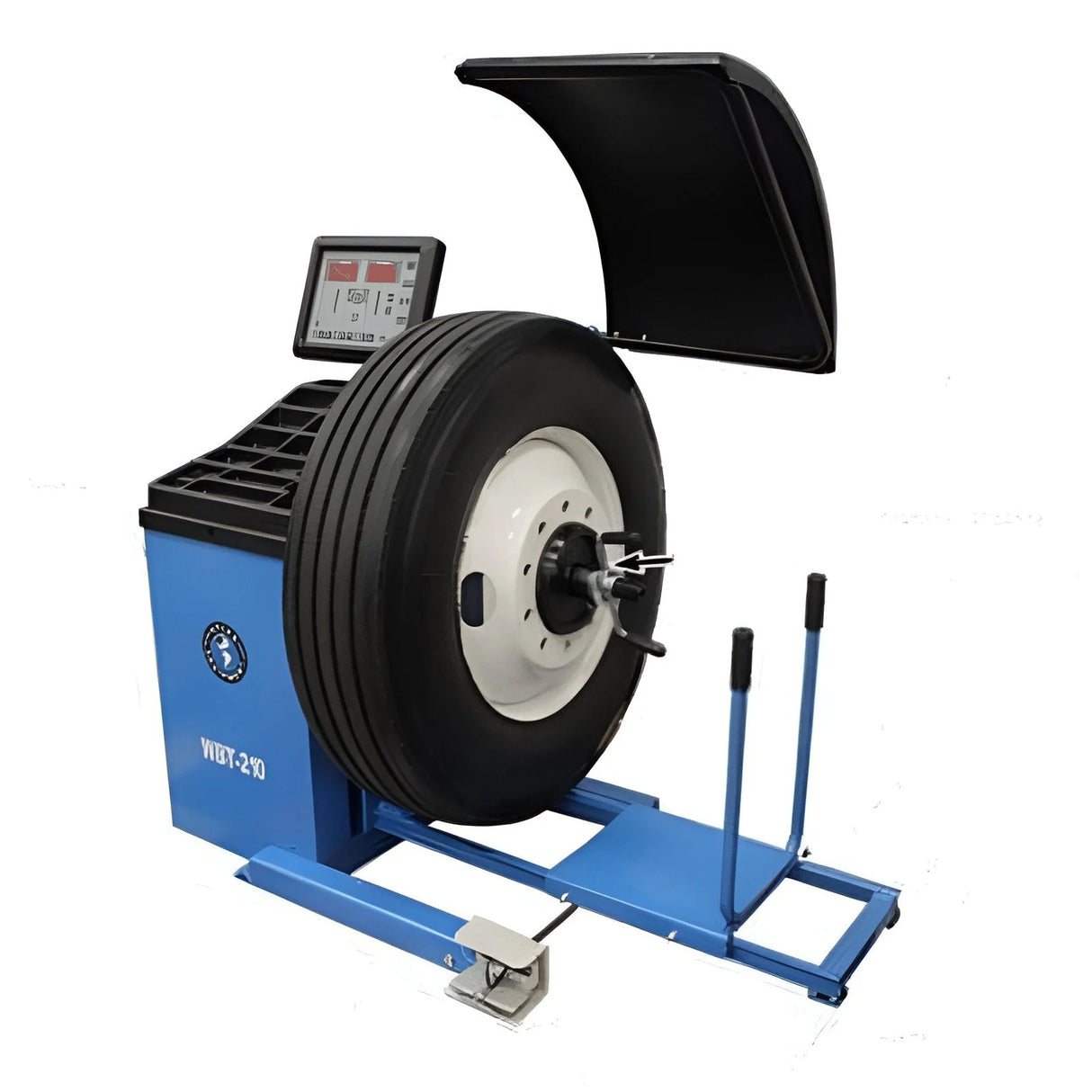

Wheel Balancer Features (WBT210)

• Heavy-duty computerized spin balancer
• Handles passenger, light truck, and large truck wheels
• Cone sets included for cars and light trucks
• Heavy-duty cone and spacer set for truck, bus, and implement tires
• Plastic quick-release nut and heavy-duty steel wing nut included
• Pneumatic wheel lift (external air required)
• Automatic start/stop with hood operation
• Static and dynamic balancing modes
• Rapid optimization (OPT) function
• Self-diagnosing and self-calibrating system
• High stability for accurate readings between planes
• Displays in grams or ounces, mm or inches
• Includes wheel weight pliers and width caliper

Performance & Use Case

This combo package is ideal for shops that need to service a wide range of tire sizes with maximum efficiency. The fully automatic TC305A significantly reduces operator workload by automating tool positioning and handling, making it ideal for high-volume environments. The WBT210 complements this with the ability to balance everything from standard passenger wheels to heavy-duty truck tires up to 440 lbs. Together, they provide a scalable and efficient solution for fleet maintenance, commercial tire shops, and agricultural service operations.
