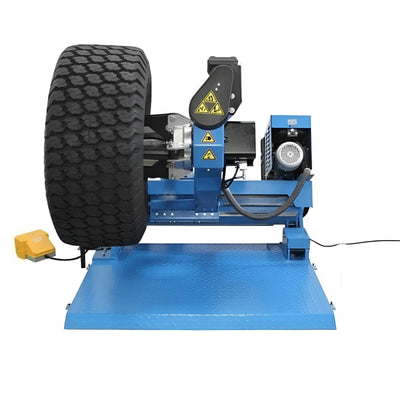

Atlas TC305A Automatic Truck Tire Changer and WBT210 Heavy-Duty Wheel Balancer Combo
SKU: ATETTCWB-COMBO2
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

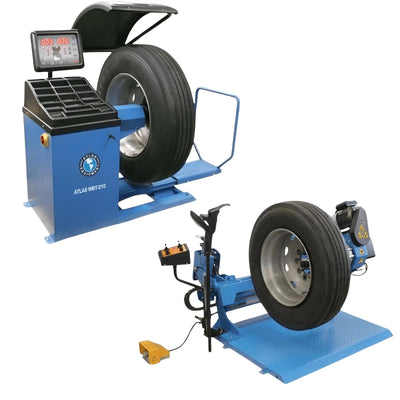

The Atlas TC305A + WBT210 combo package is a high-performance wheel service system designed for commercial shops handling large truck, agricultural, and oversized tires. This package combines a fully automatic truck tire changer with a heavy-duty computerized spin balancer, providing a complete solution for mounting, demounting, and balancing everything from passenger wheels to heavy-duty truck assemblies. Built for high-volume environments, this combo delivers efficiency, precision, and durability for demanding daily operations.
Key Features & Benefits
- Complete automatic truck tire changer and heavy-duty balancer combo
- Designed for commercial truck, agricultural, and fleet service applications
- Fully automatic TC305A reduces manual effort and increases efficiency
- Handles large diameter and wide tire assemblies
- WBT210 balances both passenger and heavy-duty truck wheels
- Includes adapters for cars, light trucks, and commercial wheels
- Built for high-volume shops and continuous operation
- Both machines include 1-year parts-only warranty
- Freight prepaid for this package

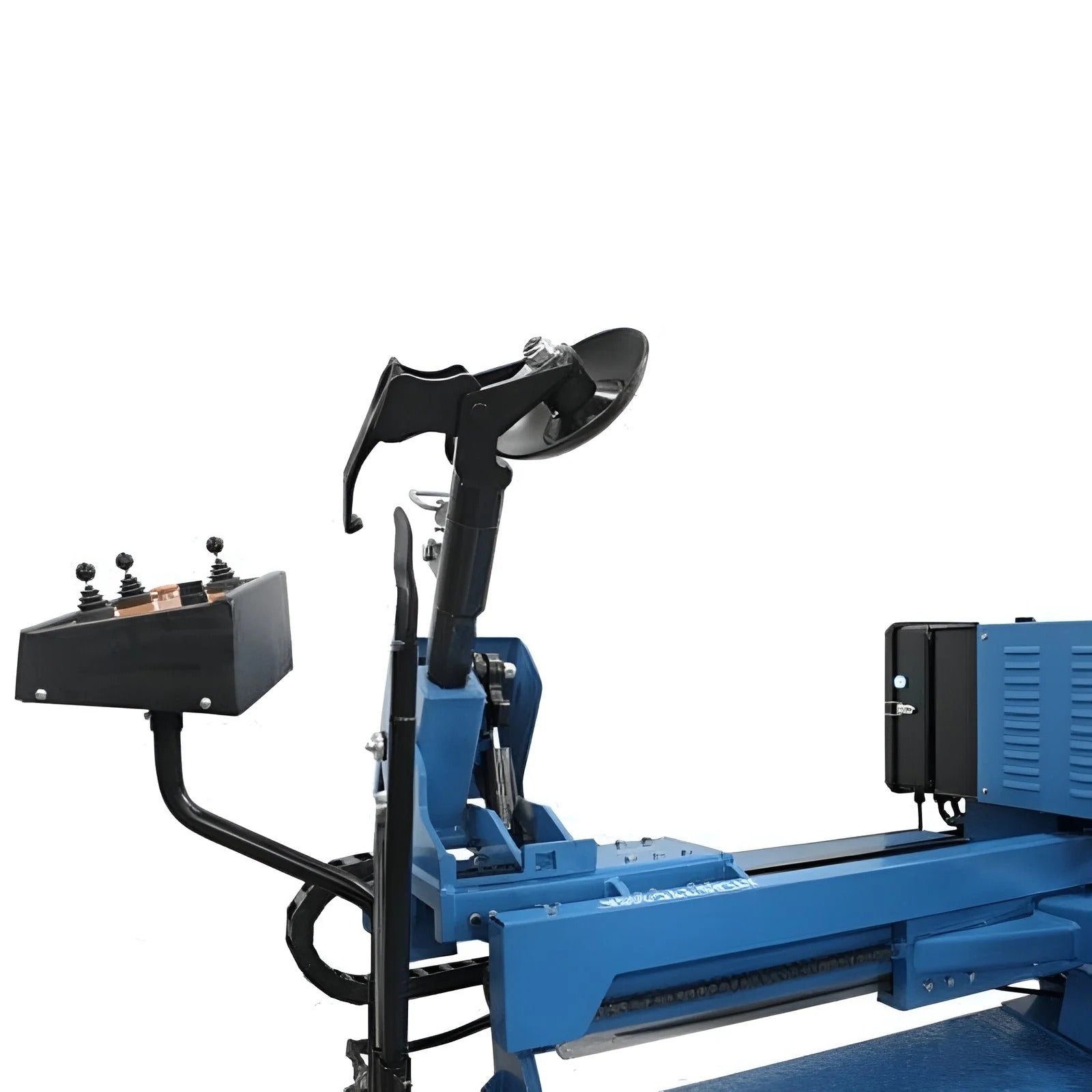

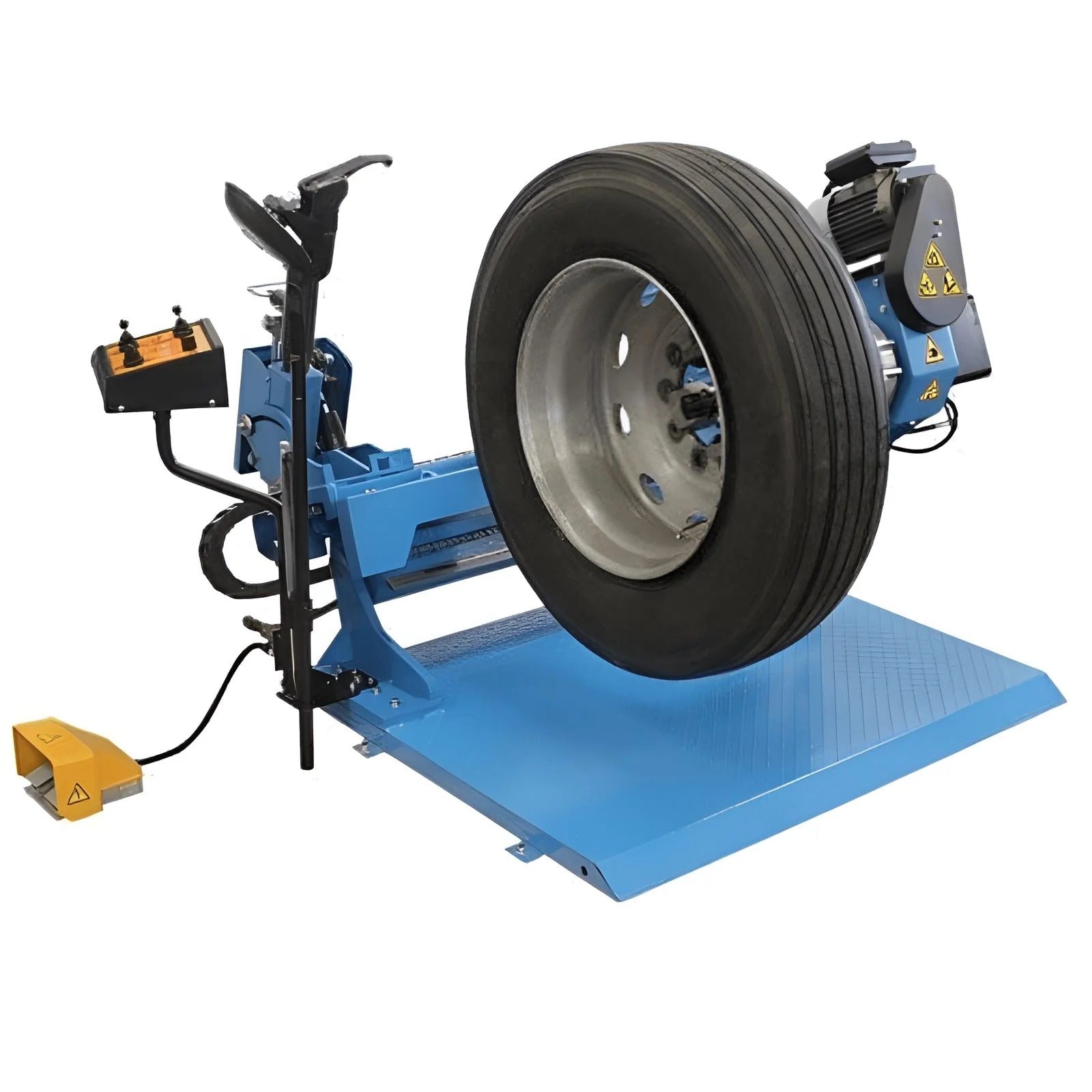

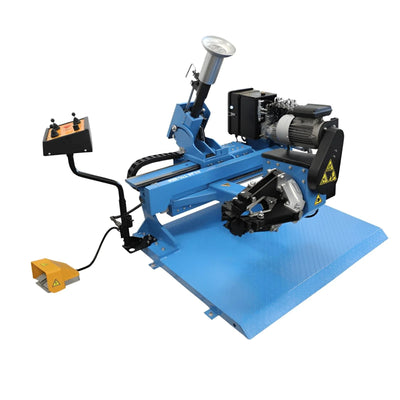

Tire Changer Features (TC305A)
- Fully automatic truck tire changer
- Handles rims from 8" to 26" (with adapters)
- Accommodates tire diameters over 55"
- Supports tire widths up to 30 1/2"
- Automatic positioning of bead tool, carriage, and chuck arm
- Interchangeable mount/demount and roller heads
- Electric/hydraulic self-centering 4-jaw chuck
- 5 rim locking positions for flexibility
- Mounted control unit with additional foot pedal controls
- Heavy-duty tire tool included
- Rim clamps for steel and alloy wheels included
- Alloy rim adapter set with plastic inserts included

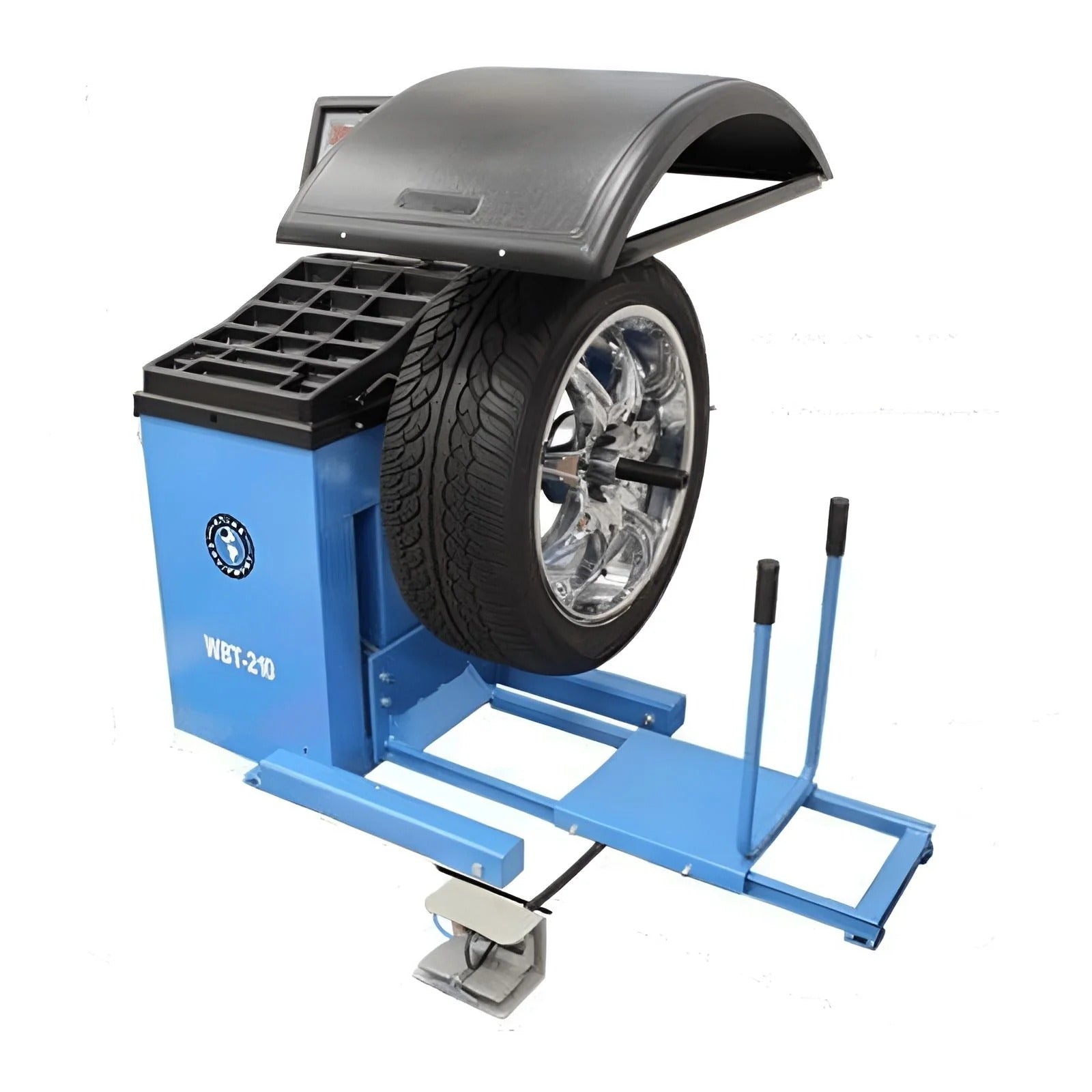

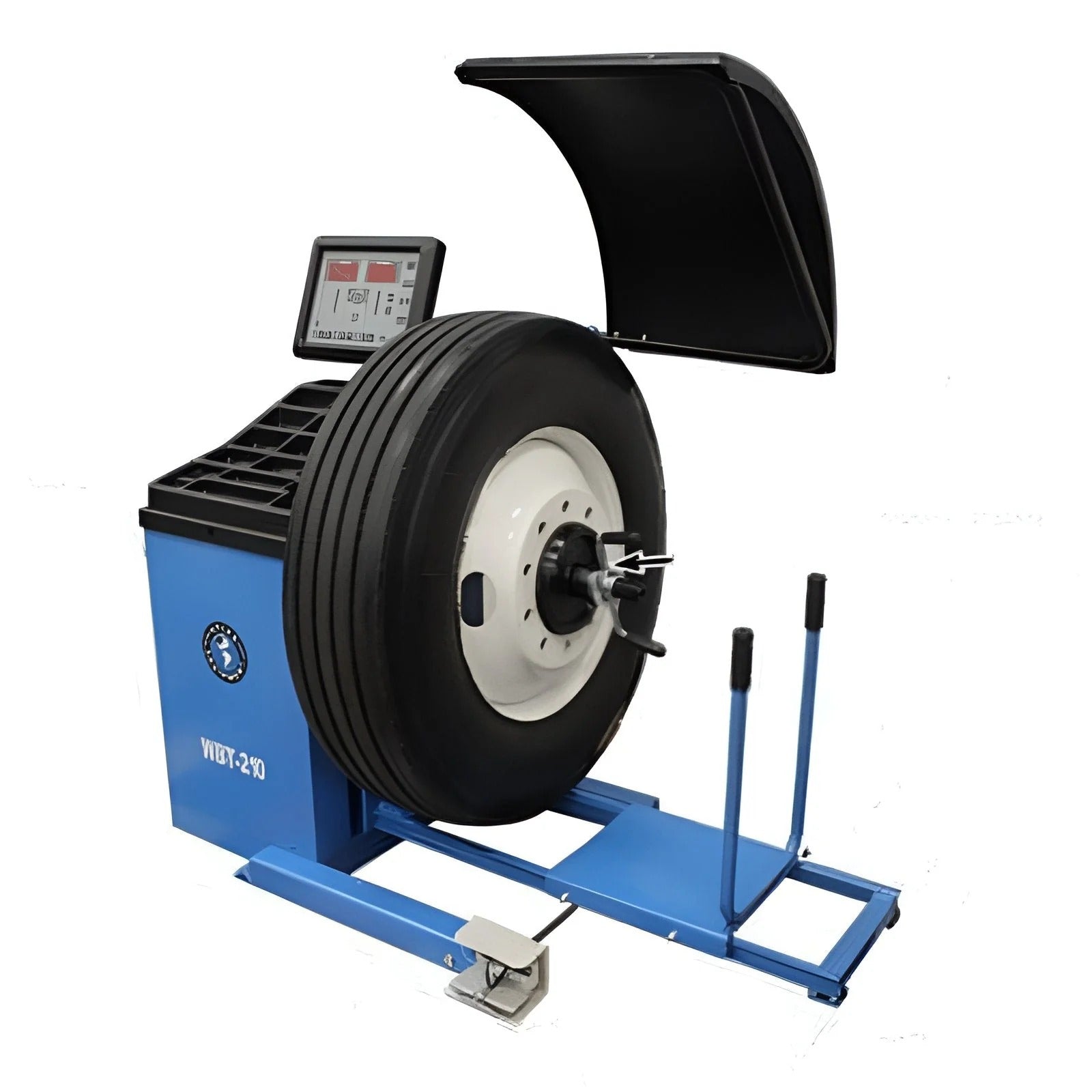

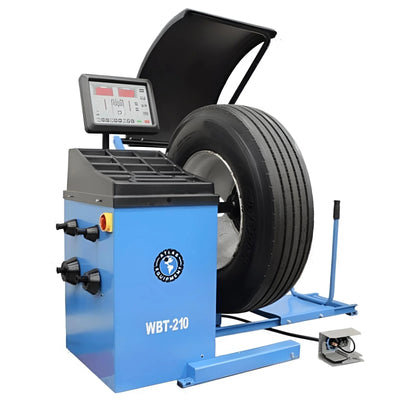

Wheel Balancer Features (WBT210)
- Heavy-duty computerized spin balancer
- Handles passenger, light truck, and large truck wheels
- Cone sets included for cars and light trucks
- Heavy-duty cone and spacer set for truck, bus, and implement tires
- Plastic quick-release nut and heavy-duty steel wing nut included
- Pneumatic wheel lift (external air required)
- Automatic start/stop with hood operation
- Static and dynamic balancing modes
- Rapid optimization (OPT) function
- Self-diagnosing and self-calibrating system
- High stability for accurate readings between planes
- Displays in grams or ounces, mm or inches
- Includes wheel weight pliers and width caliper
Performance & Use Case
This combo package is ideal for shops that need to service a wide range of tire sizes with maximum efficiency. The fully automatic TC305A significantly reduces operator workload by automating tool positioning and handling, making it ideal for high-volume environments. The WBT210 complements this with the ability to balance everything from standard passenger wheels to heavy-duty truck tires up to 440 lbs. Together, they provide a scalable and efficient solution for fleet maintenance, commercial tire shops, and agricultural service operations.
| Specifications | Details |
|---|---|
| Max Tire Diameter | 55" |
| Max Tire Width | 30 1/2" |
| Rim Clamping Range | 8" – 26" (w/ adapters) |
| Max Wheel Weight | 838 lbs. |
| Clamping Power | 6,600 lbs. |
| Operating Pressure | 0 – 1,885 PSI |
| Acoustic Pressure | <70 dBA |
| Bead Breaker Force | 3,990 lbs. |
| Tool Arm Positioning | Automatic |
| Tool Head Positioning | Automatic |
| Construction | Single Piece Frame w/ Solid Floor-Plate |
| Hydraulic Motor Power | 2 HP, 220v (±5% / 209–231 volts) 1-phase, 30 amp breaker required |
| Chuck Motor Power | 3 HP, 220v (±5% / 209–231 volts) 1-phase, 30 amp breaker required |
| Shipping Weight | 1,490 lbs. |
