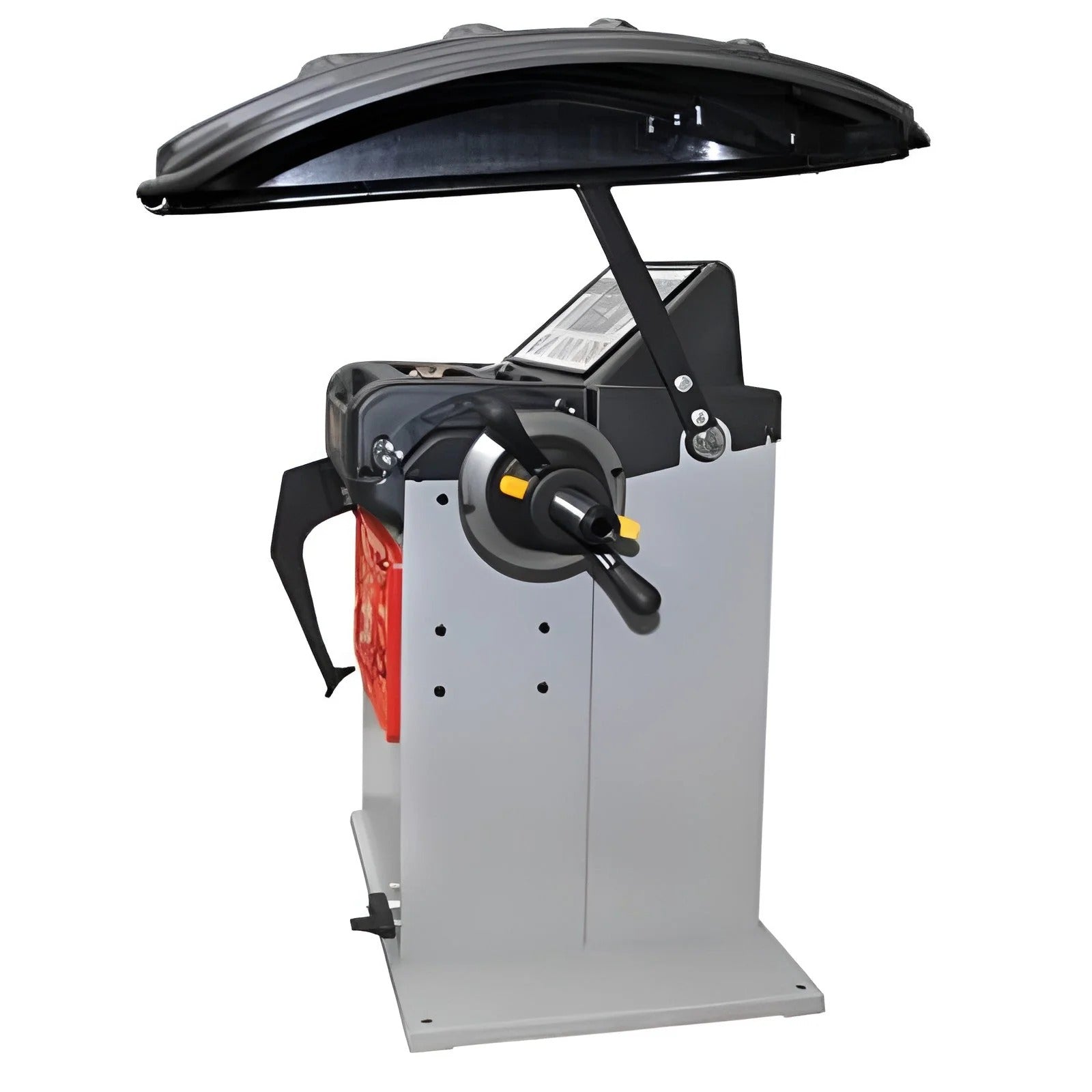

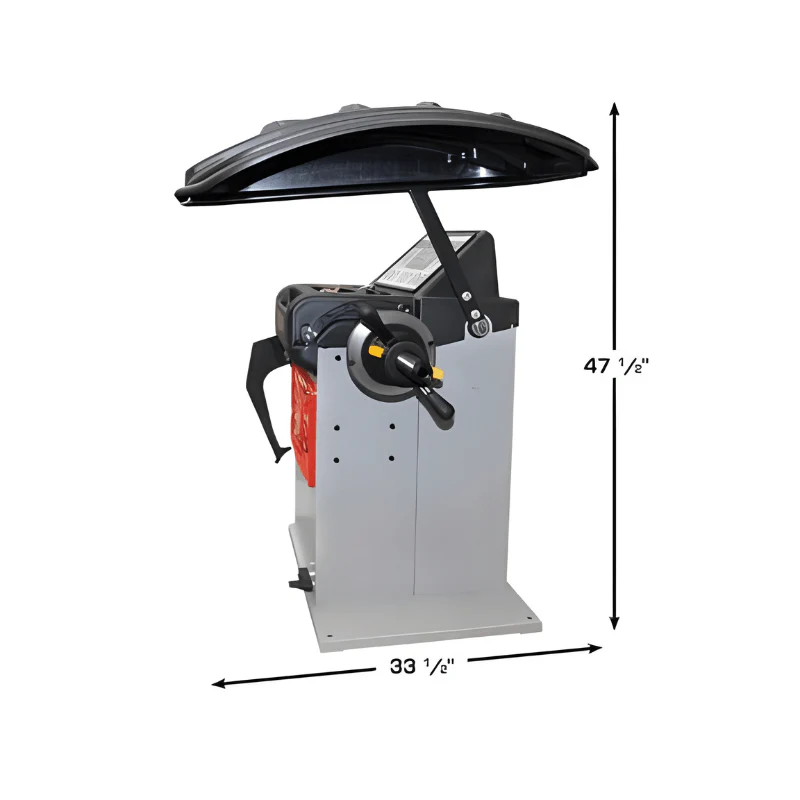

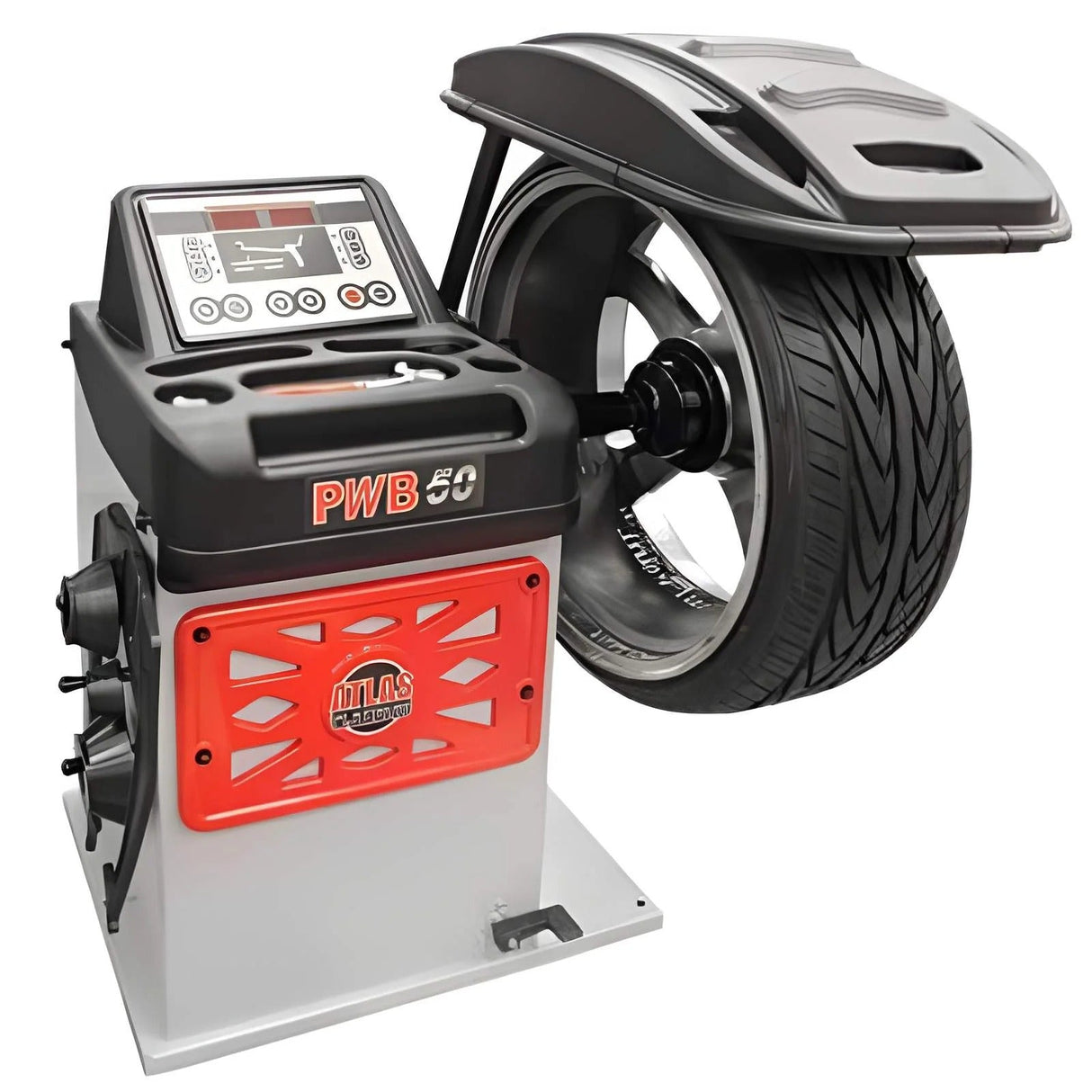

Atlas Platinum PWB50 Premium 2D Computer Wheel Balancer – Automatic Data Entry & High-Precision Balancing
SKU: ATEAP-PWB50-110V
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

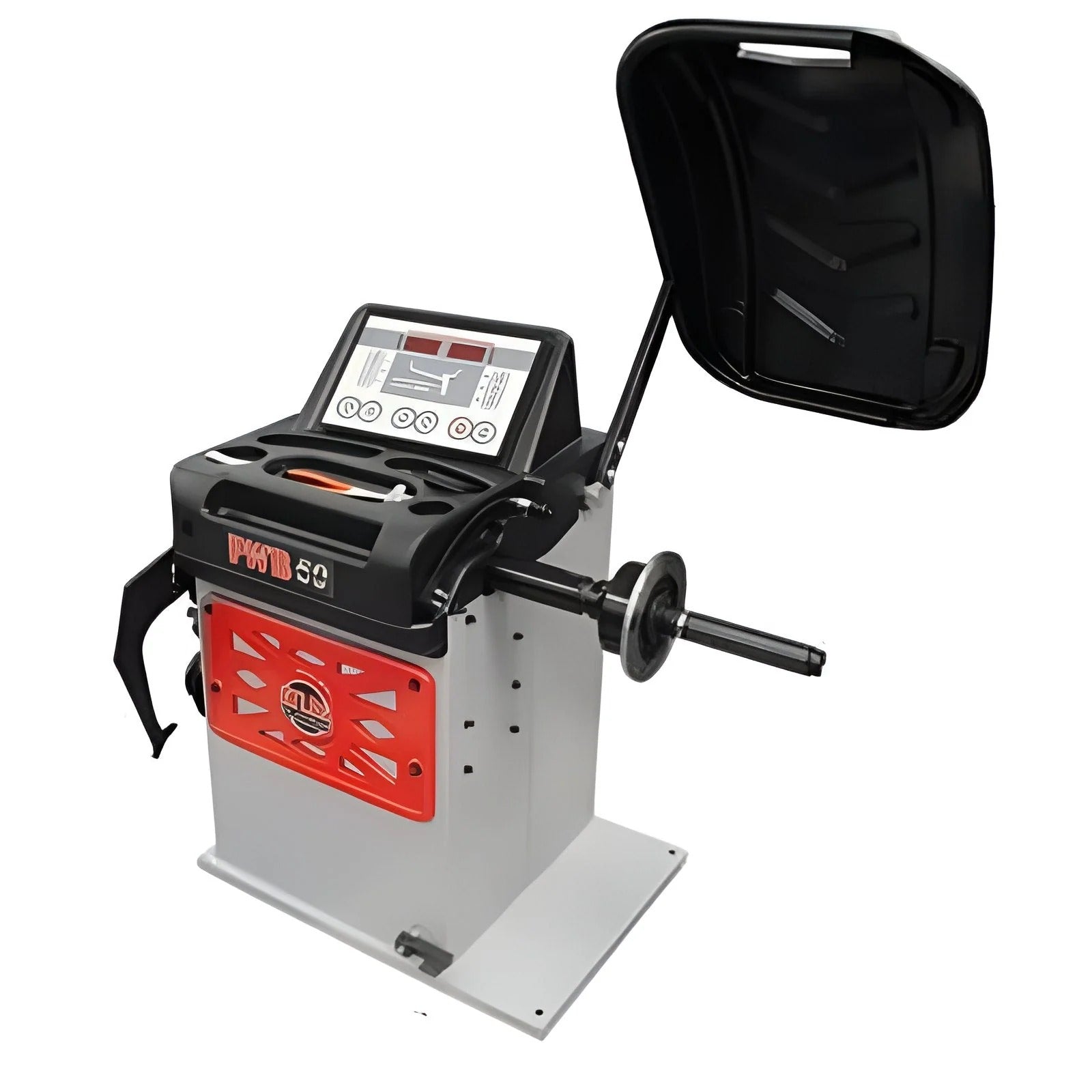

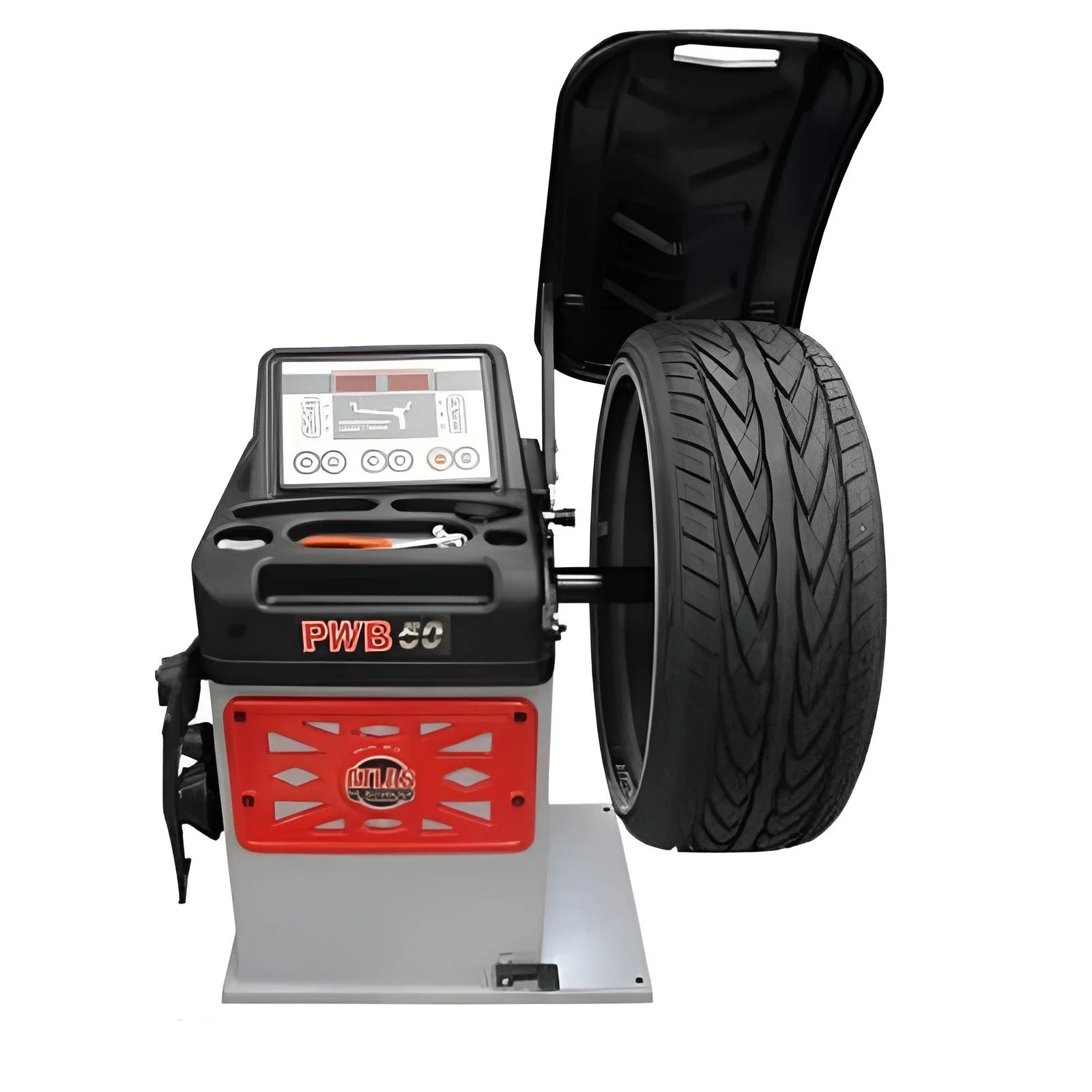

The Atlas Platinum PWB50 is a premium-grade computerized wheel balancer engineered for shops that demand precision, speed, and reliability. Designed with high-quality components and advanced balancing technology, this unit delivers consistent, repeatable results across a wide range of wheels.
Automatic 2D Data Entry for Faster Workflow
The integrated measuring system automatically inputs key wheel dimensions, reducing setup time and minimizing operator error. This allows technicians to complete more jobs efficiently while maintaining accurate balancing results.
Key Features & Benefits
- Premium computer-controlled motorized spin balancer
- Automatic 2D data entry for faster, more accurate setup
- Italian-engineered components for long-term reliability
- Automatic start/stop with hood operation
- Pedal-operated braking system
- Static and dynamic balancing modes
- Optimatch (match mounting) for improved balance correction
- FES (split-weight) function for hidden weight placement
- OPF (opposite position) function for easier weight access
- Advanced ALU modes for alloy and specialty wheels
- NWN (No Wheel Needed) system for faster setup processes
- Self-diagnosing and self-calibrating system
- USB port for firmware updates
- High stability for precise imbalance detection

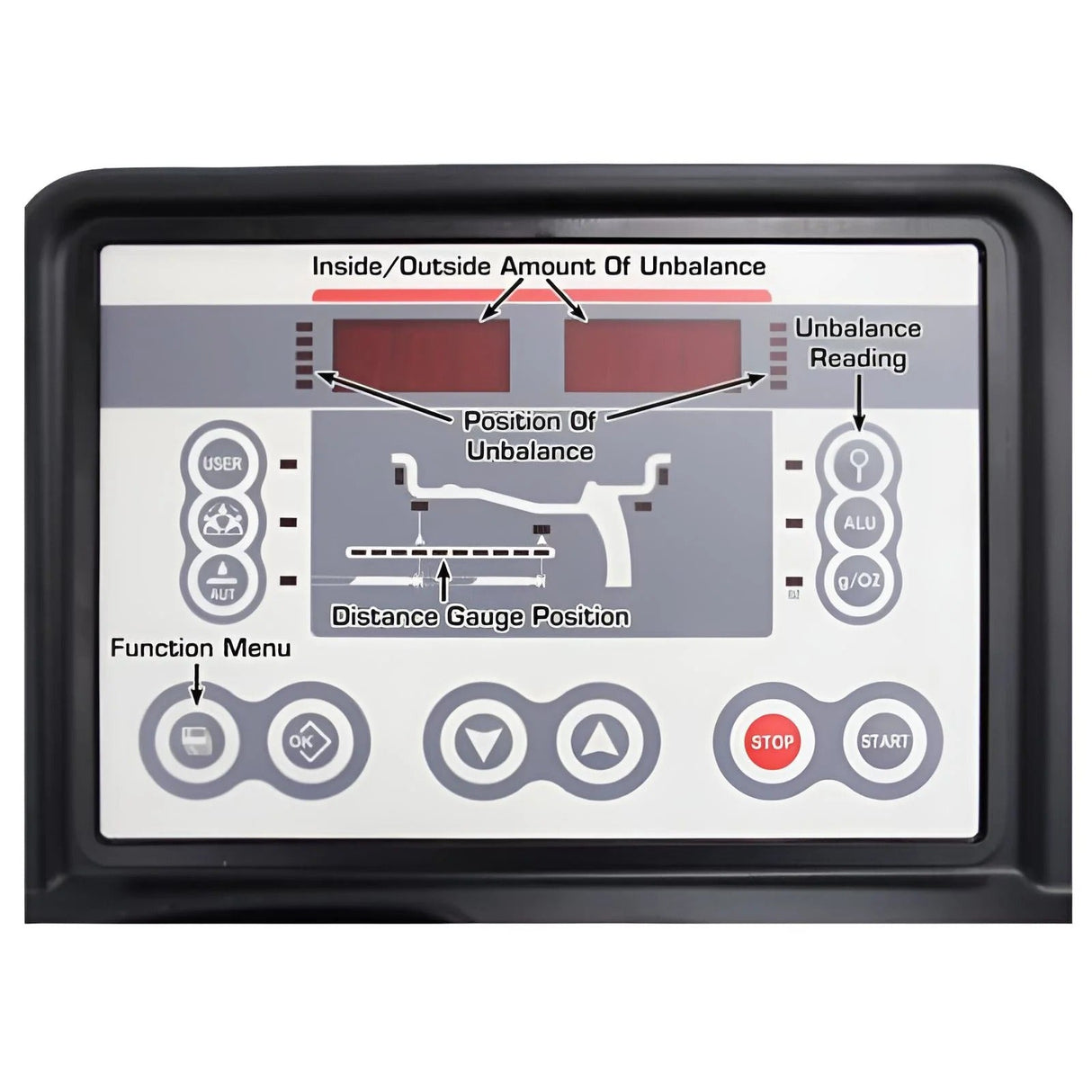

- Displays in grams or ounces, and mm or inches
- No anchor-down installation required

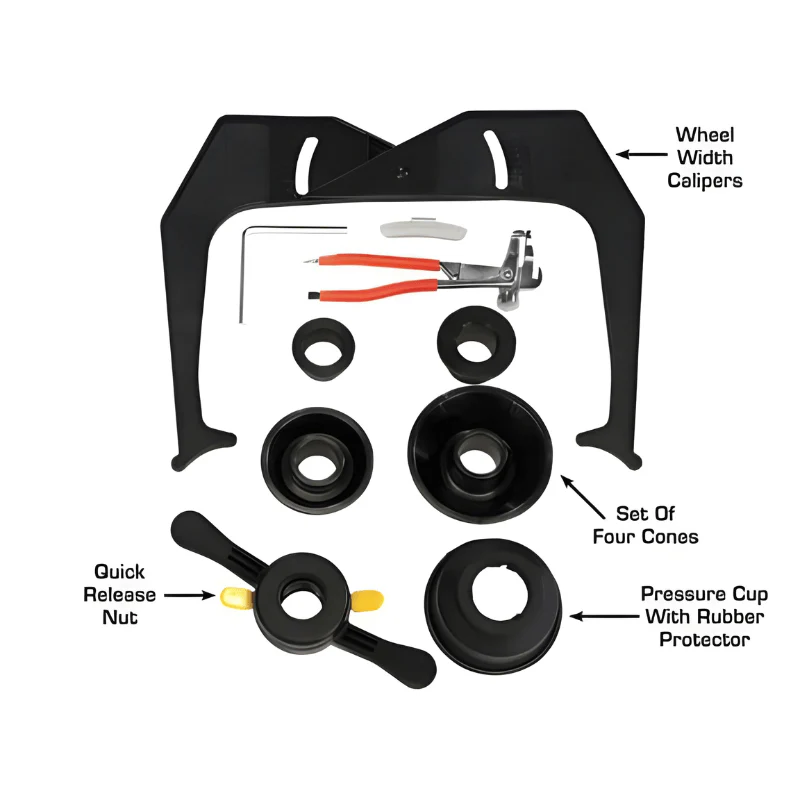

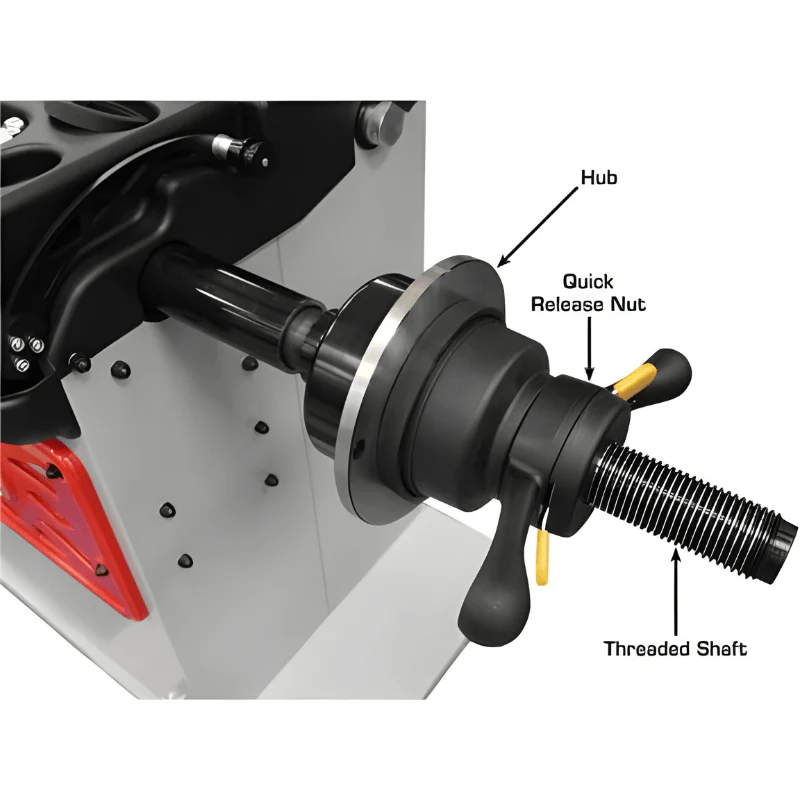

- Includes quick-release nut, 4 centering cones, pliers, and measuring calipers
- 2 Year Parts Warranty
Designed for Modern Tire Shops
The PWB50 is built for high-volume environments where speed and accuracy matter. Advanced functions like Optimatch and guided weight placement help reduce vibration issues and improve balancing results on even difficult wheel assemblies.
Reliable & Easy to Maintain
With built-in self-diagnostics and a modular design, this balancer allows for quick troubleshooting and easy maintenance. Firmware updates can be performed via USB, keeping the system up to date over time.
Precision Performance You Can Trust
Combining advanced features with durable construction, the Atlas Platinum PWB50 delivers high-level balancing performance for professional shops looking to upgrade their equipment and improve workflow efficiency.
| Specifications | Details |
|---|---|
| Max Tire Diameter | 43" |
| Rim Sizes (Cars & Light Trucks) | 10" – 30" |
| Rim Width | 1 1/2" – 20" |

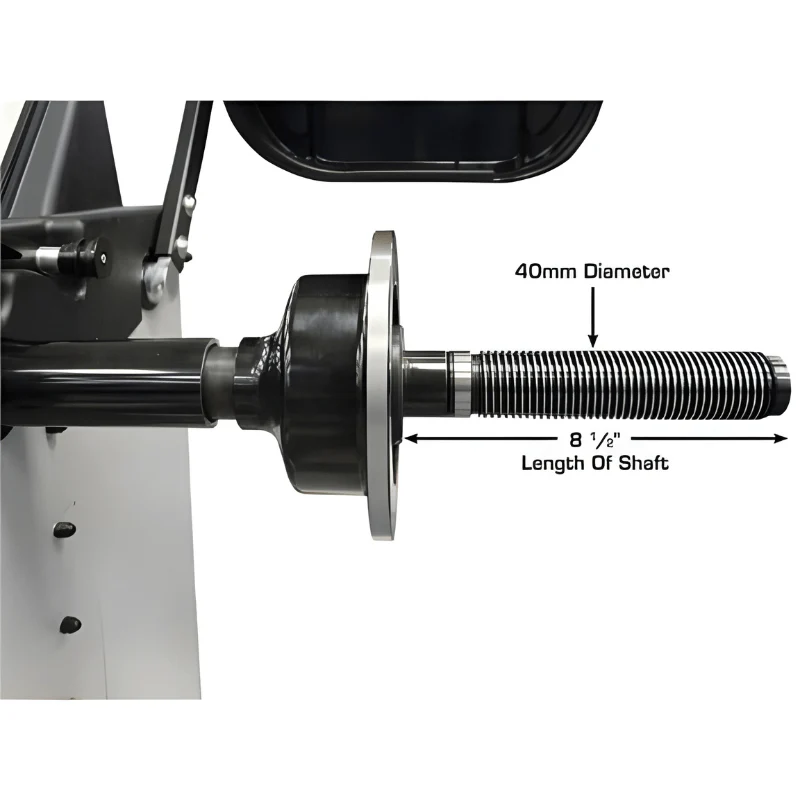

| Shaft Size | 40mm |
| Max. Wheel Weight | 165 lbs. |
| Balancing Speed | 130 rpm |
| Data Entry | Automatic 2D |
| Measurements | Standard or Metric |
| Accuracy | 1 gram |
| Weight Position Resolution | 1.4 Degrees |
| Self Calibration | Yes |
| Cycle Time | 7 seconds |
| Power Supply | 110V |
| Shipping Weight | 230 lbs. |
