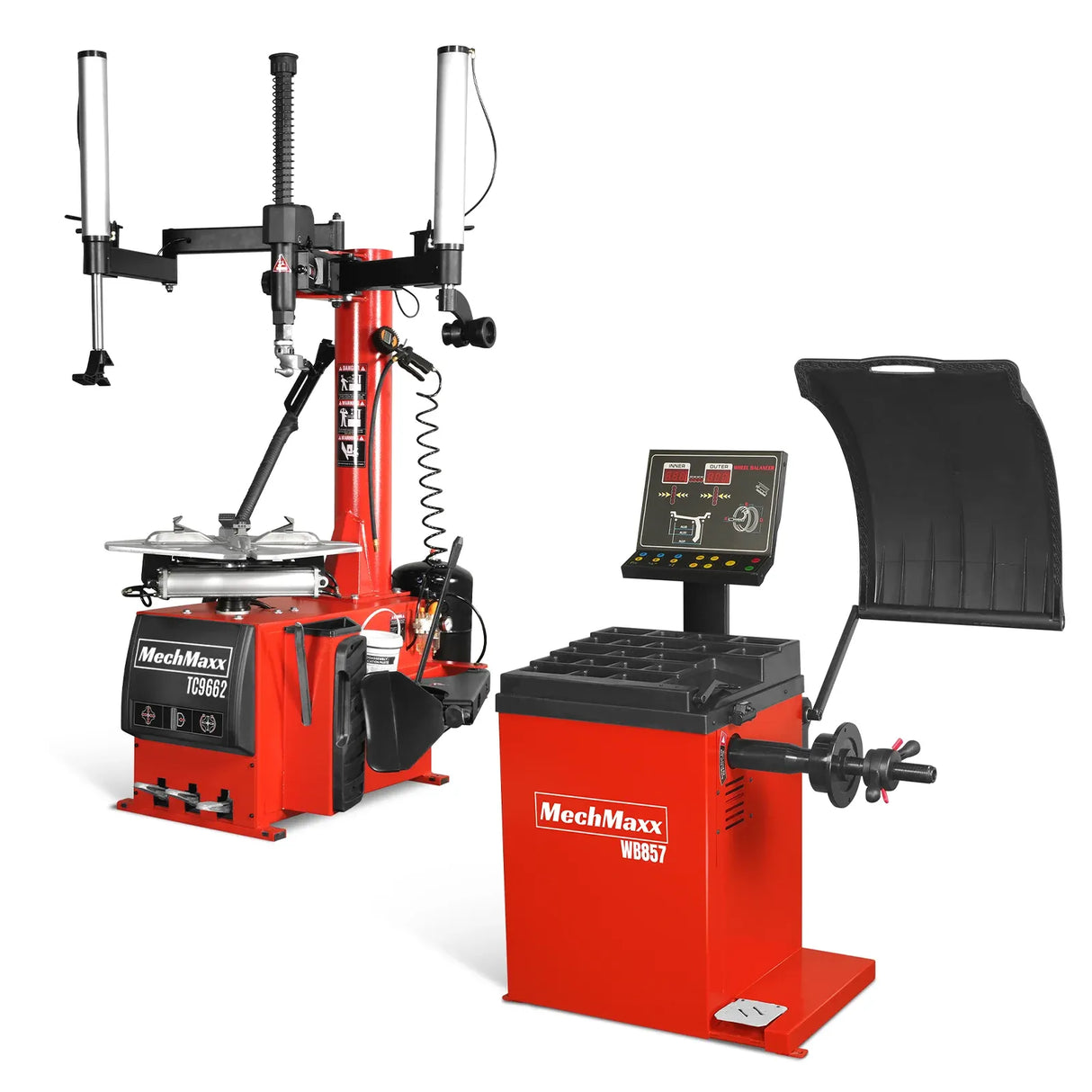

MechMaxx Tire Changer and Wheel Balancer Combo, TC9662 + WB857
SKU: 200038 | Model: TC9662 + WB857
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
This combo package includes the MechMaxx TC9662 tire changer and the WB857 wheel balancer, providing a complete solution for mounting, removing, and balancing a wide range of wheels. Designed for efficiency and reliability, this setup is ideal for small to medium-sized tire shops, automotive service departments, roadside services, and personal use.

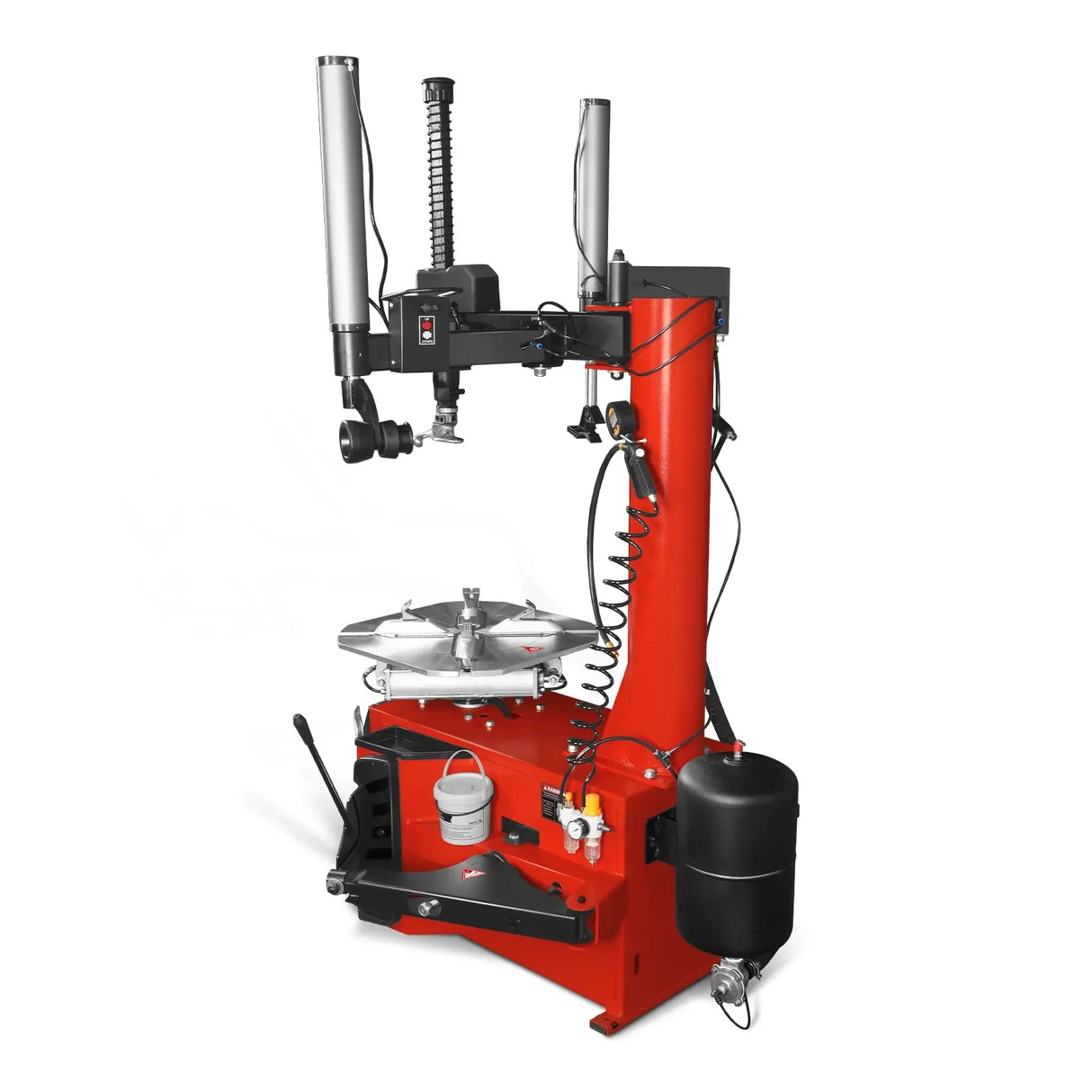

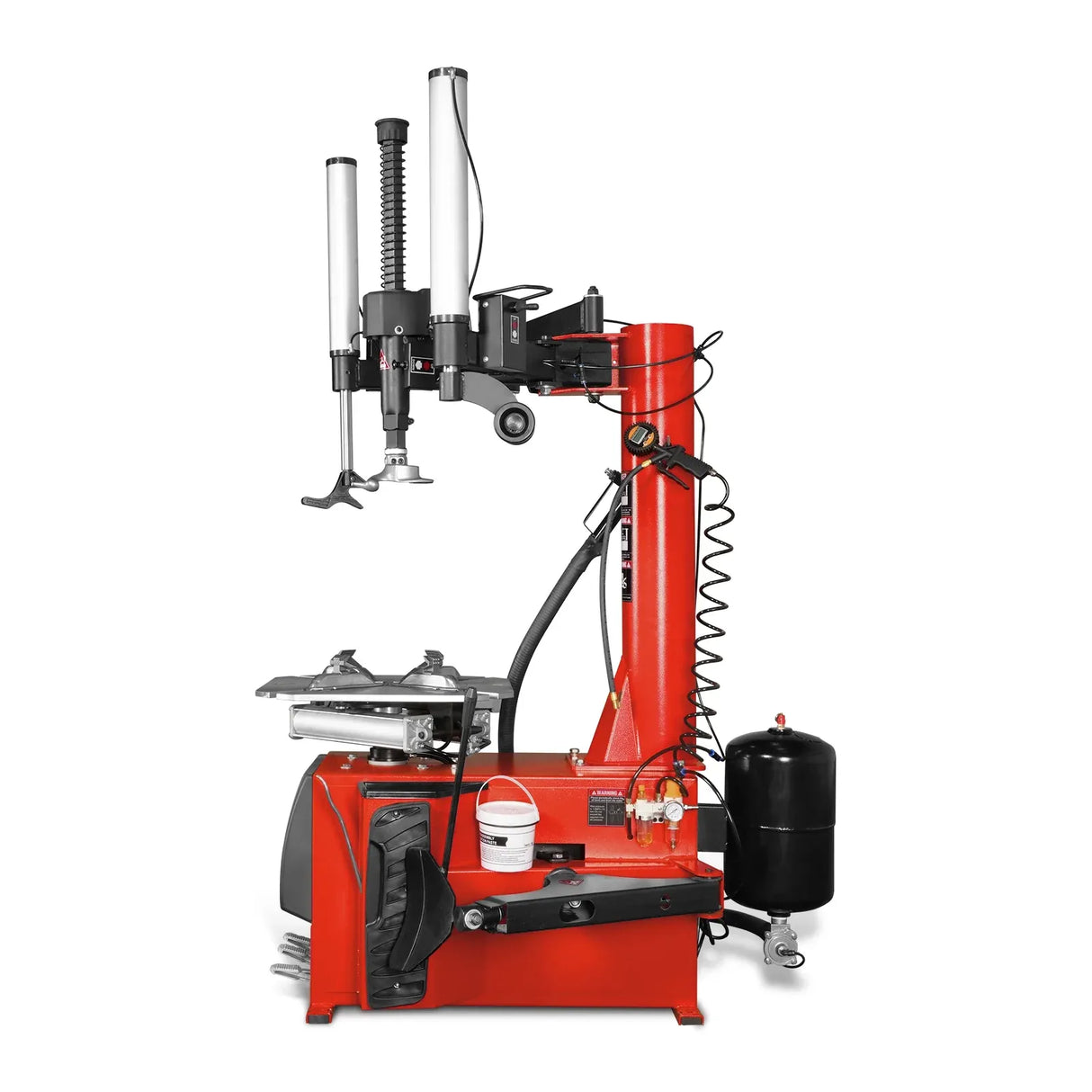

Tire Changer – TC9662

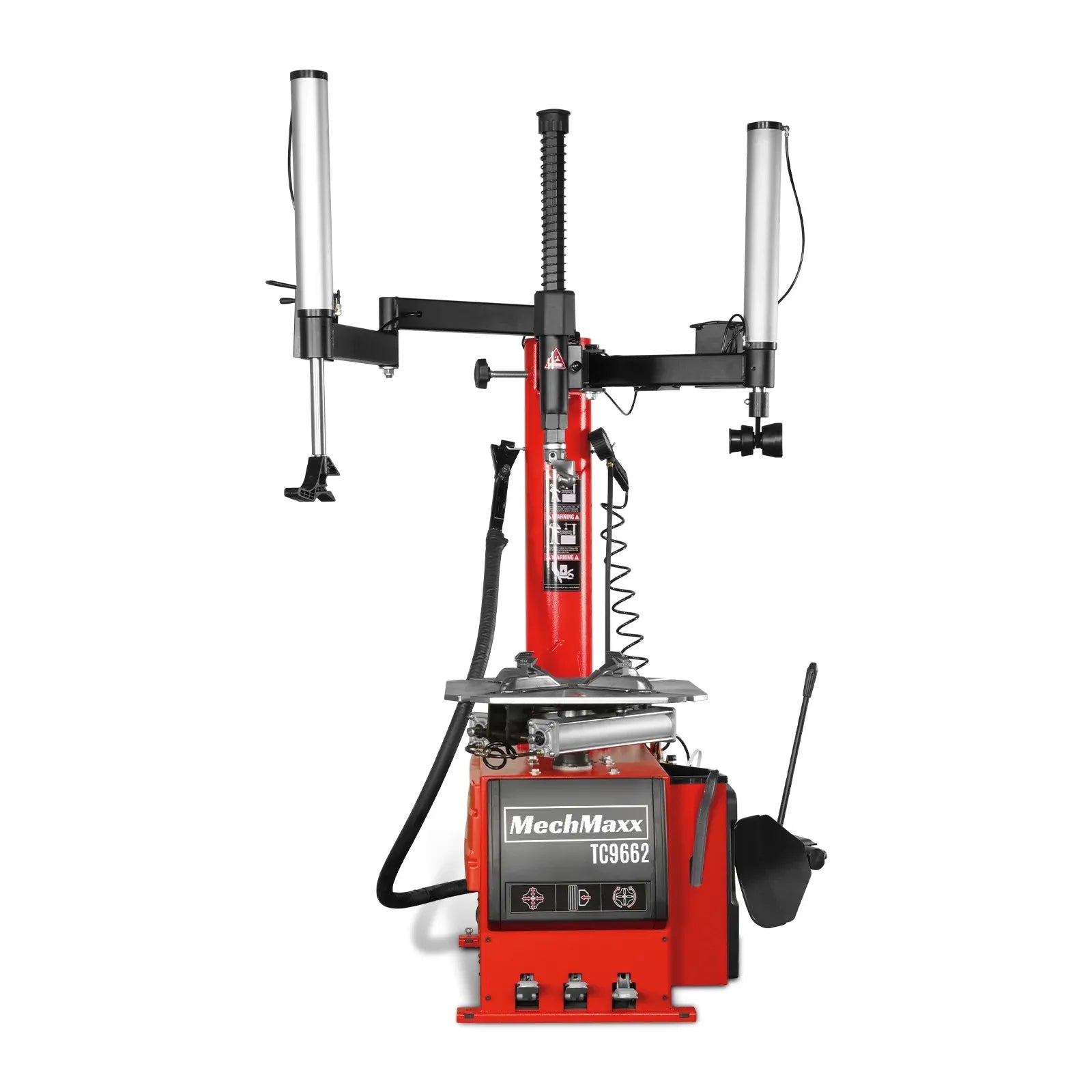

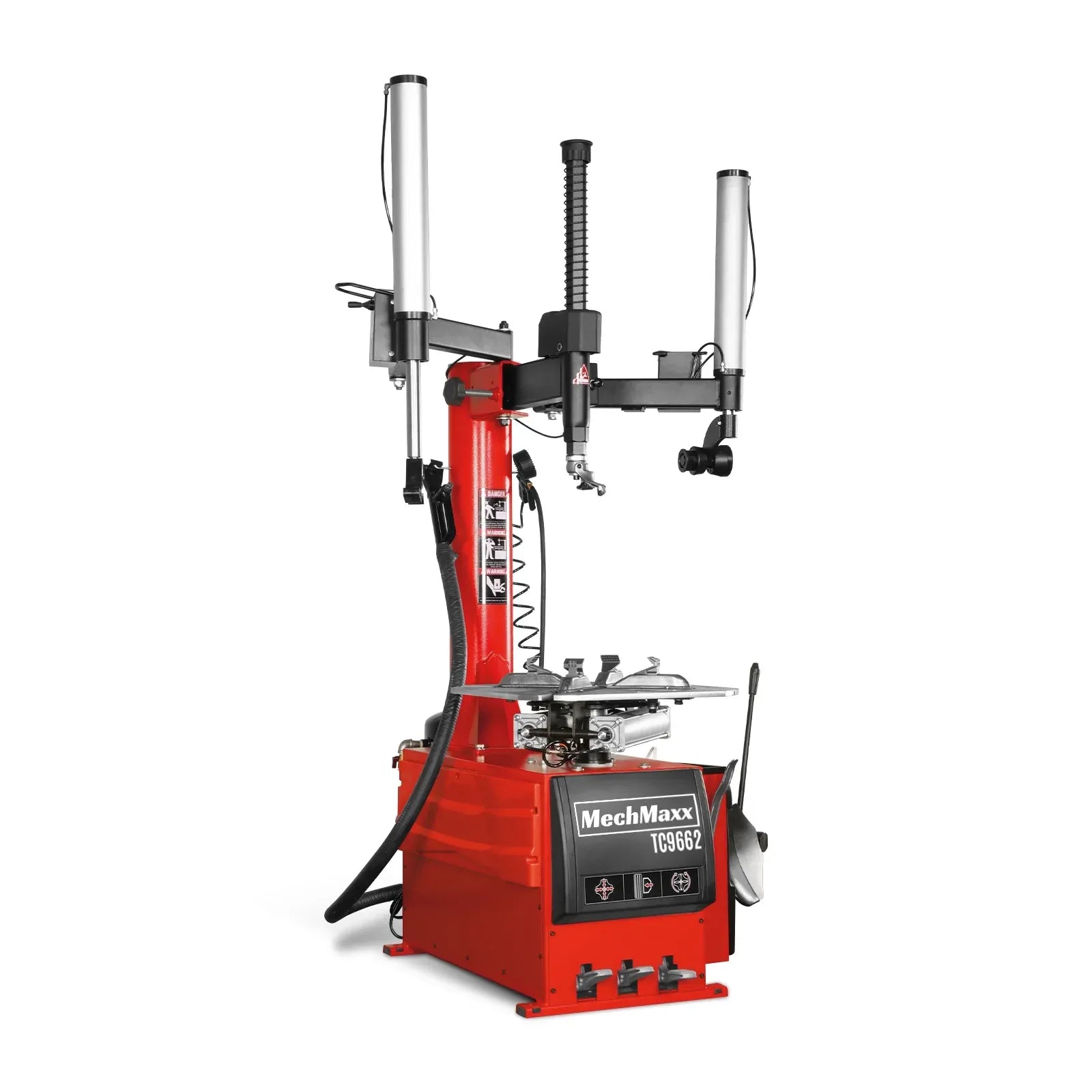

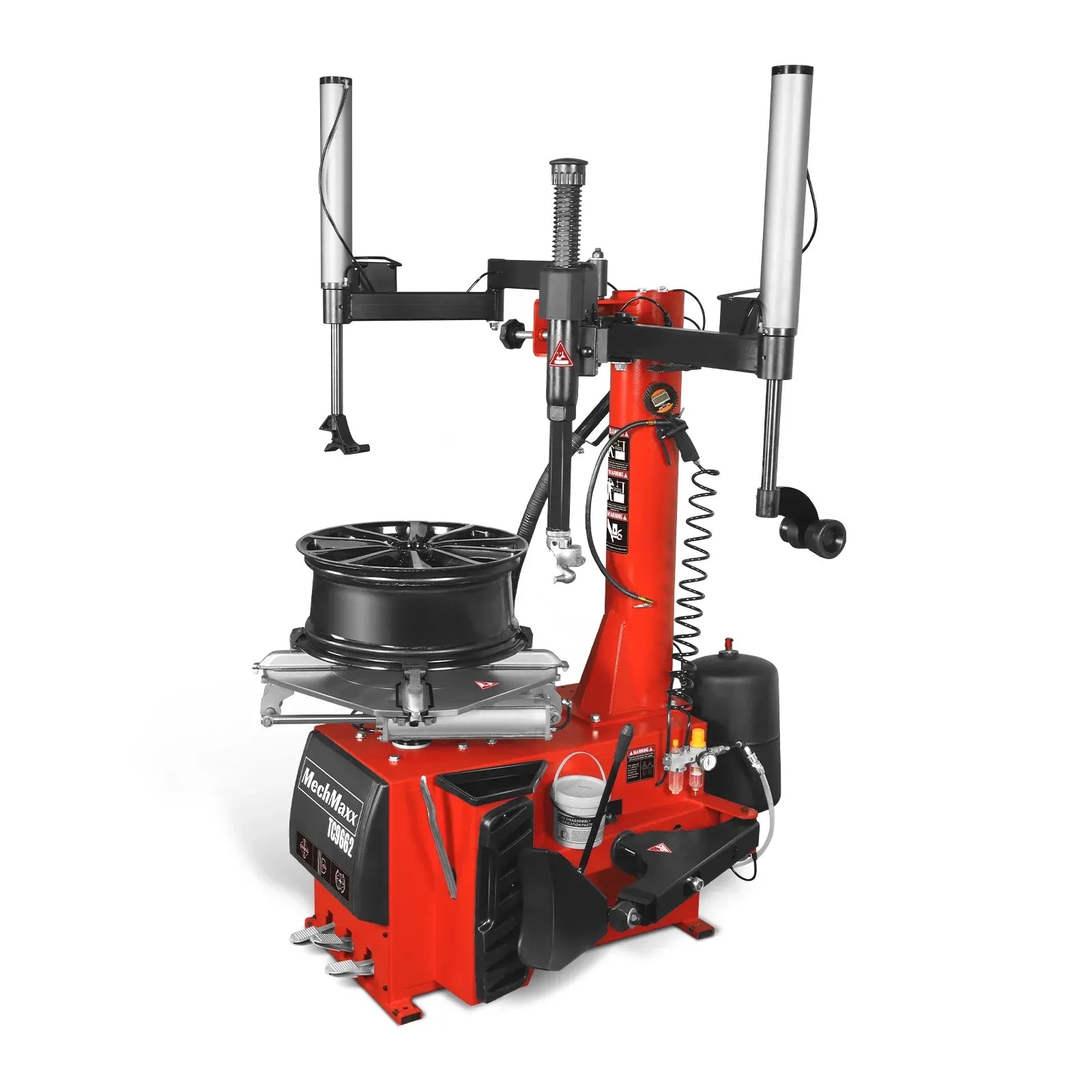

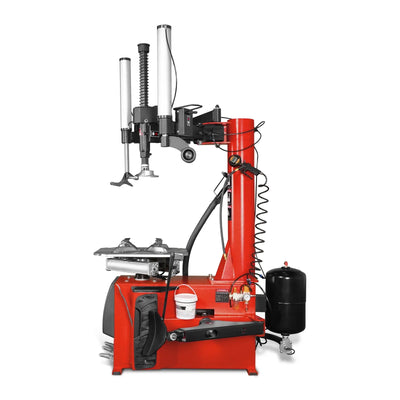

The MechMaxx TC9662 tire changer is a dependable and efficient machine built to handle most passenger wheels, as well as spare and trailer tires. It is well-suited for small businesses, car enthusiasts, race shops, and as a backup unit for more advanced equipment.

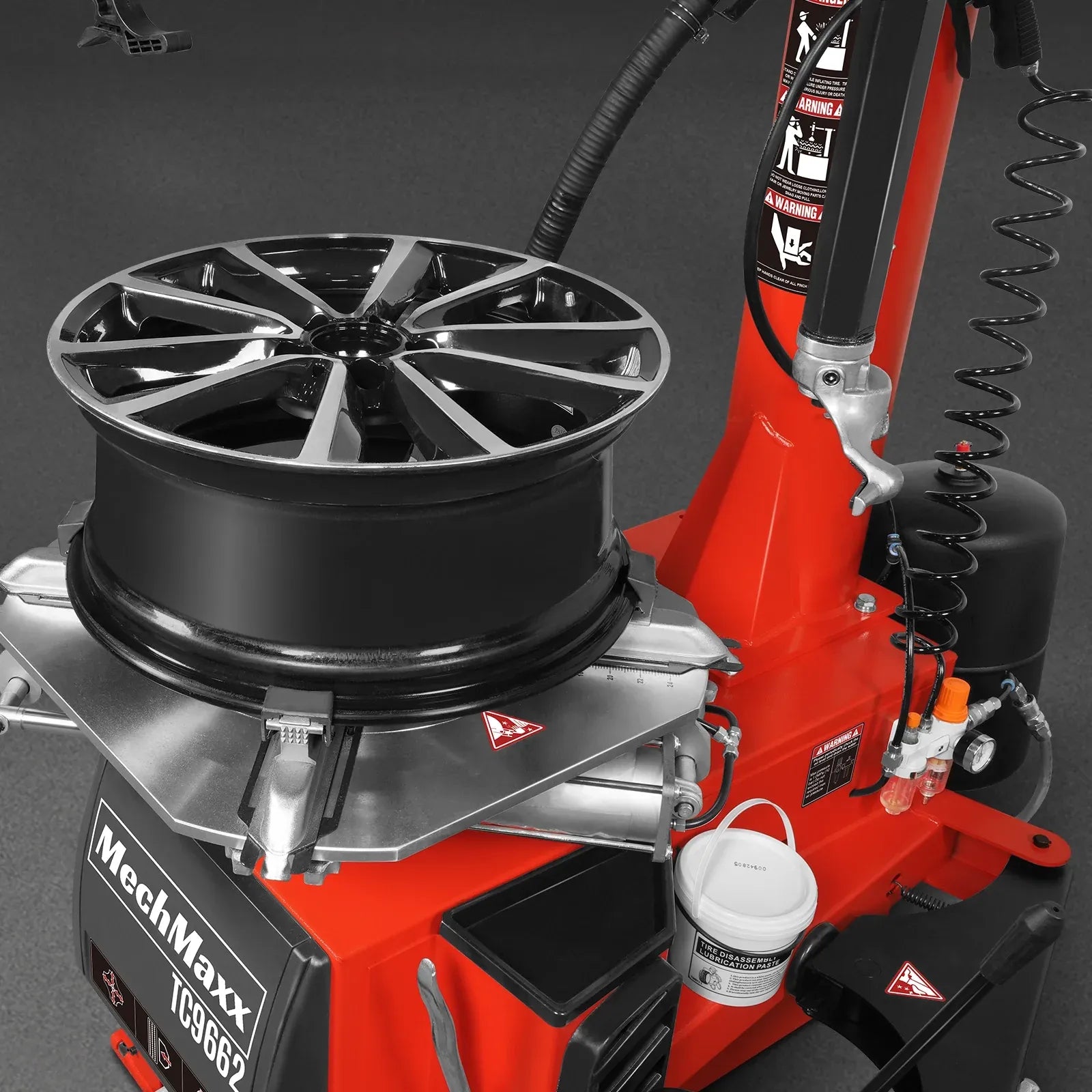

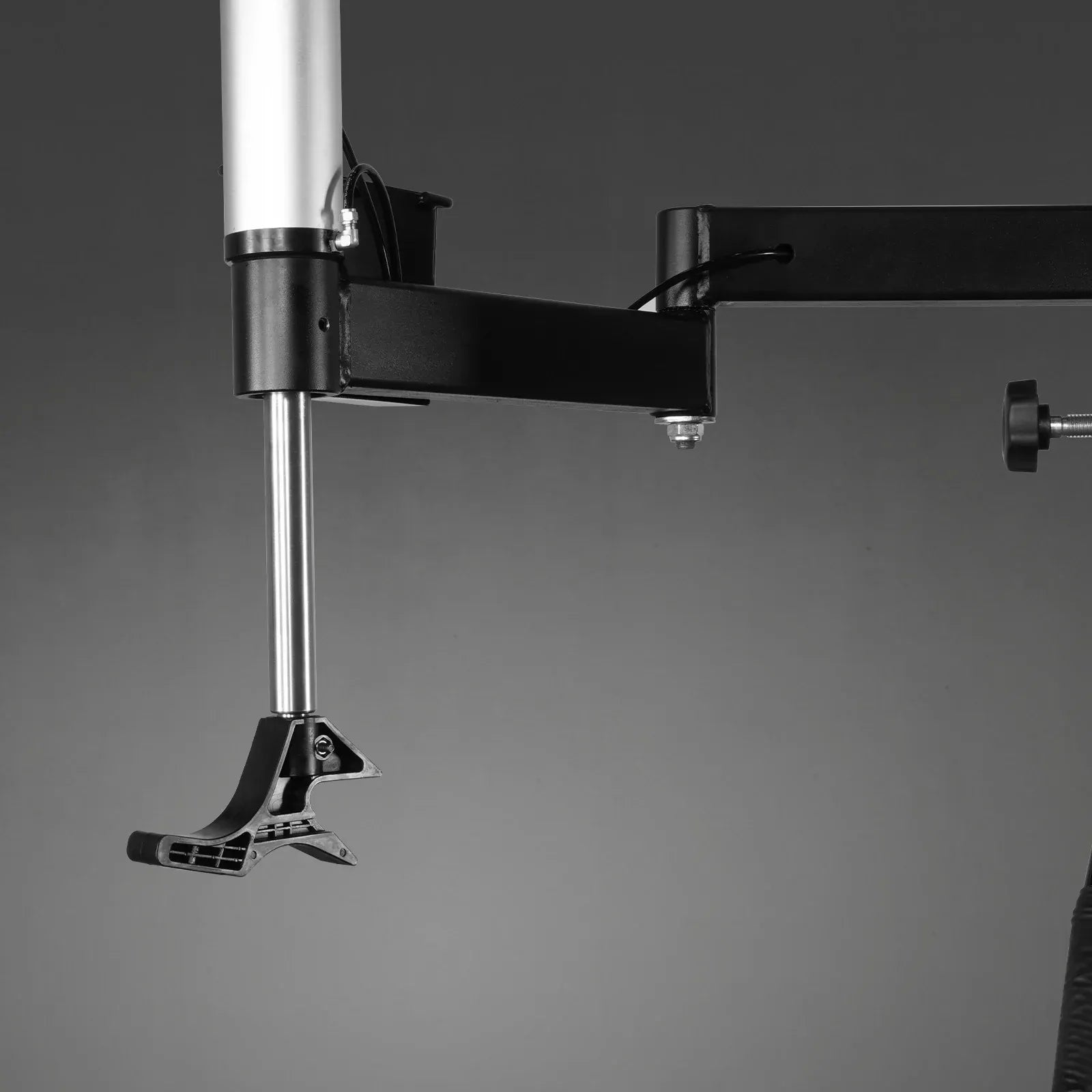

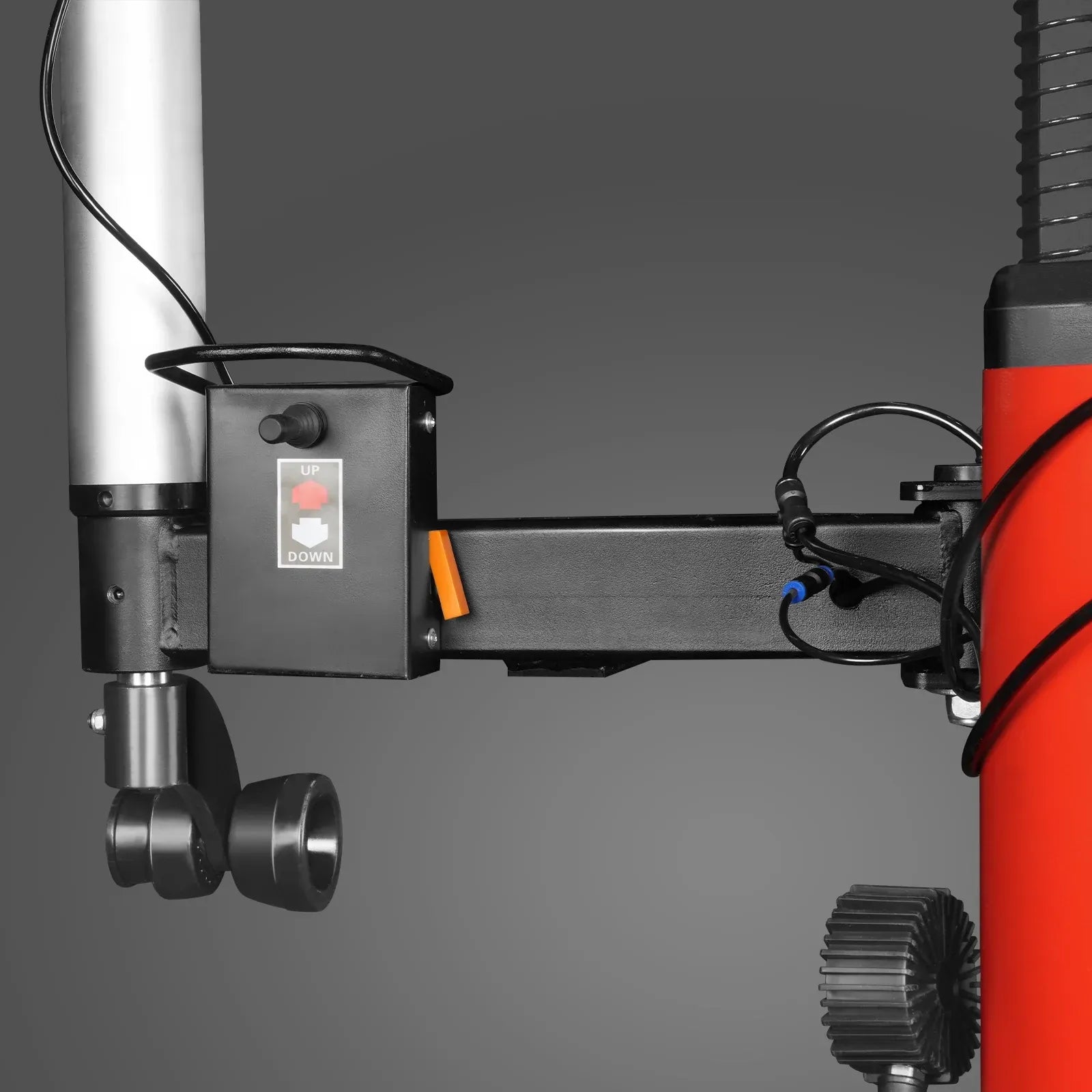

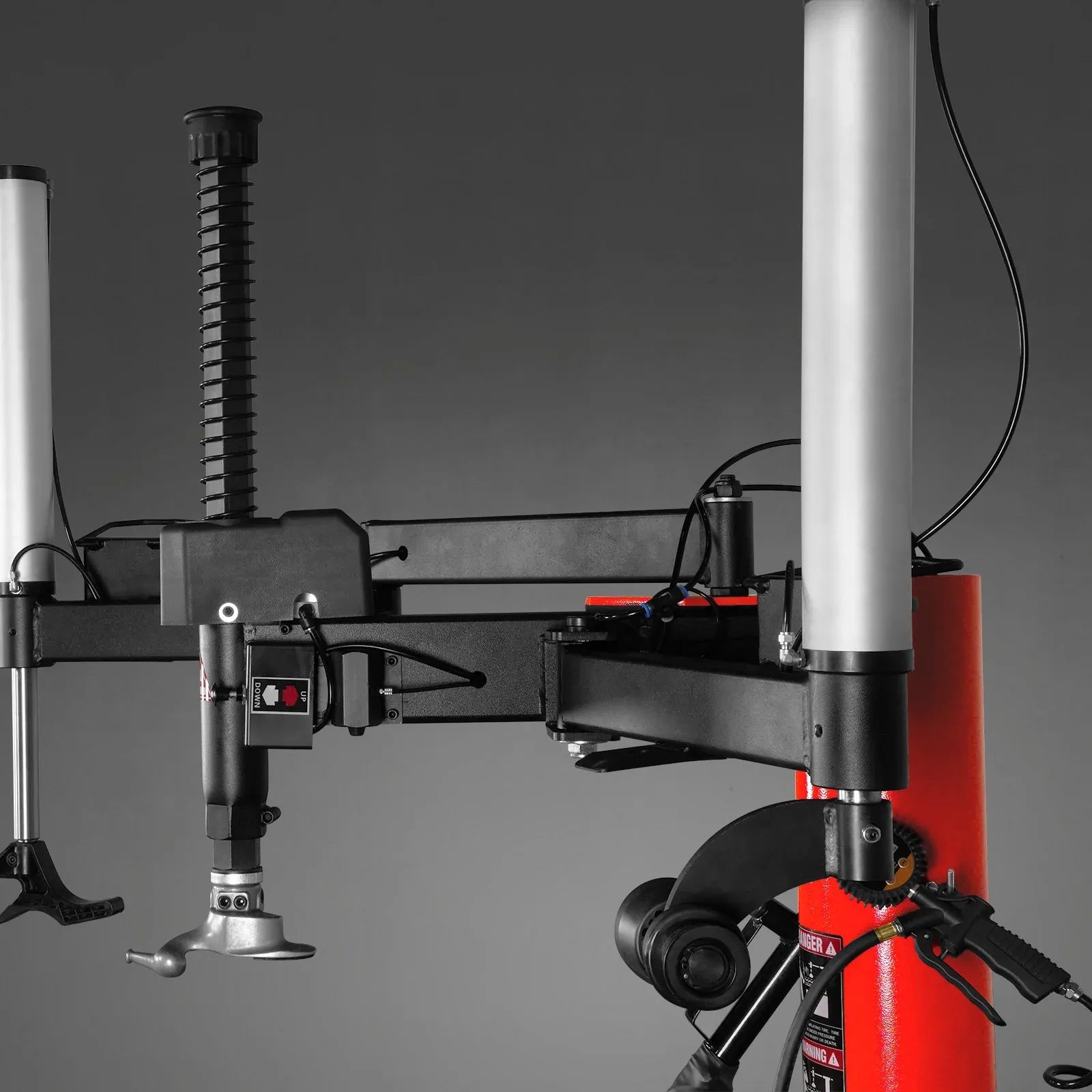

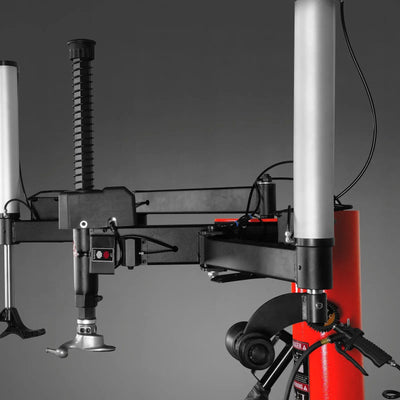

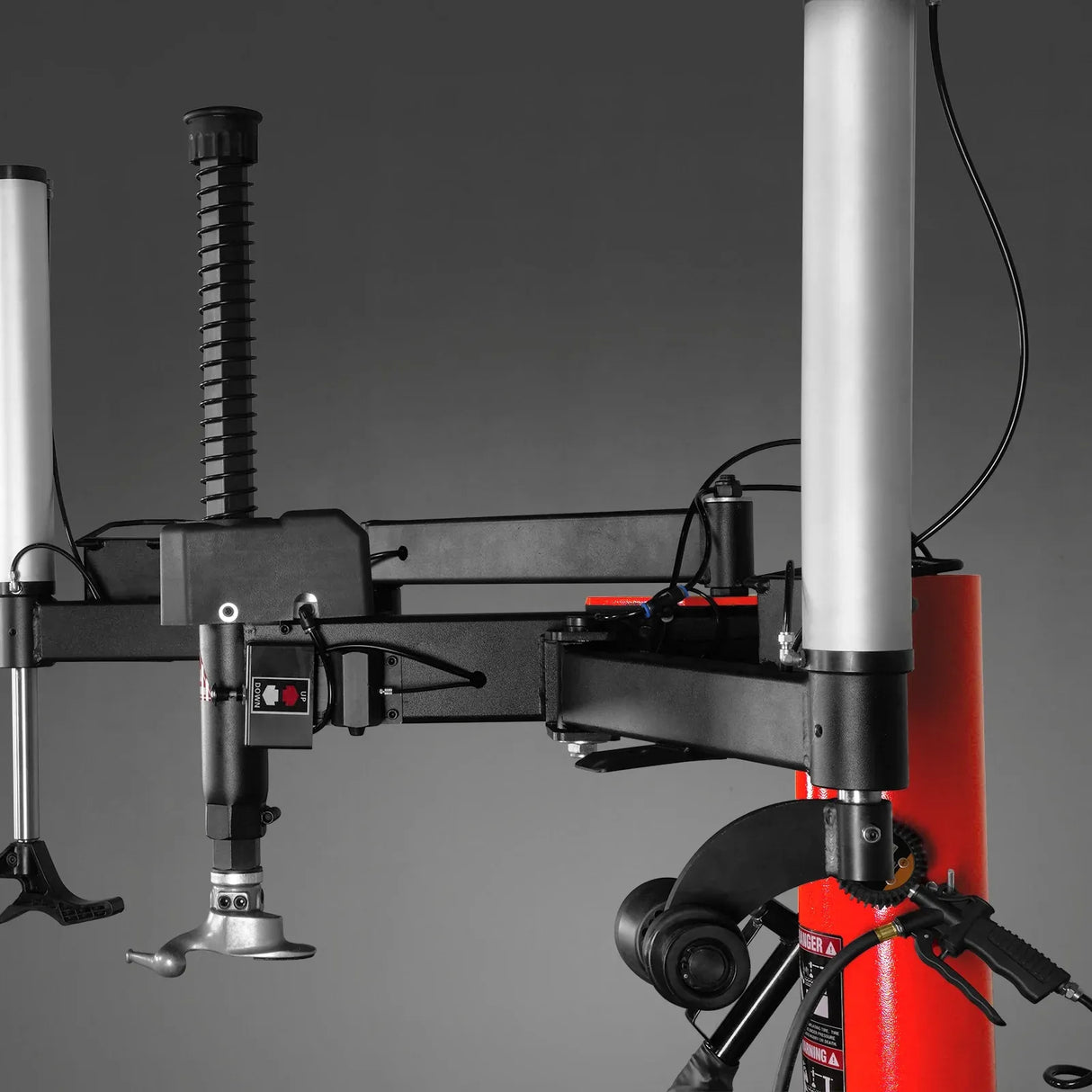

Equipped with a double assist arm system, this unit provides added support when working with difficult tires by helping keep the bead in place during mounting. Each assist arm operates independently, allowing for adjustable pressure and more precise control, improving speed and efficiency. A drop-center cone is also included to hold the bead securely in position and help protect the tire during external clamping.
The swing-arm design enables fast and straightforward mounting and dismounting of tires on most steel and alloy wheels while minimizing the risk of damage. A powerful motor combined with a maintenance-free gearbox ensures smooth and consistent tire handling.
For tougher applications, the built-in bead blaster system delivers a strong burst of air to seat stubborn tire beads quickly and effectively without compromising tire integrity.
For added versatility, the machine can be equipped with an optional motorcycle adapter (sold separately, SKU: 200020), allowing it to service motorcycle tires as well.
| Specifications | Details |
|---|---|
| Voltage | 110V / 60Hz / 1 Phase |
| Motor Power | 1.5 HP |

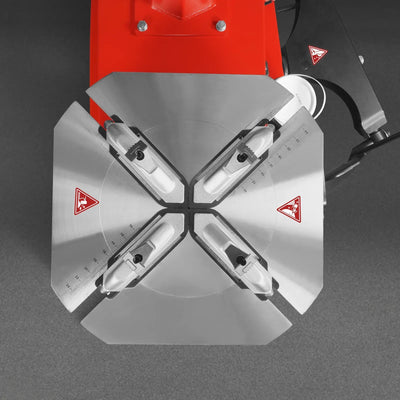

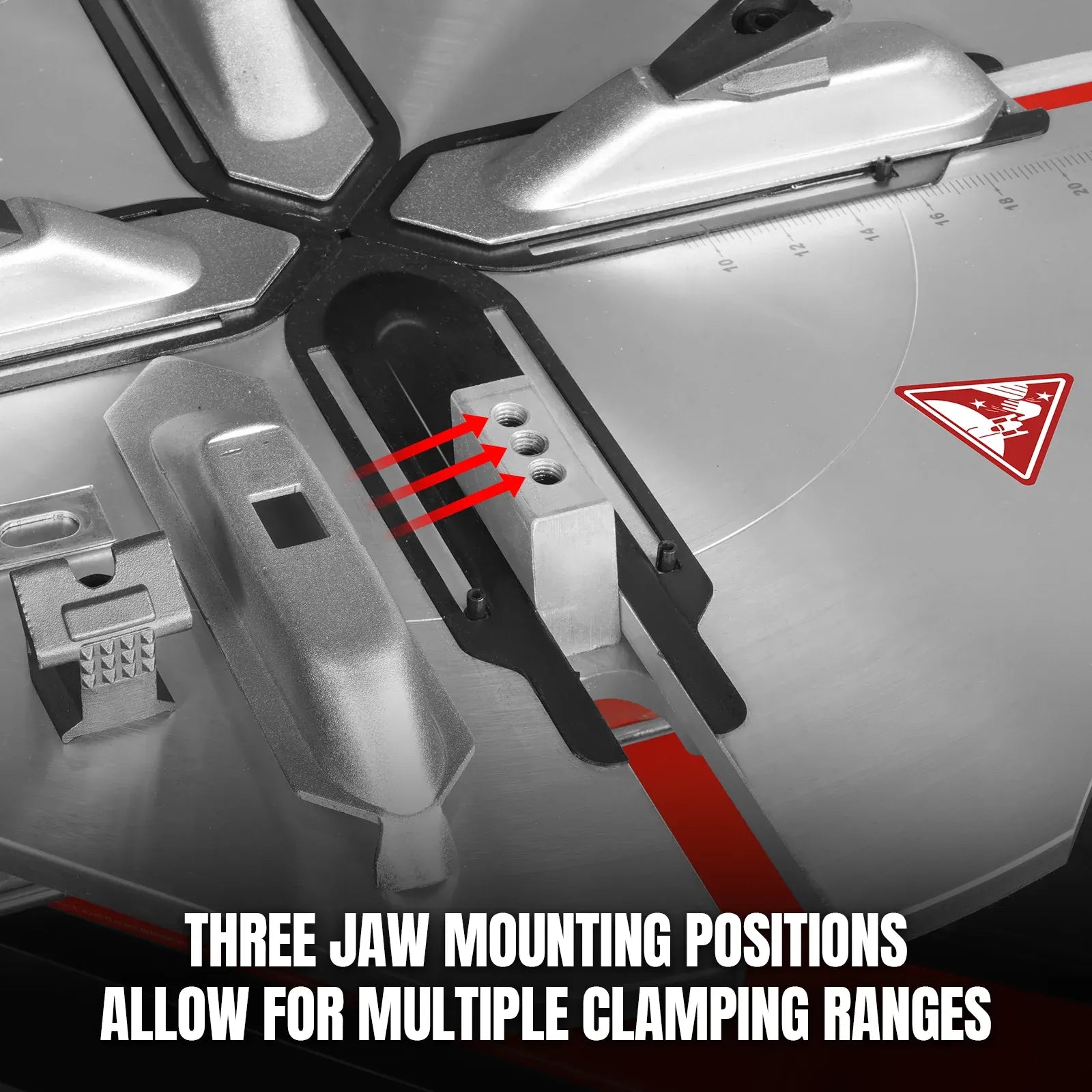

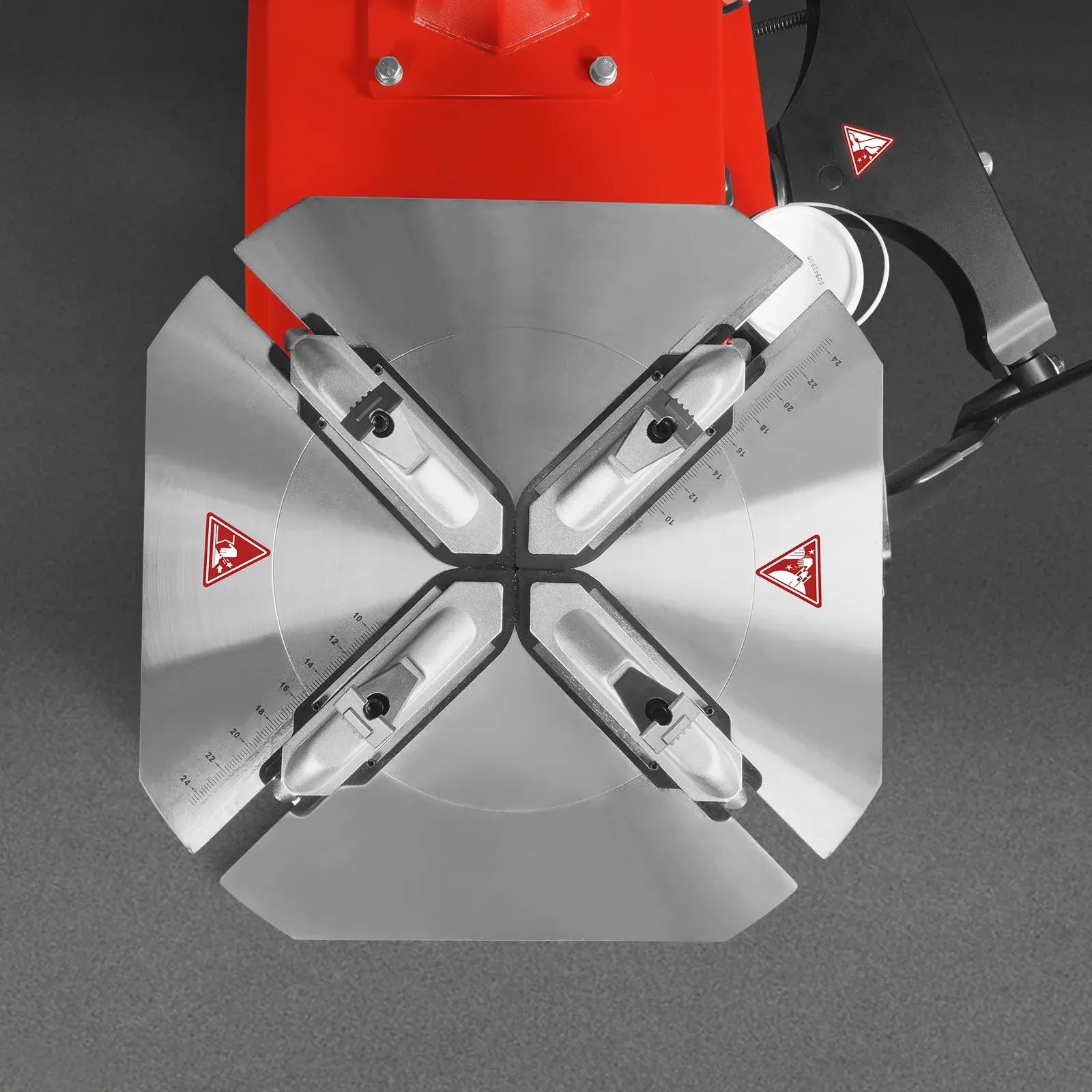

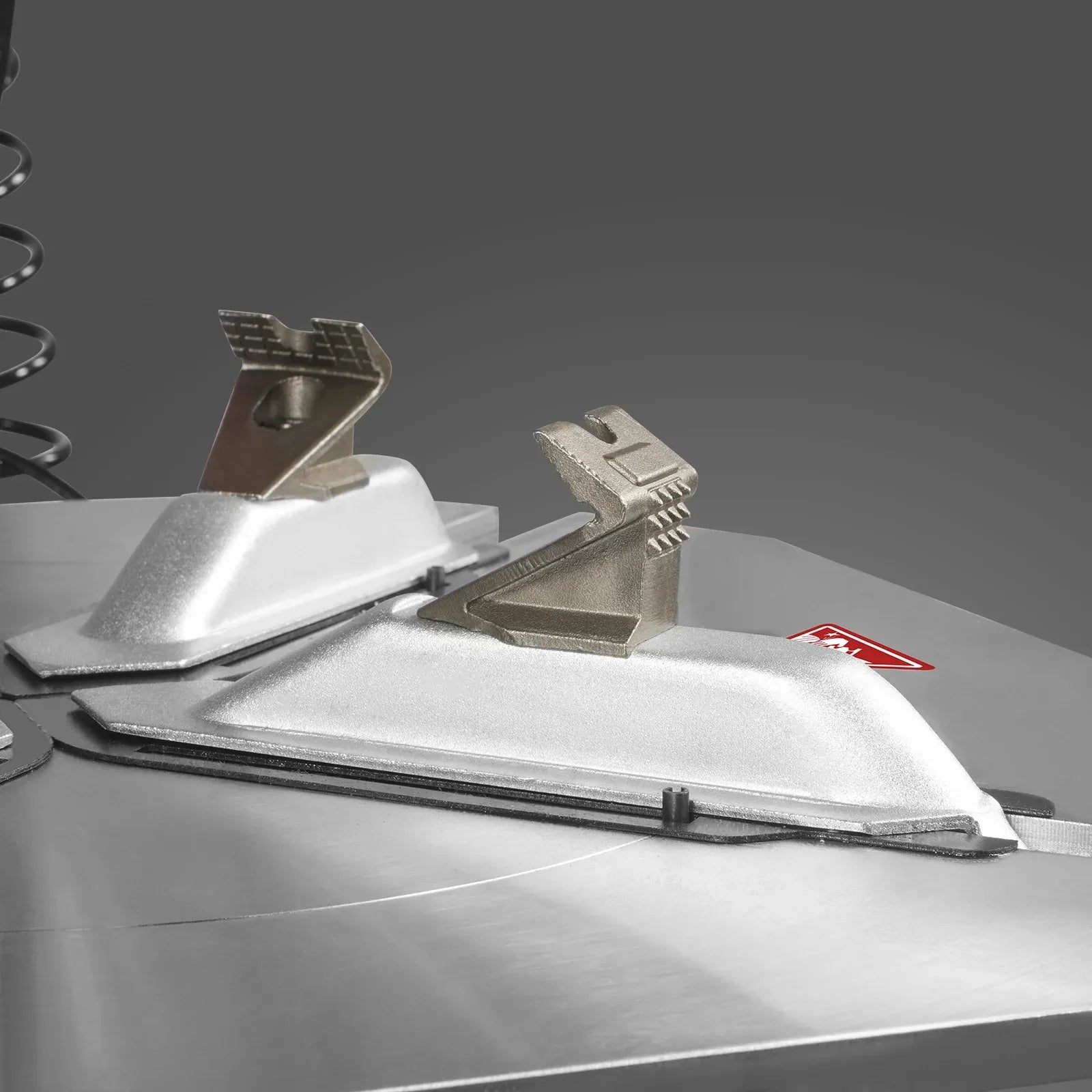

| Inside Rim Clamp Range | 12–24 in |
| Outside Rim Clamp Range | 10–22 in |
| Max Tire Diameter | 41 in |
| Rim Width | 3–15 in |

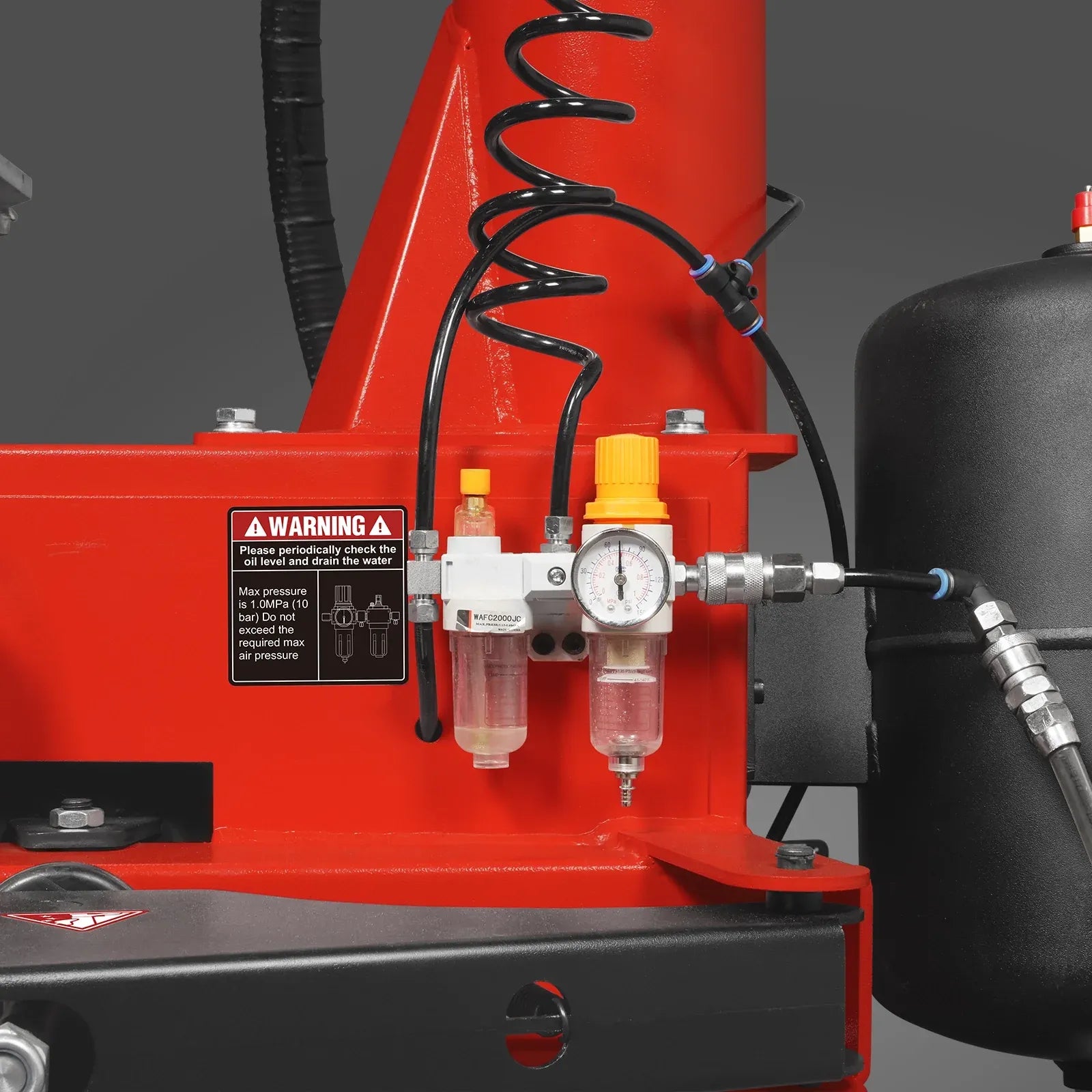

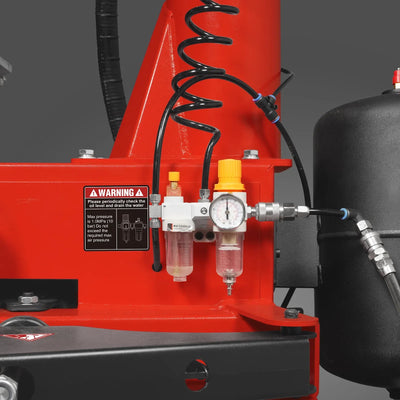

| Working Pressure | 117–145 psi (8–10 bar) |

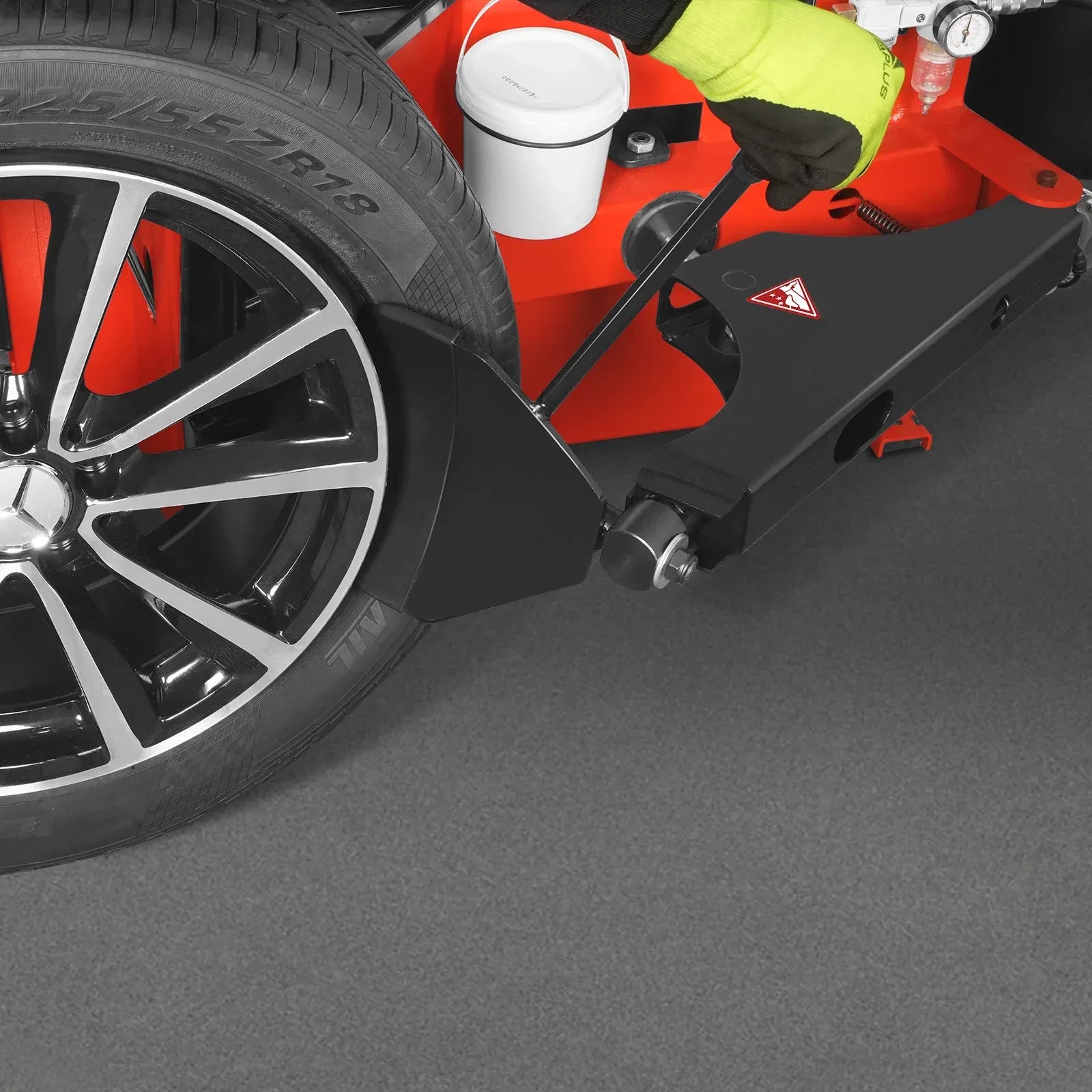

| Bead Breaking Force | 5,510 lbs |
| Type | Swing Arm |
| Help Arm | Double Assist Arms |
| Bead Blaster | Hand Held Bead Blaster |
| Hex Shaft Locked Type | Pneumatic |
| Mount Head | Stainless Steel & Plastic |

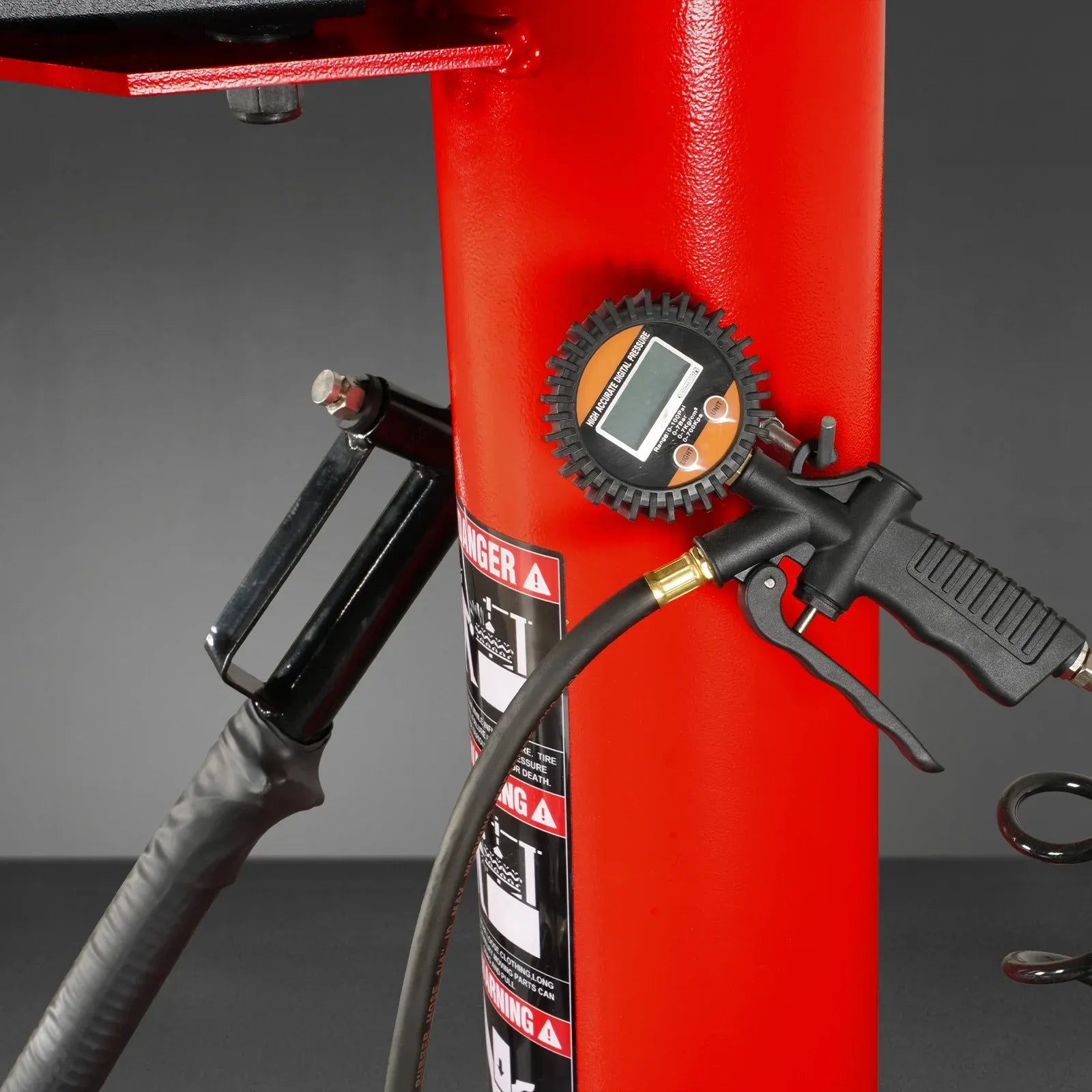

| Inflator | Handheld |
| Motorcycle Adapter | Sold Separately, SKU: 200020 |
| Packing | Plywood Case |
| Packing Size (L x W x H) | 45 x 35 x 45 in |
| Weight (N.W. / G.W.) | 514 / 597 lbs |

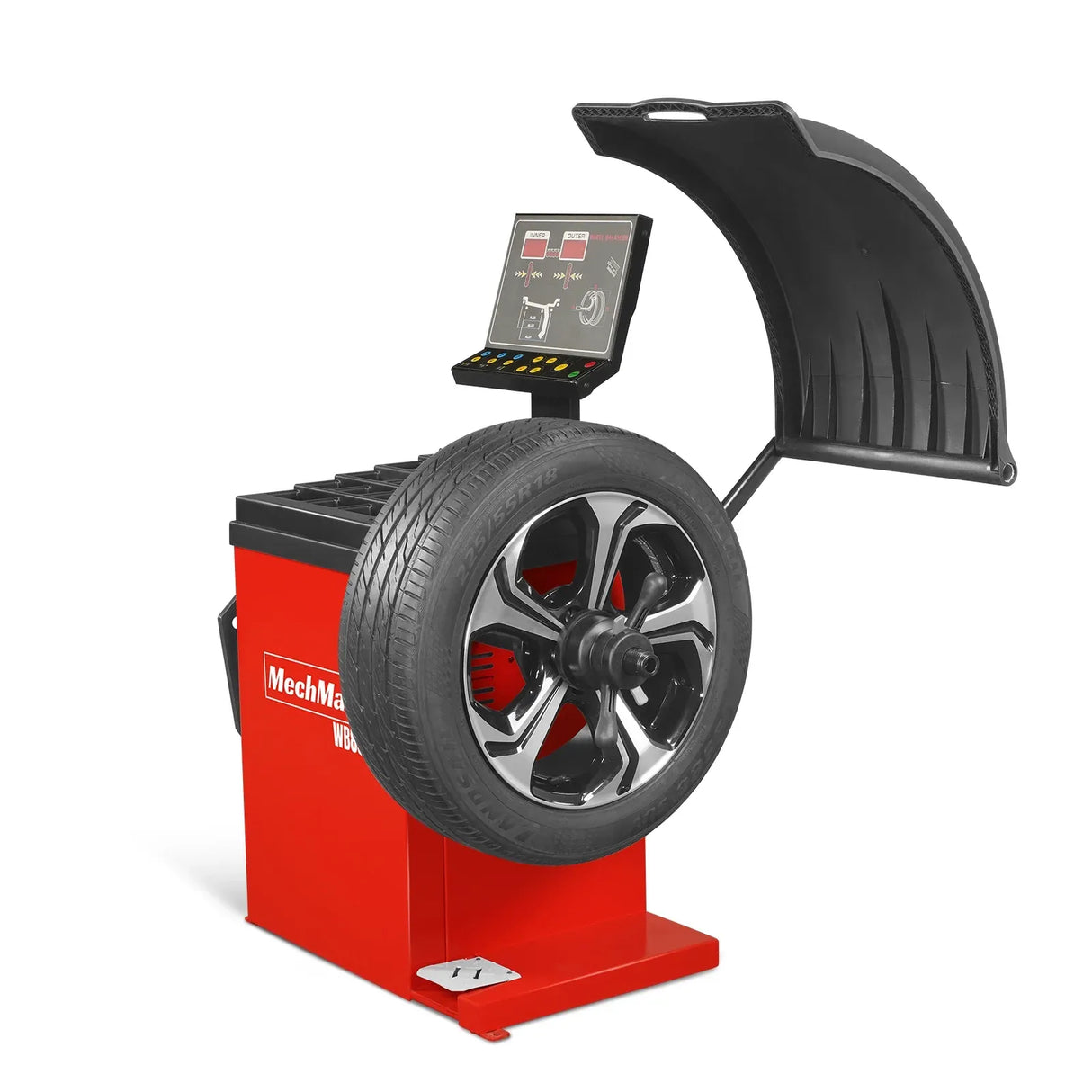

Wheel Balancer – WB857
The MechMaxx WB857 wheel balancer is designed to deliver accurate and consistent balancing results across a wide variety of wheel types, making it suitable for demanding shop environments. It includes five balancing modes, including options for tape-on weights used on premium rims.
For enhanced precision, the unit features a laser guide to help position weights accurately at the 12 o'clock position, along with an integrated LED inspection light for improved visibility during operation.
The ergonomic design includes a foot brake for easier weight placement, while a side-position brake holds the wheel securely at the 12 o'clock position for precise adjustments.
| Specifications | Details |
|---|---|
| Voltage | 110V / 60Hz / 1 Phase |
| Motor Power | 1/3 HP |
| Rim Diameter | 10–24 in |
| Rim Width | 1.5–20 in |
| Max Tire Diameter | 40 in |
| Max Tire Weight | 154 lbs |
| Accuracy | ±1 gram |
| Balancing Speed | 200 RPM |
| Shaft Size | 40 mm |
| Calibration Wheel | Recommended 15 in Steel Rim Wheel |
| Motorcycle Adapter | Sold Separately, SKU: 200021 |
| Truck Cone Kit | Sold Separately, SKU: 200022 |
| Packing | Plywood Case |
| Packing Size (L x W x H) | 35 x 24 x 44 in |
| Weight (N.W. / G.W.) | 207 / 269 lbs |
