Atlas 412 12,000 lb Heavy-Duty 4-Post Lift
Atlas 412 12,000 lb Heavy-Duty 4-Post Lift is backordered and will ship as soon as it is back in stock.
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Atlas 412 12,000 lb Heavy-Duty 4-Post Lift

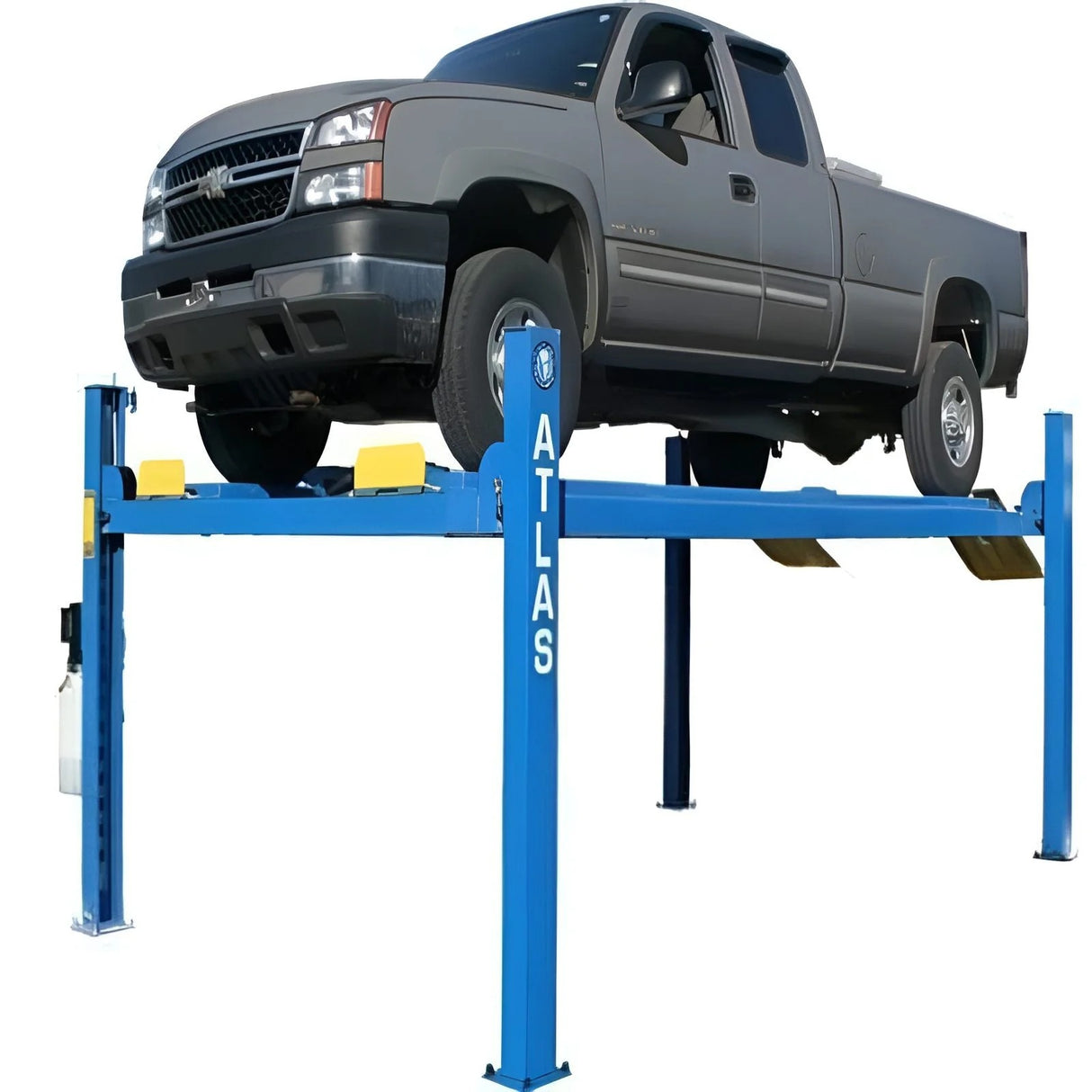

The Atlas 412 12,000 lb 4-post lift is a heavy-duty, commercial-grade solution designed for shops and serious garage setups that demand strength, reliability, and long-term performance. Built with an extra-tall, extra-wide, and extra-long design, this lift is ideal for handling a wide range of vehicles—from standard cars to larger trucks and SUVs.
Engineered with premium structural components and proven lifting technology, the Atlas 412 delivers smooth operation, superior stability, and dependable safety for daily use.
Built for Strength & Professional Use

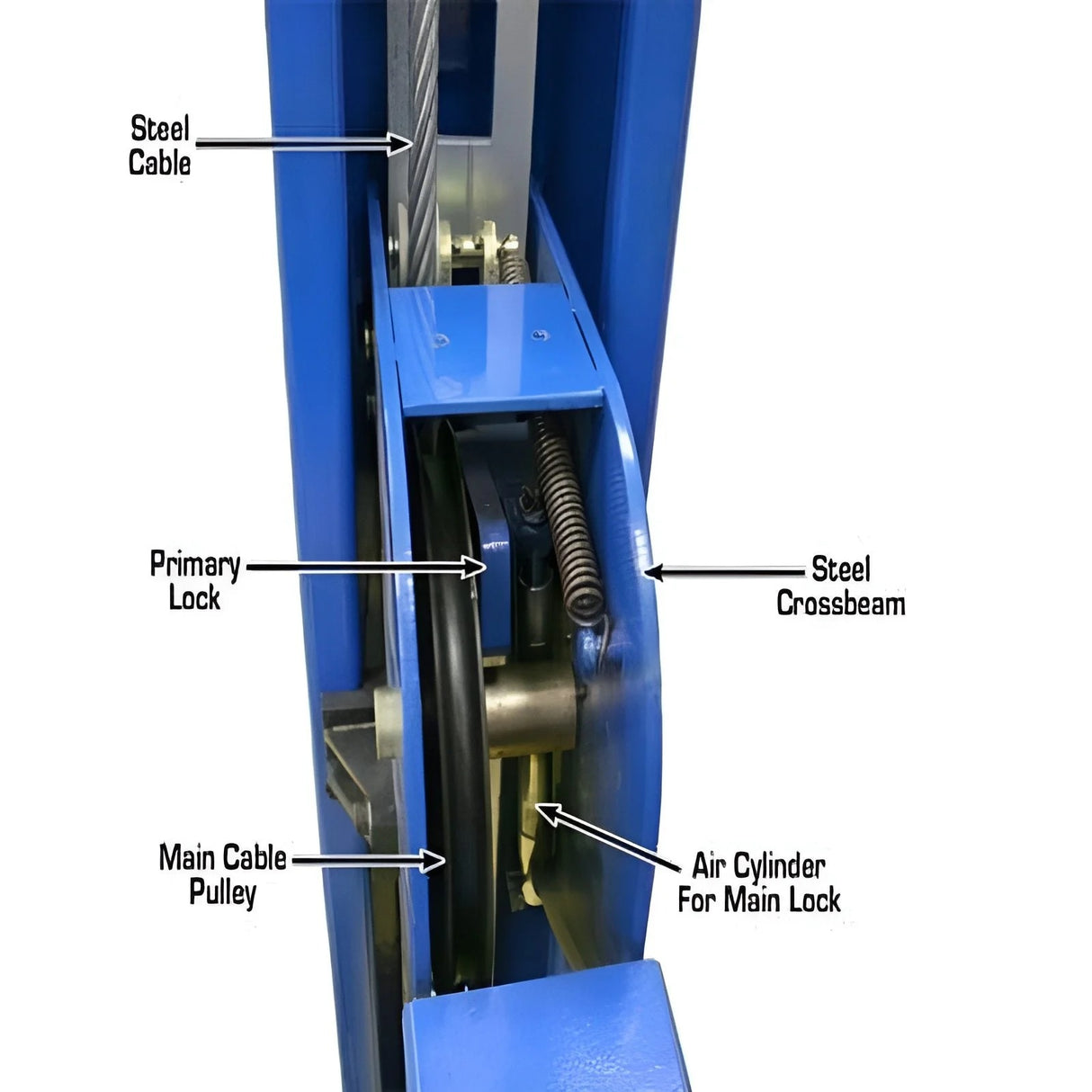

Constructed with a high-strength cable lifting system and an under-runway oversized hydraulic cylinder, this lift offers more consistent leveling and cleaner operation compared to traditional chain-driven systems. The design also helps reduce the risk of vehicle damage, making it a smarter choice for professional environments.
With its rugged steel construction and durable powder-coated finish, the Atlas 412 is built to withstand demanding shop conditions while maintaining a clean, professional look.
Key Features & Benefits
- 12,000 lb Capacity – Ideal for cars, trucks, and commercial vehicles
- Heavy-Duty Commercial Grade Construction
- Extra Tall, Wide & Long Design for larger vehicles
- Diamond-Plated Runways for added traction and durability
- Air-Operated Single-Point Lock Release (external air required)
- Double Lock Safety System for enhanced protection
- Lock Ladder Design for secure height positioning
- Powder-Coated Finish for corrosion resistance

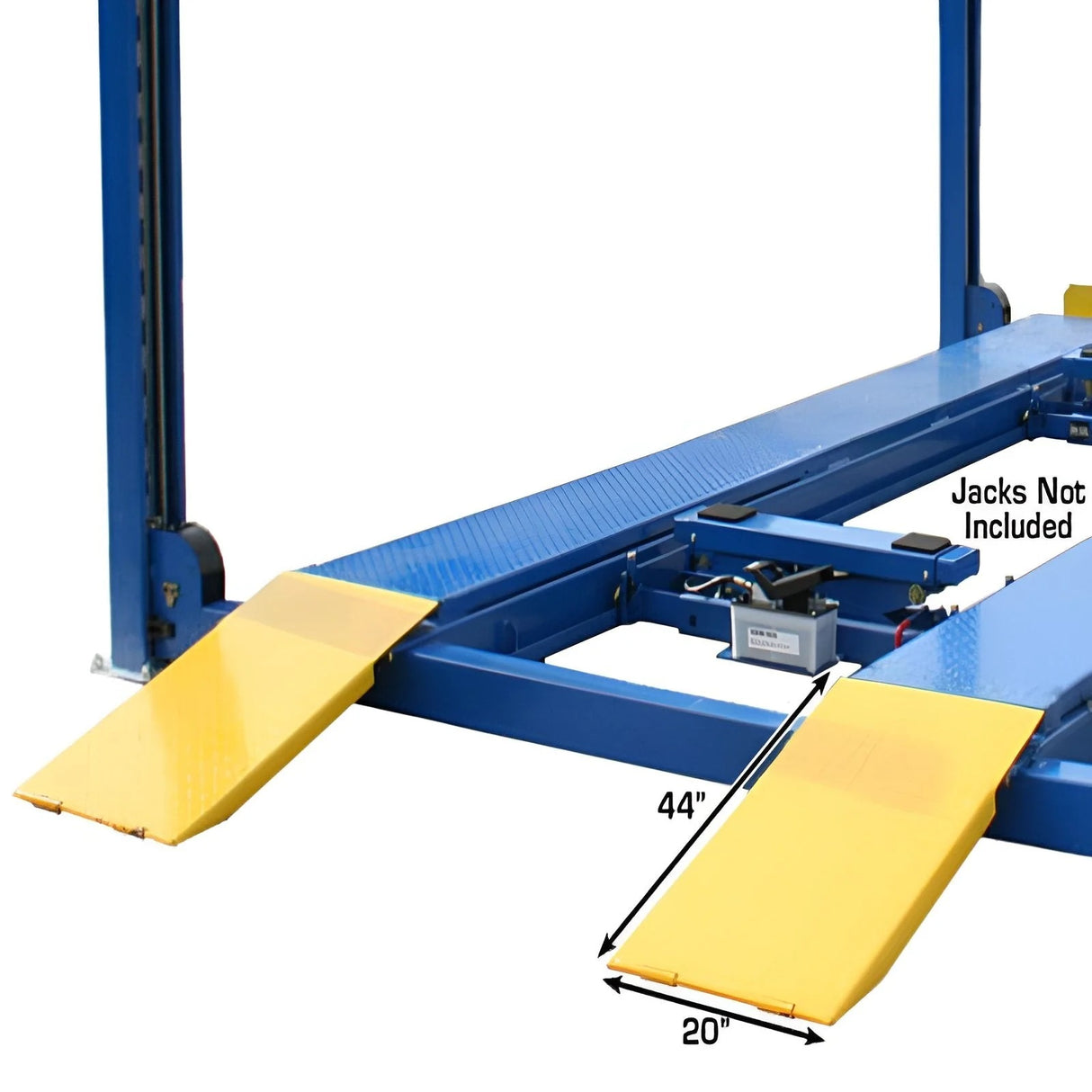

- Steel Approach Ramps Included
- Compatible with Rolling Bridge Jacks (sold separately)
- Freight Prepaid (FPD)
Designed for Flexibility
The Atlas 412 features built-in runway tracks, allowing the use of rolling bridge jacks such as the Atlas RJ6BK (sold separately). This added capability makes it ideal for wheel service and suspension work, increasing overall shop efficiency.
Optional accessories like drive-off ramps and runway extensions allow you to customize the lift to better fit your workspace and needs.
| Specifications | Details |
|---|---|
| Capacity | 12,000 lb. |
| Lifting Height | 77 3/4" (6' 5 3/4") |
| Overall Width Of Columns (Without Motor) | 126 1/4" (10' 6 1/4") |
| Overall Width Of Columns (With Motor) | 135 1/4" (11' 3 1/4") |

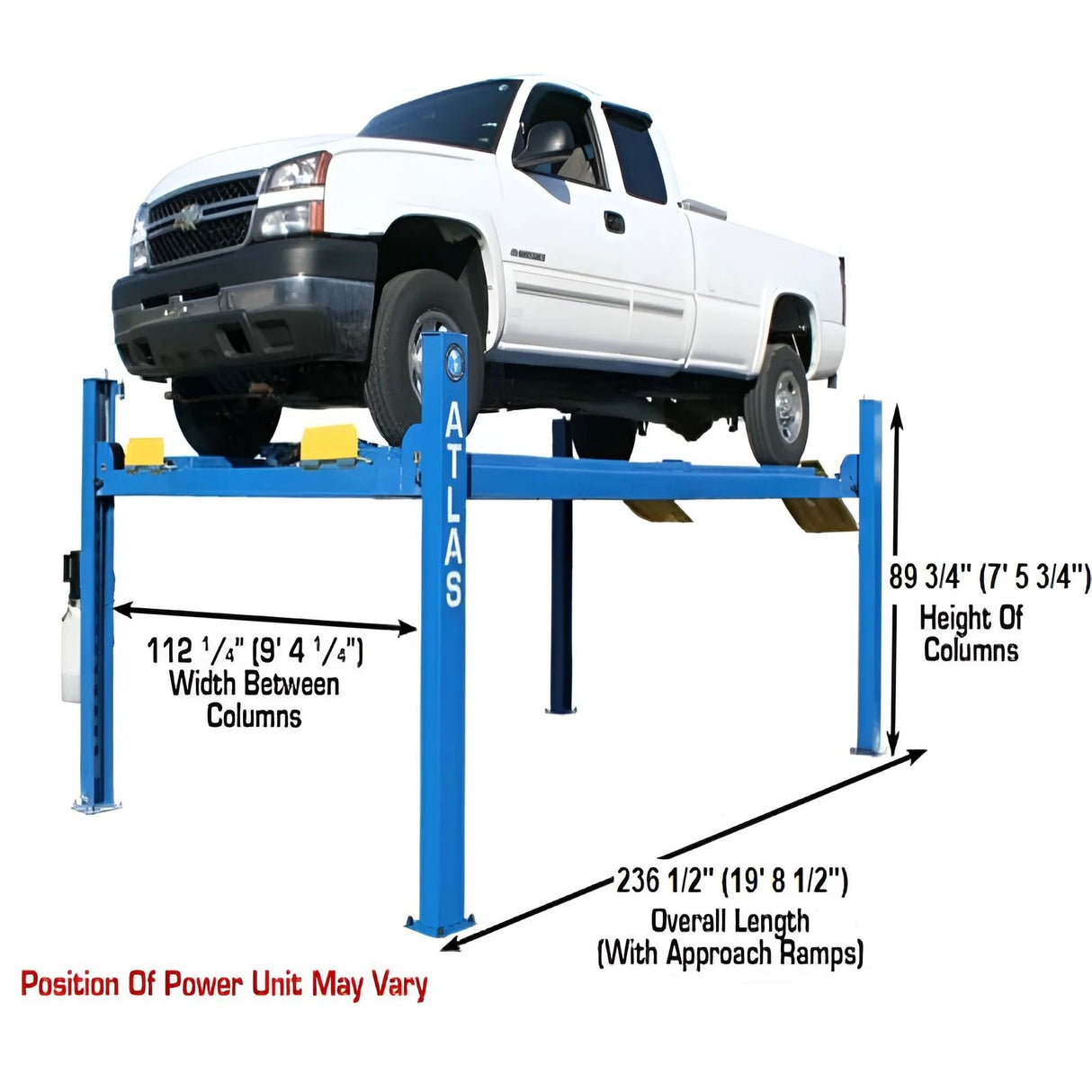

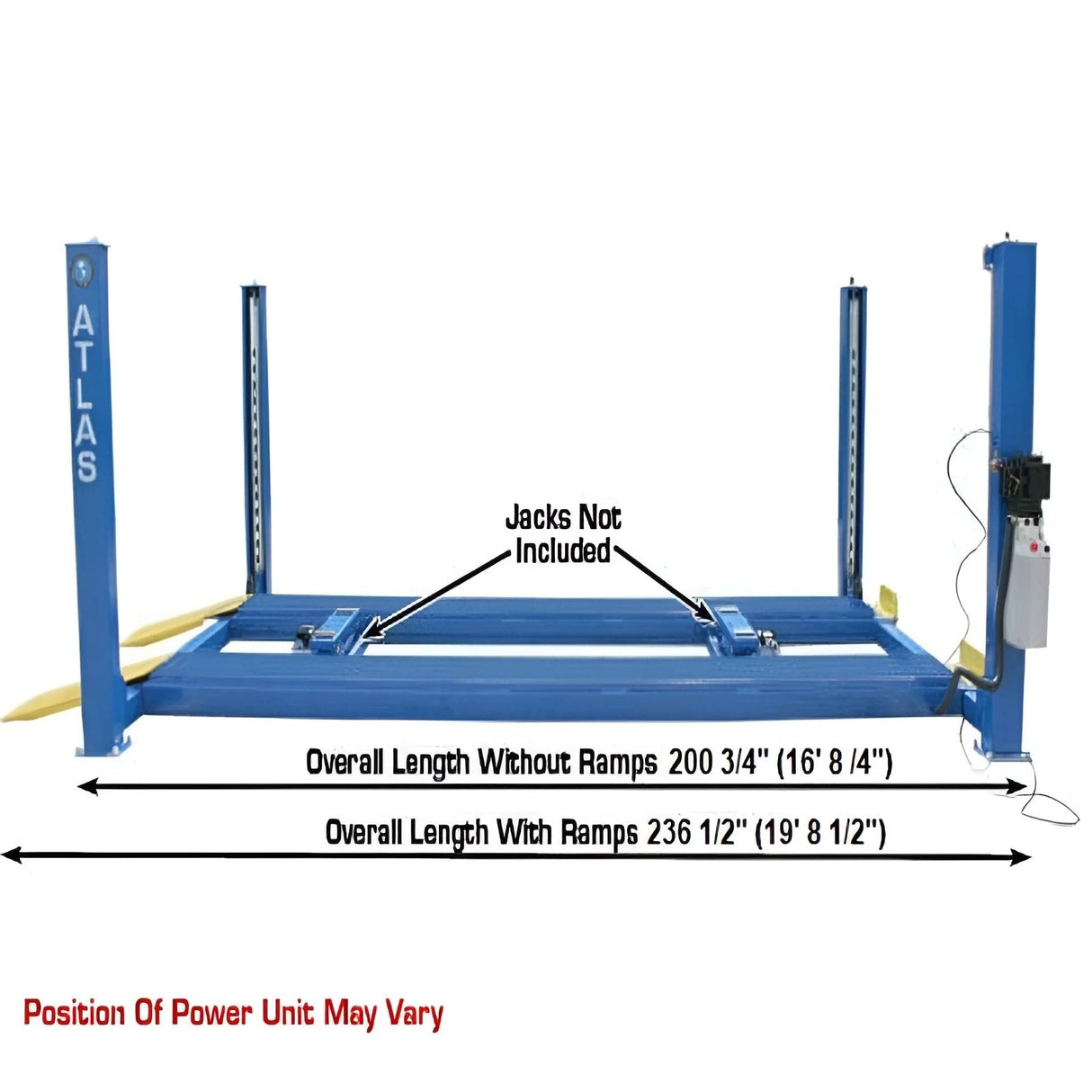

| Overall Length With Approach Ramp | 236 1/2" (19' 8 1/2") |
| Length Between Columns | 183 1/4" (15' 3 1/4") |
| Runway Length | 194 1/2" (16' 2 1/2") |
| Runway Width | 20" |
| Thickness Of Runway | 7 1/2" |

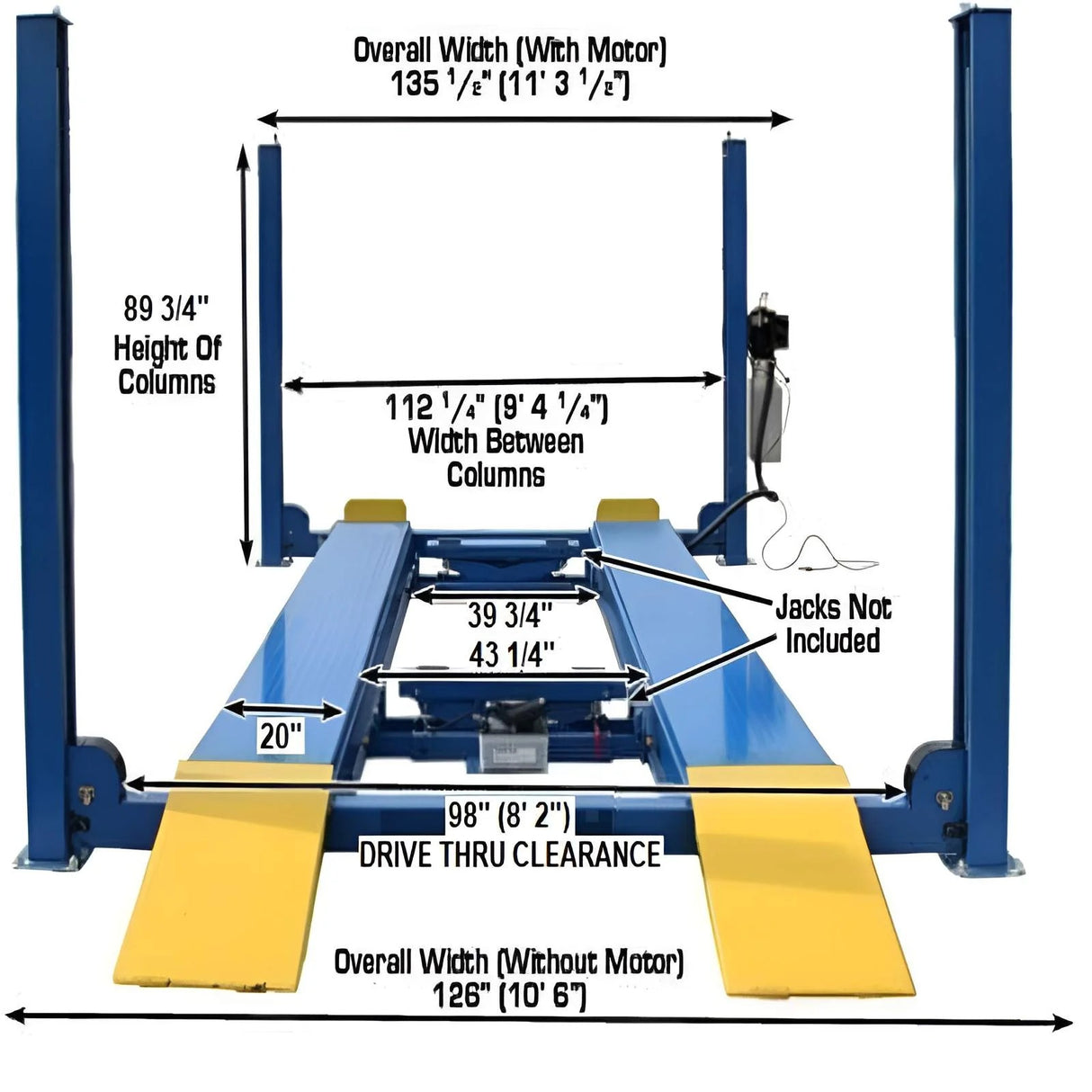

| Width Between Runways | 43 1/4" (w/ Rail 39 3/4") |
| Outside Runway To Outside Runway | 83 1/4" (6' 11 1/4") |

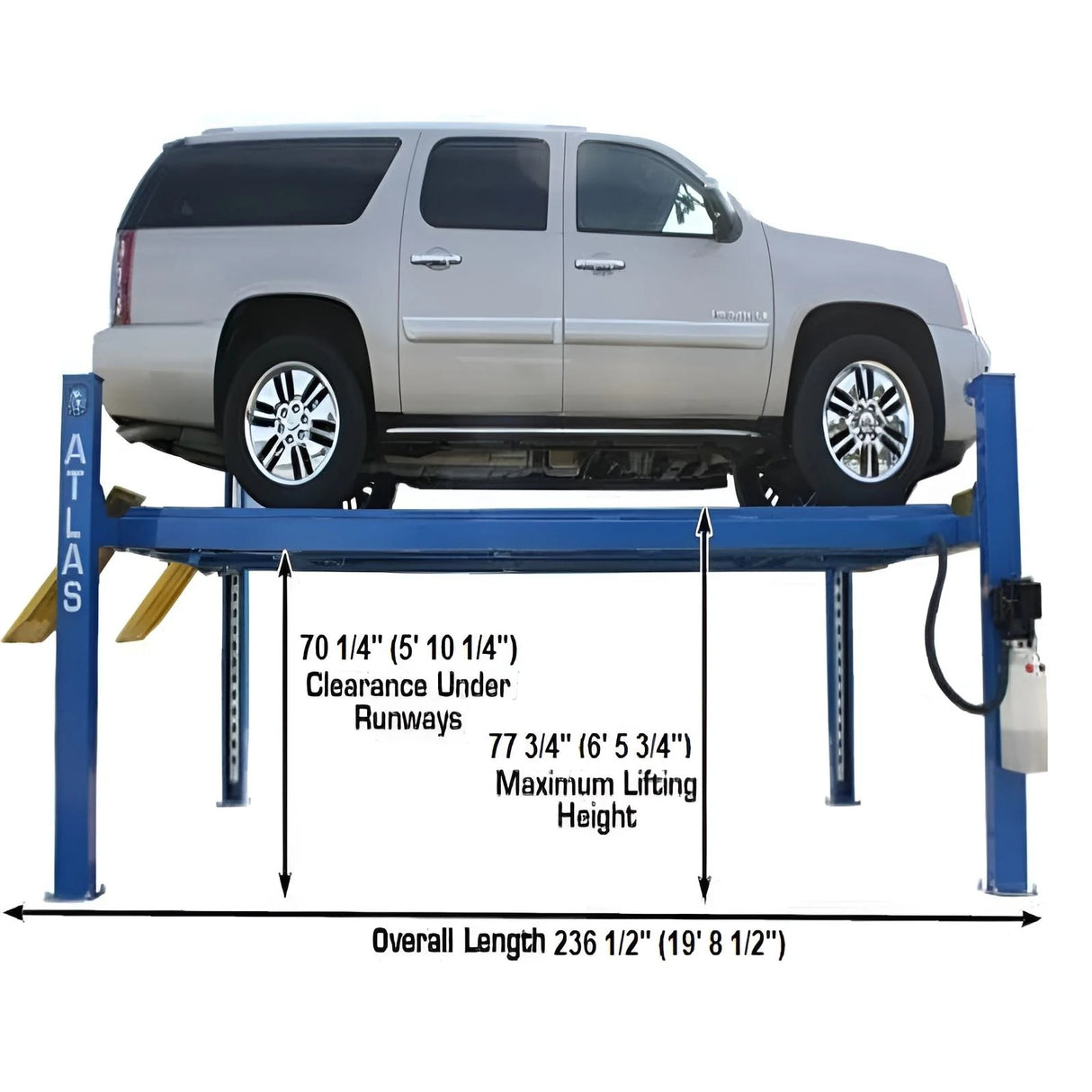

| Clearance Under Runways | 70 1/4" (5' 10 1/4") |

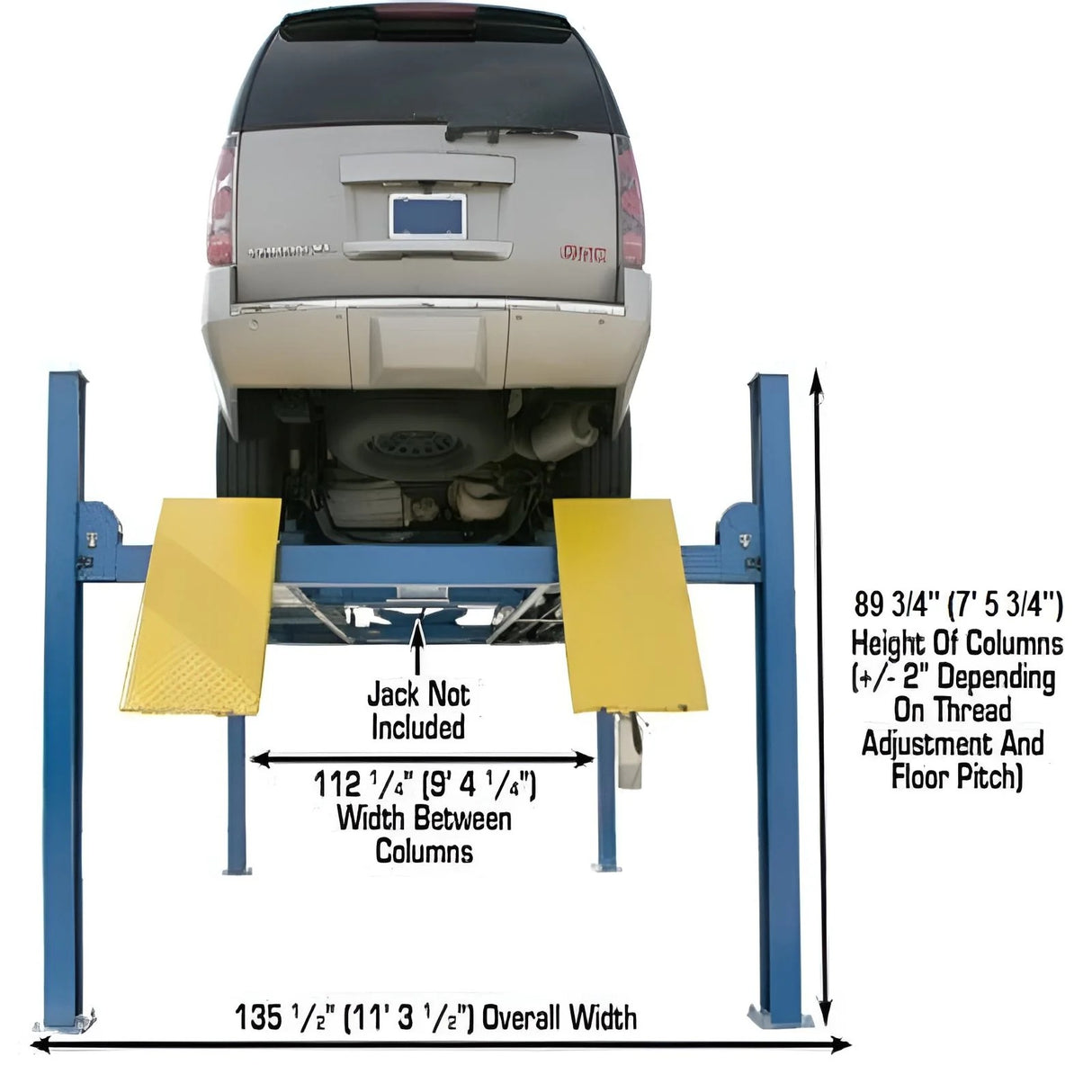

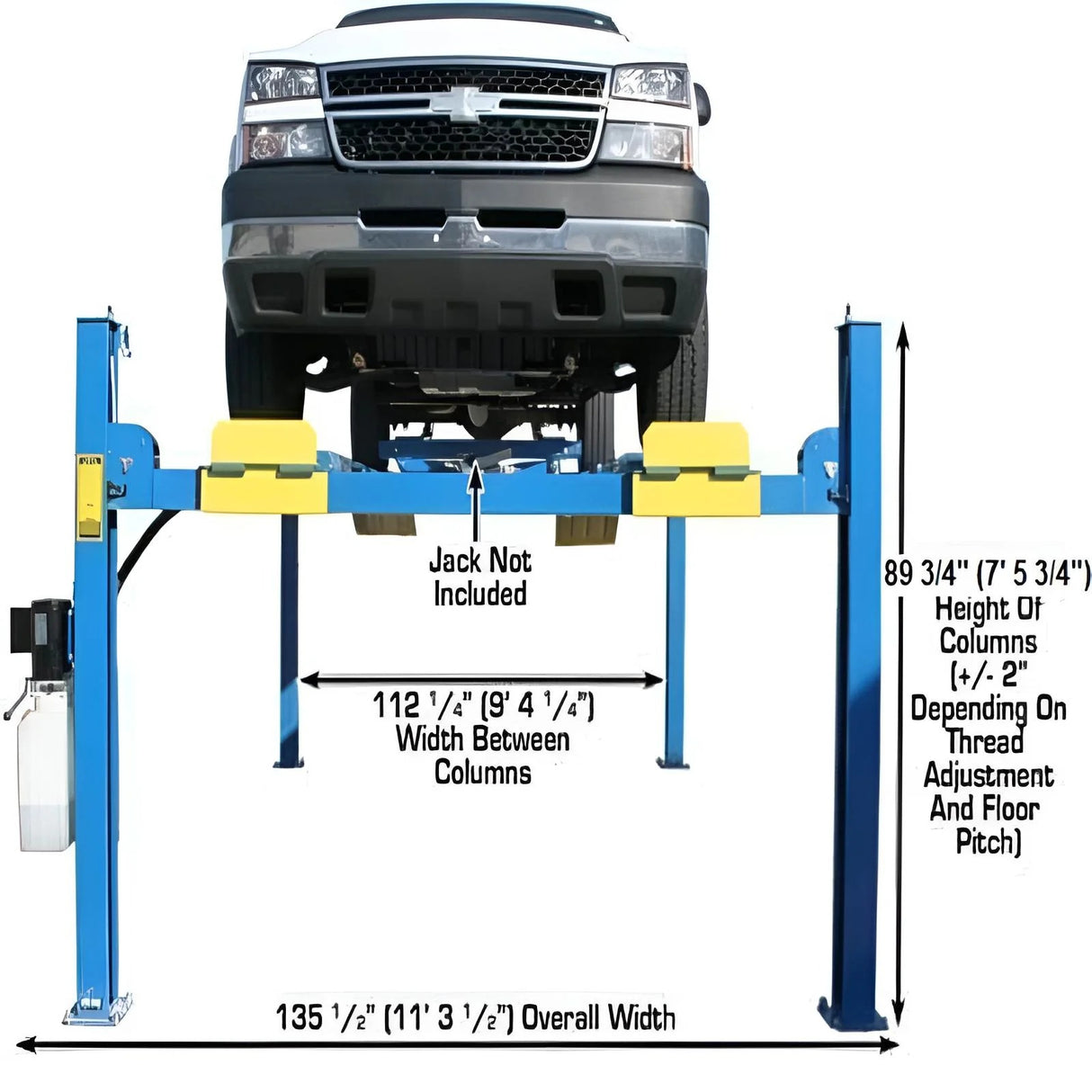

| Clearance Between Columns | 112 5/8" (9' 4 5/8") |
| Height Of Columns | 89 3/4" (7' 5 3/4") |
| Maximum Wheel Base | 185" (15' 5") |
| Drive Thru | 98" (8' 2") |
| Air Requirement | 85–115 PSI (External Air Supply Required) |

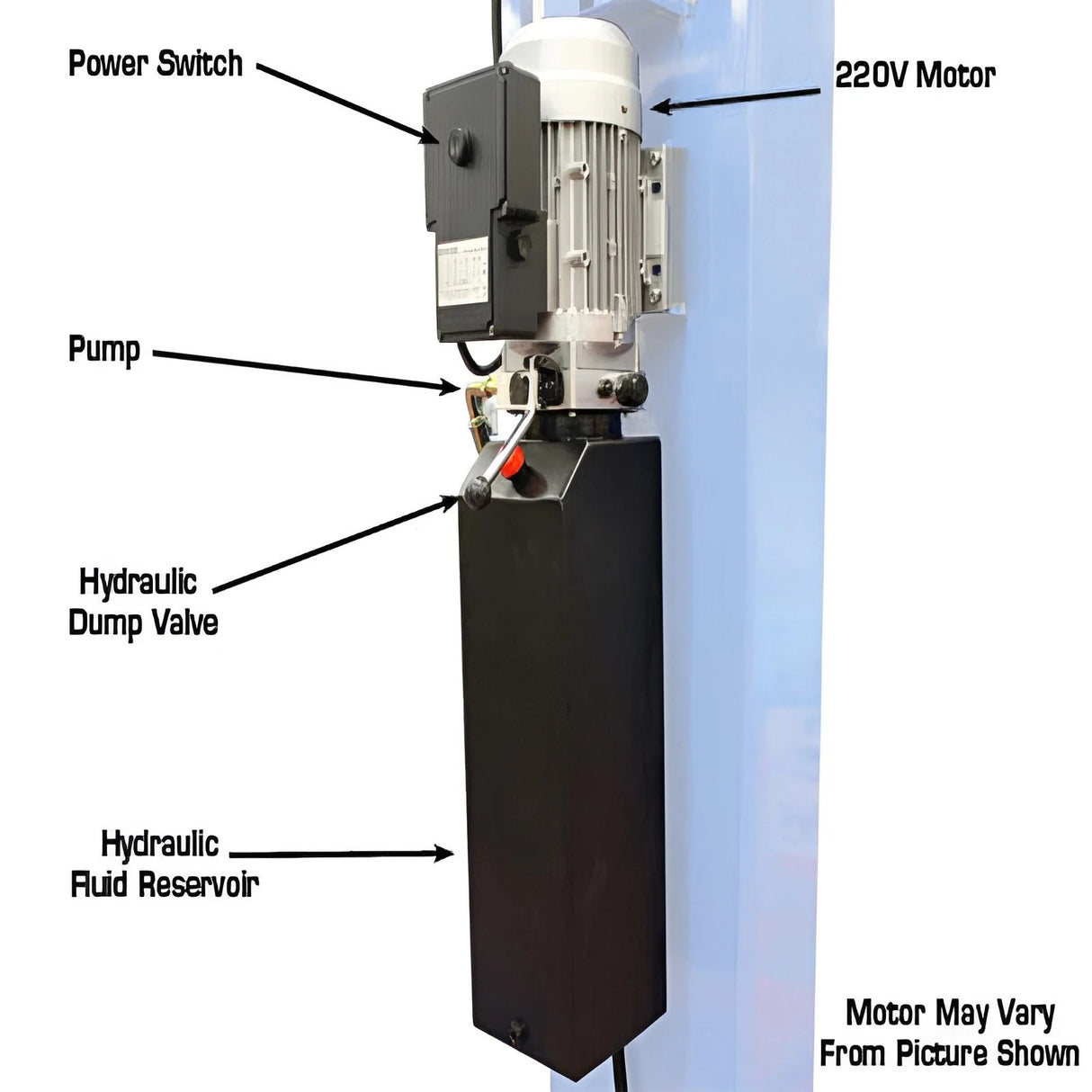

| Motor/Electrical Requirement | 220V Single Phase (30 Amp Breaker Recommended) |
| Oil Requirement | 3–5 Gallons AW32/AW46 (Not Included) |

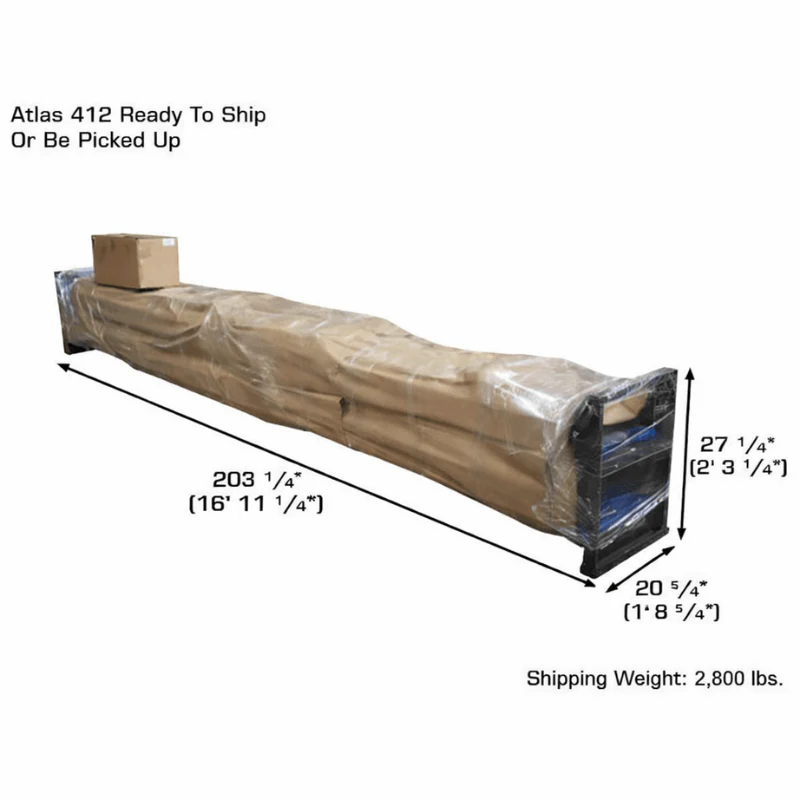

| Shipping Weight | 2,800 lbs. |
| Concrete Requirement | Minimum 6" concrete with 3,000 PSI rating |
