Atlas PV15PX 15,000 lb Overhead 2-Post Lift

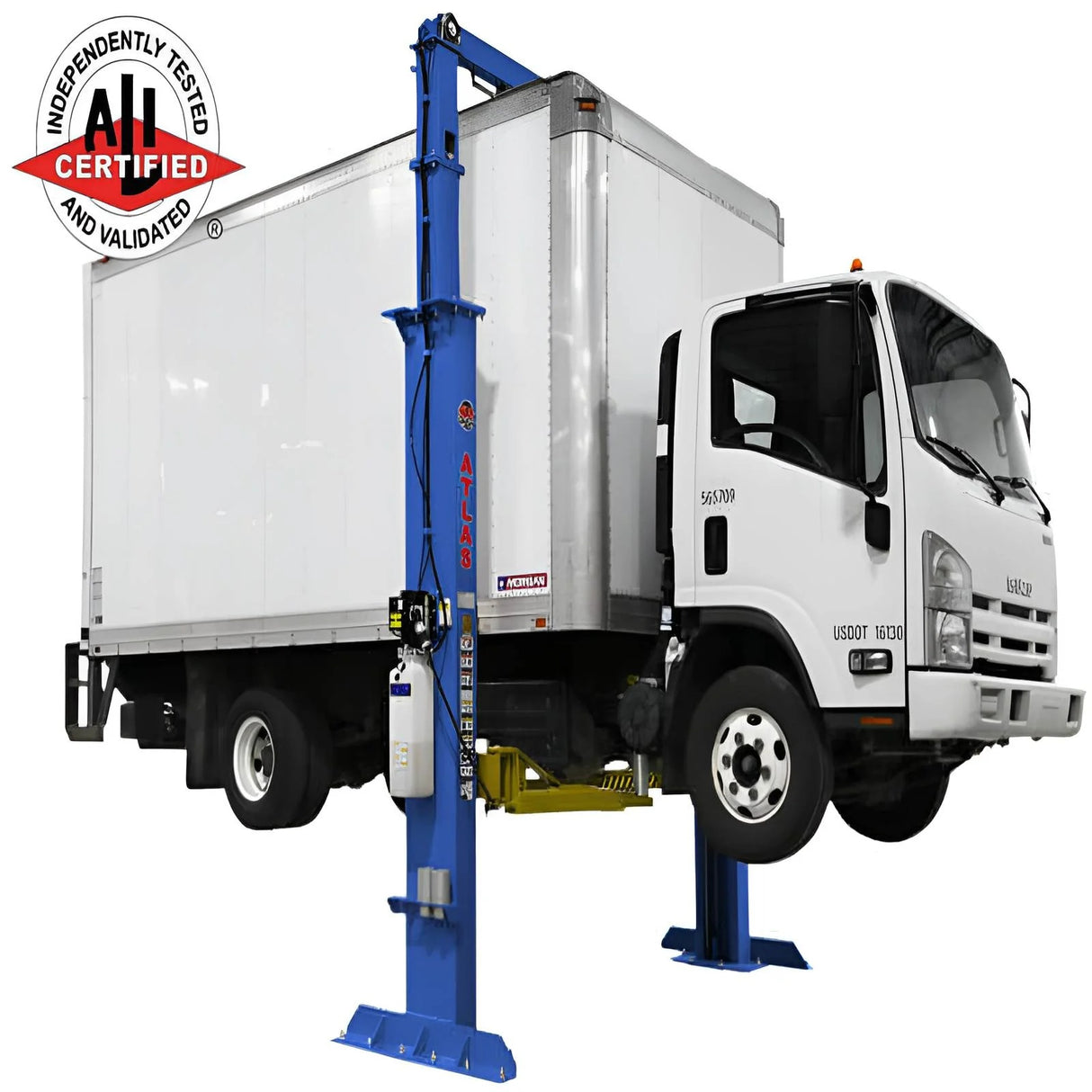

The Atlas Platinum PVL15 is a commercial-grade, ALI-certified 2-post lift built for heavy-duty shop environments. With a massive 15,000 lb capacity, this lift is engineered to handle long wheelbase trucks, vans, and service vehicles with ease—making it a top-tier solution for high-demand automotive and fleet service operations.
Its extra tall and extra wide design provides the clearance needed for larger vehicles, while the symmetric arm configuration ensures balanced lifting and improved stability. Designed with durability and safety in mind, the PVL15 combines heavy-duty components with premium engineering for long-term performance.
The lift is powered by a premium ALLY hydraulic power unit, delivering consistent torque, reduced heat buildup, and reliable operation over time. Built for serious commercial use, it offers the strength, height, and durability required for trucks, fleet vehicles, and heavy-duty service work. With its ALI certification and premium components, it’s a reliable long-term investment for professional shops that demand performance and safety.
Features and Benefits
- ALI certified for safety and compliance
- 15,000 lb lifting capacity for heavy-duty applications
- Heavy-duty commercial-grade construction

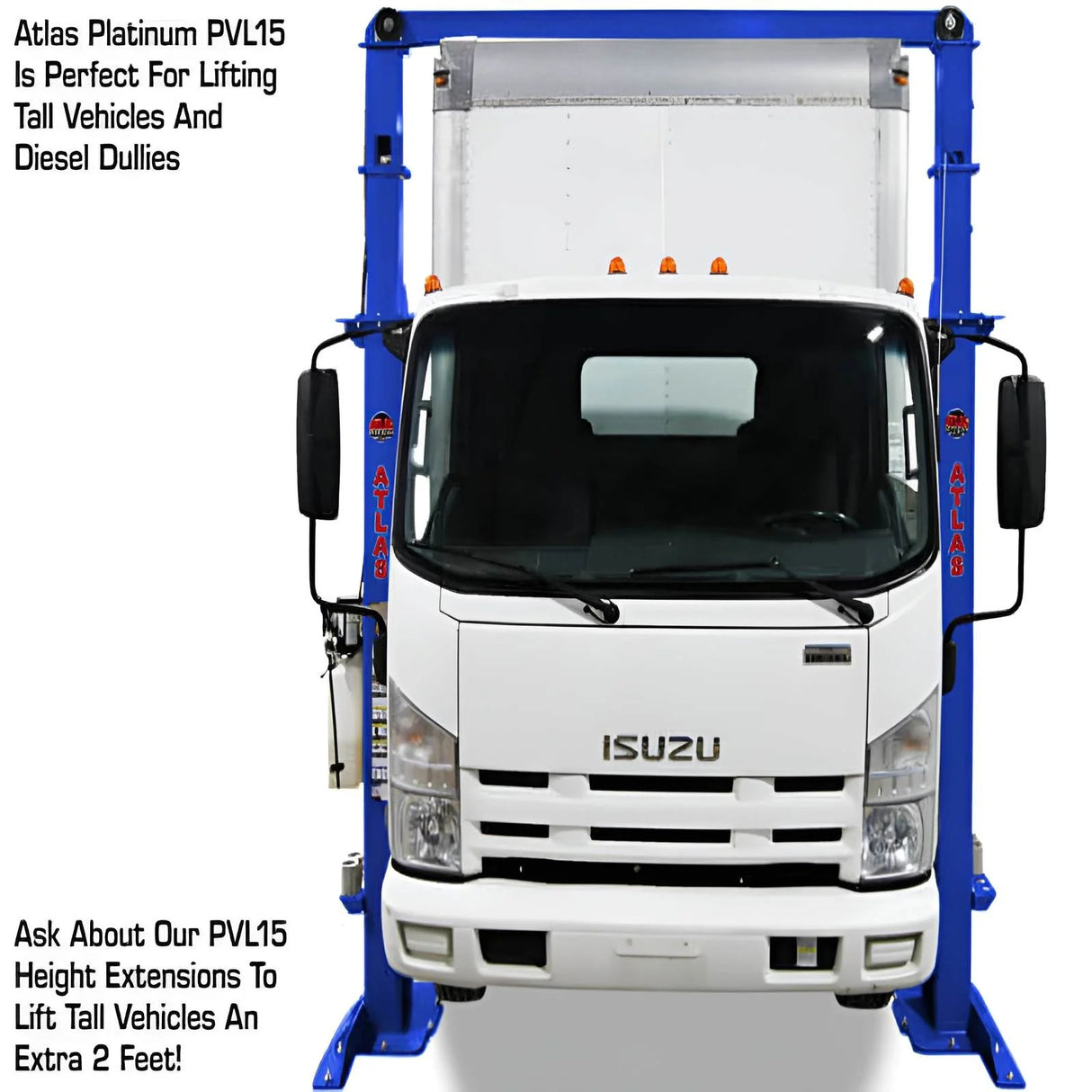

- Extra tall and extra wide design for larger vehicles
- Overall height: 174 1/2"

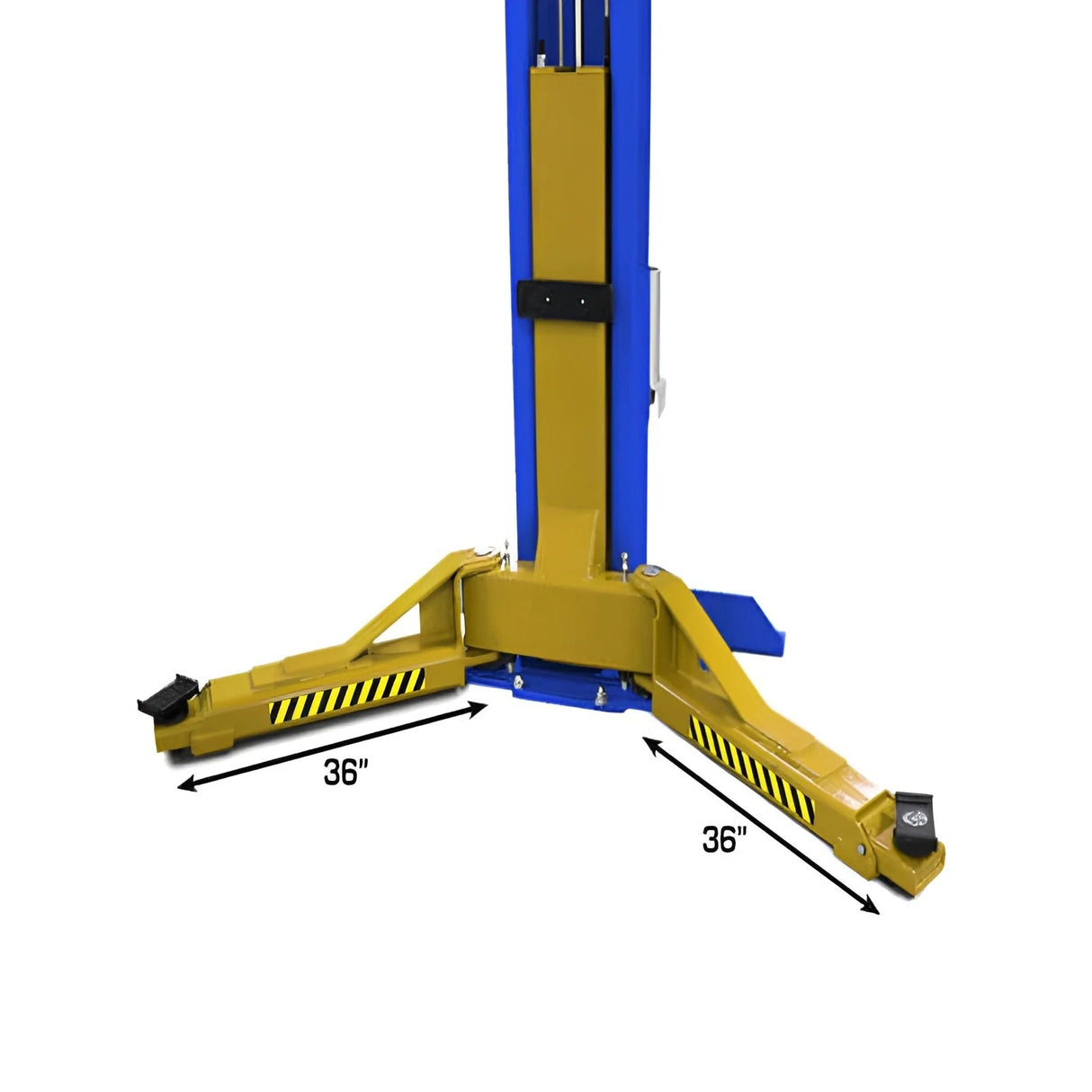

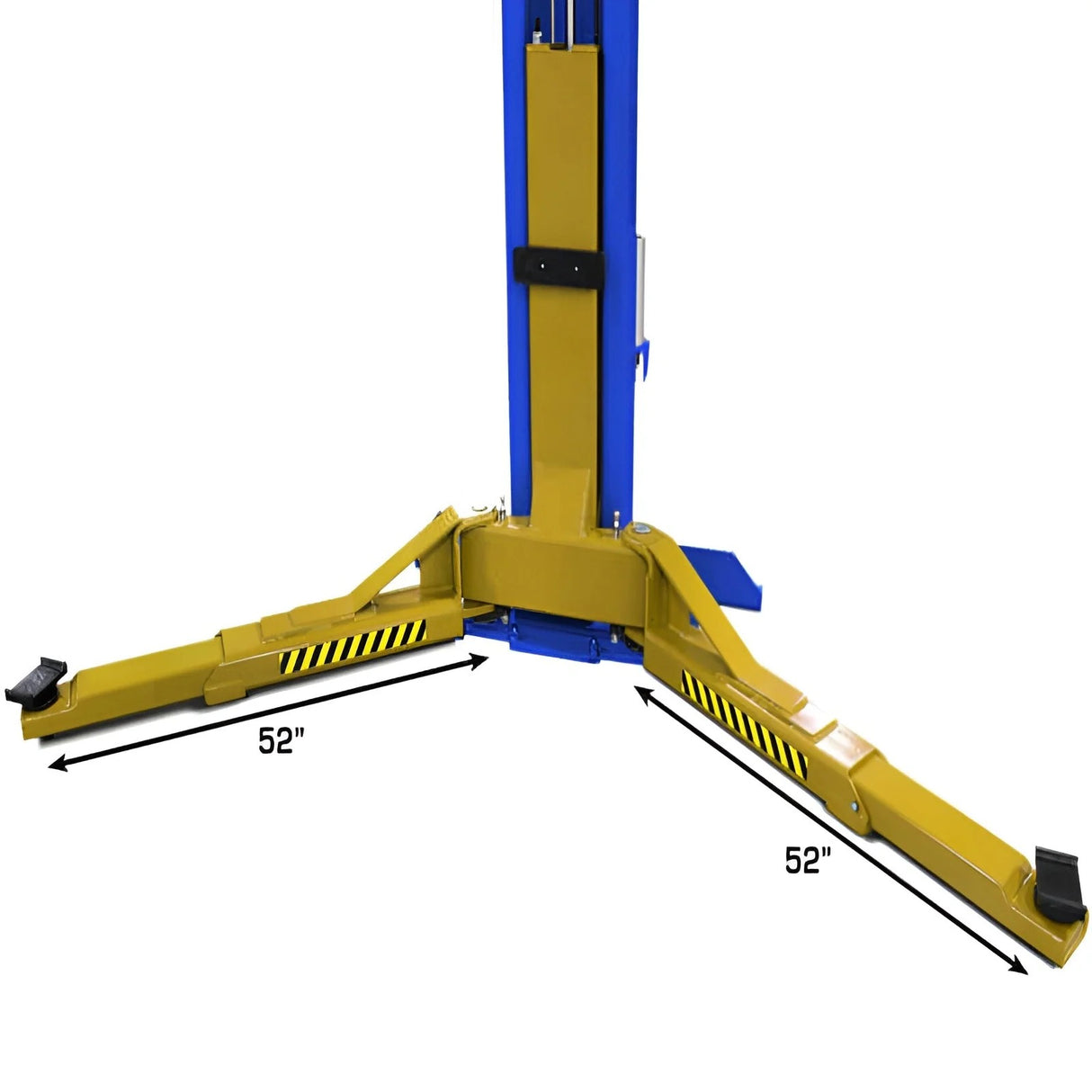

- Symmetric arm configuration for balanced lifting
- Professional-grade arm restraint locking system
- Padded carriages to help protect vehicles

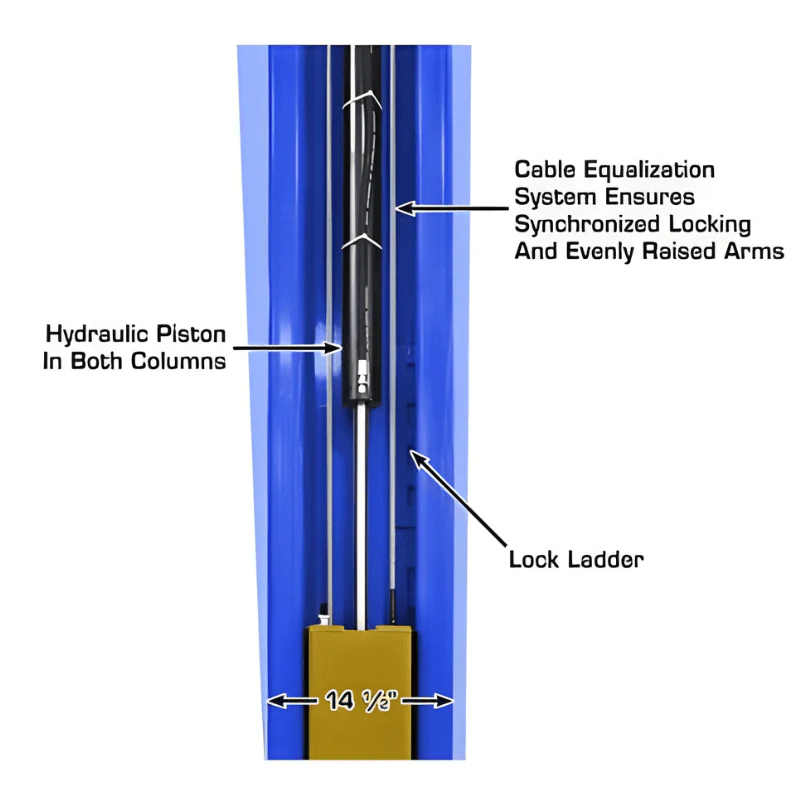

- Dual direct-drive hydraulic cylinders for smooth lifting
- Heavy-duty 3/8" equalization cables

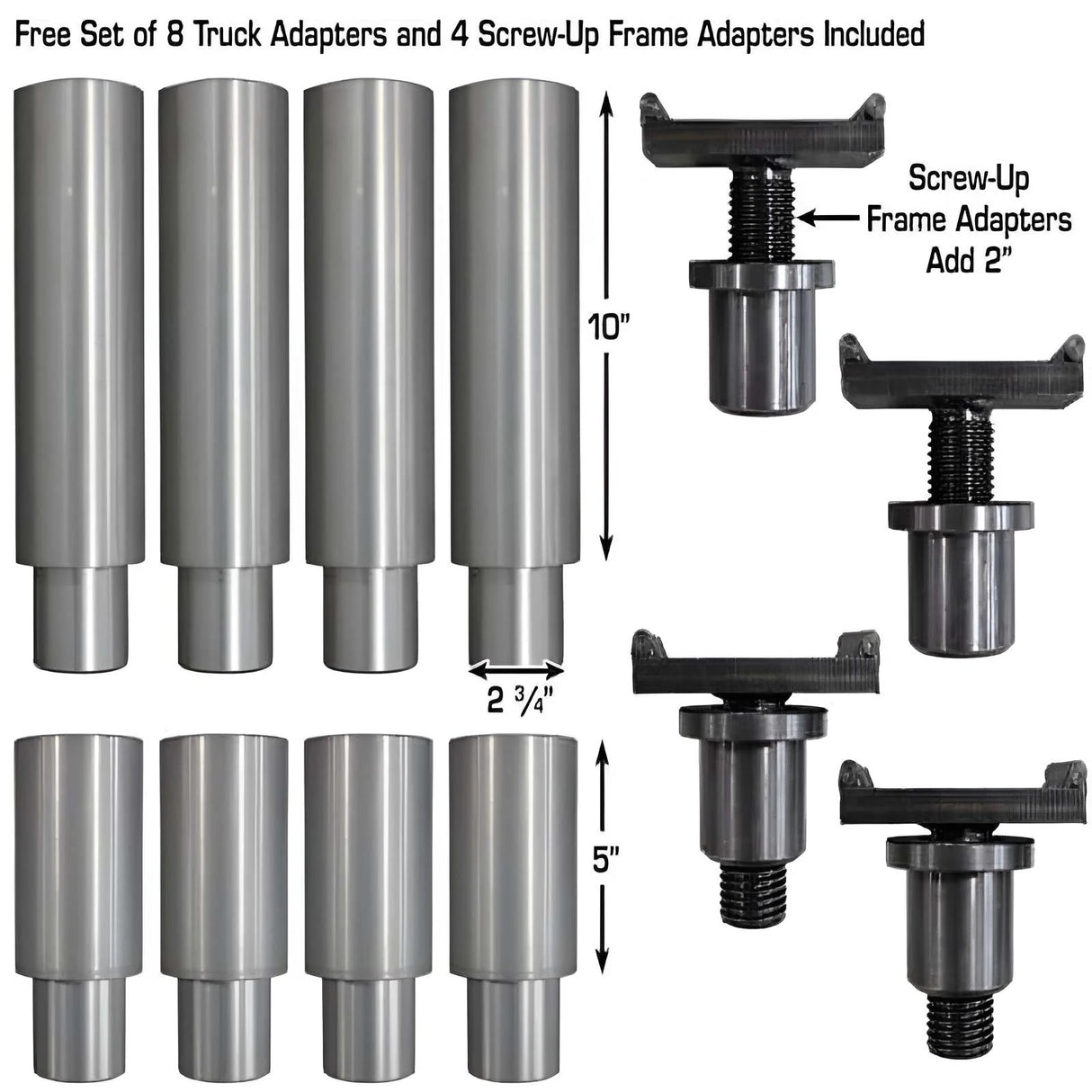

- Includes 4 screw-up frame adapters
- Free 8-piece truck adapter set included

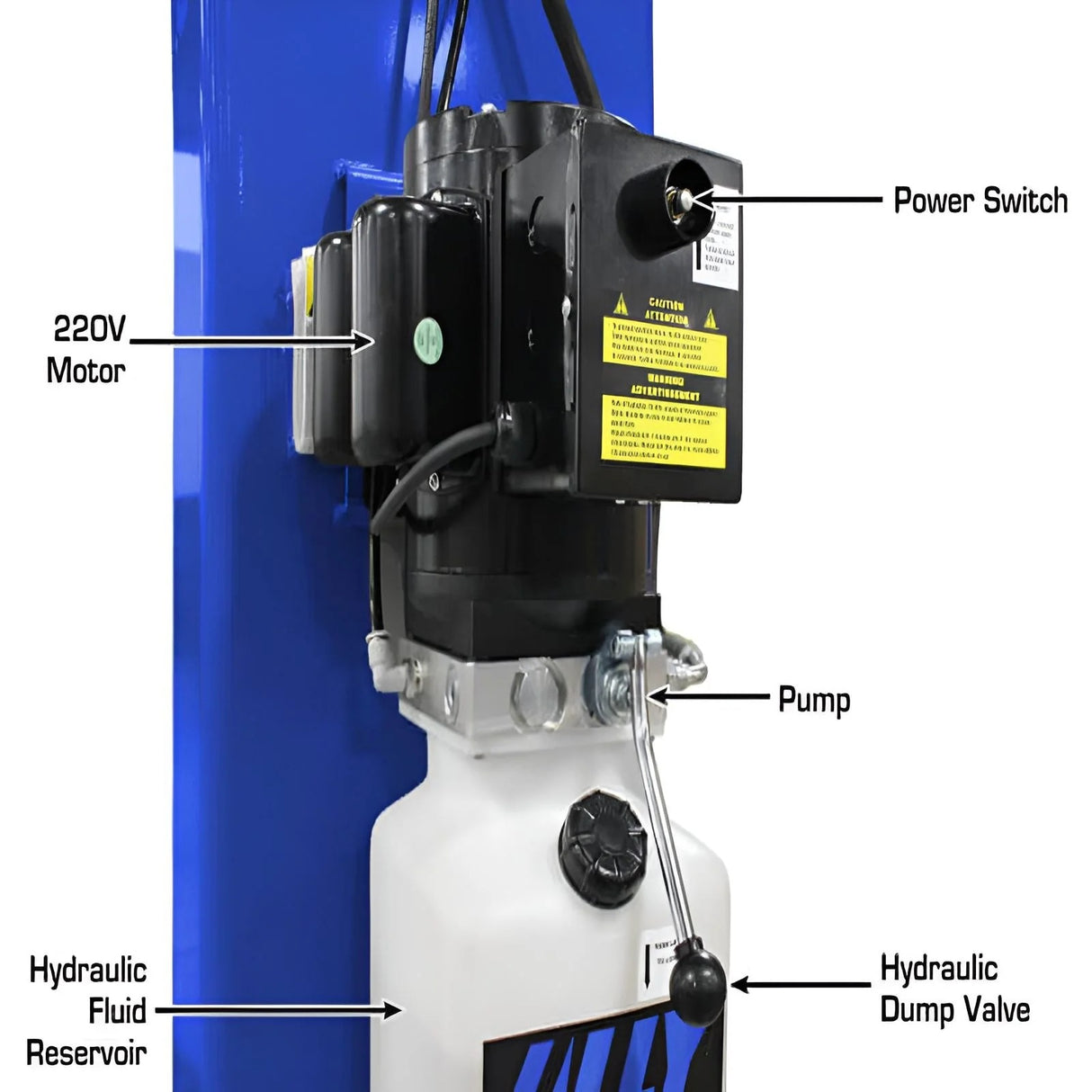

- Premium ALLY power unit (MET Laboratories certified)
- Mounting hardware included
- Optional height extension available for taller vehicles
- 5-year structural, 2-year hydraulic, and 2-year power unit warranty

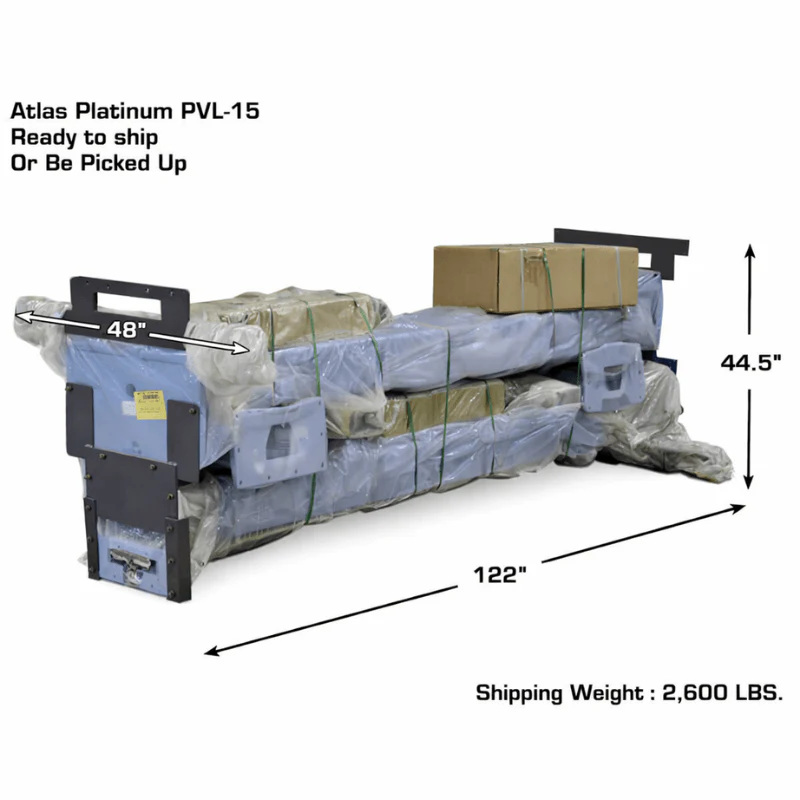

- Shipping weight: 2,600 lbs

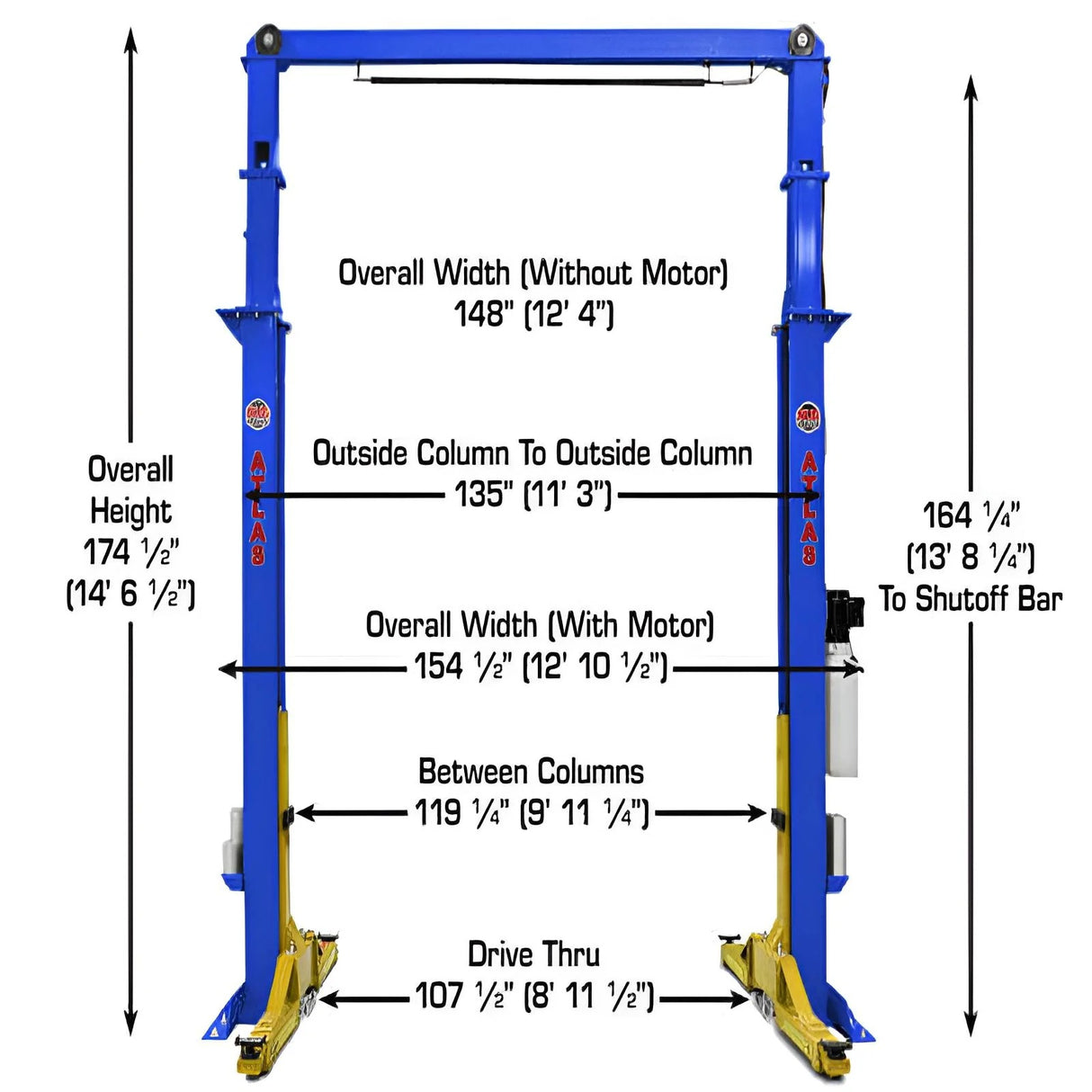

| Specifications | Details |
|---|---|
| Capacity | 15,000 lb |

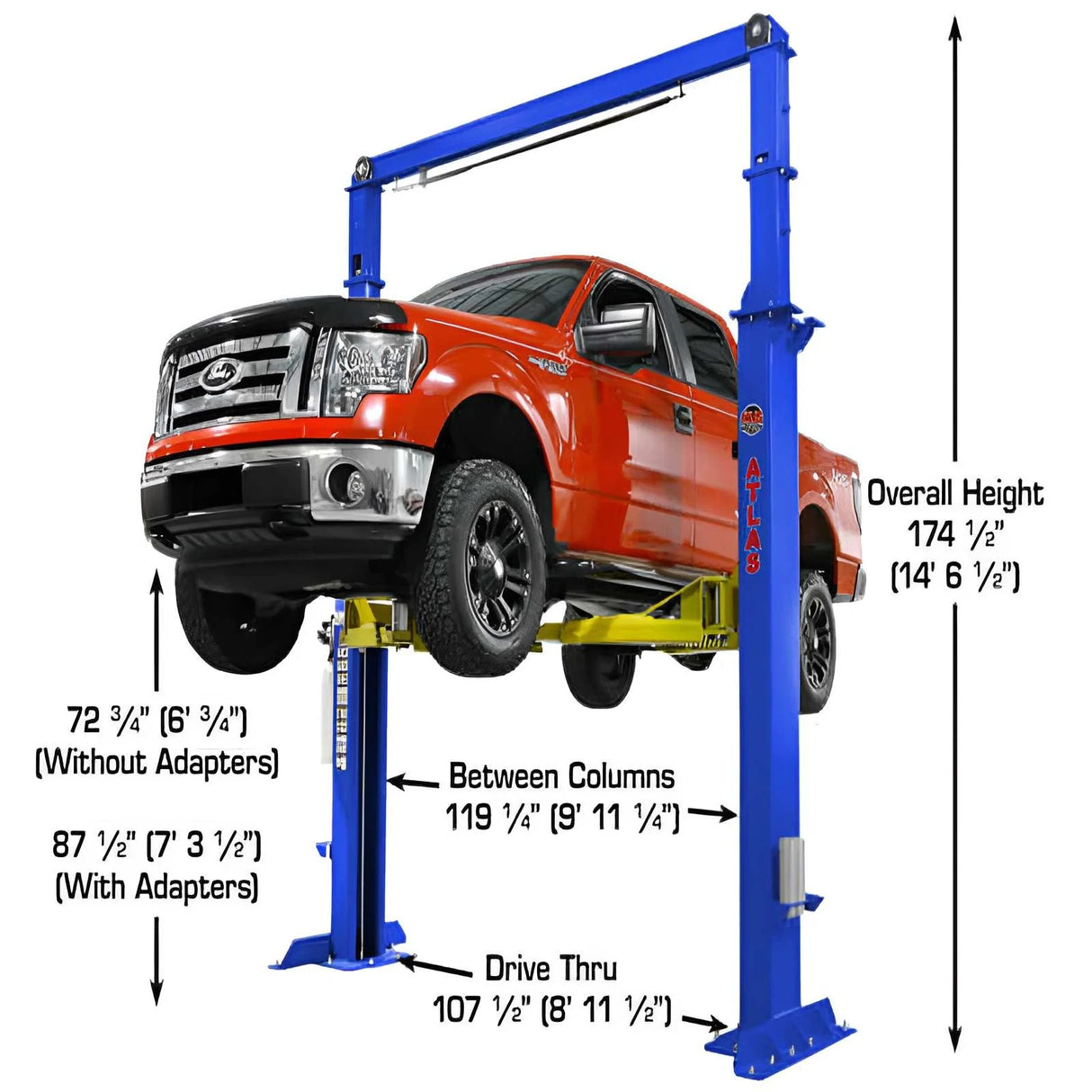

| Overall Height | 174 1/2" (14’ 6 1/2") |
| Overall Floor Width | 148" (12’ 4") |
| Outside Column to Outside Column | 135" (11’ 3") |
| Inside Column | 119 1/4" (9’ 11 1/4") |
| Column Size | 8" x 14 1/2" |

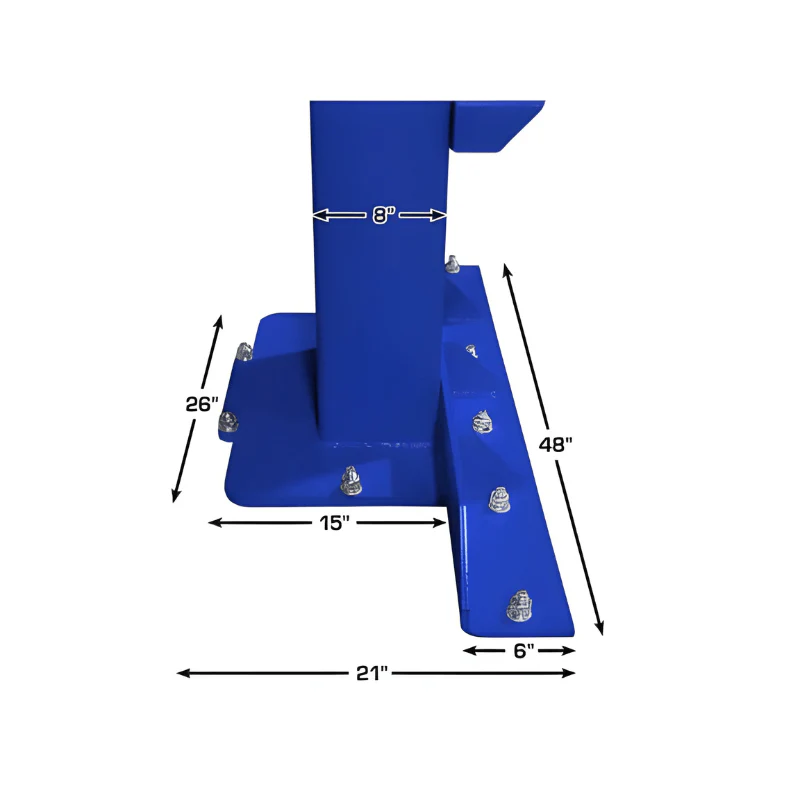

| Base of Lift | 21" x 48" |

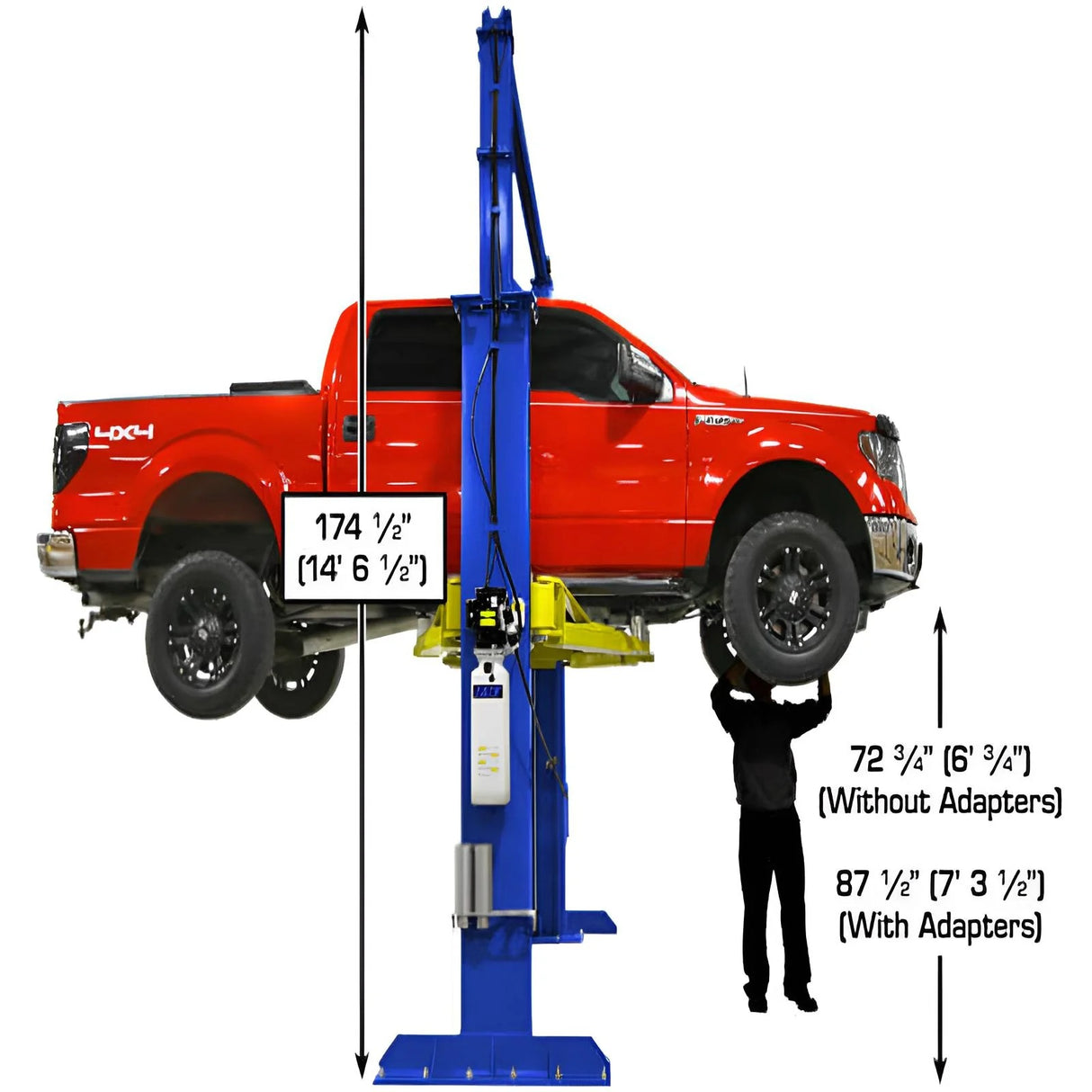

| Maximum Lift Height (Without Adapters) | 72 3/4" |
| Maximum Lift Height (With Adapters) | 87 1/2" |
| Minimum Arm Height | 6" |
| Drive Thru | 107 1/2" (8’ 11 1/2") |
| Motor / Electrical Requirement | 220V single phase — 30 amp breaker recommended |
| Oil Requirement | 3–5 Gallons AW32/AW46 (not included) |

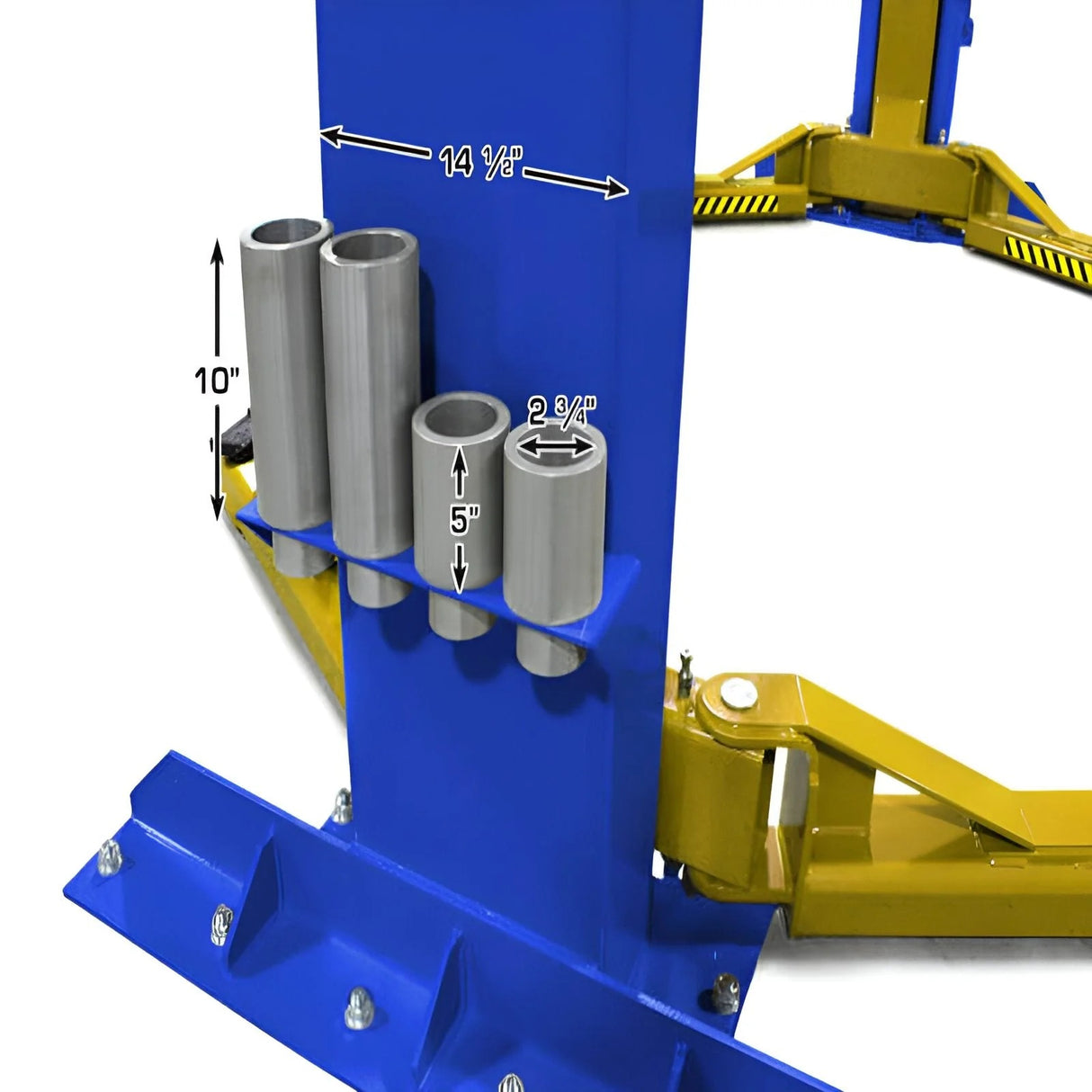

| Adapter Heights | 4 Each: 5", 10" |
| Arm Hole / Adapter Peg Size | 2.75" |
| Concrete Requirement | Minimum 6" thick, 3,000 PSI rating |
| Shipping Weight | 2,600 lbs |
