AMGO 409-DP 4-Post Double Parking Lift 9,000 lb Capacity

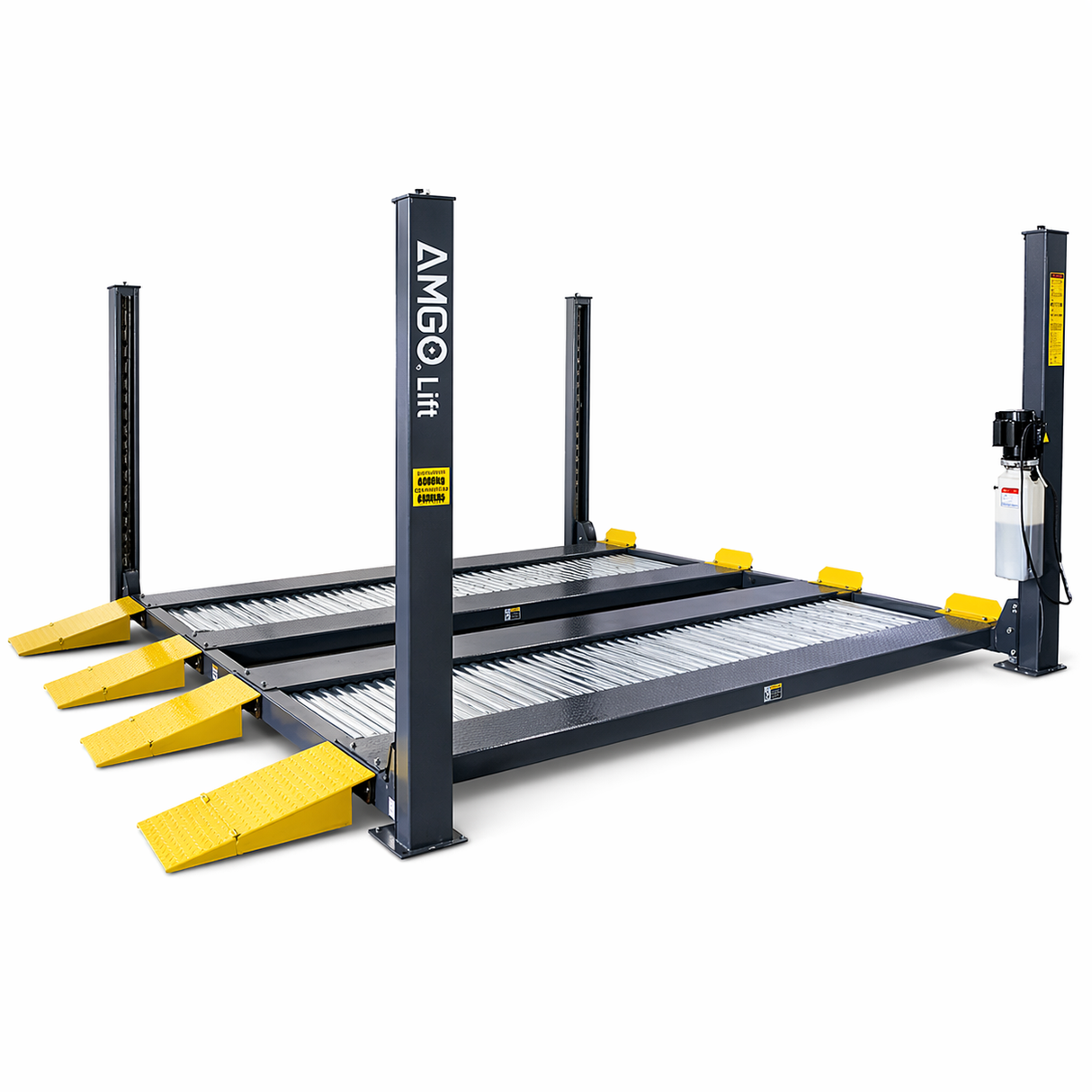

AMGO's 409-DP is a low-profile, space-saving lift designed to accommodate double parking for up to 4 vehicles. With a 9,000 lb lifting capacity and a max 6,000 lb per vehicle, it delivers a strong balance of performance, safety, and everyday usability for garages and storage setups.
Key Features & Benefits
- 9,000 lb lifting capacity
- Max vehicle weight: 6,000 lbs
- Cable-driven system powered by a single hydraulic cylinder
- AMGO patented concealed safety lock control with manual single-point release
- Dual safety locks with additional cable-slack protection
- Four mechanical locking devices for enhanced safety
- Non-slip diamond plate runways
- Foldable drive-on ramps included
- Low-profile design for easy loading of low-clearance vehicles
- Multiple lock positions for secure lifting and storage
- Double parking design allowing up to 4 vehicles total
Double Parking Capability
Designed for maximum space efficiency, the 409-DP allows two vehicles to be stored above two others, making it ideal for garages needing increased parking without expanding floor space.
Heavy-Duty Construction
Built with reinforced columns and cross beams, this lift uses a cable-driven hydraulic system for smooth, balanced lifting. The durable steel structure ensures long-term reliability under regular use.
Safety System
Equipped with both primary mechanical locks and a secondary cable-brake safety system, the lift keeps vehicles secure at all times. Multiple locking points and automatic engagement provide consistent protection during operation.
User-Friendly Operation
The manual single-point release system allows easy and controlled lowering without requiring an air source. Foldable ramps and a low approach angle make vehicle loading quick and simple.
What's Included
- Four-post lift structure
- Hydraulic power unit
- Dual runways and cross beams
- Foldable drive-on ramps
- Safety lock system
- Cables and hydraulic components
- Installation hardware
Installation Requirements
- Minimum concrete thickness: 4 inches
- Minimum concrete strength: 3,000 PSI
- Concrete must be level, fully cured, and crack-free
- Indoor installation recommended (outdoor requires protective cover)
- 220V single-phase power required
- Installation must be performed on a flat surface (no asphalt)
Performance & Design
The 409-DP is engineered for efficient vehicle storage with a compact footprint and strong structural integrity. Its low-profile design improves accessibility, while the wide drive-thru clearance makes it suitable for a variety of vehicles including sedans, SUVs, and light trucks. The combination of mechanical safety systems and hydraulic lifting ensures smooth, reliable operation over time.
| Specifications | Details |
|---|---|
| Model | 409-DP |
| Lift Type | Four-Post Double Parking Lift |
| Lifting Capacity | 9,000 lbs |
| Max Vehicle Weight | 6,000 lbs |
| Lifting Time | 47 seconds |
| Overall Length (With Ramps) | 208 1/16" |
| Overall Length (Without Ramps) | 174 5/8" |
| Overall Width | 190 9/16" |
| Width Between Columns | 181" |
| Drive-Thru Width | 169 13/16" |
| Width Between Runways | 37" |
| Max Lifting Height | 73 5/8" |
| Max Lock Height (Top of Runway) | 70 7/8" |
| Max Height Under Runway | 68 7/8" |
| Max Lock Height Under Runway | 66 1/8" |
| Overall Height | 82 7/8" |
| Minimum Height | 5 15/16" |
| Motor | 2.0 HP, 220V Single Phase |
| Shipping | Free freight shipping — continental U.S. |
| Processing Time | 1–2 business days (in-stock items) |
| Estimated Delivery | 5–10 business days |
