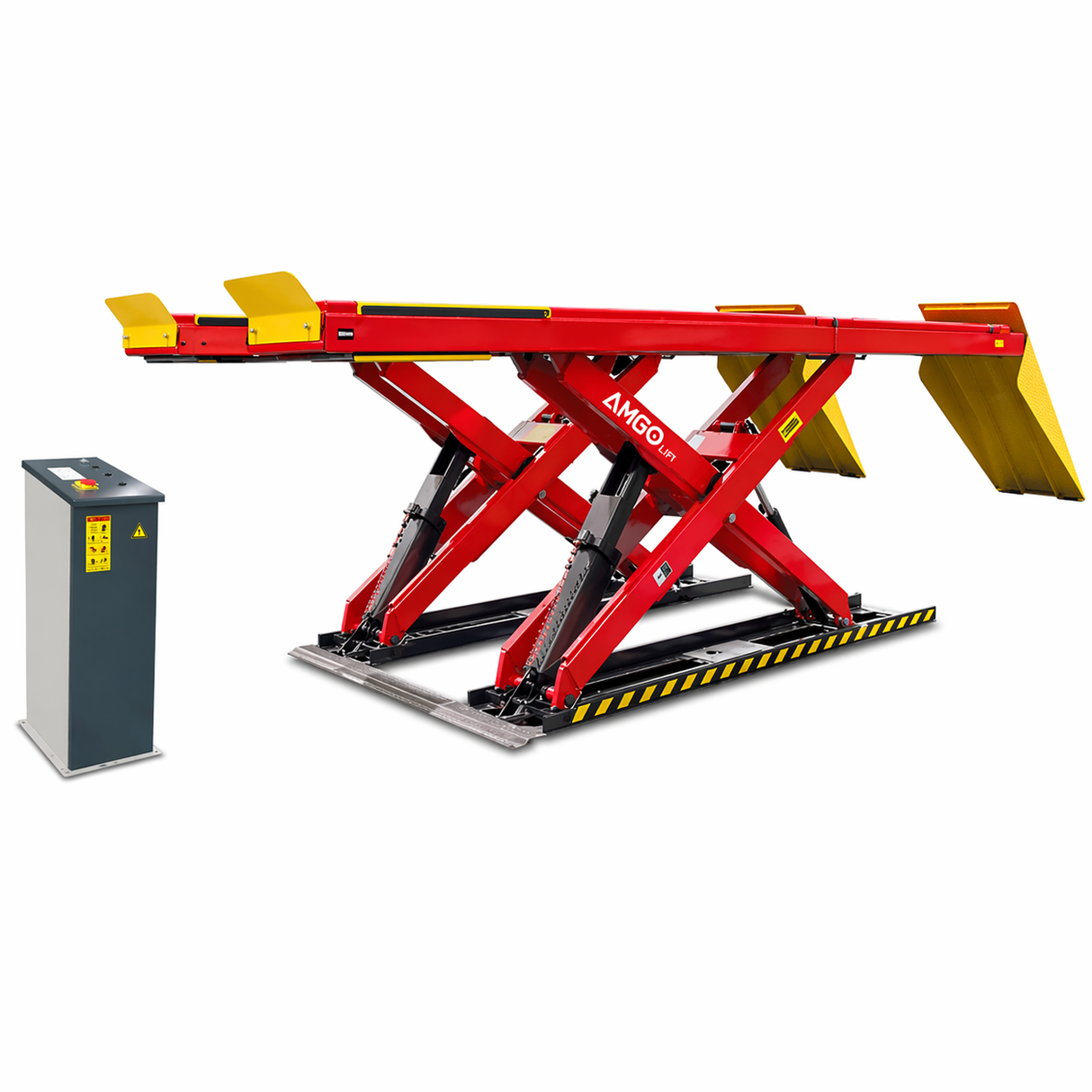

AMGO AX-12A Scissor Lift 12,000 lb Capacity
The AMGO AX-12A is a heavy-duty alignment scissor lift built for professional automotive shops. Designed with a robust X-style scissor structure and synchronized dual-cylinder system, it delivers stable lifting performance for alignment, inspection, and general service on cars, SUVs, and light trucks.
Key Features & Benefits
- 12,000 lb lifting capacity for a wide range of vehicles
- Alignment-ready design for precise wheel service
- Heavy-duty X-style scissor construction for durability under load
- Dual synchronized hydraulic cylinder system for balanced lifting
- Full-rise design provides comfortable working space underneath
- Automatic mechanical safety locks with pneumatic release
- Electro-hydraulic power system with control unit
- Non-slip diamond plate platforms for secure vehicle positioning
- Built-in automatic safety stop system
- ETL-certified power unit for reliable operation
Why This Lift Stands Out
The AX-12A is built around dual-cylinder synchronization, which ensures both platforms lift evenly and safely—something critical for alignment work. Combined with its reinforced scissor structure and wide platforms, it gives you the stability needed for consistent, accurate service.
⚠️ Installation & Requirements
- Minimum 4" concrete thickness (3,000 PSI) required
- Must be installed on level concrete surface only (no asphalt)
- Indoor installation recommended for safe operation
- Requires professional electrical setup (220V, properly grounded)
- Air supply required (~0.8 MPa operating pressure)
What's Included
- AMGO AX-12A Alignment Scissor Lift
- Dual platform runway system
- Hydraulic power unit and control cabinet
- Drive-on ramps
- Hydraulic hoses and air lines
- Installation hardware and components
| Specifications | Details |
|---|---|
| Model | AX-12A |
| Lift Type | Alignment Scissor Lift |
| Lifting Capacity | 12,000 lbs (5,500 kg) |
| Max Lifting Height | 72 13/16" |
| Max Lock Height | 71 1/16" |
| Minimum Height | 12" |
| Overall Length | 258" |
| Overall Width | 90 3/16" |
| Runway Width | 24 5/8" |
| Distance Between Runways | 40 15/16" |
| Lifting Time | 75 seconds |
| Motor | 2.0 HP |
| Structural Warranty | 5 Years |
| Hydraulic Components Warranty | 2 Years |
| Electrical Components Warranty | 1 Year |
| Shipping | Free freight shipping (continental U.S.) |
| Processing Time | 1–2 business days (in stock) |
| Delivery Time | Typically 5–10 business days |
