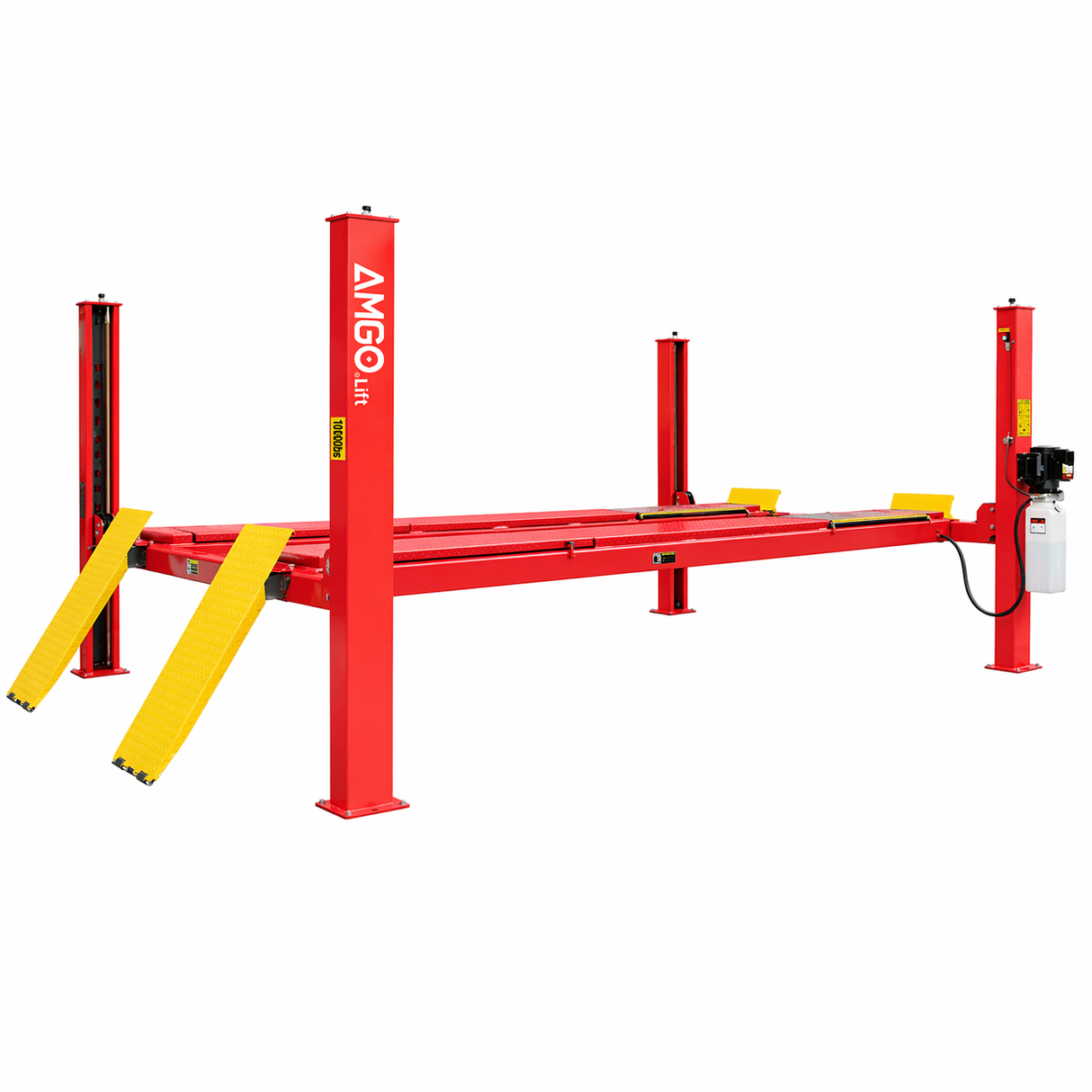

AMGO PRO-12A 4-Post Alignment Lift 12,000 lb Capacity

The AMGO PRO-12A is a 12,000 lb capacity four-post lift designed specifically for alignment and wheel service applications. Built on the proven PRO-12 platform, this model adds integrated slip plates and adjustable turnplate pockets, making it ideal for shops handling alignment, suspension work, and routine service. With a durable cable-driven system, air-operated safety locks, and commercial-grade construction, the PRO-12A delivers reliable lifting performance for high-volume service environments.

Key Features & Benefits

• 12,000 lb lifting capacity for cars, trucks, and SUVs
• Alignment-ready design with integrated slip plates
• Adjustable turnplate pockets for precise wheel service
• ETL-certified AMGO hydraulic power unit included
• Mechanical self-locking safety system with air-operated release
• Multiple safety lock positions with cable-slack protection
• Aircraft-grade cable-driven lifting system
• High-quality hydraulic cylinder with premium oil seals and compensation valve
• Non-slip diamond plate runways for added traction
• Stepless adjustable width between platforms

Built for Alignment & Service Shops

Unlike standard four-post lifts, the PRO-12A is purpose-built for alignment work. The integrated slip plates allow for proper suspension movement during adjustments, while the turnplate pockets make it easy to add alignment turnplates when needed. This makes it a strong fit for shops looking to expand into alignment services without investing in a separate rack.

Installation Requirements

• Minimum concrete thickness: 4 inches
• Minimum concrete strength: 3,000 PSI
• Air pressure required: 0.5–0.8 MPa
• Indoor installation recommended

Optional Accessories

• Turnplates (required for full alignment setup — sold separately)
• Rolling jack (RJ-6A pneumatic / RJ-6H manual, 6,000 lb capacity)
• Air line kit for rolling jacks
• Extension platform kit
• Adjustable block kit for extensions

Documents

• Manual
