AMGO  |  SKU: PRO-12SX

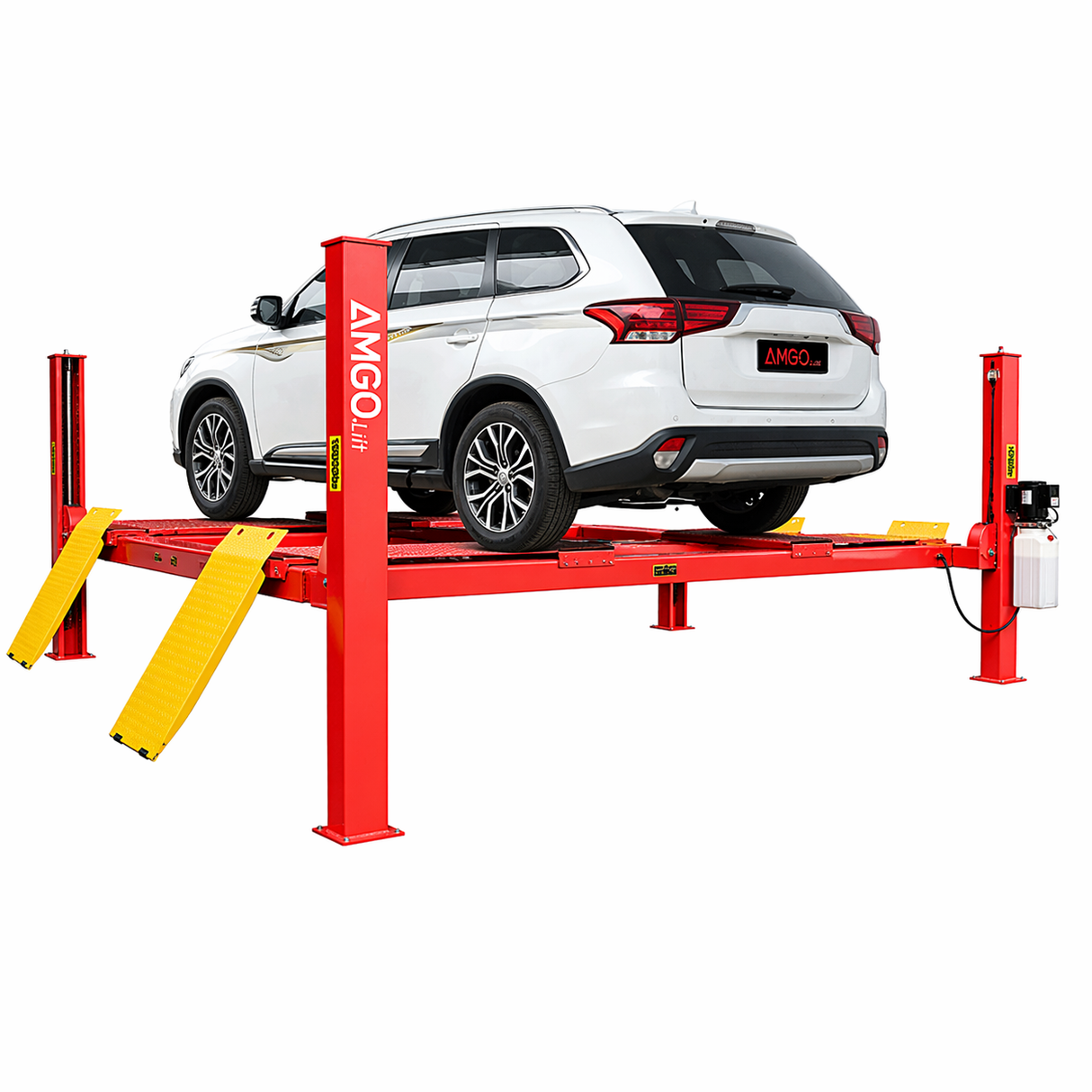

AMGO PRO-12SX 4-Post Car Lift 12,000 lb Capacity

$4,200.00

Delivery Options

This item ships by freight. Drop your details below for an exact shipping quote — or skip the form and call us at (888) 885-7067 and we'll sort it out fast.

Choose your location, then add to cart — it'll be attached to your order.
We're Here When You Need Us
Support team
Instant Live Chat
Available now
(888) 885-7067
Call us and talk to a real person, no call center
info@garageautosupplies.com
Email us for in-depth guidance

We're Available When You Need Us. Give Us A Call or Email.

The AMGO PRO-12SX is a heavy-duty four-post lift designed for general service applications where extra width and drive-through clearance are critical. With over 118 inches between columns and a stepless adjustable runway system, it provides superior accessibility for trucks, vans, and wide-body vehicles. Built for durability and daily shop use, the PRO-12SX combines a robust steel structure, high-quality hydraulic system, and advanced dual safety features for reliable performance in demanding environments.

Key Features & Benefits

  • 12,000 lb lifting capacity for cars, trucks, and commercial vehicles
  • Extra-wide design with over 118" between columns
  • ETL-certified AMGO hydraulic power unit included
  • Mechanical self-locking safety system with air-operated release
  • Multiple safety locks with integrated cable-slack protection
  • Cable-driven system using aircraft-grade steel cables
  • High-performance hydraulic cylinder with premium seals and compensation valve
  • Non-slip diamond plate runways for maximum traction
  • Stepless adjustable width between platforms
  • Heavy-duty steel construction for long-term durability

Installation Requirements

  • Minimum concrete thickness: 4 inches
  • Minimum concrete strength: 3,000 PSI
  • Air pressure required: 0.8 MPa
  • Indoor installation only

Optional Accessories

  • Extension platform kit (+26" length)
  • Rolling jack (RJ-6A pneumatic / RJ-6H manual — 6,000 lb capacity)
  • Air line kit for rolling jacks
  • Adjustable block kit
Specifications Details
Model PRO-12SX
Lift Type Four Post Lift (Extra Wide)
Lifting Capacity 12,000 lbs
Lifting Time 45 seconds
Overall Length (Incl. Ramps) 232 5/8"
Overall Width 132 1/8"
Width Between Columns 118 1/8"
Width Between Runways 35 7/16" – 53 3/4"
Outside Edge of Runways 75 7/16" – 93 3/4"
Max Lifting Height 74 7/16"
Max Lock Height 70 7/8"
Max Height Under Runway 68 7/8"
Max Lock Height Under Runway 65 3/4"
Drive-Thru Clearance 104 3/16"
Overall Height 86"
Minimum Height 6 11/16"
Motor 2.0 HP
Shipping Free freight shipping — continental U.S.
Processing Time 1–2 business days (in-stock items)
Estimated Delivery 5–10 business days
