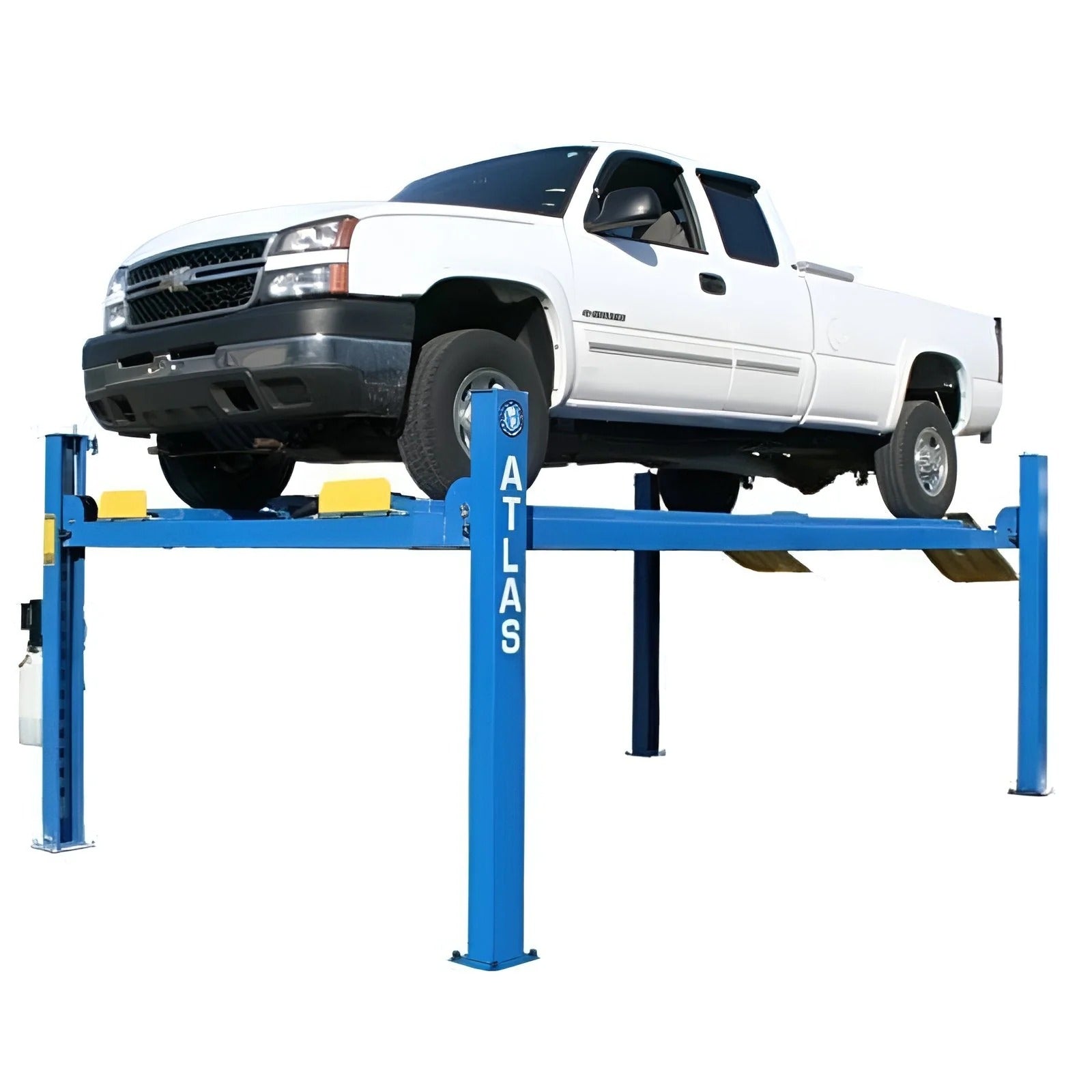

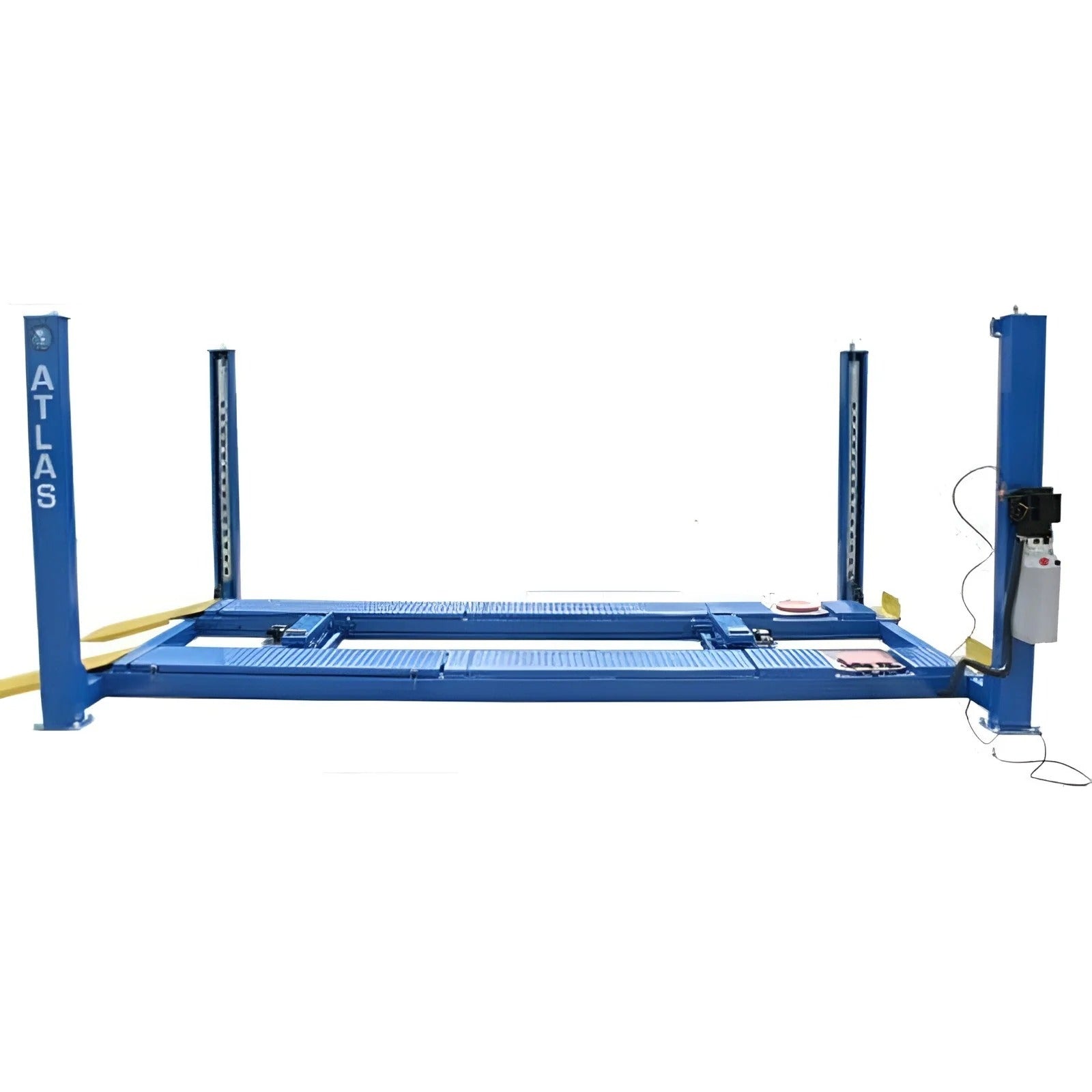

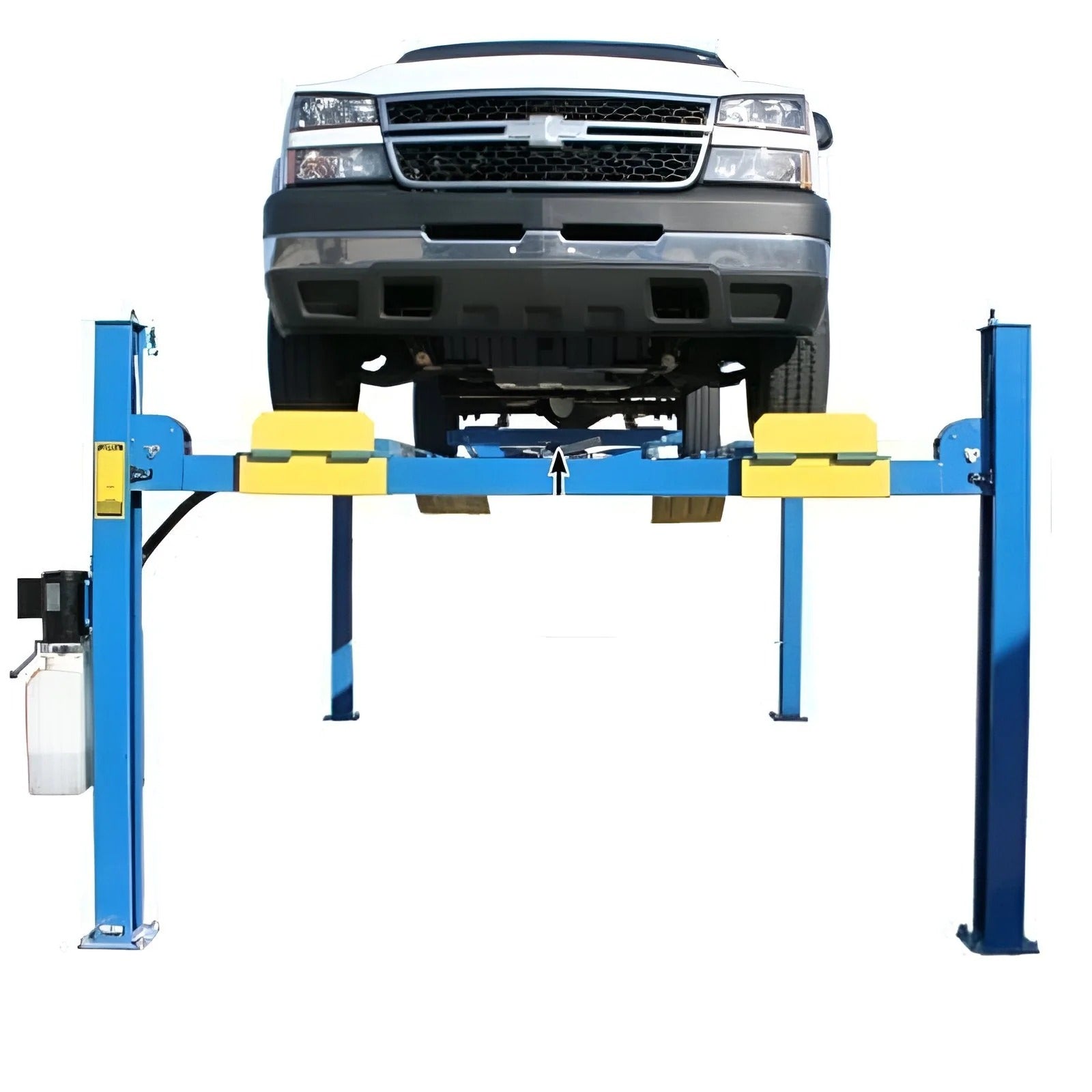

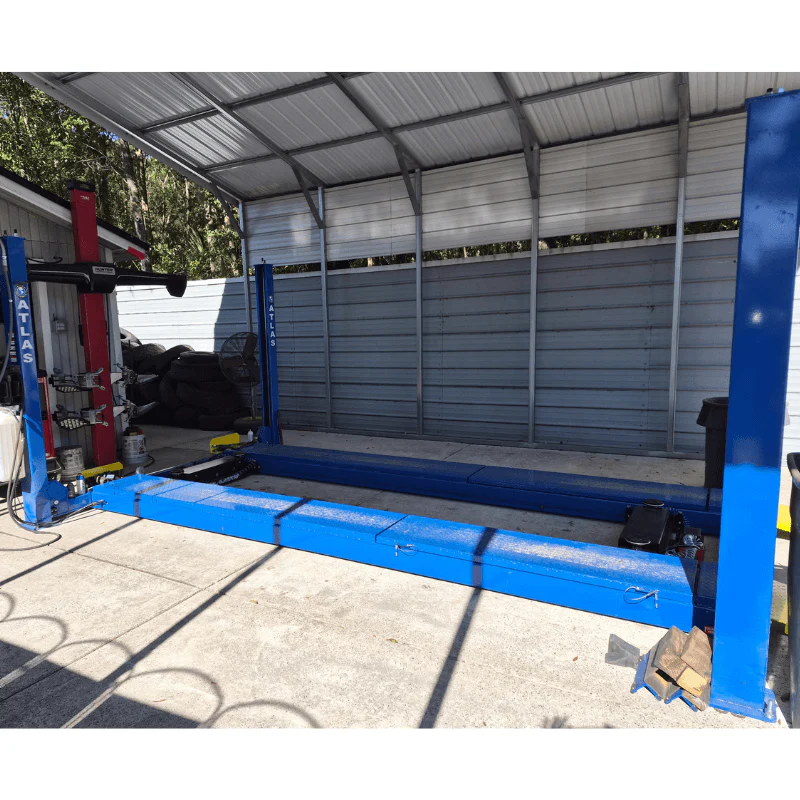

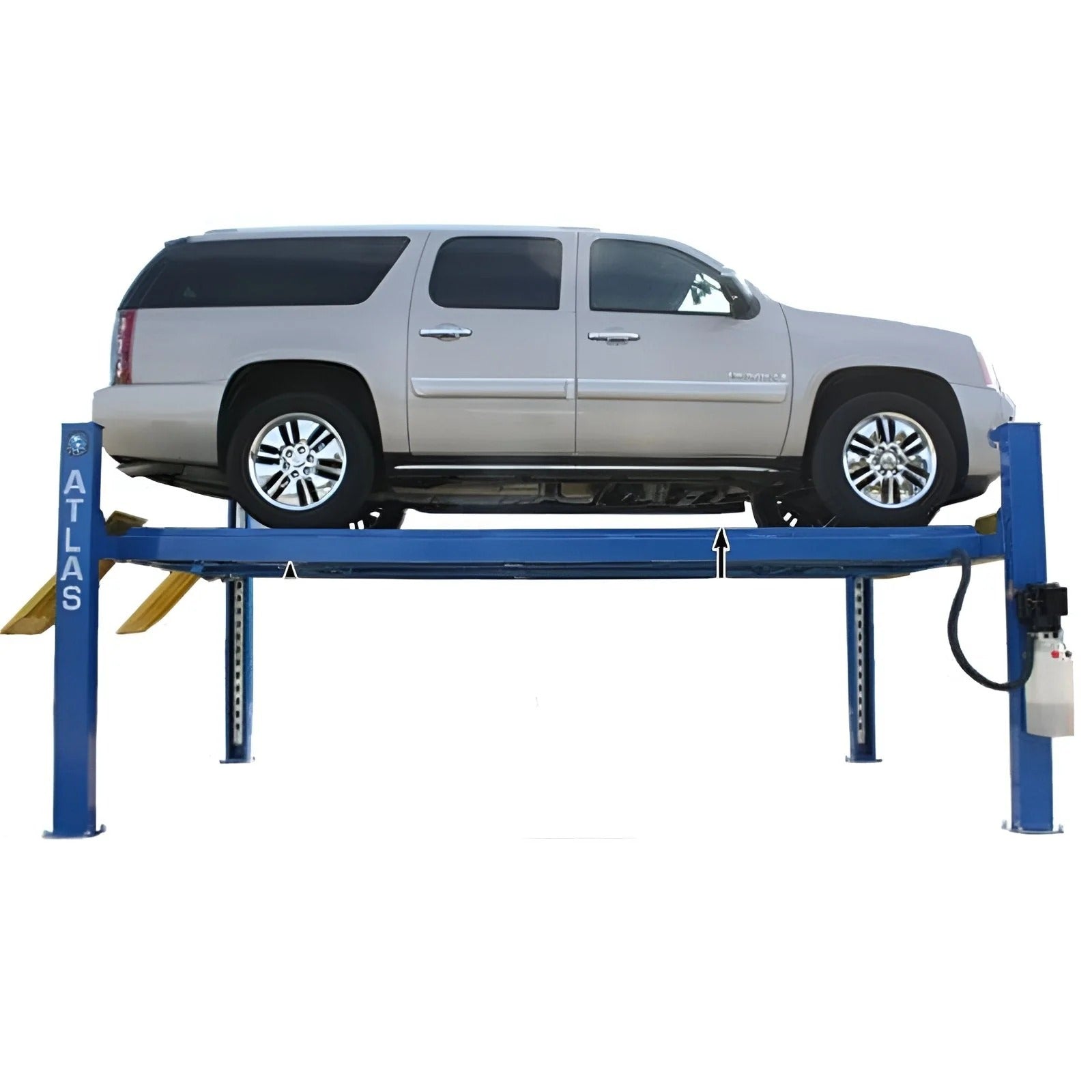

The Atlas 412A Alignment Combo is a commercial-grade 4-post alignment lift package built for shops that need precision alignment capability along with full-service functionality. This combo includes the 12,000 lb Atlas 412A alignment lift and two RJ6 rolling bridge jacks, making it a complete solution for alignments, tire work, suspension, and brake service.
The 412A builds on the standard 412 platform by adding built-in slip plates and alignment turntables, allowing accurate and efficient wheel alignments. The adjustable turntables can be positioned to accommodate a wide range of wheelbases, while included cover plates let you convert the lift back to standard service use when needed.
Designed for durability and performance, the lift features a high-strength cable system with an under-runway hydraulic cylinder, delivering smoother operation and easier leveling compared to traditional chain-driven lifts. Its extra tall, wide, and long design supports everything from passenger vehicles to long wheelbase trucks.

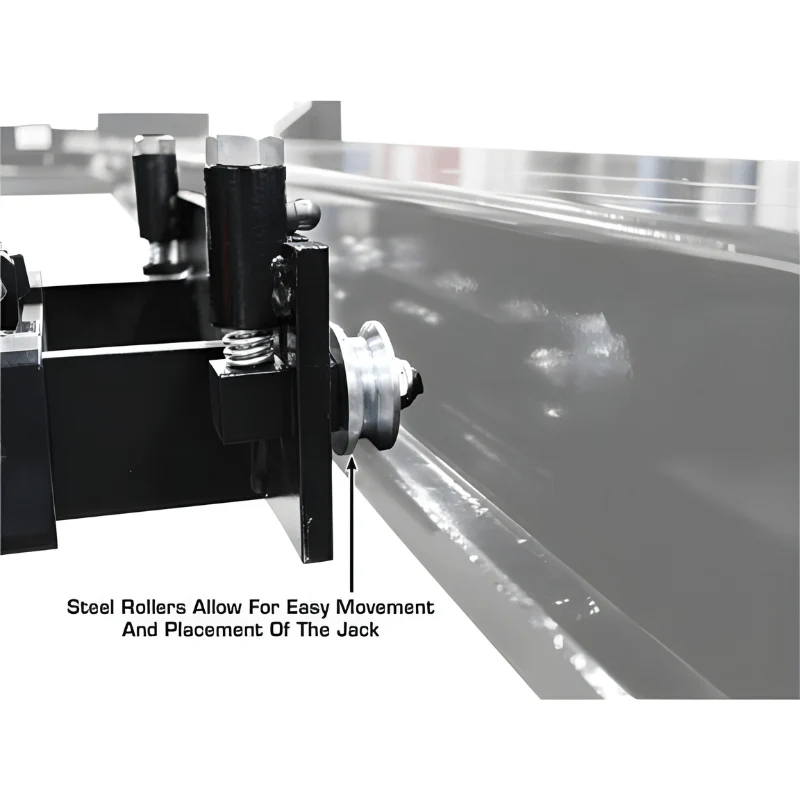

The included RJ6 rolling jacks allow technicians to lift vehicles off the runways, turning this alignment lift into a fully functional service station.
Features and Benefits

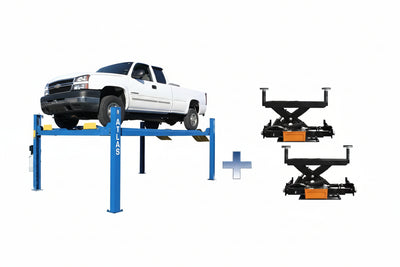

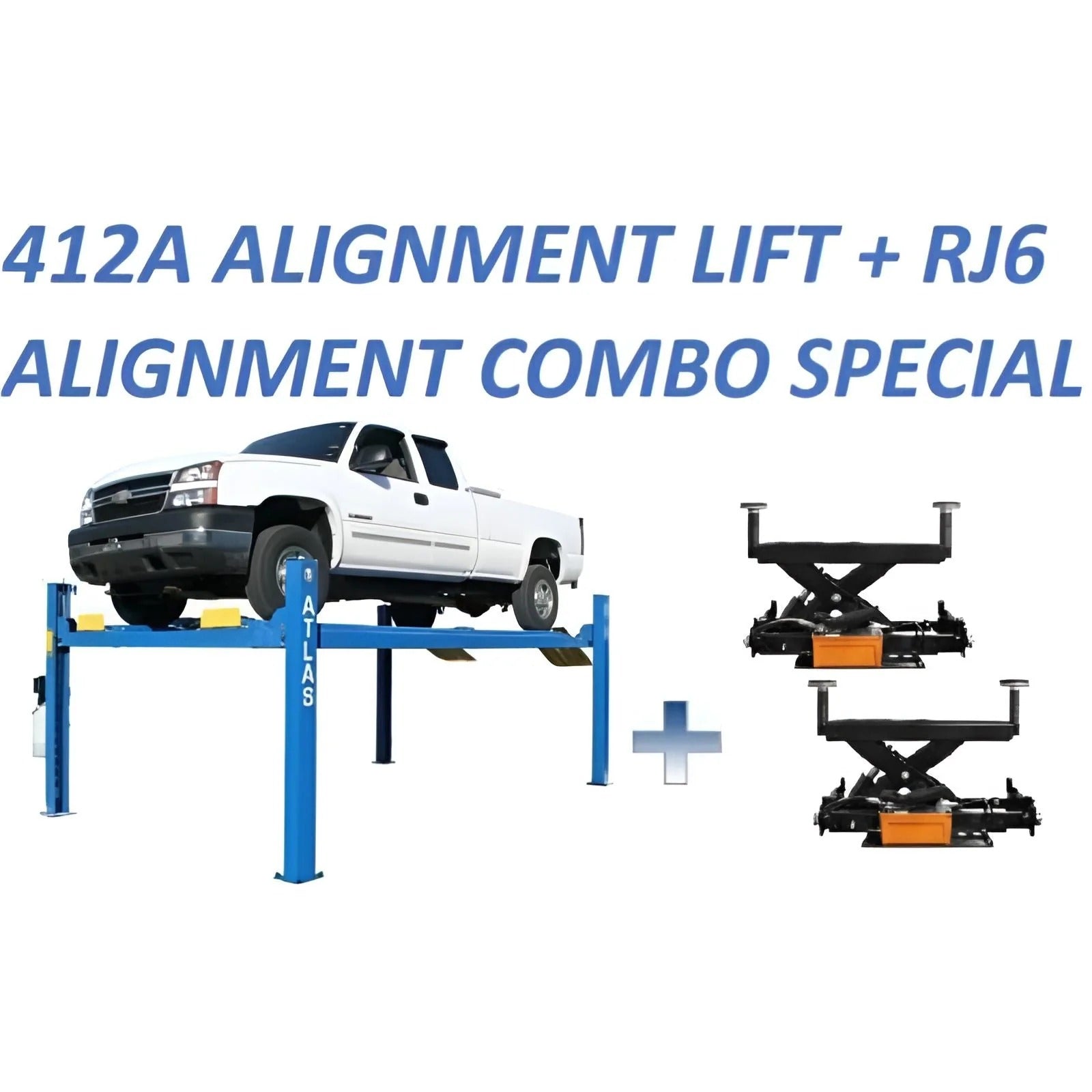

- Combo includes Atlas 412A alignment lift and two RJ6 rolling jacks
- 12,000 lb lift capacity with dual 6,000 lb rolling jacks
- Heavy-duty commercial-grade construction

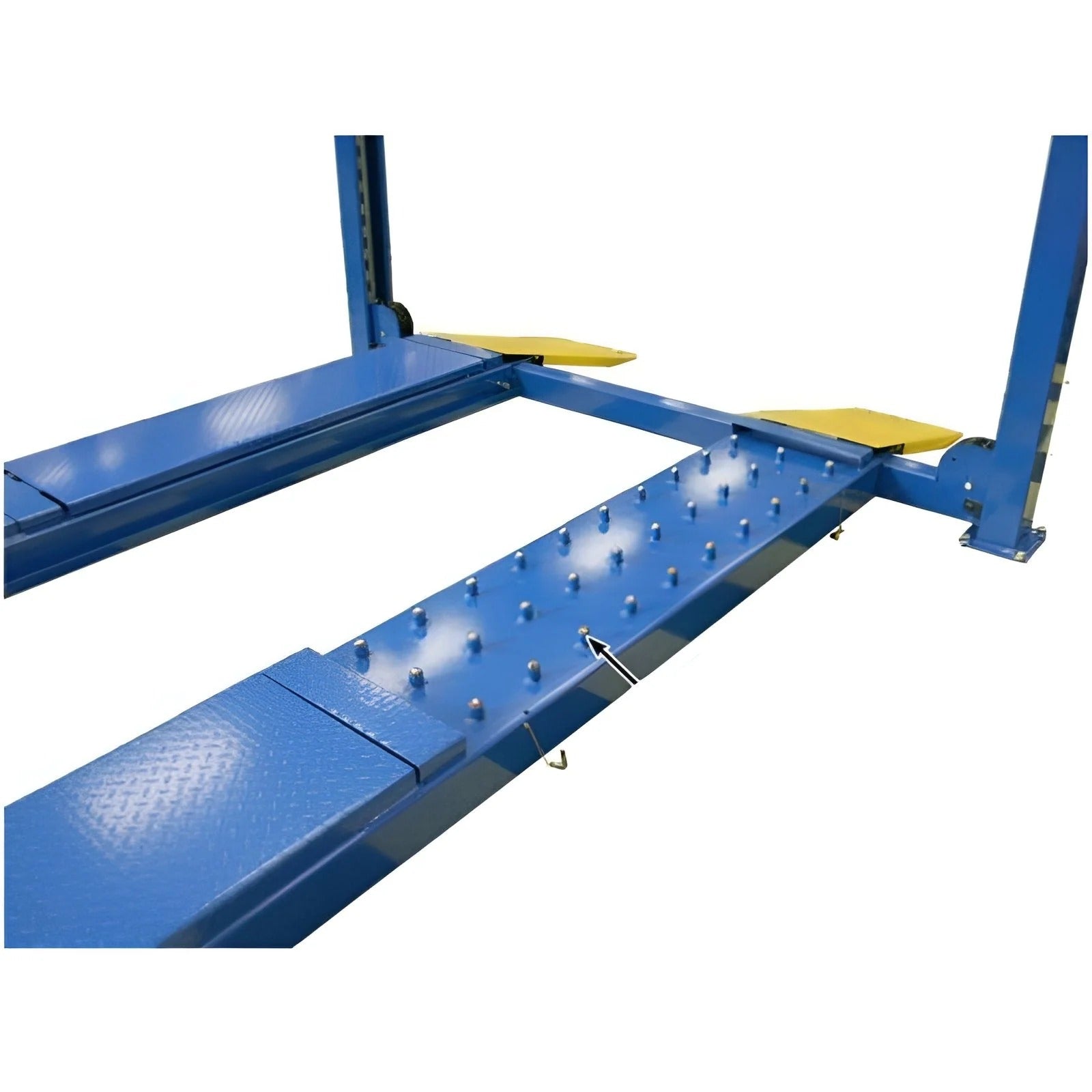

- Built-in slip plates for precise alignment work

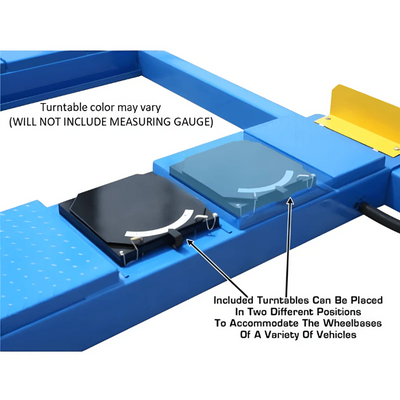

- Adjustable alignment turntables included
- Turntable cover plates for multi-purpose use
- Extra tall, extra wide, and extra long design
- Diamond-plated runways

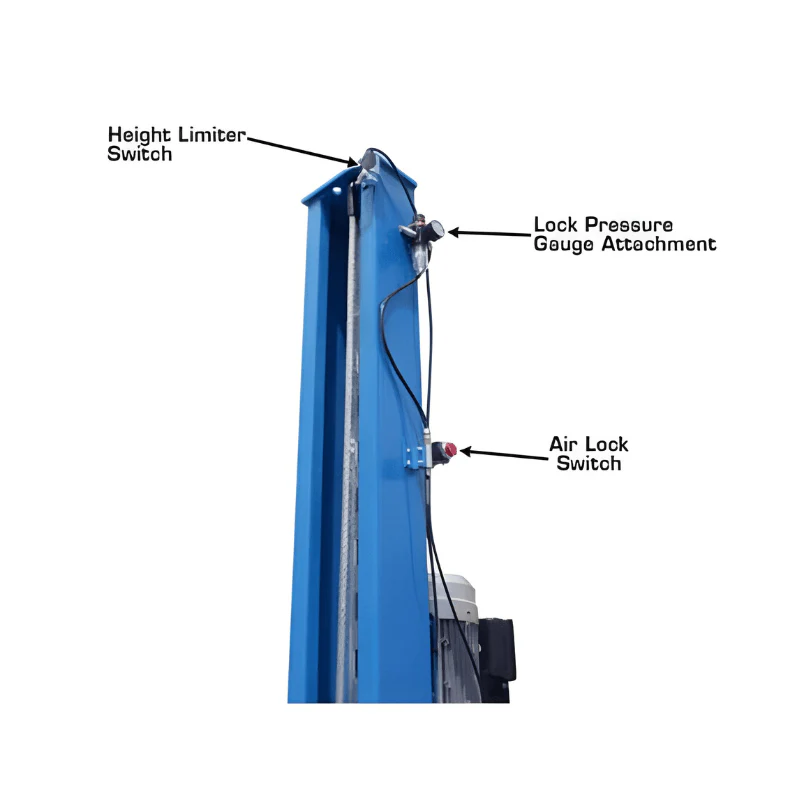

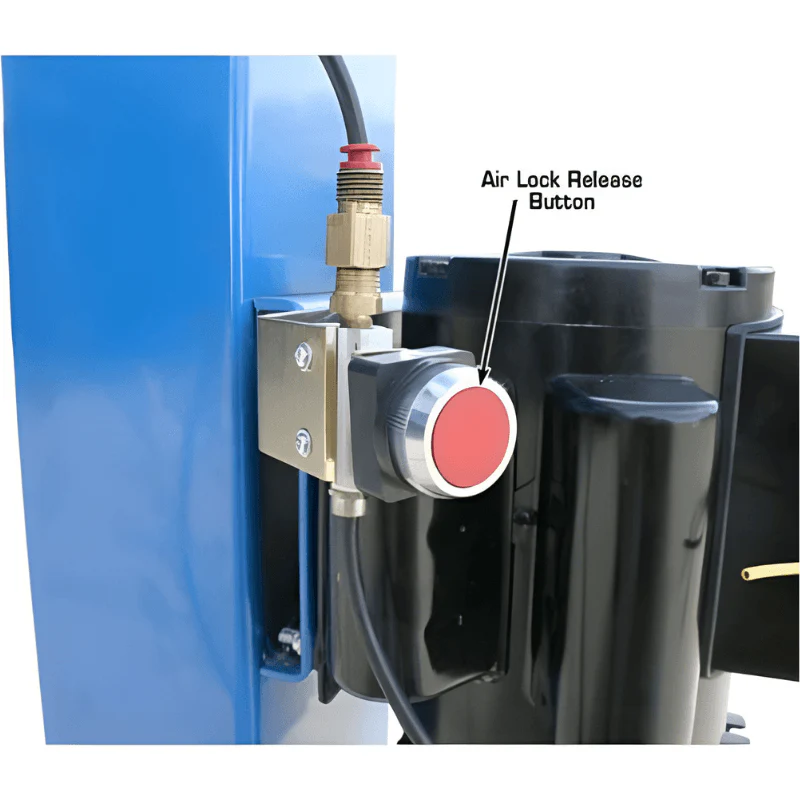

- Air-operated single-point lock release (external air required)

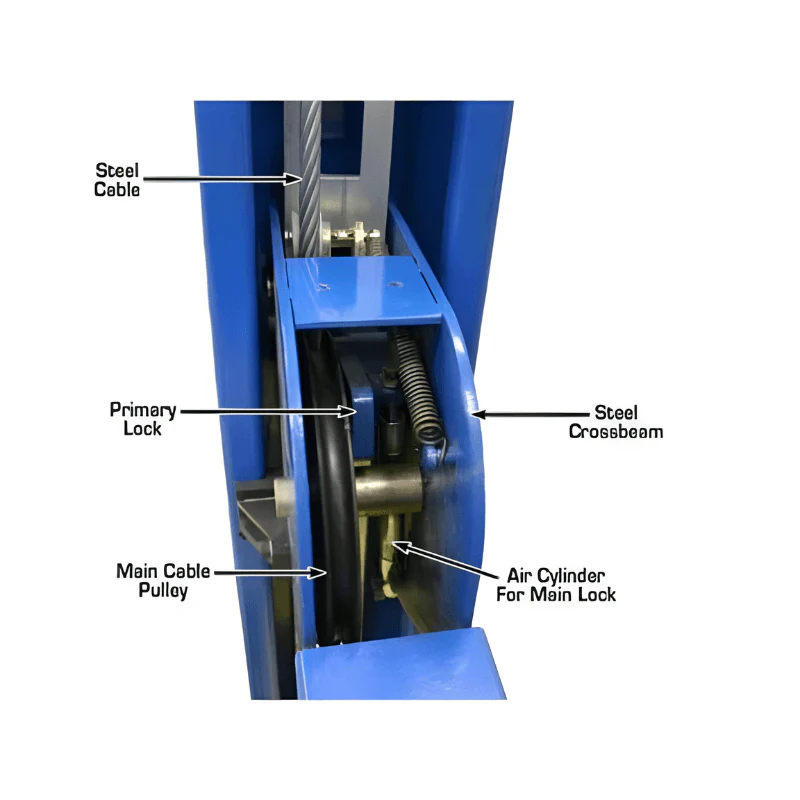

- High-strength cable system with concealed hydraulic cylinder

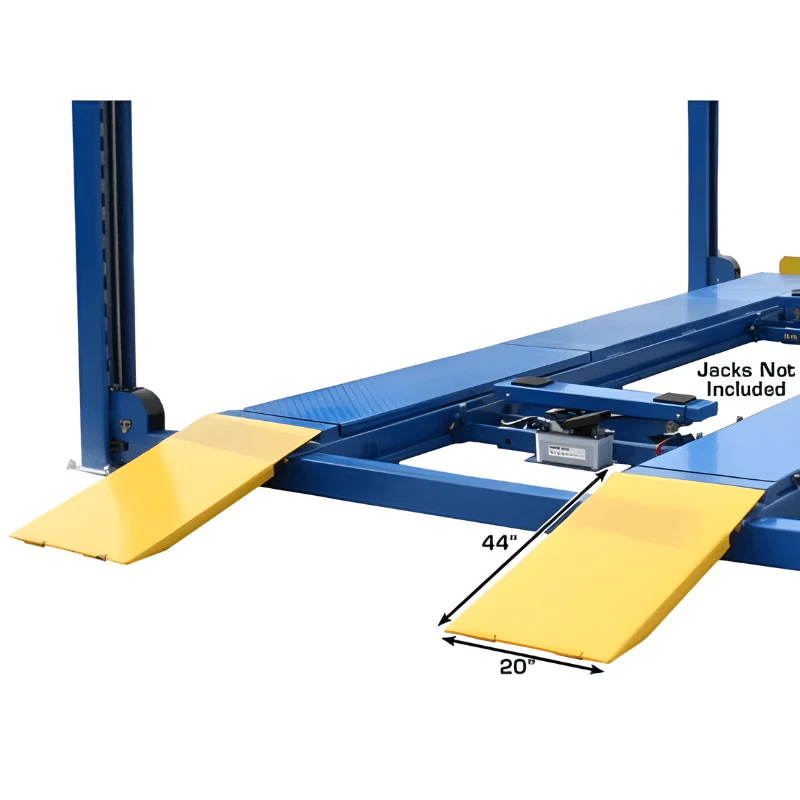

- Steel approach ramps included
- Optional drive-off ramps and runway extensions available

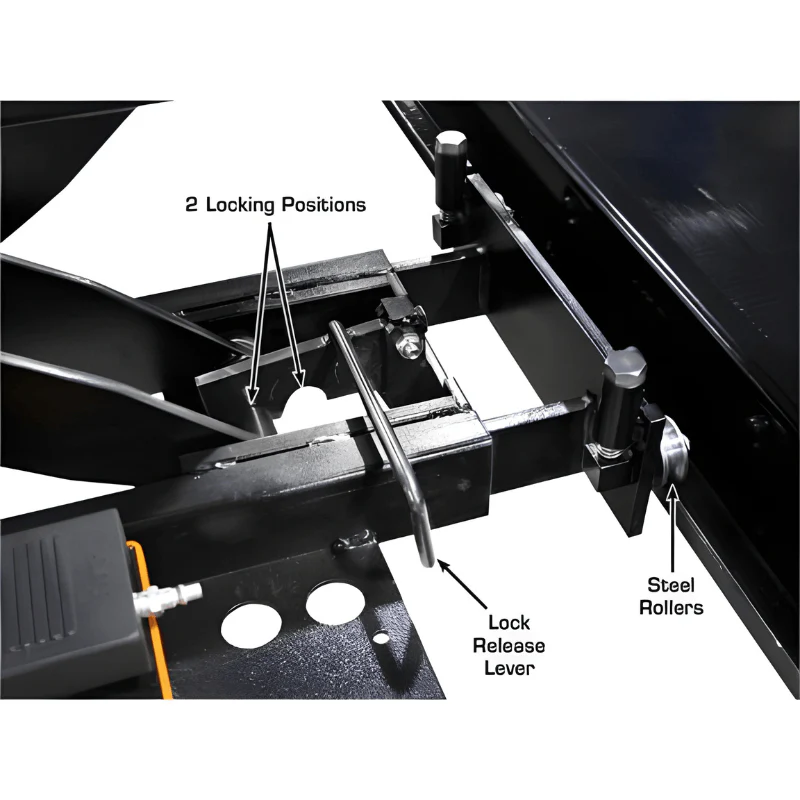

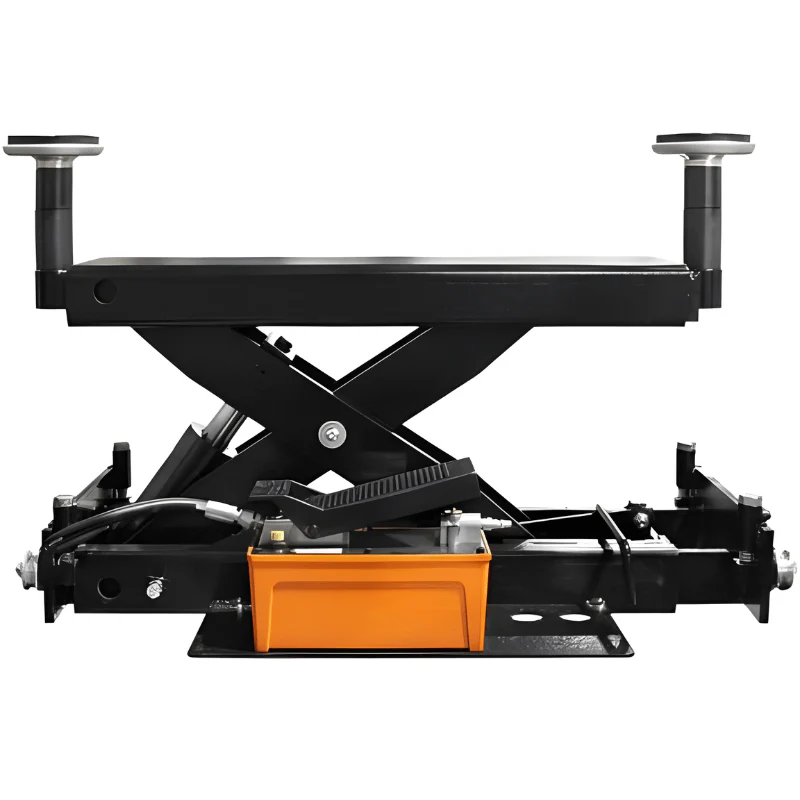

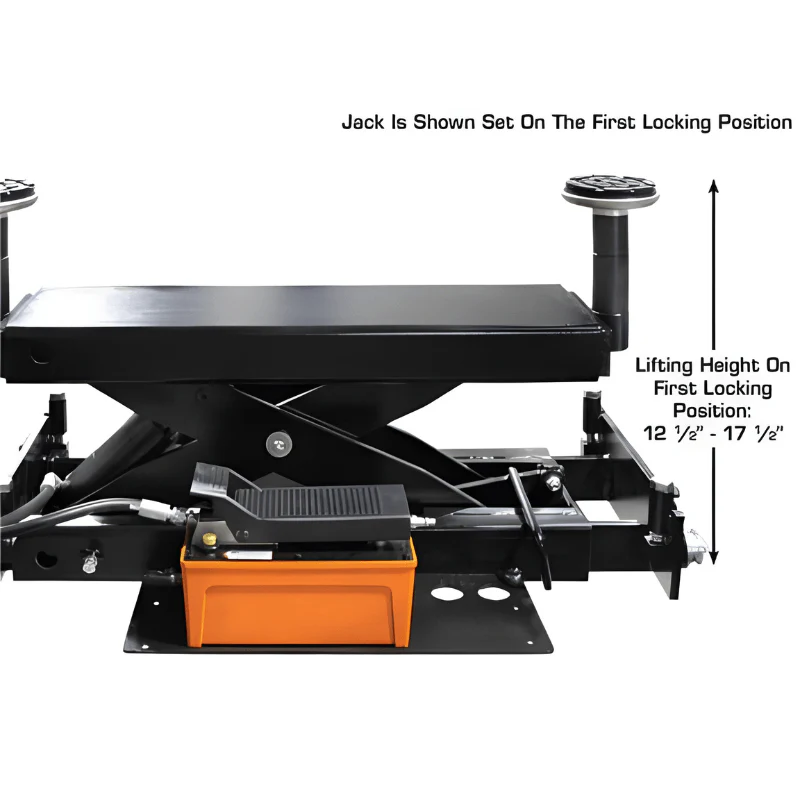

- Rolling jacks are air-over-hydraulic operated
- Truck adapter set included for each jack
- Ideal for alignment and full-service repair shops
- Freight prepaid
Atlas 412A
| Specifications | Details |
|---|---|
| Capacity | 12,000 lbs. |
| Lifting Height, Top of Runway | 77 3/4" (6' 5 3/4") |
| Clearance Under Runways | 70 1/4" (5' 10 1/4") |

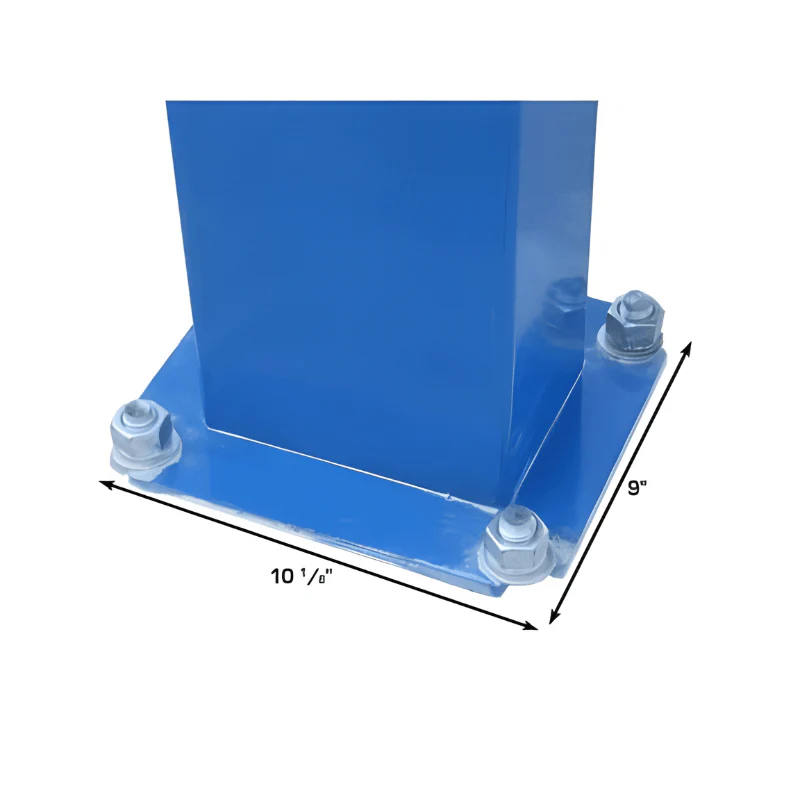

| Height of Columns | 89 3/4" (7' 5 3/4") |
| Overall Width | 126 1/4" (10' 6 1/4") / w/ Motor 135 1/4" (11' 3 1/4") |
| Overall Length w/ Ramps | 236 1/2" (19' 8 1/2") |
| Runway Length | 194 1/2" (16' 2 1/2") |
| Runway Width | 20" |
| Runway Thickness | 7 1/2" |
| Width Between Runways | 43 1/4" / w/ Rail 39 3/4" |
| Outside Runway to Outside Runway | 83 1/4" (6' 11 1/4") |
| Clearance Between Columns | 112 5/8" (9' 4 5/8") |
| Length Between Columns | 183 1/4" (15' 3 1/4") |
| Drive Thru | 98" (8' 2") |
| Air Requirement | 85–115 PSI |

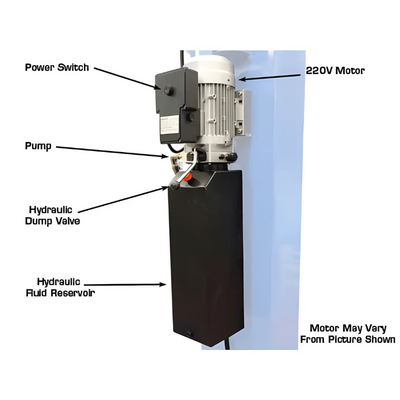

| Motor/Electrical Requirement | 220V / 1 Phase, 30 Amp Breaker Required |
| Oil Requirement | 3–5 Gallons AW32 or AW46 (Not Included) |

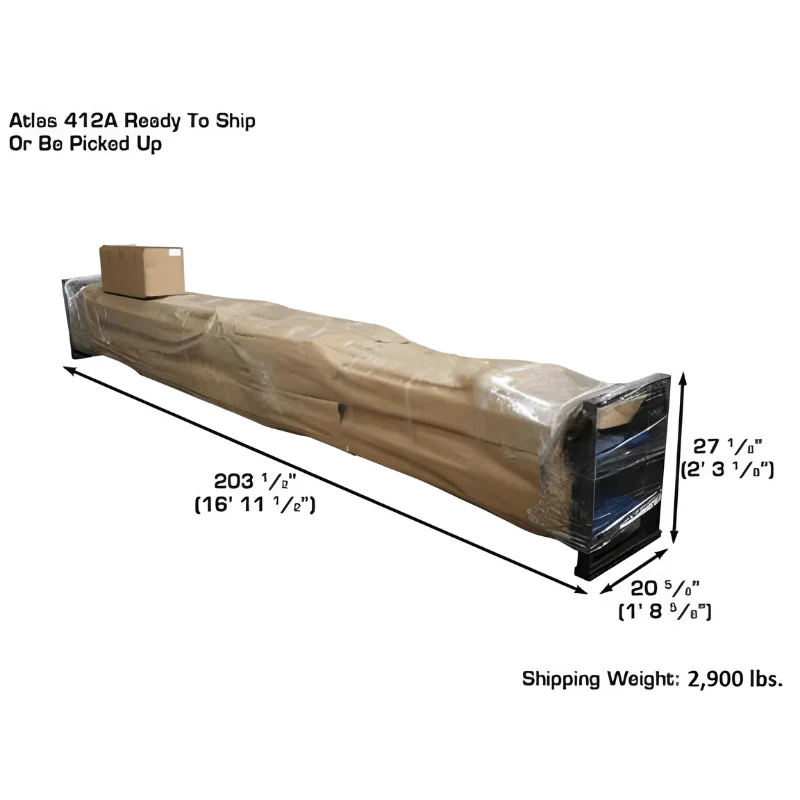

| Shipping Weight | 2,900 lbs. |
Atlas RJ6BK
| Specifications | Details |
|---|---|
| Capacity | 6,000 lbs. |

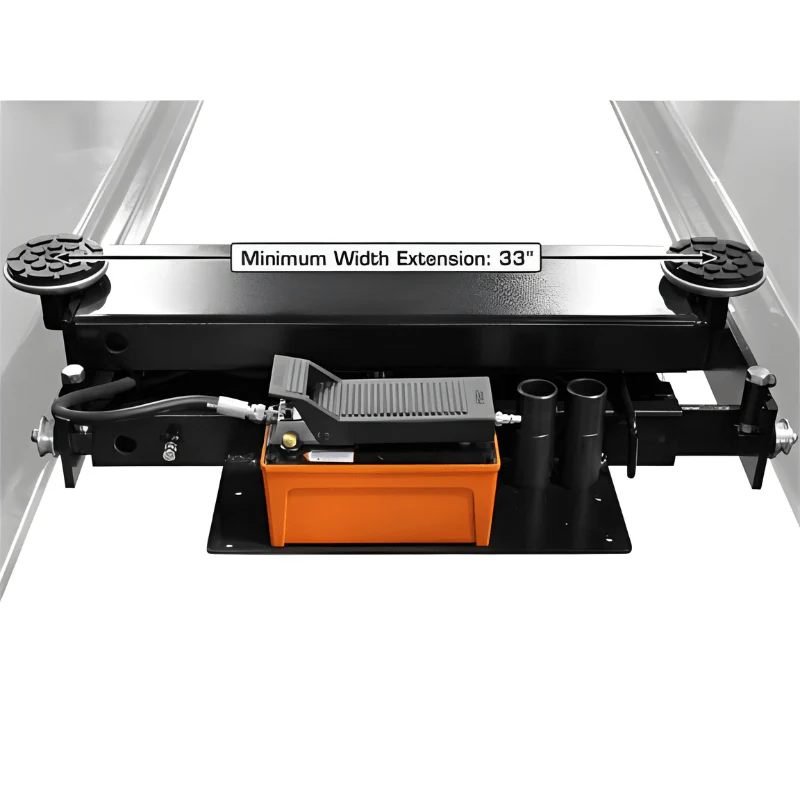

| Minimum Width | 35" |

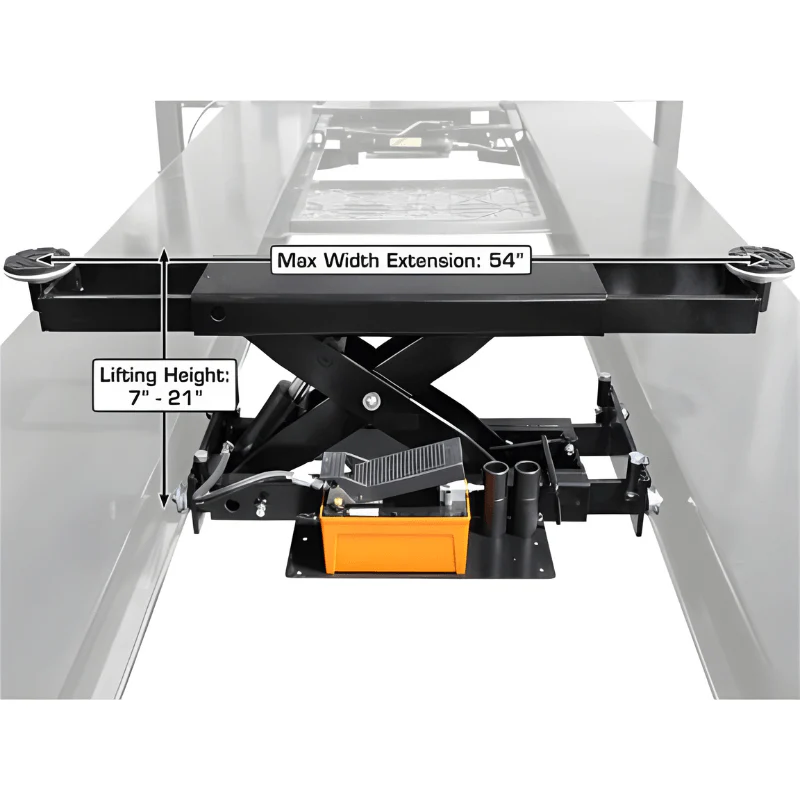

| Maximum Width | 55" |
| Distance Between Runway Capability | 32" – 52" |
| Minimum Lifting Height | 8 1/4" |

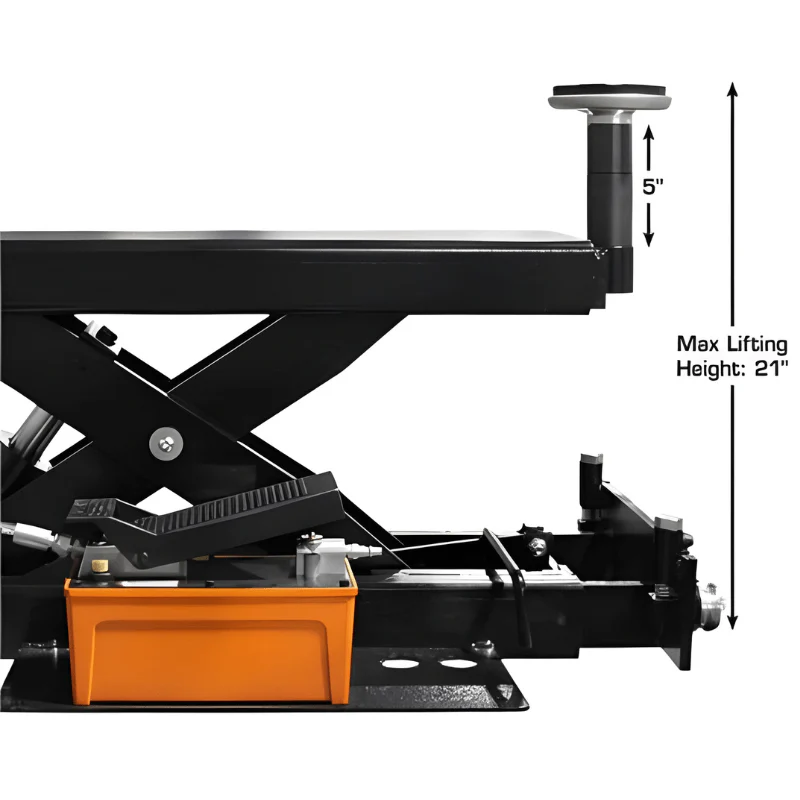

| Maximum Lifting Height (w/ Adapters) | 21" |
| Air Requirement | 70–115 PSI |

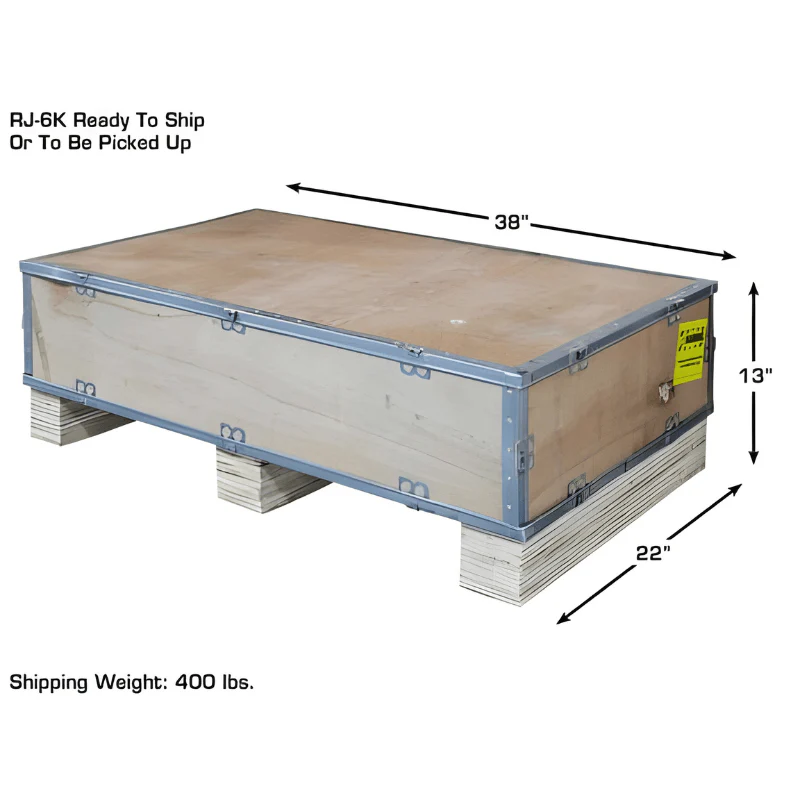

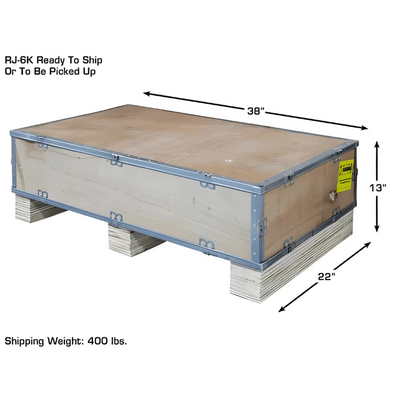

| Shipping Weight | 350 lbs. |

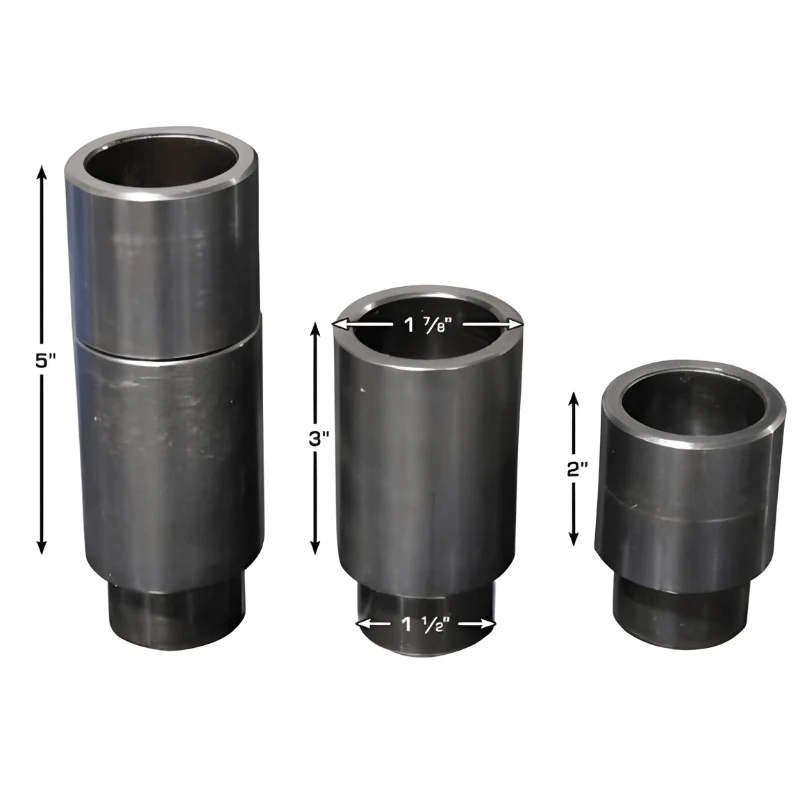

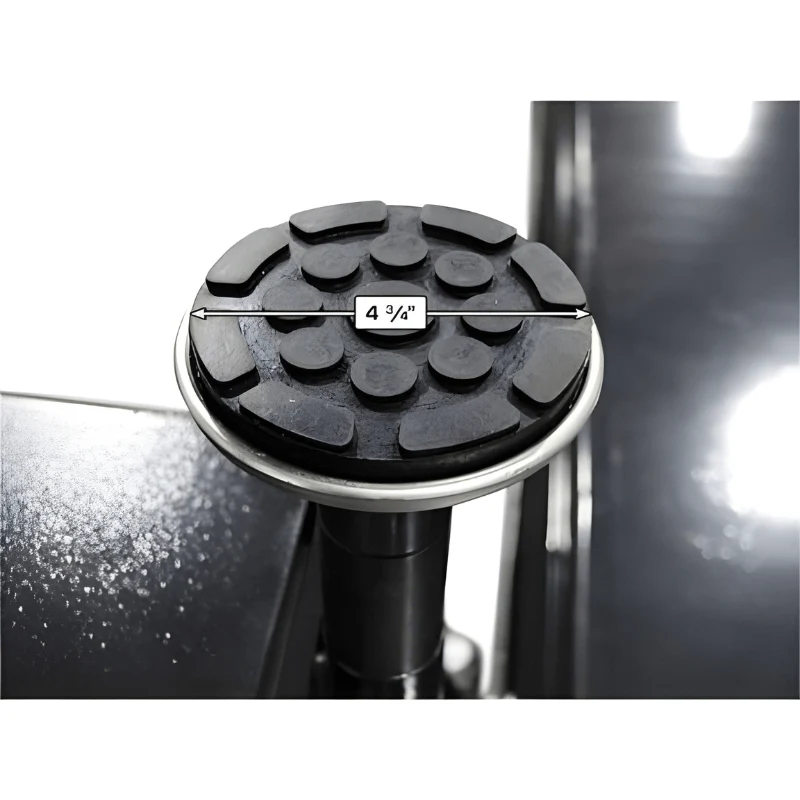

| Adapter Heights | 2 Each: 2", 3" |
| Arm Hole/Adapter Peg Size | 1 1/2" |
