Atlas 9KOHX 9,000 lb Overhead 2-Post Lift
SKU: ATEXH-9KOHX
Pairs well with

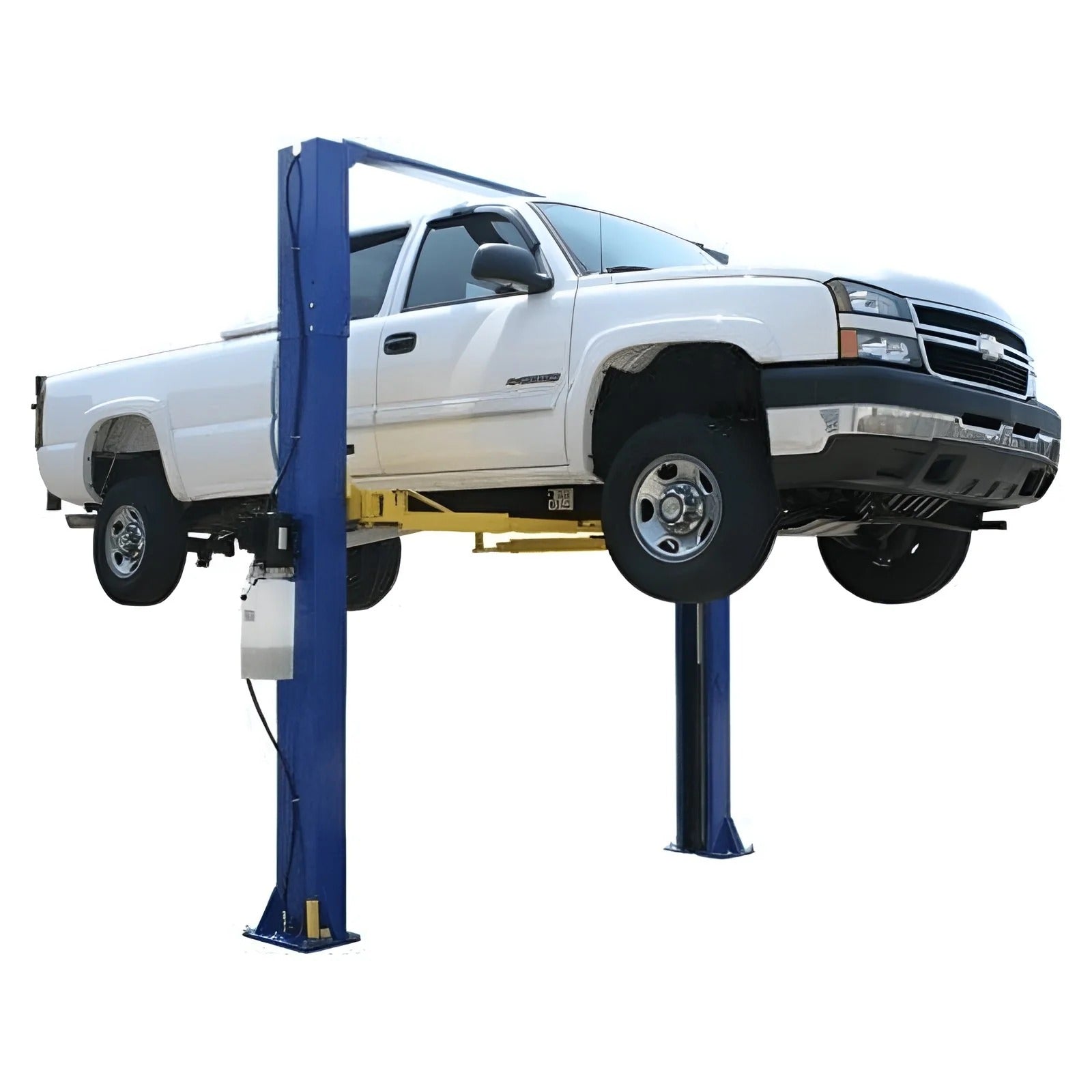

The Atlas PRO-9D 2-post lift is designed for smaller commercial repair facilities as well as home garage users who want reliable performance at a strong value. With a true 9,000 lb lifting capacity, this overhead, open-floor lift provides dependable operation for a wide range of vehicles.

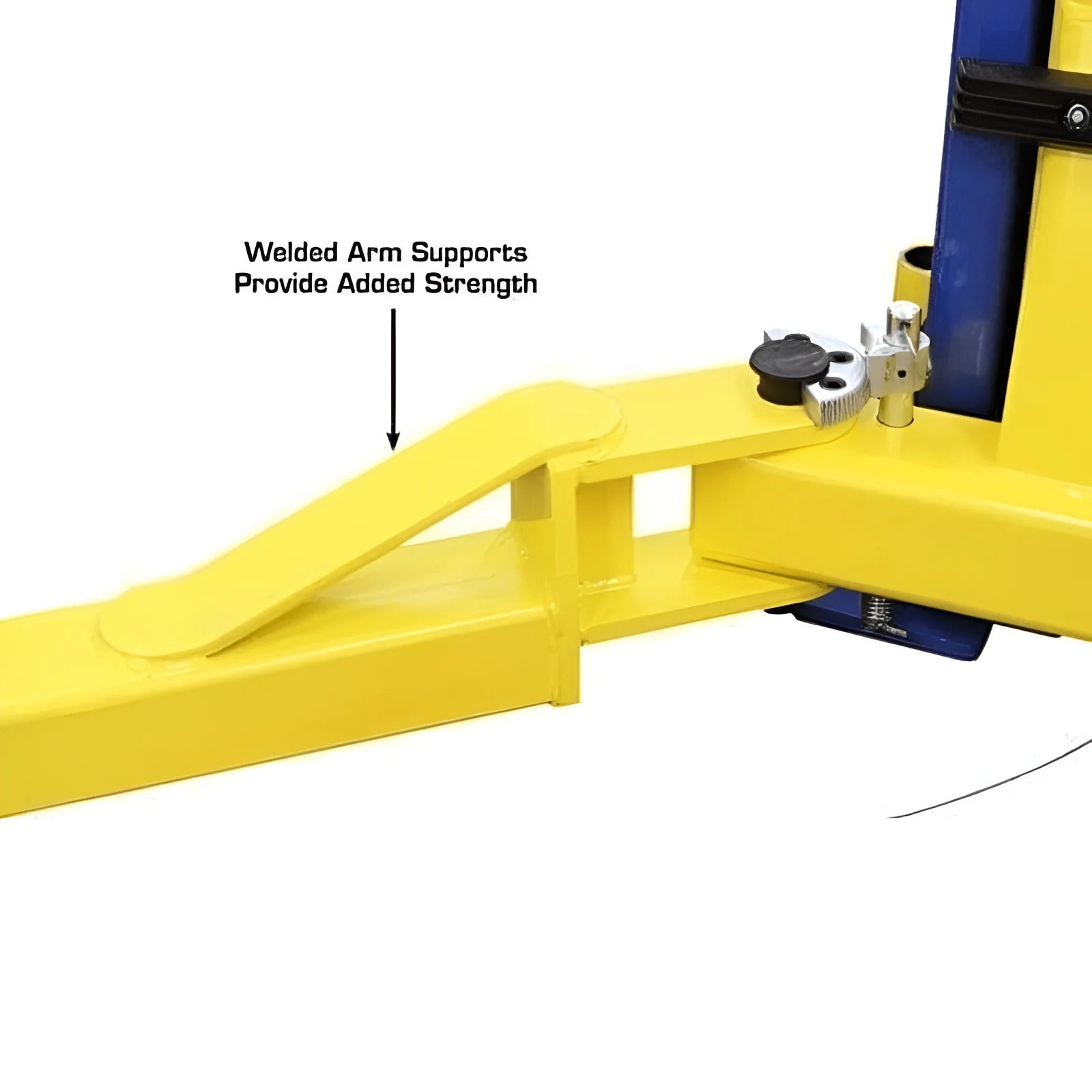

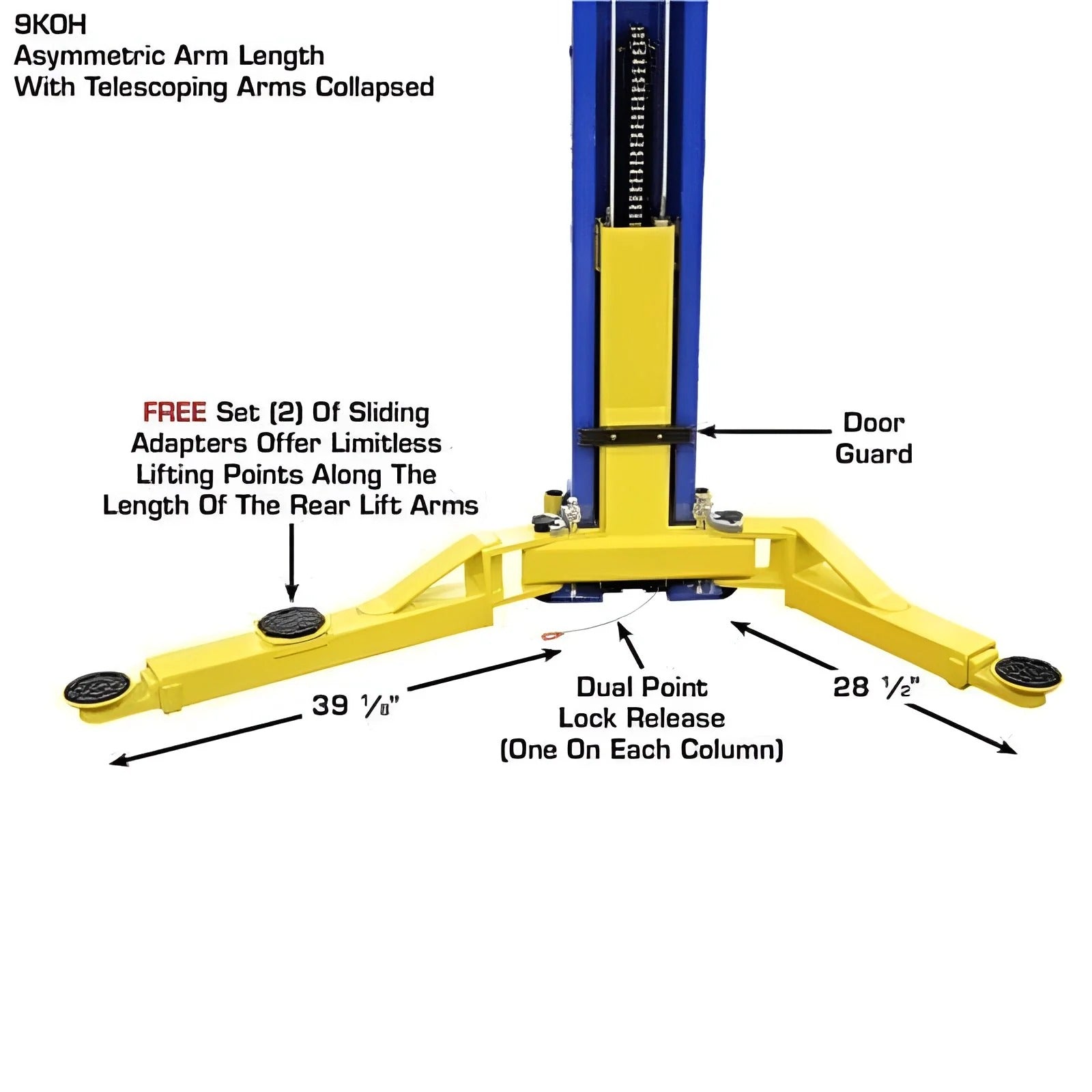

Standing at 12 feet tall, the PRO-9D features symmetric columns and adjustable arms that can be configured in either symmetric or asymmetric positions. This flexible arm design allows for a lower lift pad height, making it easier to position under vehicles with low pickup points, including smaller cars and larger trucks.

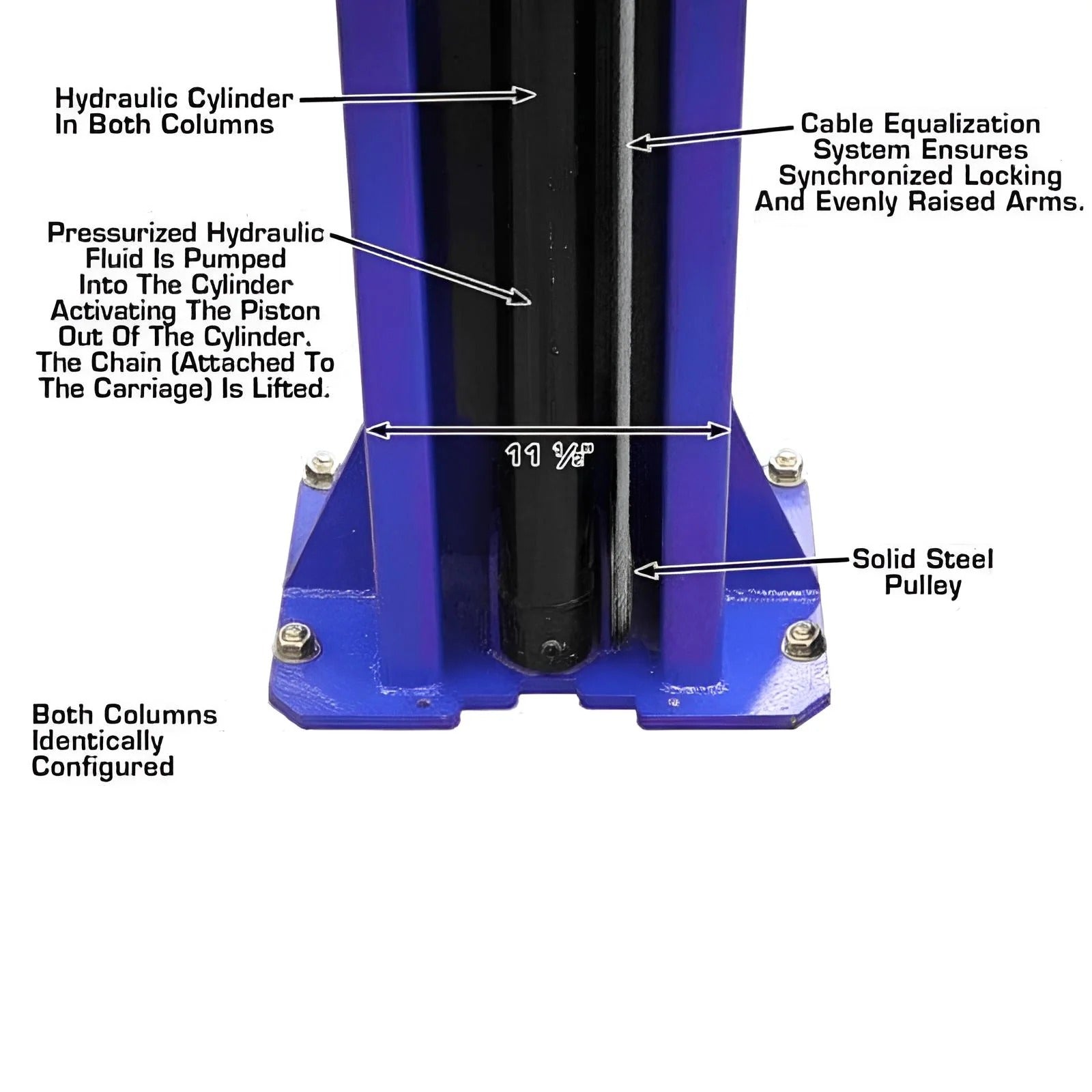

The lift is equipped with dual direct-drive cylinders, reducing the number of moving components and supporting long-term durability and consistent lifting performance. Its overhead design keeps the floor area clear, improving workspace efficiency.

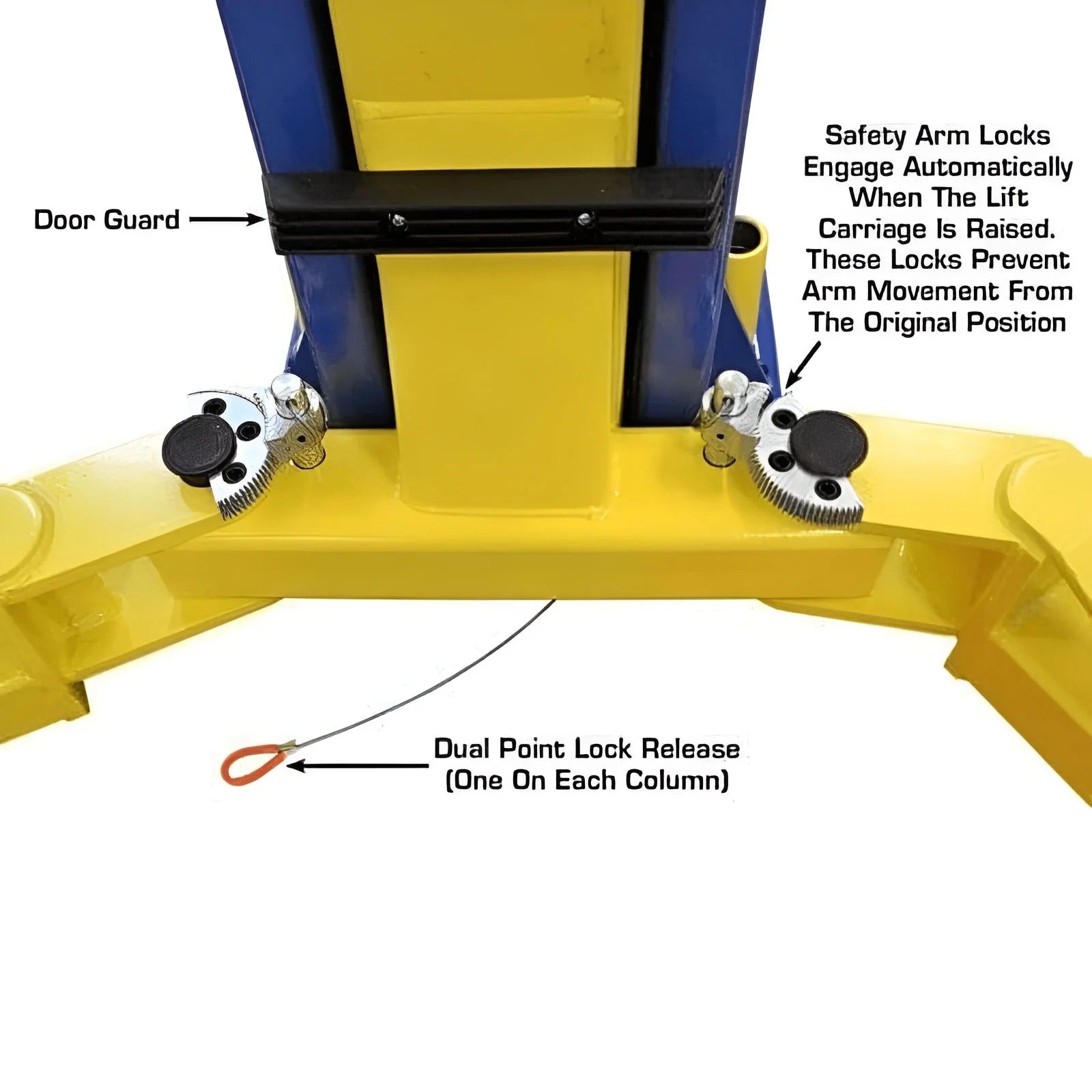

Additional features include automatic arm restraints, a single-point lock release system for simplified operation, and rubber guards on the carriages to help protect vehicle doors during use. The unit is finished with a durable powder coat for added protection and longevity.

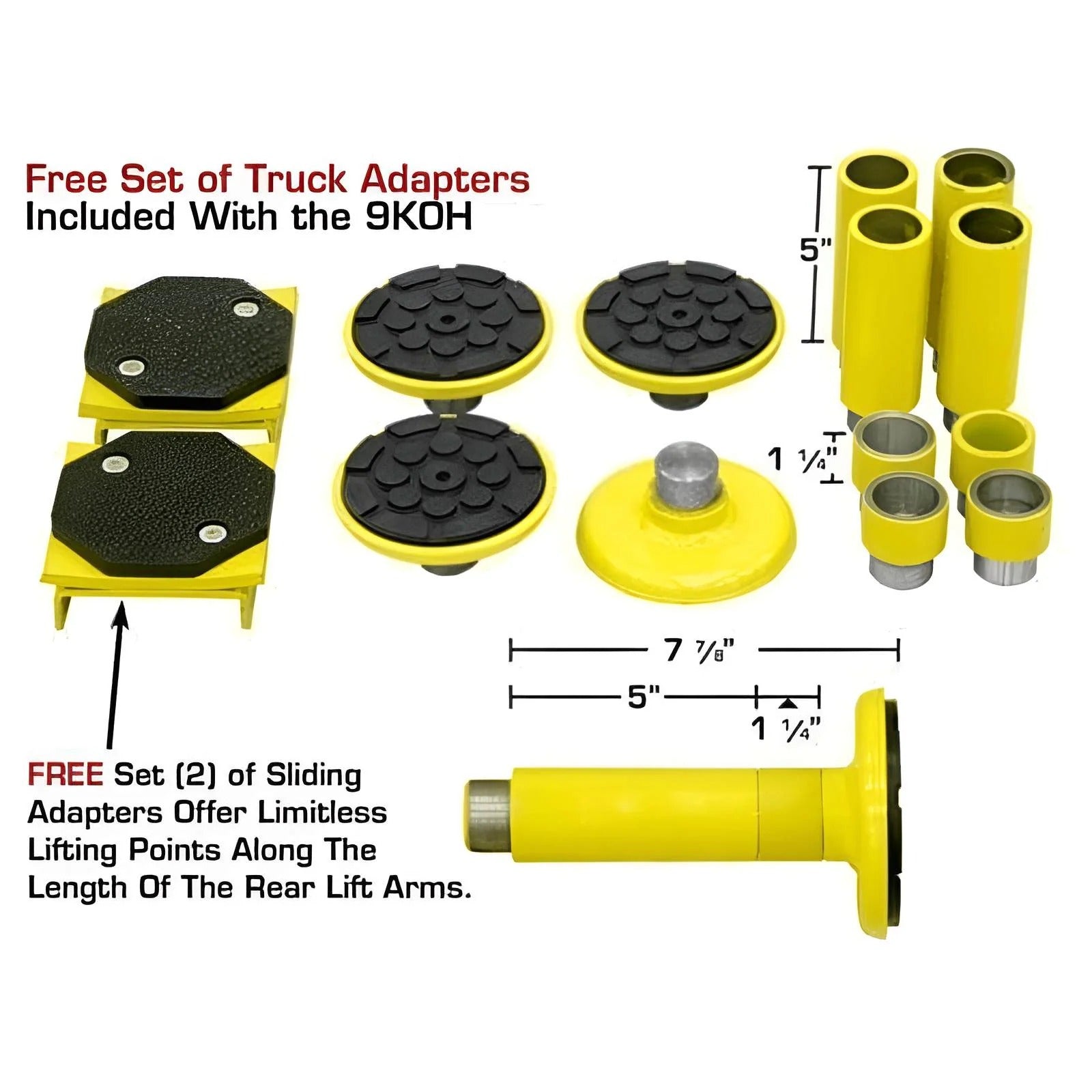

A free 8-piece truck adapter set is included, along with mounting hardware for installation.
Features and Benefits
- 9,000 lb capacity
- Overhead open-floor design
- Overall height: 144" (12’)

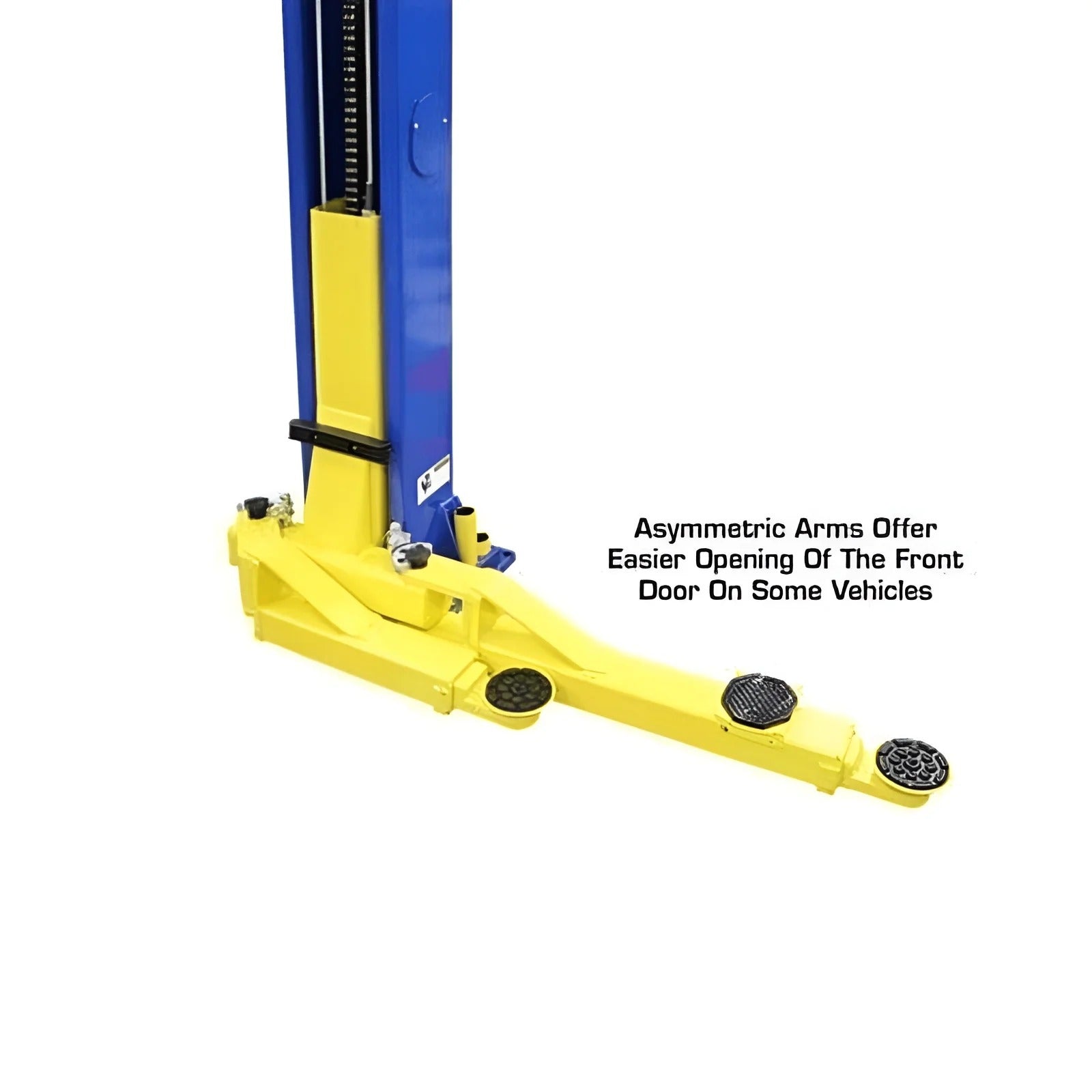

- Asymmetric and symmetric arm configuration
- Automatic arm restraints
- Single-point lock release

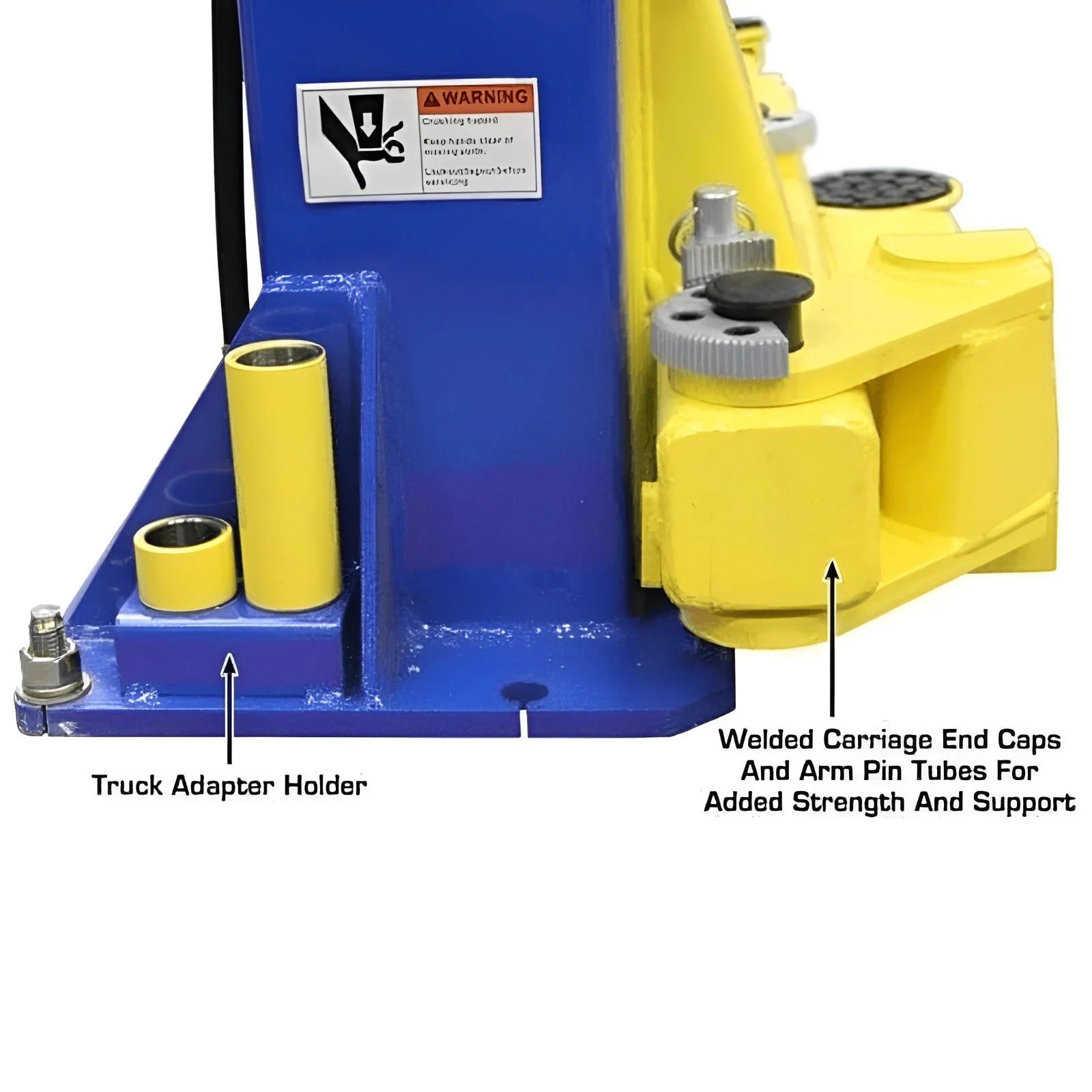

- Rubber guards on carriages
- Dual direct-drive cylinders
- Powder coat finish
- Free 8-piece truck adapter set

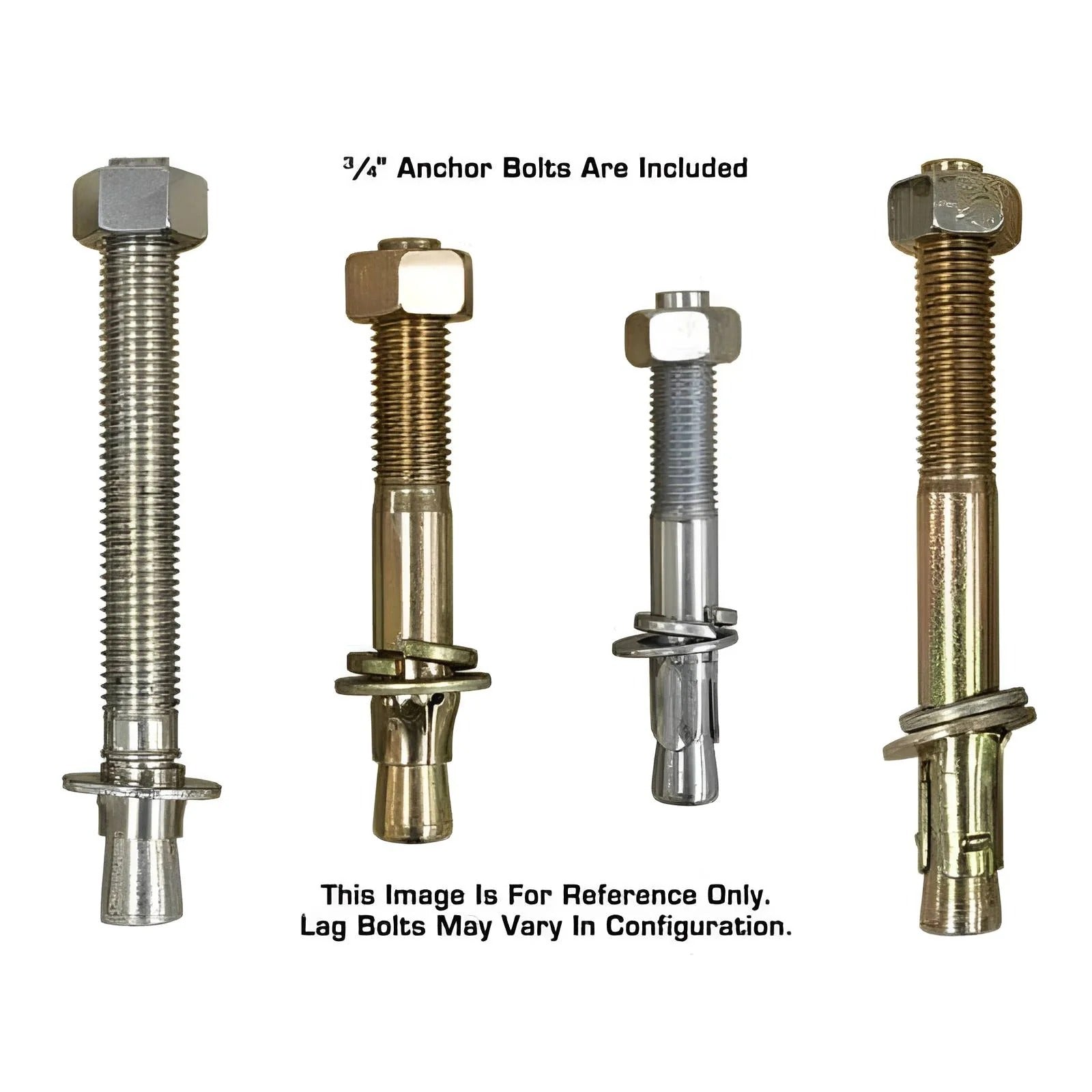

- Mounting hardware included
- 5-year structural warranty, 2-year hydraulic-power warranty

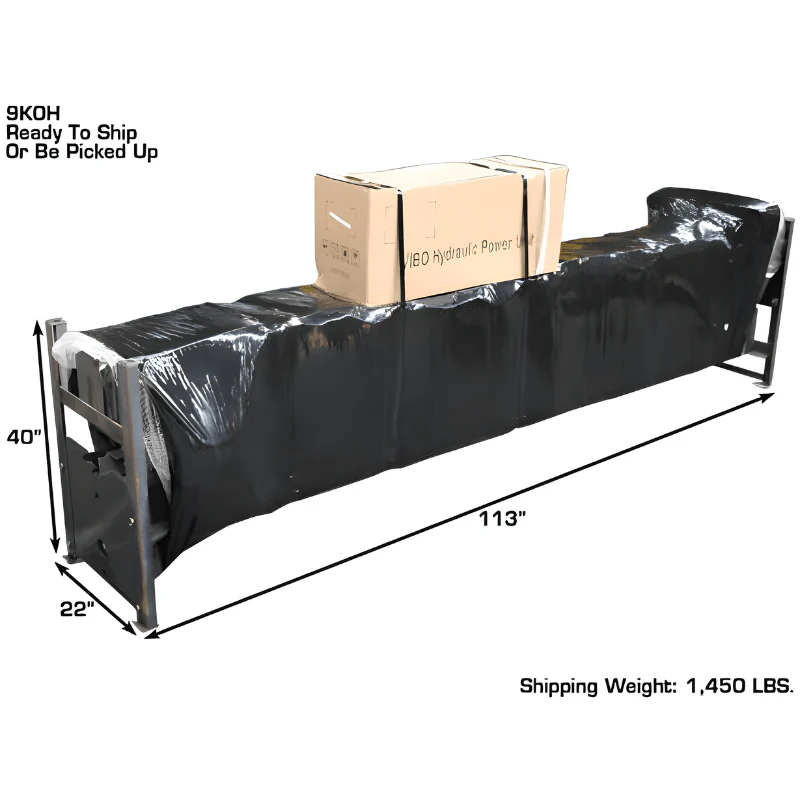

- Shipping weight: 1,450 lbs

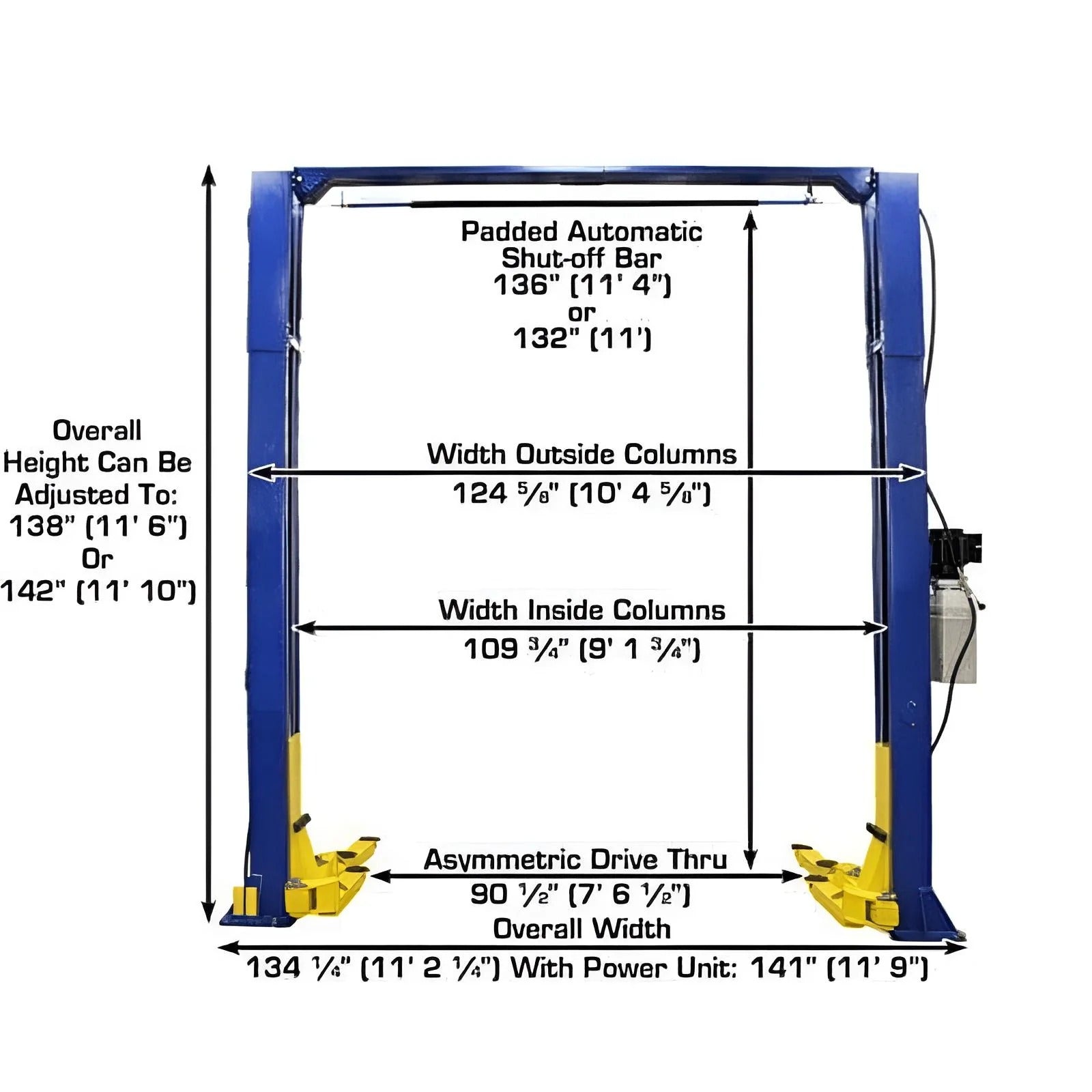

| Specifications | Details |
|---|---|
| Capacity | 9,000 lb |

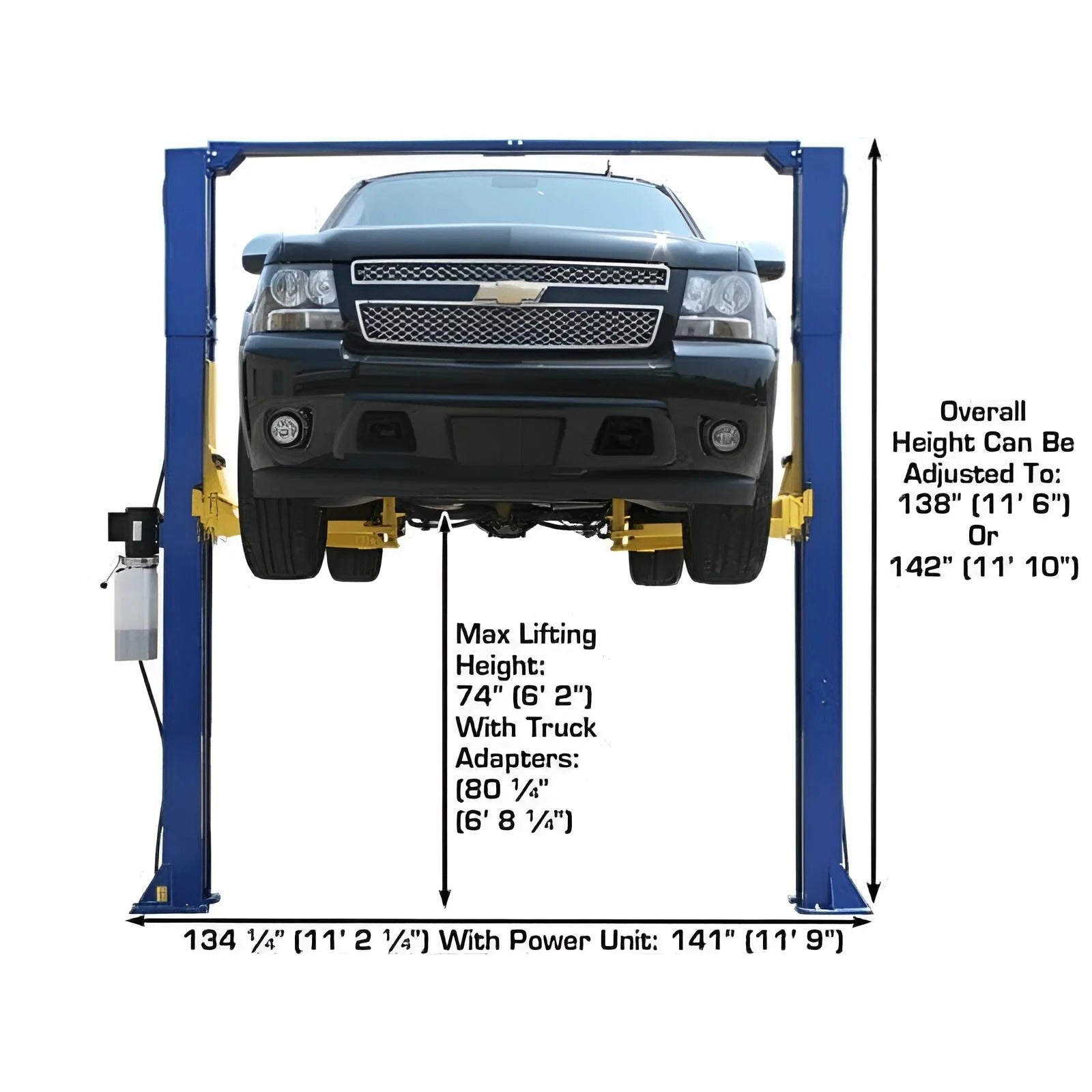

| Overall Floor Width | 134 1/2" (11’ 2 1/2") |
| Outside Column to Outside Column | 124 7/8" (10’ 4 7/8") |

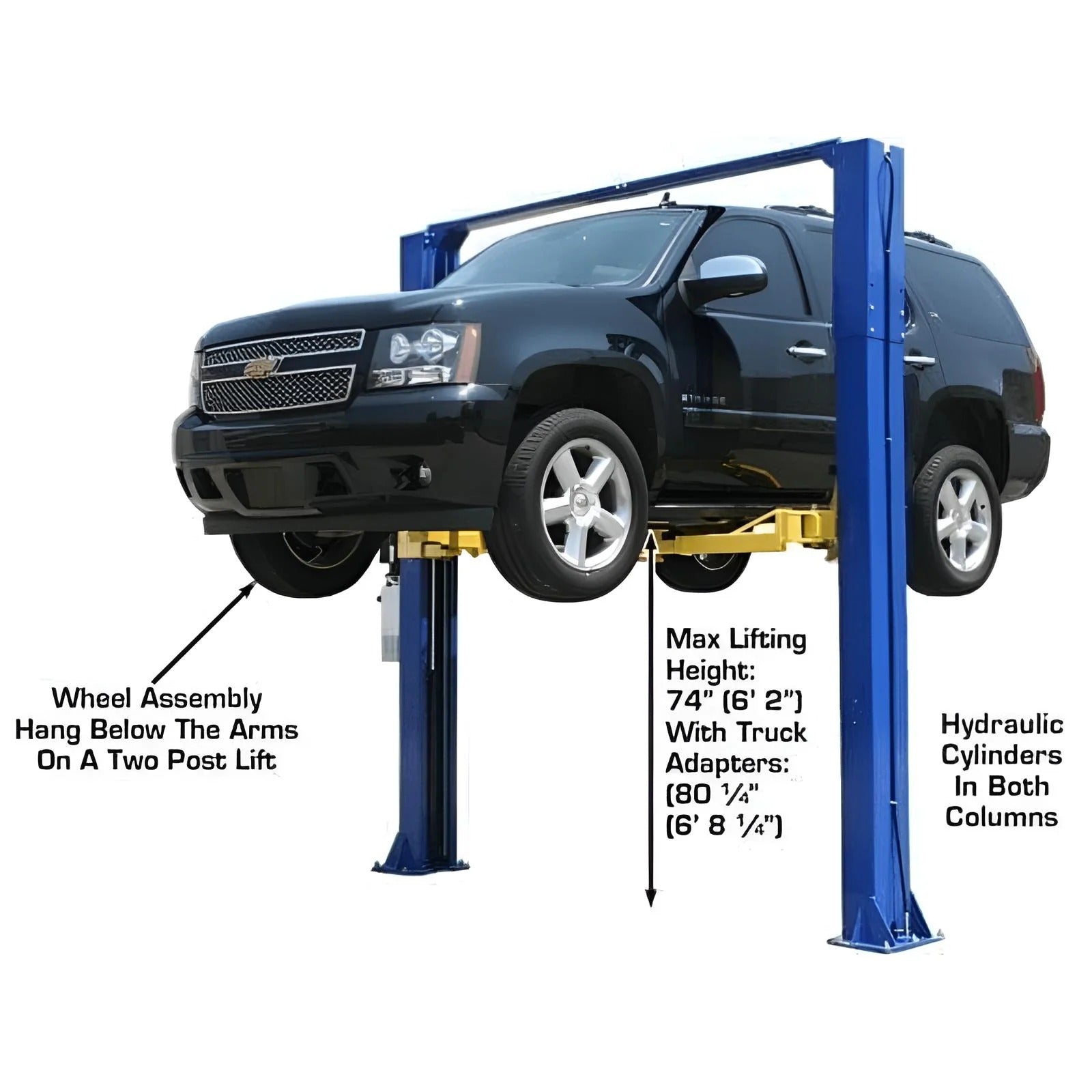

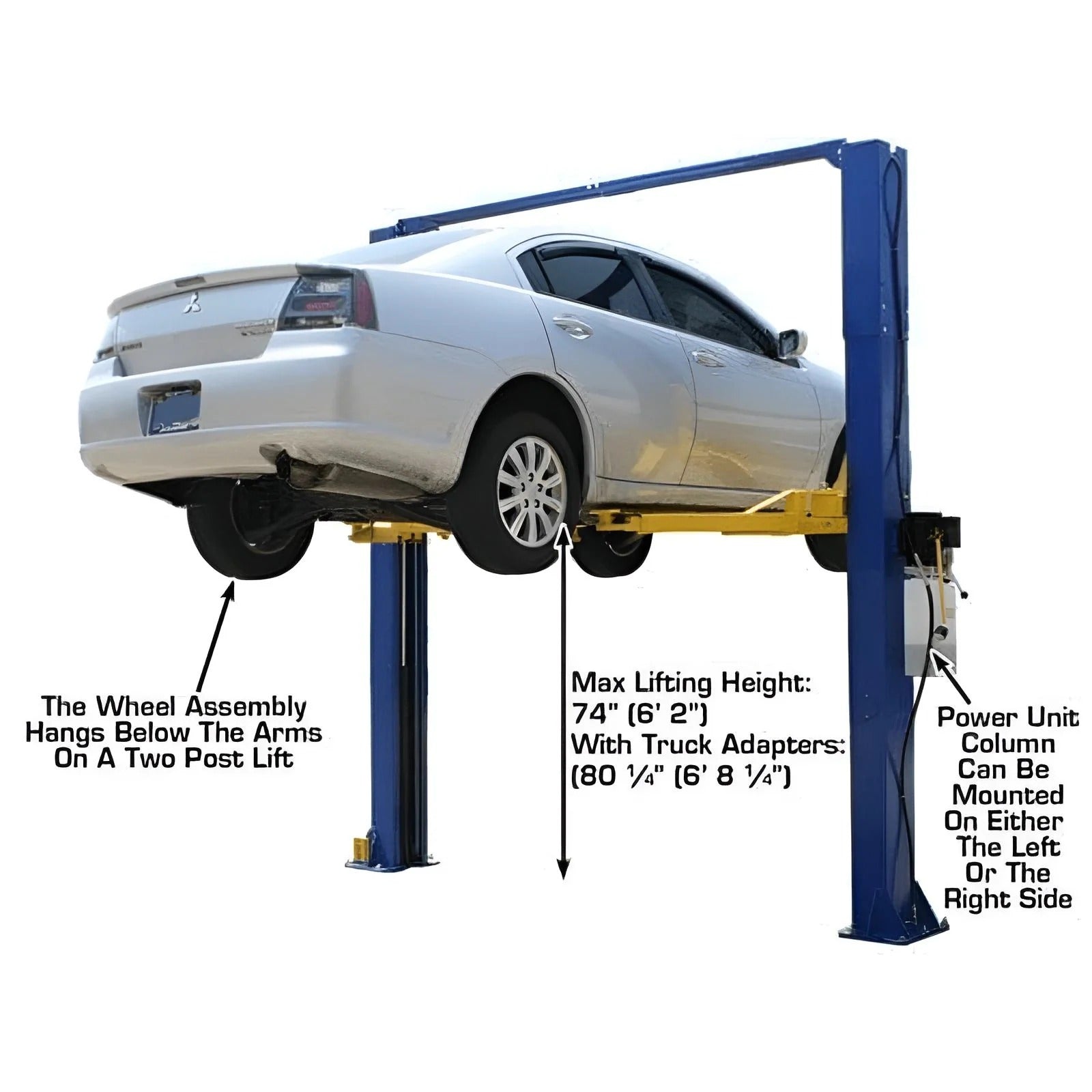

| Maximum Lift Height (Without Adapters) | 68" |
| Maximum Lift Height (With Adapters) | 74 1/4" |
| Minimum Arm Height | 4 1/2" |
| Inside Column | 110" (9’ 2") |

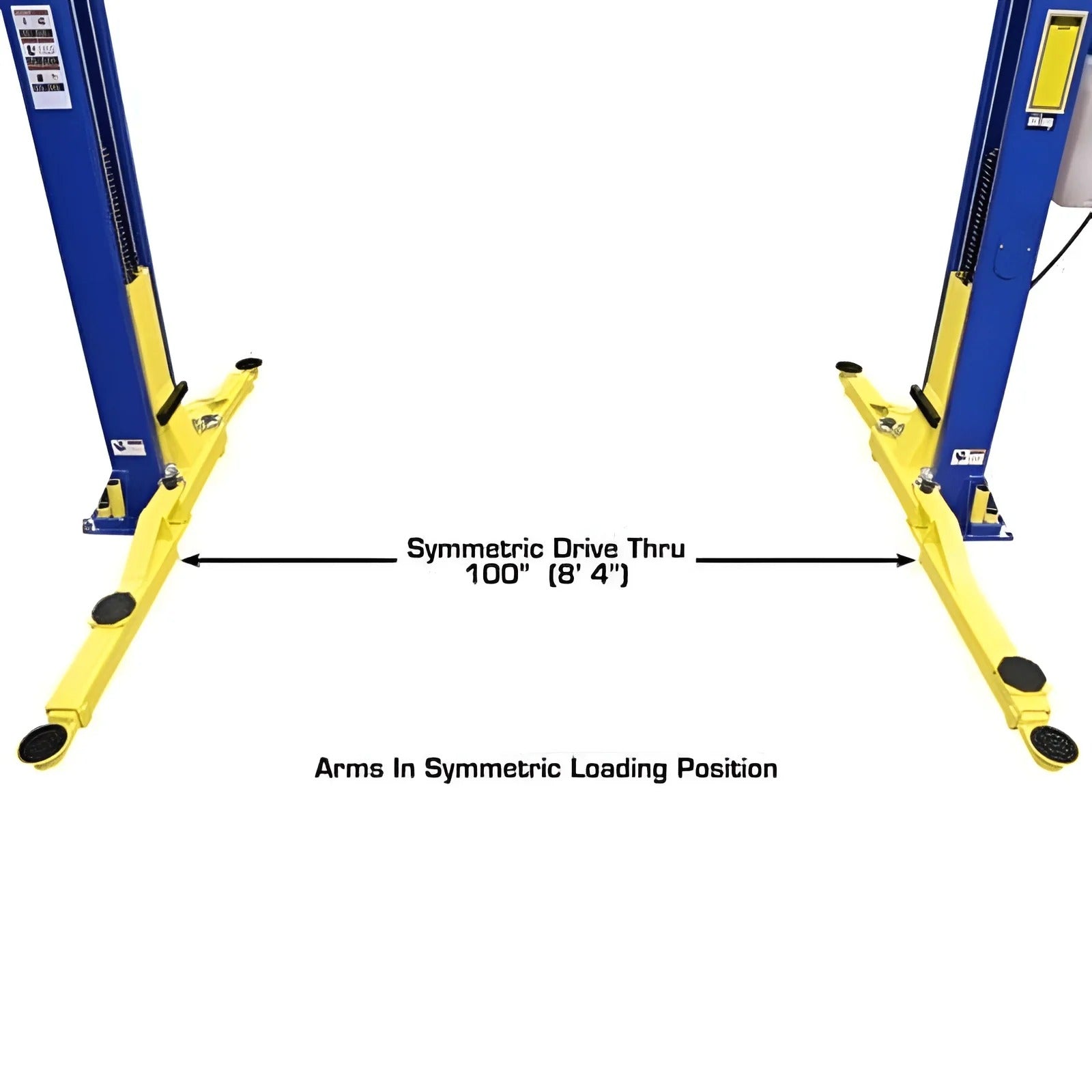

| Drive Thru (Symmetric) | 100" (8’ 4") |
| Drive Thru (Asymmetric) | 90 1/2" (7’ 6 1/2") |

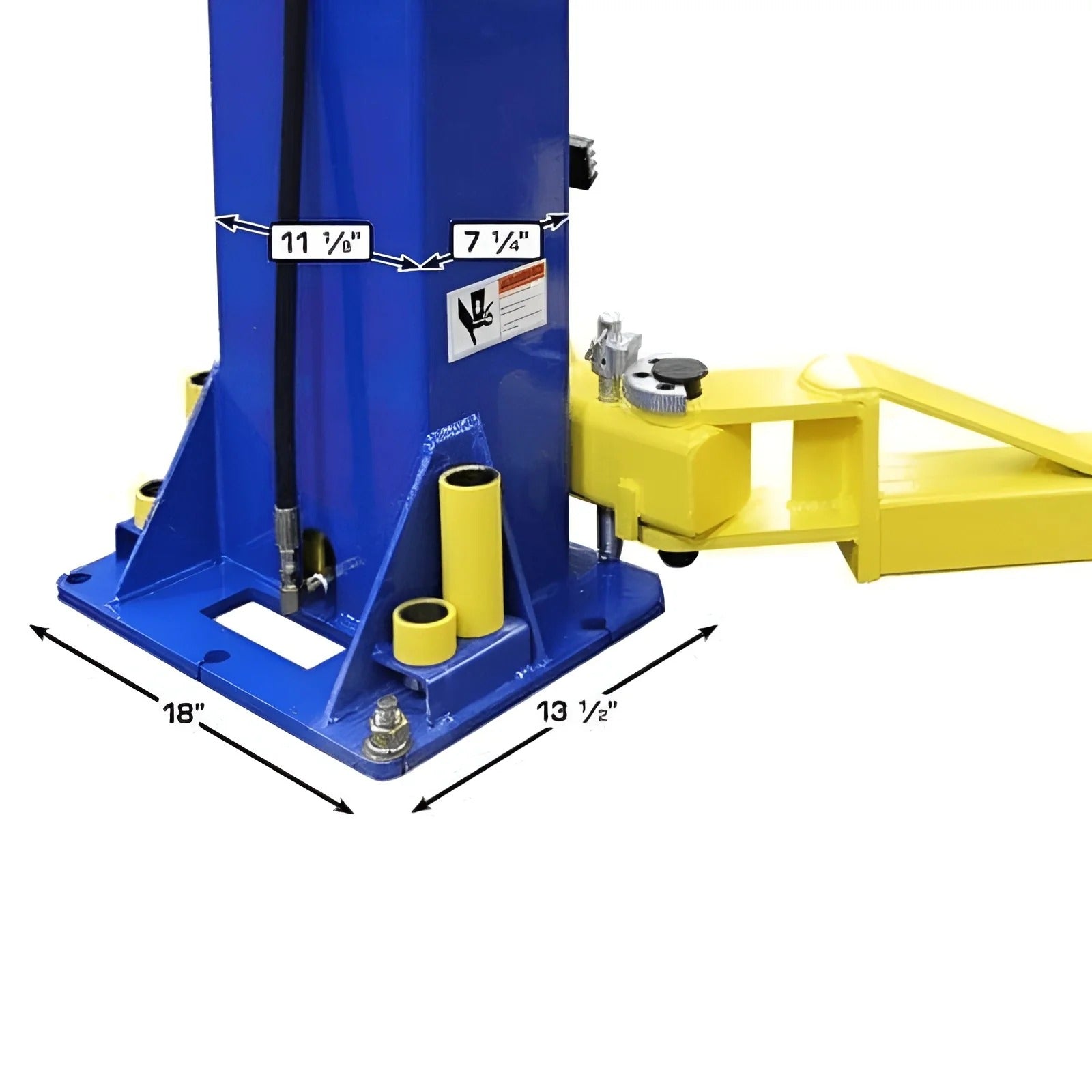

| Column Size | 7 1/4" x 11" |

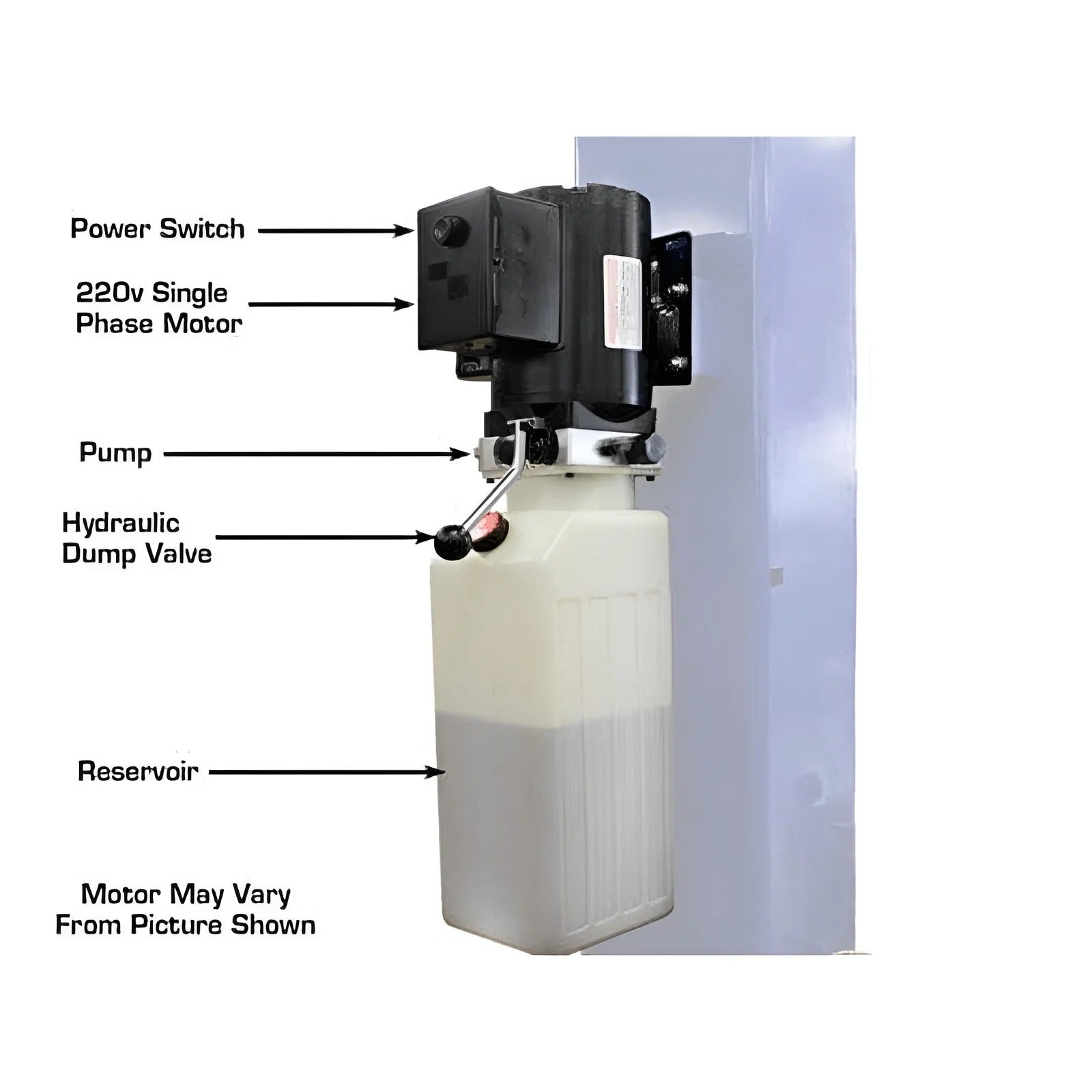

| Motor / Electrical Requirement | 220V single phase — 30 amp breaker recommended |
| Oil Requirement | 3–5 Gallons AW32/AW46 (not included) |

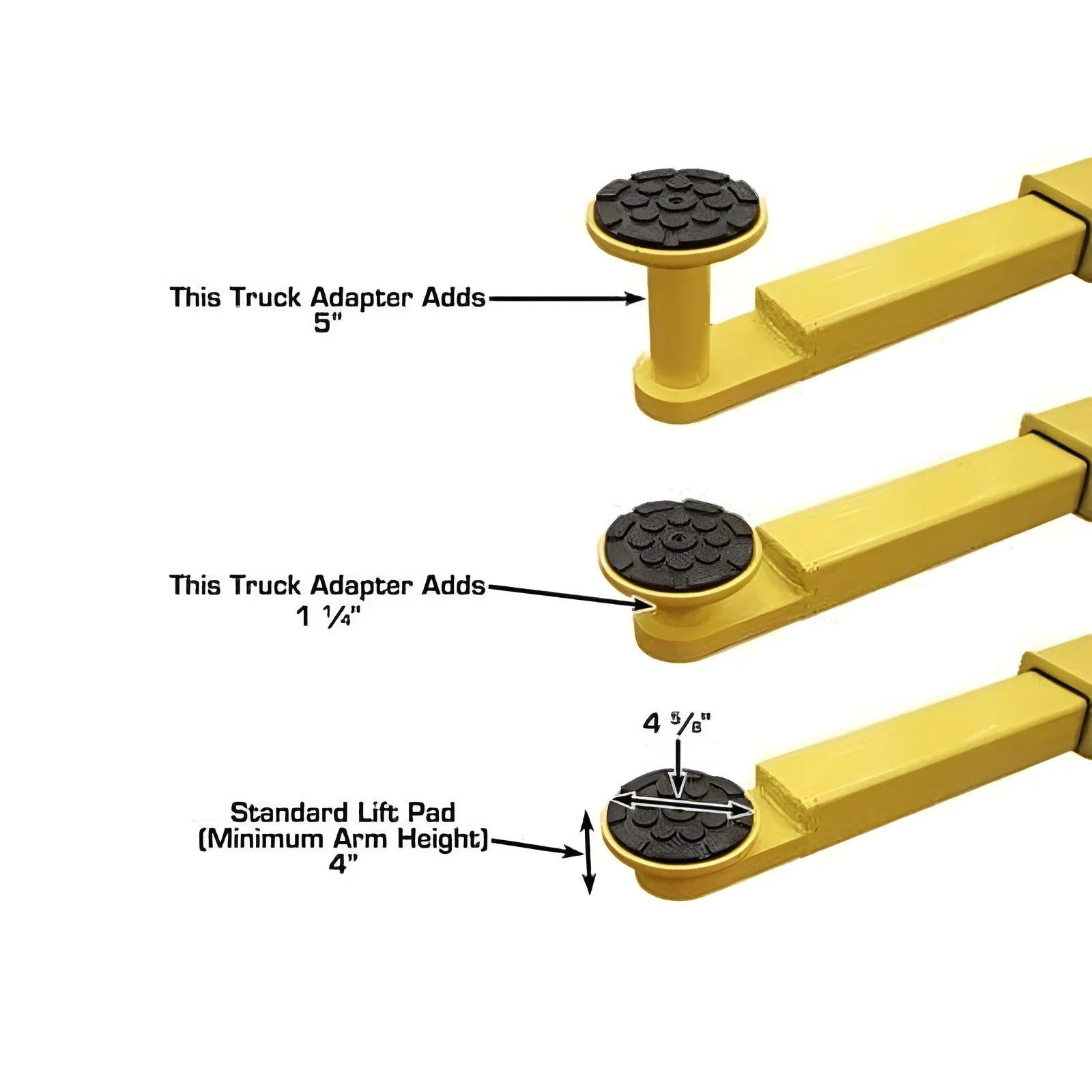

| Adapter Heights | 4 Each: 1.5", 5" |
| Shipping Weight | 1,450 lbs |
