Atlas Electric Hydraulic Battery Lift Table for Automotive Service

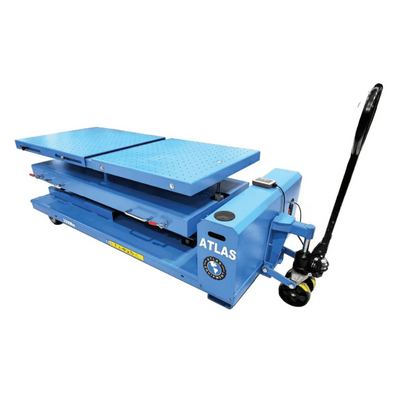

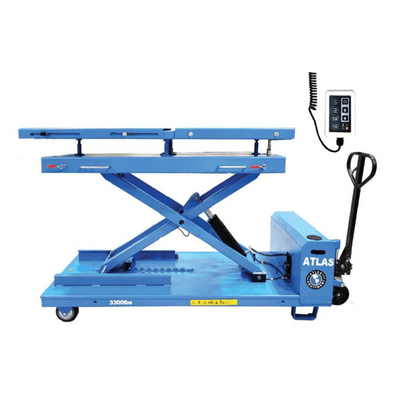

The Atlas Electric Battery Lifting Table is a heavy-duty electric/hydraulic lift solution designed specifically for handling EV battery packs and other large components safely and efficiently. With a 3,300 lb capacity and precision tilting functionality, this table is ideal for modern automotive shops working on electric vehicles.
Built for versatility, the platform features extendable length and multi-directional tilt adjustments, allowing technicians to align and position battery packs with precision. The wired remote control makes lifting and tilting operations simple and controlled, improving safety and efficiency during installation or removal.
Designed with mobility in mind, the unit is easy to move around the shop while maintaining excellent stability thanks to reinforced legs and a built-in safety lock ladder system. The tabletop includes multiple threaded mounting points, allowing for accessory attachments (sold separately) to adapt the table for different applications.
As EV service demand grows, this lifting table provides a reliable and future-ready solution for safely handling heavy battery assemblies.
Features and Benefits
• 3,300 lb heavy-duty lifting capacity
• Electric/hydraulic operation (110V power required)
• Designed for EV battery handling and installation
• Extendable platform for larger battery packs
• Tilting platform for precise positioning

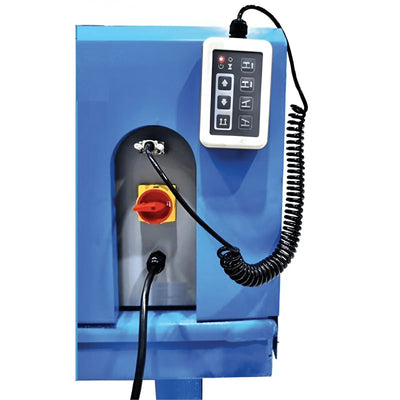

• Wired remote control for lift and tilt functions
• Multiple threaded mounting holes for accessories
• Built-in safety lock ladder with manual release
• Reinforced legs for added stability
• Portable and easy to maneuver
• Ideal for automotive and EV service shops
• Freight prepaid
• 2-year structural/hydraulic warranty
| Specifications | Details |
|---|---|
| Capacity | 3,300 lb. |
| Maximum Lift Height | 71 1/4" |
| Minimum Lift Height | 29 1/4" |
| Expandable Lifting Platform Length | 68 1/4" – 79 3/4" |
| Platform Width | 31 3/4" |
| Tilting Angles | ±5.1° (Left/Right) / ±2.2° (Front/Rear) |
| Table Top Holes | 50mm Center to Center |
| Motor/Electrical Requirement | 110V Single Phase (30 Amp Breaker Recommended) |
| Shipping Weight | 1,500 lbs. |
