Atlas PRO-9D 9,000 lb Overhead 2-Post Lift
SKU: ATEXH-PRO-9D-FPD
Pairs well with
The Atlas PRO-9D is a commercial-grade overhead 2-post lift designed for both smaller professional repair shops and home garages seeking dependable performance at a strong value. With a true 9,000 lb lifting capacity, it is capable of servicing a wide range of vehicles, from compact cars to light-duty trucks.

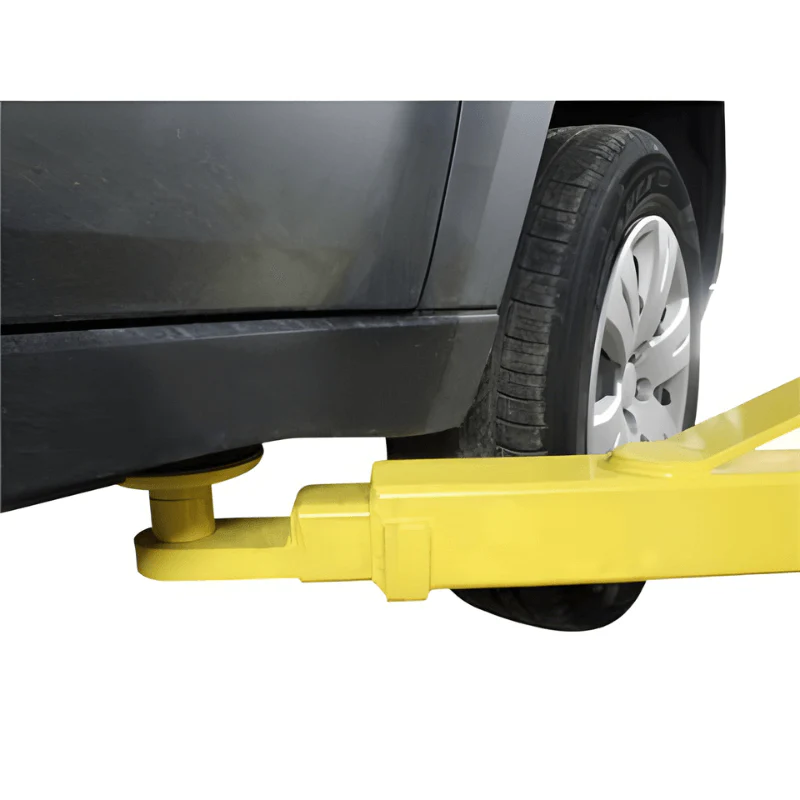

Featuring an overhead, open-floor design, this lift keeps the workspace clear while allowing efficient vehicle positioning. The symmetric columns are paired with adjustable arms that can be configured in either symmetric or asymmetric positions, providing flexibility for different vehicle types. The low lift pad height makes it easier to position under vehicles with low pickup points.
Built for durability and long-term reliability, the PRO-9D uses dual direct-drive hydraulic cylinders with fewer moving parts, helping ensure consistent lifting performance over time. Its solid construction makes it suitable for repeated use in demanding environments.

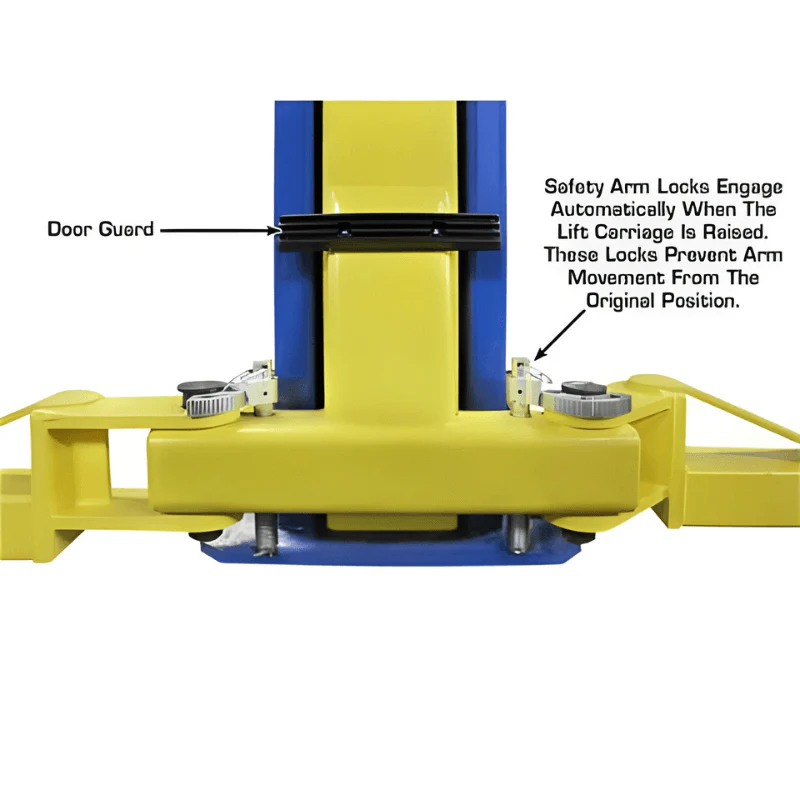

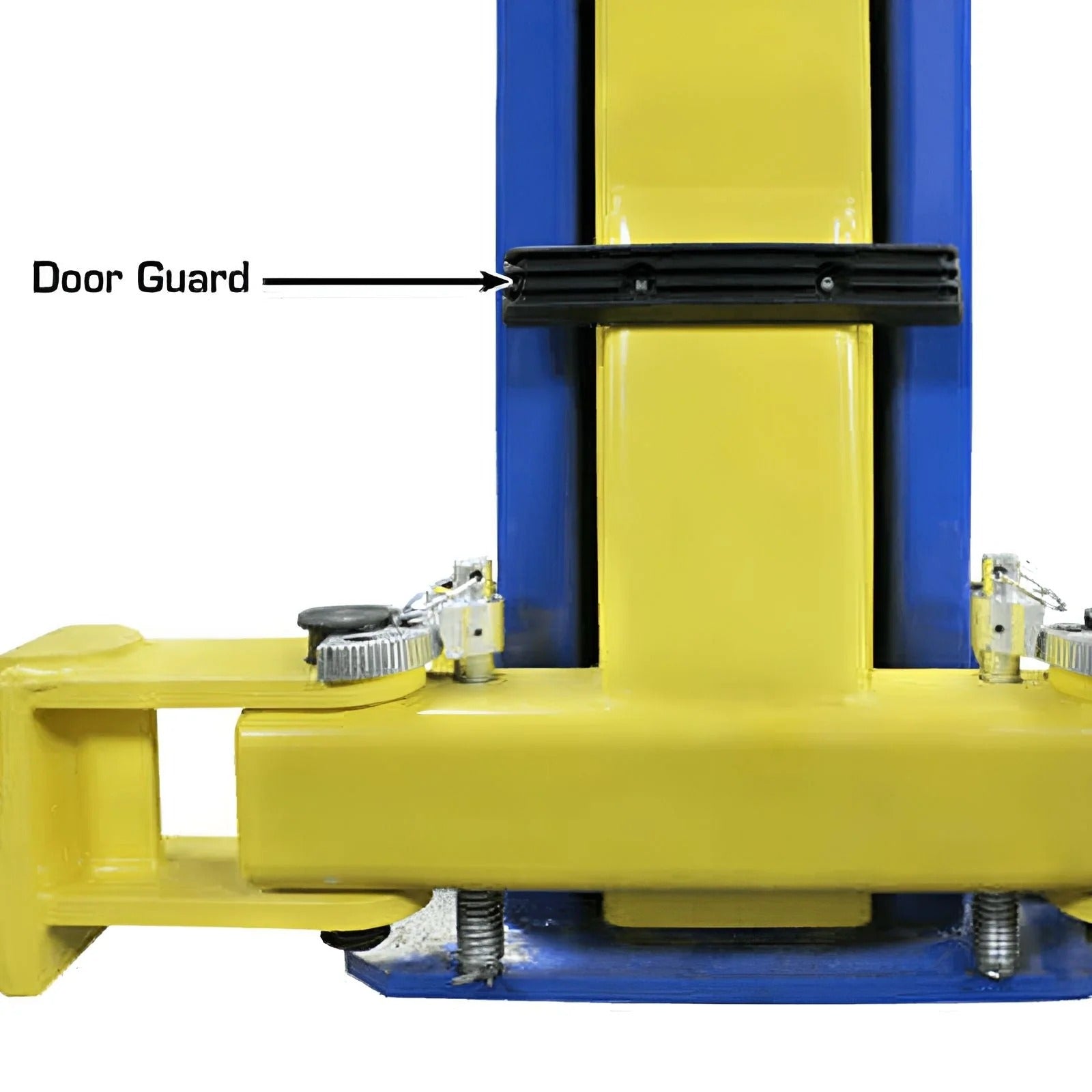

Safety and convenience features include automatic arm restraints, a single-point lock release system for simplified operation, and rubber guards on the carriages to help protect vehicle doors during use. The lift is finished with a durable powder coat for added protection against wear.

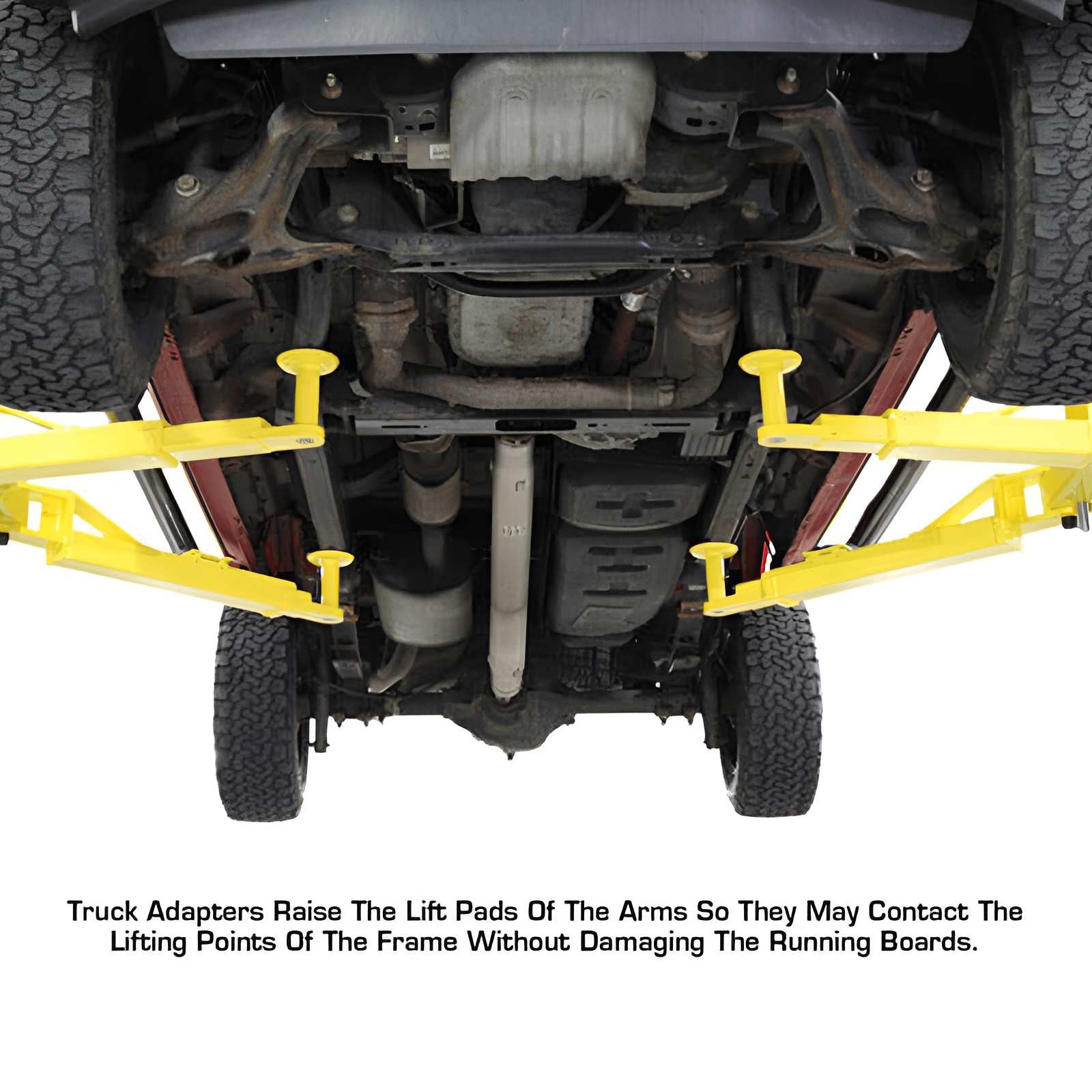

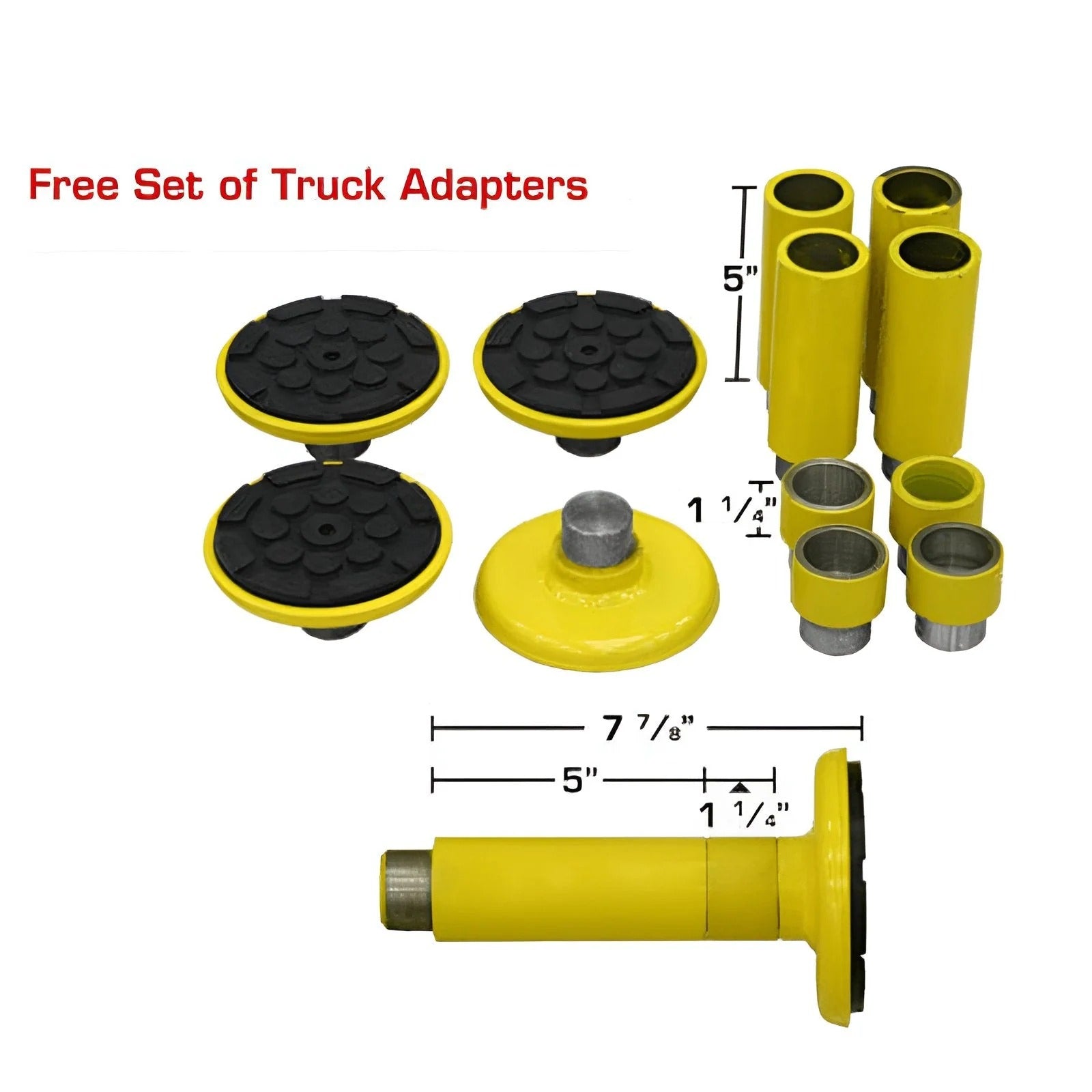

A free 8-piece truck adapter set is included, along with mounting hardware for installation.
Features and Benefits
- 9,000 lb capacity
- Overhead open-floor design

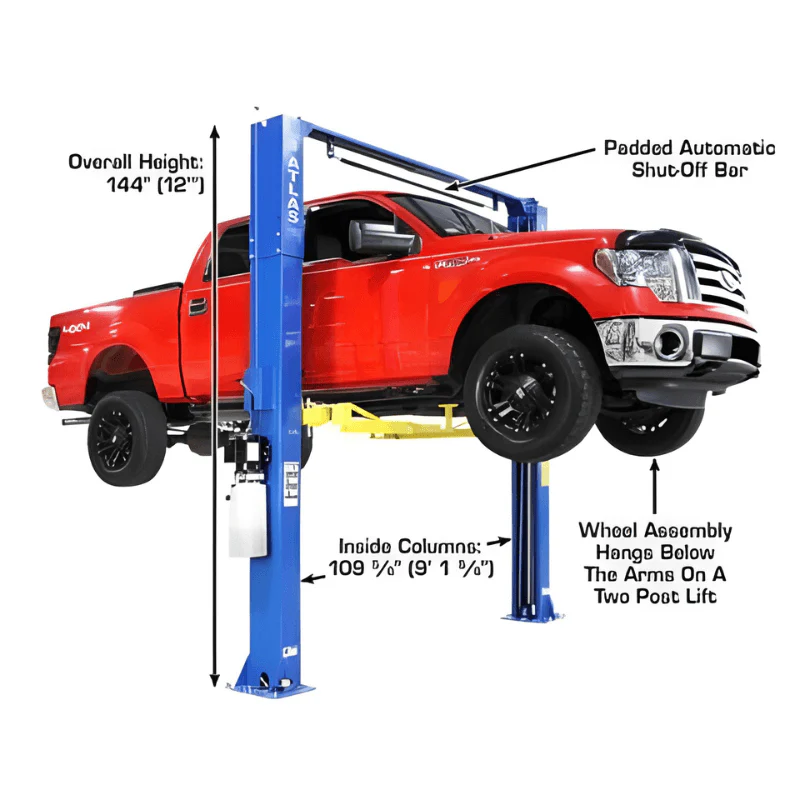

- Overall height: 144" (12’)

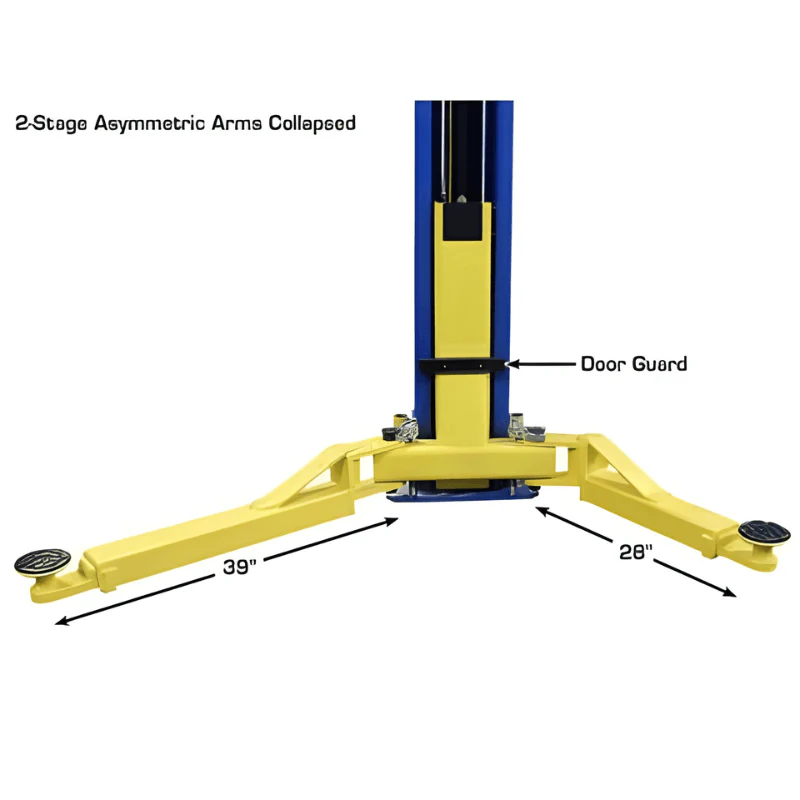

- Asymmetric and symmetric arm configuration
- Automatic arm restraints

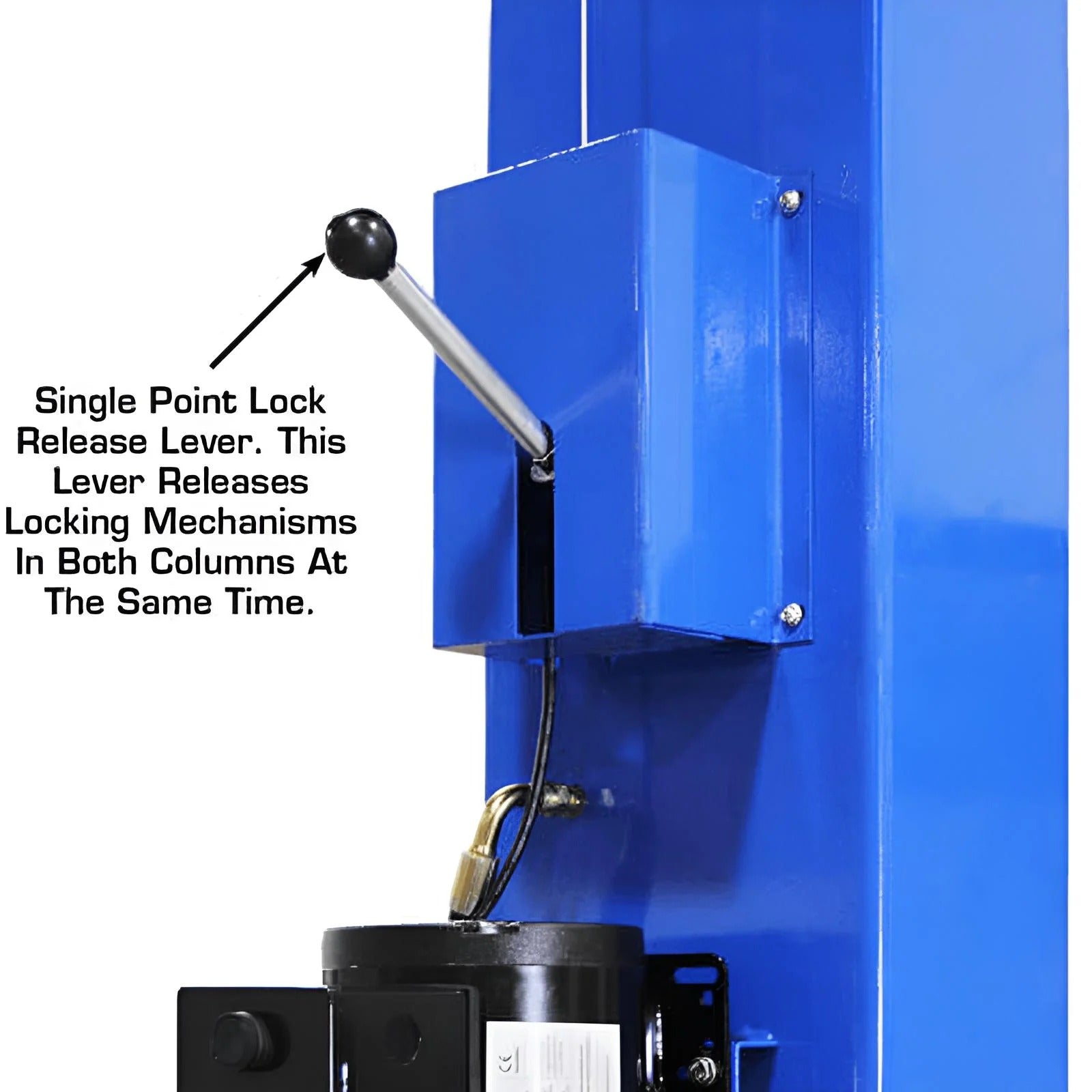

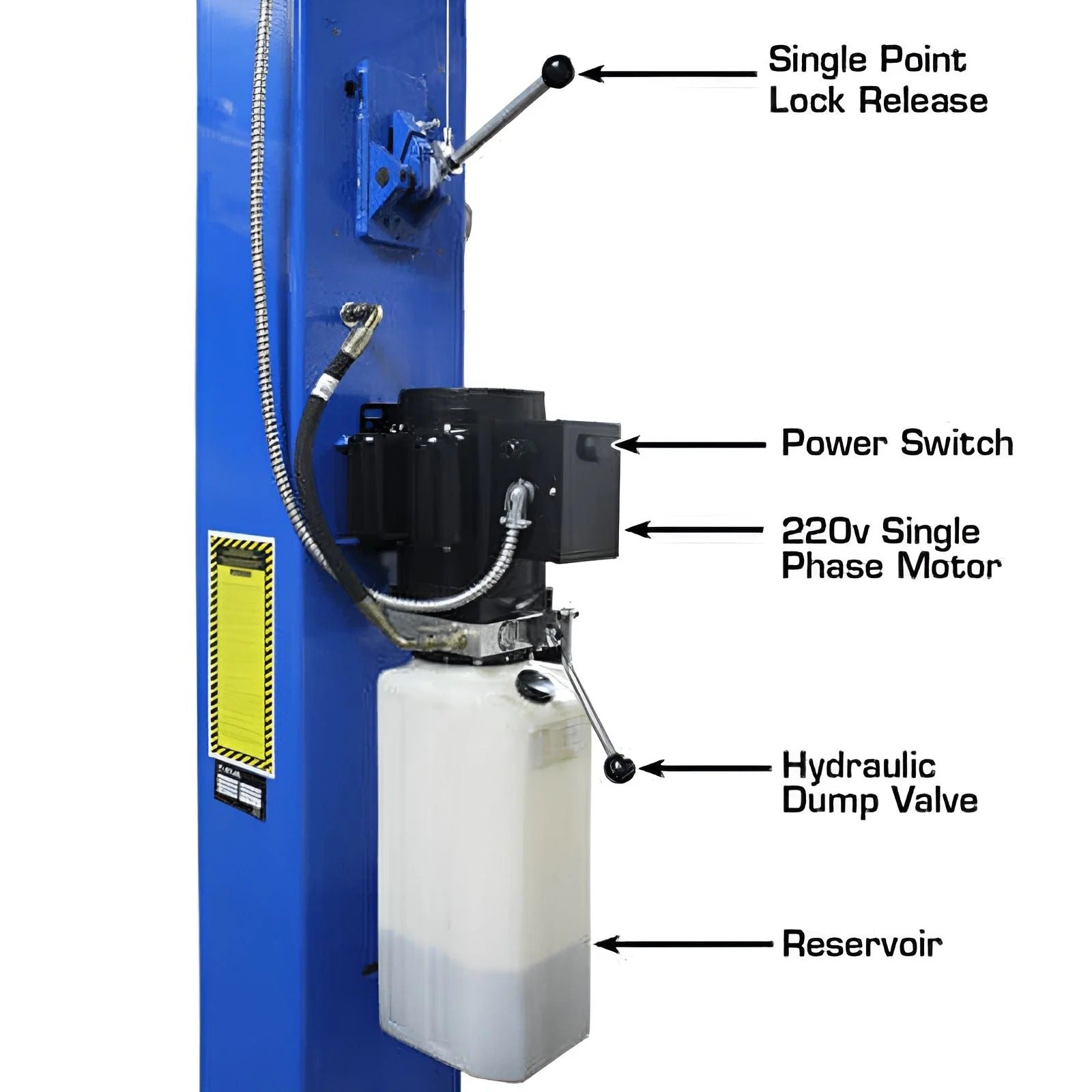

- Single-point lock release
- Rubber guards on carriages

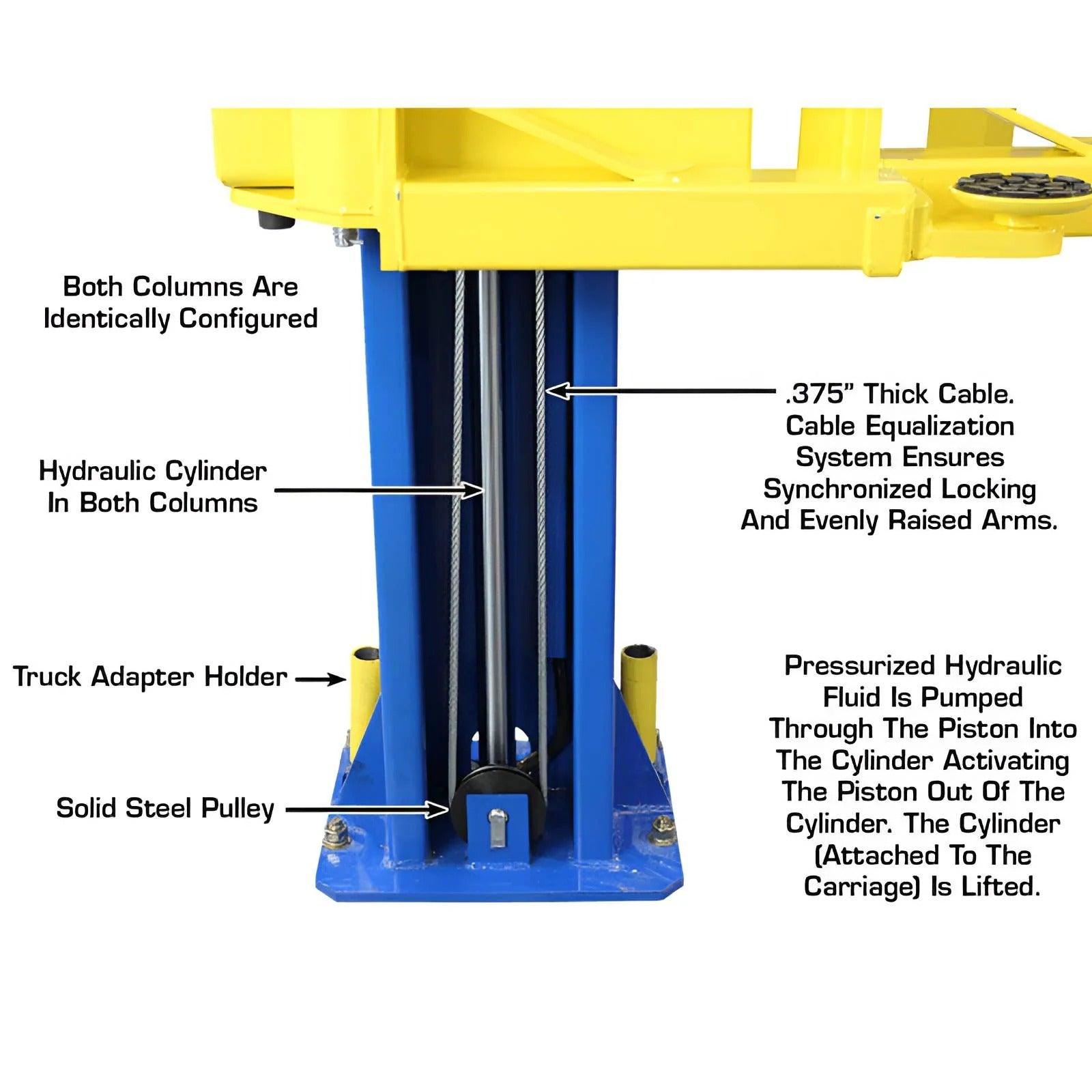

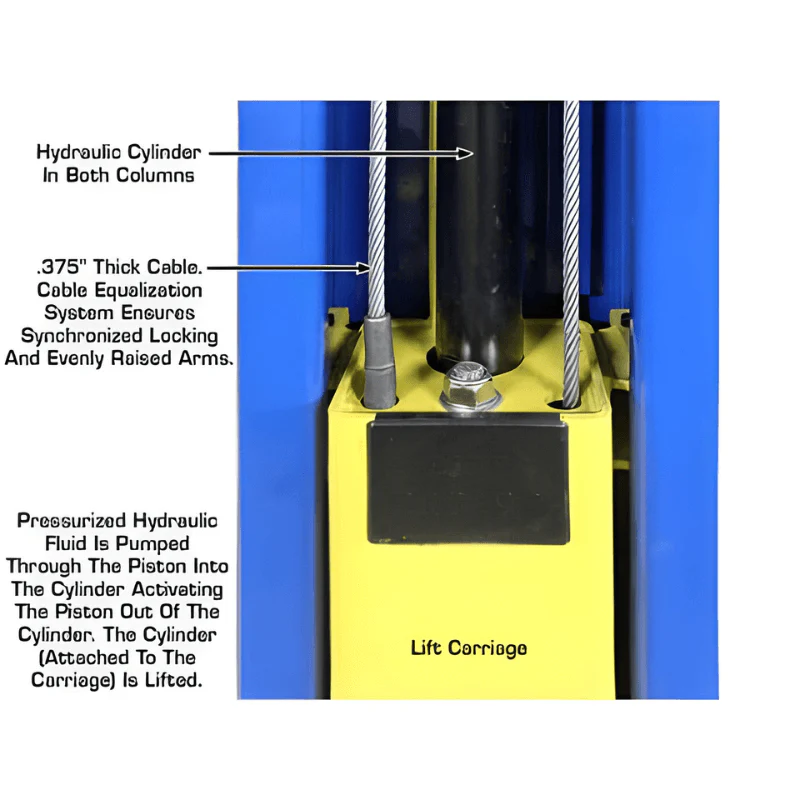

- Dual direct-drive cylinders
- Powder coat finish
- Free 8-piece truck adapter set included

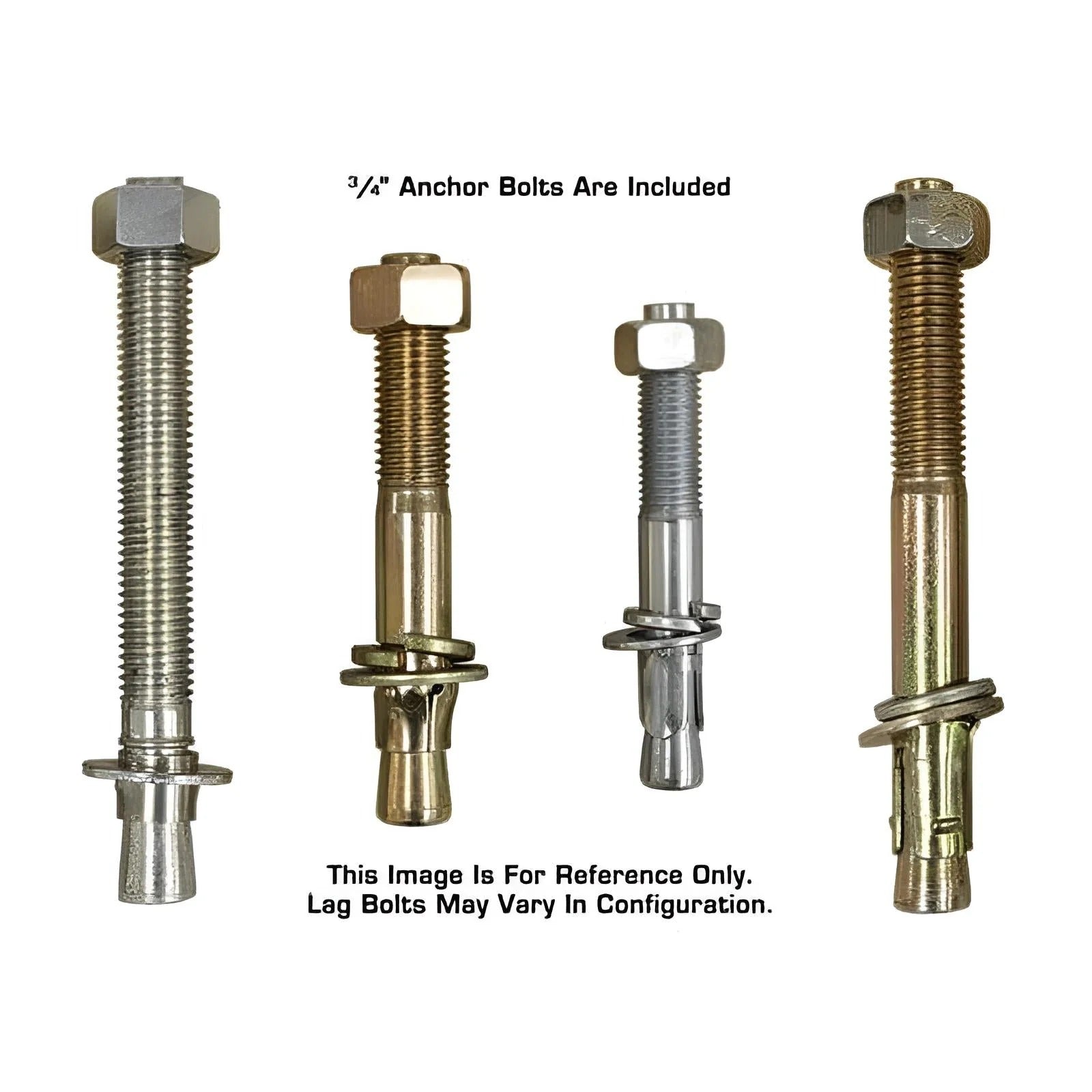

- Mounting hardware included
- 5-year structural warranty, 2-year hydraulic-power warranty

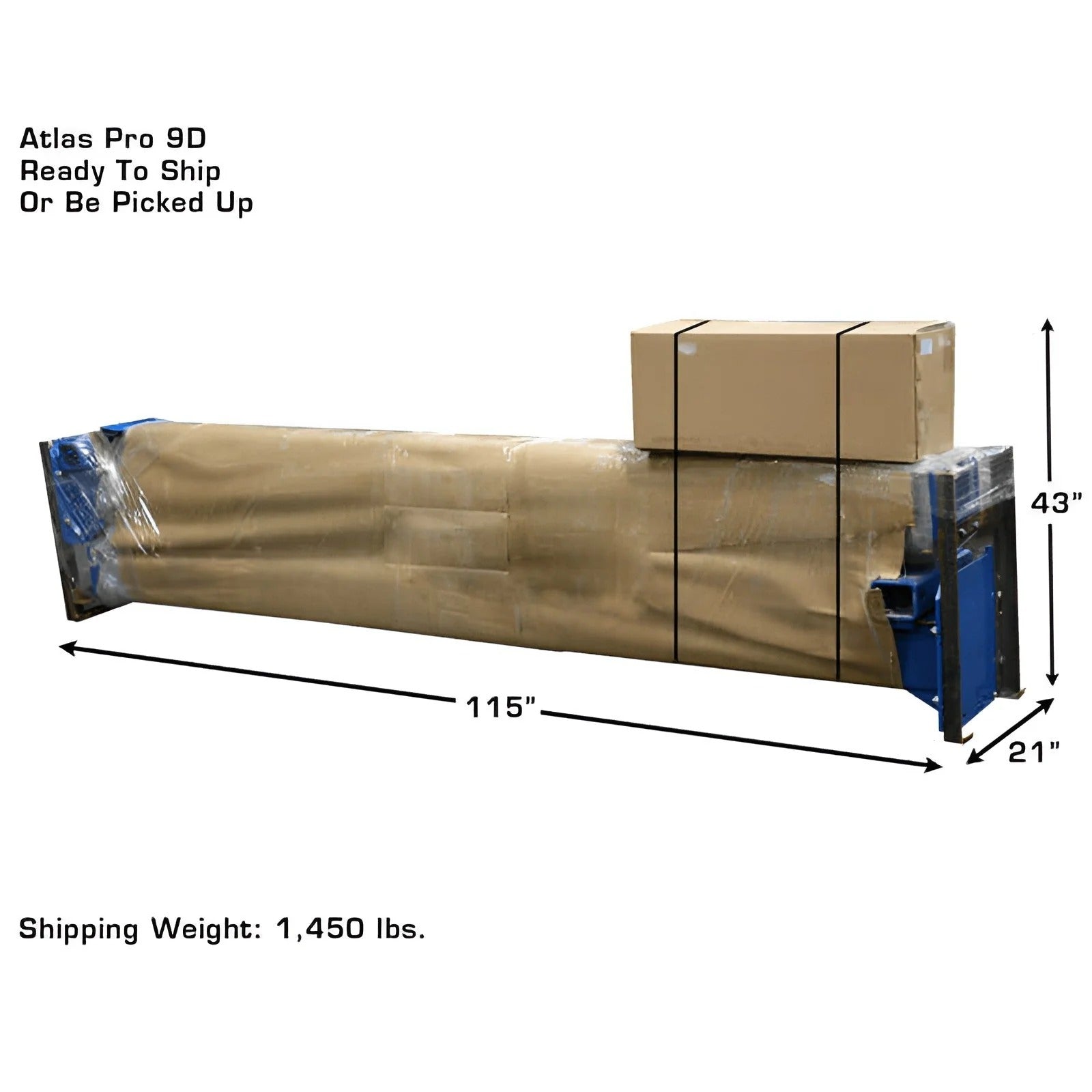

- Shipping weight: 1,450 lbs
| Specifications | Details |
|---|---|
| Capacity | 9,000 lb |

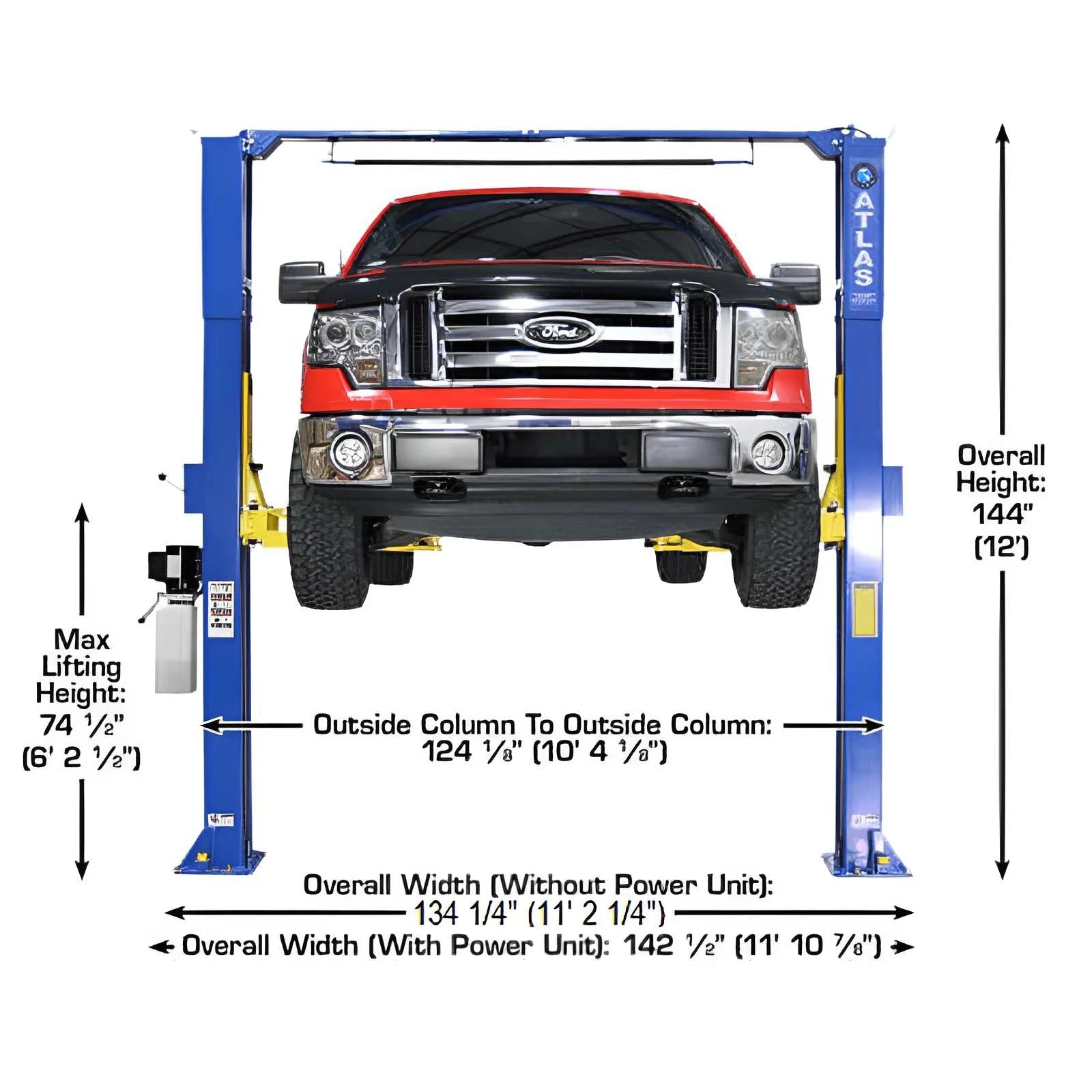

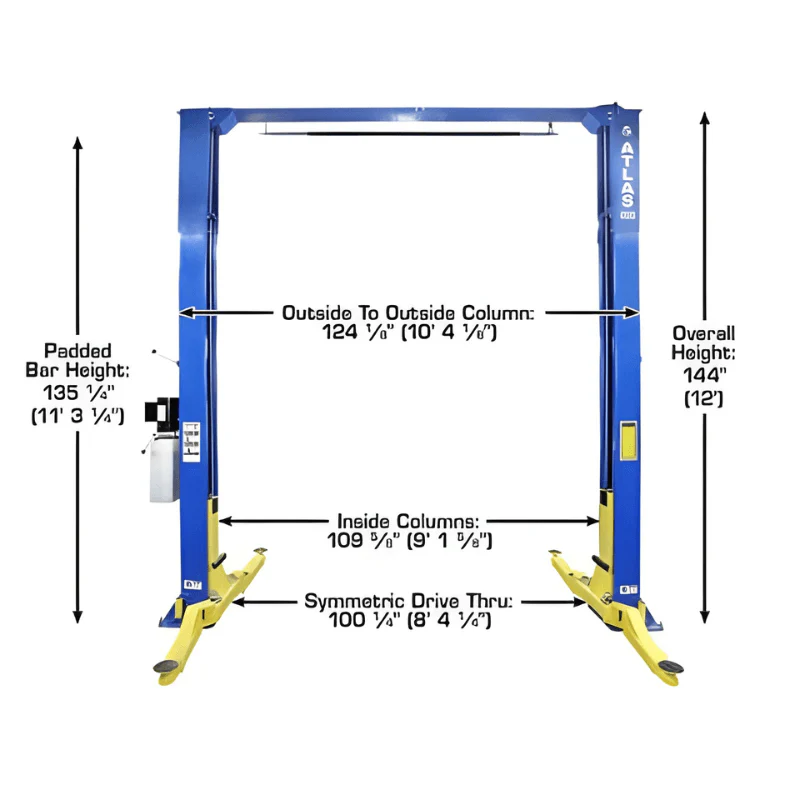

| Overall Height | 144" (12’) |
| Overall Floor Width | 134 1/2" (11’ 2 1/2") |
| Outside Column to Outside Column | 124 7/8" (10’ 4 7/8") |
| Inside Column | 110" (9’ 2") |

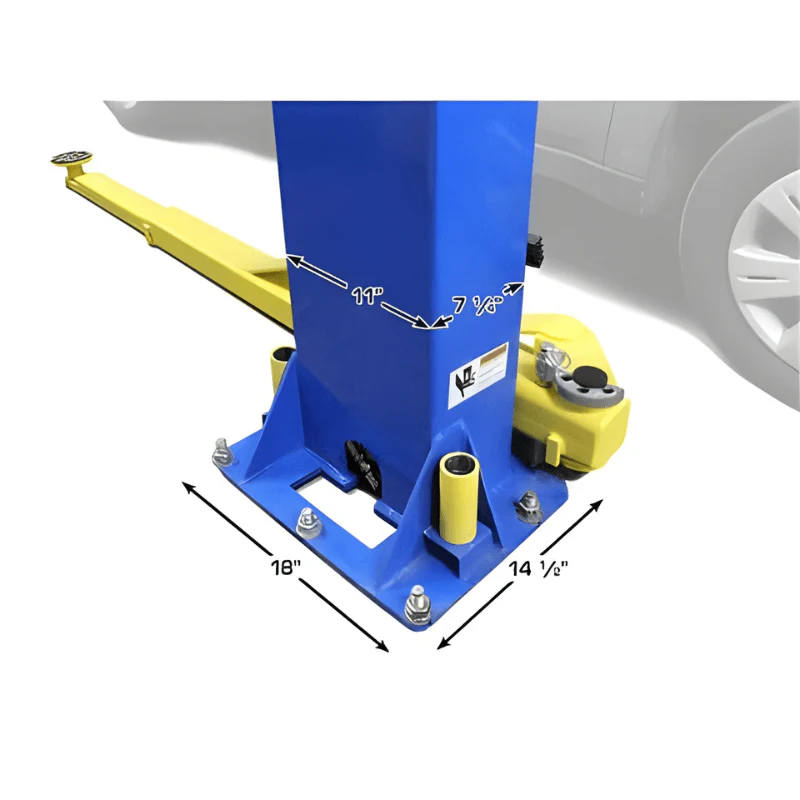

| Column Size | 7 1/4" x 11" |
| Base of Lift | 14 1/4" x 18" |
| Maximum Lift Height (Without Adapters) | 68" |

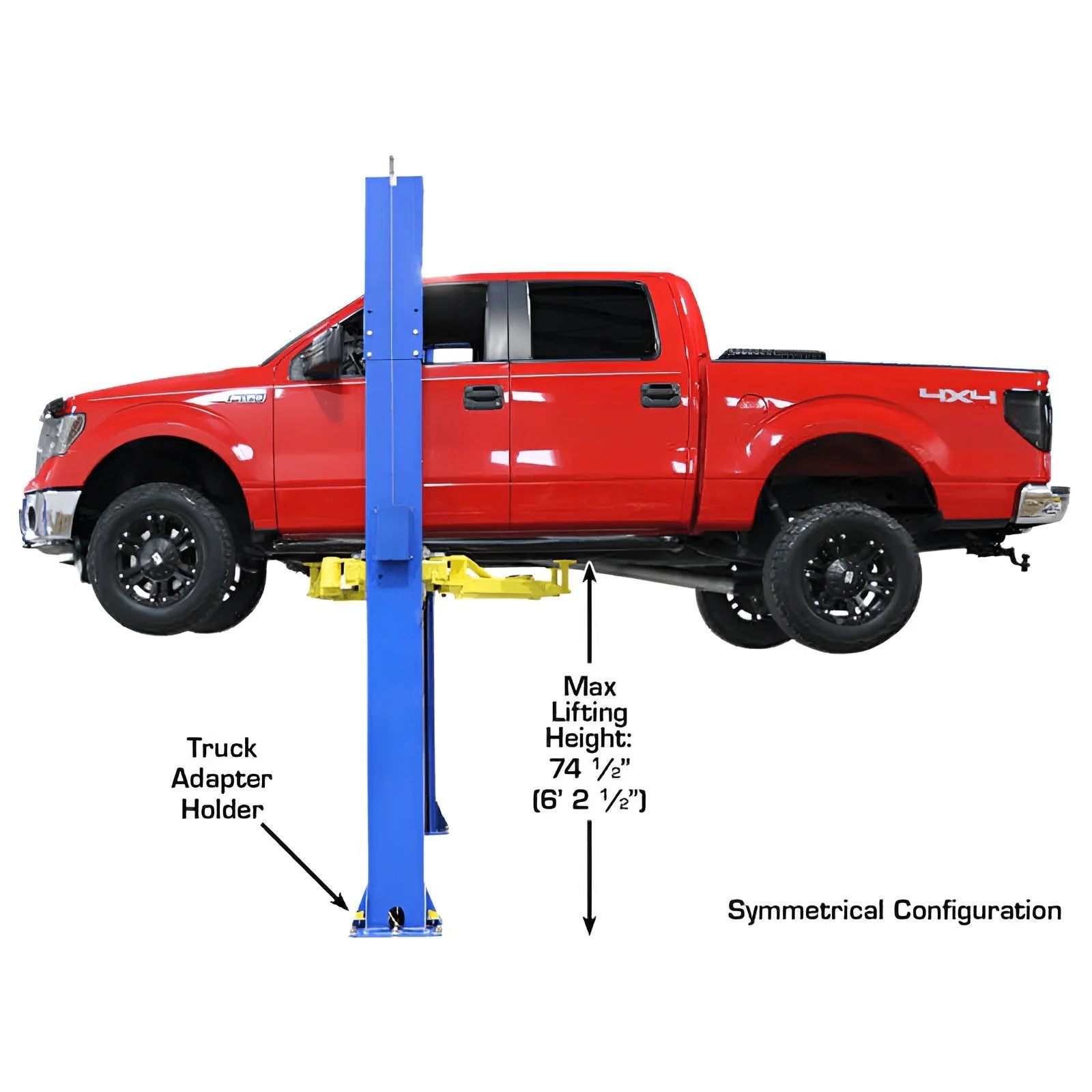

| Maximum Lift Height (With Adapters) | 74 1/4" |
| Minimum Arm Height | 4 1/2" |
| Drive Thru (Symmetric) | 100" (8’ 4") |

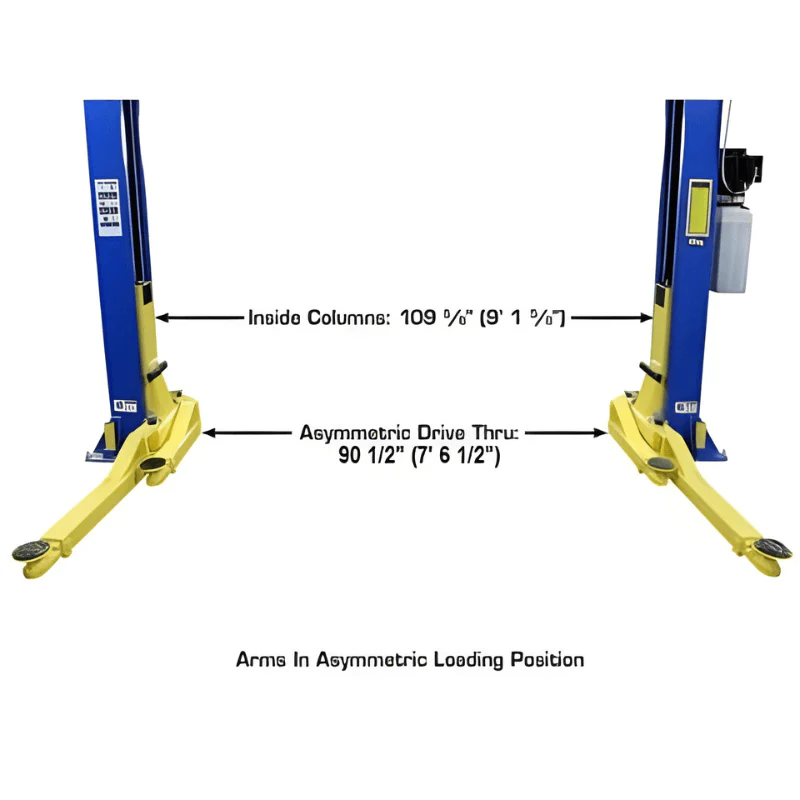

| Drive Thru (Asymmetric) | 90 1/2" (7’ 6 1/2") |
| Motor / Electrical Requirement | 220V single phase — 30 amp breaker recommended |
| Oil Requirement | 3–5 Gallons AW32/AW46 (not included) |

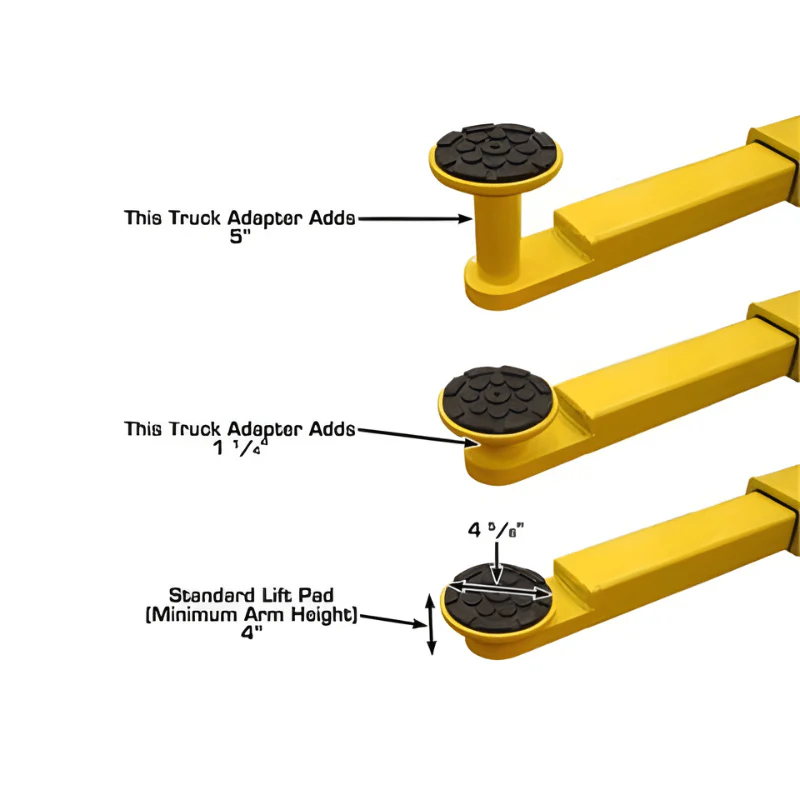

| Adapter Heights | 4 Each: 1.5", 5" |
| Arm Hole / Adapter Peg Size | 1.5" |
| Concrete Requirement | Minimum 4" thick, 3,000 PSI rating |
| Shipping Weight | 1,450 lbs |
