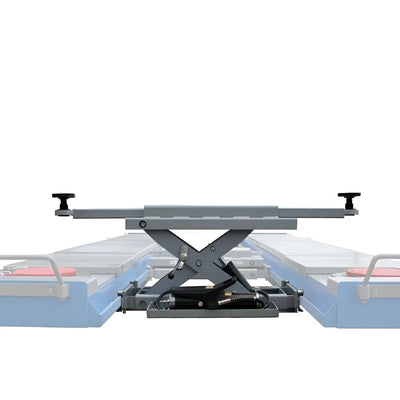

Atlas RJ6 6,000 lb Air/Hydraulic Rolling Bridge Jack

The Atlas RJ6 is a compact, heavy-duty air/hydraulic rolling bridge jack designed to lift a vehicle’s wheels off the runways of 4-post and compatible scissor lifts. With a 6,000 lb lifting capacity, it is ideal for tire, brake, and suspension service in both professional shops and home garage setups.

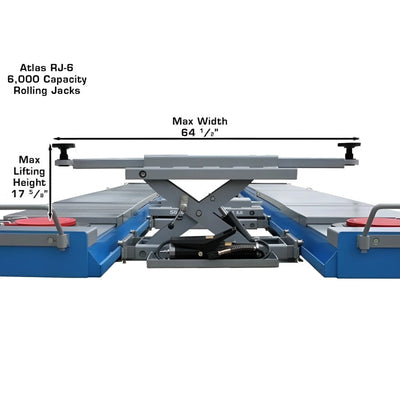

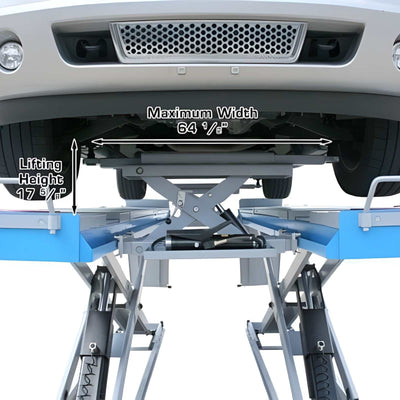

This rolling jack features telescoping arms that extend across the runways, allowing precise positioning under vehicle lifting points. The double screw-up lift pads provide adjustable height and secure contact, while the included truck adapters allow it to service larger vehicles such as pickup trucks.

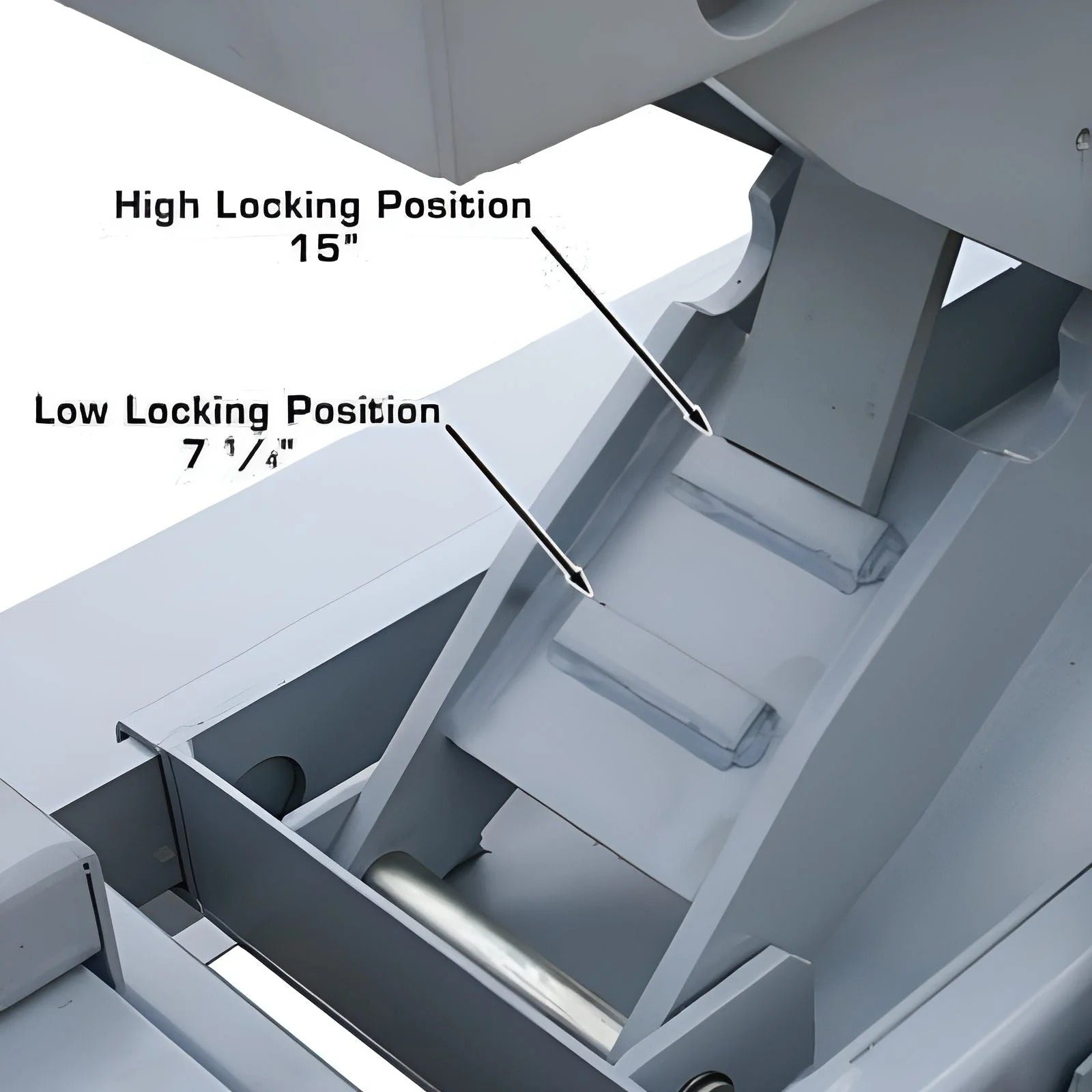

Powered by an air/hydraulic system, the RJ6 delivers smooth and consistent lifting performance with minimal effort. The scissor mechanism ensures level lifting, and multiple solid safety lock positions secure the load once elevated, removing pressure from the hydraulic system for safer operation.

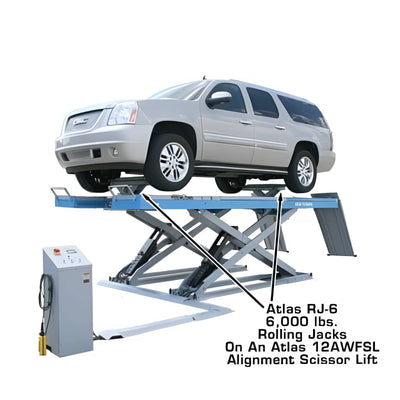

Designed for versatility, the RJ6 includes expandable rail supports that adjust to fit between the runways of many different 4-post lifts. Its roller system allows smooth movement along the lift rails, making positioning quick and efficient across the full length of the vehicle.

Features and Benefits

• 6,000 lb capacity
• Air/hydraulic operation (external air supply required)
• Multiple safety lock positions

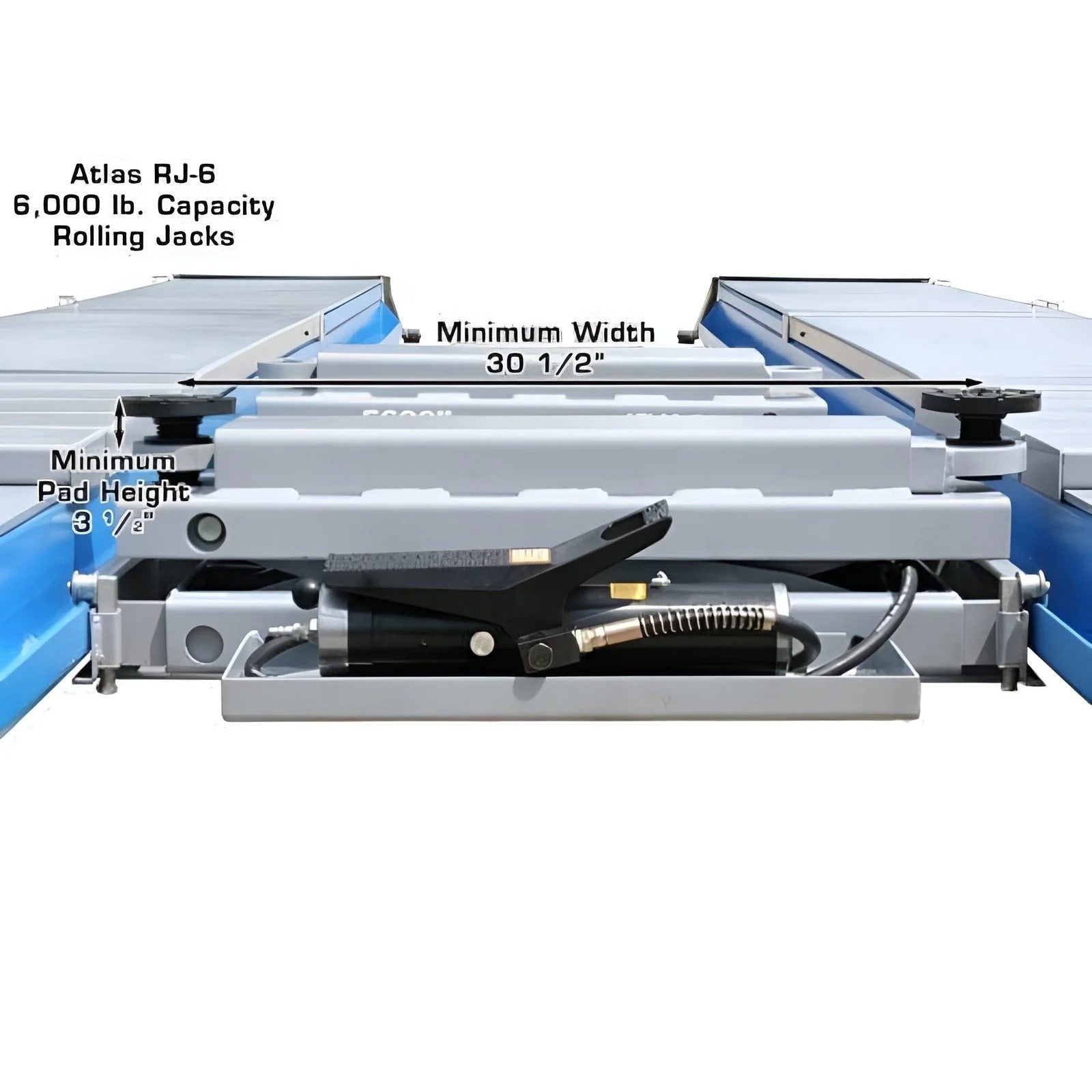

• Compact low-profile design
• Smooth rolling action
• Scissor lift mechanism for level lifting
• Powder-coated finish for durability
• Double screw-up adapters included

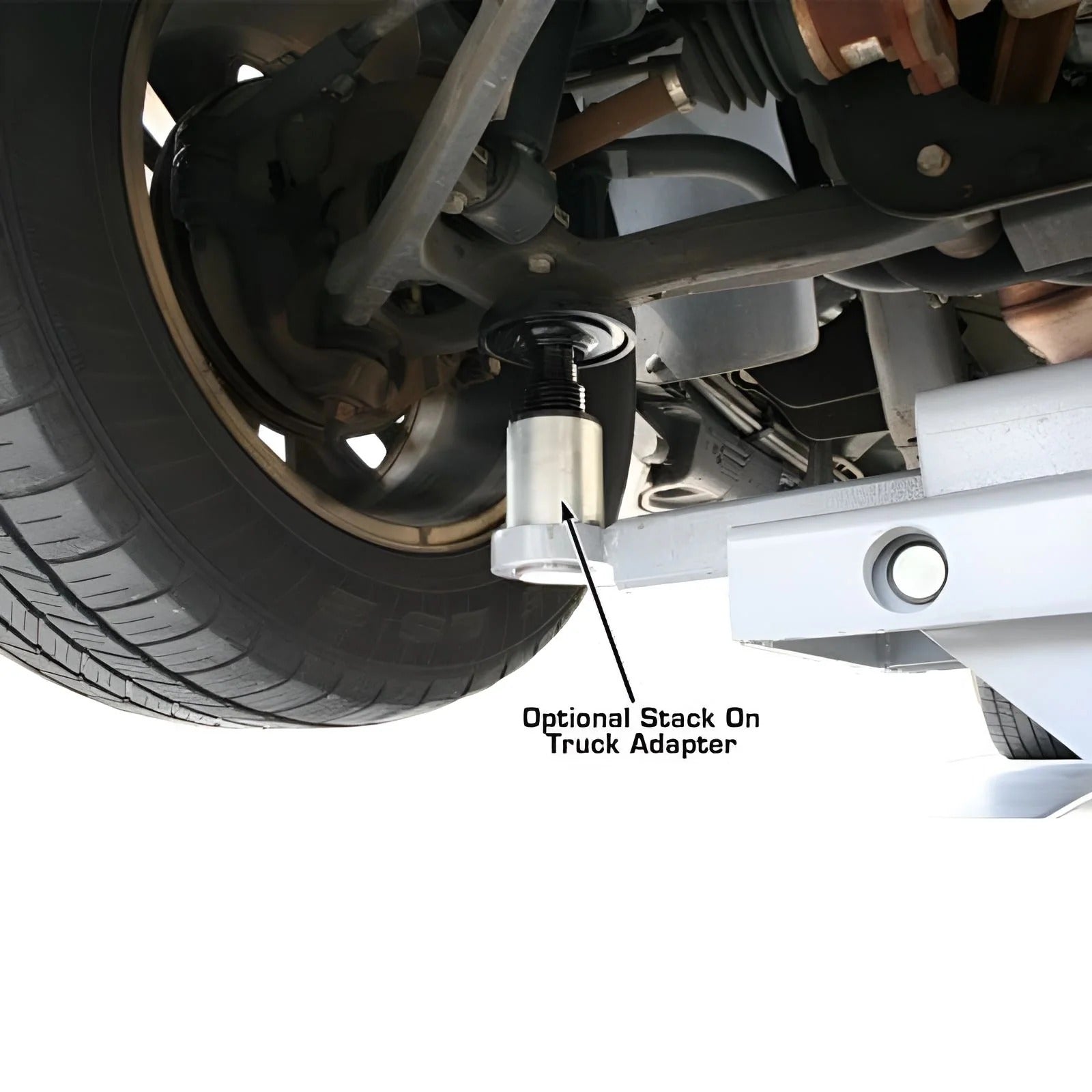

• 4-piece truck adapter set included

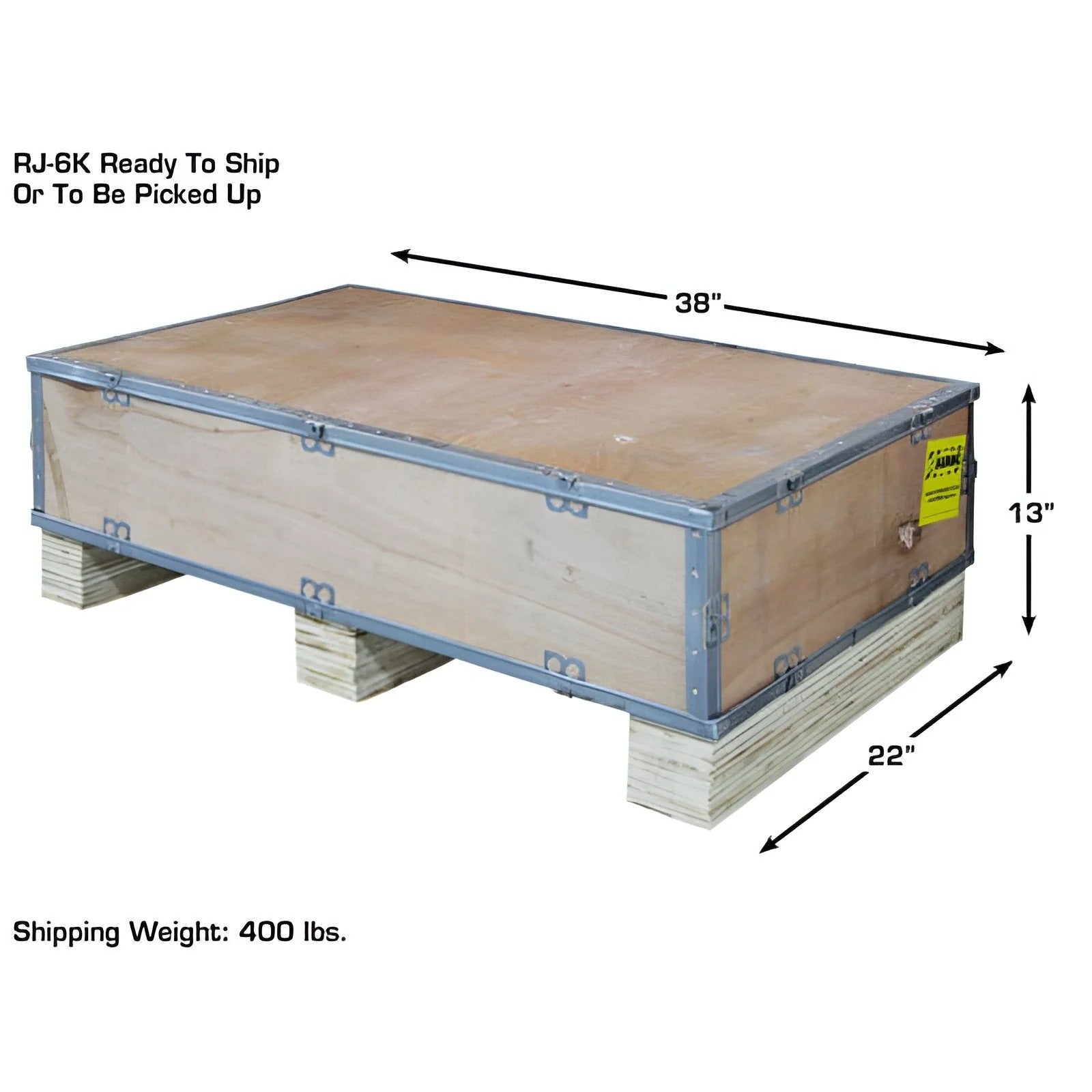

• Freight prepaid
• 1-year parts-only warranty

Documents

• Measurement Guide
• Product Manual

Demonstration
