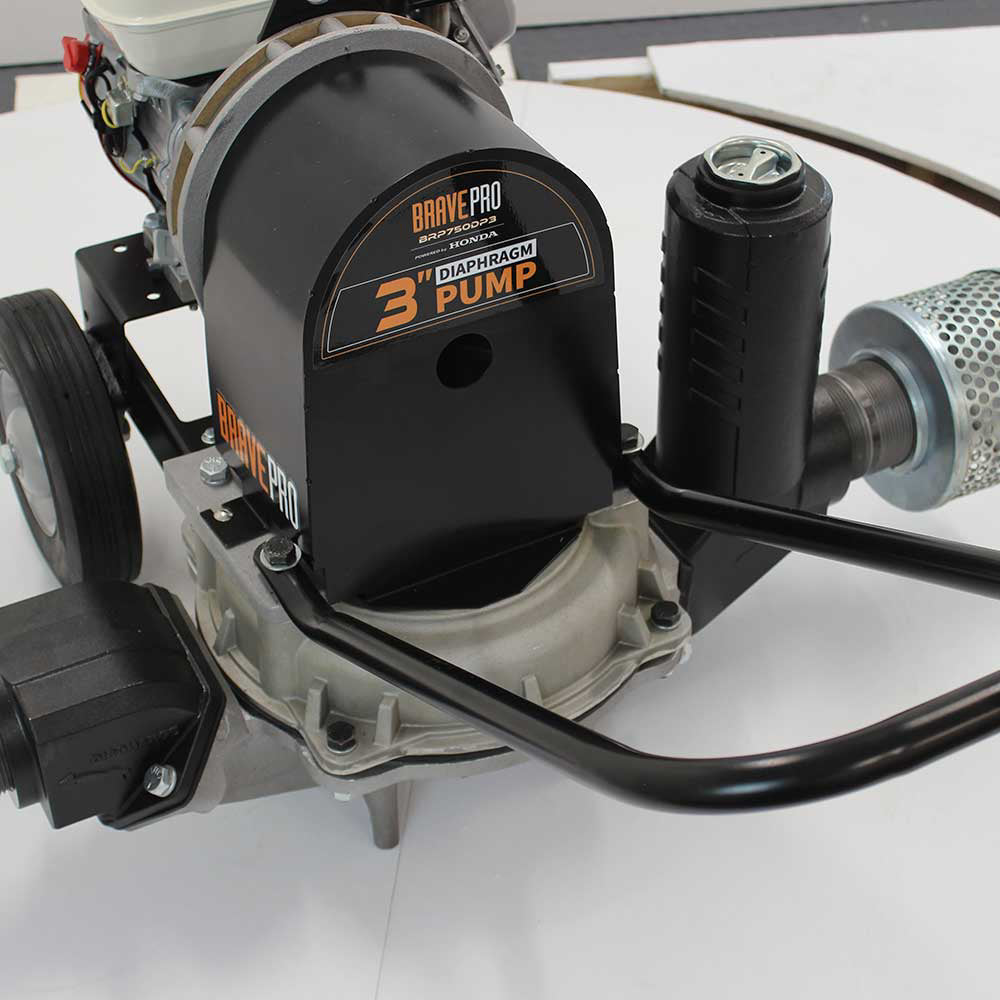

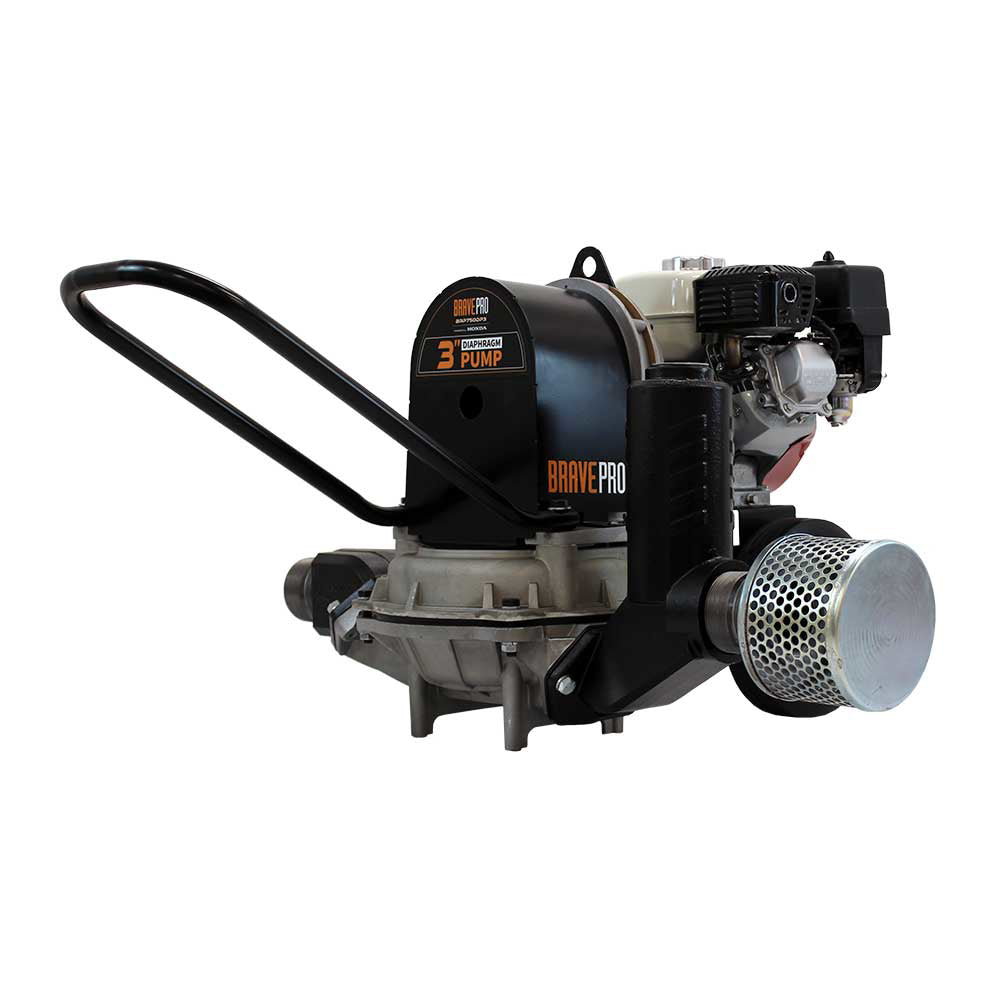

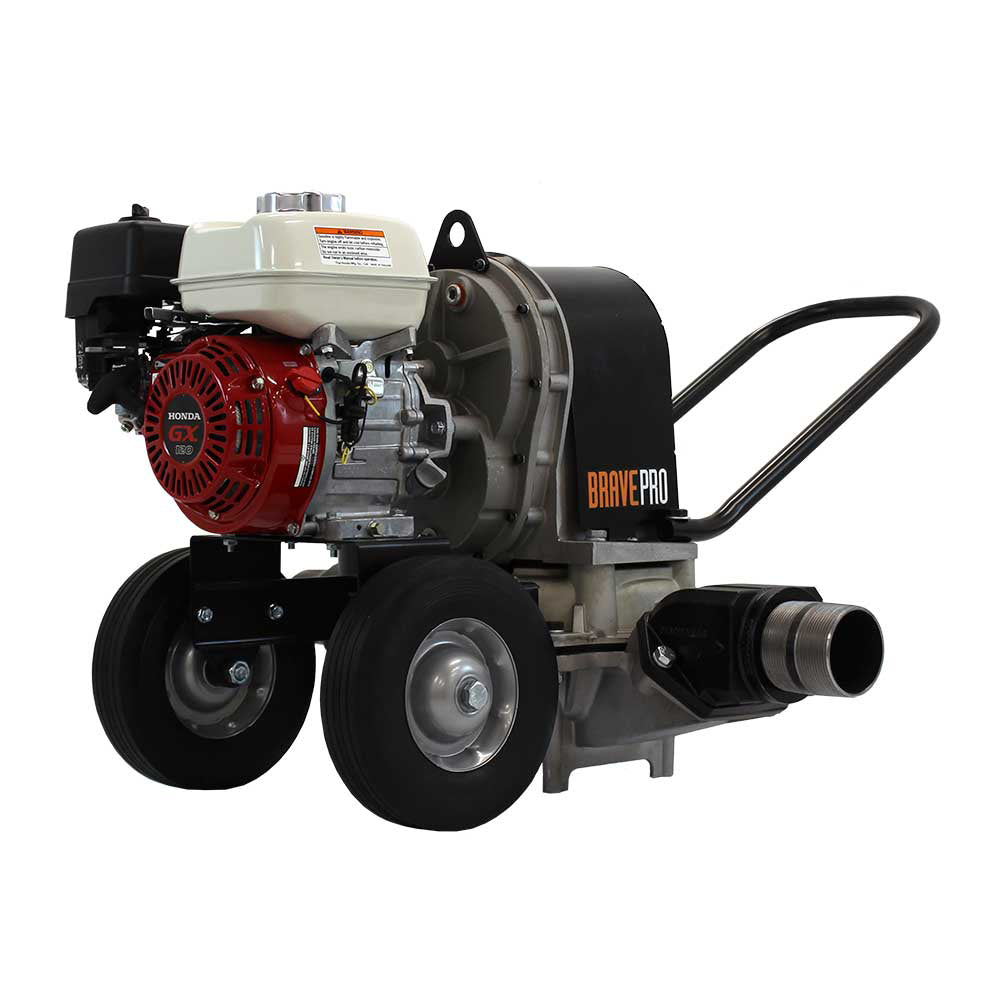

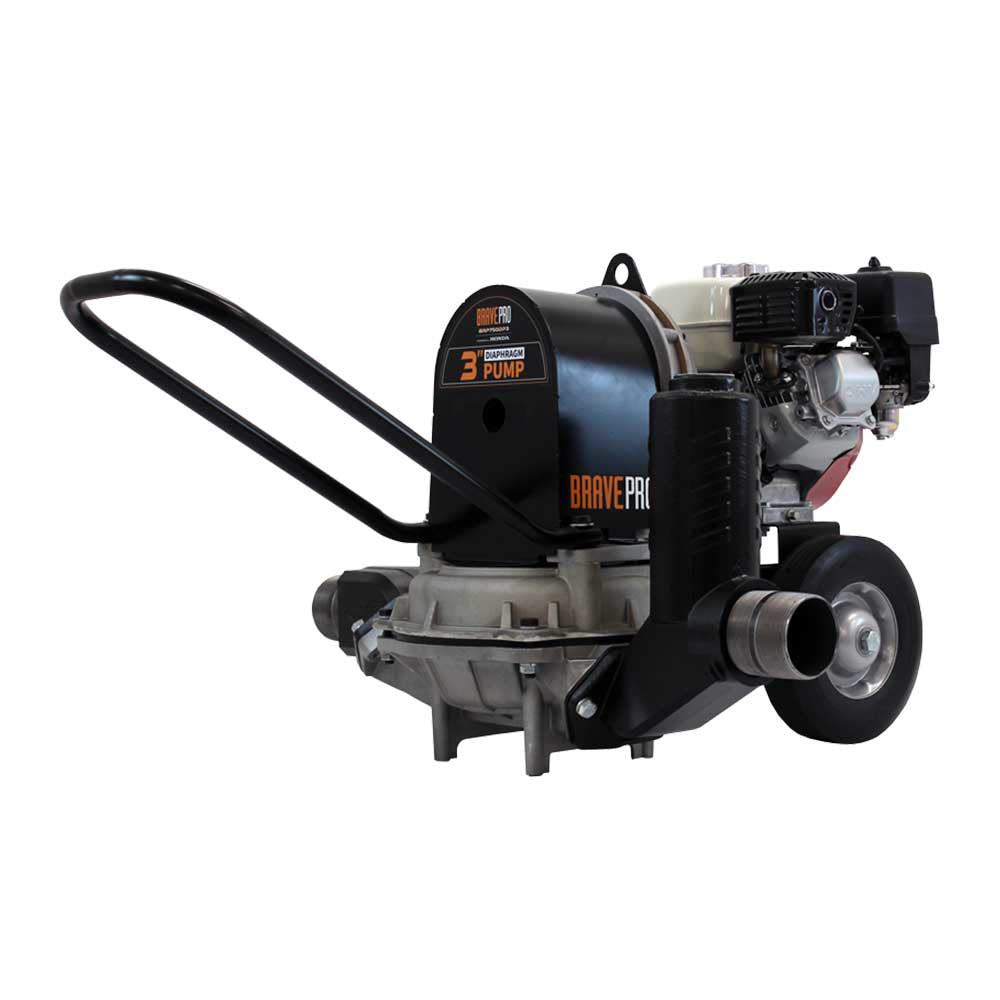

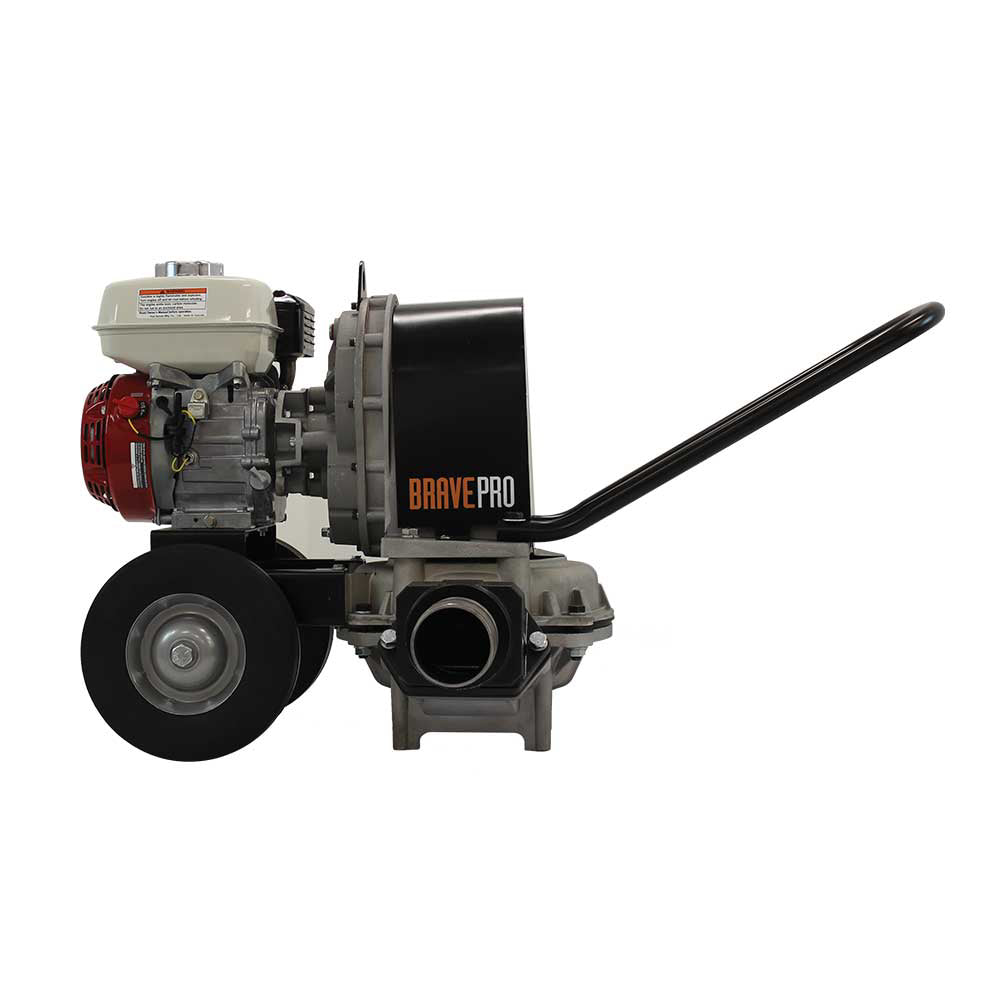

BravePro Diaphragm Pump 3 In., 89 GPM, Honda GX120 Engine, Model BRP750DP3
BravePro Diaphragm Pump 3 In., 89 GPM, Honda GX120 Engine, Model BRP750DP3 is backordered and will ship as soon as it is back in stock.
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
BravePro Diaphragm Pump 3 In., 89 GPM, Honda GX120 Engine, Model BR...
The BravePro 3-In. Diaphragm Pump with Honda GX120 engine is engineered for pumping thick slurries, mud, and abrasive liquids with solids handling up to 1-5/8 in. in diameter. Its sand-cast aluminum body and Santoprene thermoplastic diaphragm deliver durable, self-priming performance for construction dewatering, mining, and industrial drainage applications.
Key Features
- 89 GPM discharge capacity with 25 ft. total head lift
- Honda GX120 engine (122cc) — reliable, fuel-efficient operation
- Handles solids up to 1-5/8 in. diameter
- Self-priming to 25 ft. with 7.5 ft. total suction head
- Wheel kit included for easy job-site mobility
- Dry weight: 175 Lbs
Pump Construction

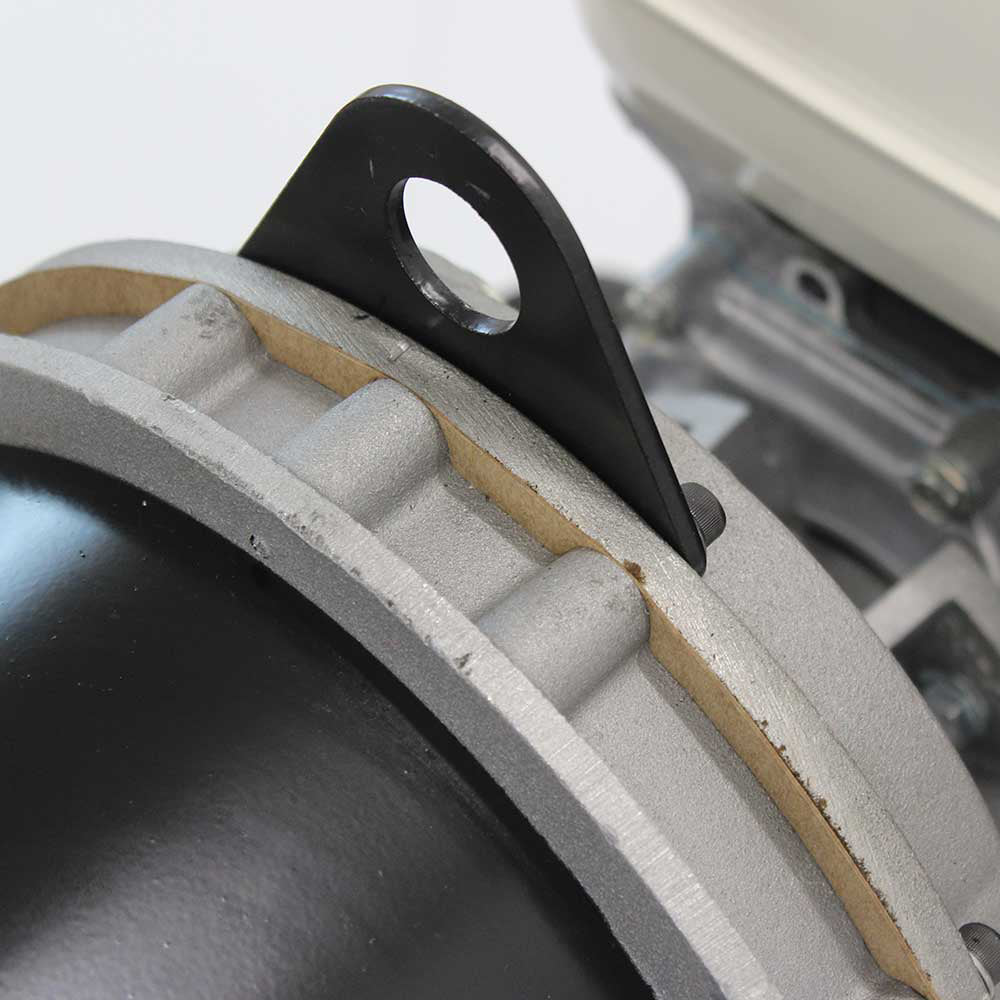

- Sand-cast aluminum housing for a durable yet portable build
- Thermoplastic Santoprene diaphragm resists chemicals and abrasion
- Cast iron impeller for longevity in high-solids applications
- Max operating temperature of 180°F

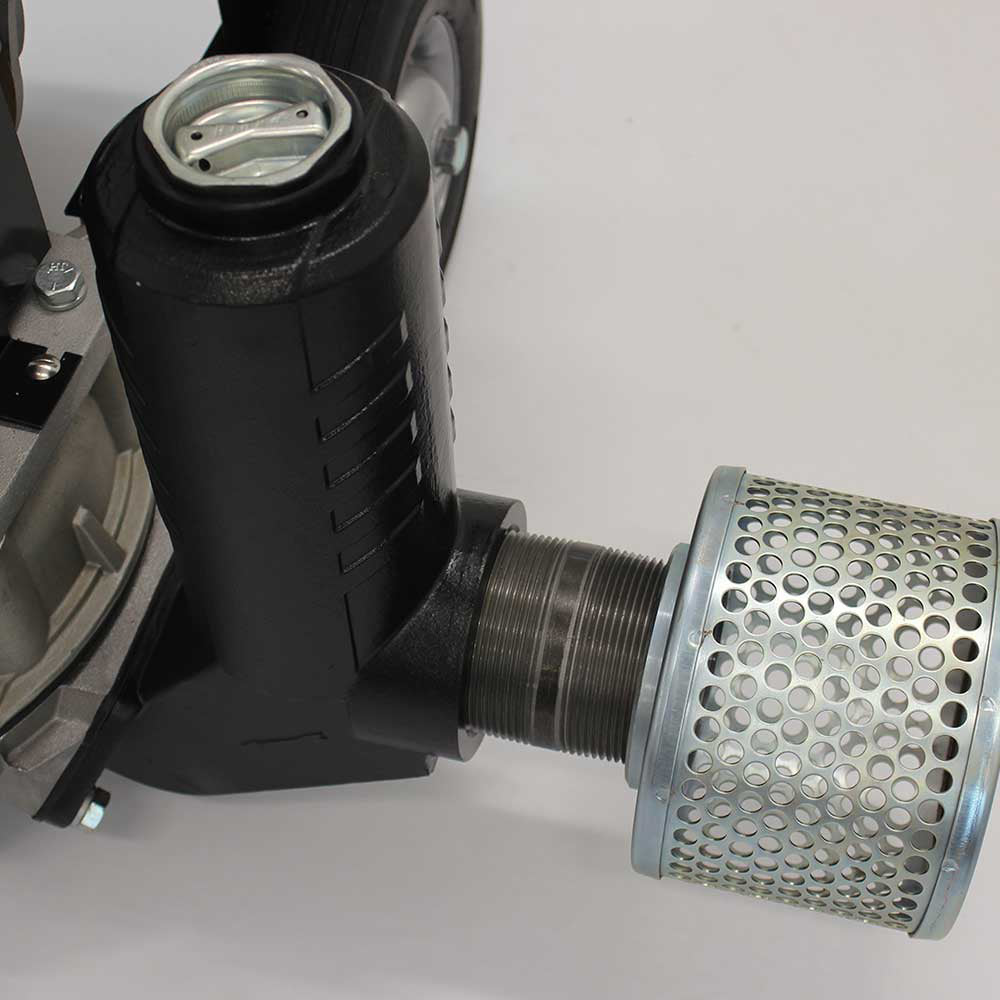

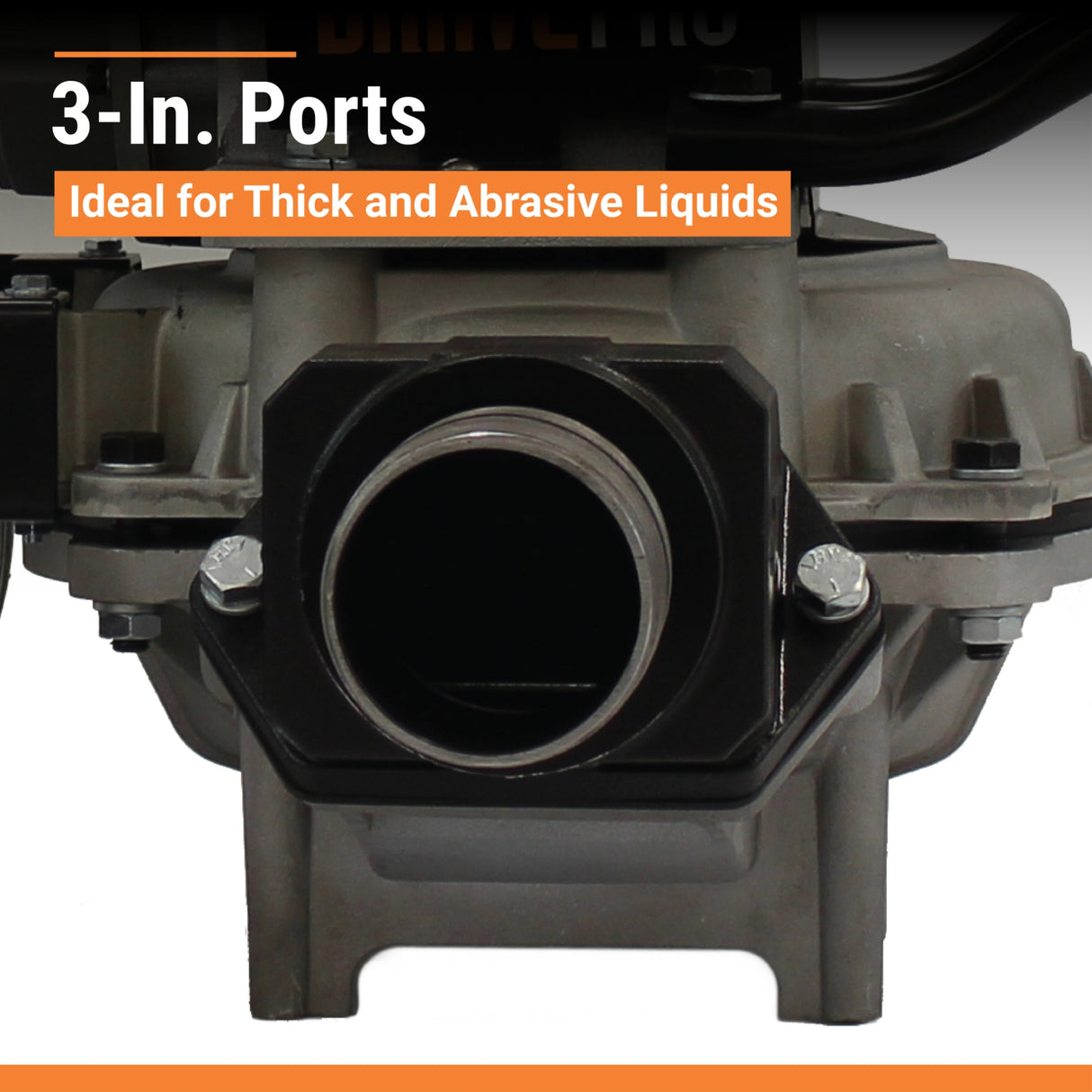

- 3-In. NPT suction and discharge ports
Design & Serviceability

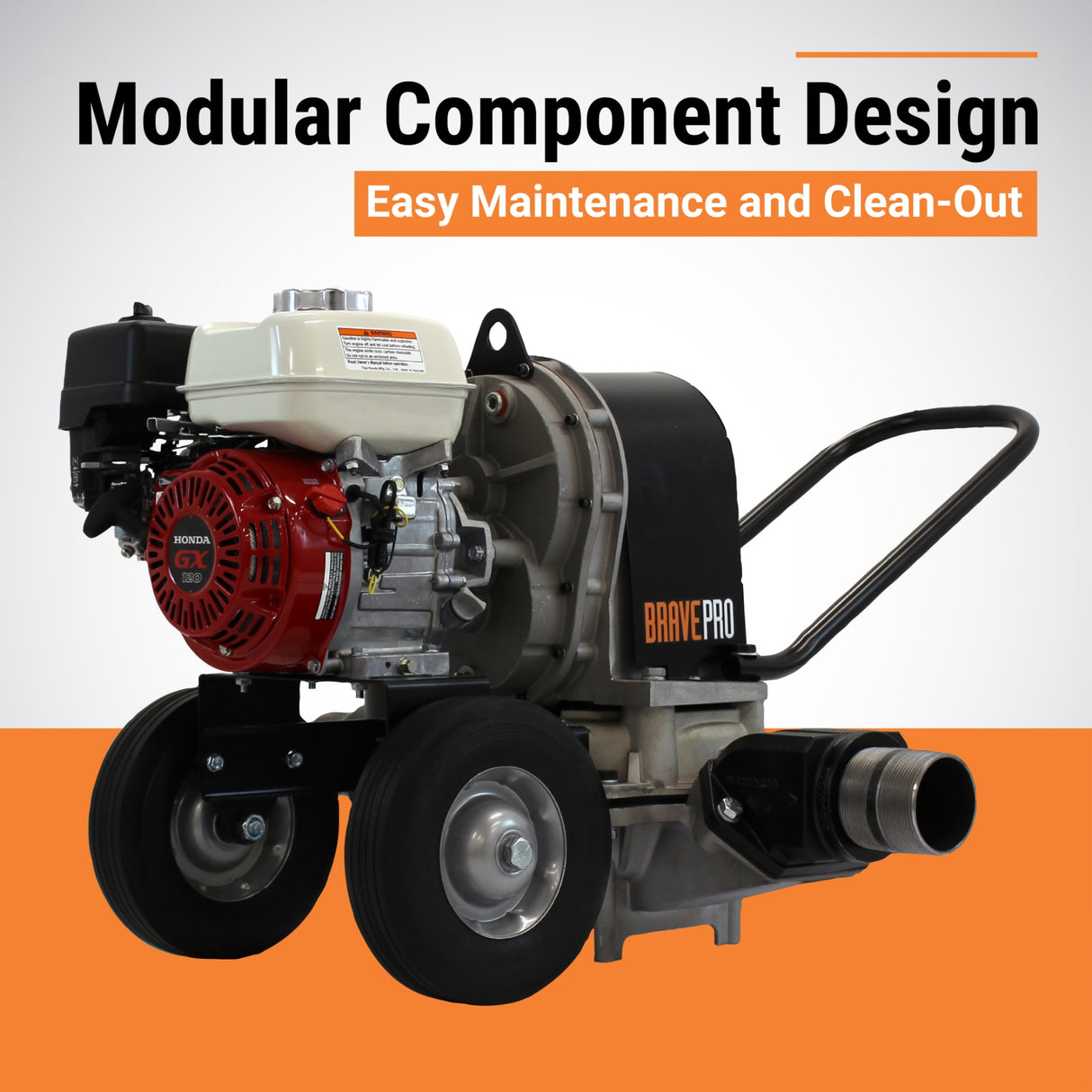

- Modular component design for fast maintenance and clean-out
- 90° rotatable base for flexible positioning on site
- 11 PSI maximum pressure for controlled pumping of dense fluids

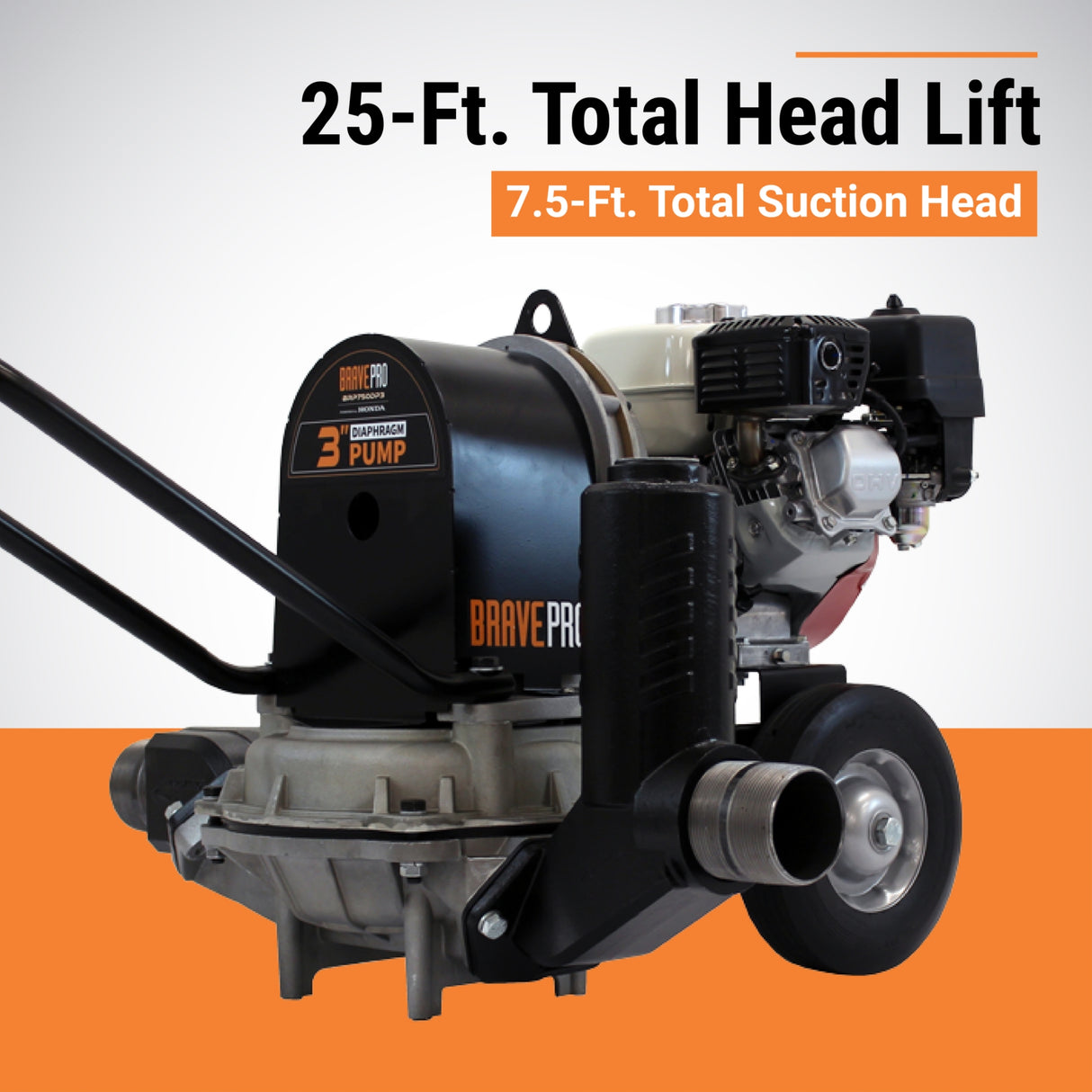

- 25 ft. total head lift, 7.5 ft. total suction head
| Specifications | Details |
|---|---|
| Equipment Type | Diaphragm Pump |
| Engine | Honda GX120 |
| Displacement | 122cc |
| Discharge Capacity | 89 Gal/min |
| Pressure | 11 PSI Max |
| Total Head Lift | 25 Ft. |
| Suction Head Lift | 7.5 Ft. |
| Suction Port Diameter | 3 In. NPT |
| Discharge Port Diameter | 3 In. NPT |
| Solids Handling | Up To 1-5/8 In. Diameter |
| Impeller | Cast Iron |
| Dry Weight | 175 Lbs |
