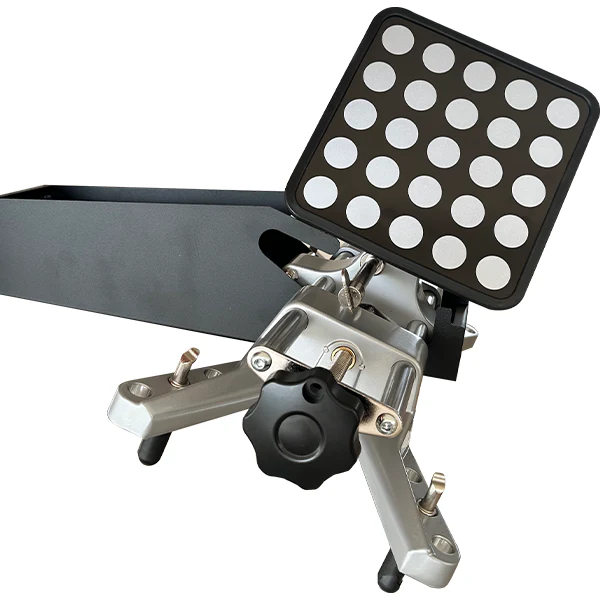

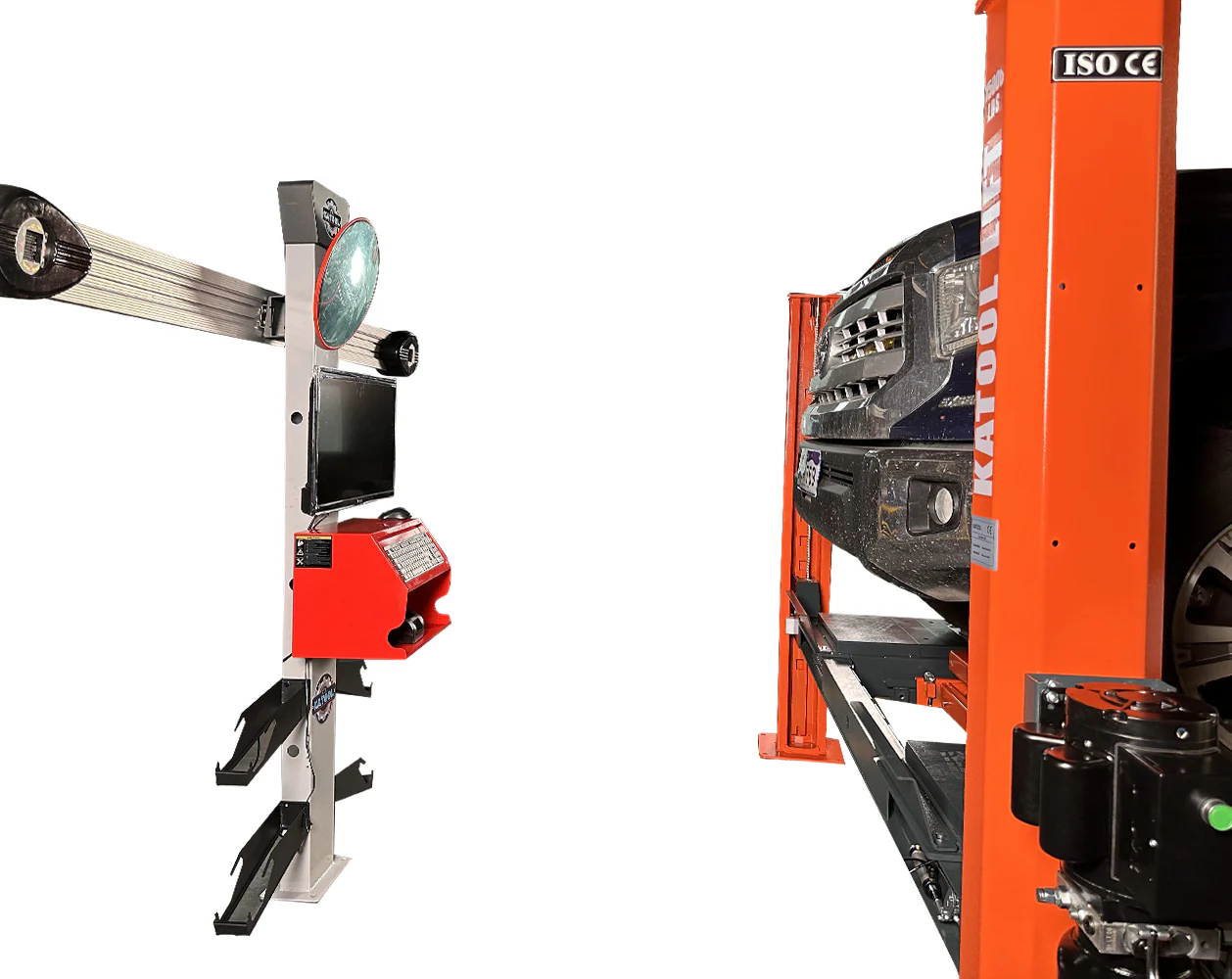

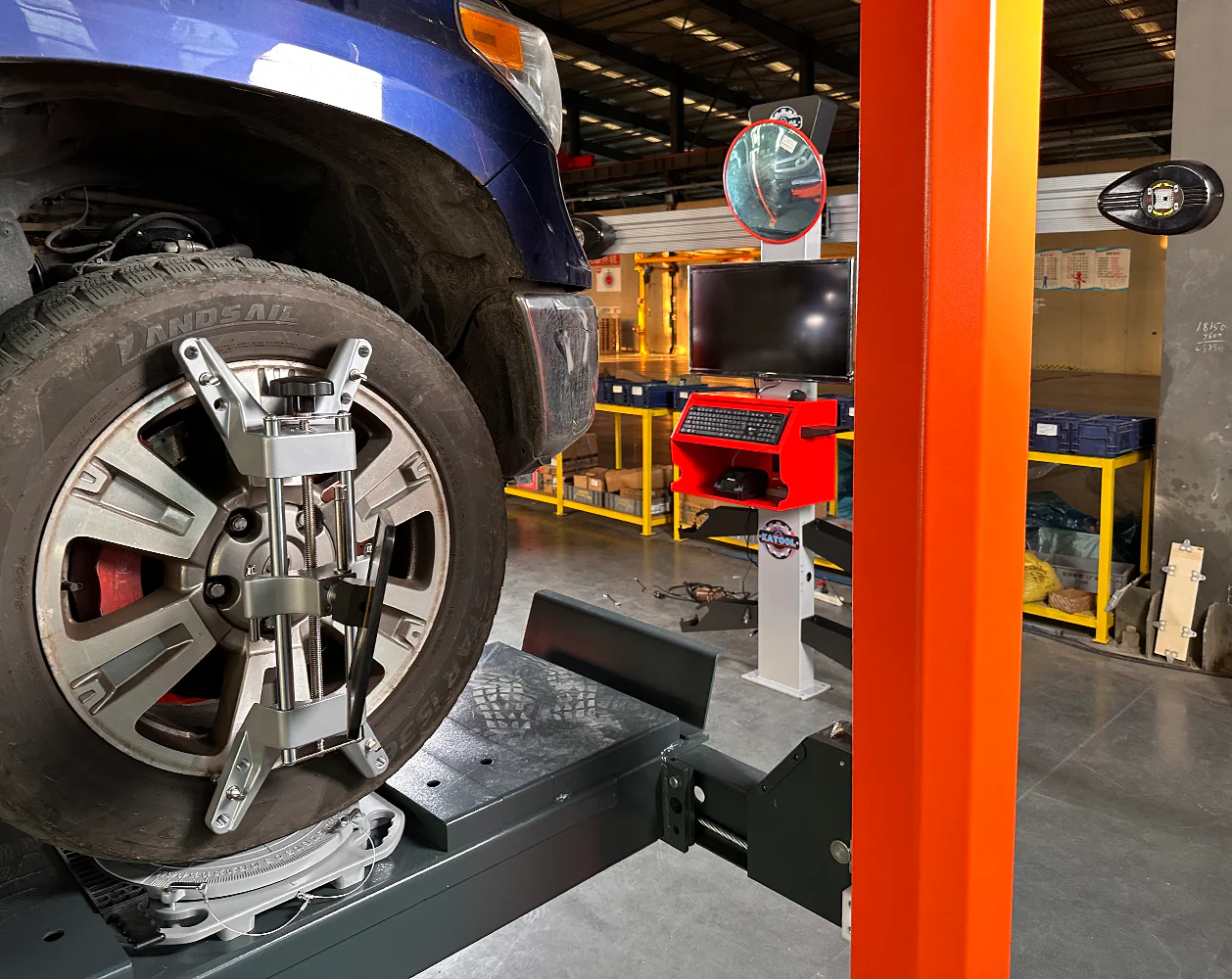

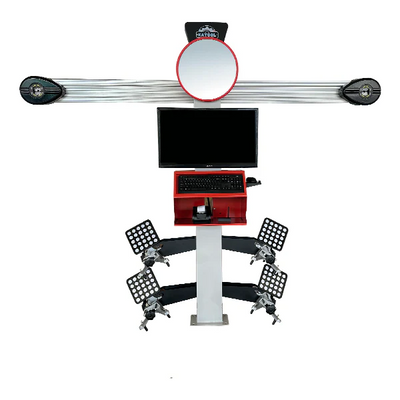

Katool KT-AV533 3D Wheel Alignment Machine for Auto Repair Shops
SKU: KT-AV533
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
Not every shop needs a massive alignment system to get professional results—and the Katool KT-AV533 proves that. Designed for shops that want reliable accuracy without sacrificing space or budget, this 3D alignment machine delivers the core capabilities needed for modern alignment service in a compact, efficient setup.

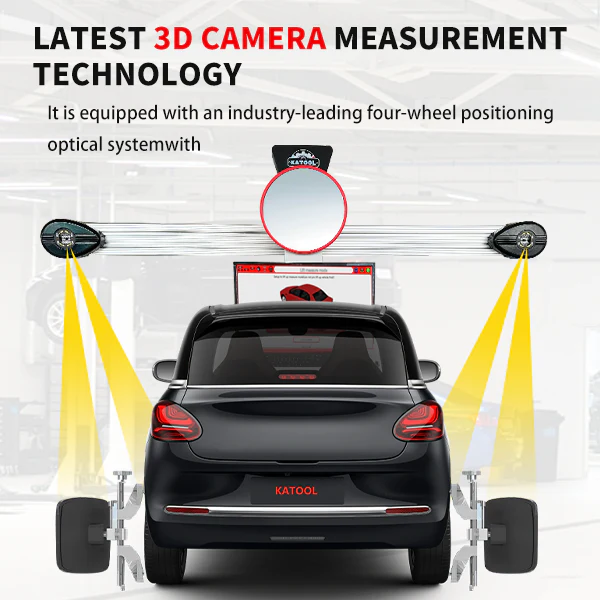

Using advanced 3D imaging technology, the KT-AV533 provides fast, precise alignment readings that help technicians diagnose and correct issues with confidence. By reducing guesswork and minimizing repeat adjustments, it helps improve workflow while maintaining consistent service quality across both front and rear alignments.
Built for daily shop use, this system offers a practical balance between performance and footprint. It’s a strong fit for repair shops, tire centers, and alignment-focused bays looking to add or upgrade alignment capability without overcomplicating their setup.
Key Features & Benefits
- 3D Alignment Technology – Delivers accurate, real-time measurement data
- Compact Shop-Friendly Design – Easy to integrate into limited workspace areas
- Comprehensive Angle Measurement – Covers toe, camber, thrust angle, kingpin angles, and more
- Improves Alignment Accuracy – Reduces repeat corrections and rework
- Fast Diagnostic Capability – Speeds up alignment checks and adjustments
- Stable Measurement System – Maintains consistency across repeated jobs
- Designed for Daily Use – Reliable performance in professional environments
- Efficient Workflow Integration – Supports modern alignment service operations
- Consistent Measurement Accuracy – Reliable results across front and rear alignments
- Reduced Setup Complexity – Simple operation for faster job completion
- Balanced Capability – Professional results without oversized equipment
| Specifications | Details |
|---|---|
| Model | KT-AV533 |
| Brand | Katool Automotive Equipment |
| Product Type | 3D Wheel Alignment Machine |
| Total Front Toe / Beam | ±6° range, ±4′ accuracy |
| Single Wheel Toe / Beam | ±3° range, ±2′ accuracy |
| Wheel Camber | ±10° range, ±2′ accuracy |
| Kingpin Rear Angle | ±15° range, ±2′ accuracy |
| Kingpin Inclination | ±20° range, ±6′ accuracy |
| Thrust Angle | ±6° range, ±2′ accuracy |
| Axis Angle | ±6° range, ±2′ accuracy |
| Display Resolution | 1′ angular / 0.1 mm linear |
| Zero Drift | ≤4′ within 30 minutes |
| Indicating Value Error | ±4′ |
