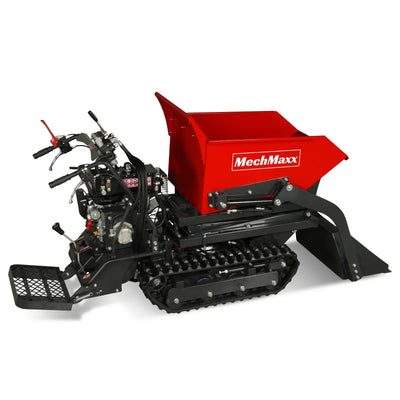

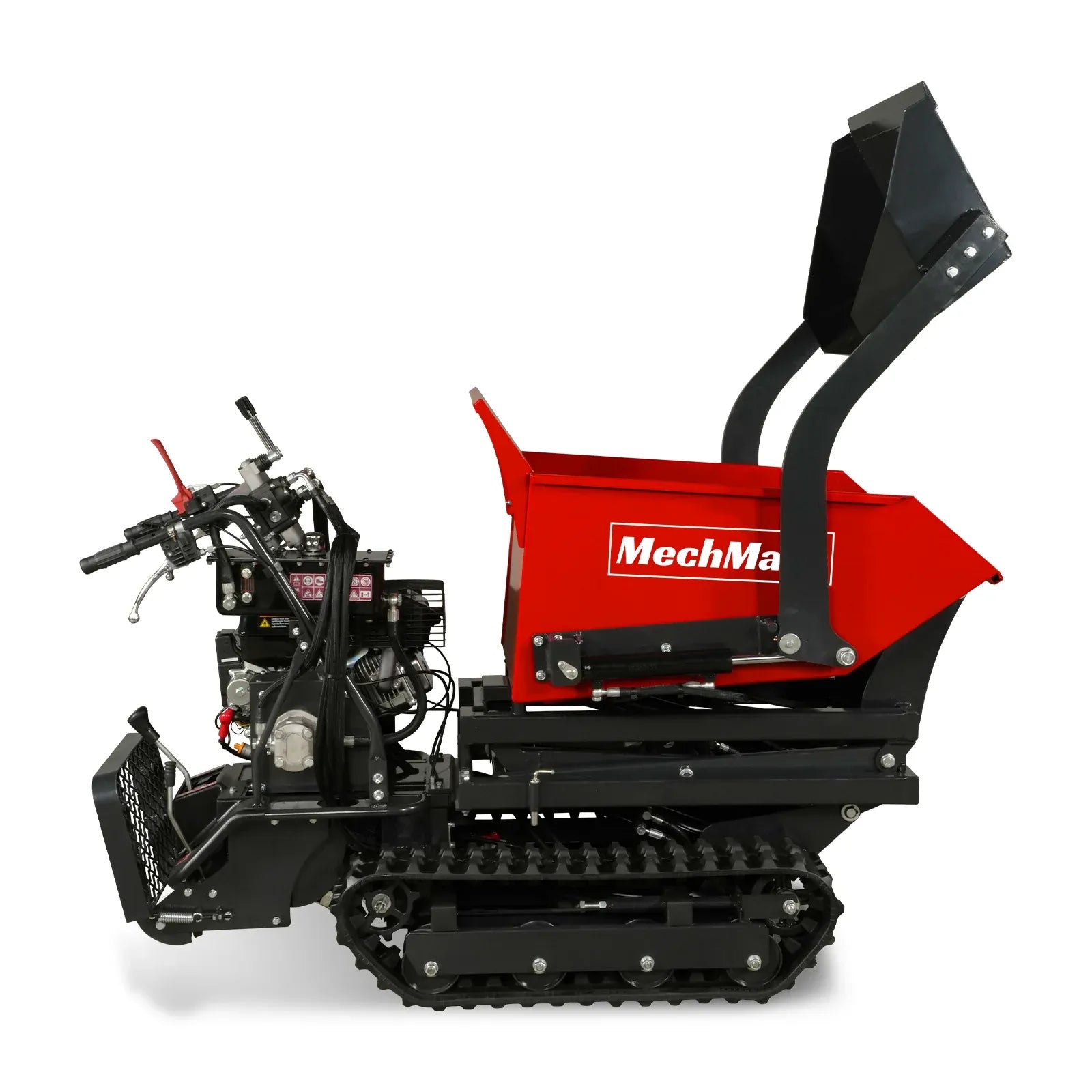

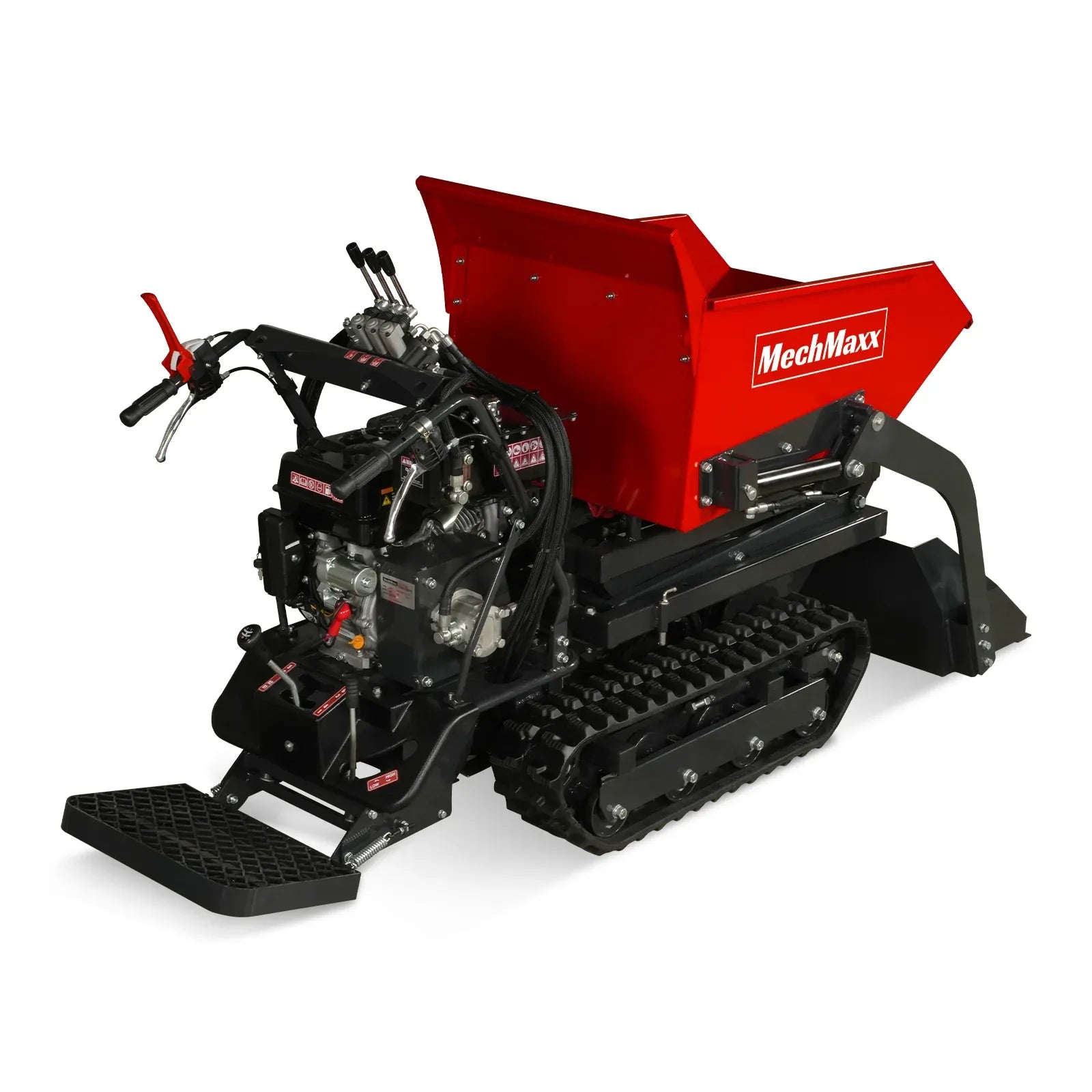

MechMaxx 1100 lb Tracked Dumper with 10HP 302cc Gas Engine, Hydraulic Tipping and Front Shovel, Model D50HTFL
MechMaxx 1100 lb Tracked Dumper with 10HP 302cc Gas Engine, Hydraulic Tipping and Front Shovel, Model D50HTFL is backordered and will ship as soon as it is back in stock.
Your payment information is encrypted and never stored
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
MechMaxx 1100 lb Tracked Dumper with 10HP 302cc Gas Engine, Hydraul...

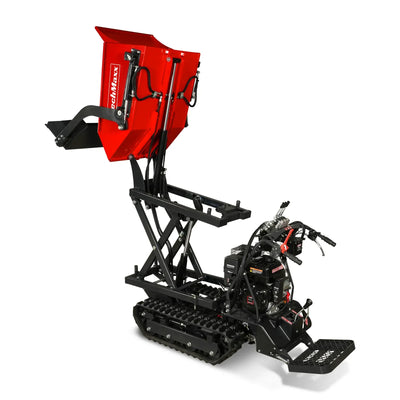

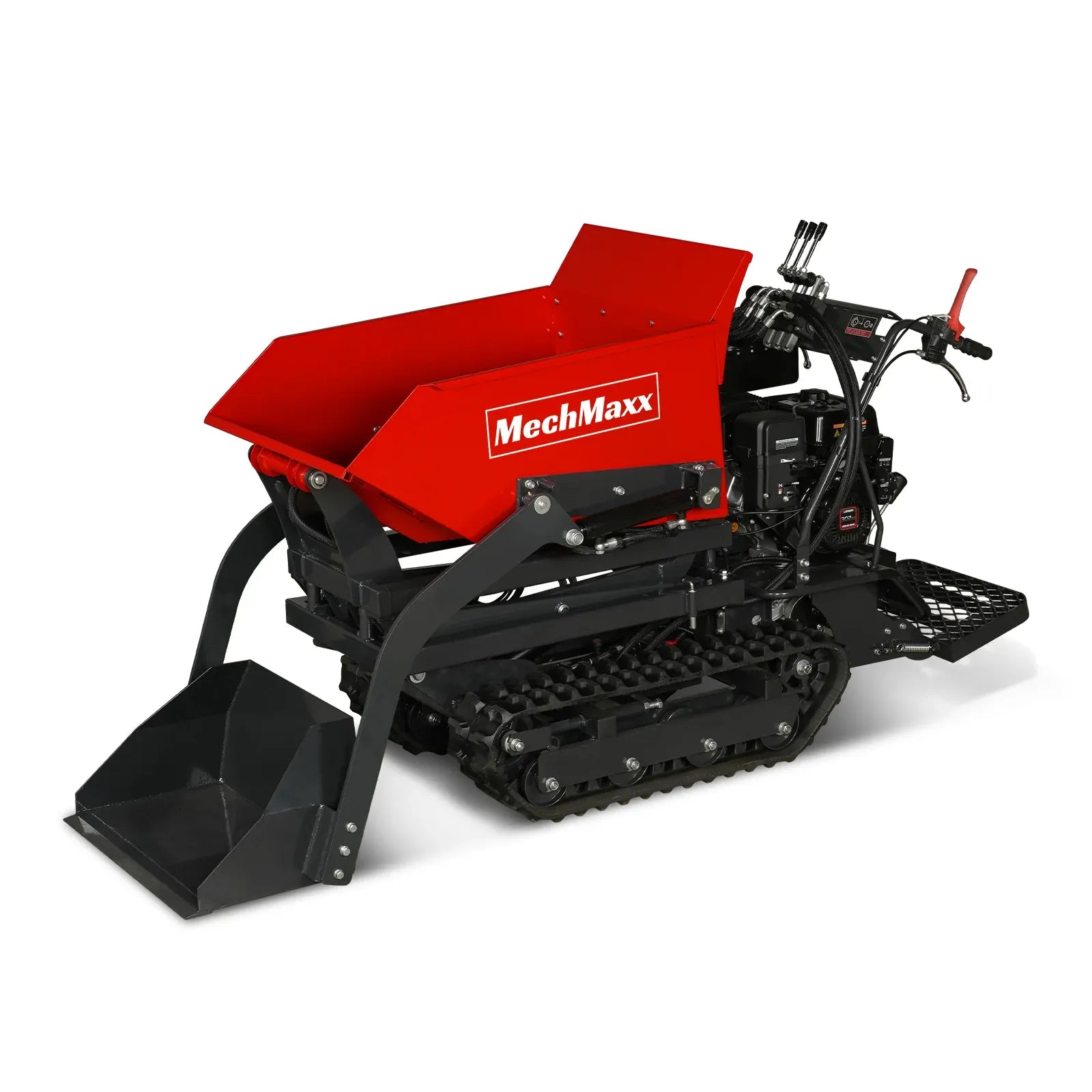

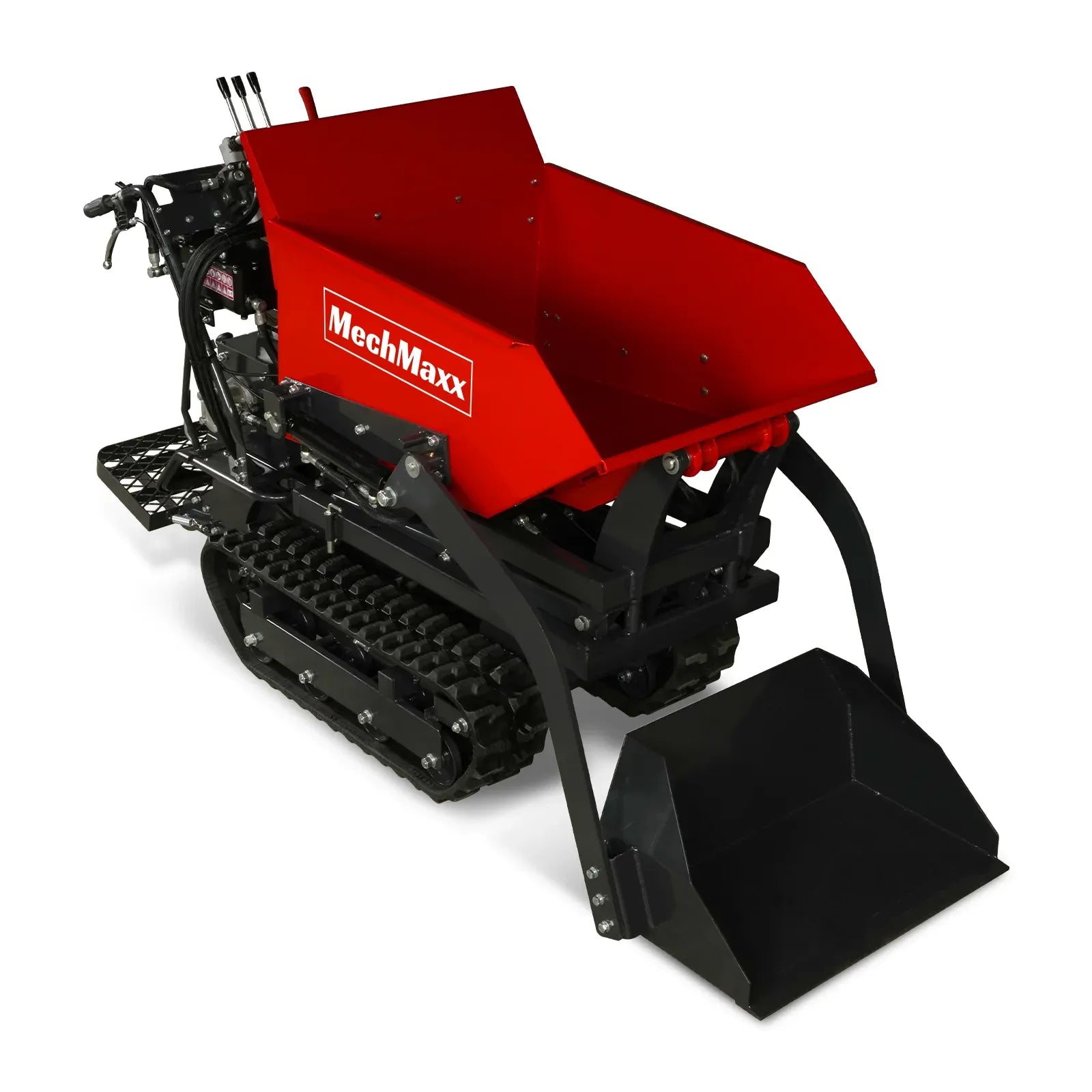

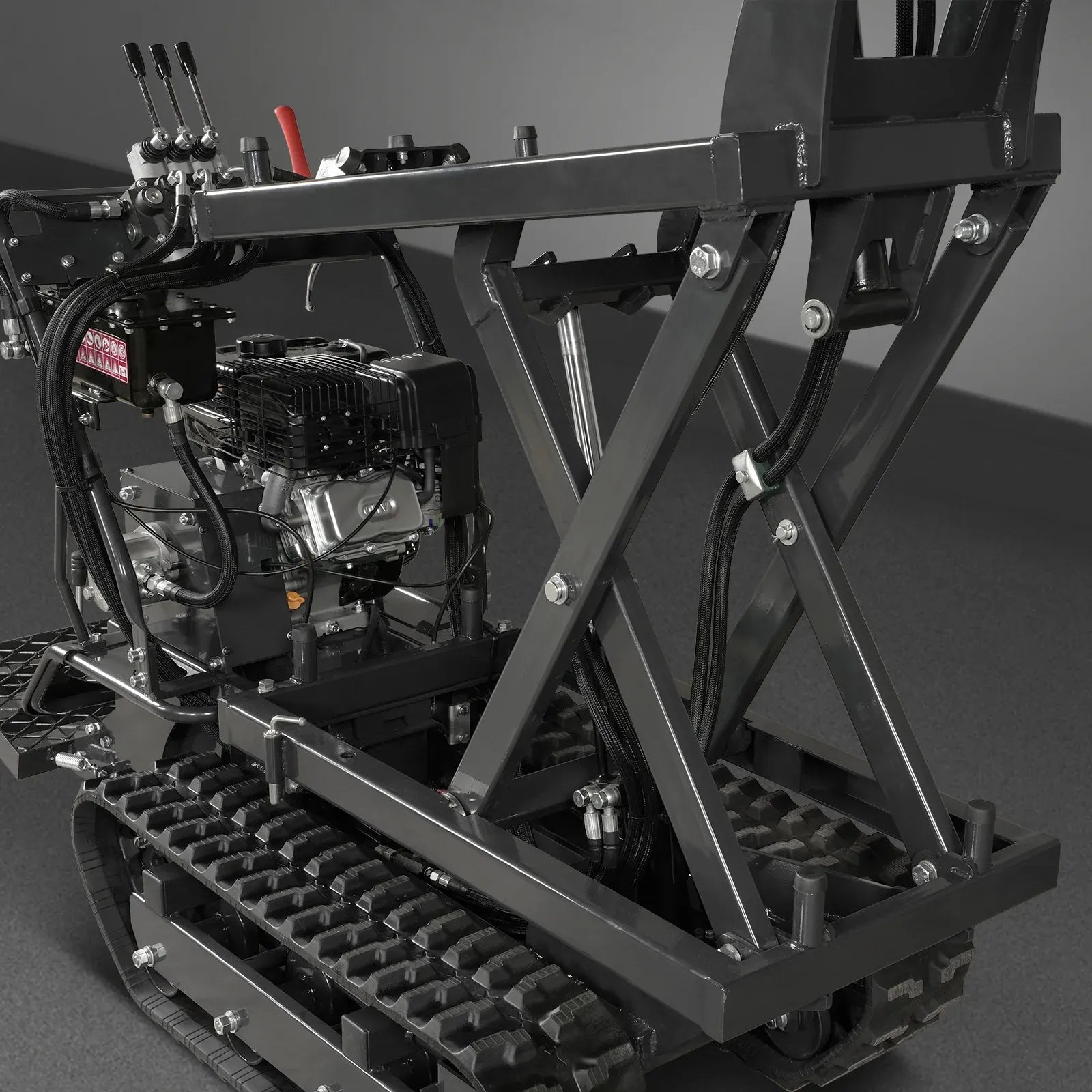

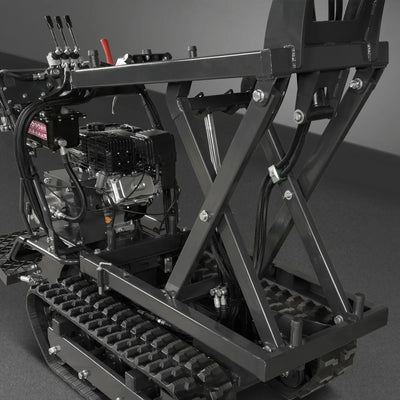

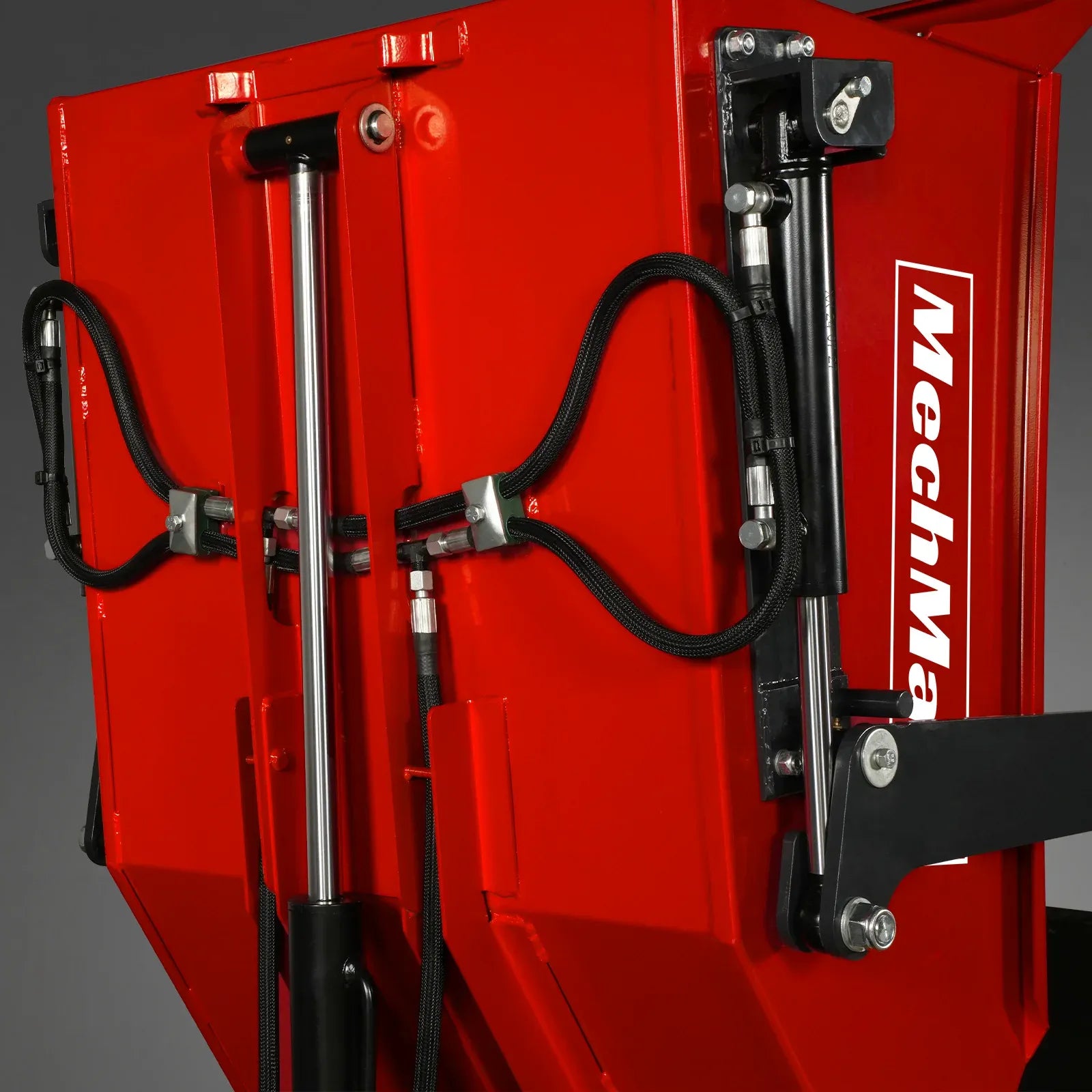

The MechMaxx hydraulic tracked dumper is built with heavy-duty steel construction and a powerful hydraulic system, delivering strong lifting and dumping performance for demanding job site conditions. Equipped with a self-loading shovel and high-tipping bucket, it allows for efficient material handling without the need for additional machinery.

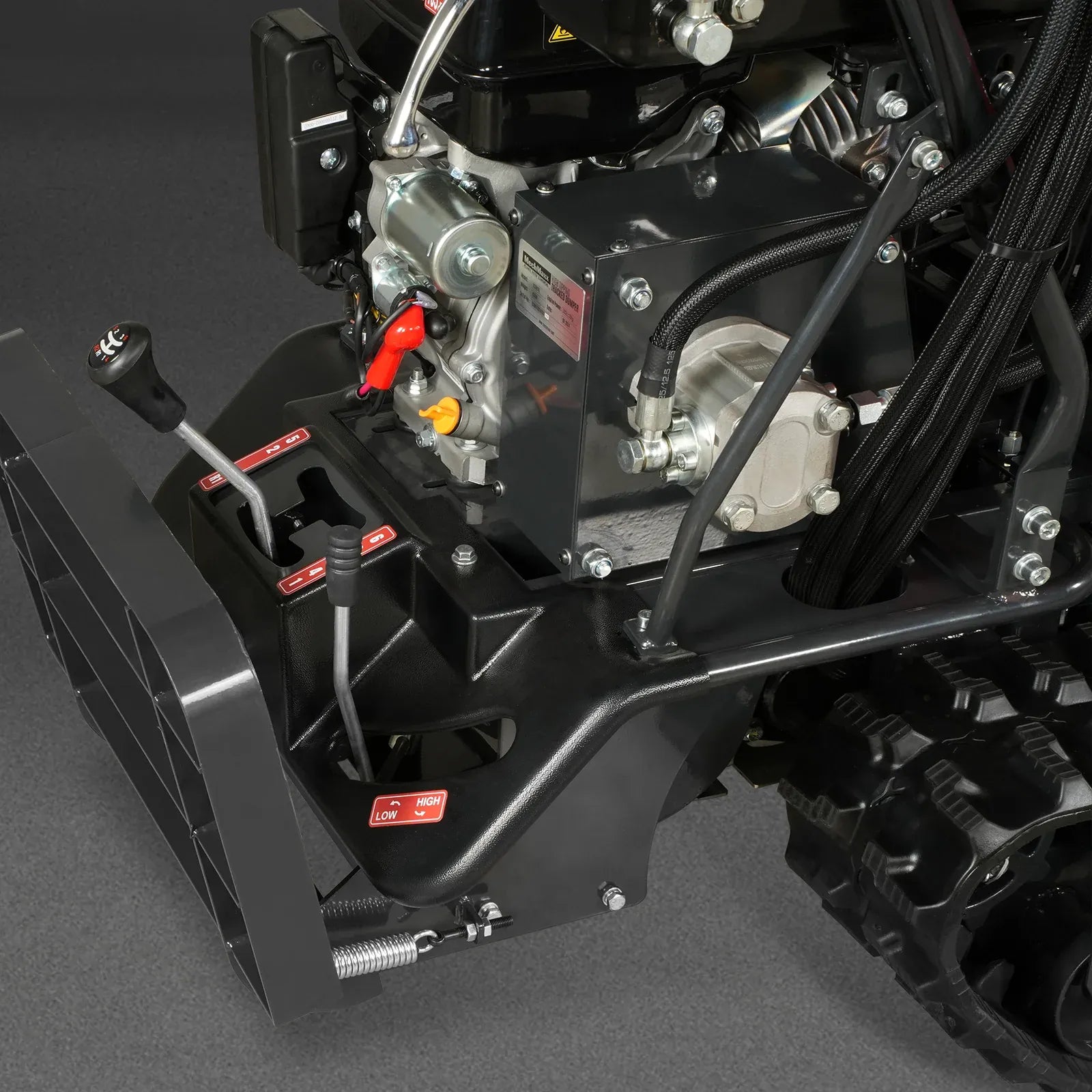

Designed for versatility, this unit features a transmission system with 6 forward and 2 reverse gears, offering improved control and performance compared to friction-driven alternatives.

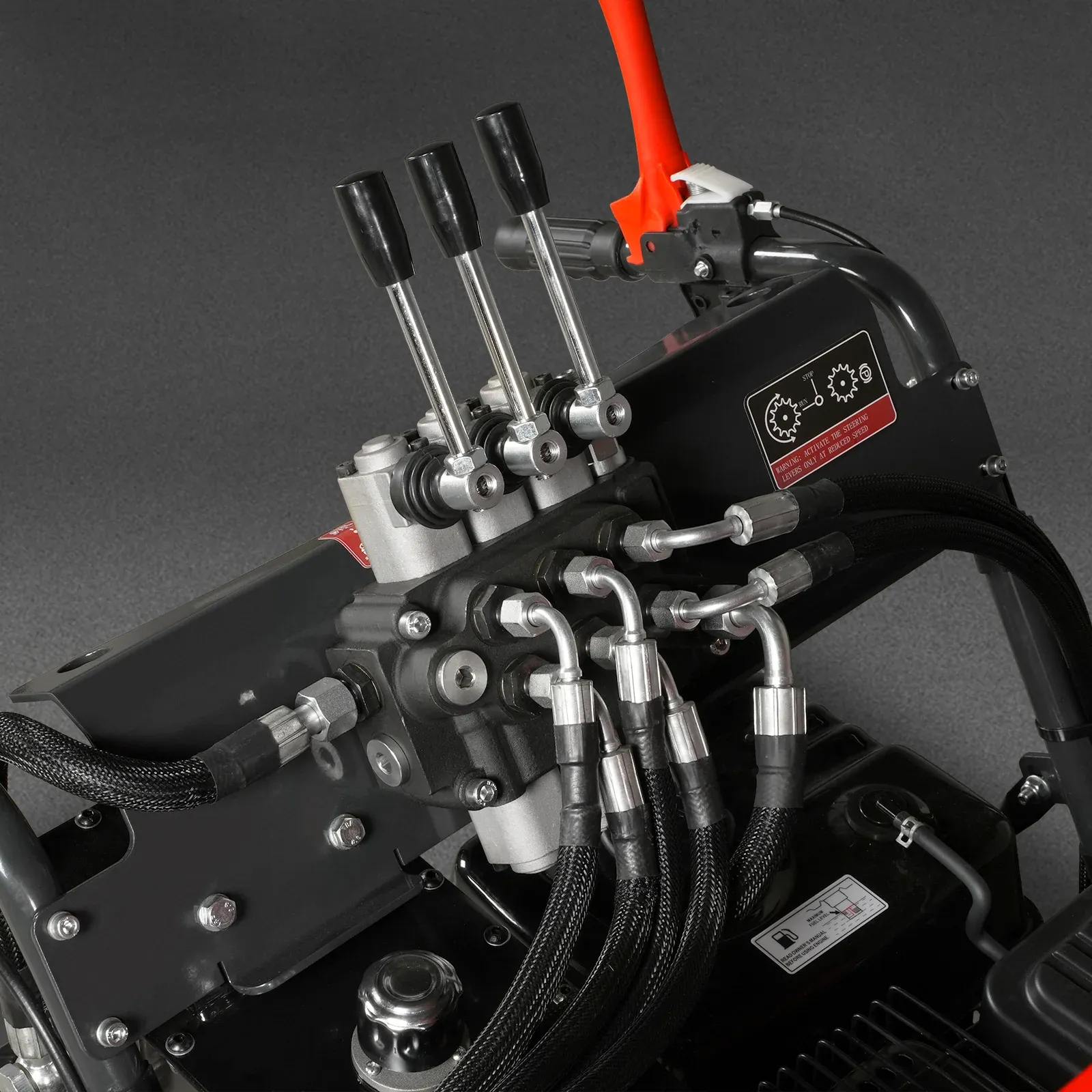

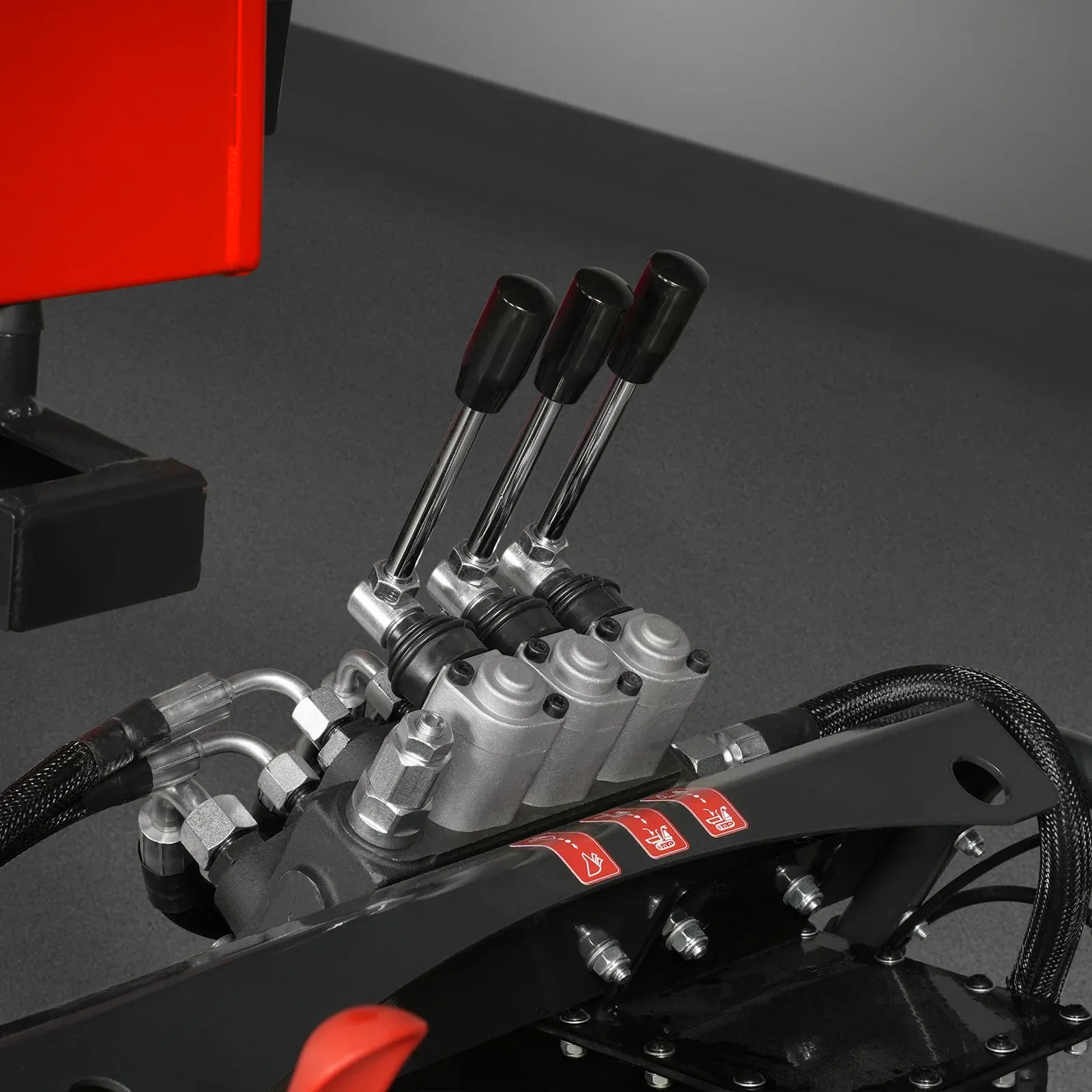

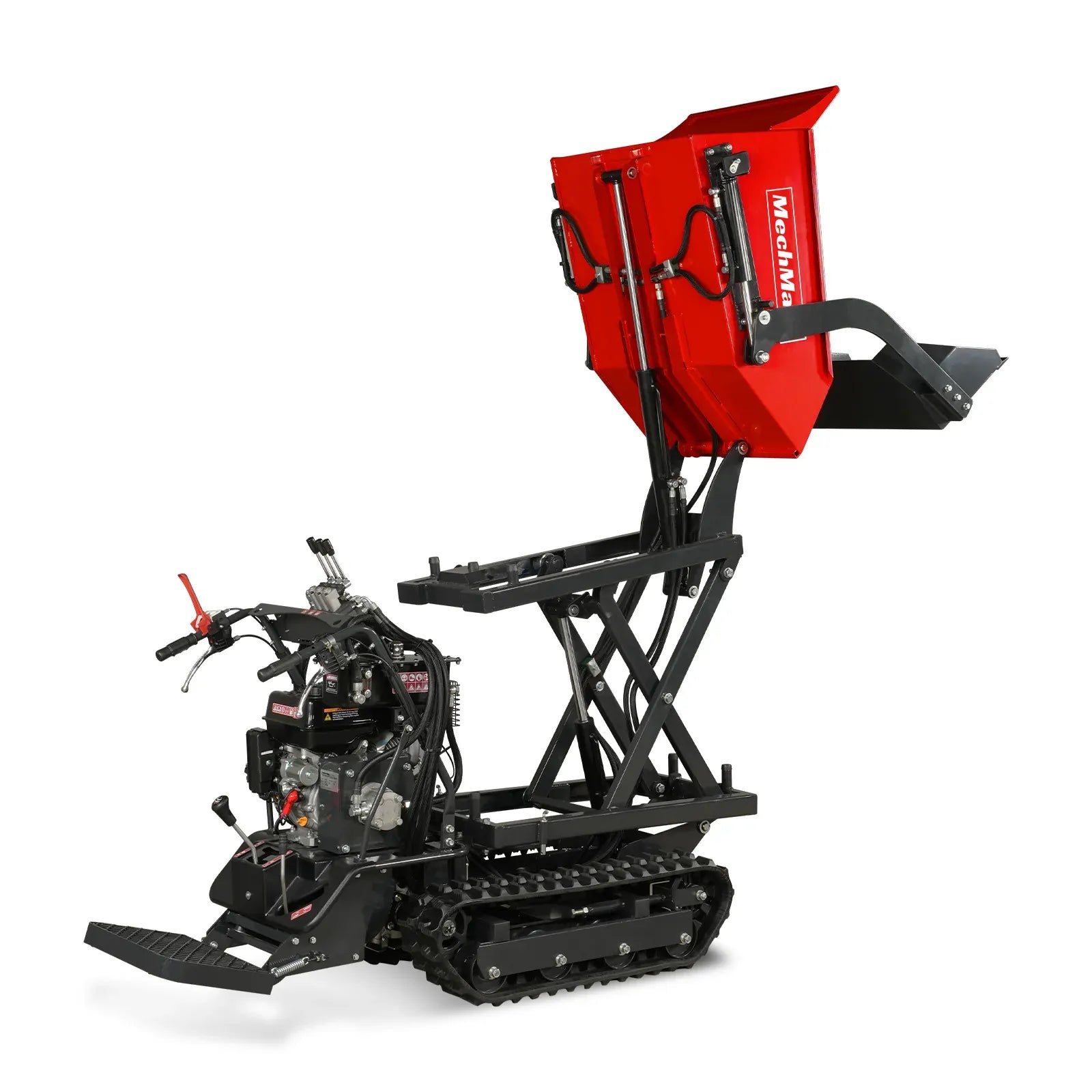

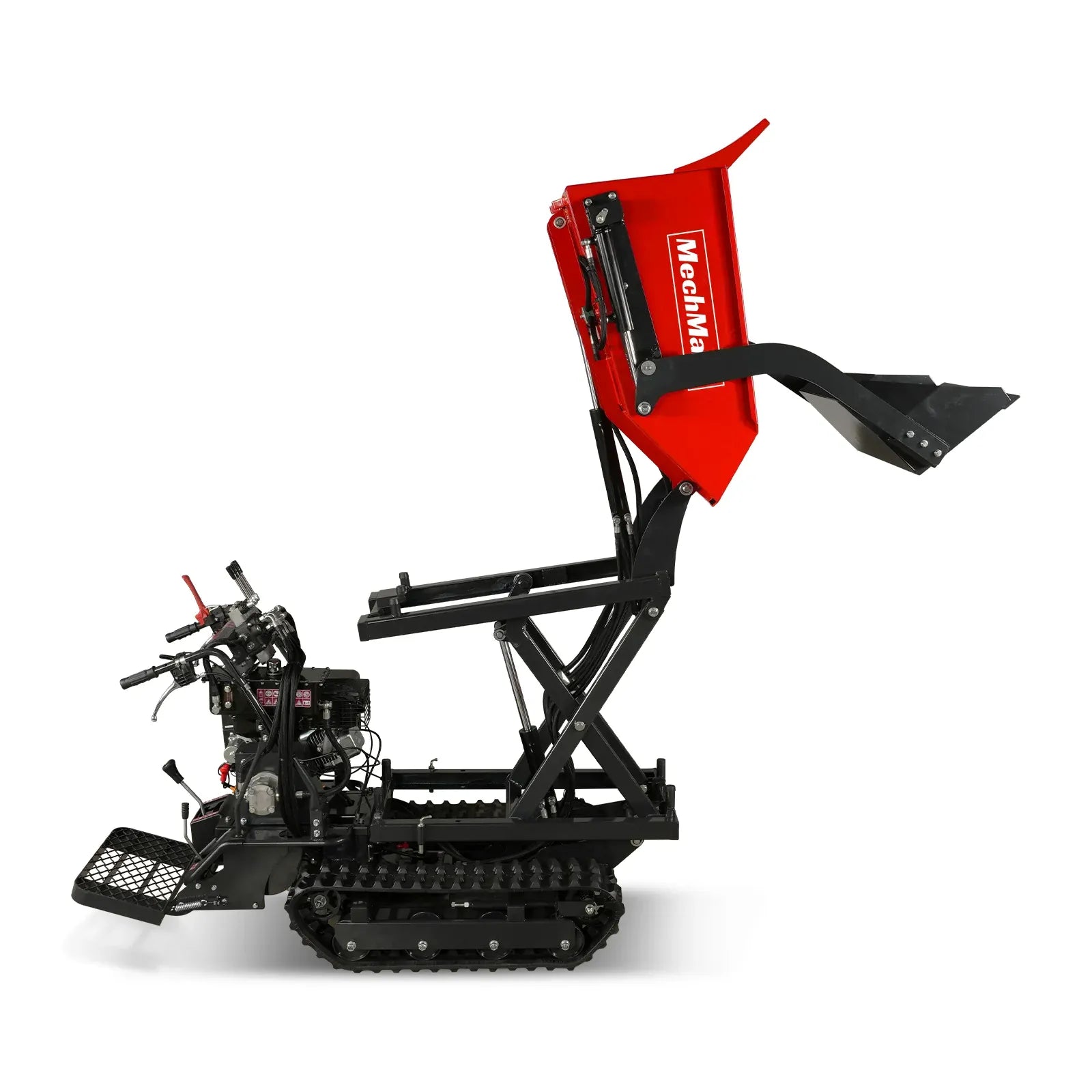

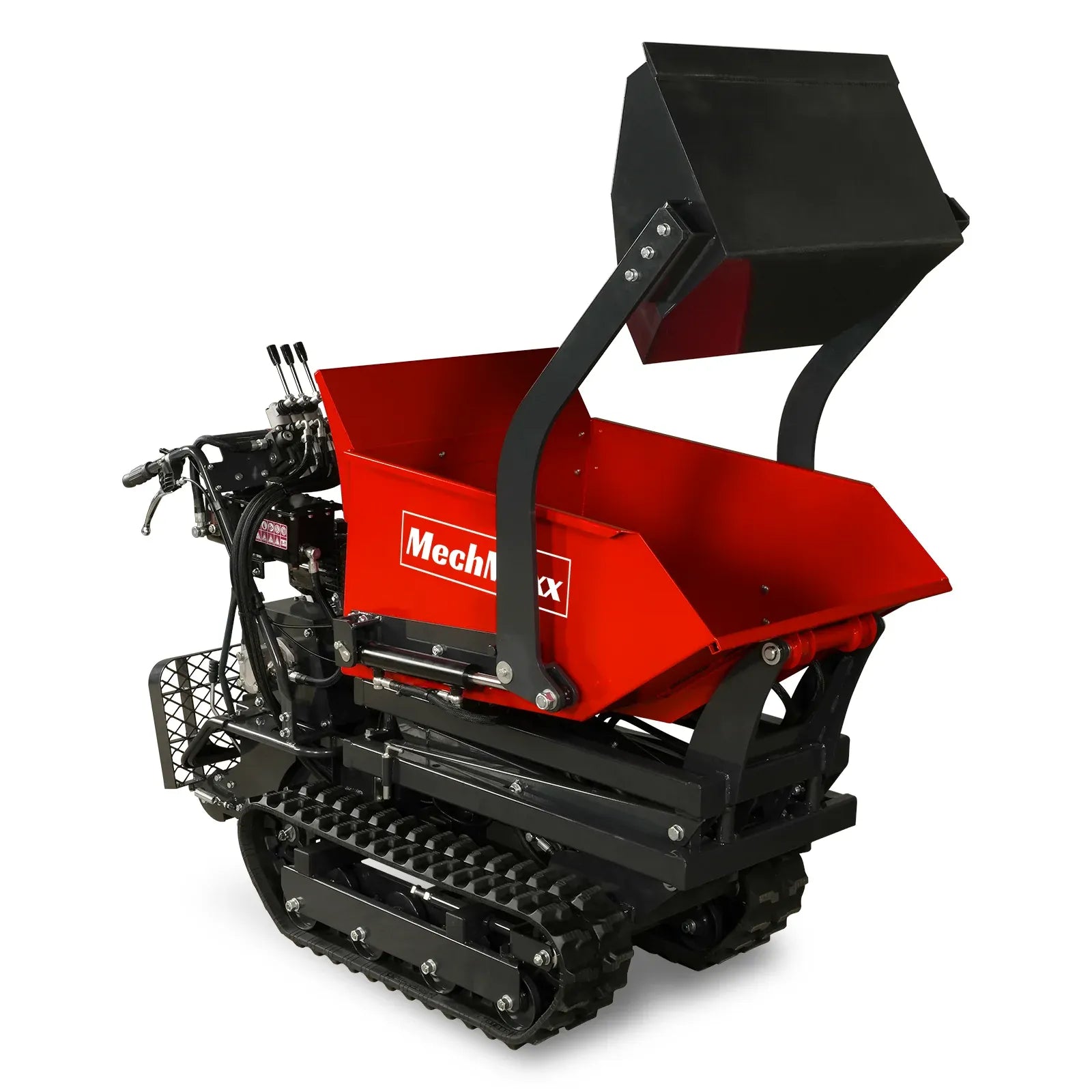

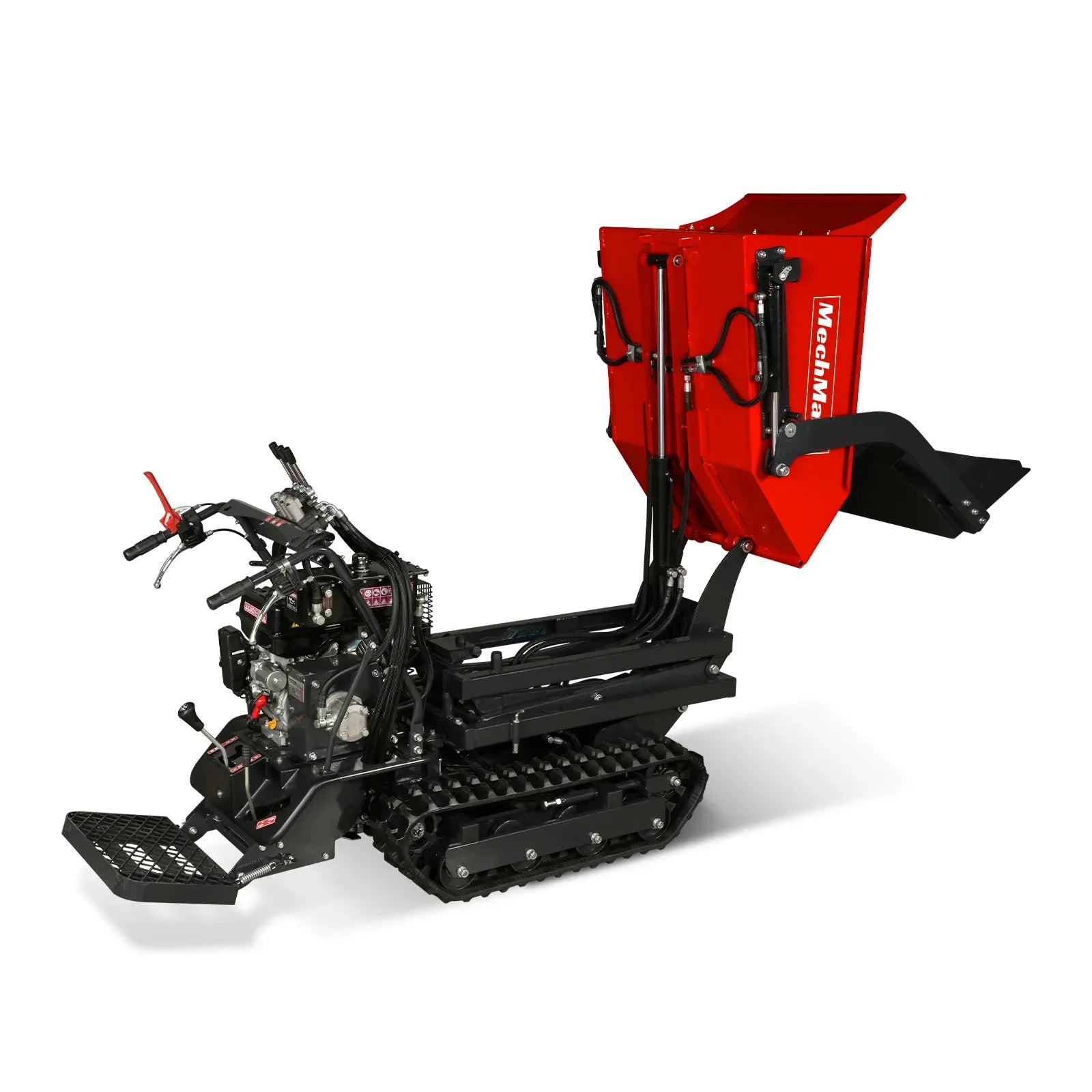

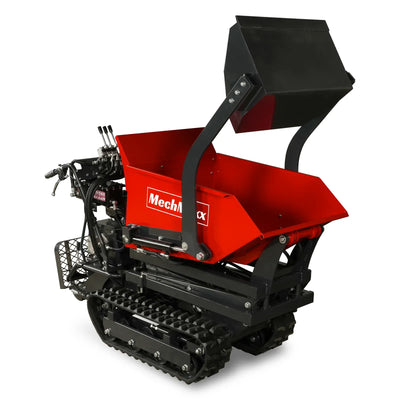

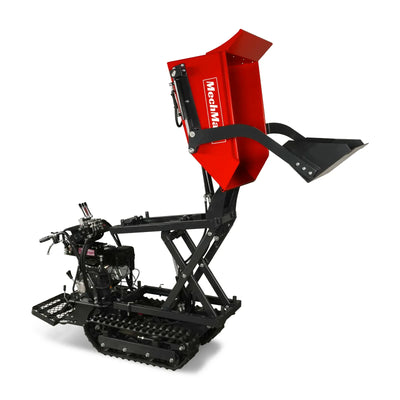

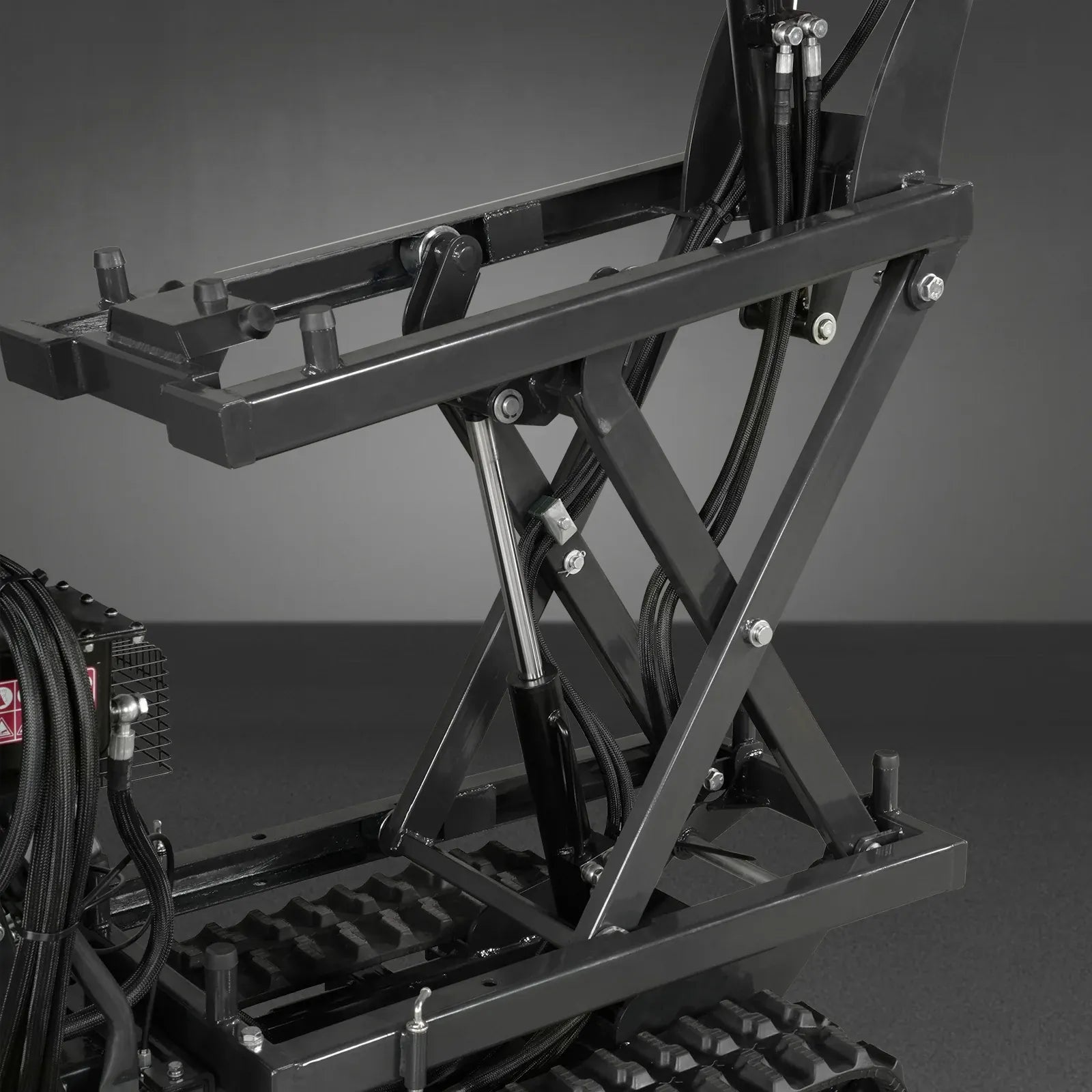

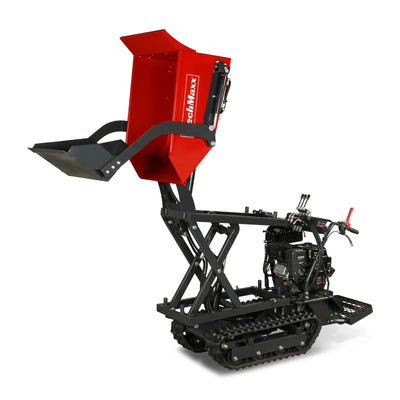

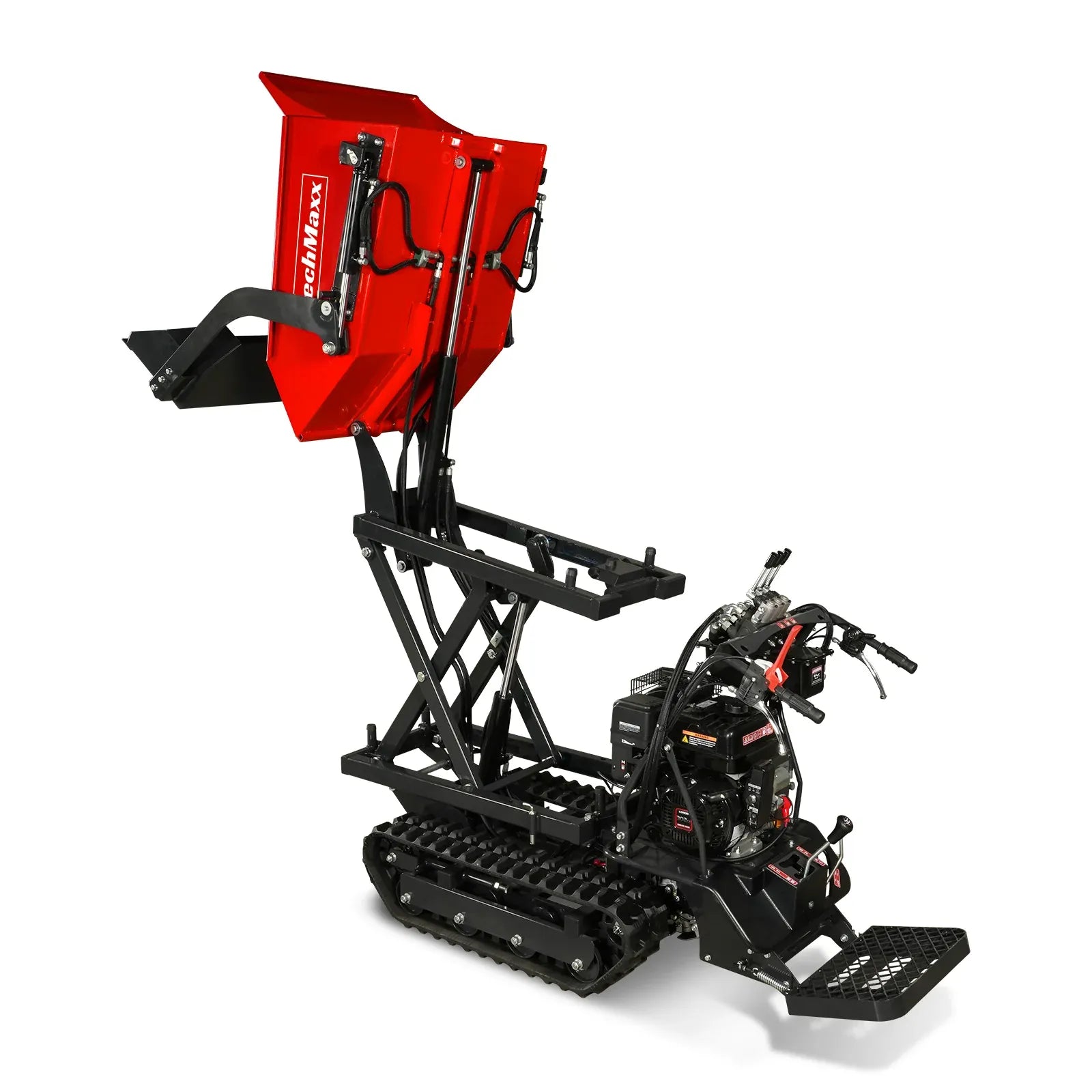

The hydraulic self-loading and high-tip functions allow the machine to independently load, transport, and dump materials, helping reduce labor time and improve overall efficiency on site.

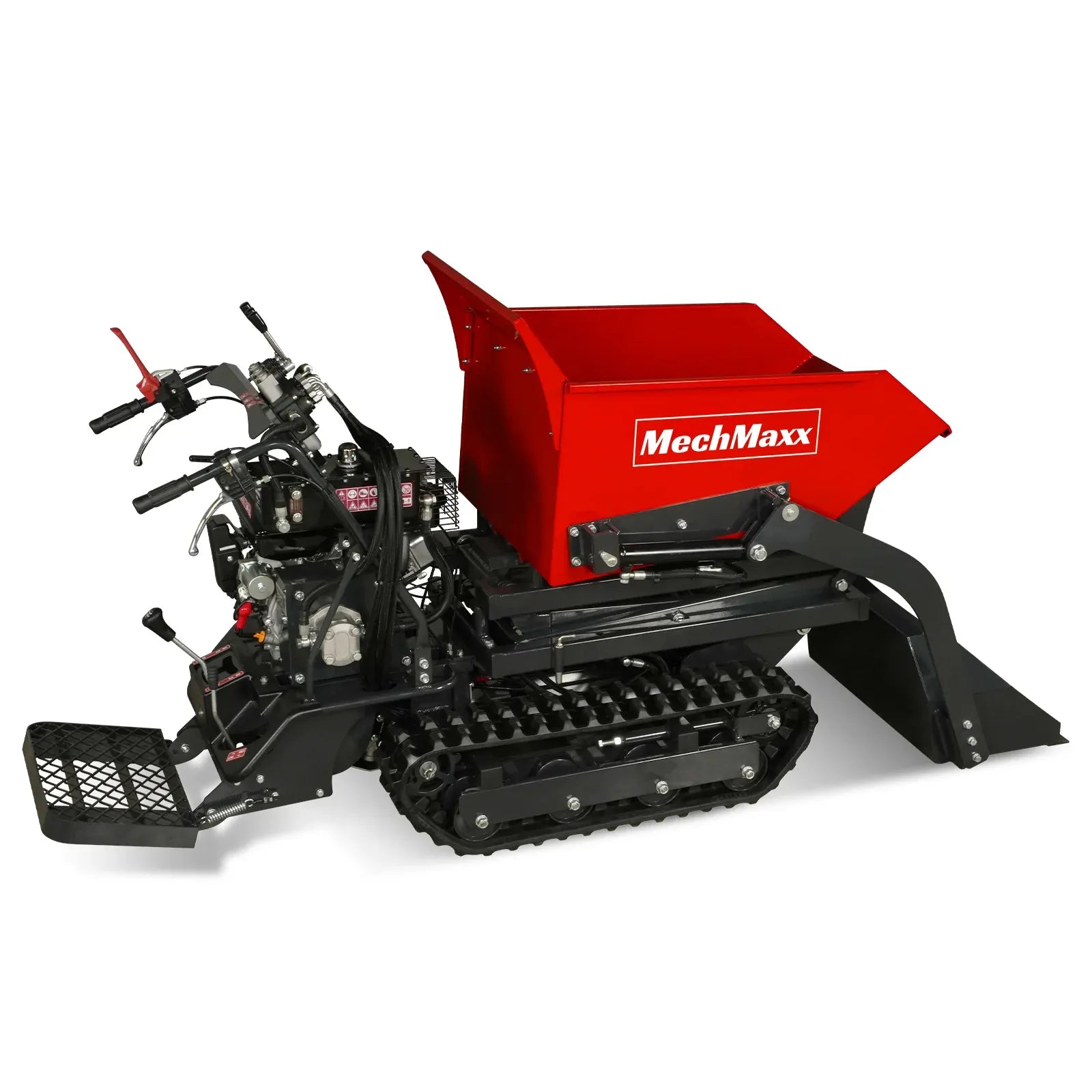

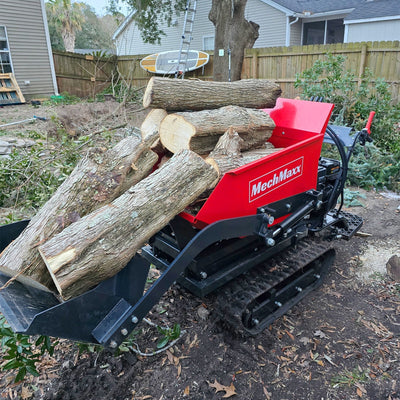

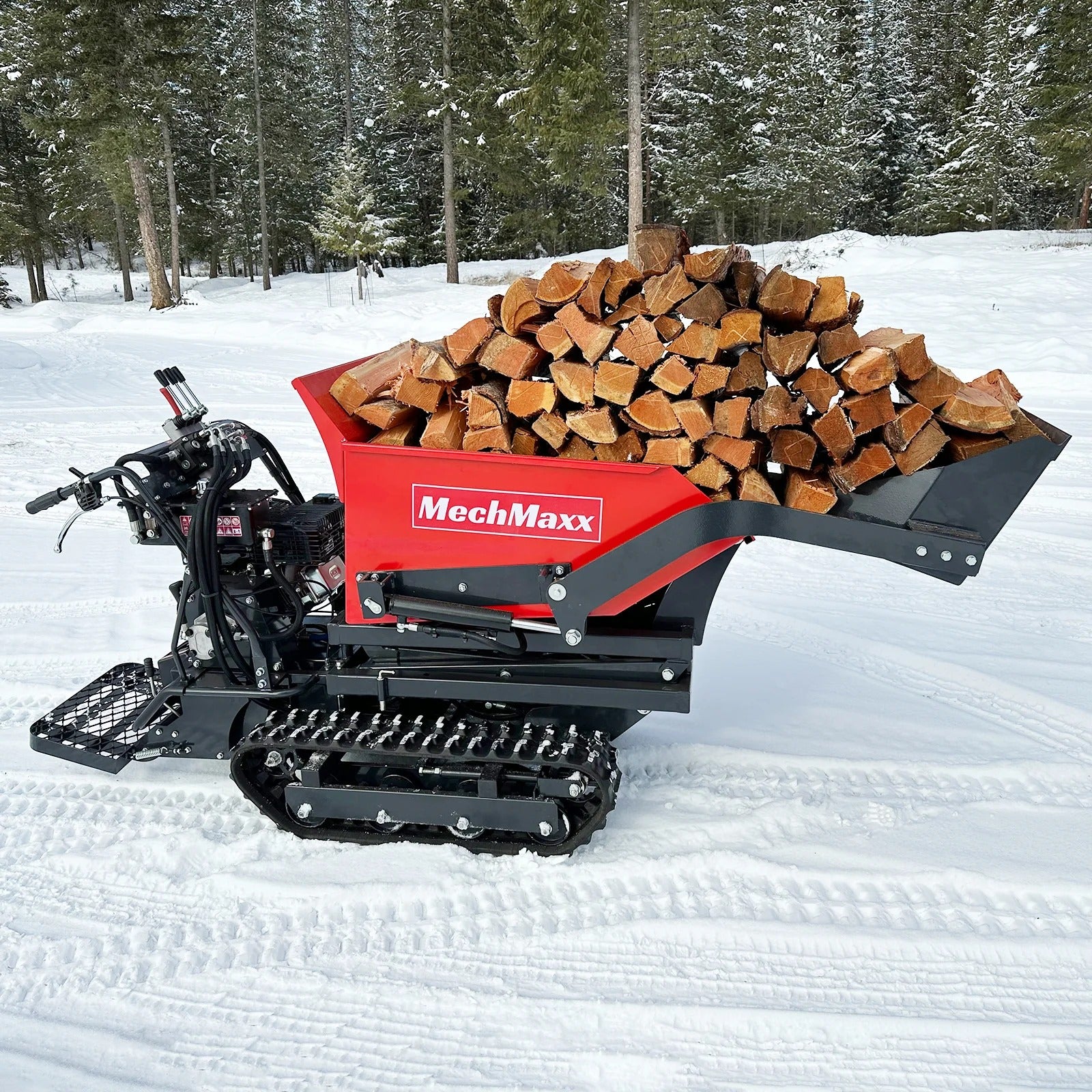

The durable steel bucket provides a capacity of 1100 lbs and 10 cubic feet, making it suitable for transporting a wide range of materials. Its tracked drive system, combined with approximately 4.3 inches of ground clearance, allows it to operate effectively on smooth, slippery, or muddy terrain.
With a compact and narrow design, this dumper is ideal for navigating tight or hard-to-reach areas. A tight turning radius further enhances maneuverability in confined spaces.

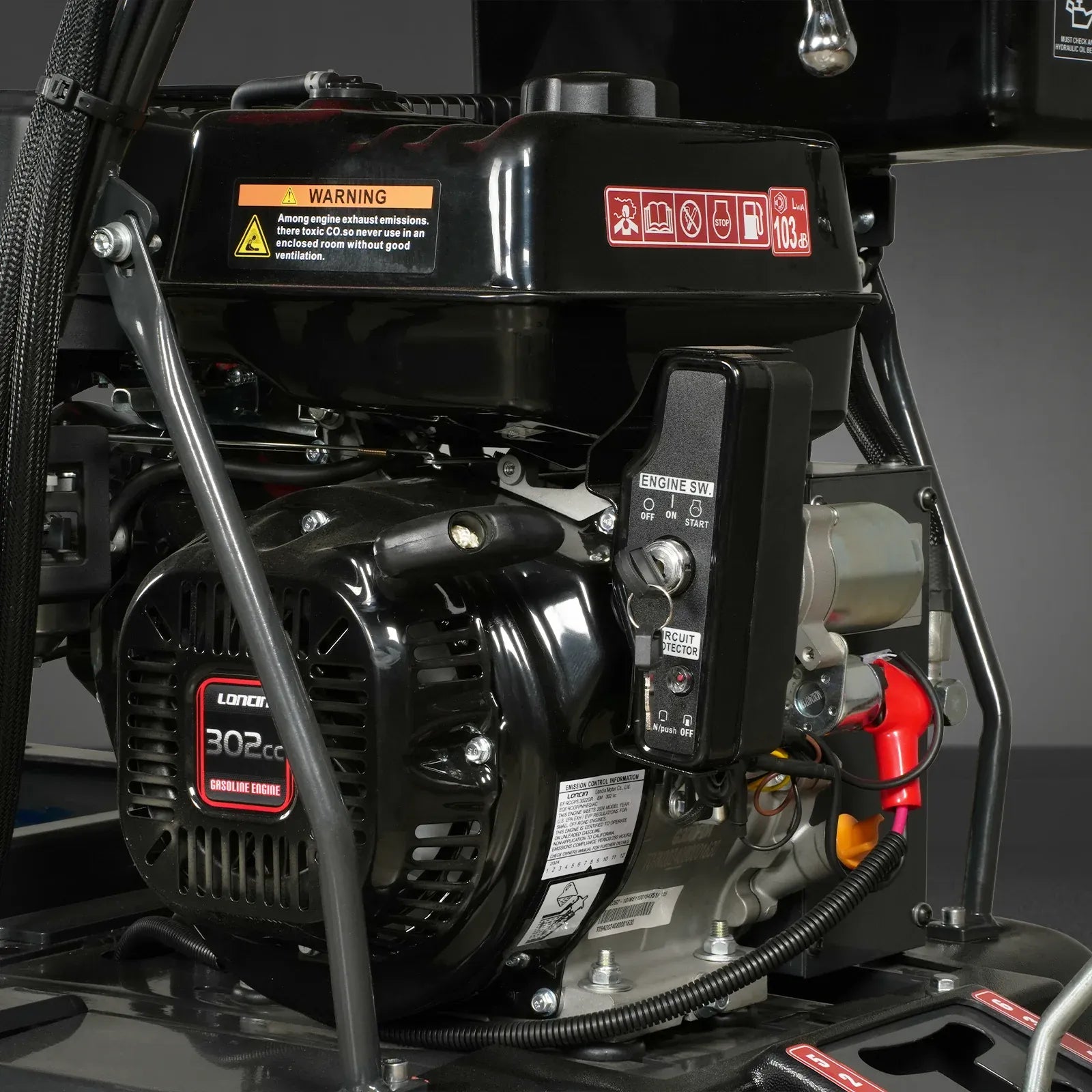

Powered by a 10HP, 302cc single-cylinder, 4-stroke, air-cooled OHV gasoline engine with electric start, the machine delivers reliable performance for a variety of applications.
Fuel & Fluid Requirements:
- Gasoline: Clean, fresh, unleaded gasoline
- Engine Oil: 10W-30
- Hydraulic Oil: AW 46 Hydraulic Oil
Important Notes:
- This machine is shipped without engine oil or fuel. Please add both before starting and refer to the engine manual for proper setup.
- Hydraulic oil is not included. Ensure the system is properly filled before operation.
| Specifications | Details |
|---|---|
| Engine | LONCIN G300FD Gasoline Engine |
| Engine Type | Single Cylinder, 4 Stroke, Air-Cooled, OHV |
| Engine Displacement | 302 cc |
| Horsepower | 10 HP |
| Start | Electric Start (Battery Included) |
| Fuel Tank Capacity | 1.59 gal (6L) |
| Engine Oil Capacity | 0.25 gal (0.95L) |
| Hydraulic Oil Capacity | 0.79 gal (3L) |
| Transmission | Transaxle (6 Forward / 2 Reverse Speeds) |
| Forward Speed | 0–4.47 mph |
| Reverse Speed | 0–1.49 mph |
| Max. Gradeability | 30% |
| Loading Capacity | 1100 lbs |
| Bucket Capacity | 10 cu.ft. |
| Shovel Capacity | 1.8 cu.ft. |

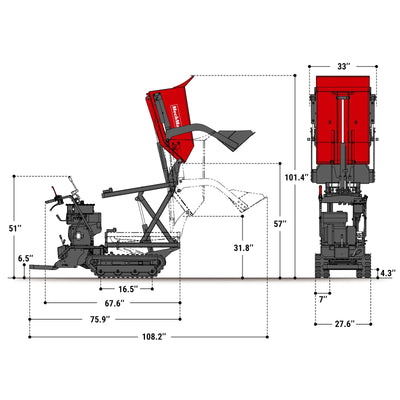

| Overall Width | 33 in |
| Max. Dumping Height | 57 in |
| Bucket Size | 39.9 x 27.5 x 17.7 in |
| Track Width | 7 in |
| Ground Clearance | 4.3 in |
| Working Pressure | 16 MPa |
| Track Roller | 8 pcs |
| Track Size | 180W x 60P x 38L |
| Package Method | Iron Frame |
| Packing Size | 75.5 x 30 x 51 in |
| Weight (N.W. / G.W.) | 930 / 1012 lbs |
