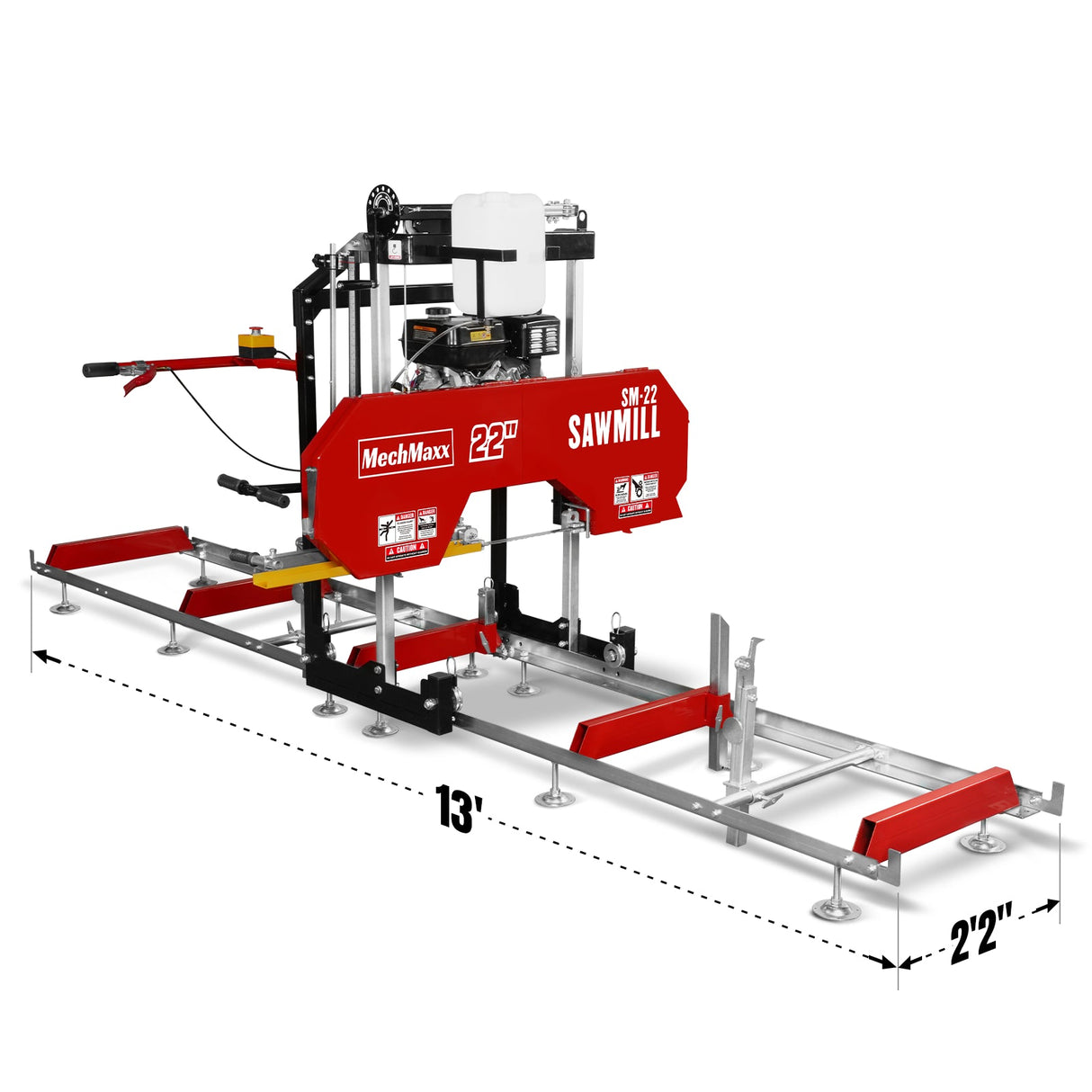

MechMaxx 22" Portable Sawmill with KOHLER 9.5HP 277cc Engine, 18" Board Width, 13' Track Length, Model SM-22
MechMaxx 22" Portable Sawmill with KOHLER 9.5HP 277cc Engine, 18" Board Width, 13' Track Length, Model SM-22 is backordered and will ship as soon as it is back in stock.
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
MechMaxx 22" Portable Sawmill with KOHLER 9.5HP 277cc Engine, ...
Designed for high-capacity milling, this 22" portable sawmill allows you to turn large logs into usable lumber with precision and efficiency. Built as a faster and more consistent alternative to chainsaw milling, it delivers smoother cuts while significantly reducing time and manual effort.
Powered by a commercial-grade KOHLER engine and supported by a belt-driven clutch system, this unit is built to handle demanding workloads in both on-site and remote environments.
Key Features & Benefits
- 22" Maximum Log Diameter – handles larger logs for more versatile milling applications
- Up to 18" Cutting Width – ideal for slabs, beams, and wide boards
- Faster Than Chainsaw Milling – improves productivity while delivering cleaner, more consistent results
- Built for Extended Use – designed to withstand long working hours in tough conditions
- 9.5HP 277cc KOHLER engine – commercial-grade durability, smooth throttle response, designed for long runtime and heavy-duty use
- Belt-Driven System with Clutch Engagement – ensures controlled power transfer and reduces wear
- Stable Cutting Performance – maintains consistent blade speed for improved accuracy and finish
- 23-Position Adjustable Thickness Handle – provides accurate, repeatable board sizing
- Adjustable Cutting Thickness (Up to 7") – mill lumber exactly to your project requirements
- Manual Saw Head Feed Control – gives full operator control for smoother, safer cuts
- Carbonized Steel Blade (127" × 1.3" × 0.04") – designed for durability and reduced vibration
- High Blade Speed – produces cleaner cuts while minimizing material waste
- Spiral Log Clamps – hold logs securely in place during milling
- Emergency Stop Button – quick shutdown capability for added safety
- Heavy-Duty Track System – ensures stability and accuracy across the entire cut
- 157" Standard Track System – delivers approximately 125" cutting length; optional 78" track extension available for longer logs
| Specifications | Details |
|---|---|
| Engine Brand | KOHLER |
| Engine Power | 9.5 HP |
| Engine Displacement | 277cc |
| Engine Type | Single Cylinder, 4-Stroke, Air-Cooled OHV |
| Start Type | Recoil |
| Max Log Diameter | 22" |
| Max Cutting Width | 18" |
| Max Board Thickness | 7" |
| Standard Cutting Length | 125" |
| Track Length | 157" (13 ft) |
| Track Extension | 78" (Optional) |
| Blade Size | 127" × 1.3" × 0.04" |
| Drive Type | Belt Drive w/ Clutch |
| Blade Engagement | Centrifugal Clutch |
| Log Clamping System | Spiral Log Clamps |
| Frame | Powder-Coated Steel |
