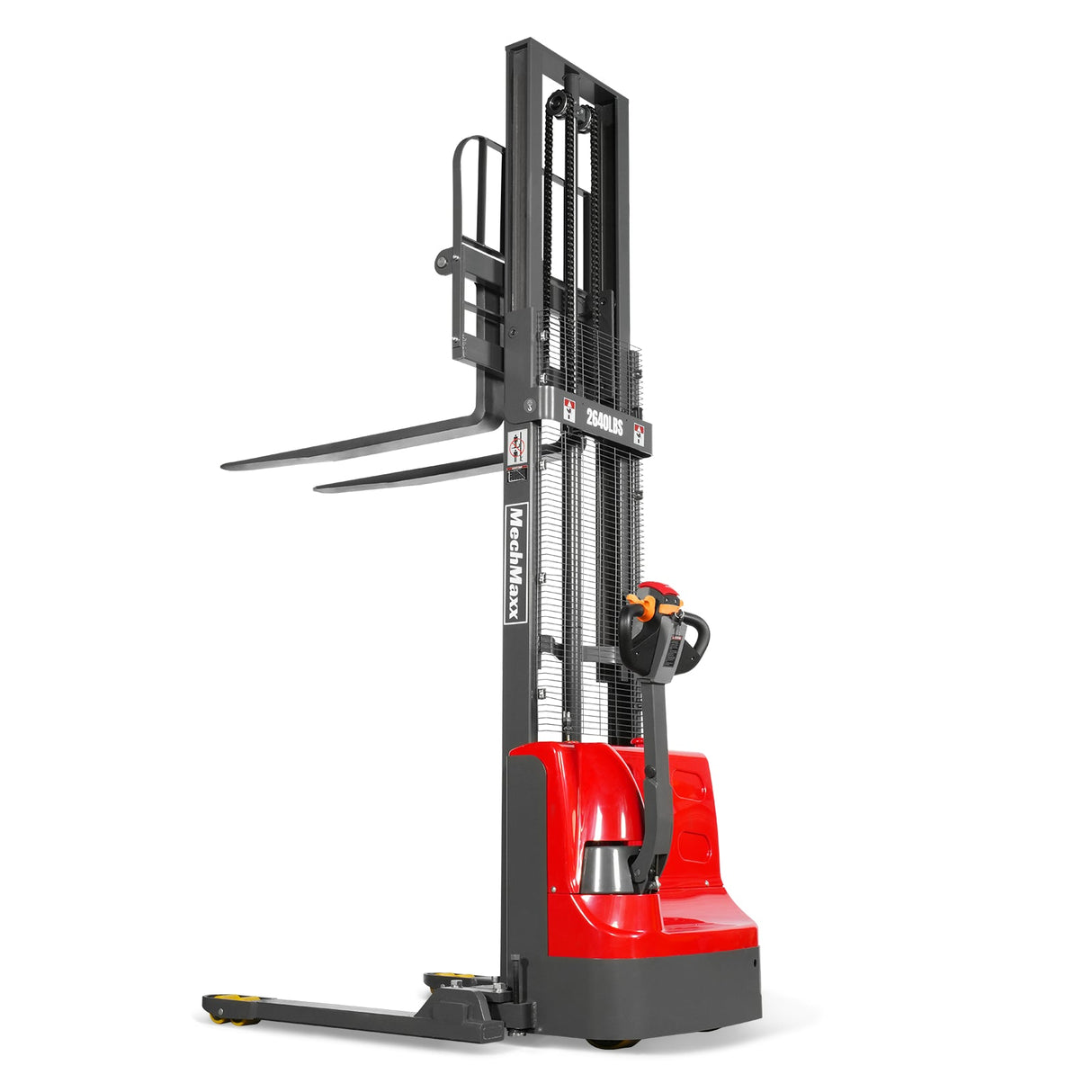

MechMaxx 2640 lb Lithium Electric Straddle Stacker with 118" Lift, Model F26-118S

The MechMaxx F26 Series is a fully electric straddle stacker built for efficient, reliable material handling in warehouses, distribution centers, and industrial environments. With powered drive and lift, it delivers smooth operation, reduced operator effort, and increased productivity — making it a major upgrade over semi-electric units.

Equipped with a high-capacity lithium battery, fast on-board charging, and precision controls, the F26 Series is designed to handle demanding, multi-shift operations with ease.

Key Features & Benefits

• Fully Electric Drive & Lift – effortless forward/reverse travel and lifting improve workflow efficiency and reduce operator fatigue
• 2,640 lb Load Capacity – designed for stable handling of standard pallet loads
• 118" Maximum Lift Height – extended reach for higher shelving, stacking, and vertical storage applications
• High-Performance Lithium Battery – built-in 24V/60Ah lithium-ion battery provides extended runtime with opportunity charging capability
• Fast Built-In Charger – integrated 24V/30A charger ensures quick, convenient charging without external equipment
• American Curtis Controller – delivers smooth acceleration, precise handling, and reliable performance
• Powerful 2.2 kW Lift Motor – provides strong and efficient lifting for demanding workloads

Adjustable & Versatile Design

• Fork width adjusts from 8.3" to 33.5"
• Straddle legs adjust from 35.4" to 51.2" (inside width)
• Accommodates a wide range of pallet sizes and applications

Built for Tight Spaces

With a 53" turning radius and turtle mode for precision control, this stacker is ideal for narrow aisles and confined warehouse environments.

Operator Comfort & Control

• Ergonomic integrated handle with intuitive controls
• Dual butterfly travel controls and lift/lower functions
• Horn, turtle mode, and emergency reverse within reach
• Gas spring support reduces vibration and operator fatigue

Stability & Safety Features

• Load backrest prevents cargo from shifting backward
• Polyurethane wheels protect flooring and ensure smooth travel
• Emergency reverse button for immediate response
• Electromagnetic braking system for controlled stopping
• Automatic safety-release braking system
• Explosion-proof valve prevents sudden fork drop
• Electronic lift limit switch prevents over-lifting damage
• Protective mesh guard enhances operator safety

Heavy-Duty Construction

• Reinforced double-frame steel design for long-term durability
• Engineered for stability, balance, and continuous use
• Built to perform in demanding industrial environments

Battery Care & Maintenance

• Fully charge after each use
• Avoid deep discharge or overcharging
• Charge at least once per month during storage
• Store in a cool, dry environment

Proper maintenance ensures long battery life and safe operation.

Important Note

Due to its size and weight, this unit cannot be unloaded with a lift gate. A forklift or unloading platform is required at delivery.

Documents

• Product Manual
• Parts Manual
